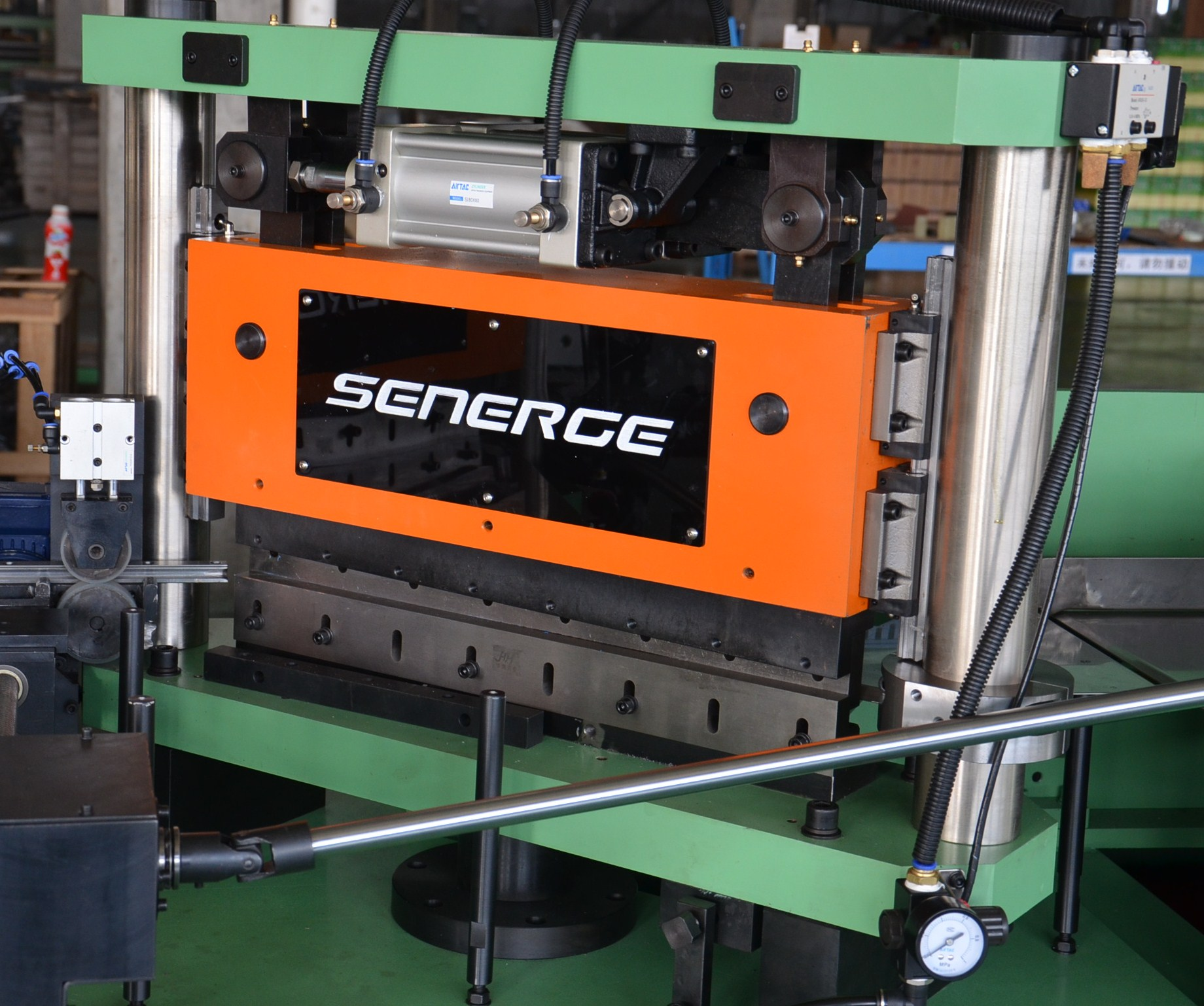

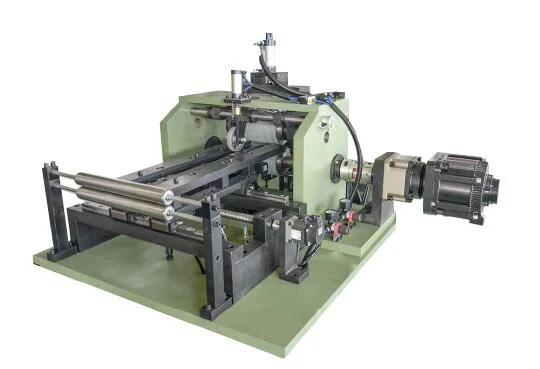

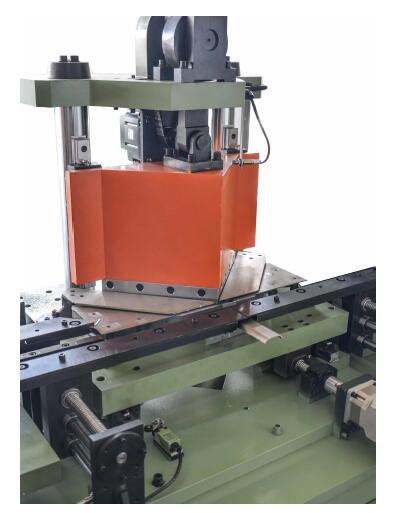

Transformer silicon steel core cutting machine cut to length line cut line machine

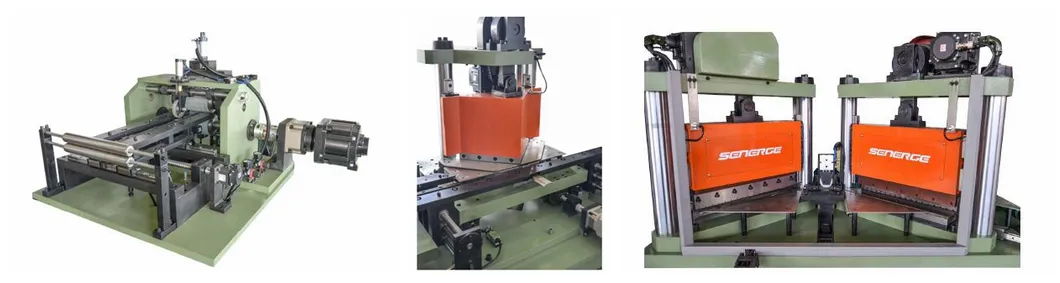

Summary: HJ-200/1200A is specialized equipment for production of the core of transformer.
Main Parameters
- Processing range:
Core steel thickness: 0.23-0.35 mm
Core steel width: 40-200 mm
Length of cut: 350-1200 mm
- Processing tolerance:
Cutting length tolerance: ± 0.10mm (when L ≤ 1000), ± 0.15mm (when L ≥ 1000)
Angle: ± 0.025 °
Maximum burr: ≤ 0.02mm

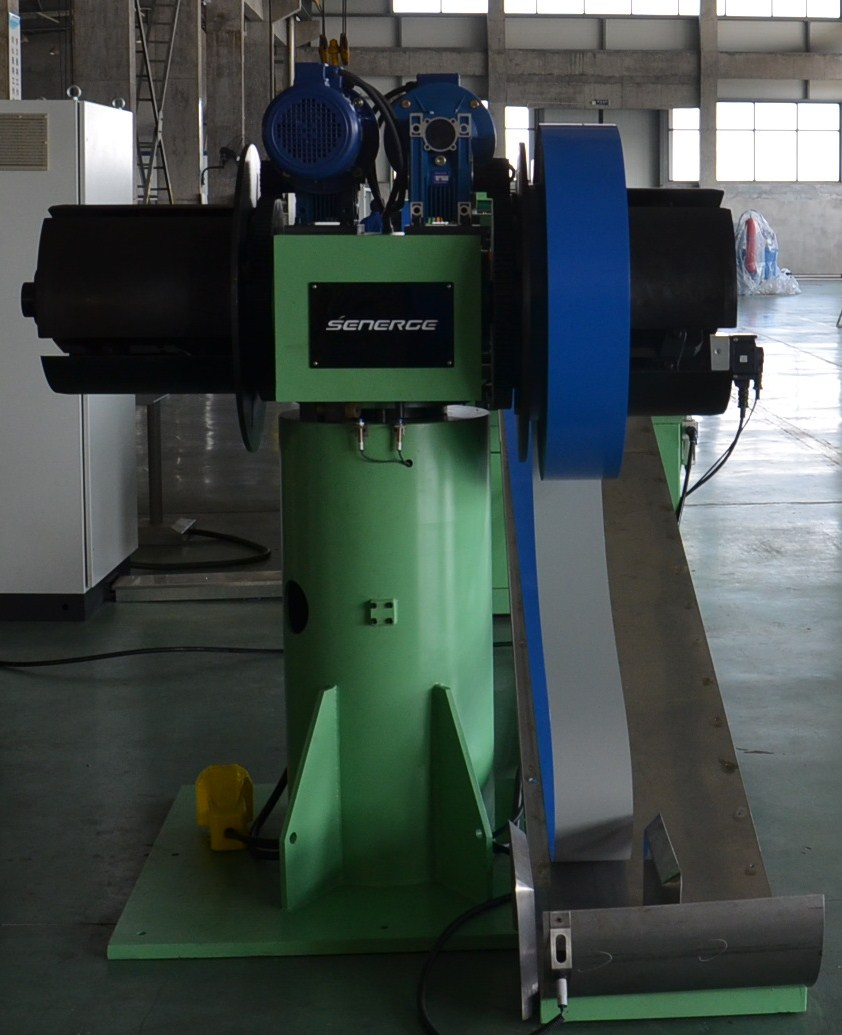

Double Head Decoiler
- Maximum load capacity: 800Kg
- Coil Inside diameter: Ф500mm
- Coil Outside diameter: ≤ Ф1000mm
- Coil Width: 40-200mm
- Decoiler line speed: 0- 200 M / min stepless Speed Regulation
- Mandrel diameter variation: Ф450 - Ф520mm
Frequently Asked Questions
What is the primary application of the HJ-200/1200A machine?
The HJ-200/1200A is a specialized CNC cut-to-length line designed specifically for the high-precision production of transformer silicon steel cores.
What is the cutting precision and maximum burr level?
The machine offers exceptional precision with a cutting length tolerance of ± 0.10mm (for lengths ≤ 1000mm) and an angle tolerance of ± 0.025°. The maximum burr is strictly controlled under 0.02mm.
What material thicknesses can this machine process?
It is optimized for core steel with a thickness ranging from 0.23mm to 0.35mm and a width between 40mm and 200mm.
What are the decoiler's load and speed capacities?
The double head decoiler supports a maximum load capacity of 800kg and features stepless speed regulation from 0 to 200 meters per minute.
What type of motor drives the system?
The machine is driven by a high-performance Servo Motor, ensuring stable operation and high automatic grade performance.
What is the monthly production capacity for this equipment?
The production facility can supply up to 30 sets of this specialized transformer core cutting equipment per month.
