High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
1 / 5
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke
High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke

High Configuration Electric Silicon Steel Servo Motor Transformer Core Lamination Cutting Machine for Center Leg, Side Leg, Yoke

After-sales Service: on Site Debugging and Training
Type: Silicon Steel Cut to Length Line
Drive Mode: CNC
Send Inquiry

Product Description

Basic Specifications

Model NO.
HJ-500/2500
Warranty
2 Years
Material
Silicon Steel
Industry
Power & Distribution
Feeding Speed
0~220m/Min
Length Range
500~2500mm
Width Range
60~500mm
Thickness
0.23~0.35mm
Power
40kw
Production Capacity
2 Unit/ Month

Product Description

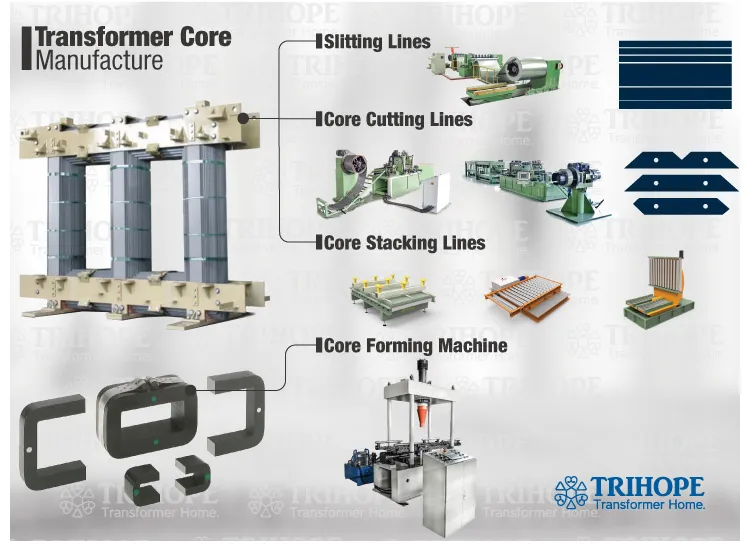

Transformer Core Cutting Machine

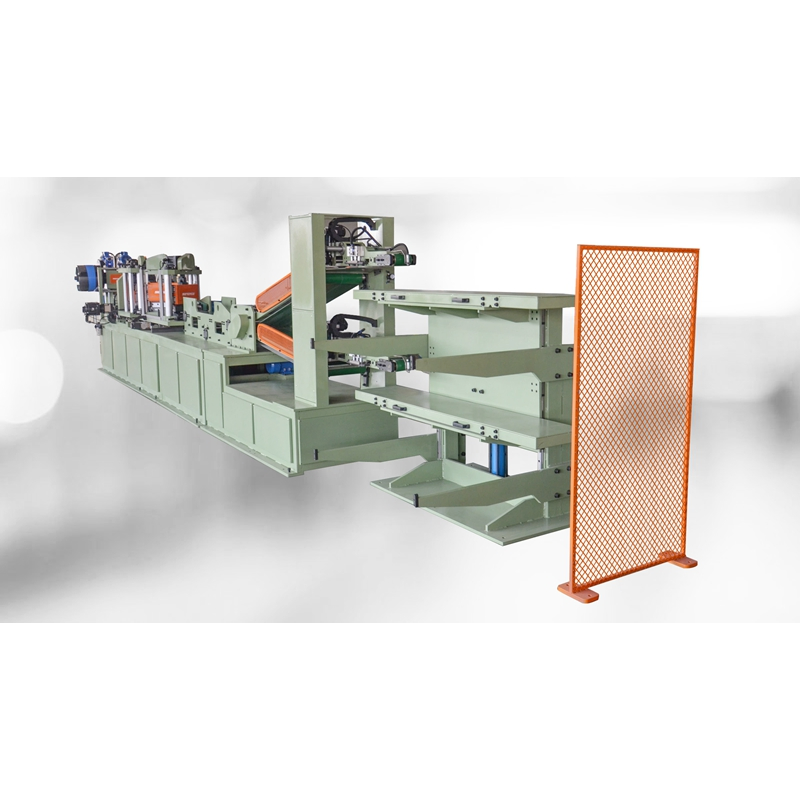

The HJ-500/2500 High Configuration Electric Transformer Core Cutting Line is specialized equipment designed for processing transformer cores. Featuring a configuration of two shears, one V-notching unit, and one punching unit, it adapts perfectly to the shearing and punching of yoke, leg, center leg, and various piece types.

Equipped with a large-size PLC program control system and a touch-screen man-machine interface, operators can preset types, sizes, quantities, and steps for fully automatic production. The system ensures high automation and excellent precision.

  • Automatic Stacking: Two sets of automatic stacking systems for center legs, side legs, and yokes to improve efficiency.
  • Servo System: Utilizes over 10 sets of AC servo units for fast response, low noise, and high precision.
  • Energy Efficiency: Optimized layout and high-performance components reduce labor intensity and site area requirements.

Technical Performance

Processing Capability
Length / Width500~2500mm / 60~500mm
Thickness0.23~0.35mm
Tolerance of Length≤±0.1mm
Shearing Angle Accuracy±0.025
Shearing Burr≤0.02mm
Stacking Accuracy≤±0.25mm
Feeding Speed0~220m/min
Power Supply380V 50Hz ±10% (40KW)
Dimensions18500mm * 4000mm * 2100mm

Equipment Gallery

Servo Motor Detail

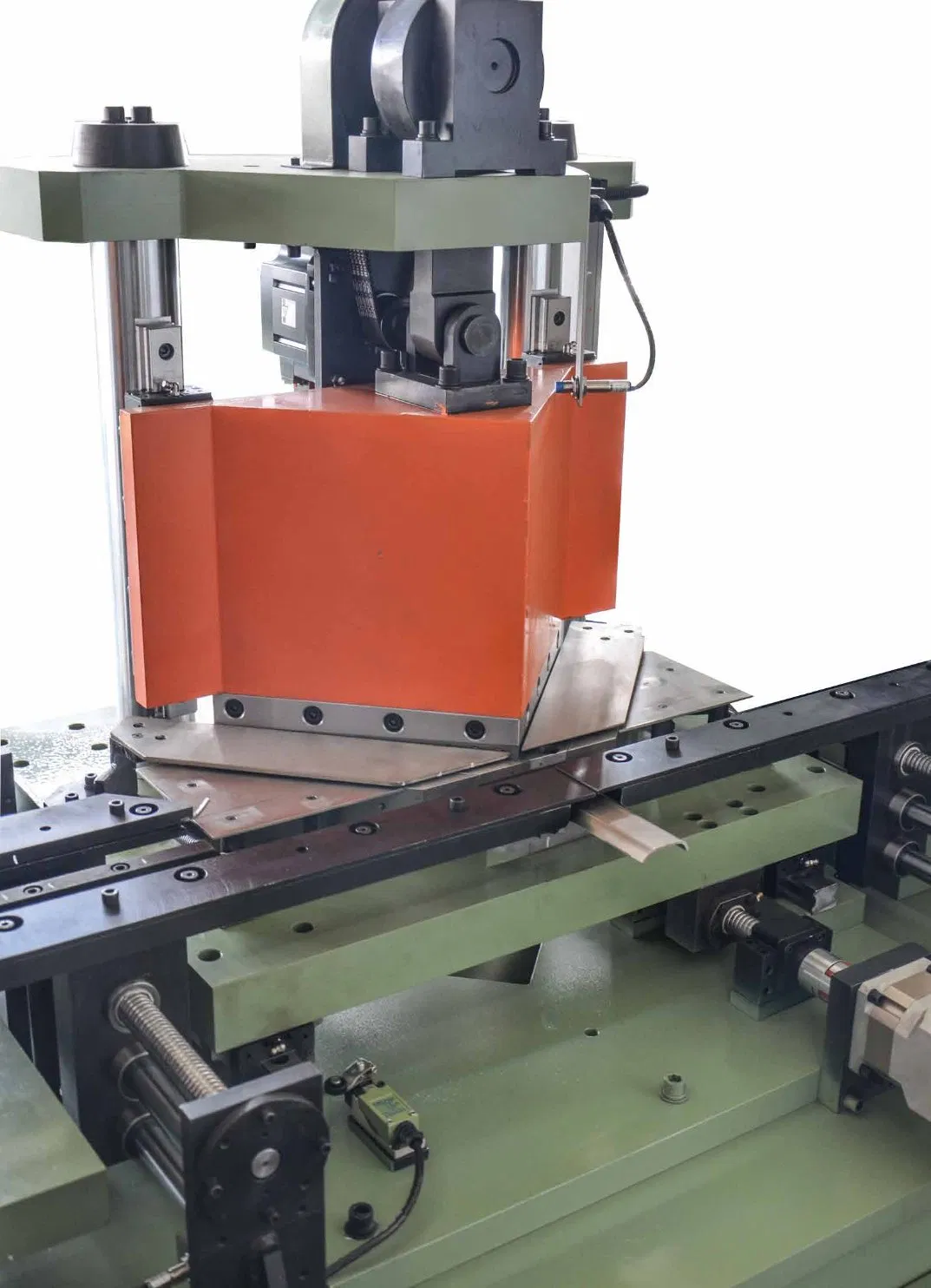

Core Cutting Process

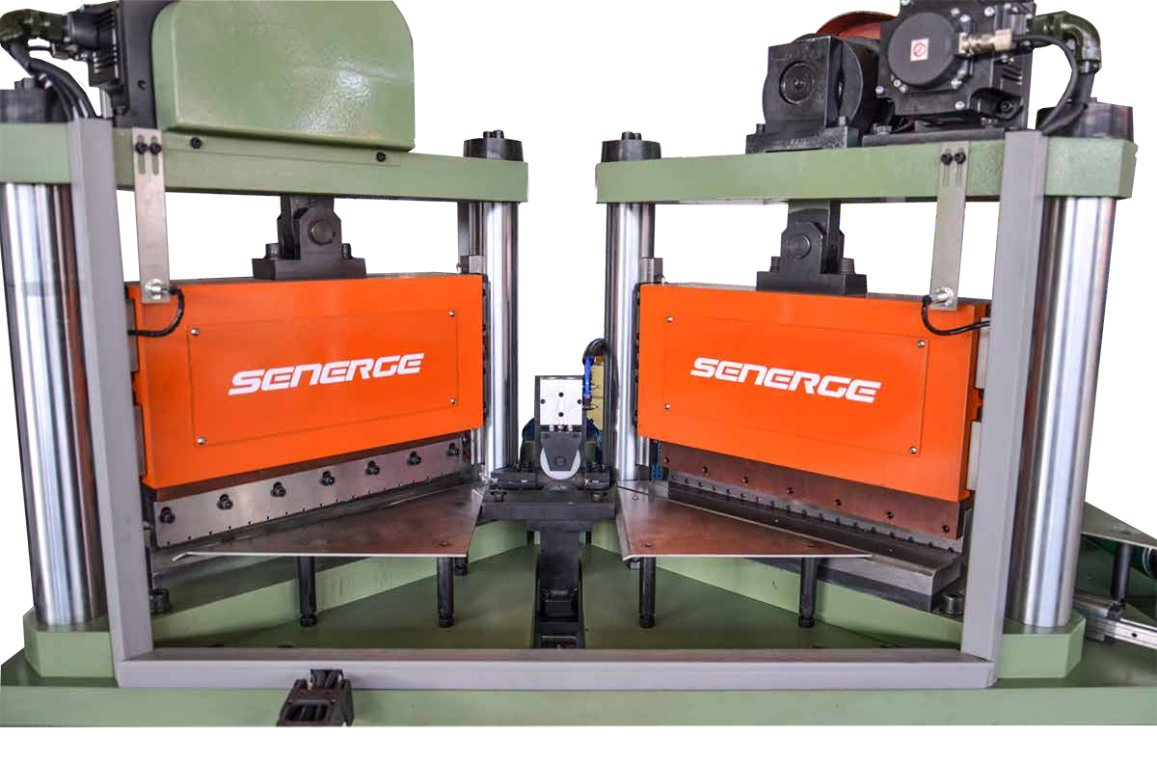

Shearing Unit
Control Panel
Stacking System

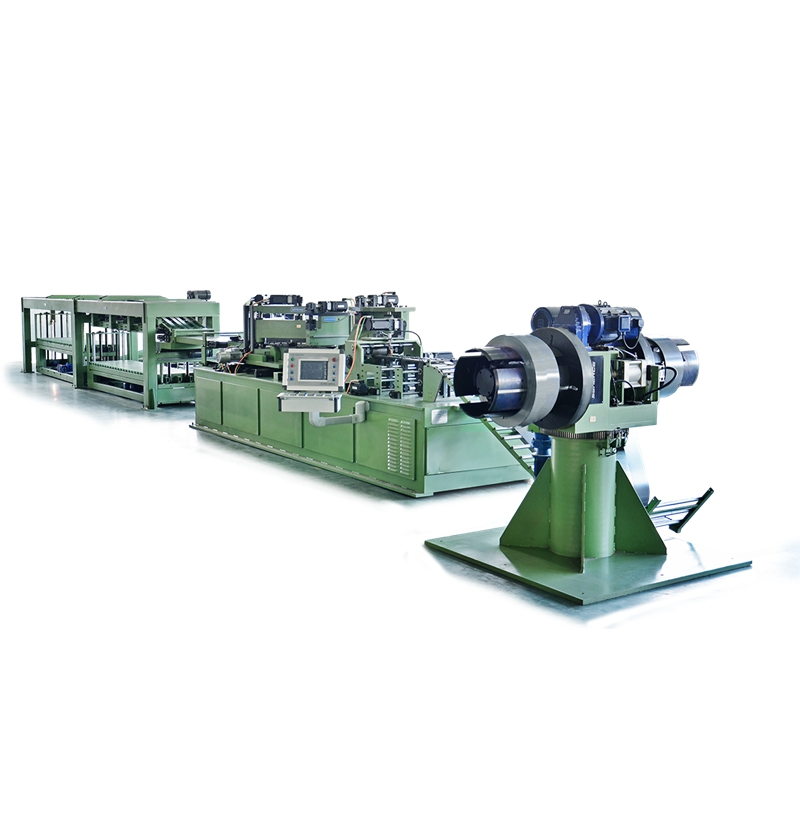

Full Machine View

Frequently Asked Questions

What is the maximum feeding speed of the HJ-500/2500 line?
The machine offers a high-speed feeding capability ranging from 0 to 220 meters per minute.
What kind of materials can this cutting machine process?
It is specifically designed for processing silicon steel sheets with a thickness of 0.23mm to 0.35mm.
How accurate is the shearing process?
The machine maintains a length tolerance of ≤±0.1mm and a shearing burr height of ≤0.02mm, ensuring high-quality lamination.
Does the machine support automatic stacking?
Yes, it includes two sets of automatic stacking systems that can handle center legs, left/right legs, and up/down yokes.
What control system does this equipment use?
The line is controlled by a large-size PLC system with a touch-screen HMI for easy programming and automatic production.
What are the power requirements for installation?
The equipment requires a three-phase five-line AC power supply of 380V at 50Hz, with a total power consumption of 40KW.
