⚙️ Basic Information
StructureLaser Drilling Machine
LayoutVertical
Number of ShaftMulti-Axis
Hole Diameter<50mm
Automatic GradeAutomatic
PrecisionHigh Precision
CertificationCE, RoHS, ISO 9001
Number of Heads4 Heads

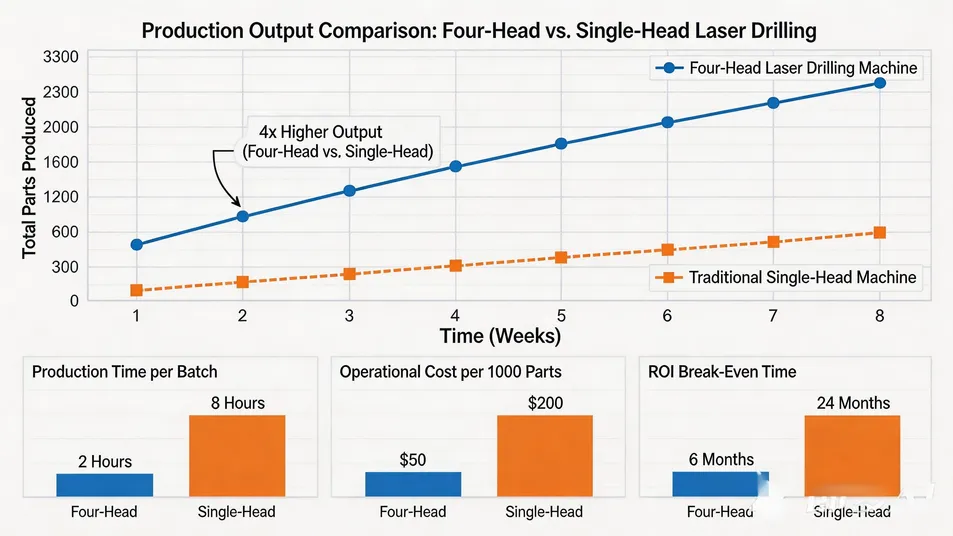

Efficiency Boost300% Higher Output
Capacity100 sets/Month
🚀 Product Description

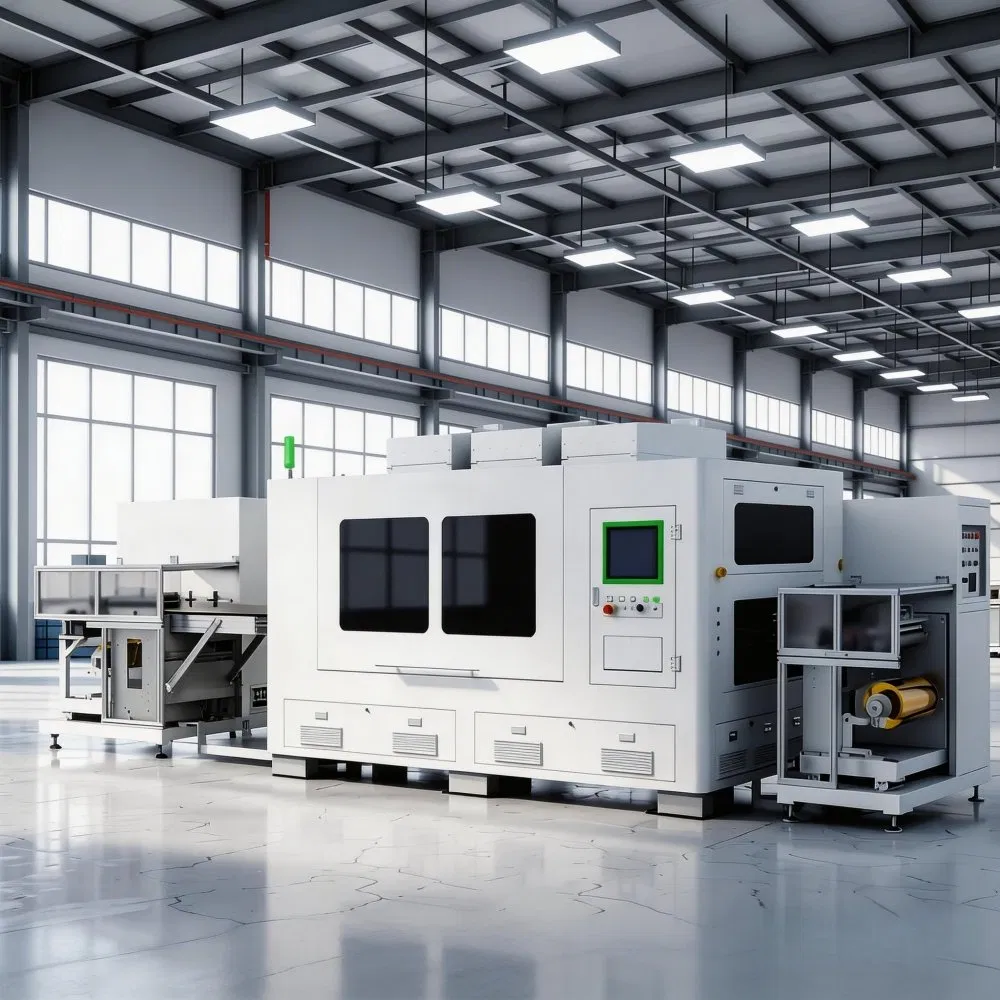

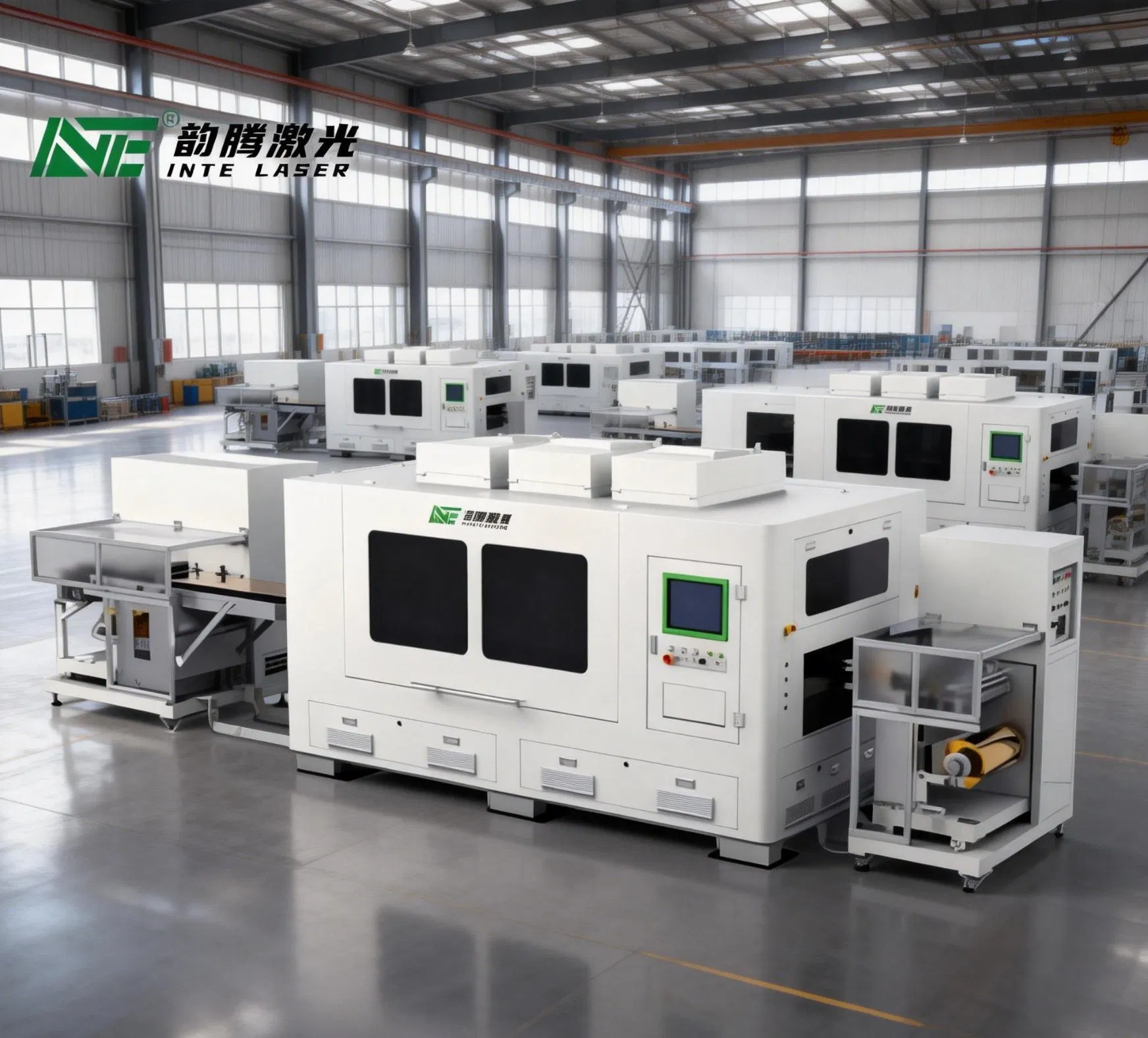

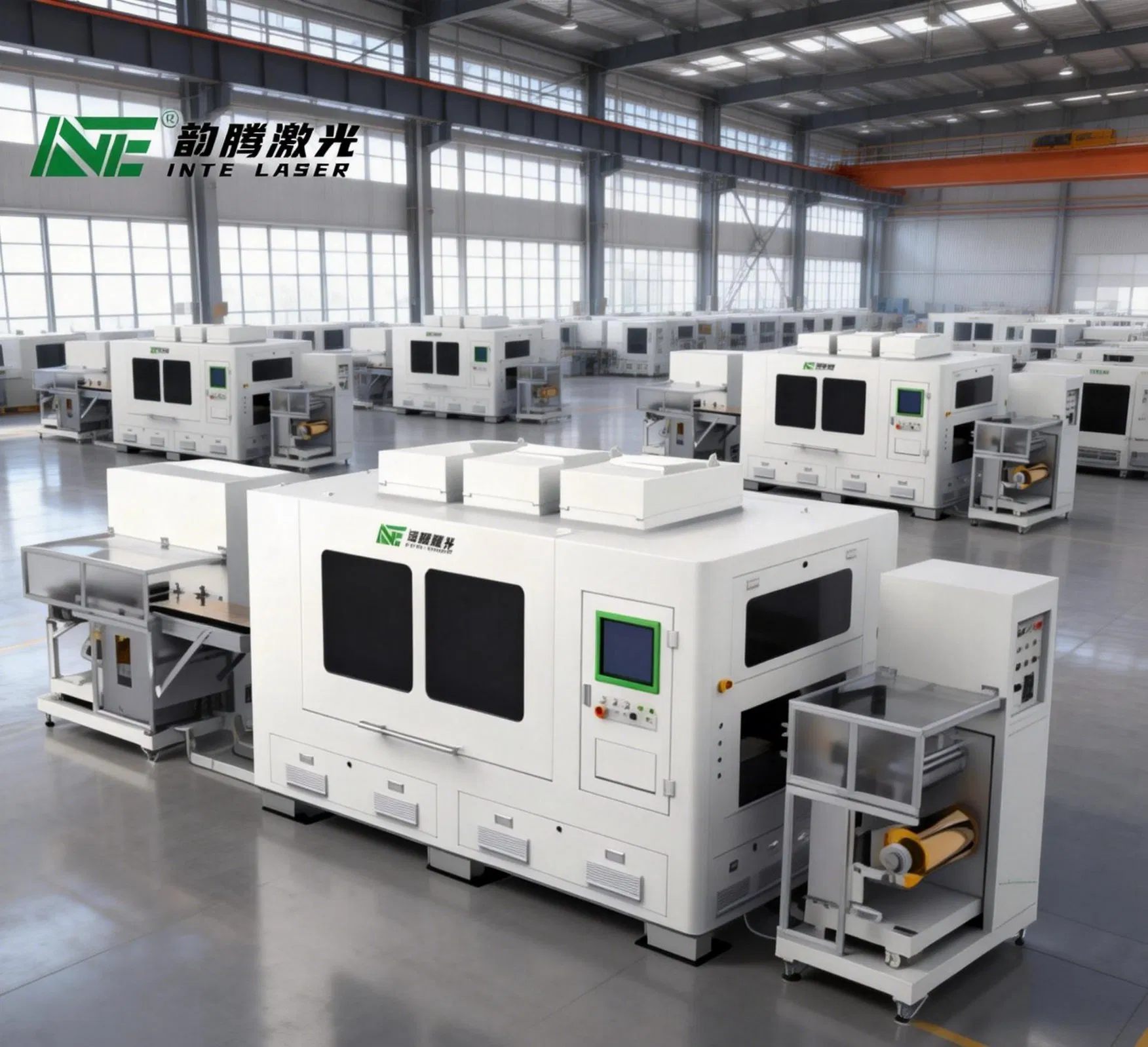

Game-Changing 4-Head Laser Drilling Equipment: Revolutionary Simultaneous Processing for Next-Generation Electronics Manufacturing

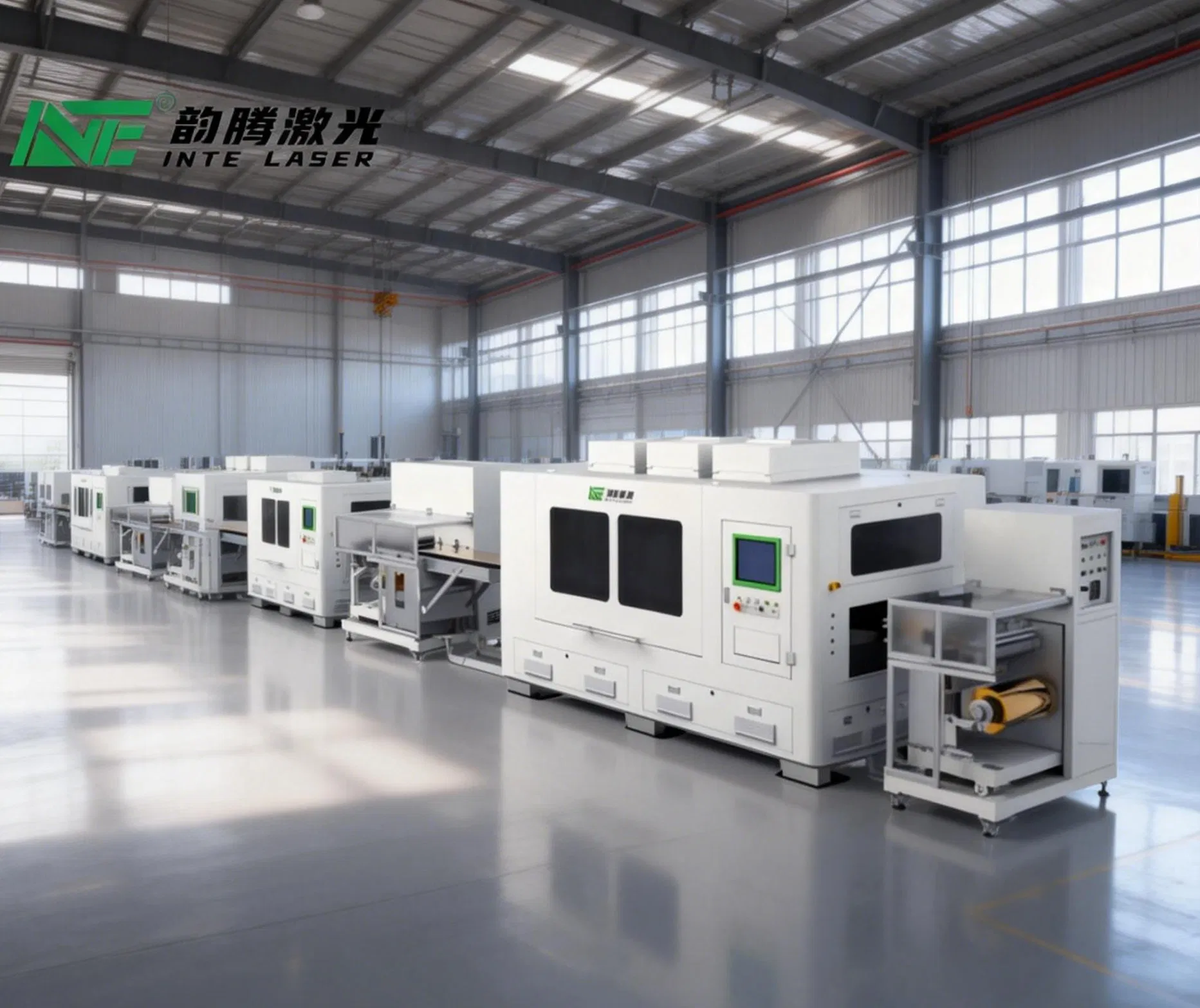

Introducing the groundbreaking Four-Head Roll-to-Roll Laser Drilling Equipment - the industry's first solution designed to revolutionize high-volume electronics manufacturing. As a pioneer in multi-head laser drilling technology, this equipment delivers unprecedented 4x efficiency improvements while maintaining superior precision standards.

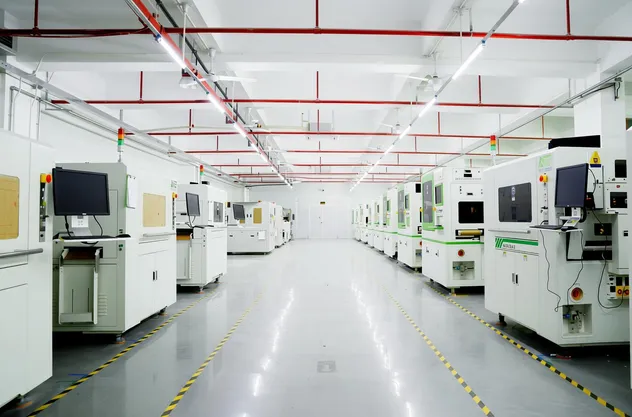

🏢 Research & Development
Specializing in the independent research and development of laser generators, optical devices, and automation systems. We provide innovative solutions for laser micromachining including PCB, semiconductors, and new energy batteries.
Mechanical Design Center
Laser R&D Center

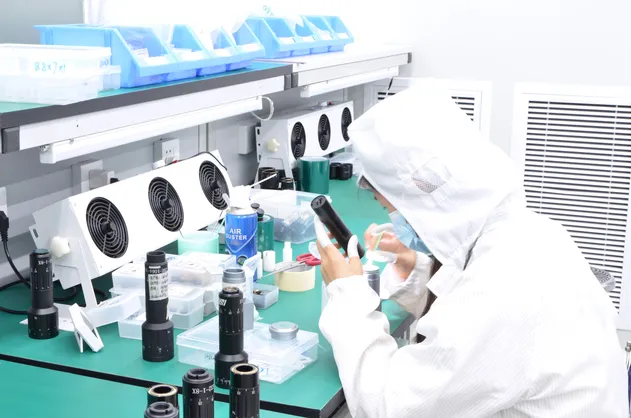

R&D Laboratory
❓ Frequently Asked Questions
What is the advantage of 4-head synchronous drilling?
Our 4-head technology enables parallel processing, quadrupling throughput for HDI PCBs and Flexible Circuits (FPC) while significantly reducing cycle time.
What is the processing accuracy?

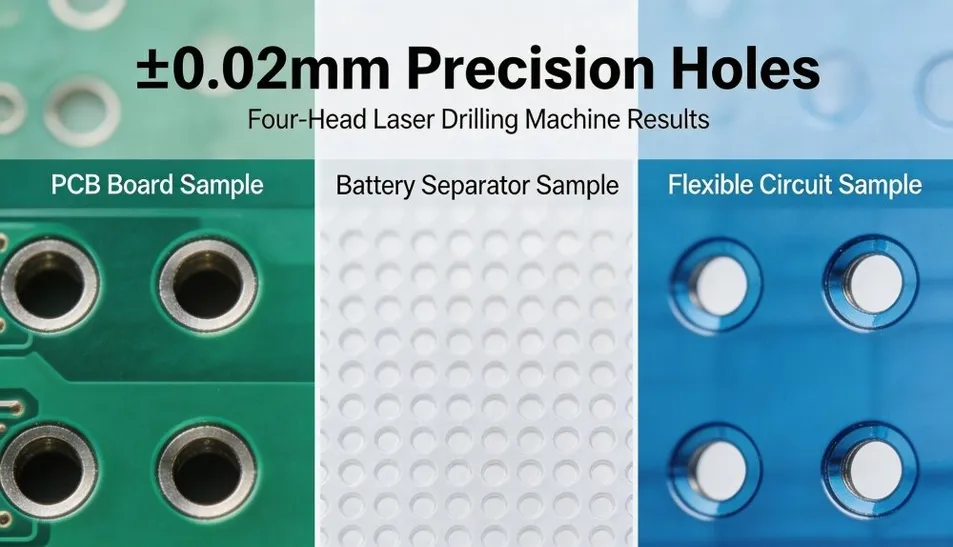

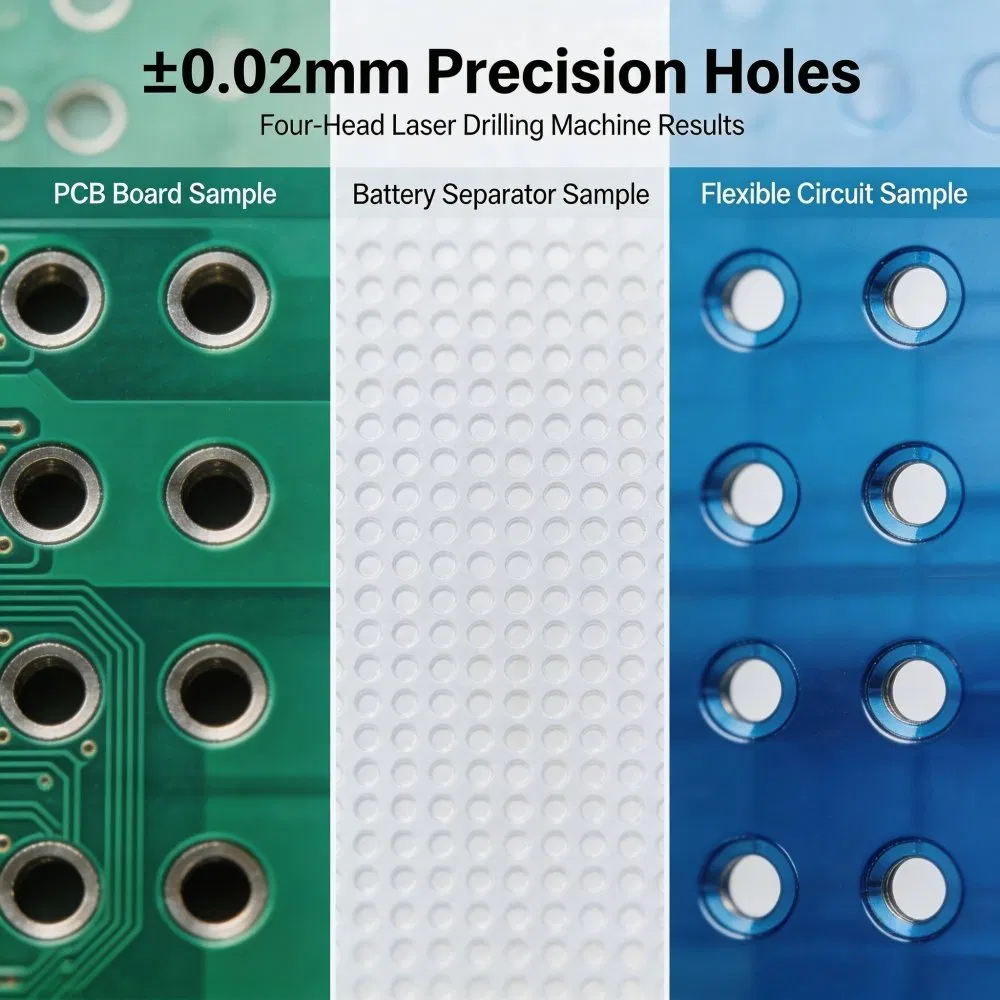

The system features a positioning accuracy of ±0.02mm and ±0.01mm repeatability, ensuring precise micro-vias and blind holes at high speeds.
What materials can it process?
It is compatible with FR4, rigid PCBs, Flexible PCBs (FPC), polyimide, ceramic substrates, and copper clad laminates.
Does it support blind vias and buried vias?
Yes, it handles blind via drilling (BVB), buried vias, and through-holes with minimal Heat Affected Zone (HAZ) for clean sidewalls.
Is the system automated?
Yes, it features CCD Vision Alignment and automated loading with real-time distortion correction for flexible boards.
Is beam quality consistent across all four heads?
Our beam splitting technology ensures uniform energy distribution across all 4 heads, guaranteeing consistent hole quality across the entire processing area.
