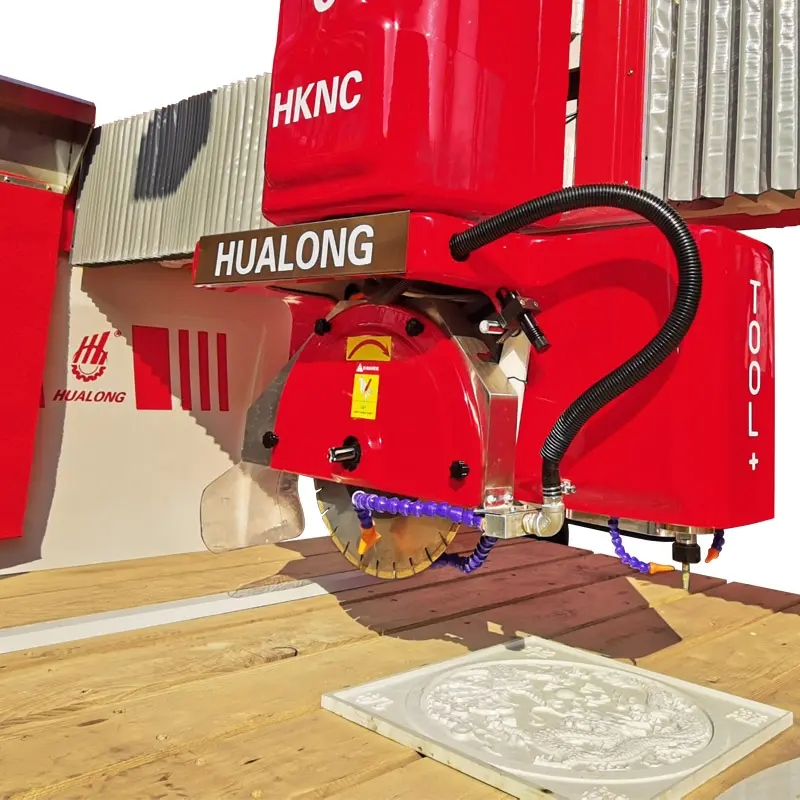

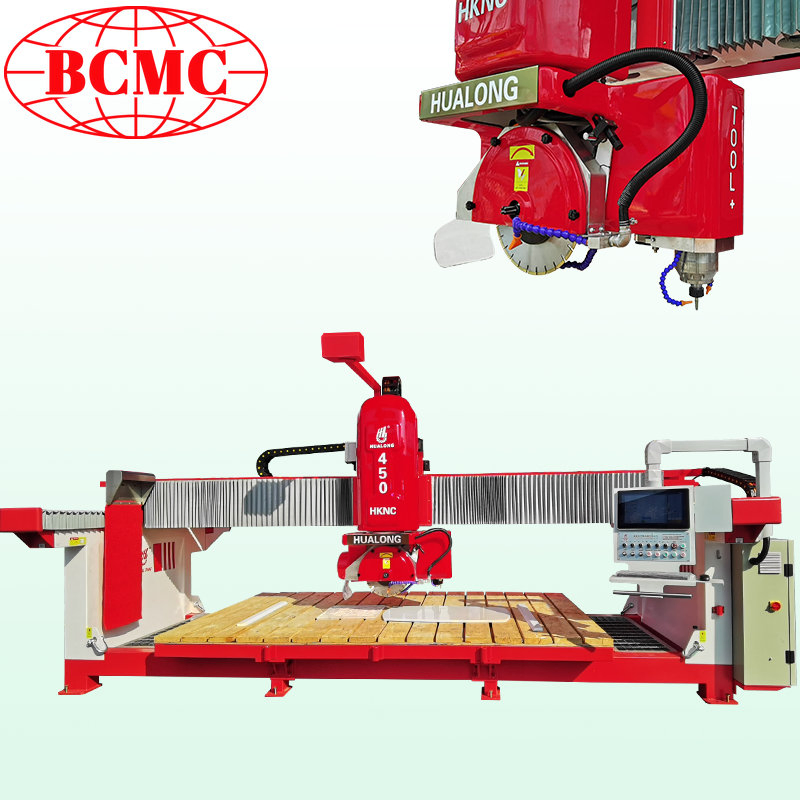

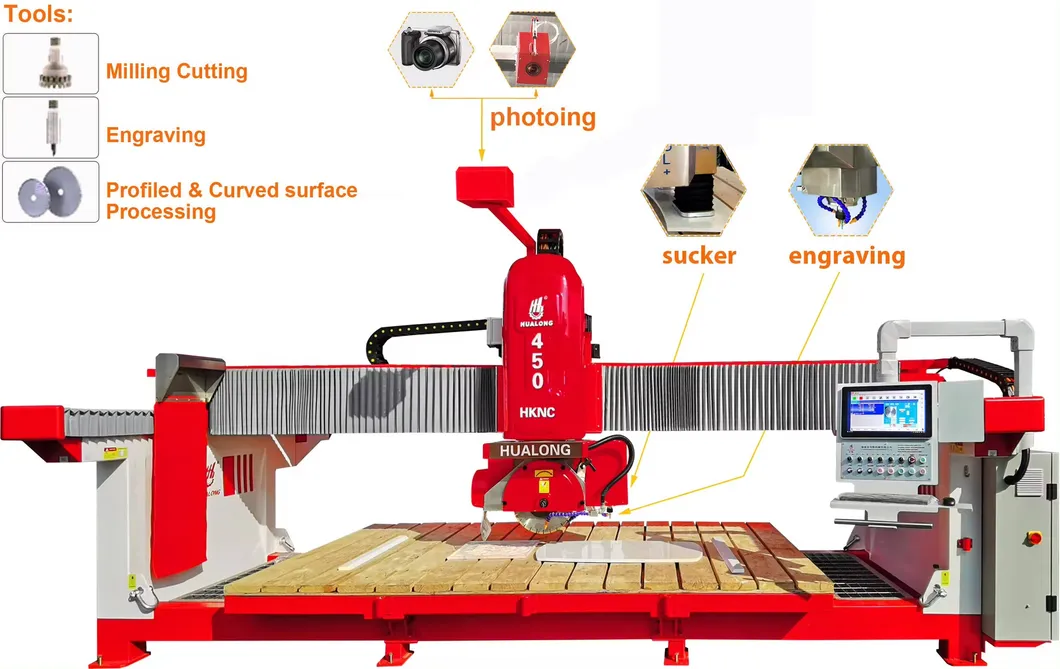

CNC Stone Machine HKNC-450plus with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind. It combines simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.

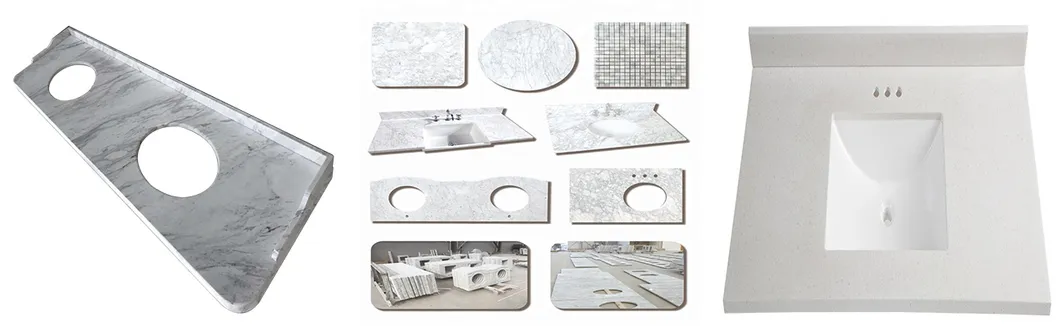

The CNC 5 axis marble granite bridge cutting machines feature a monoblock body and a rigid structure. This ensures vibration-free and high-speed operation for straight cutting, circular cutting, cross (step) cutting, kitchen top cutting, and sink milling.
| Technical Data | Value | Unit |
|---|---|---|
| Diameter of saw blade | ø400-ø450 | mm |
| Dimension of working platform | 3300x2000 | mm |
| Max. cutting length | 3300 | mm |
| Max. cutting thickness | 95 | mm |
| Max. lifting stroke | 250 | mm |
| Power of main motor | 15 | kw |
| Gross power | 22 | kw |
| Gross weight | 4000 | kg |
| Dimensions (L x W x H) | 5900x3380x2950 | mm |

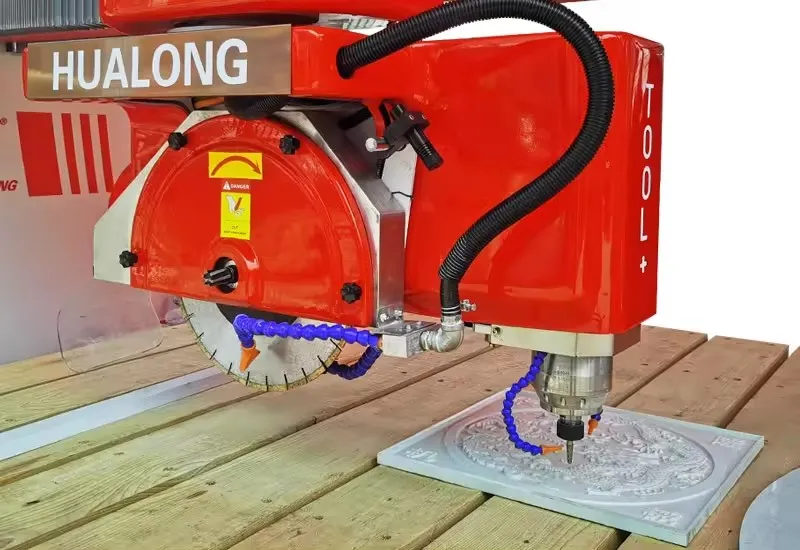

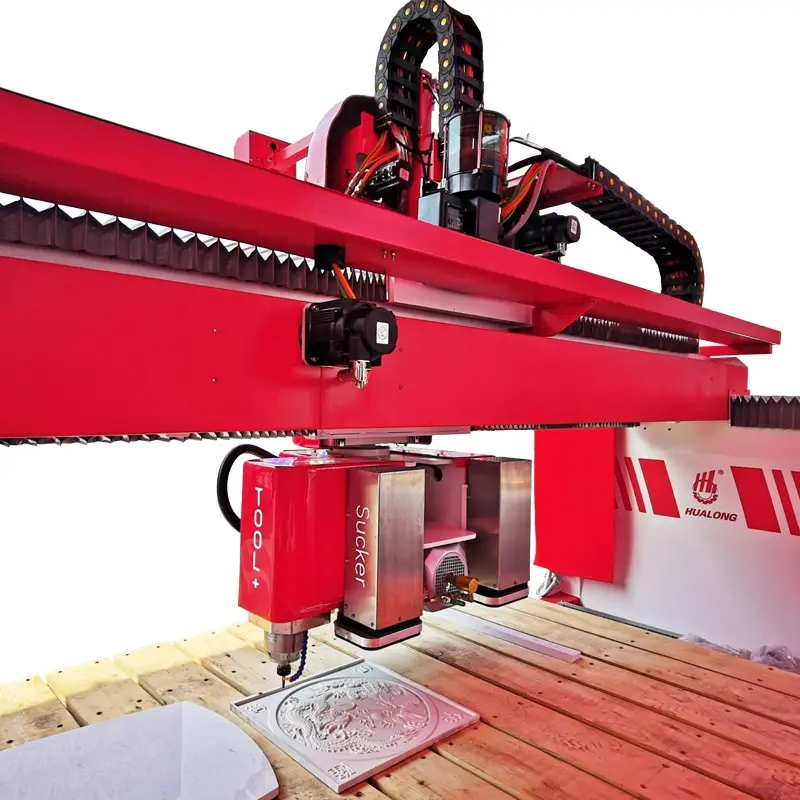

Sole Engraving Module (Optional)
Type: Electric spindle | Power: 5.5 kw | Speed: 0-24000 rpm
This high-speed electric spindle makes engraving finer and faster compared to mechanical spindles, excelling in curve and corner cutting.

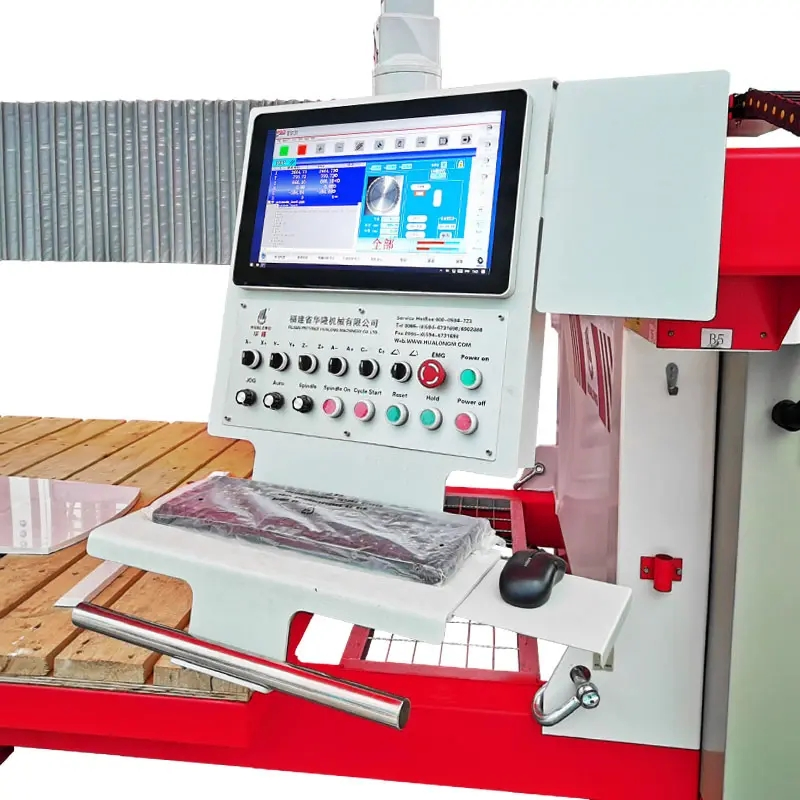

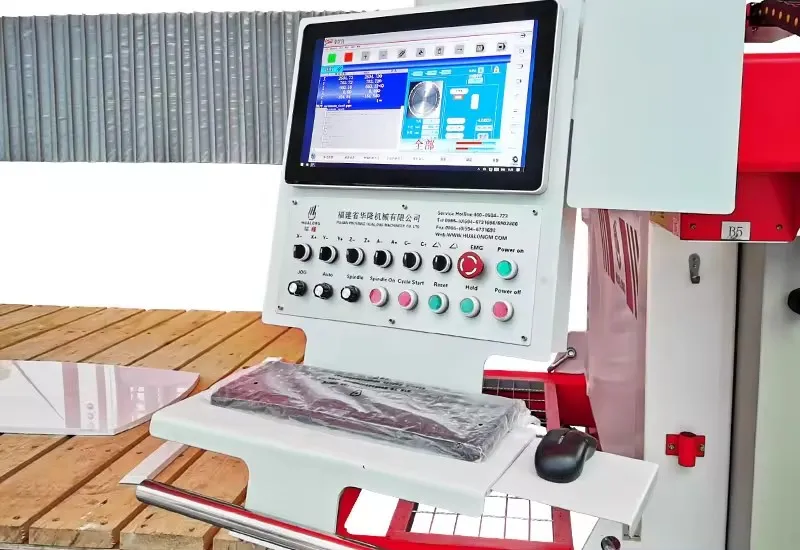

Control System - ESA CNC
Origin: Italy
Top-of-the-line CNC system with touch screen for automatic processing. It simplifies complicated machining jobs with high efficiency.

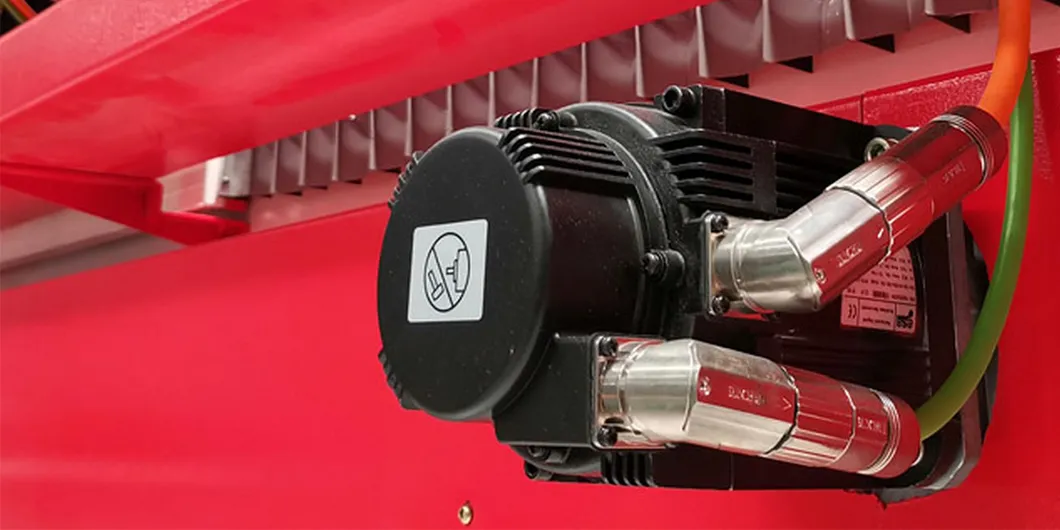

Digital Servomotor
Brand: ESA | Origin: Italy
A permanent magnet brushless servomotor with integrated drives achieving total digital integration for reliable power across X, Y, Z, and C axes.

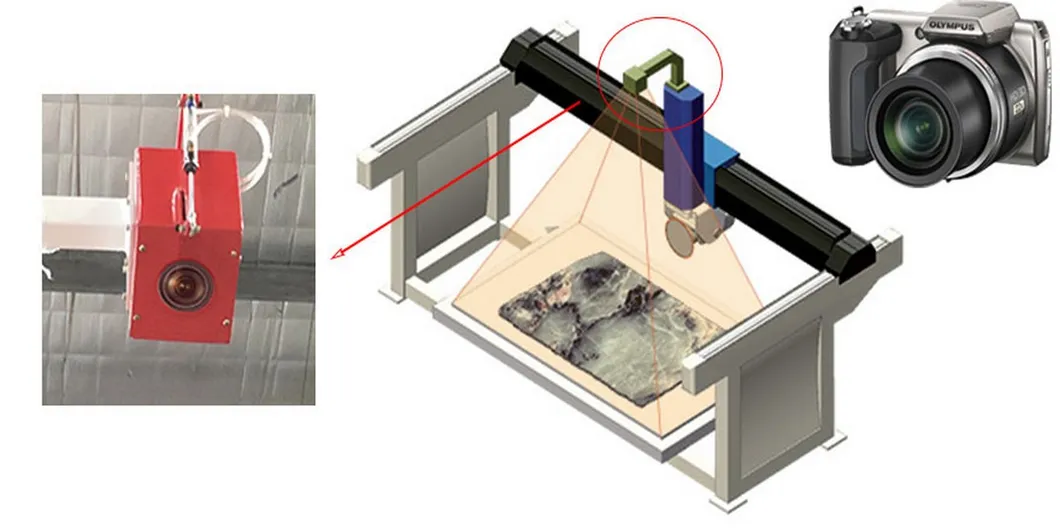

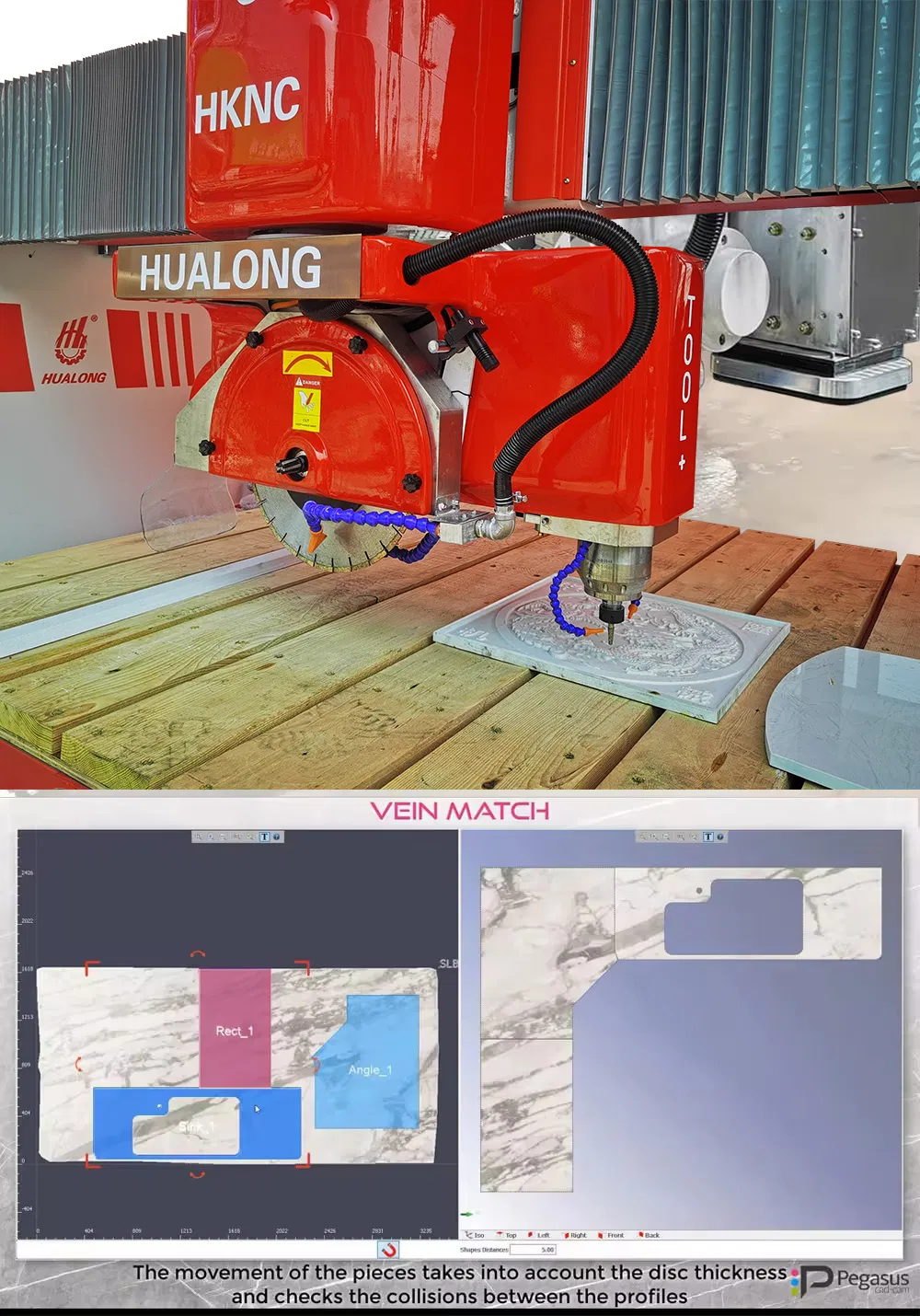

Slab Image Capture & Software
Software: Pegasus CAD/CAM (Italy)
Allows image processing to avoid material defects and arrange shapes perfectly on the slab. User-friendly and powerful for various technologies.
