📋 Product Overview

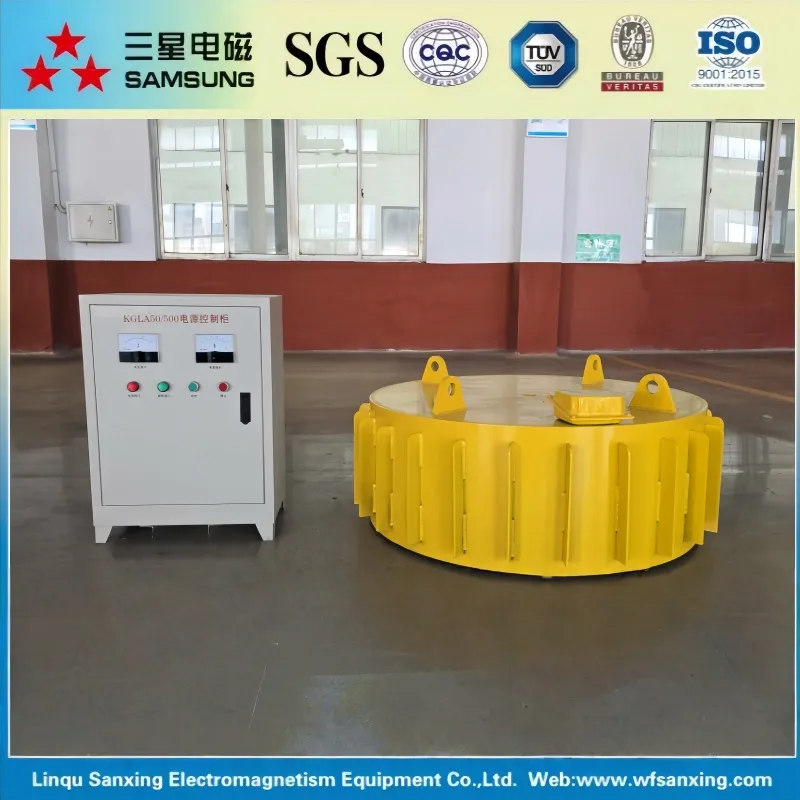

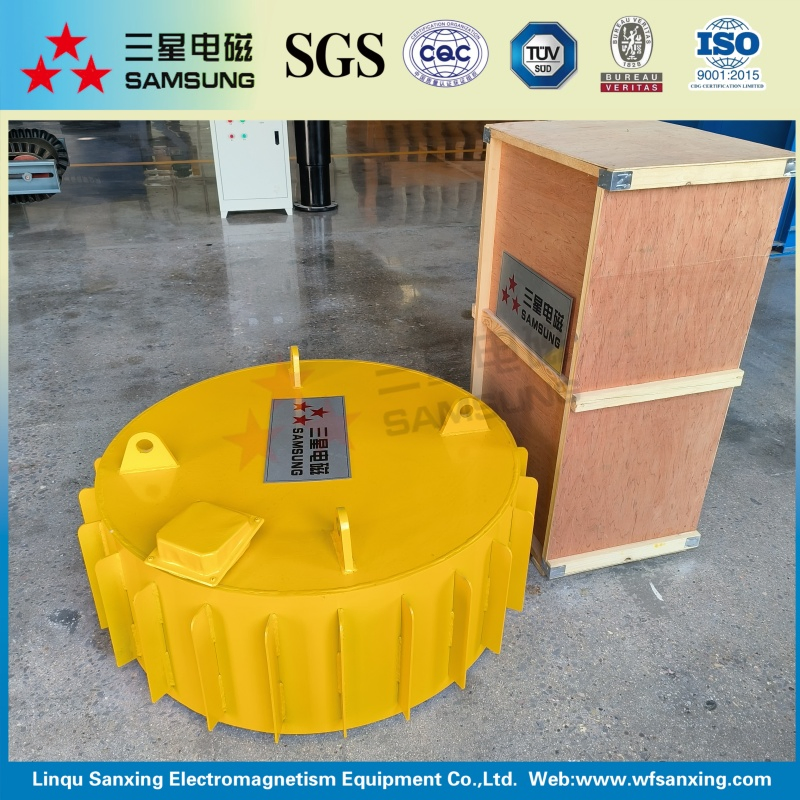

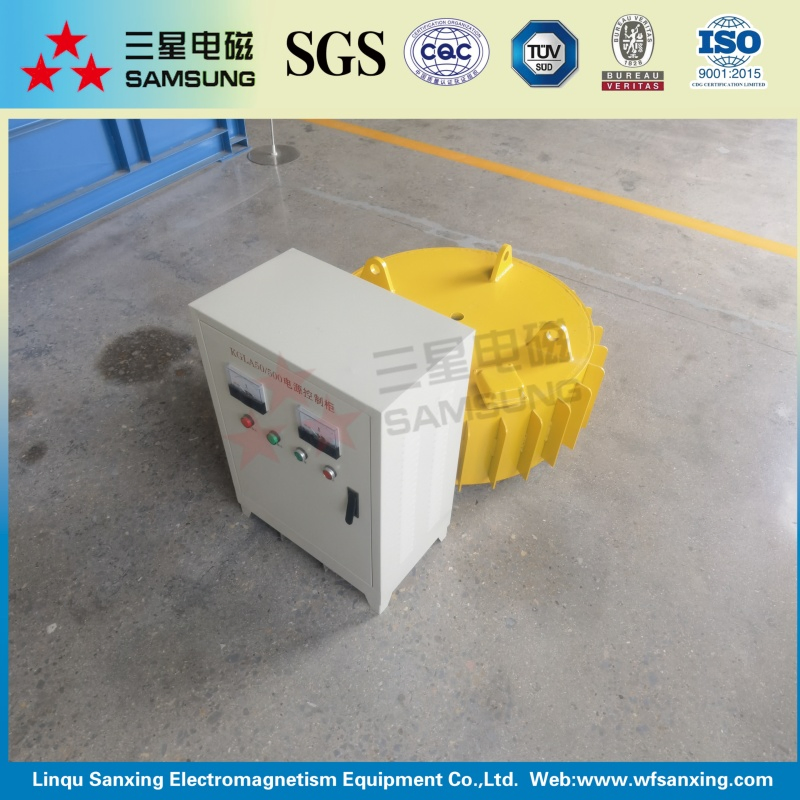

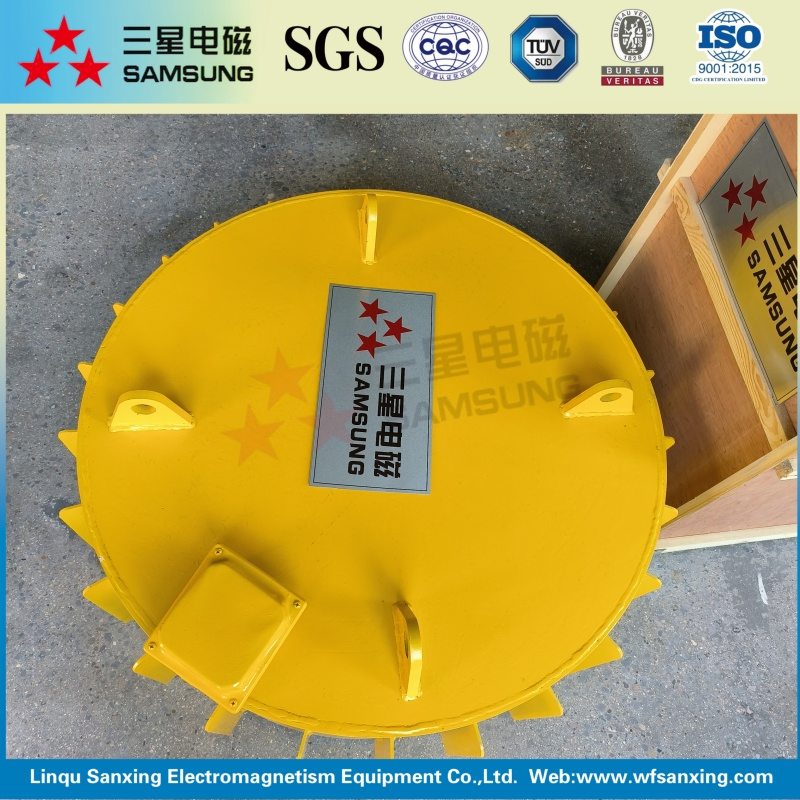

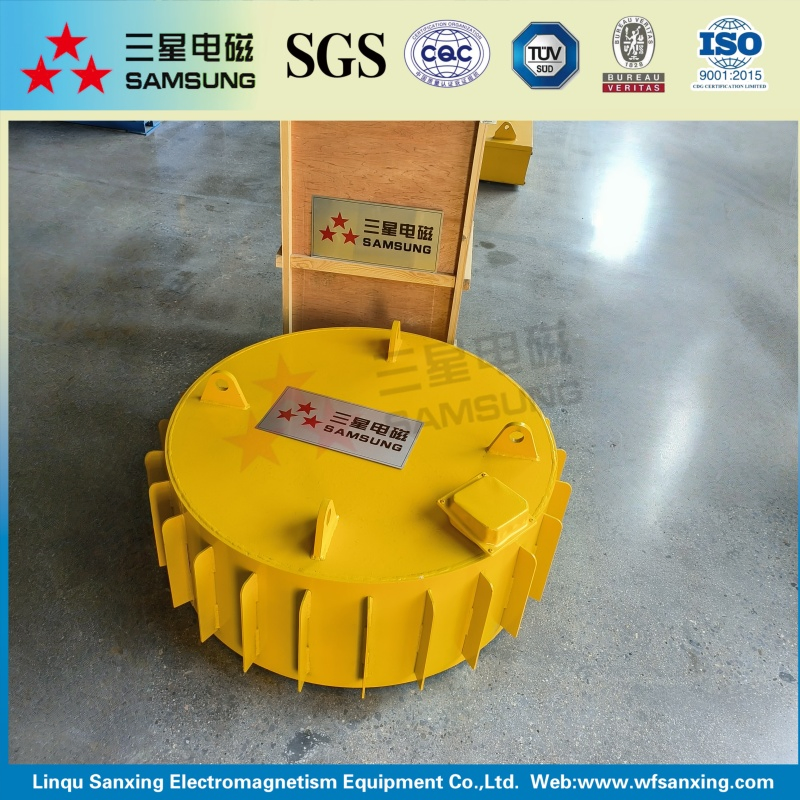

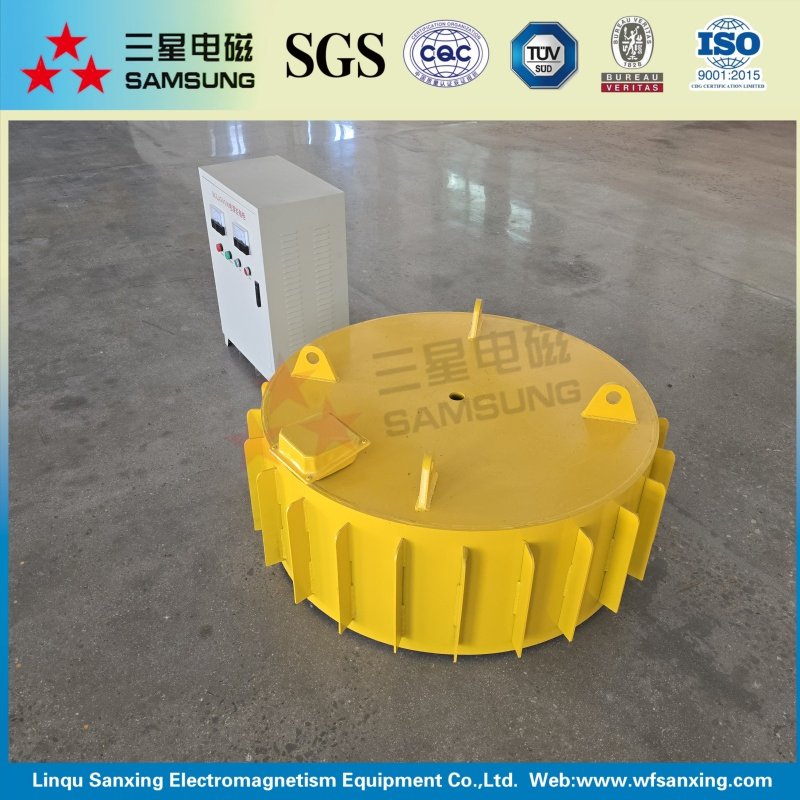

RCDB series dry electromagnetic iron remover is a device used to remove iron from powdered or blocky non-magnetic materials. Its interior is cast with special resin for electrical engineering, with a self-cooling fully sealed structure, dustproof, rainproof and corrosion-resistant. It is used to remove iron from any material on the conveyor belt and can be used in various harsh environments. This product is light and easy to install.
Material Feature
Heat Resistant
Certification
ISO9001:2015
Installation
Suspended Above Belt
🔍 Specification & Features
Applications
- ◉ Mining and metallurgical industry: ore crushing and beneficiation, coal processing
- ◉ Power industry: coal-fired power plants, hydropower stations
- ◉ Chemical and glass industry: chemical raw material processing
- ◉ Food industry: Removing iron filings from flour and grains
- ◉ Environmental recycling industry: garbage disposal, scrap metal recycling
Key Features
- ✔ Deep magnetic penetration and strong magnetic force
- ✔ Fully sealed self-cooling structure
- ✔ Dustproof, rainproof and corrosion-resistant
- ✔ Low energy consumption and reliable performance

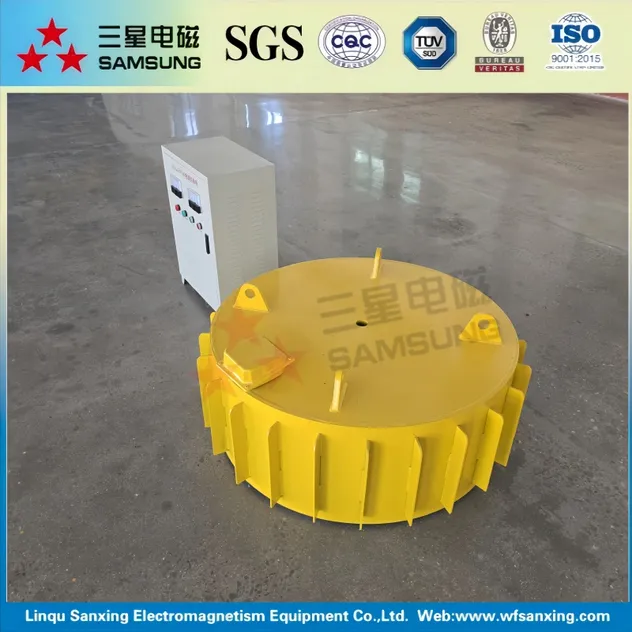

Right Elevation
Left Elevation

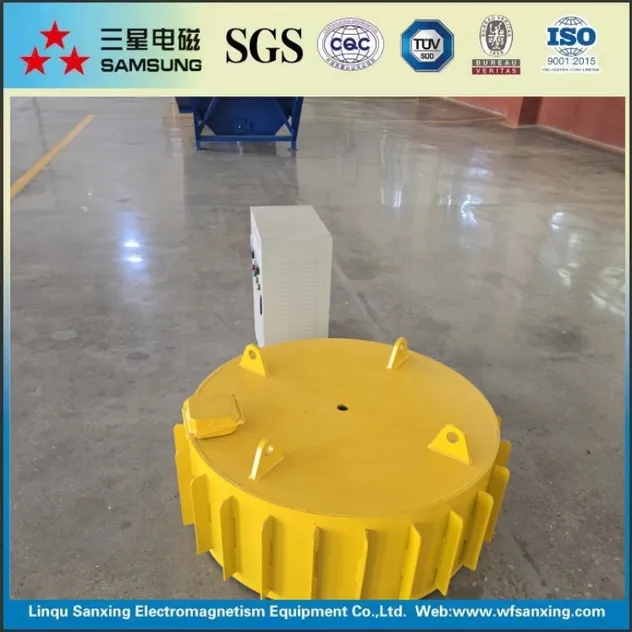

Front Elevation
⚙ Main Technical Parameters
Technical specifications can be customized upon request.
| Model |
Adaptive Bandwidth (≤mm) |
Suspension Height (mm) |
Magnetic Field (≥mT) |
Material Thickness (≤mm) |
Excitation Power (≤kw) |
Band Velocity (≤m/s) |
Weight (kg) |
| RCDB-3 | 300 | 75 | 50 | 50 | 0.4 | 2.5 | 185 |
| RCDB-4 | 400 | 100 | 50 | 70 | 0.6 | 2.5 | 300 |
| RCDB-6 | 600 | 175 | 60 | 120 | 1.6 | 2.5 | 580 |
| RCDB-10 | 1000 | 300 | 65 | 250 | 5 | 2.5 | 1520 |
| RCDB-12 | 1200 | 350 | 65 | 300 | 6.8 | 2.5 | 2250 |
| RCDB-18 | 1800 | 500 | 71 | 450 | 18 | 2.5 | 6900 |

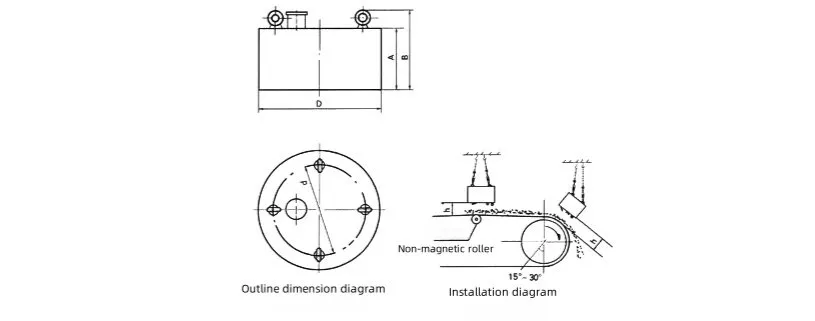

Drawings & Dimensions

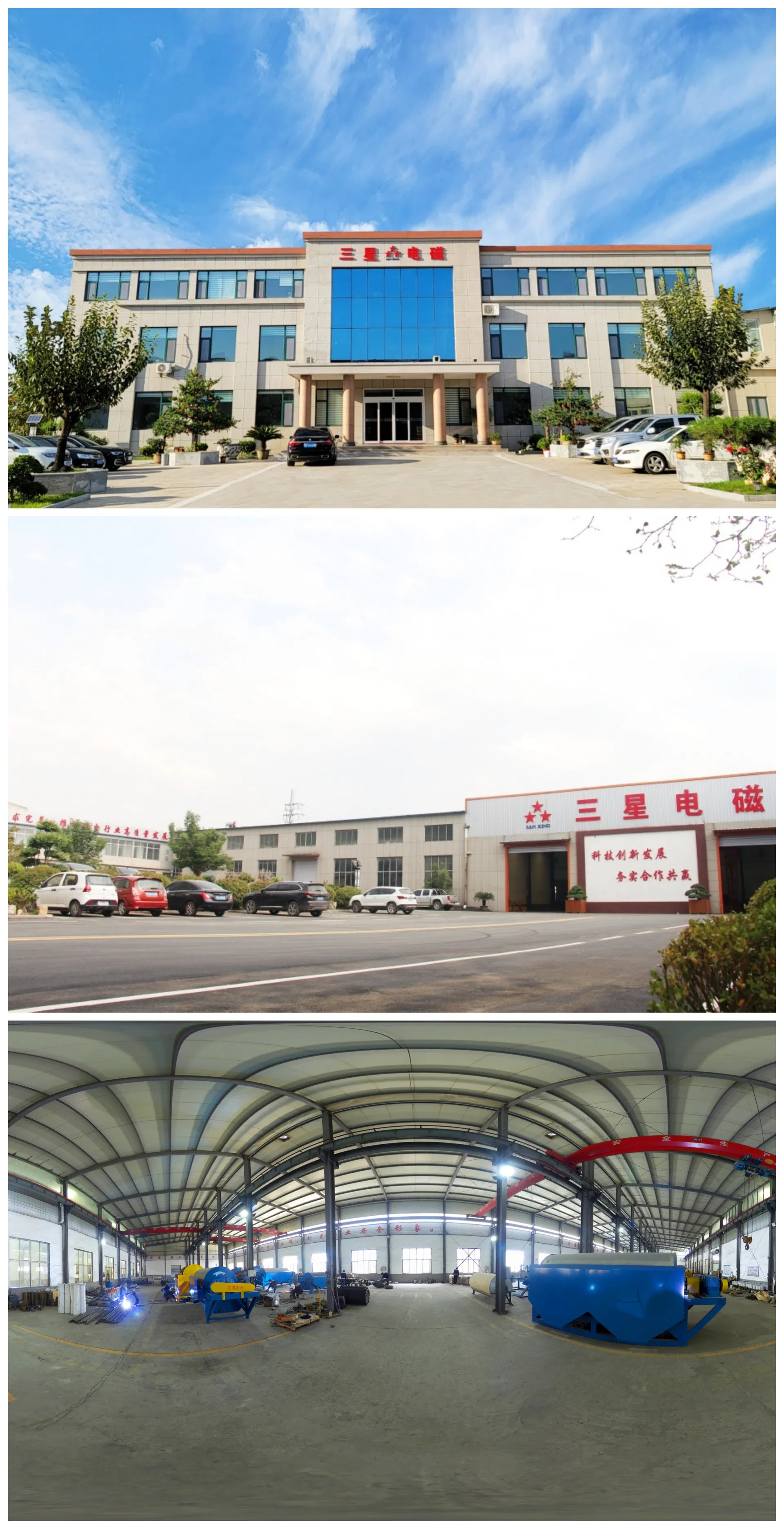

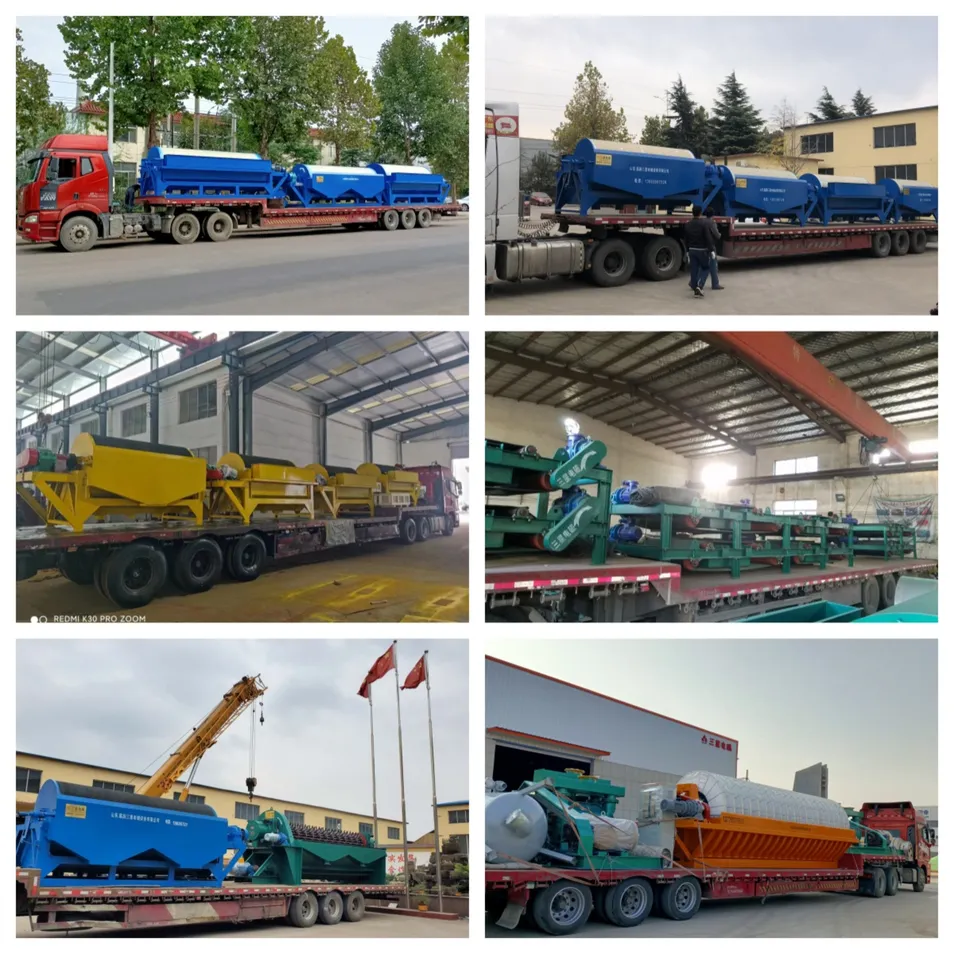

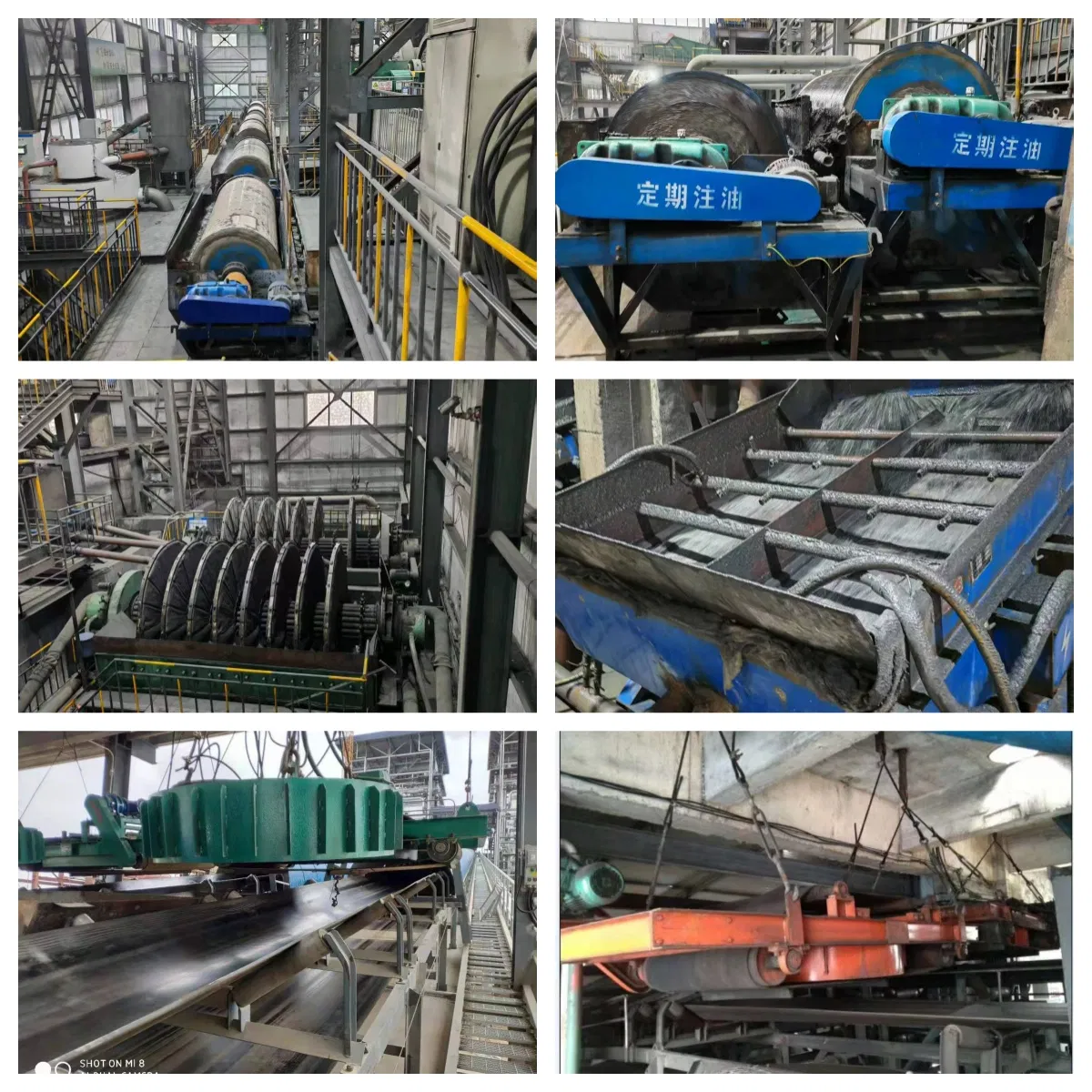

📷 On-Site Photos & Workshop

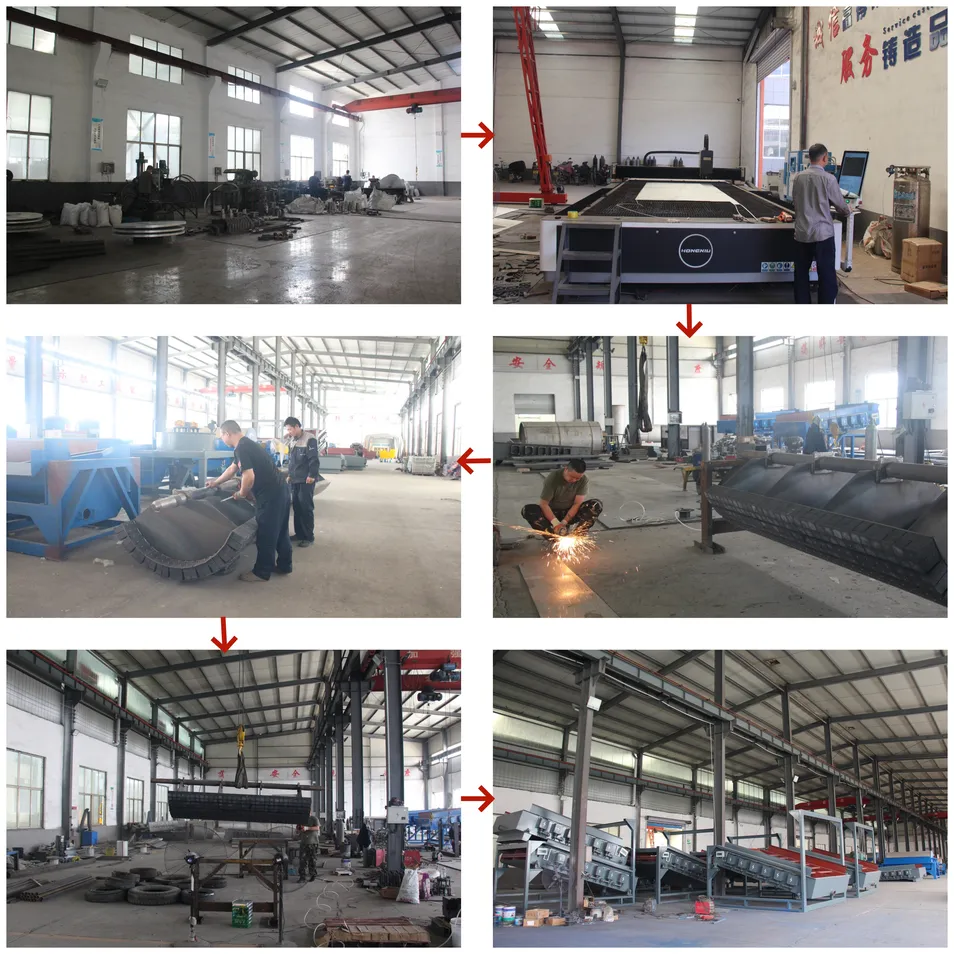

Workshop Layout: Raw material storage (silicon steel, magnets, coils), sheet metal processing (laser cutting, bending), welding, assembly of magnetic systems, and standardized magnetic strength testing.
🏭 Company Profile & Certifications
We are a professional equipment manufacturing company integrating scientific research, engineering design, production, and installation services. Our products include electromagnetic separators, metal detectors, lifting electromagnets, and industrial control systems. These solutions serve metallurgy, power, mining, food, and chemical industries worldwide, including Russia, Australia, Germany, Brazil, and South Africa.
Frequently Asked Questions
How long is the typical order lead time?
The delivery time for standard models is 30-60 days, while customized models typically require 30-90 days depending on complexity.
What is the warranty period for the iron remover?
We provide a one-year warranty period for product quality issues, offering free repair services (excluding vulnerable parts).
Can the equipment be customized for specific belt sizes?
Yes, we provide customized accessories and designs tailored to your specific bandwidth, belt speed, and material thickness requirements.
What information is needed for a quotation?
Before providing a quote, we need to confirm the required magnetic field strength, material size, and the specific quantity of equipment.
How does the company handle technical support?
We provide timely professional guidance for operational questions or troubleshooting via phone (2-minute response) or on-site visits for urgent issues within 48 hours.
Is the equipment suitable for outdoor use?
Yes, the RCDB series features a fully sealed structure that is dustproof, rainproof, and corrosion-resistant, making it ideal for harsh outdoor environments.
