| Model NO. | MKY-SS | Function | Reaction Pressure Vessel |
| Pressure | 0.1MPa≤p<1.6MPa | Storage Medium | Moncombustible/Nontoxic |
| Condition | New | Certification | CE, ISO9001 |
| Automatic Grade | Automatic | Processing Material | Food, Beverages and Grain |
| Tank Material | Tank316L/Jacket304 | Sealing Type | Mechanical Sealing |
Introduction: Designed specifically for high-throughput R&D and small-scale production, this stainless steel fermentation tank integrates multiple independently controlled components, supporting the simultaneous conduct of multiple sets of experiments or production. It is suitable for the research and optimization of multi-variable fermentation parameters and the exploration of microbial-related culture process schemes.

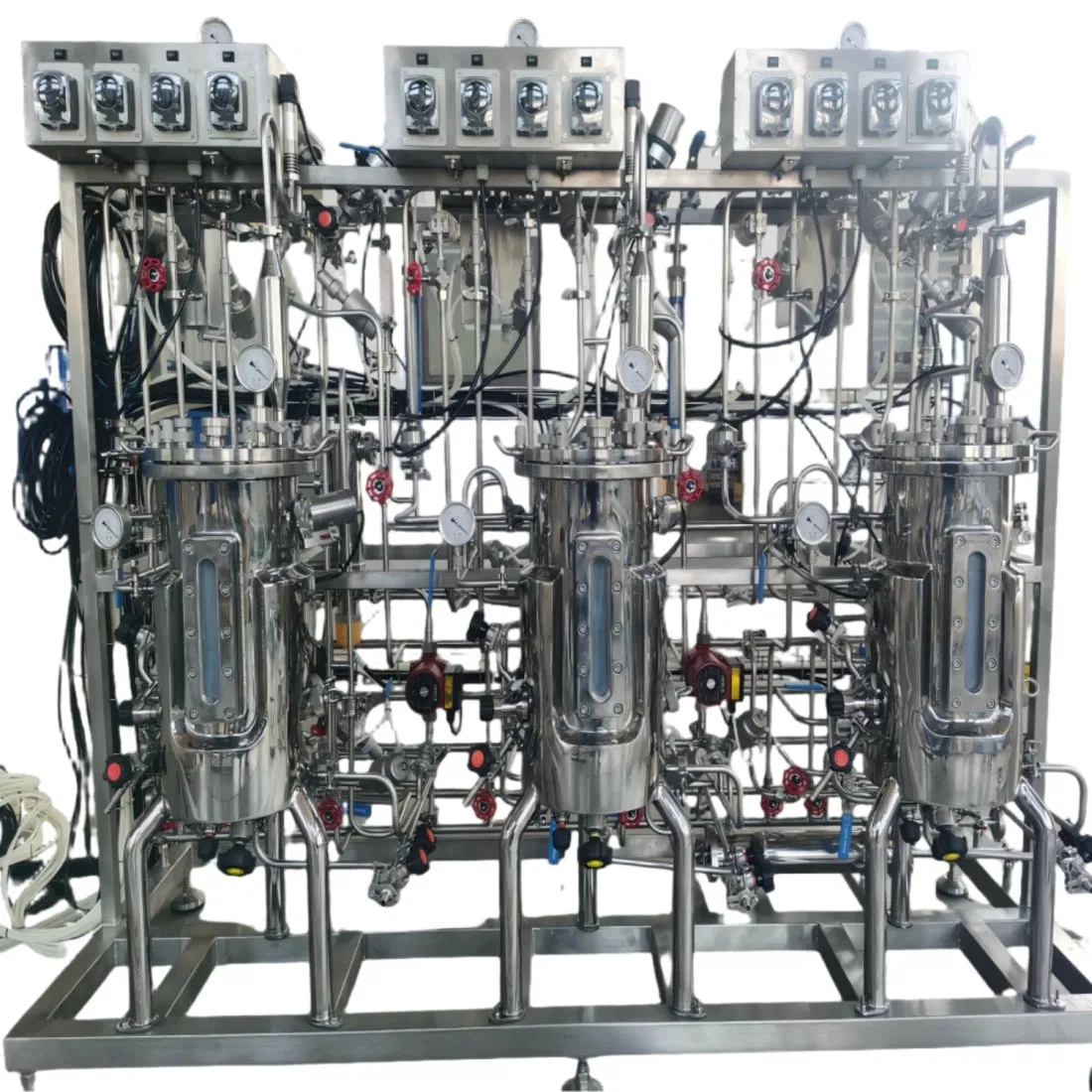

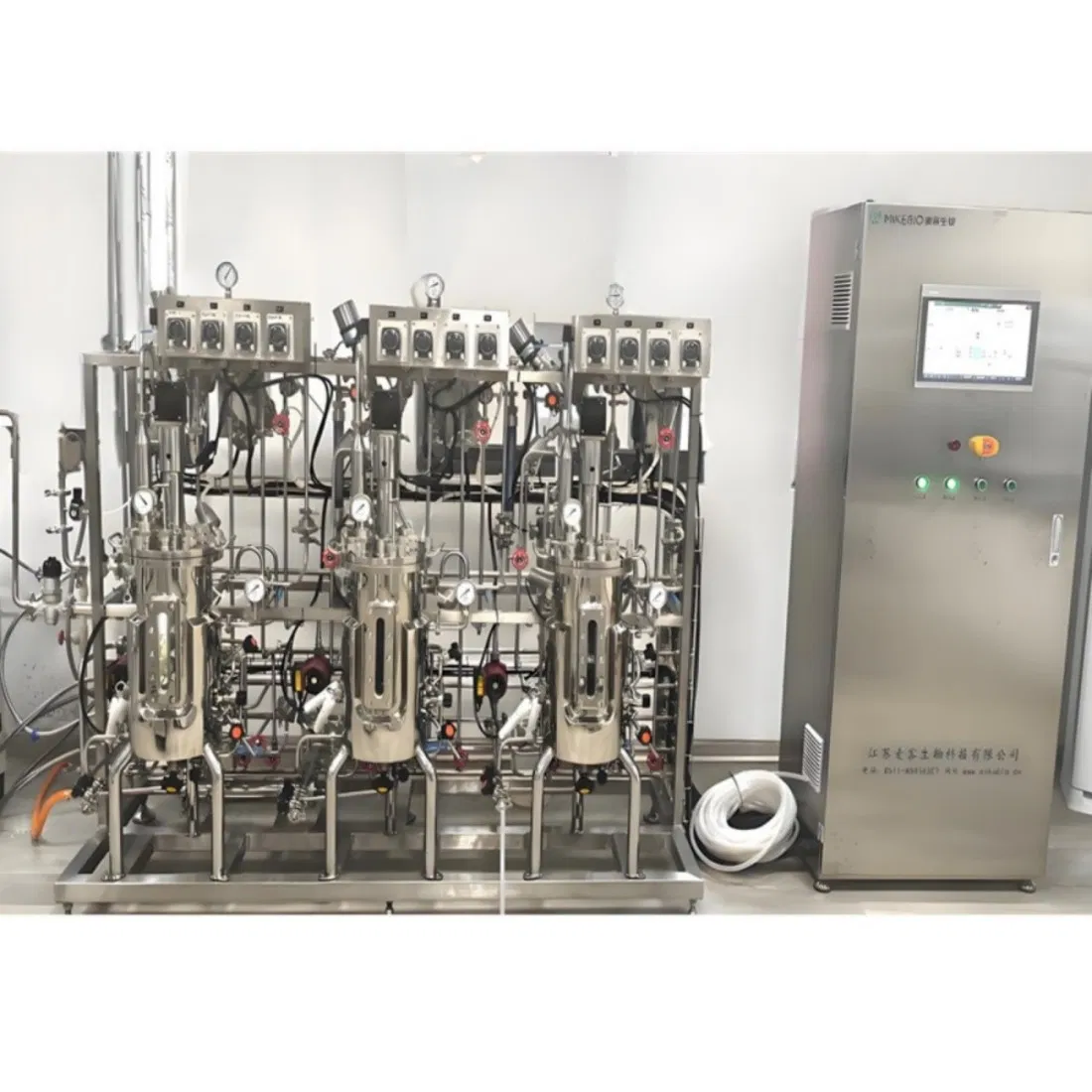

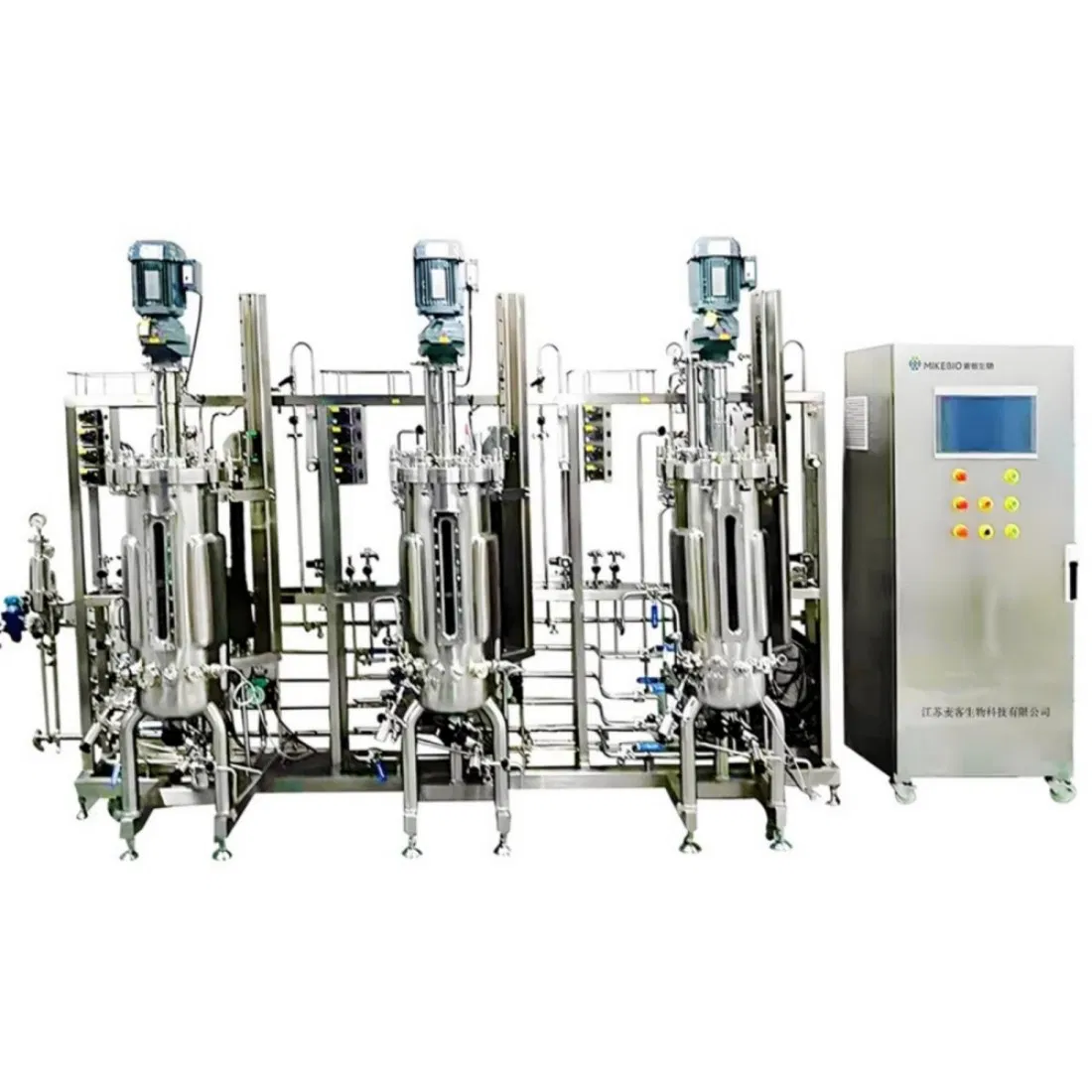

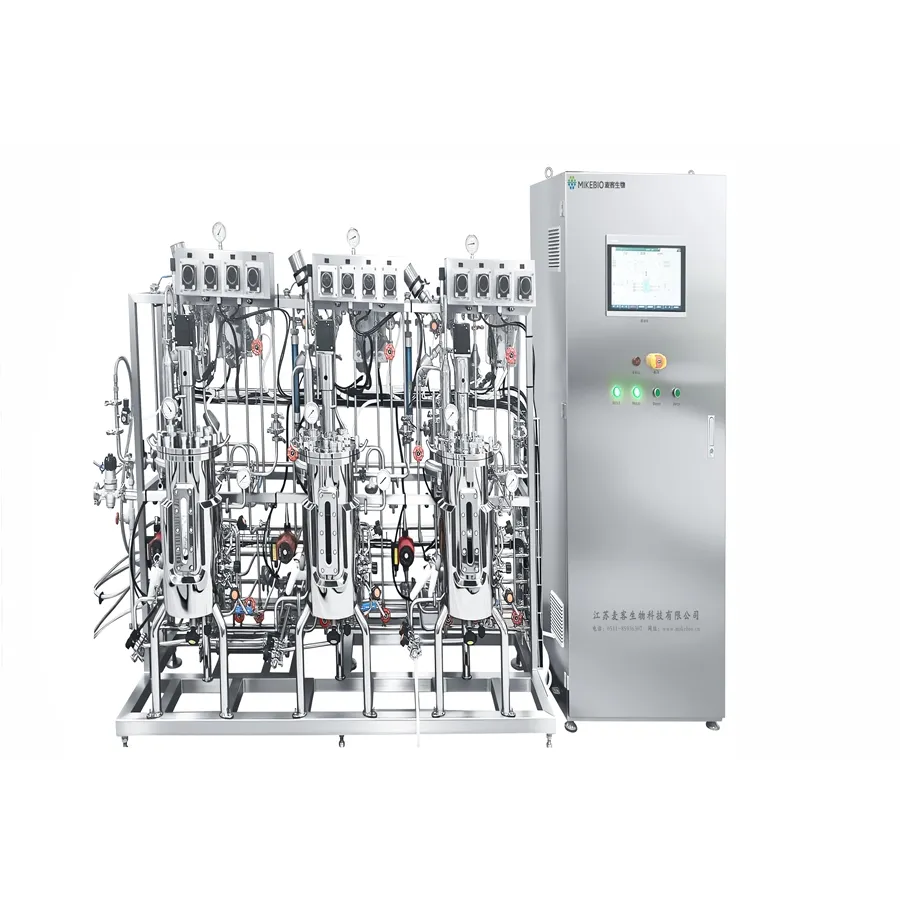

| Type | Parallel Stainless Steel Fermenter System | Volume | (15L/28L)*3 |
| Agitation Type | Mechanical / Magnetic Stirring | Liquid Filling Factor | 40-75% |
| Drive Type | Servo Drive / Frequency Converter | Control Type | PLC + Touch Screen (Automatic) |
| Basic Config | Temp, pH, DO, Defoaming, Feeding, Speed, Air Flow, Sterilization, Pressure | ||
| Optional Config | OD, ORP, Conductivity, Level Control, Weighing System, Tail Gas Analysis | ||

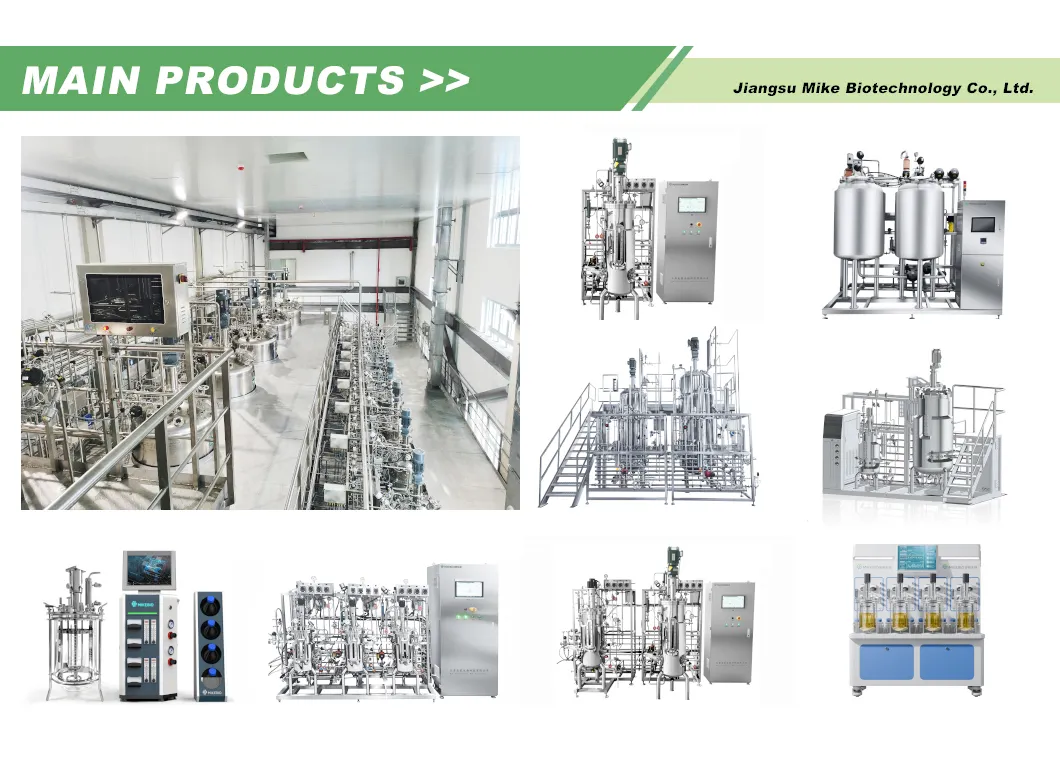

Founded in 2008, the enterprise specializes in biological fermentation equipment, offering solutions from laboratory-scale benchtop systems to industrial-scale platforms. Holding a Class D pressure vessel license, the manufacturing process follows ISO 9001:2015 and ISO 14001:2015 standards.

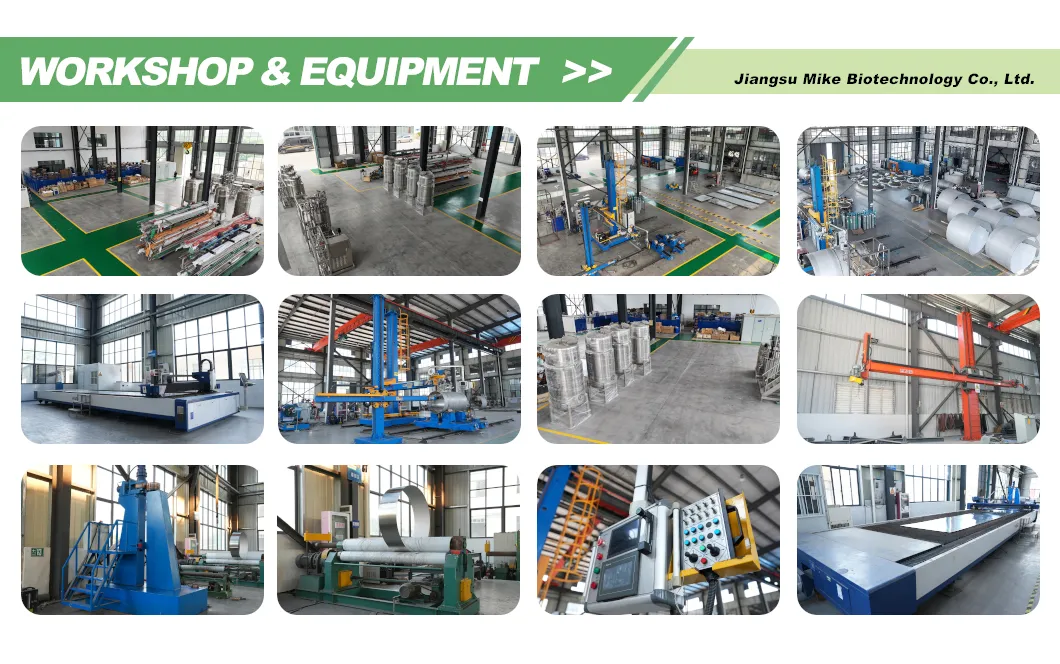

Manufacturing Standards: Using automatic laser cutting, automatic tank polishing, and argon protection in weld seams. Surface roughness (Ra) can reach up to 0.1μm.
Custom Process Design: System parameters are tailored based on strain characteristics and GMP/ASME BPE specifications.
Intelligent Control: High-precision regulation (Temp ±0.2℃, Speed ±2rpm) with IoT functionality for remote diagnosis.
Modular Installation: Ready-to-use production units with self-flowing slope design to enhance liquid discharge efficiency.
