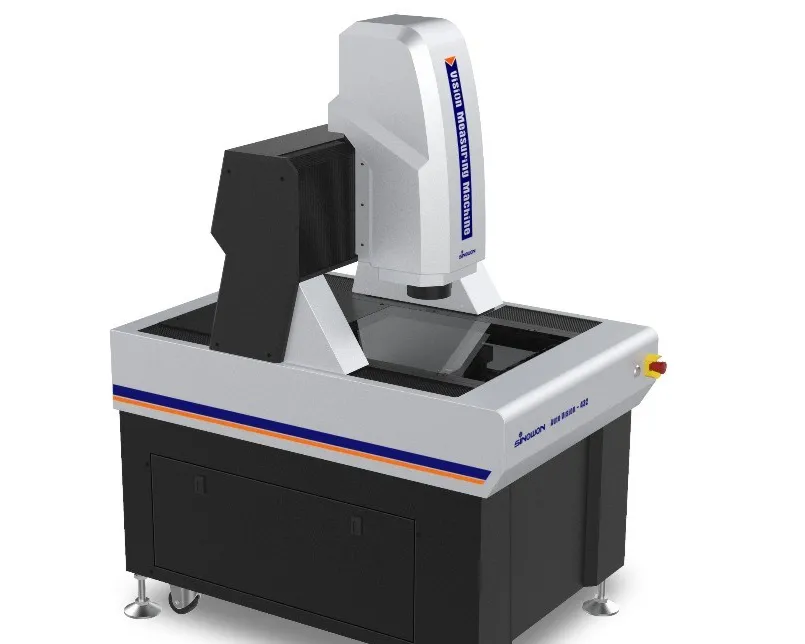

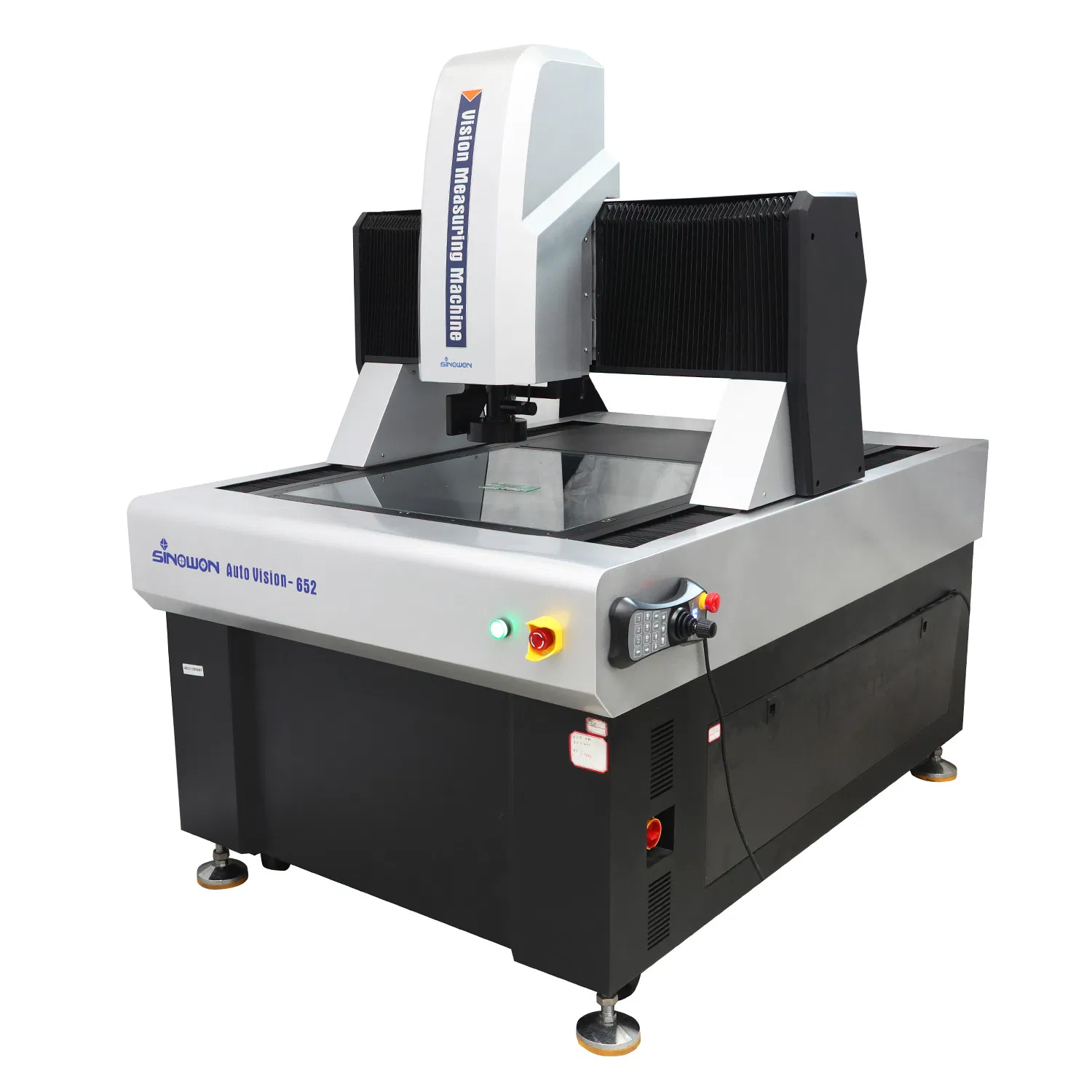

Auto-Vision 2.5D Video Measuring System for Screen Mesh

1 / 5

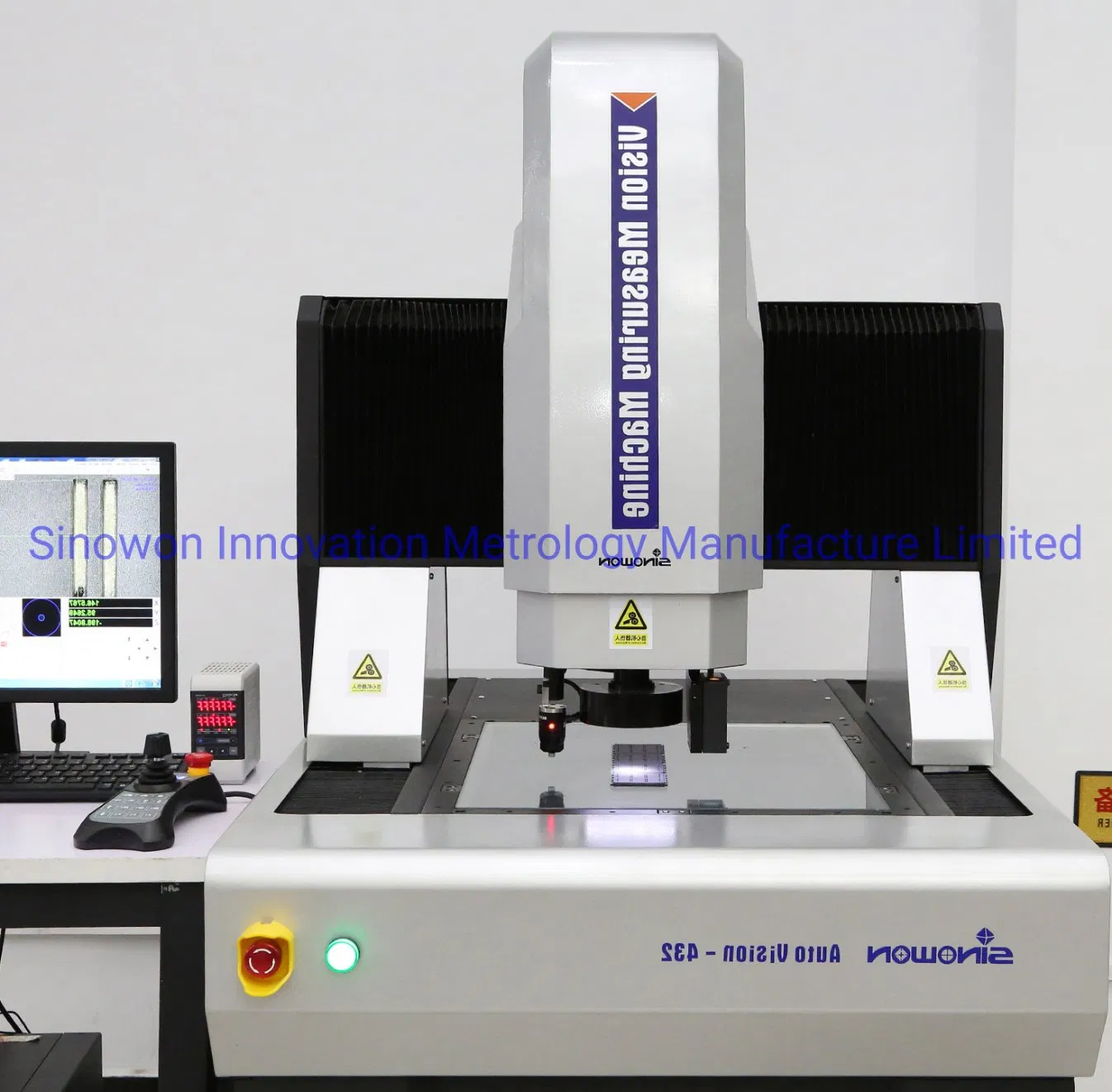

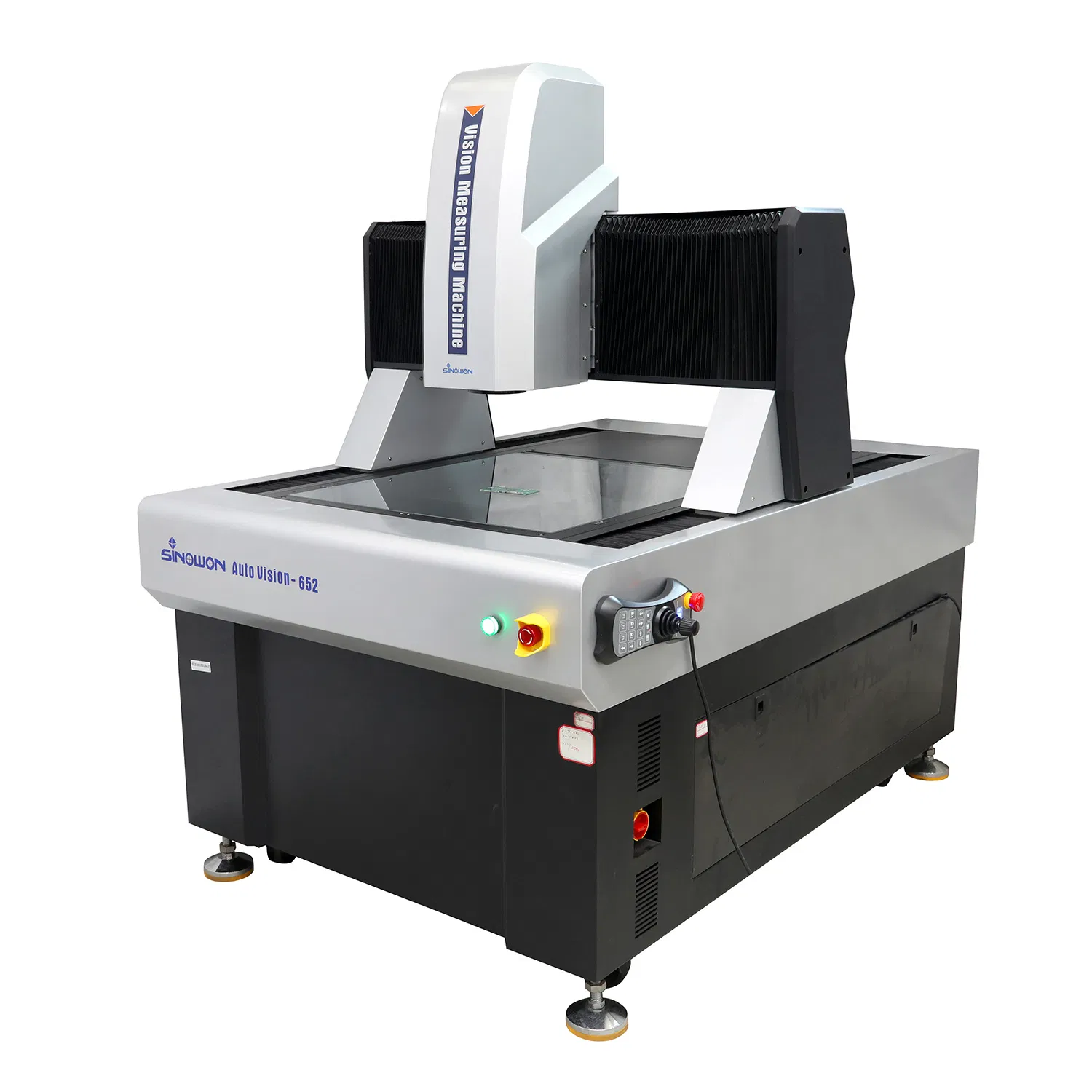

Auto-Vision 2.5D Video Measuring System for Screen Mesh

Customization:	Available
Type:	2.5D Video Measuring System
Accuracy (Um):	2.5+L/200(Um) ;

Send Inquiry

Product Description

Basic Information

Model NO.

AutoVision-432

X/Y-Axis Travel

400X300mm

Z-Axis Travel

200mm

Measuring Software

Qm4.1

Dimension(mm)

1060*820*1680mm

Net Weight

650kg

Max. Load Capacity

30kg

Transport Package

Plywood

Specification

HS Code

90318020

Production Capacity

20 Sets/Month

Application Industries

Cutting, touch screen, mobile phones, medical equipment, PCB, Film, electronic carrier tape, rubber, clocks, gears, mechanical processing, automobile and motorcycle parts, bearings, motors, precision hardware, tools, electronic components and other industries and research institutes, universities, institutions and enterprises measurement measuring laboratory and production line size detection products.

Product Characteristics

High precision Jinan Qing marble base, beams and gantry mechanical structure, to ensure high measurement speed, stability and accuracy.
High precision imported guide screw, precision grinding stage ball screw and servo motor, to ensure the stability of position accuracy with high speed motion.
High accuracy imported non-contact gold plated steel grating measurement system and high accuracy working stage, to ensure accuracy within≤2.5+L/200mm.
High definitive imported 1/2inch color camera and HD automatic continuous zoom lens, to ensure clear and real image without distortion.
Programmable 5-Ring 8-division surface LED cold illumination, contour parallel LED cold illumination and coaxial illumination with intelligent light adjustment.
Powered by iMeasuring 4.1 automatic measuring software for enhanced quality control.
Optional imported contact probe and 3D Measuring Software for transition to Fully Auto contact 3D Measuring Machine.
Optional FexQMS Measuring Data Analysis and Real-time monitoring software to reduce material consumption.

Technical Specifications

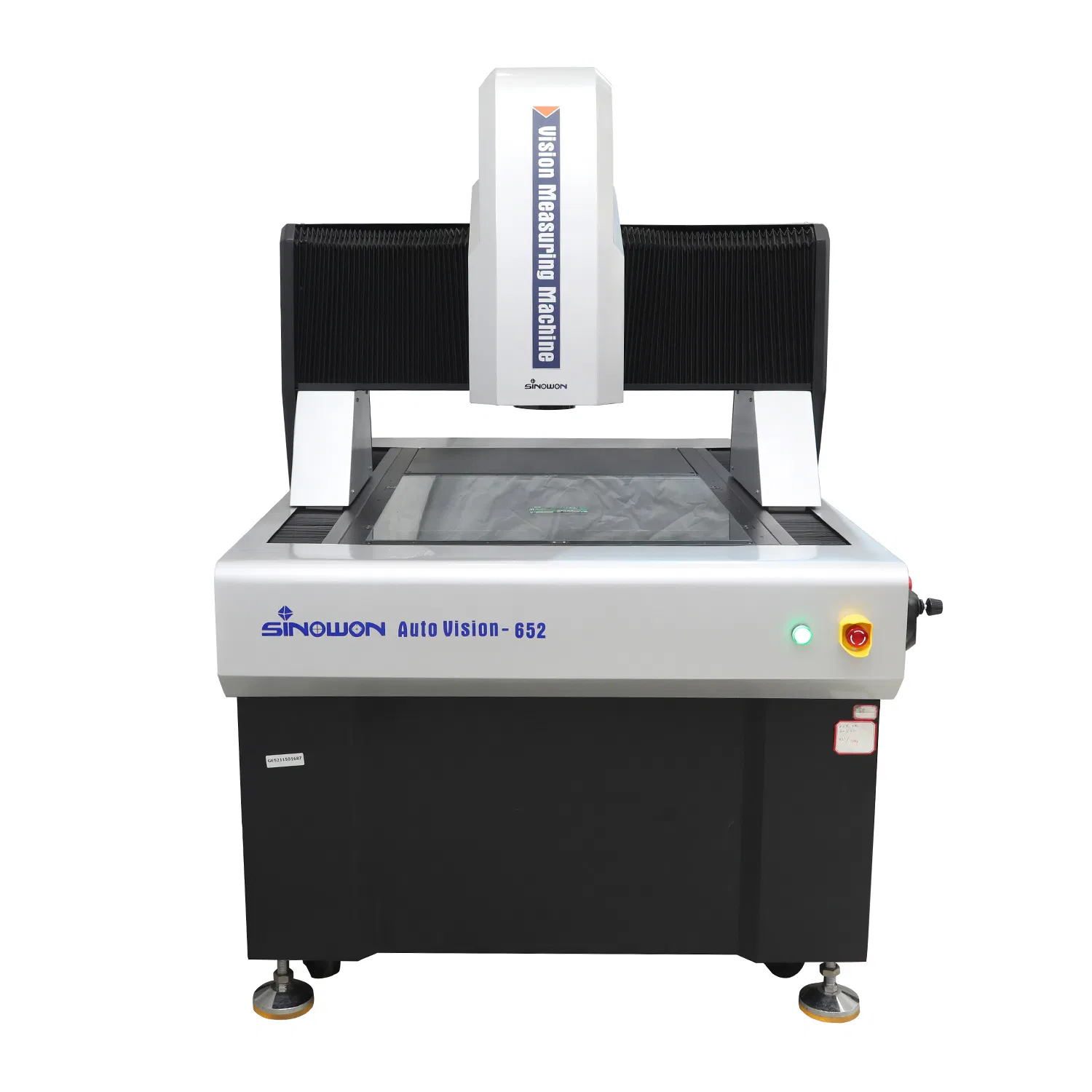

Product Name	2.5D Auto Vision Measuring Machine

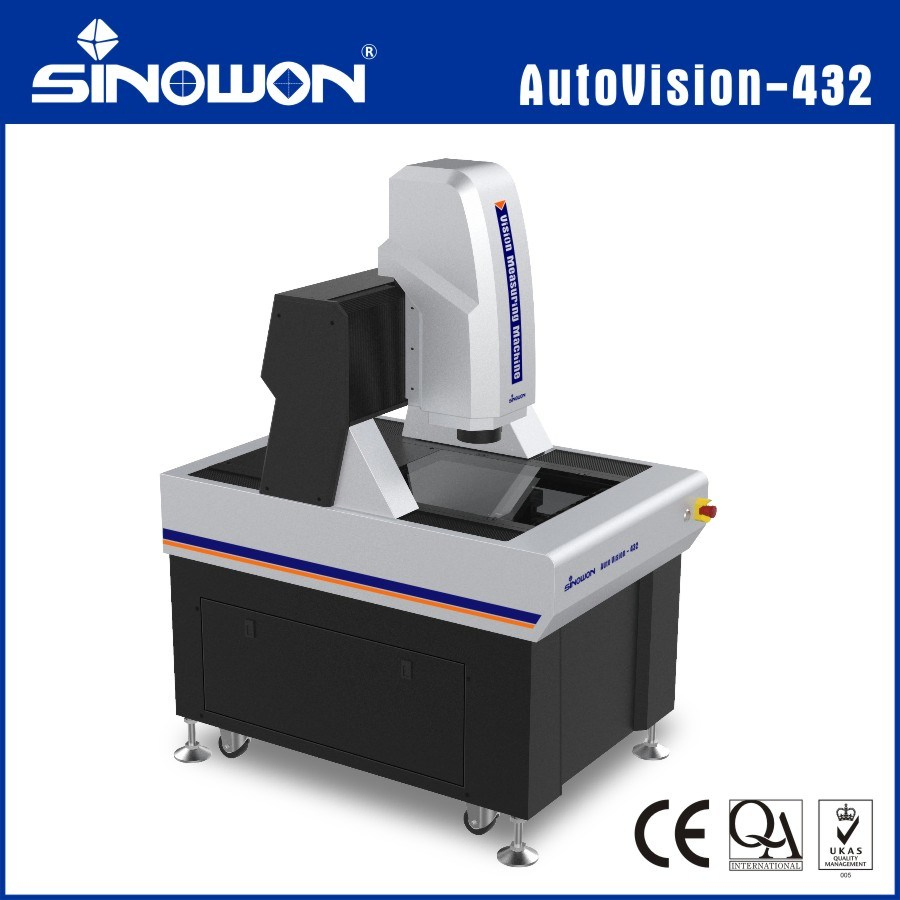

Model	Auto Vision432
X/Y-axis Travel(mm)	400x300mm
Z-axis Travel(mm)	200mm
Linear Scale	Imported Open Linear Scale, resolution: 0.0005mm
Guidance Mode	Imported H grade Linear Guide, Double-Track Double Slider Guide
XY-axis Accuracy	≤2.5+L/200(um)
Z-axis Accuracy	≤5+L/200(um)
Repeatability	±2um
Video System	1/2" Color CCD Camera; 6.5X Automatic Zoom Lens
Magnification	Optical: 0.7X~4.5X; Video: 20X~129X
Loading Weight	30Kg
Power	220V/50Hz/10A

Standard Delivery

Product Name	Code#	Product Name	Code#
Fully-auto measuring software	IM 4.1	6.5X Motorized Coaxial Zoom Lens	421-161
Calibration Block	581-801	5R/8D LED Illumination	425-141
Motion Controller	526-111	Contour Parallel LED Illumination	425-131
Imported 0.5um Linear Scale	581-201	1/2" Color Camera	484-123
Joystick	581-871	CCD Image Navigation	581-331

Optional Accessories

Imported MCP Touch Probe	581-721	Manual Coaxial Lens	421-121
Imported laser sensor	581-361	2X Auxiliary Objective	423-200
3D Measuring Software	Im 4.2	0.5X Auxiliary Objective	423-050

Frequently Asked Questions

Q1: What is the measurement accuracy of the AutoVision-432? A: The system provides high-precision measurement with an XY-axis accuracy of ≤2.5+L/200um and a Z-axis accuracy of ≤5+L/200um.

Q2: Can this machine be used for 3D measurements? A: Yes, the machine can be upgraded to a Fully Auto contact 3D Measuring Machine by adding the optional imported contact probe and 3D Measuring Software.

Q3: What type of lighting system does the machine use? A: It features a programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, and coaxial cold illumination with internal intelligent adjustment.

Q4: What are the main mechanical components ensuring stability? A: The machine uses a Jinan Qing marble base, beams, and gantry structure combined with imported precision guide screws and servo motors.

Q5: What software is used for the measurement operations? A: The machine is equipped with iMeasuring 4.1 fully automatic measuring software, which supports automatic measurement programming.

Q6: What is the maximum load capacity for samples? A: The working stage is designed to handle a maximum load capacity of 30kg.
