Pilot Stainless Steel Fermenter System for Biofuel Pilot

Customization:	Available
After-sales Service:	Yes
Warranty:	1year

Send Inquiry

Product Description

📊 Basic Info

Model NO.

MKY-SS

Function

Reaction Pressure Vessel

Application

Liquid

Material

Stainless Steel

Pressure

0.1MPa≤p<1.6MPa

Certification

CE, ISO9001

Automatic Grade

Automatic

Specification

20L~5000L

⚙️ Product Description

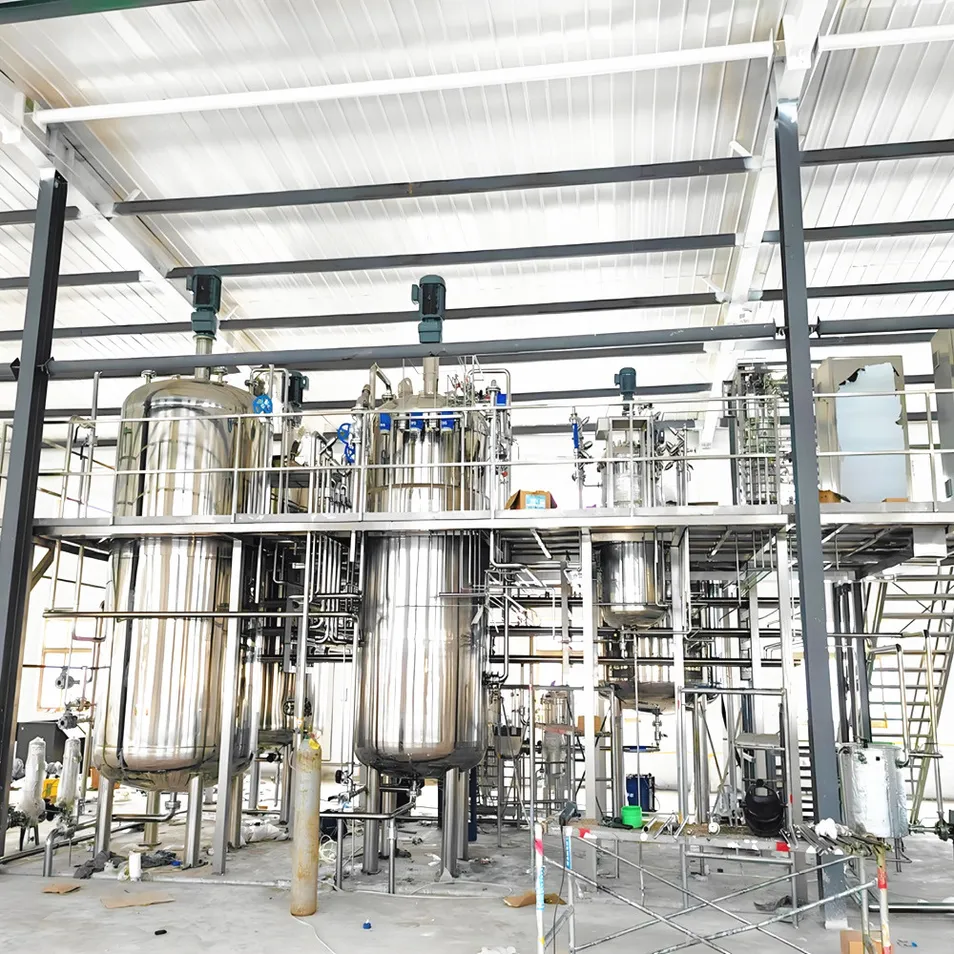

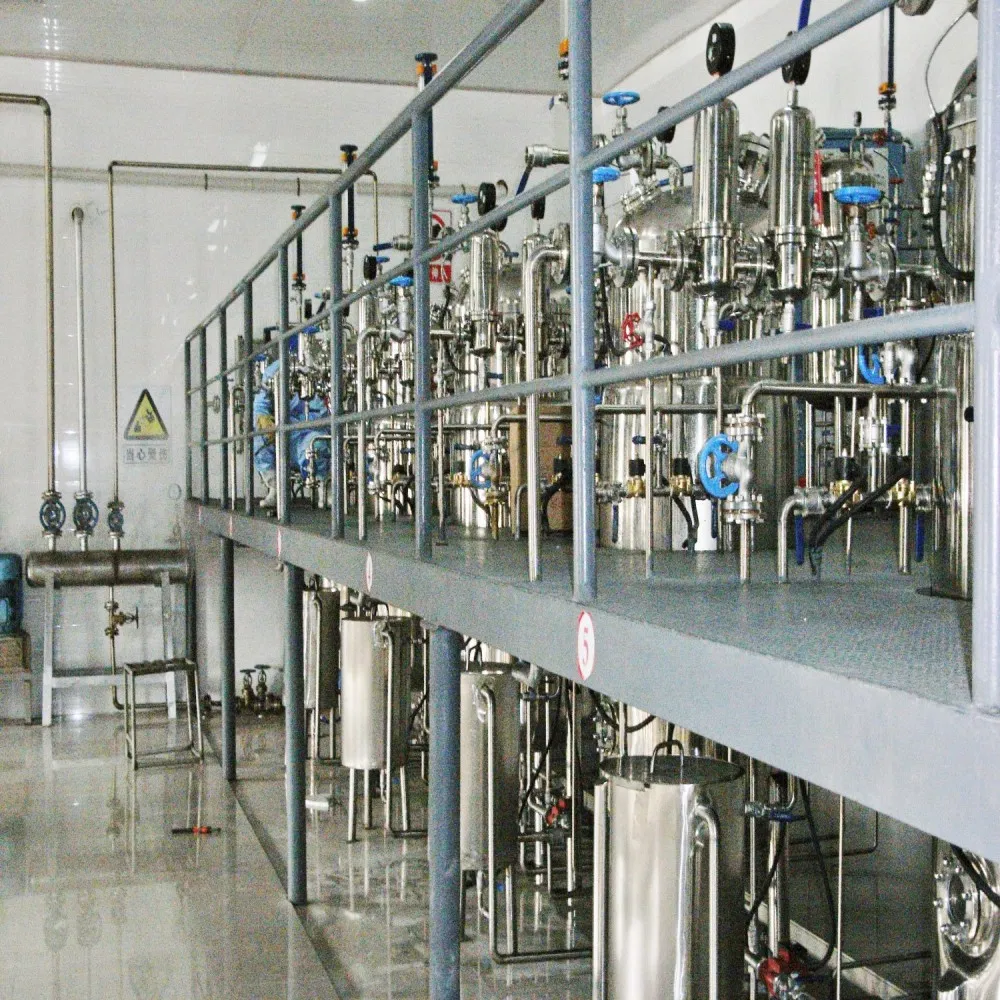

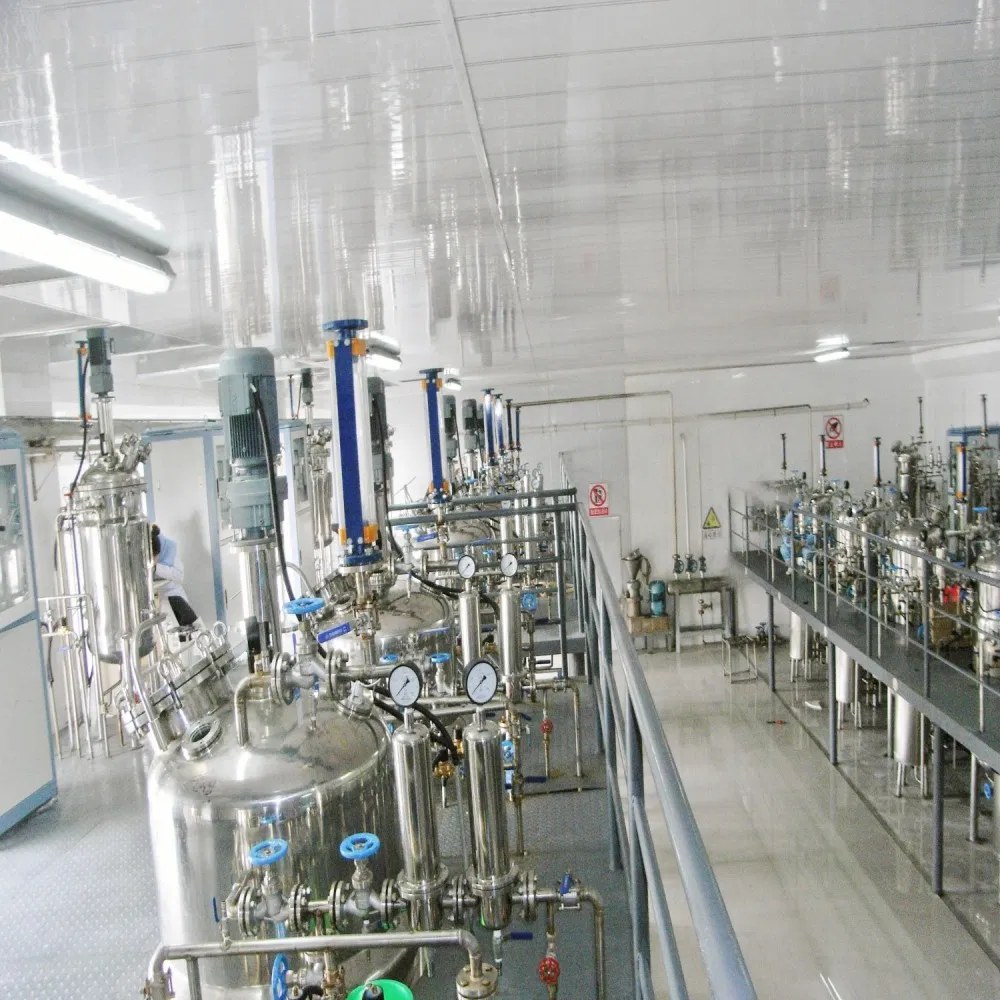

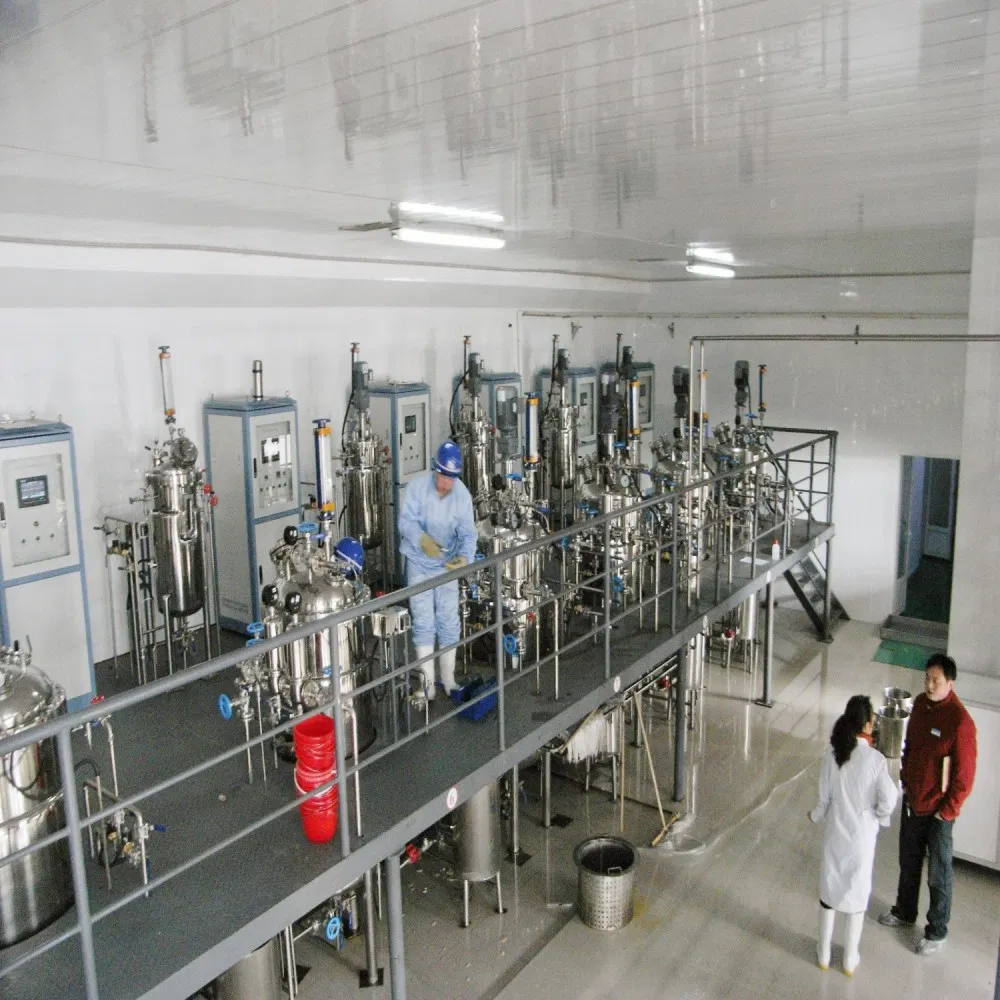

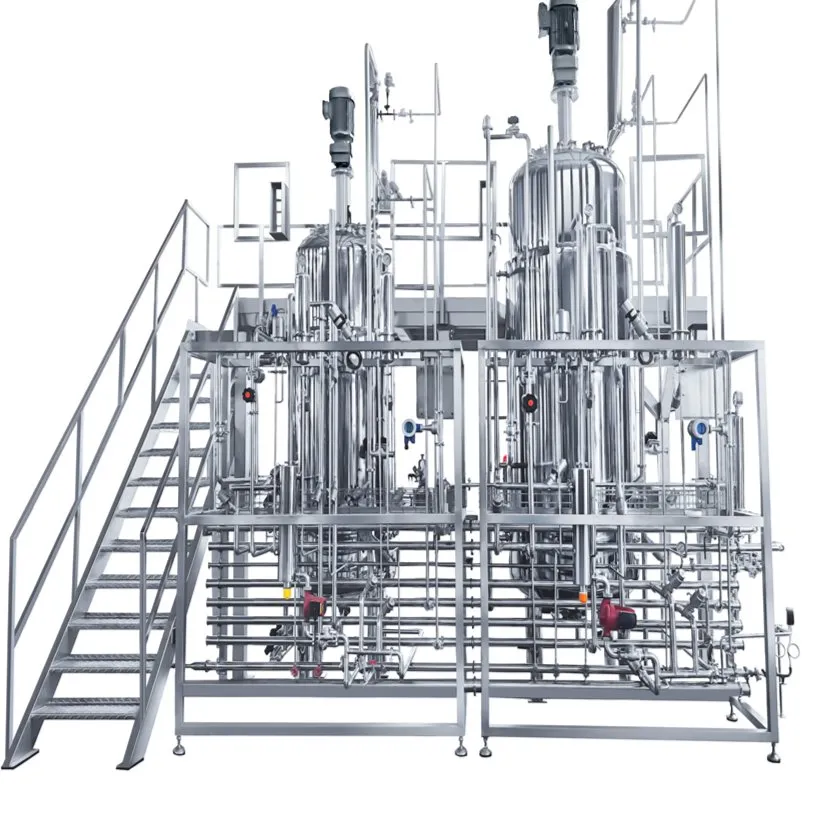

Pilot Stainless Steel Fermenter System

🚀 Introduction

Designed specifically for process scale-up and pilot production stages, it is made of 304/316 stainless steel and integrates an automatic control system, supporting a fermentation environment that simulates production conditions. It is suitable for process optimization and production in microbial fermentation and can be customized in structure and function according to requirements.

✨ Key Features

Automated control: Real-time monitoring and adjustment of parameters such as temperature, pH, and dissolved oxygen.
Sanitary grade material: 316L stainless steel main body, easy to clean and corrosion-resistant.
Multi-tank design: Multi-level fermentation can be set up, supporting the cultivation of multiple strains.
Flexible expansion: Modular design facilitates functional upgrades and scale adjustments.
Optimized mixing: Customized stirring structure to enhance uniformity.

Technical Parameters
Type	Pilot Stainless Steel Fermenter	Tank Material	Tank 316L / Jacket 304
Volume	20L ~ 5000L	Agitation Type	Mechanical / Magnetic Stirring
Filling Factor	40% - 75%	Drive Type	Servo Drive / Frequency Converter
Control Type	PLC + Touch Screen, Full-process Automatic Control
Basic Config	Temp, pH, DO, Defoaming, Feeding, Speed, Air Flow, Sterilization, Pressure

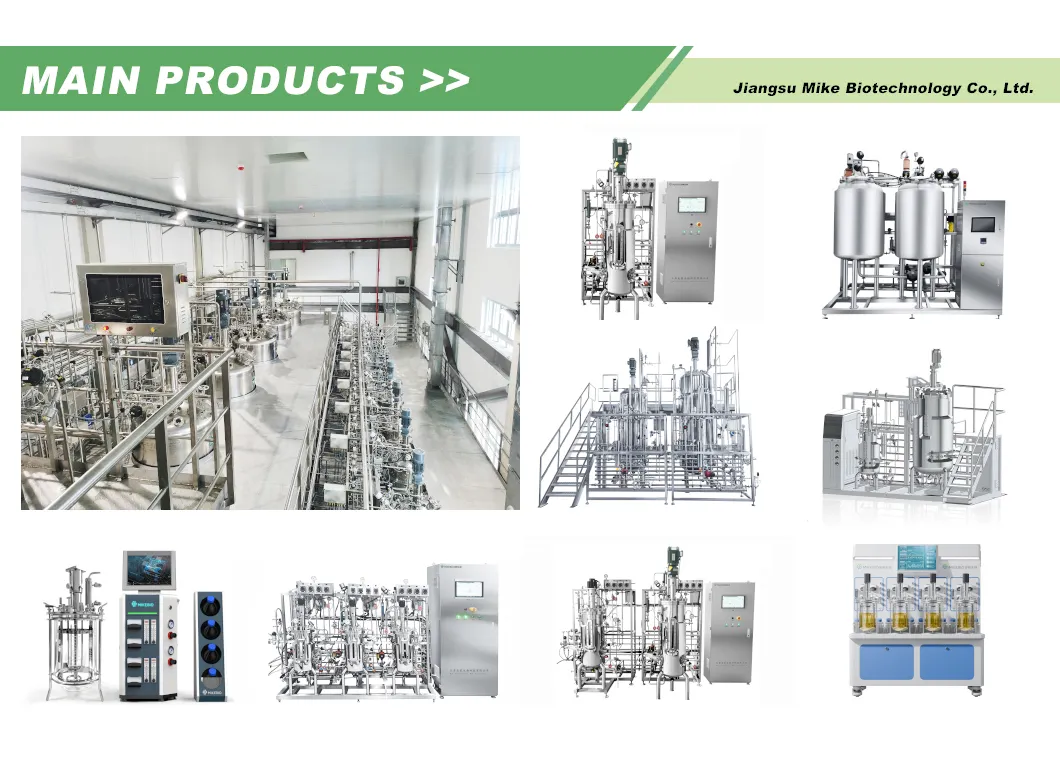

📦 Main Products Showcase

🏢 Technical Strength & Advantages

The enterprise specializing in the research, development, manufacturing, and sales of biological fermentation equipment. The advanced fermentation technologies are widely applied across synthetic biology, biopharmaceuticals, food additives, and bioenergy sectors.

💎 Why Choose Us?

Customized Process Design: System parameters are tailored based on strain characteristics and GMP specifications.
Micron-level Manufacturing: Surface roughness (Ra) can reach up to 0.1μm with full quality control (radiographic/penetrant testing).
Intelligent Control: High-precision temperature (±0.2℃) and pH (±0.03) control with IoT remote diagnosis.
Modular Installation: Ready-to-use production units with self-draining designs to reduce residue risk.

🚢 Packaging & Logistics

Premium Packaging: Multi-layer protective materials for all metal components and precision sensors.
Reinforced Cases: Customs-standard wooden cases reinforced with steel straps.
Global Solutions: Sea freight for large orders and Air freight for urgent lab-scale requirements.
Reliable Delivery: Partnerships with top freight forwarders and full insurance coverage.

Frequently Asked Questions

Q: What types of fermentation tanks do you offer? A: We provide customized lab-scale and industrial-scale fermentation tanks, specifically designed for liquid and bacterial fermentation processes.

Q: Can your equipment be tailored to meet specific project requirements? A: Yes. All our systems are fully customizable, including tank volume, material configuration, and control systems to match your unique needs.

Q: Do your products comply with international standards? A: Yes, our equipment meets EAC, CE, and ASME standards, ensuring compliance for Europe, North America, and Eurasia.

Q: What is the typical production lead time? A: Production typically ranges from 4 to 12 weeks, depending on the complexity and order quantity.

Q: Do you provide installation and training services? A: Yes. Our technical team provides on-site installation, commissioning, and operator training services globally.

Q: What is the warranty period for the equipment? A: We offer a 12-month warranty starting from the date of successful commissioning (excluding consumables).
