| Model NO. | SA-810N |
|---|---|
| Condition | New |
| Certification | RoHS, CE |
| Warranty | 12 Months |
| Automatic Grade | Automatic |
| Wire Diameter | 1-7.5mm |
| Inner Cores Stripping Length | 1 - 20mm on Both Sides |
| Outer Sheath Peeling Length | Tail: 1-30mm; Head: 1-70mm |
| Cutting Length | 1-99999mm |
| Blade Material | Imported High Speed Steel |
| Production Capacity | 1000 - 2000 PCS/H |

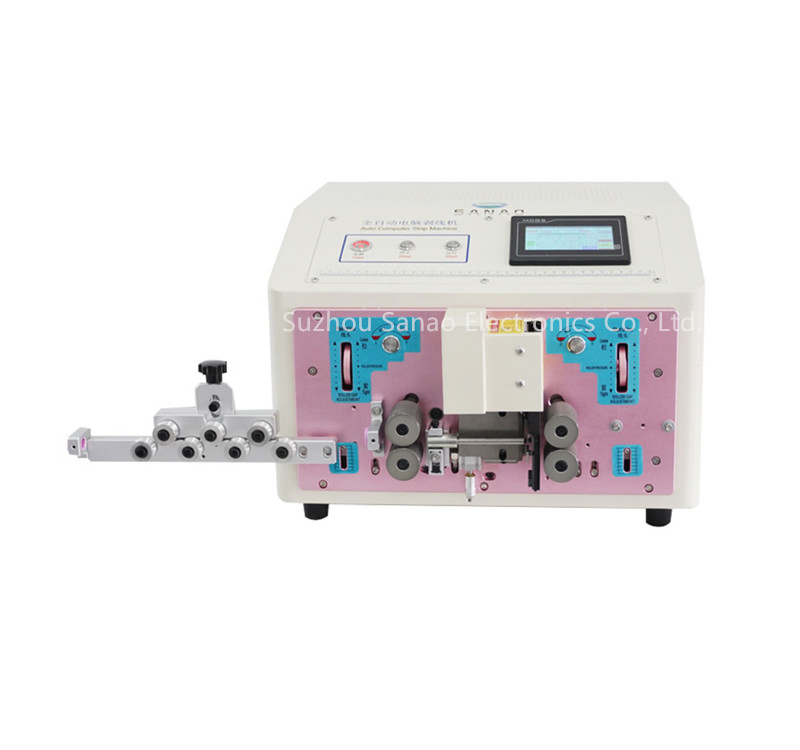

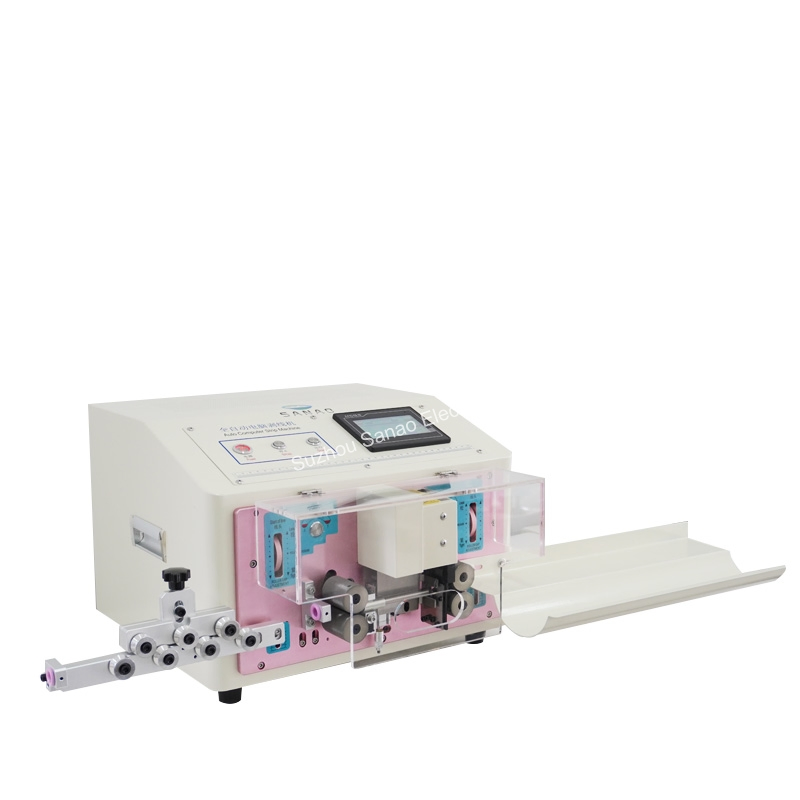

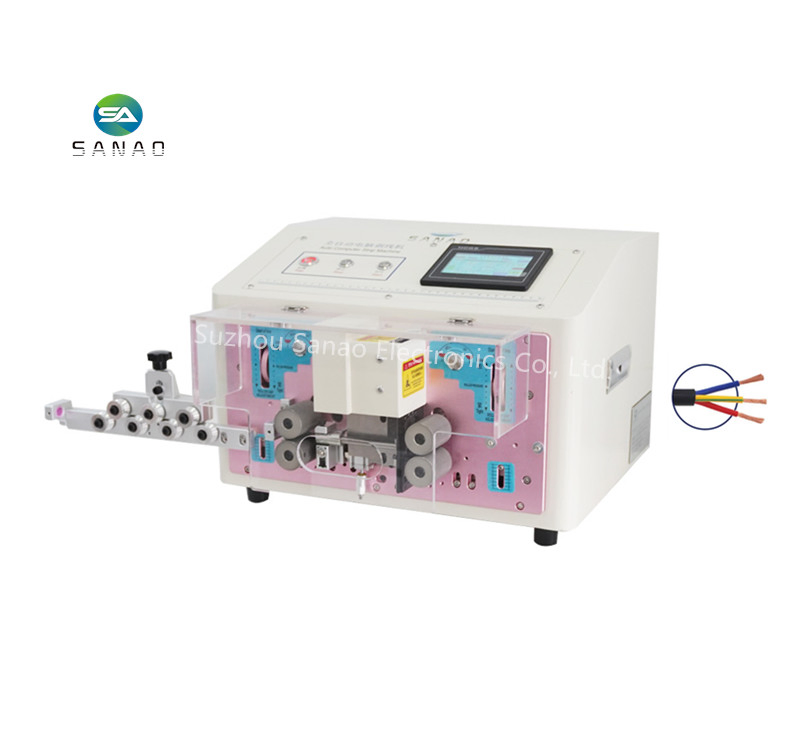

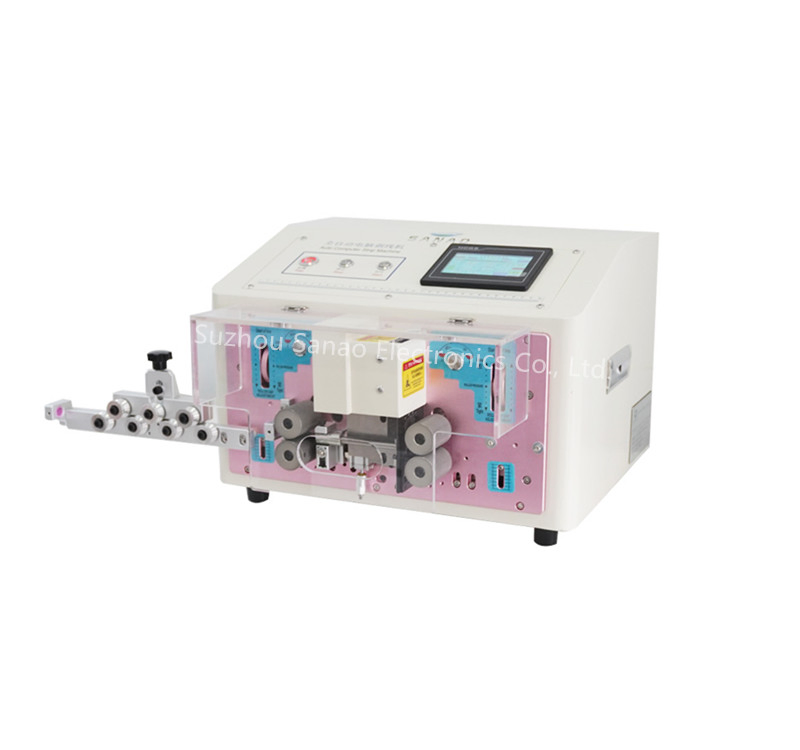

The SA-810N is a high-performance processing machine designed for a wire range of 0.1-10mm² single wires and sheathed cables up to 7.5mm outer diameter. Utilizing advanced wheel feeding technology, this machine features an integrated inner core stripping function, allowing for the simultaneous stripping of both the outer sheath and core wires.
Versatile Functionality: When the inner core stripping function is disabled, the machine efficiently handles electronic wires below 10mm². The lifting wheel mechanism enables a front outer jacket stripping length of up to 70mm and a back end length of up to 30mm.
| Technical Data | |
|---|---|
| Voltage | AC220V 50-60Hz (110V customizable) |
| Cutting Tolerance | 0.002*L-mm |
| Weight | 35kg |

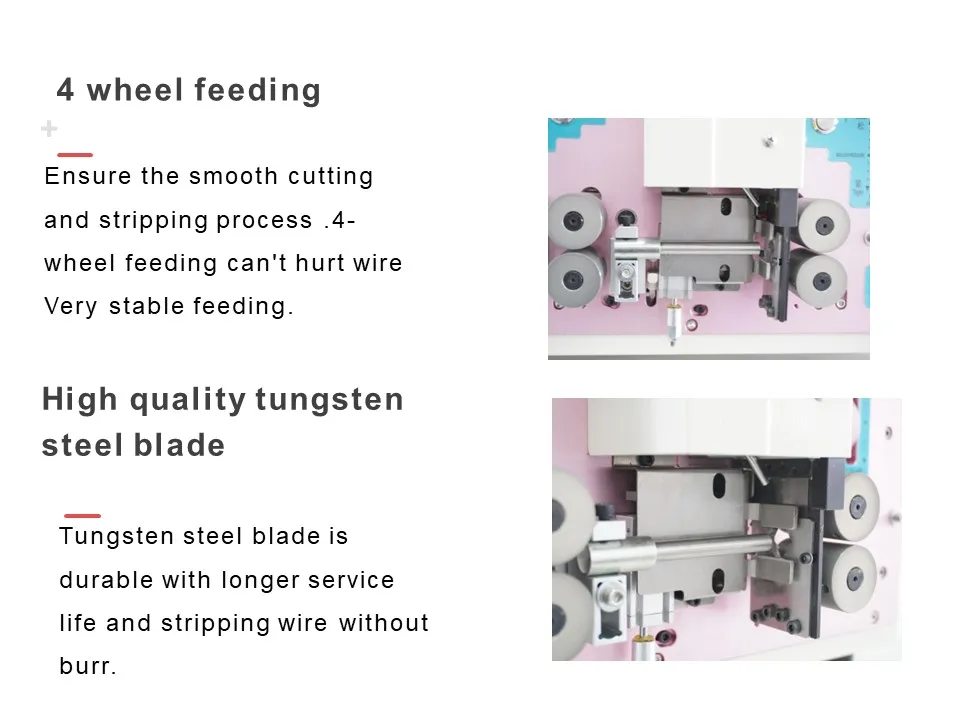

| Drive Method | 4-wheel drive |
| Conduit Inner Diameter | 4/5/6/8 |

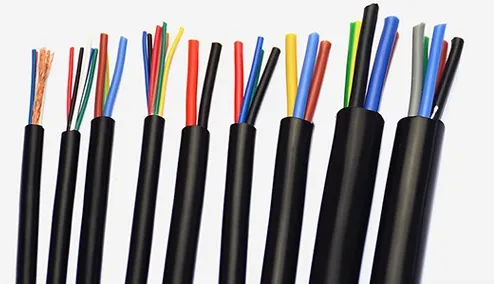

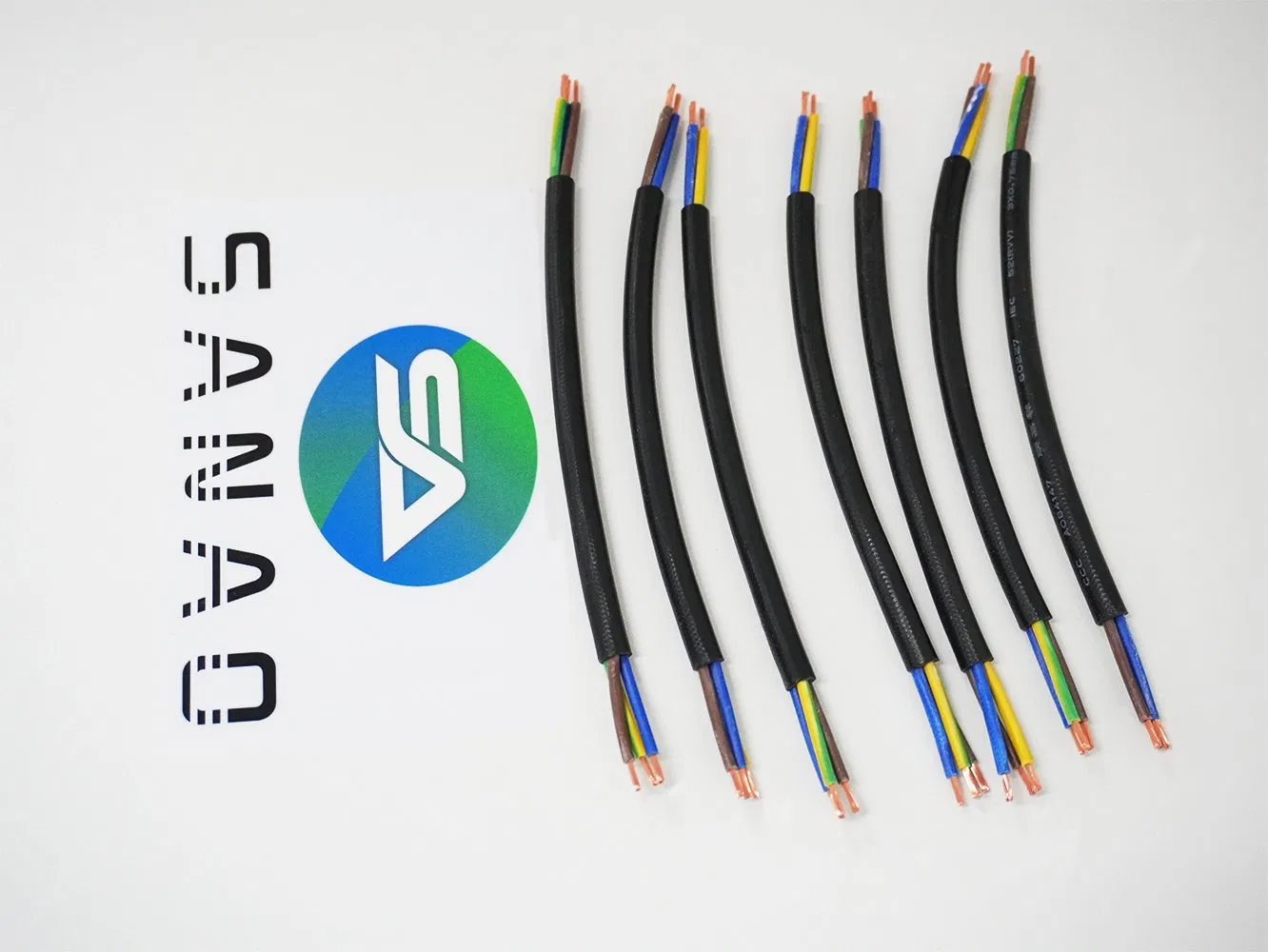

A: It is designed for single wires ranging from 0.1-10mm² and multi-core sheathed cables with an outer diameter of up to 7.5mm.
A: No, the machine is fully electric and powered by high-precision stepper motors. However, an air supply can be connected to utilize the automatic blade-cleaning function.
A: Yes, the machine features a specialized inner core stripping mode that allows it to process both layers in a single operation cycle.

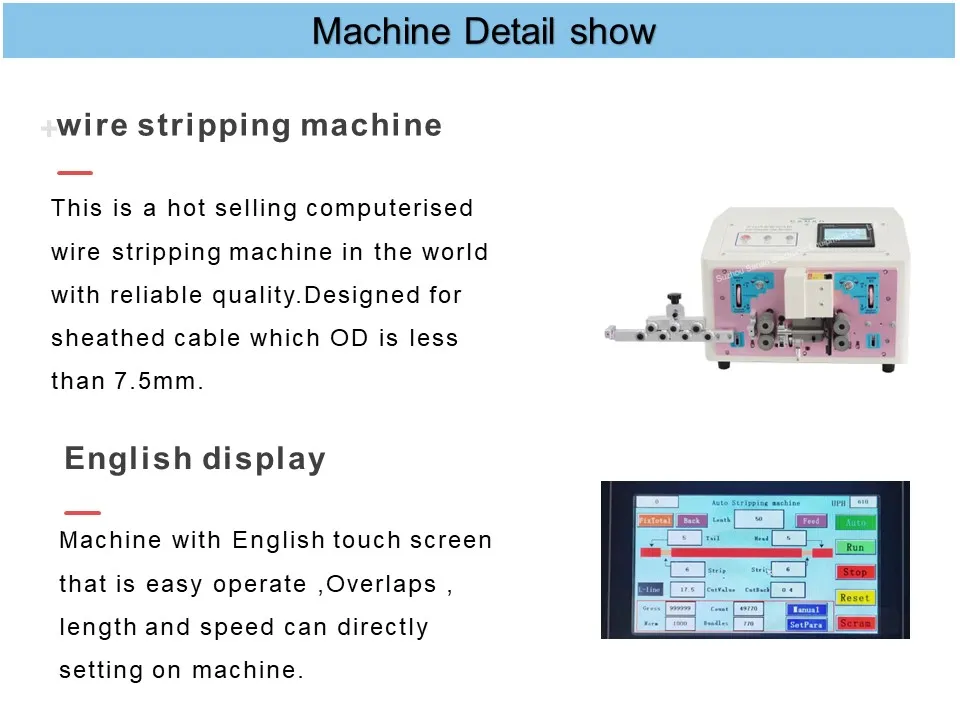

A: The machine is equipped with an English color touch screen where you can directly input the desired cutting and stripping lengths for instant adjustment.
A: The average capacity is approximately 1000 to 1300 pieces per hour, depending on the specific length and material of the wire.
A: The blades are made of imported high-speed steel for long-term durability. We recommend using the air-blowing function to keep the blades free of insulation waste for optimal accuracy.
