Full Automatic Step Lap Transformer Core Cutting Machine

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Basic Specifications

Model NO.

JN-3003E

Condition

New

Certification

ISO 9001:2000

Automation

Automatic

Suitable for

Electrical Silicon Steel

Cutting Speed

30~60 Cuts Per Minute

Max. Width

30-300mm

Length Precision

+/-0.05mm

Angle Precision

+/-0.03°

Blade Material

Carbide Alloy

Feeding Speed

Max. 100m/Min

Origin

China

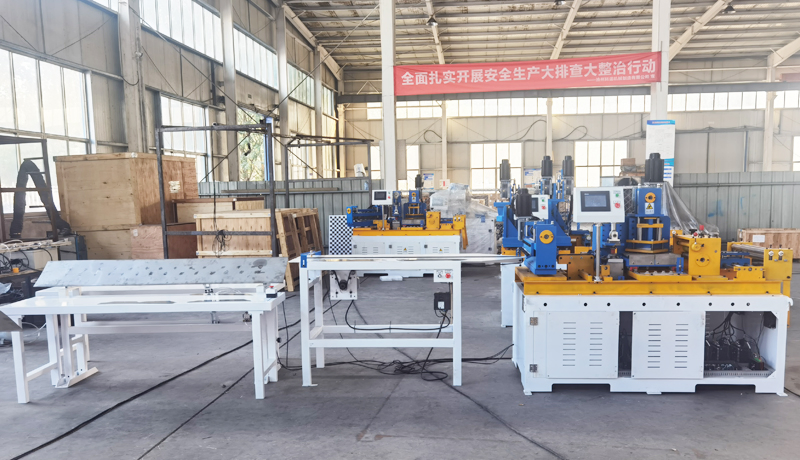

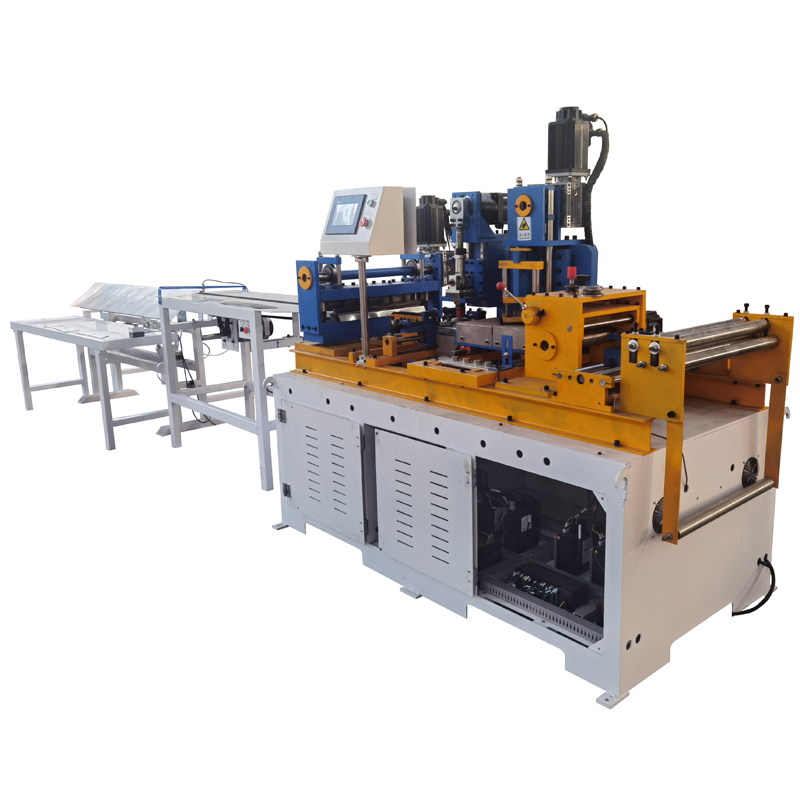

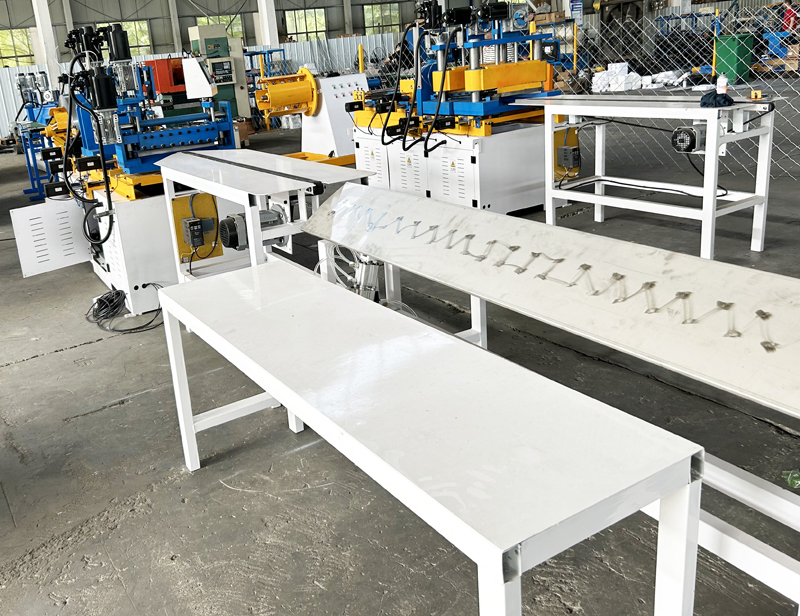

Full Automatic Step-lap Transformer Core Cutting Machine

This machine is specially designed for cutting silicon steel coils into lamination strips for transformer cores, welding machine cores, and reactor cores. It features a swing shear for various angles. Lamination shape, hole position, V notching position, and cutting length are all pre-set in the PLC for full automatic operation.

Main Features

✓ Delta AC servo system and PLC module achieve high precision feeding, quick response, and low noise. Starting & braking time is less than 10ms.

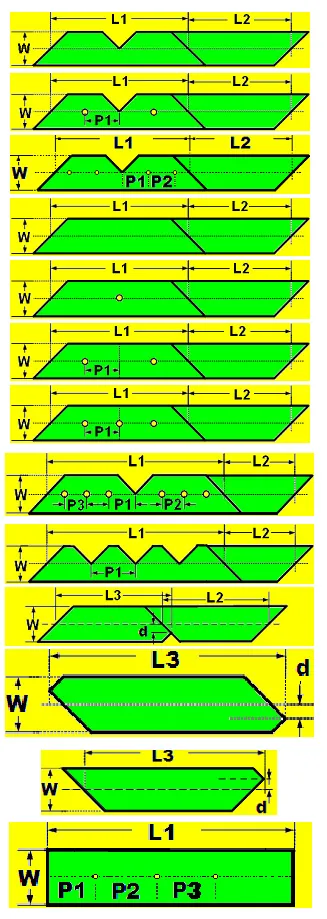

✓ Supports cutting various shapes: right angle, trapezoid, parallelogram, fish-head, etc.

✓ Equipped with online punching & V notching devices for high productivity.

✓ Cutting, punching, and notching are driven by servo motors for better reliability and speed.

✓ Carbide alloy blades provide long life (over 1.2 million times before grinding) and minimal burr.

✓ Step-lap function supports up to 7 steps, with each step consisting of two laminations.

Technical Specifications

No.	Item	Data
1	Type Code	JN-3003E
2	CRGO Thickness	0.23-0.6mm
3	CRGO Coil Width	30-300mm
4	Cutting Length	1-999999mm
5	Cut-to-length Tolerance	+/-0.1mm
6	Cutting Angle Tolerance	+/-0.03°
7	Hole Position Tolerance	+/-0.1mm
8	Notch Position Tolerance	+/-0.1mm
9	Burr Height	Less than 0.02mm
10	Feeding Speed	Max. 100m/min
11	Production Speed	30~60 pieces per minute
12	Die & Blade Life	> 1.2 million times before grinding
13	Step-lap Stroke	40mm
14	Step-lap Quantities	1, 2, 3, 4, 5, 6, 7
15	Servo Motors	Delta

Visual Showcase

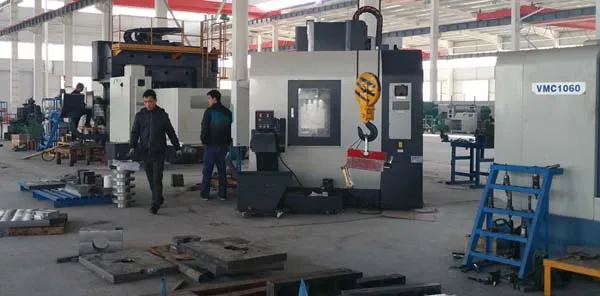

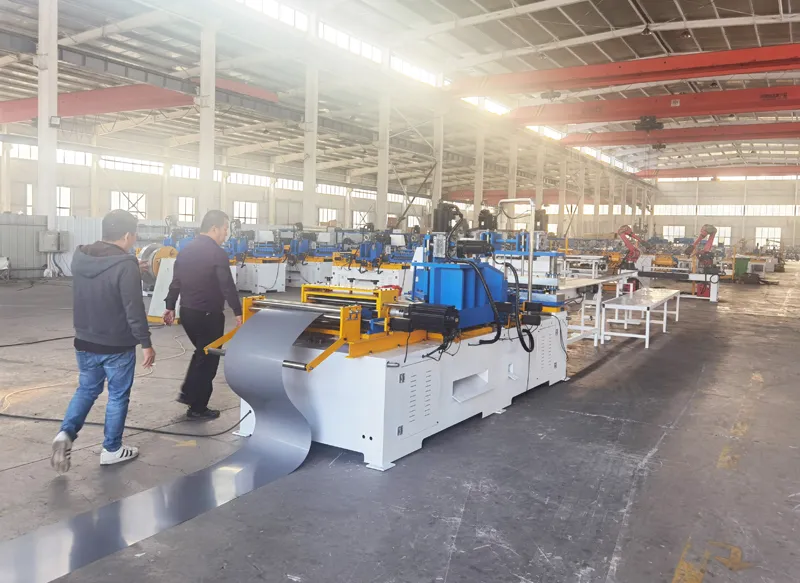

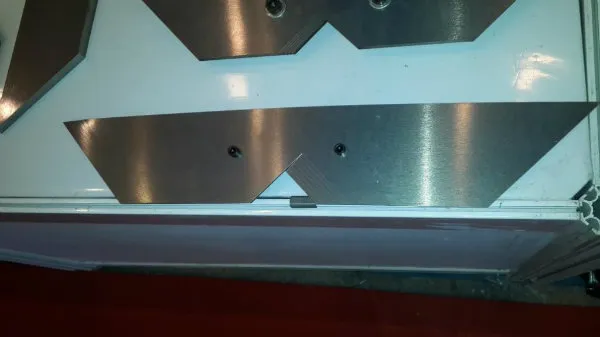

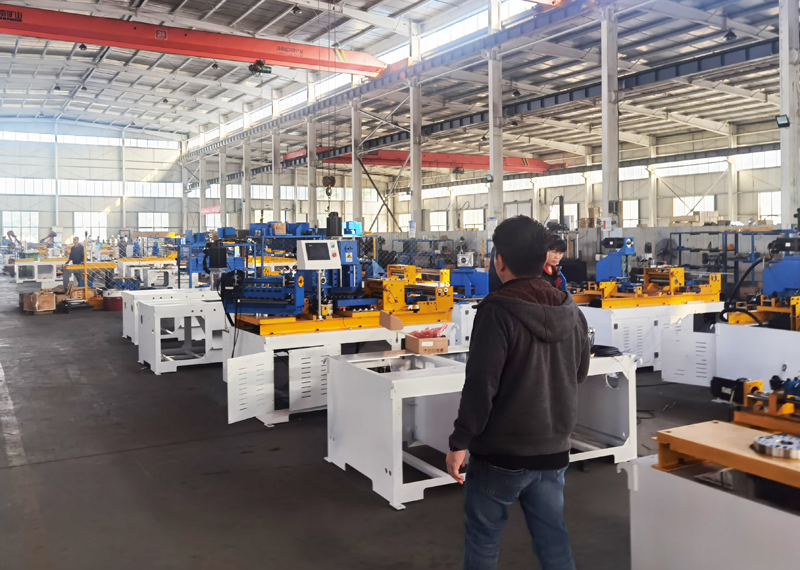

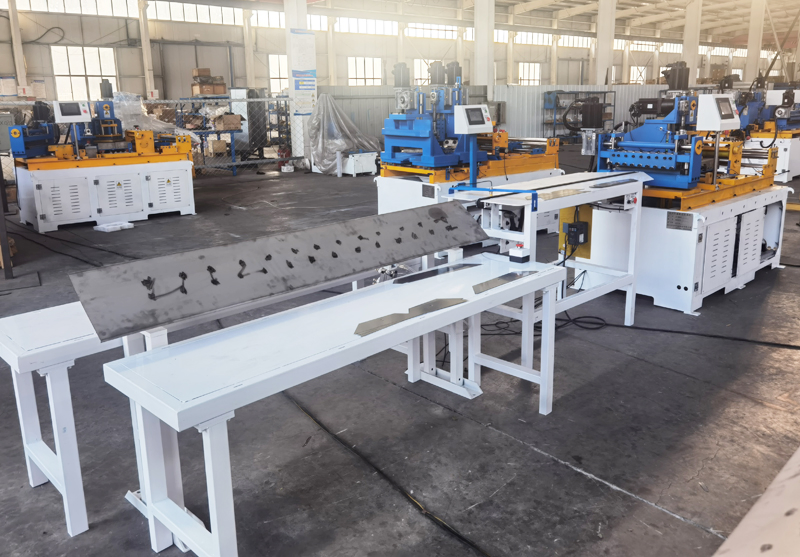

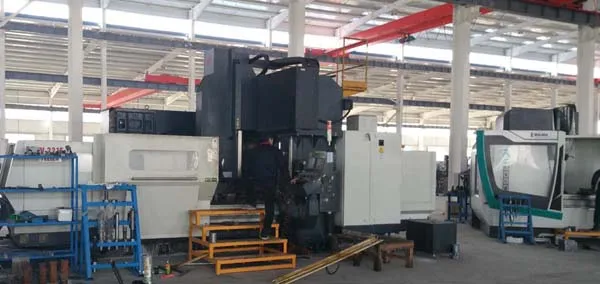

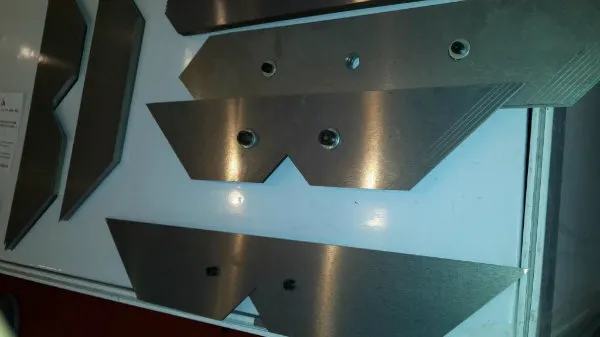

Step-lap silicon steel laminations and workshop facilities:

Frequently Asked Questions

1. What materials can this machine process? It is specifically designed for Electrical Silicon Steel (CRGO) coils with thicknesses ranging from 0.23mm to 0.6mm.

2. What is the maximum production speed? The machine can produce between 30 to 60 pieces per minute, depending on the complexity of the cuts and dimensions.

3. How accurate is the cutting process? The machine achieves a cut-to-length precision of +/-0.05mm to +/-0.1mm and a cutting angle precision of +/-0.03°.

4. What is the lifespan of the cutting blades? The cutting blades are made from special carbide alloy, offering a long life of over 1.2 million cuts before requiring grinding.

5. Does it support step-lap core designs? Yes, it features a step-lap function with up to 7 steps, where each step can be configured for two laminations.

6. What automation system does the machine use? The system utilizes a high-precision Delta AC servo system paired with Delta PLC modules for feeding and positioning.
