Heavy-Duty Wire Cutting and Stripping Machine for Multi-Core Cables

After-sales Service:	Remote Technical Support, Operation Training, Main
Driven Type:	Pneumatic
Condition:	New

Send Inquiry

Product Description

Basic Info

Model NO.

KK-506D

Certification

ISO, CE

Warranty

24 Months

Automatic Grade

Automatic

Weight

80 Kg

Cable Cross-Sectional Area

1-35 mm²

Display

4.3-Inch Touchscreen

Blade Material

Tungsten Steel / Imported High-Speed Steel

Function

Wire Cutting, Wire Stripping

Transport Package

Wooden Box or Paper Box

Specification

1200 × 550 × 550 mm (L×W×H)

HS Code

8479899990

Product Description

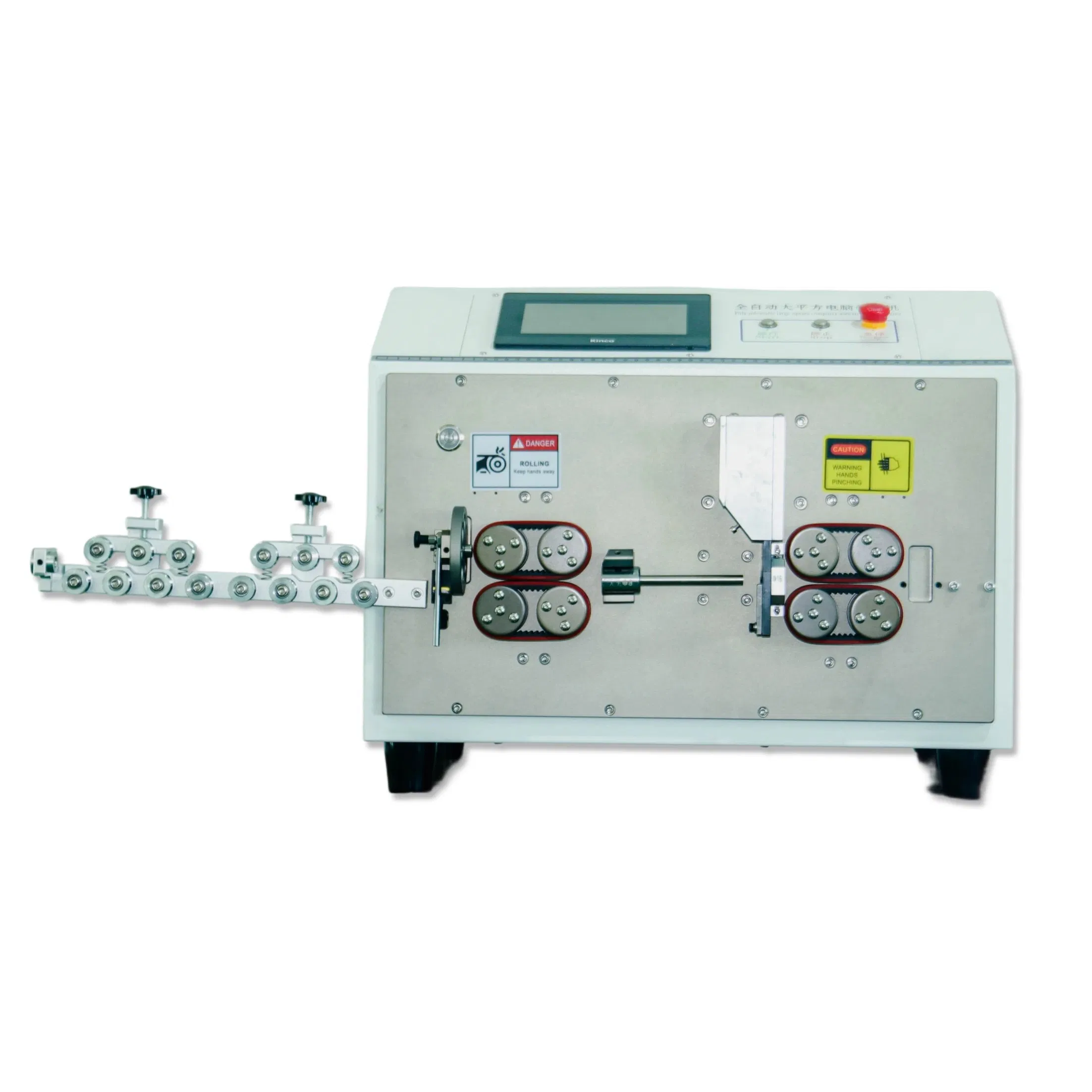

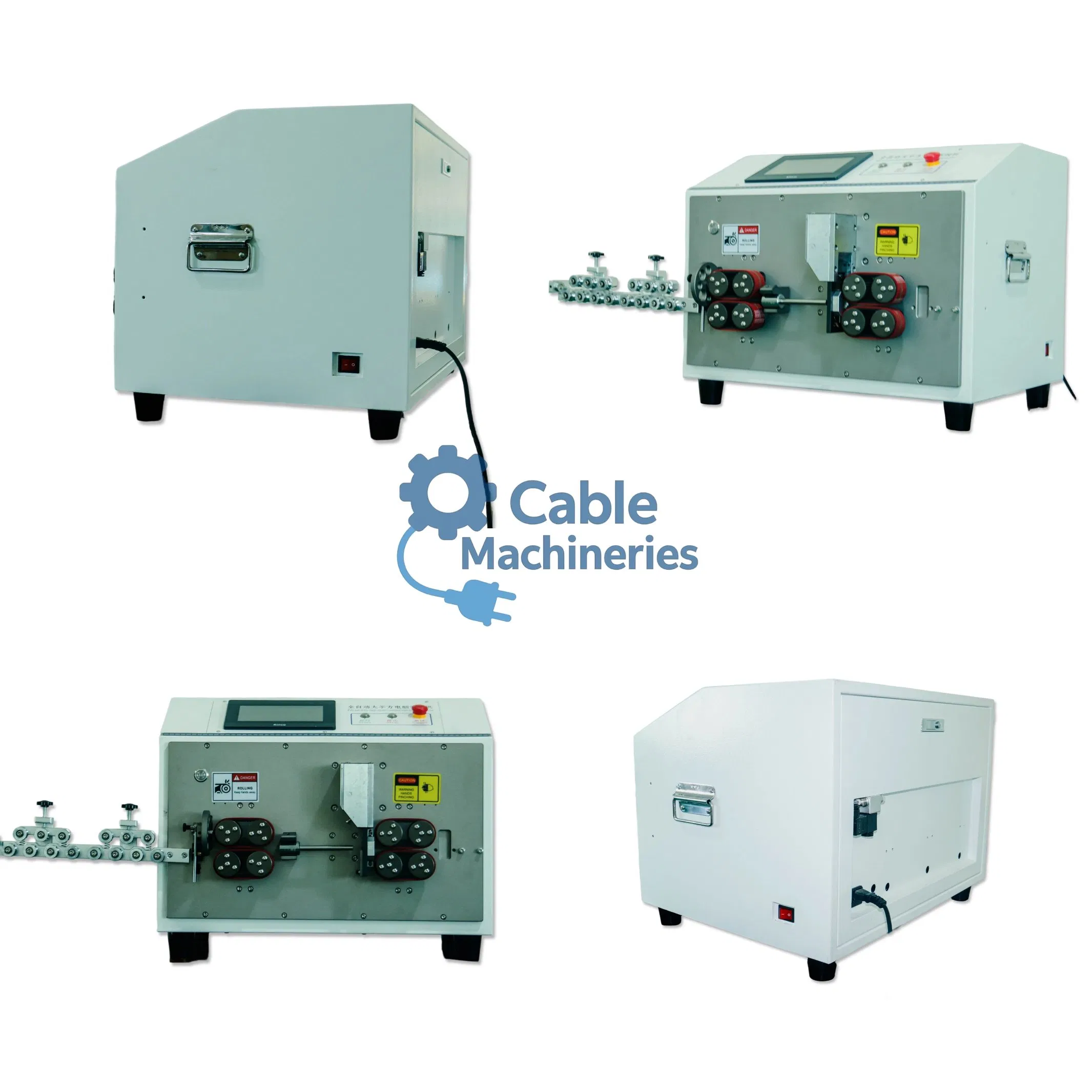

Heavy-Duty Wire Cutting and Stripping Machine

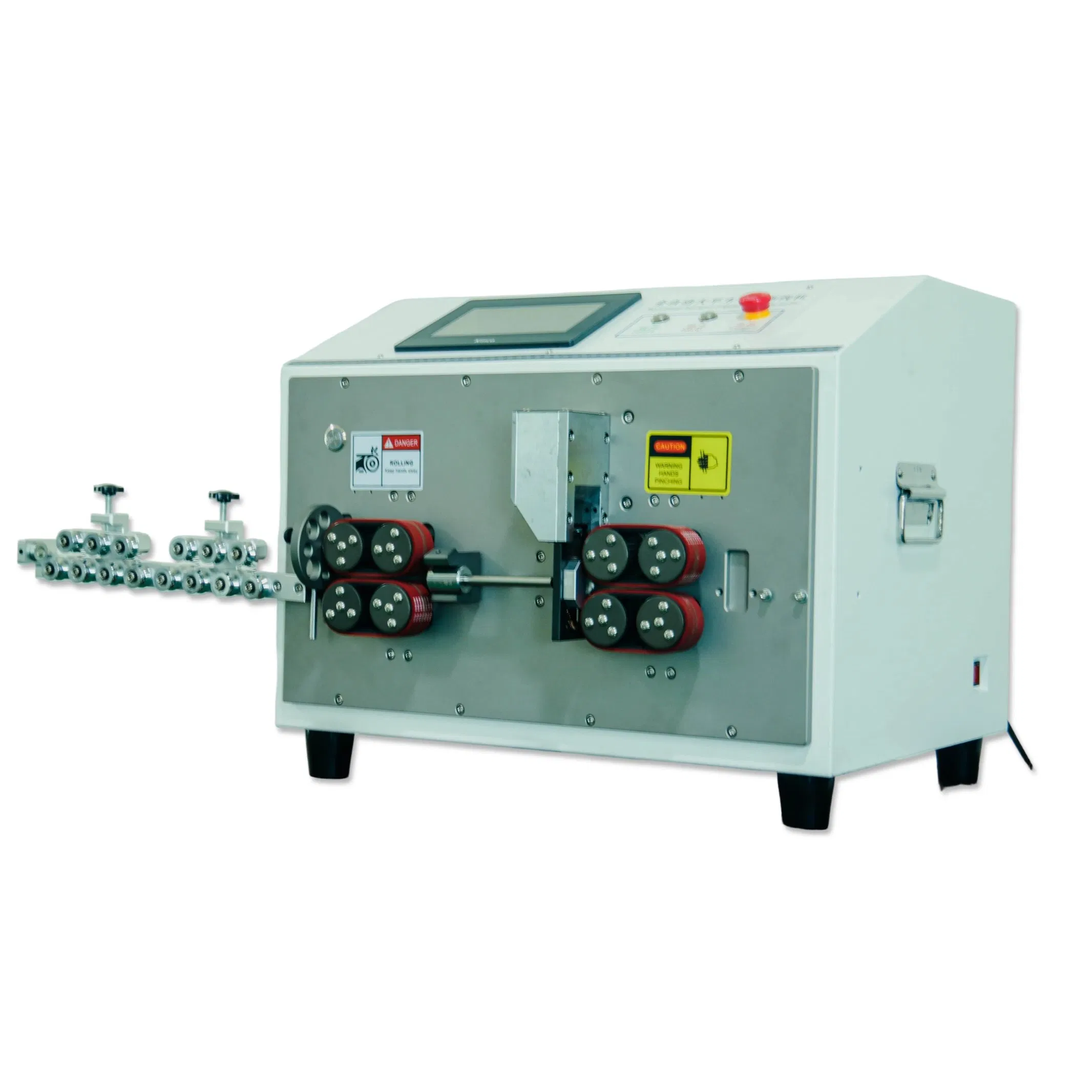

KK-506D Fully Automatic Wire Stripping Machine (Belt Drive)

The KK-506D is a fully automatic wire stripping machine built for precise cutting and stripping of thick power cables, new energy charging cables, and multi-core sheathed wires. Equipped with a pure electric belt-driven system and intelligent microcomputer control, the machine delivers stable feeding, smooth stripping, and consistent cutting accuracy. It supports both soft and hard wires, making it ideal for industrial, automotive, and EV harness production.

Specification

Parameter	Specification
Model	KK-506D
Power Supply	AC 175-250V, 50/60 Hz
Power Consumption	120-220W
Production Capacity	800 – 1,500 pcs/hour
Machine Dimensions	1200 × 550 × 550 mm (L×W×H)
Weight	80 kg
Display	4.3-inch Touchscreen
Blade Material	Tungsten Steel / Imported High-Speed Steel
Max Wire Size	30 mm²

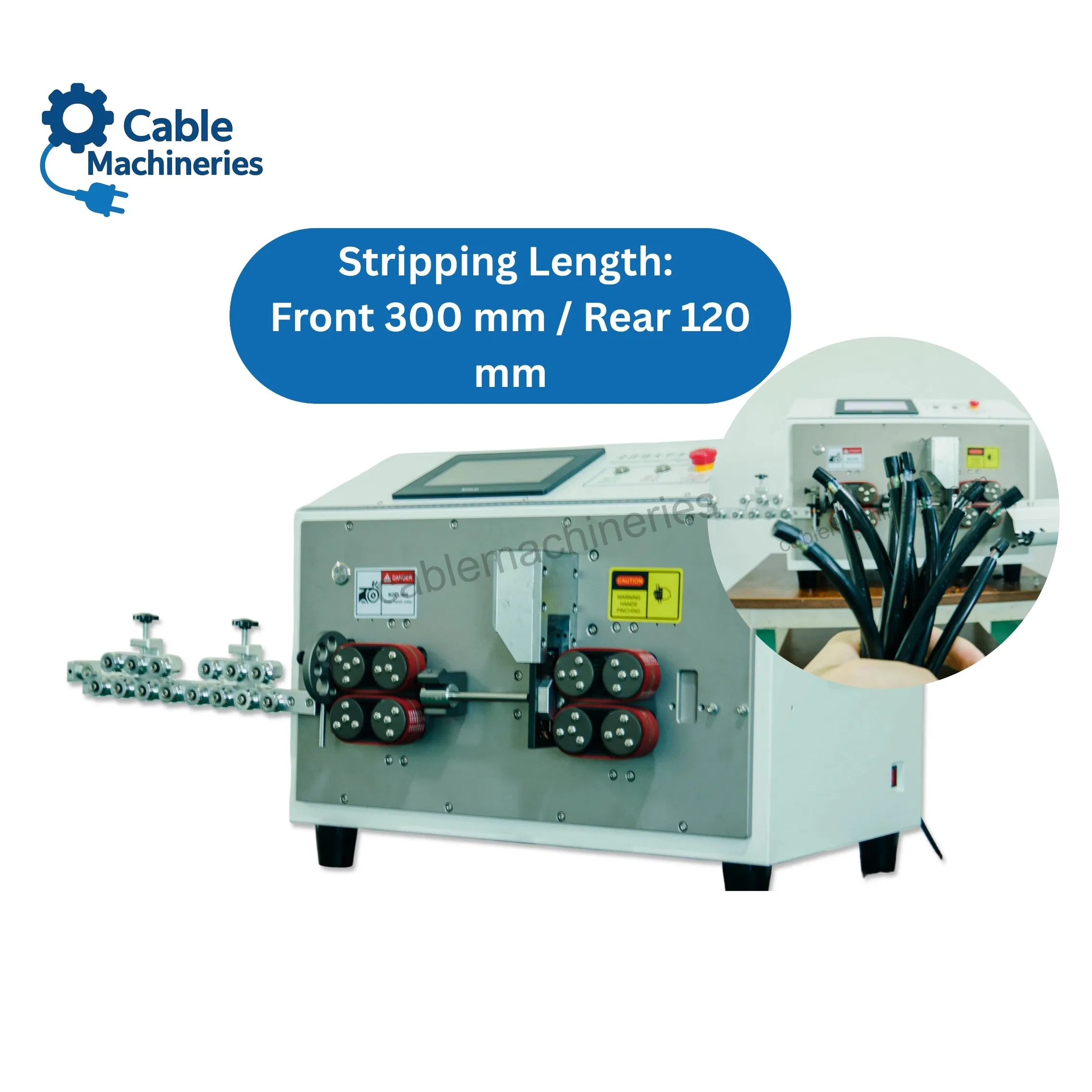

Stripping Length	Front 300 mm / Rear 120 mm

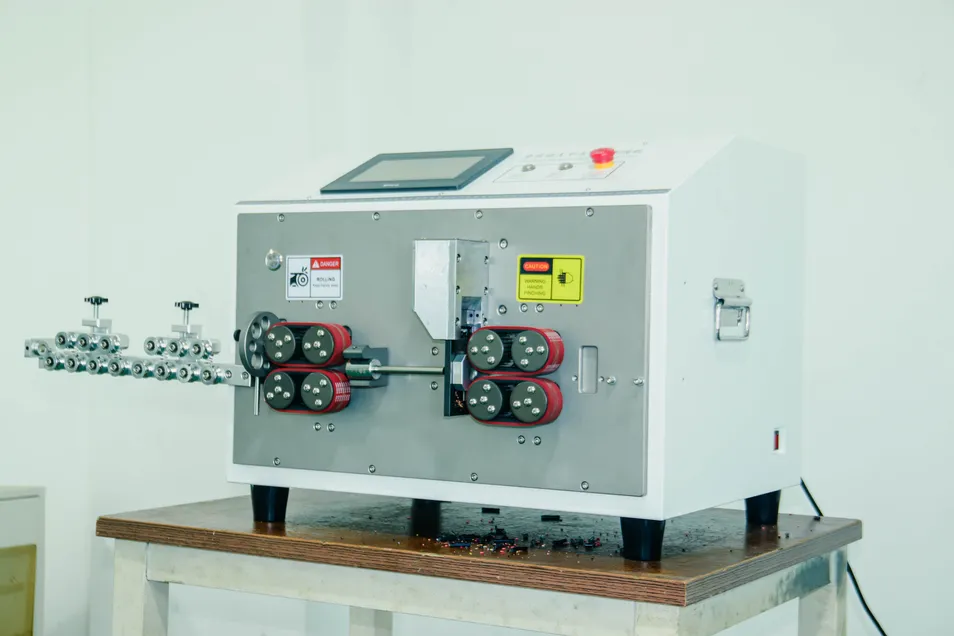

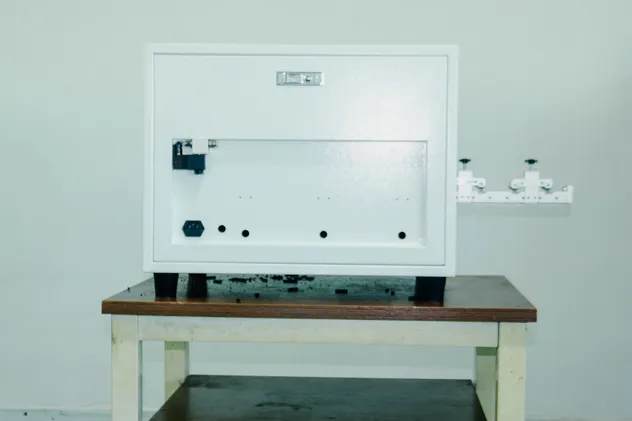

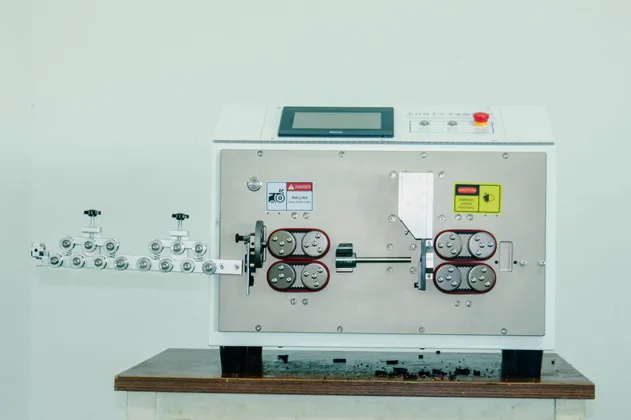

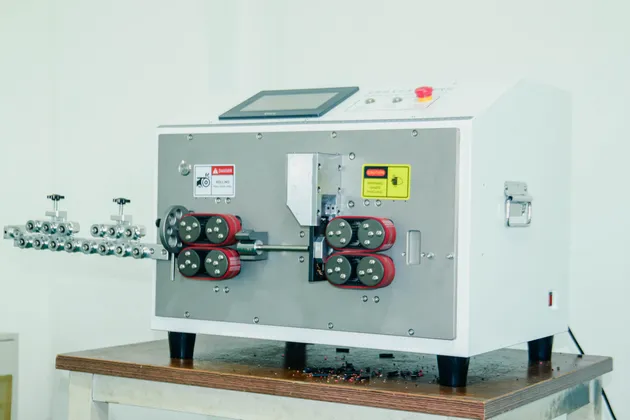

Product Details

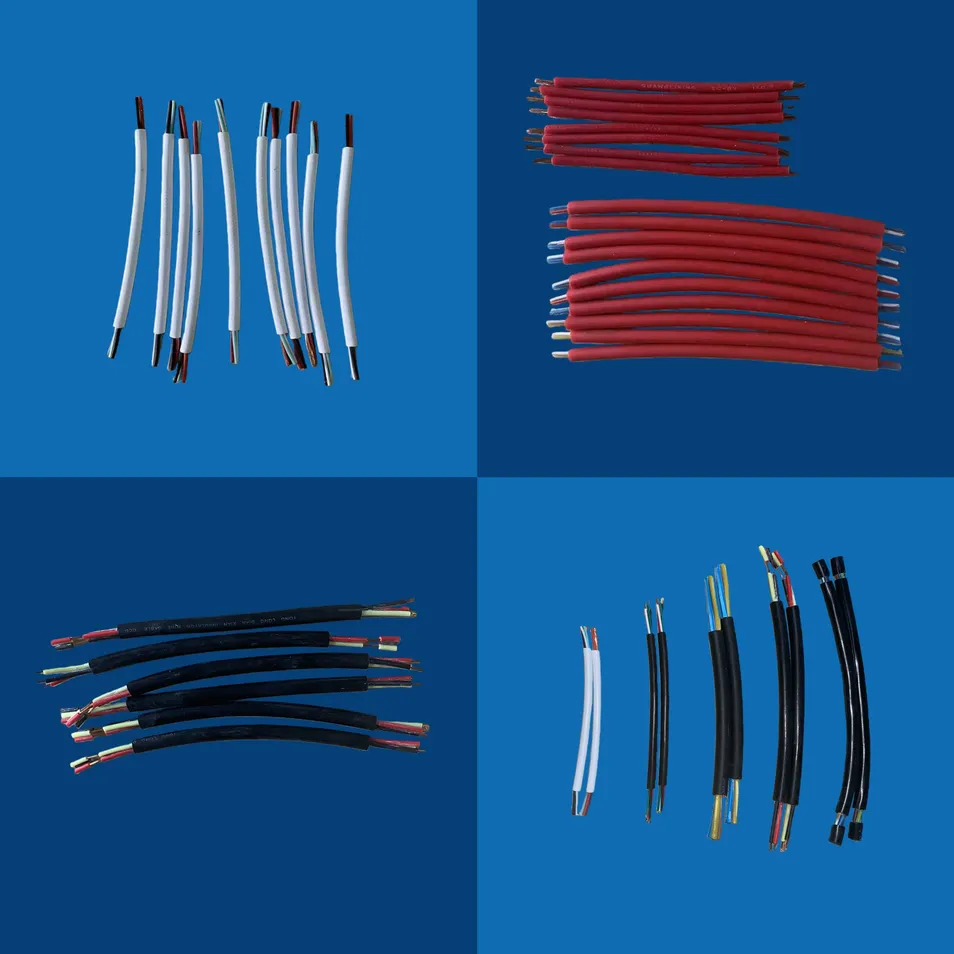

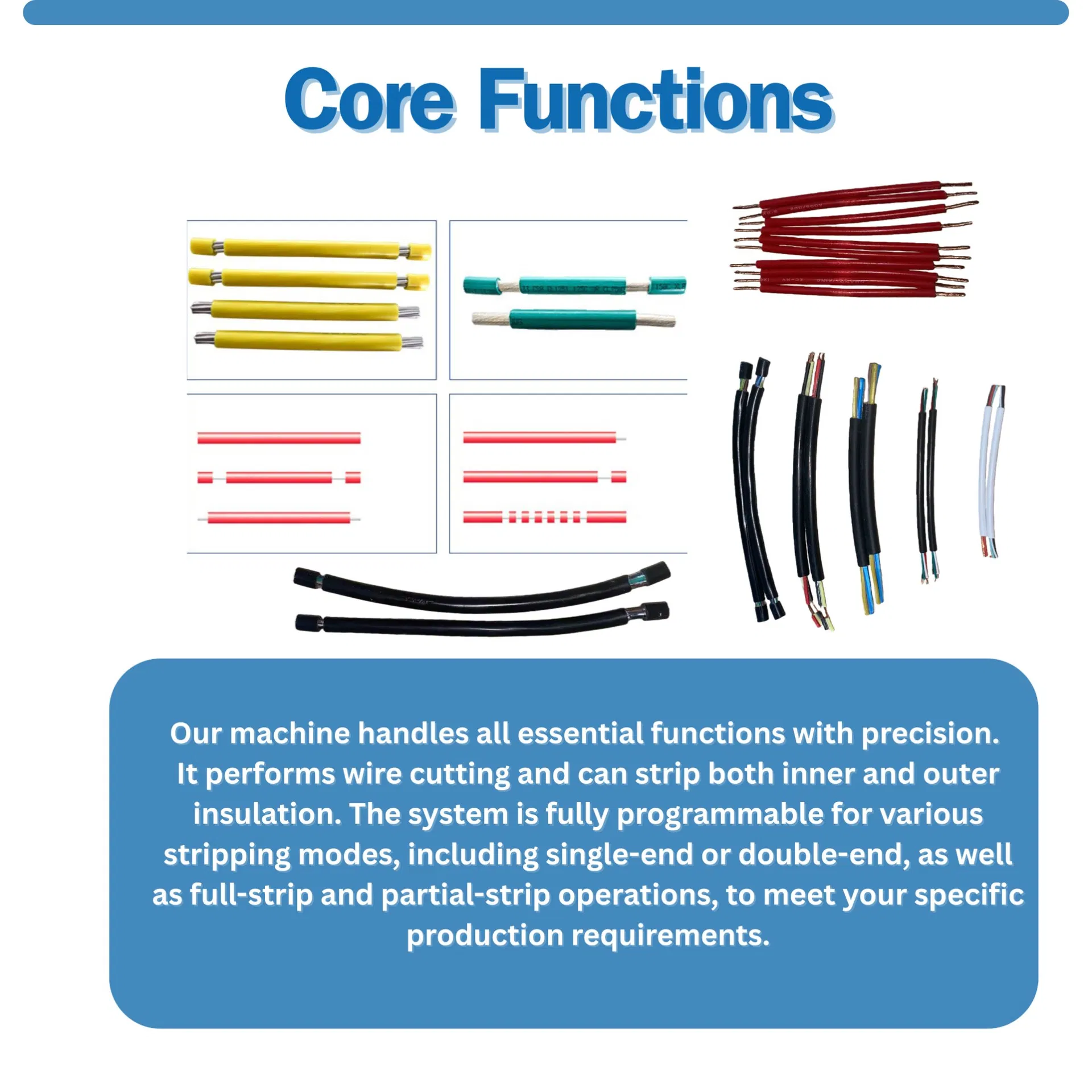

Processed Samples

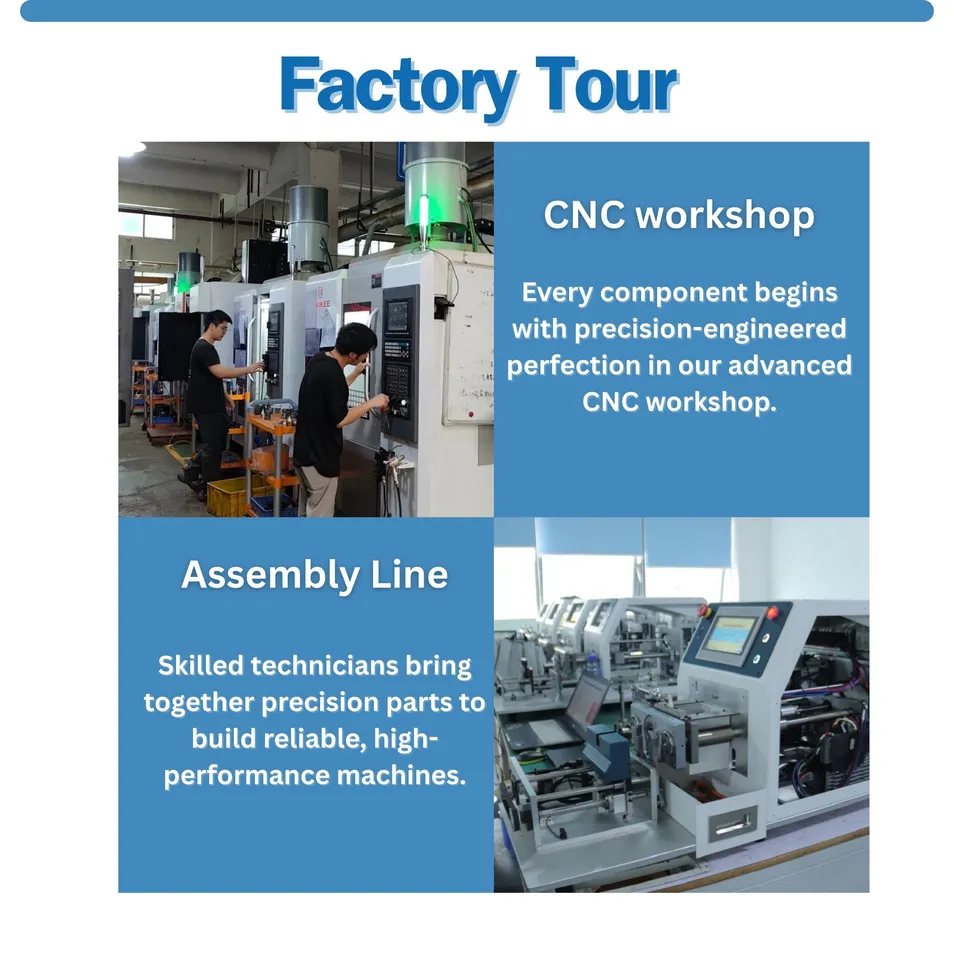

Professional Facility & Packing

Frequently Asked Questions

What types of wires can your machines process?

Our machines handle a wide range of wires including electronic wires, PVC cables, braided wires, silicone wires, high-temperature wires, and shielded cables. Specific models are optimized for different wire types and applications.

What is the typical stripping length range?

Depending on the model, stripping lengths range from 0.1mm to 300mm for front stripping and 0.1mm to 130mm for rear stripping, with multiple mid-span stripping points available.

Can you process both single-core and multi-core wires?

Yes, our machines are designed to handle both single-core and multi-core wires effectively, with some models featuring specialized twisting functions.

What is your warranty policy?

We offer 12-24 month warranties depending on the model, covering manufacturing defects with comprehensive after-sales support.

How often do blades need replacement?

Blade life varies with usage and wire type, but typically lasts 3-6 months in normal operation. We provide guidance on blade maintenance and replacement.

Can machines be customized?

Yes, we offer customization for specific wire types, production requirements, and special applications. Our engineering team works closely with customers to develop optimal solutions.
