Product Description

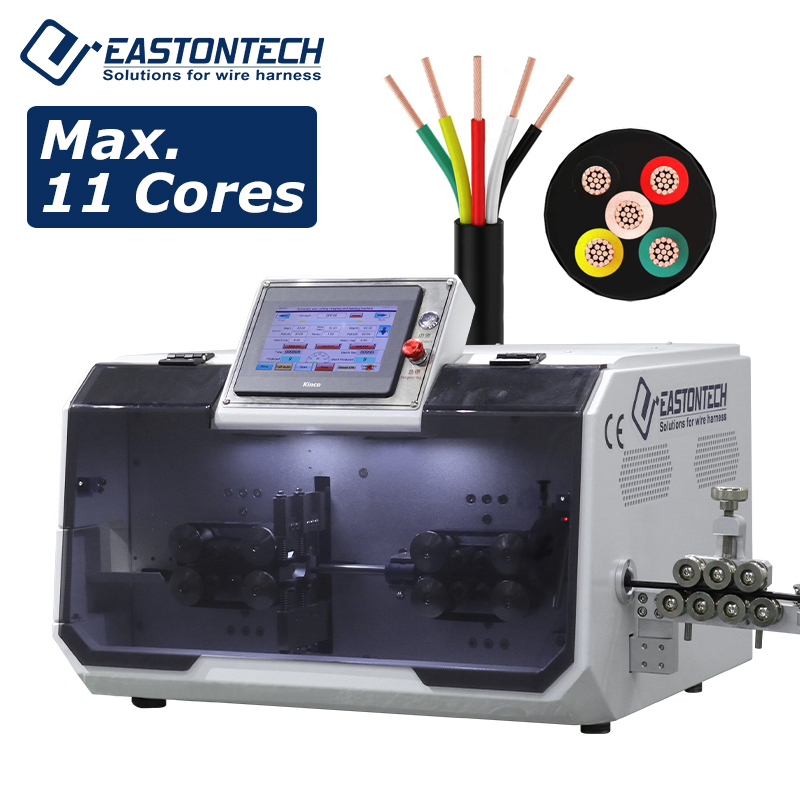

Full Automatic Multi-conductor Sheathed Cable Cutting and Wire Stripping Machine

This series of wire stripping machines is specially designed for processing multi-core sheathed wires. After the outer sheath is stripped, the core wire can be stripped automatically. The system uses belt feeding to replace traditional roller feeding, significantly increasing the contact area with the wire.

Key Advantages:

  • Enhanced tension and stripping ability.
  • Reduced pressure to prevent damage to the wire sheath surface.
  • No indentation on the surface of the wire.
  • High-precision servo motor driving the blade frame for speed and power.
  • Program memory function storing up to 100 groups of processing parameters.

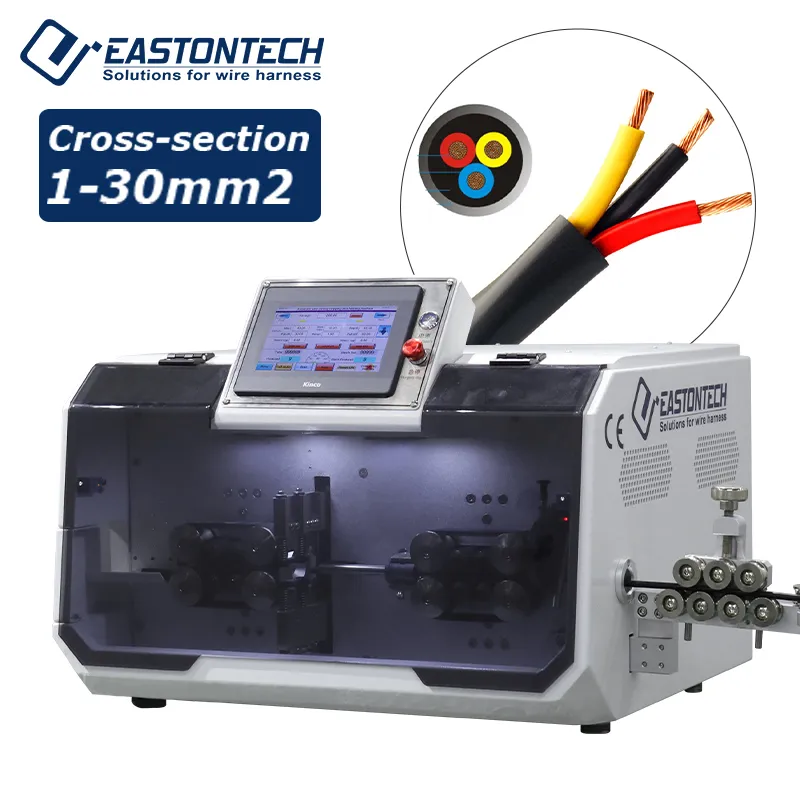

Multi-conductor Sheathed Cable Machine
Technical Specifications
Parameter Model: EW-05F+ Model: EW-05F+-1
Conductor Cross-section 0.75- 30 mm²
Applicable Cables Single core, Multi-conductor, Sheathed, PVC cables, etc.
Core Wire Stripping 2-10 cores N/A
Cutting Length 1 - 999,999.9 mm
Length Accuracy < 0.002 * L (L = cutting length)
Jacket Stripping (Side I) Full: 10-200mm | Half: 1-800mm Full: 10-200mm | Half: 1-800mm
Core Stripping (Side I) Full: 1-50mm | Half: 5-200mm N/A
Productivity 3500 pcs./h (900 for multi-conductor) 2000 pcs./h
Blade Material Imported Switzerland Tungsten Steel / High speed steel
Driving Mode Servo motor with 16 roller/belt driving system
Power Supply 110/220 V (50 - 60 Hz), 1.1kW
Dimensions 680 * 605 * 520 mm | Weight: 95-105kg
Key Features at a Glance
Feature 1
Feature 2
Feature 3

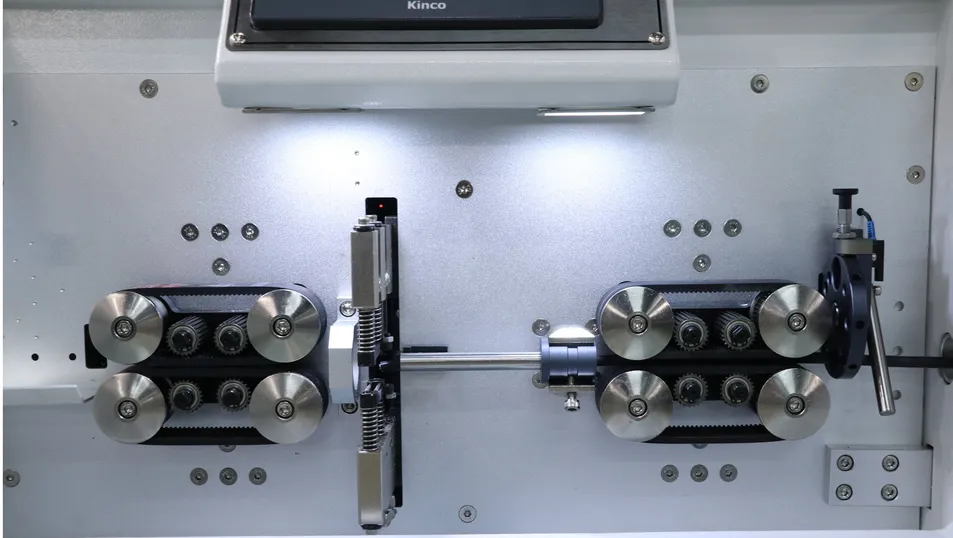

16-Roller Driving with Belts Feeding

Enhanced feeding force with highly precise feed length (0.1mm increments). Guarantees no scratch marks on wire insulation or jacket.

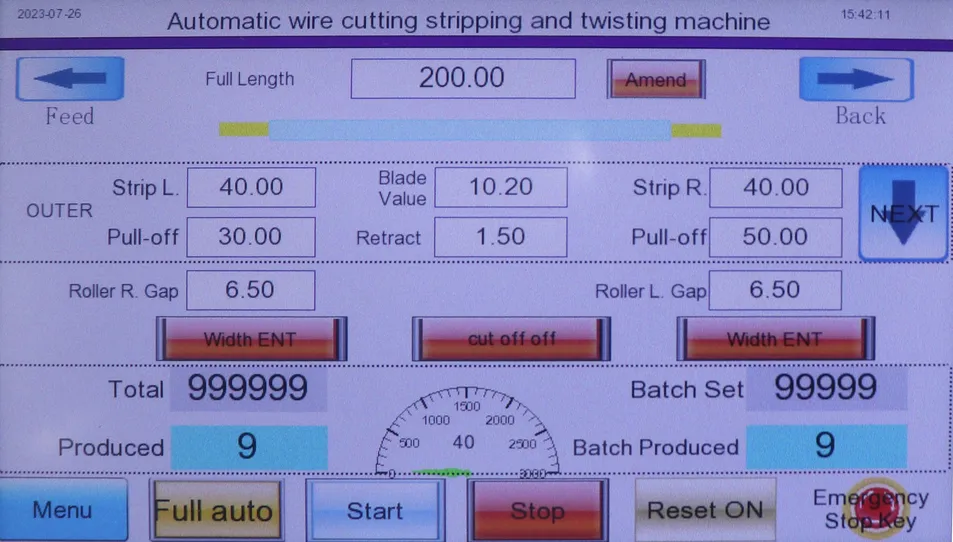

Programmable Setup

Setup on PLC touch screen to automatically change roller gap and pressure. No manual adjustment required.

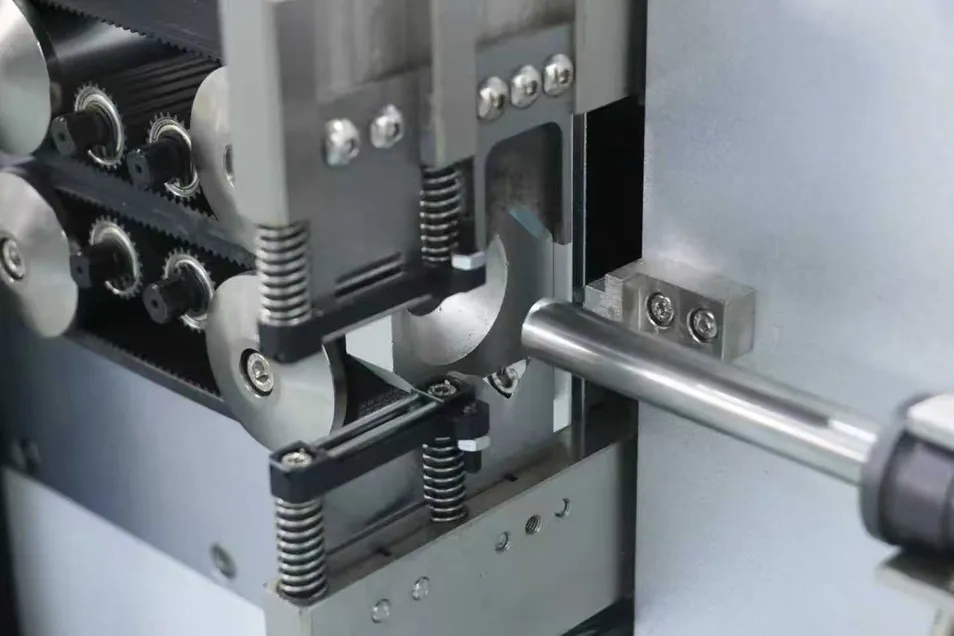

Separate Blade Systems

Uni-V jacket stripping blades and Uni-flat core wire blades for up to 11 core wires. Optional teeth blades for rubber insulation.

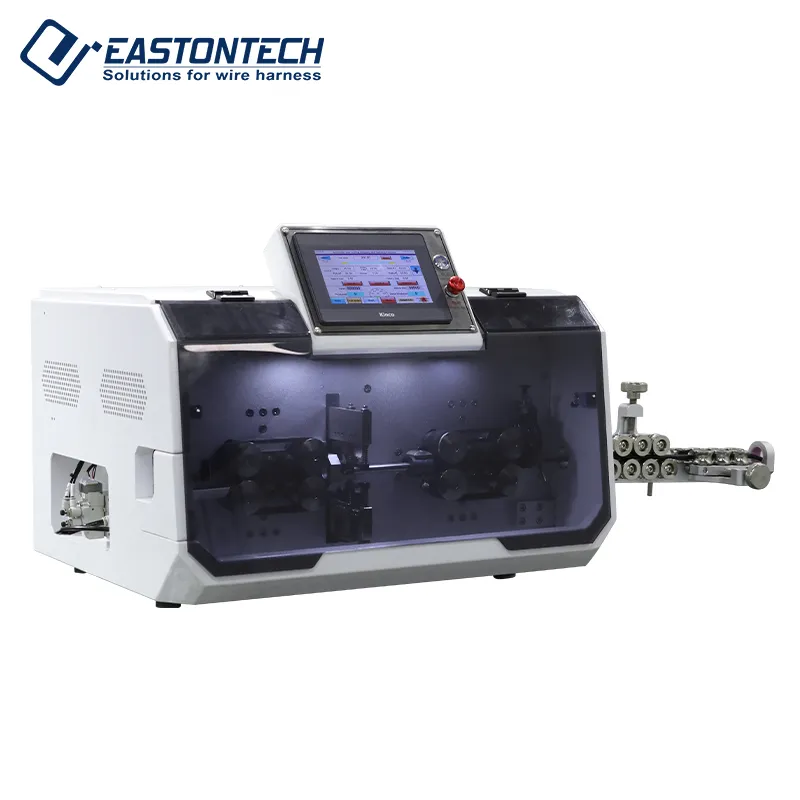

Safety Systems

Includes auto-stop for safety guard opening, wire depletion, short circuits, and emergency stop button.

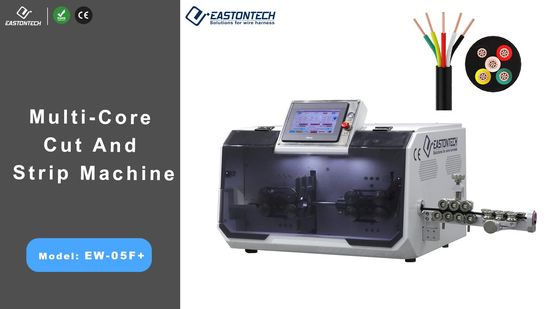

Product Demonstration
Video Placeholder

Automatic Cable Processing Operation

Add-on Options
  • Option Pre-feeder
  • Option Middle Strip Module
  • Option Twist Module
  • Option Conveyor with stacker
  • Option Coiler
  • Option Ink-jet printer
  • Option Industrial control system (ICS)
Safety Features
Production Detail
Large View 1
Large View 2
Large View 3
Frequently Asked Questions
What types of cables can this machine process?
The machine is highly versatile and can process single core cables, multi-conductor cables, sheathed cables, and PVC cables with a conductor cross-section ranging from 0.75 to 30 mm².
Does the machine damage the wire jacket during feeding?
No. By using a belt feeding system instead of traditional rollers, the contact area is increased, which reduces surface pressure and ensures no indentation or scratch marks on the wire sheath.
How many different processing programs can be saved?
The machine features a program memory function that can store up to 100 groups of processing parameters, allowing for quick transitions between different wire types with a single key call-out.
What is the material and durability of the blades?
The blades are made from imported Switzerland Tungsten Steel or high-speed steel, ensuring high precision and a long usage life-cycle even under high-productivity demands.
What safety features are integrated into the machine?
The machine includes several safety guarantees: an auto-stop function when the safety guard is opened or when wire runs out, an emergency stop button, auto-shut off for short circuits, and an intelligent alarm system for reporting errors.
Can the roller gap and pressure be adjusted automatically?
Yes, the roller gap and roller pressure setup are fully programmable via the PLC touch screen, eliminating the need for manual adjustments.
