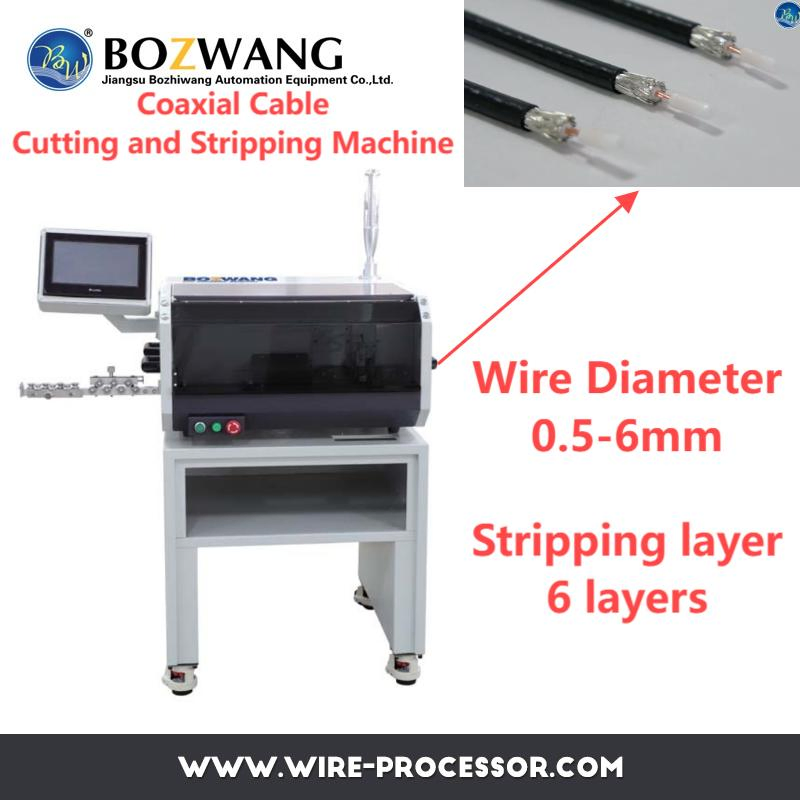

| Model NO. | BZW-886Q2 | Condition | New |
|---|---|---|---|
| Certification | CCC, ISO, CE | Warranty | 12 Months |

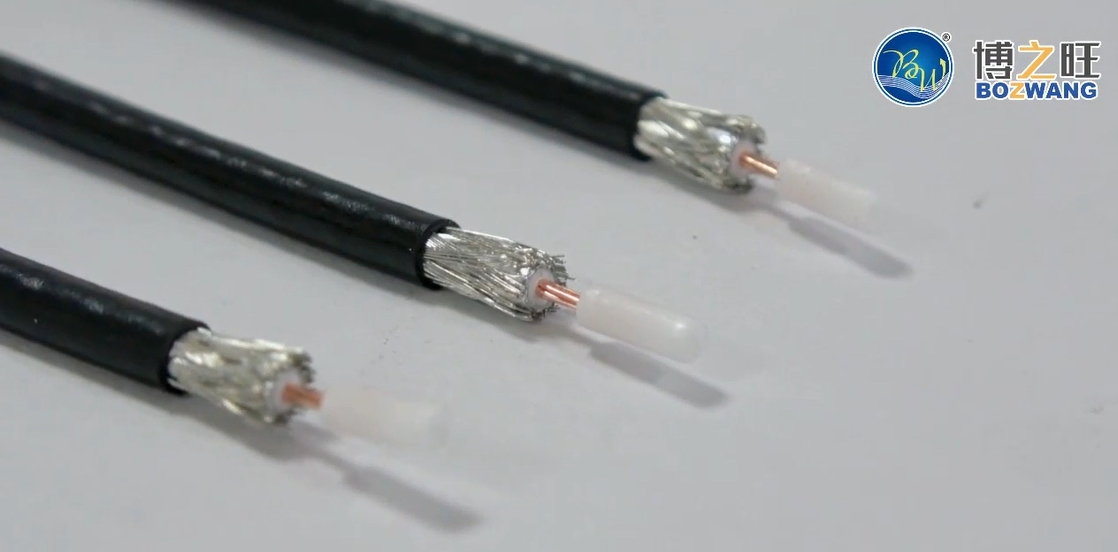

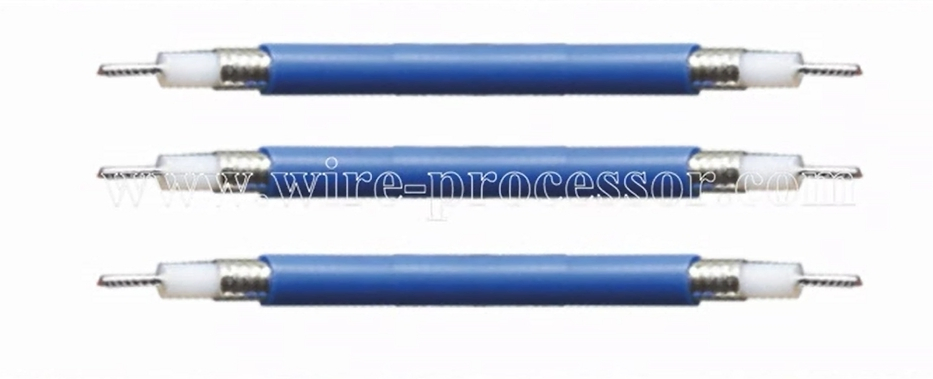

| Automatic Grade | Automatic | Type | Coaxial Cable, Multi-Core Wire |
| Cable Diameter | 0.5-6mm | Stripping Length | Wire Head 0.1-100, Wire End 0.1-45 |
| Stripping Layer | 6 Layers | Strip Way | Rotary Blade + Cutter + Strip Blade |
| Capacity | 300-650 PCS/H | Power | 220V 50/60Hz |
| Air Pressure | 0.5 MPa | Tool Materials | Imported Tungsten Steel |
| Transport Package | Wooden Case | Specification | 742*750*410 |
| Parameter Item | Specifications |
|---|---|
| Cable Diameter | Φ 0.5 - 6 mm (customized) |
| Stripping Length | Wire head 0.1-100, wire end 0.1-45mm |
| Stripping Layer | 6 layers |

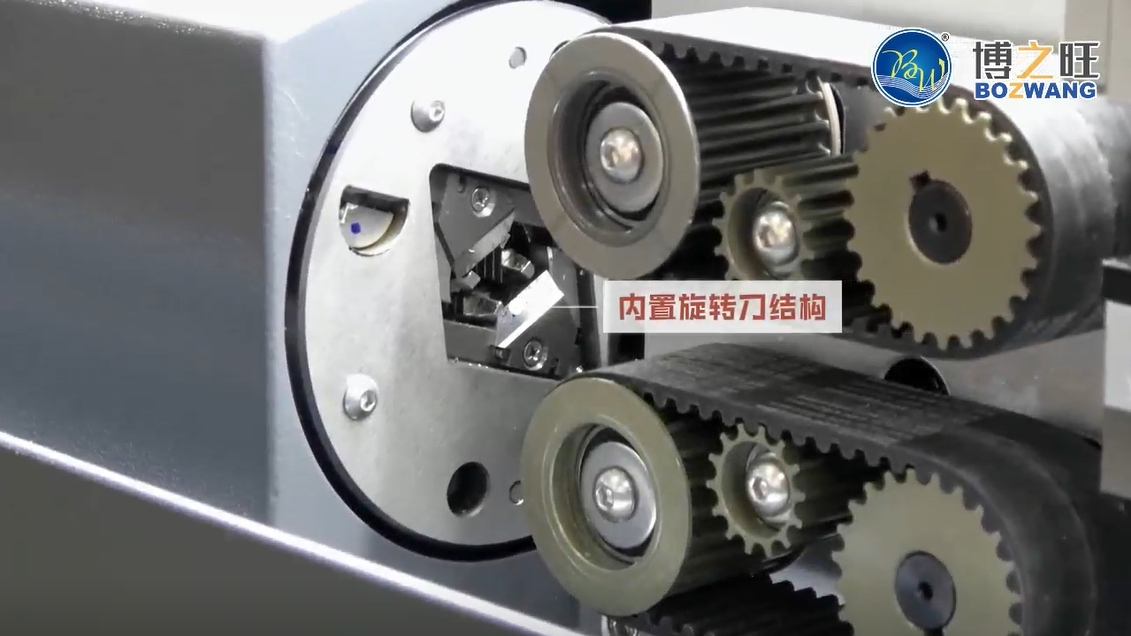

| Stripping Method | Rotary knife + cutting and stripping tool |
| Rotary Knife | 2 PCS (imported tungsten steel) |
| Power | 220V 50/60HZ |
| Air Pressure | 0.5 Mpa |
| Weight | 177.5 Kg |
| Dimension | 742 x 750 x 410mm |
| Capacity | 300-650pcs/h |
We have deep cooperation with leading brands such as Rosenberger, Molex, APTIV, YAZAKI, TE Connectivity, Sumitomo, JAE, Amphenol, and BYD. Our products are recognized for high quality and excellent service.

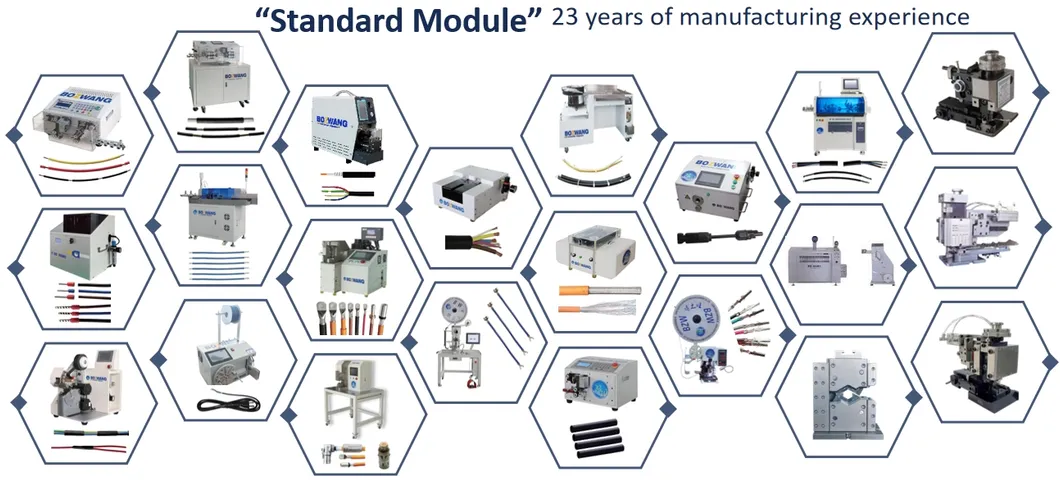

With nearly 23 years of experience in the wire harness industry, we offer a variety of standard modules including coaxial stripping machines, terminal crimping machines, and specialized applicators (European, OTP, Korean, or Japanese types).

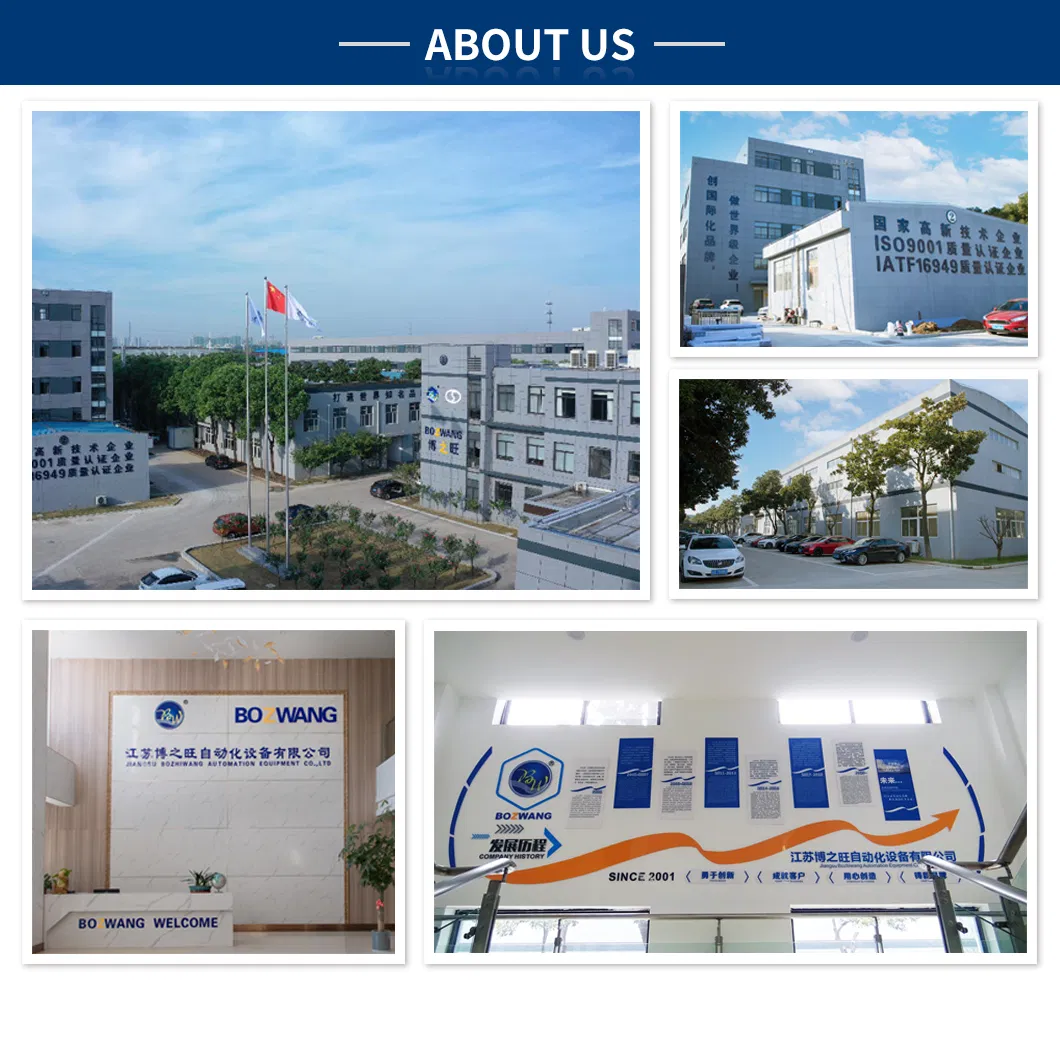

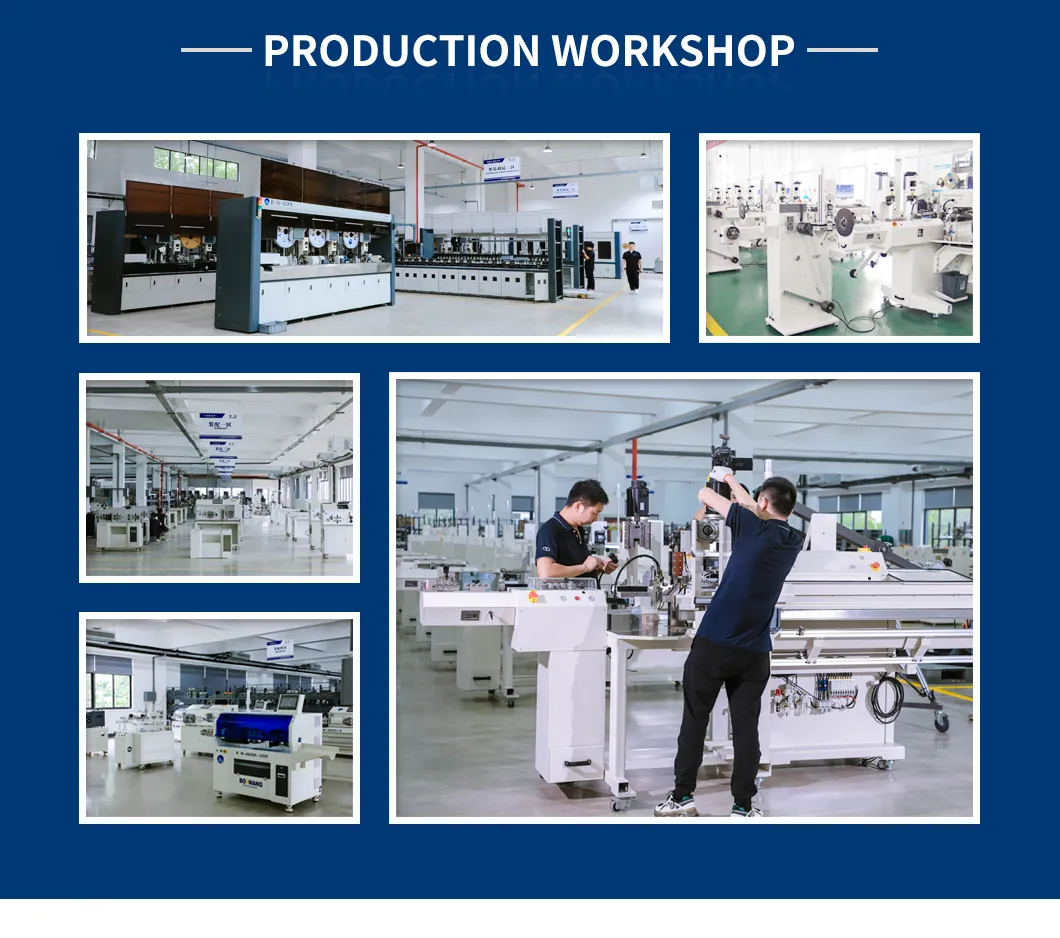

The company is a large-scale intelligent wire processing equipment manufacturer covering 40,000 square meters. We have passed ISO9001, QS-9000, CE, and TUV certifications, holding over 60 invention patents and 100 utility model patents.
