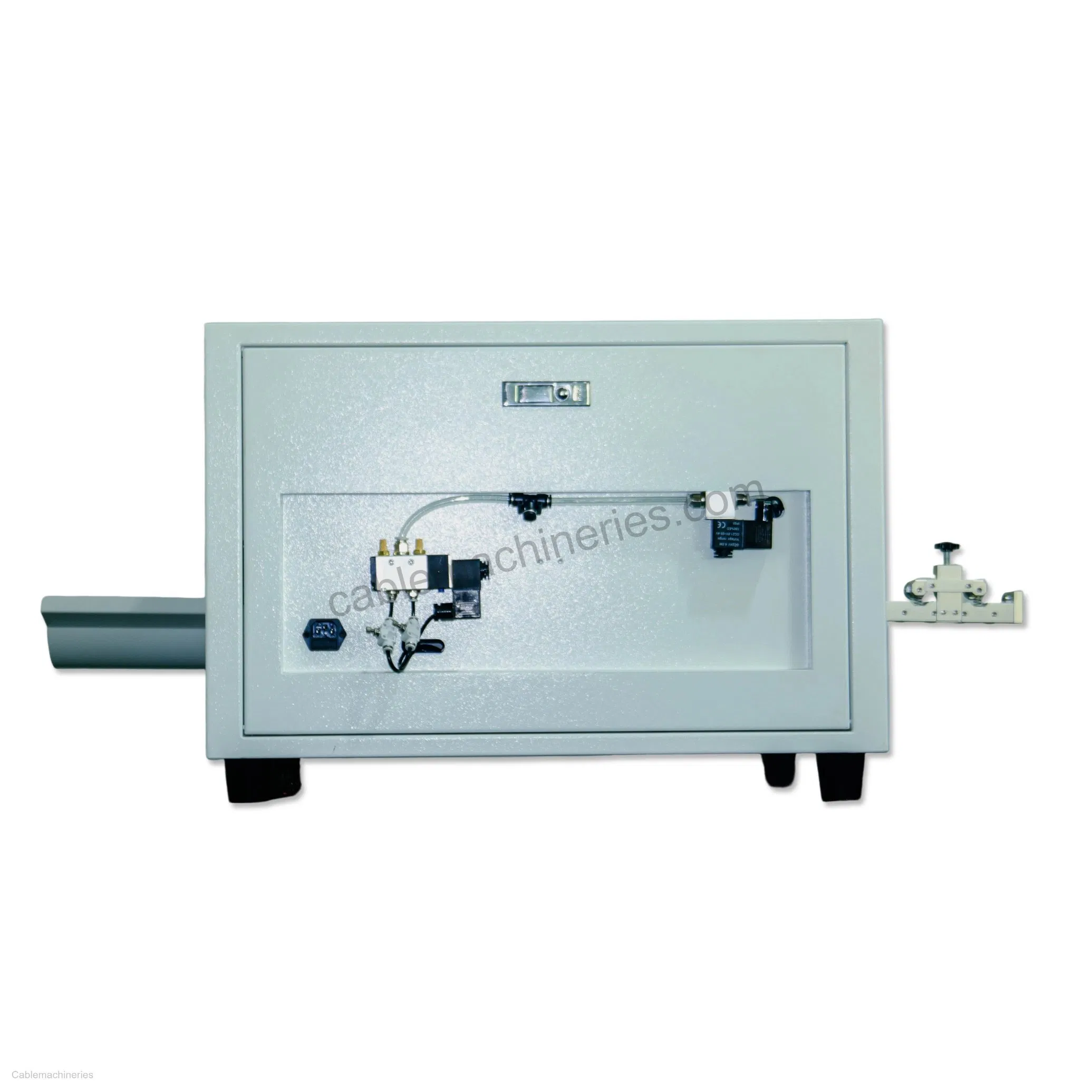

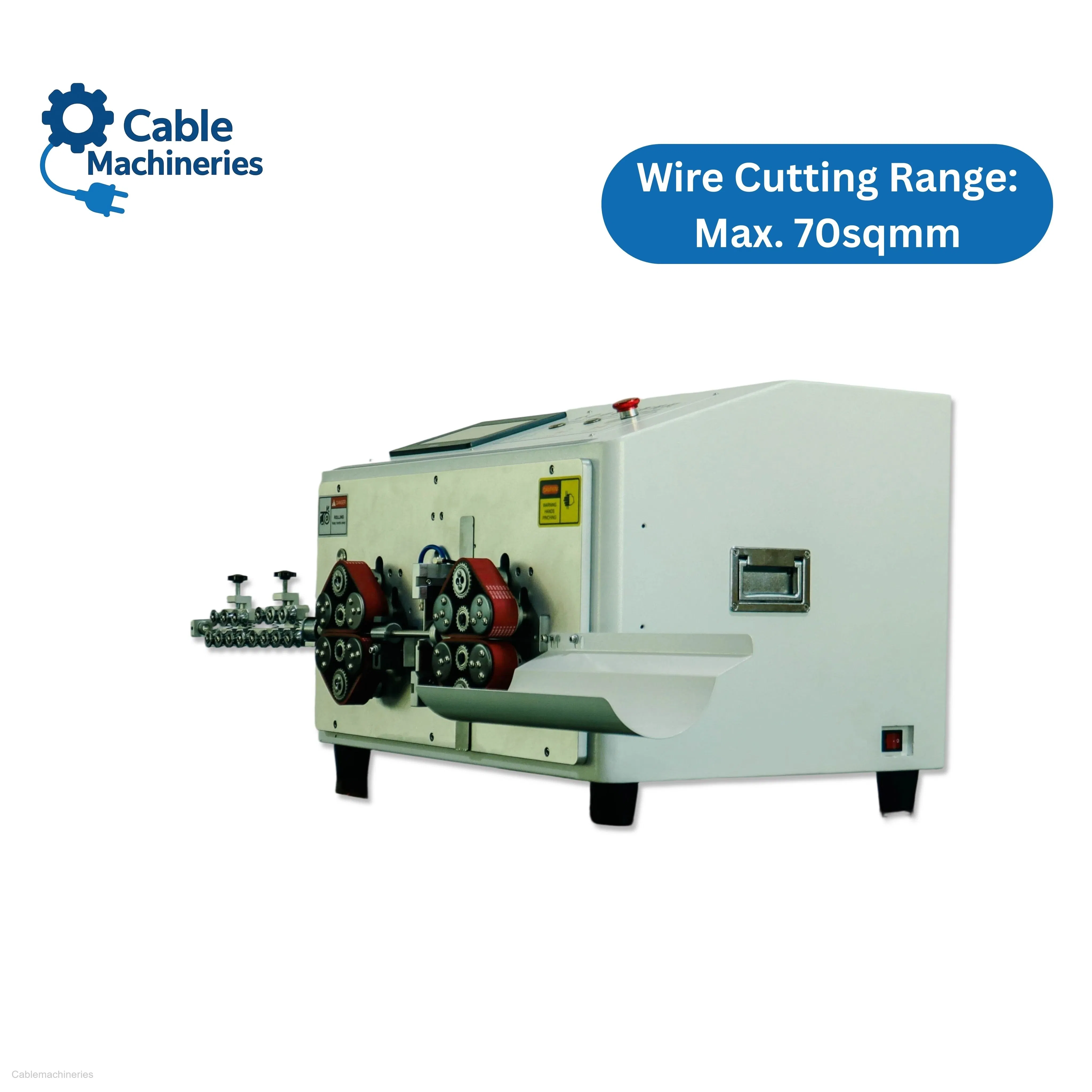

Kk-510 Tungsten Steel Wire Stripping Machine for ≤20mm Cables

1 / 5

Kk-510 Tungsten Steel Wire Stripping Machine for ≤20mm Cables

After-sales Service:	Remote Technical Support, Operation Training, Main
Driven Type:	Pneumatic
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.

KK-510

Certification

CCC, ISO

Warranty

24 Months

Automatic Grade

Automatic

Weight

105 Kg

Cable OD

≤20mm, Area ≤70sqmm

Display

4.3-Inch Touchscreen

Blade Material

Tungsten Steel / High-Speed Steel

Function

Wire Cutting, Wire Stripping

Compatible Cable

Multi-Core Jacketed & Rubber-Insulated

Product Description

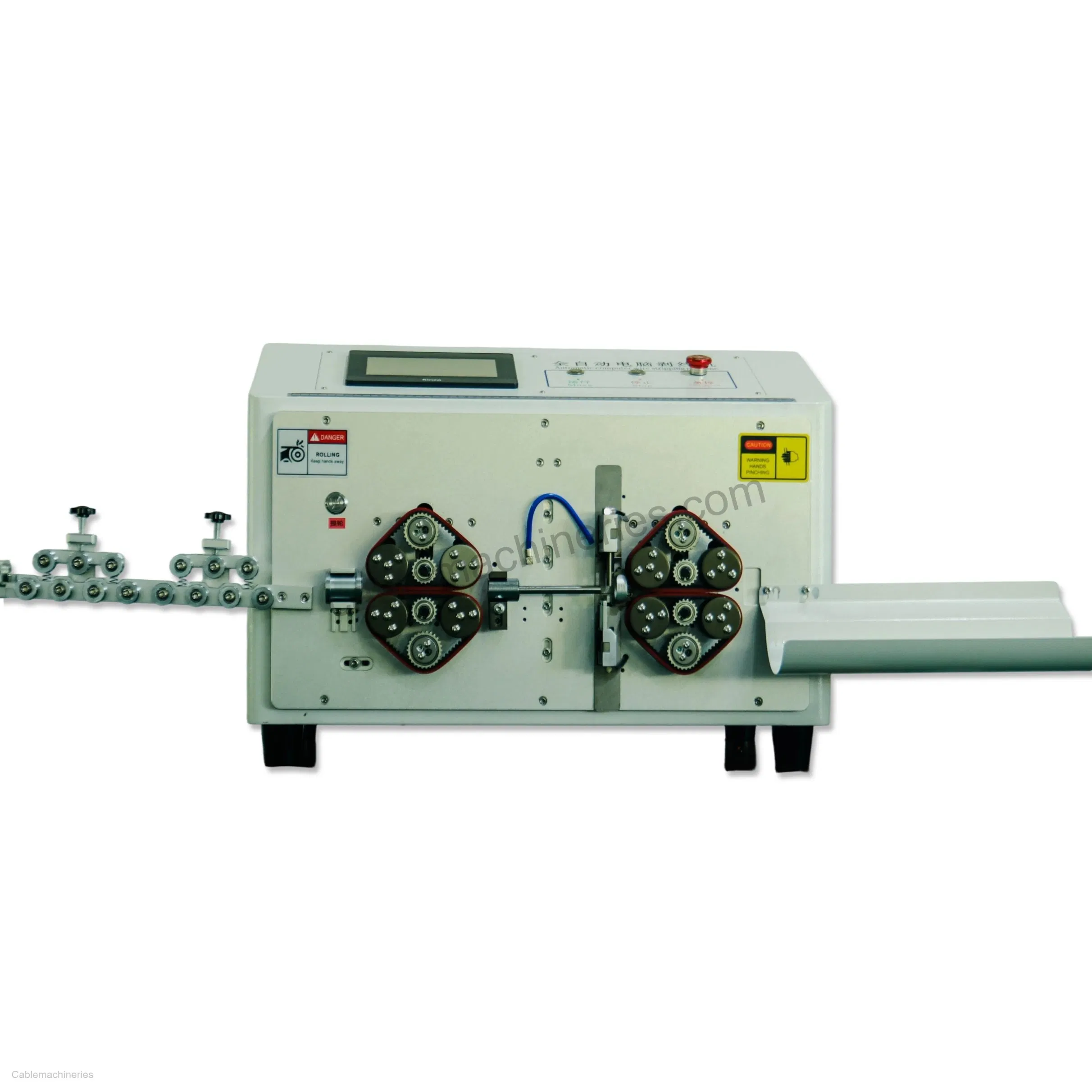

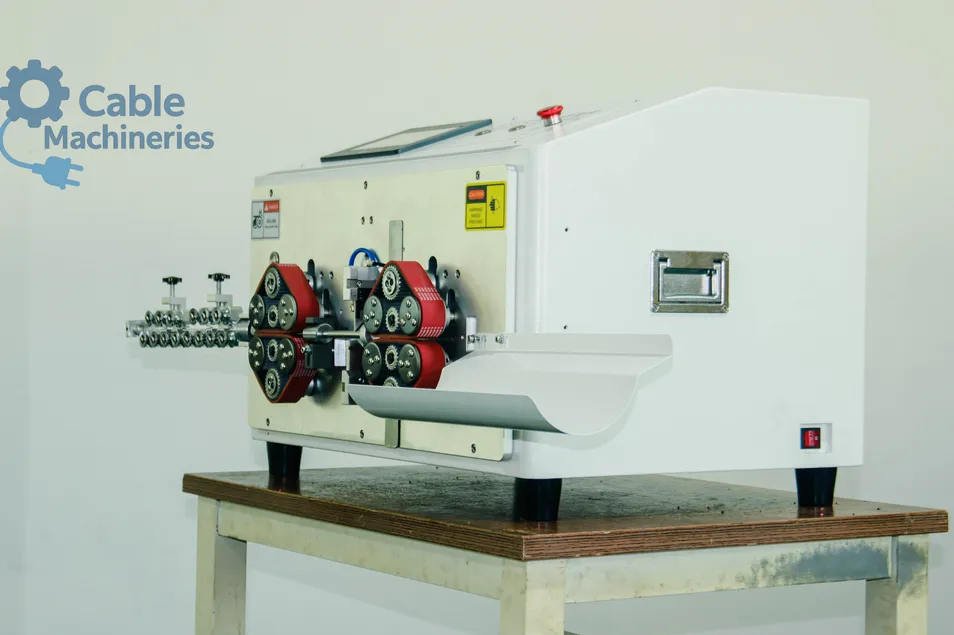

KK-510 Fully Automatic Wire Stripping Machine

The KK-510 is a belt-driven, fully automatic wire stripper with 32-bit intelligent control and a 7-inch touchscreen. It stores 100 programs for quick changeovers and handles wires up to 20mm OD/70mm² (including flat & USB cables). Features standard auto alarm, pressure regulation, and counting for reliable, high-volume stripping.

Technical Parameters

Parameter	Specification
Model	KK-510
Power Supply	AC 175-250V, 50/60 Hz
Power Consumption	120-220W
Production Capacity	400–1,000 strips
Machine Dimensions	930mm(L)× 420mm(W)× 370mm(H)
Weight	105kg
Display	7-inch Touchscreen
Blade Material	Tungsten Steel / Imported High-Speed Steel
Maximum Wire Diameter	Outer diameter ≤20mm, area ≤70mm

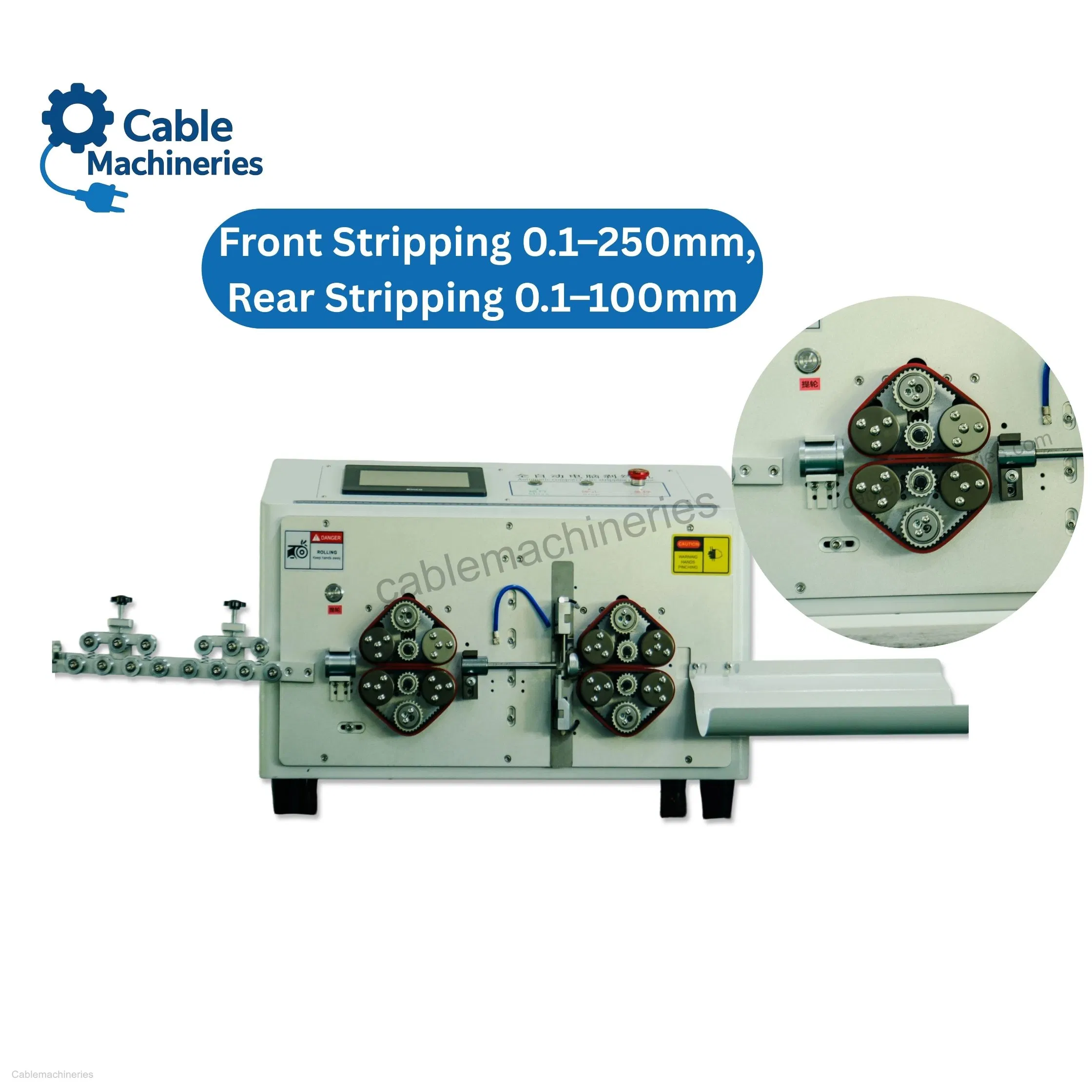

Stripping Length	Front 0.1–250mm, Rear 0.1–100mm

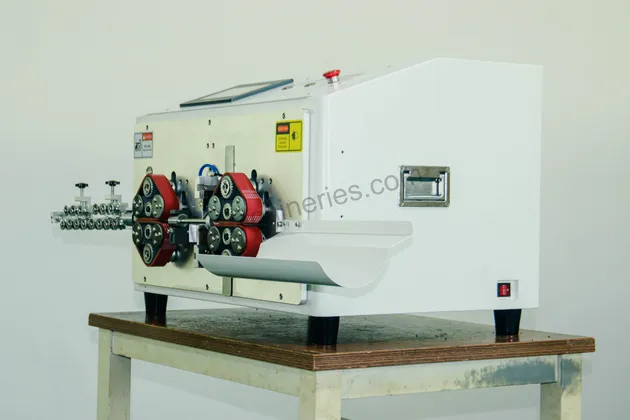

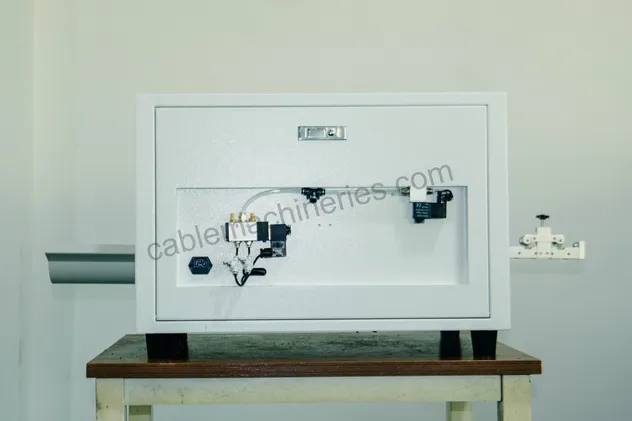

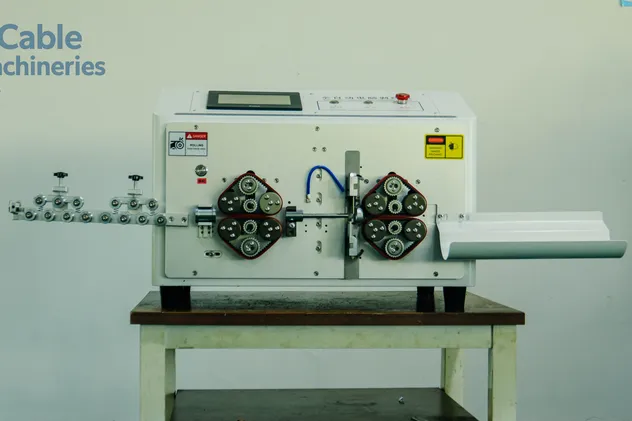

Product Details

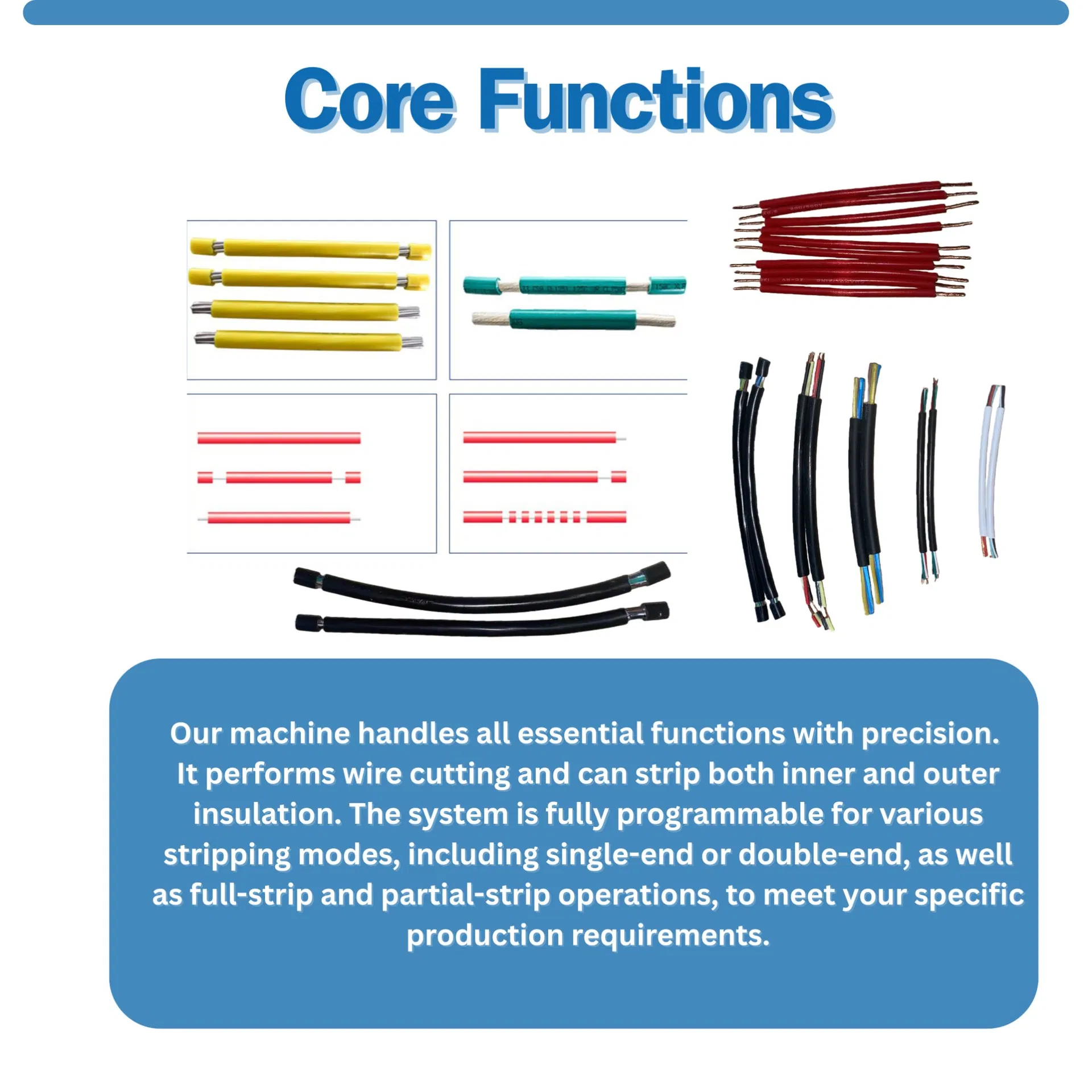

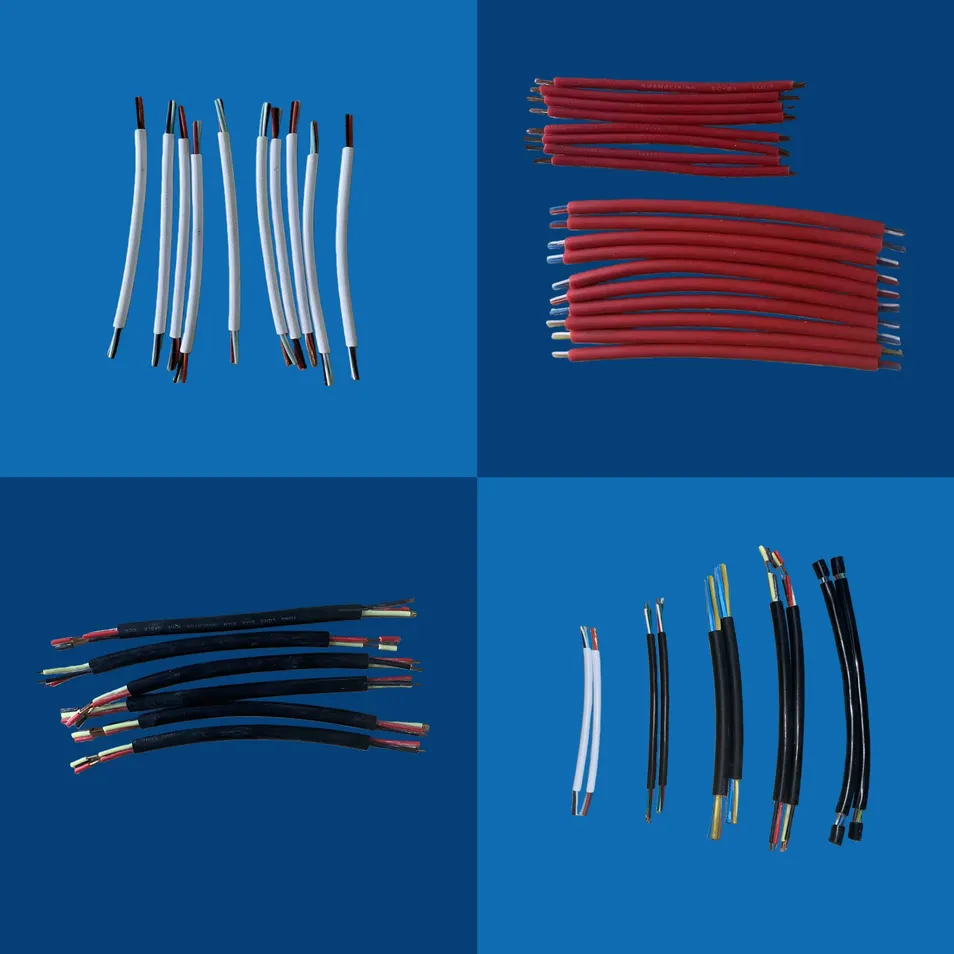

Processed Samples

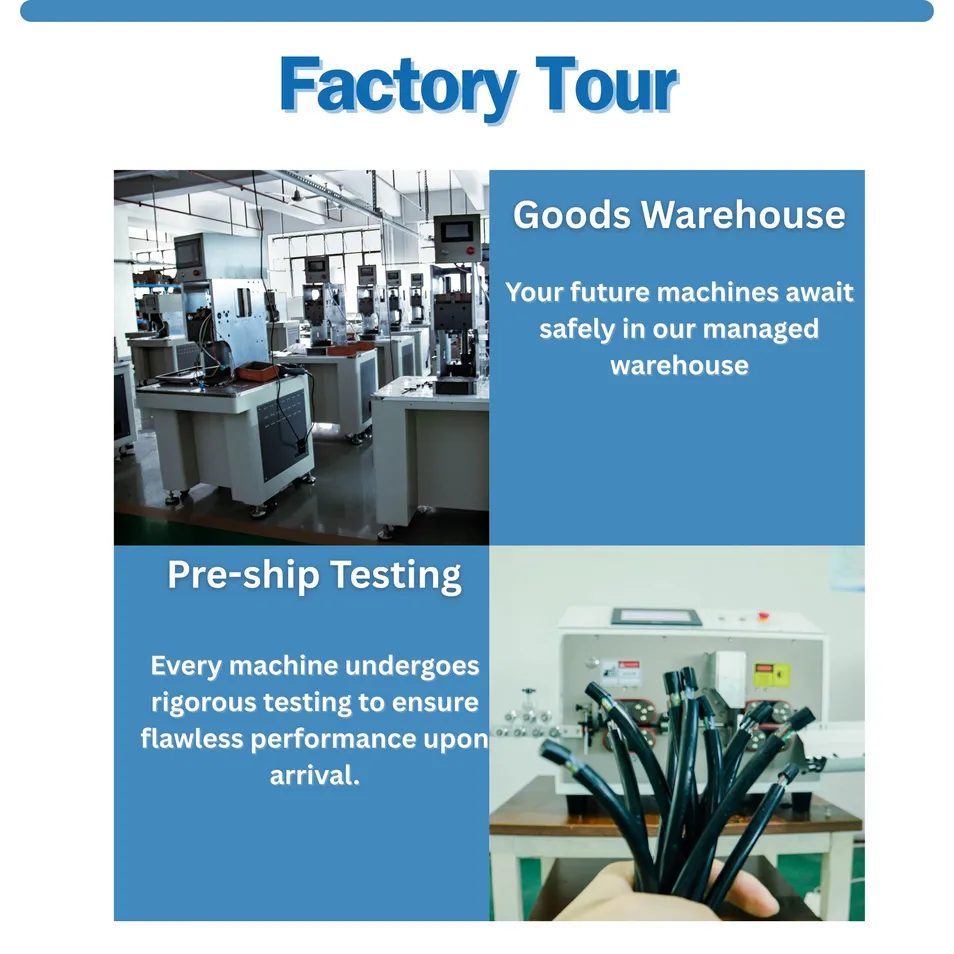

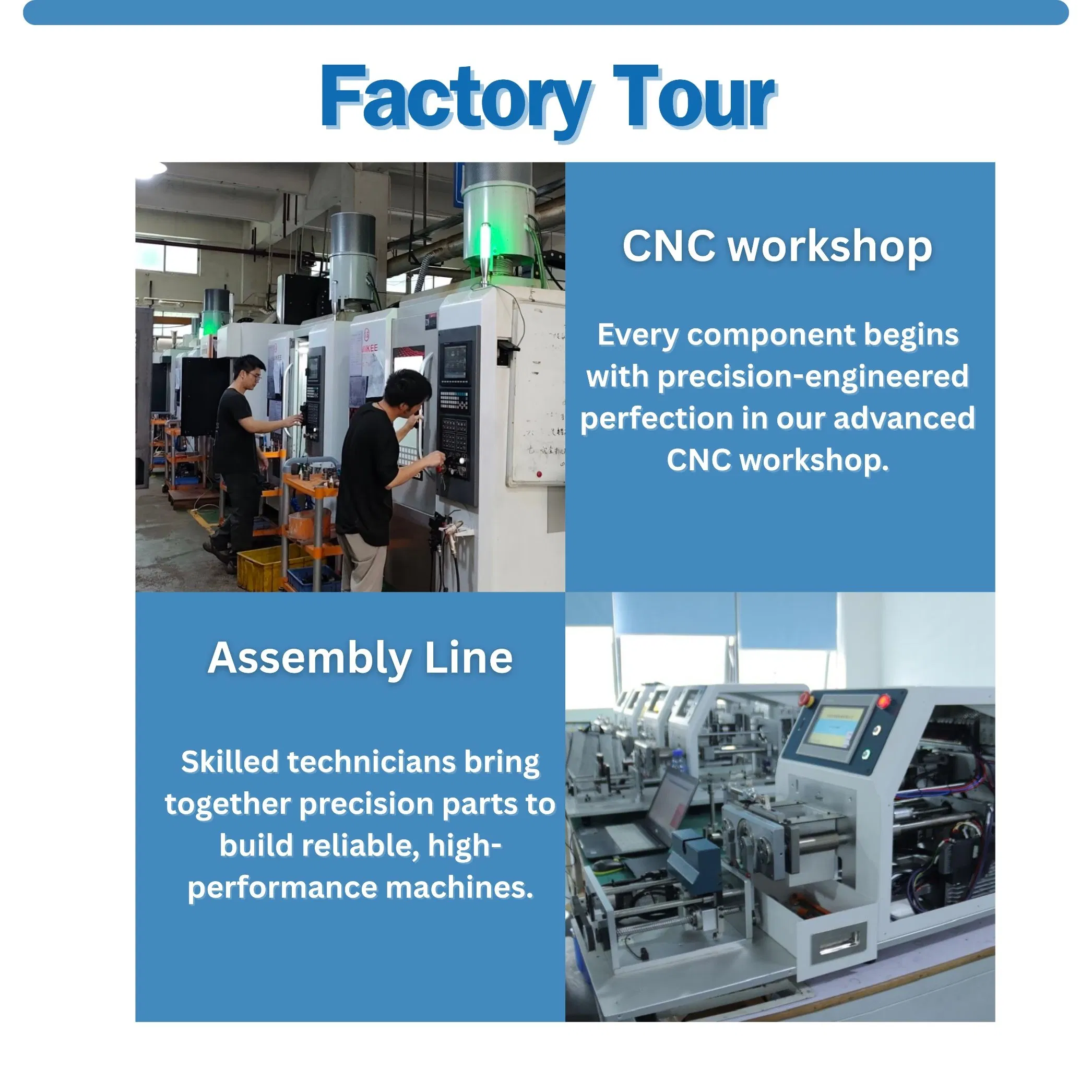

Production Excellence

Packing & Delivery

Frequently Asked Questions

What types of wires can your machines process?

Our machines handle a wide range of wires including electronic wires, PVC cables, braided wires, silicone wires, high-temperature wires, and shielded cables. Specific models are optimized for different wire types and applications.

What is the typical stripping length range?

Depending on the model, stripping lengths range from 0.1mm to 300mm for front stripping and 0.1mm to 130mm for rear stripping, with multiple mid-span stripping points available.

Can you process both single-core and multi-core wires?

Yes, our machines are designed to handle both single-core and multi-core wires effectively, with some models featuring specialized twisting functions.

What is your warranty policy?

We offer 12-24 month warranties depending on the model, covering manufacturing defects with comprehensive after-sales support.

How often do blades need replacement?

Blade life varies with usage and wire type, but typically lasts 3-6 months in normal operation. We provide guidance on blade maintenance and replacement.

Can machines be customized?

Yes, we offer customization for specific wire types, production requirements, and special applications. Our engineering team works closely with customers to develop optimal solutions.
