Fully Automatic Precision Cutting System with Multi-Axis Control

Customization:	Available
After-sales Service:	1 Year
Processing Method:	Cut

Basic Specifications

Model NO.

beta500

Warranty

1 Year

Environment

Normal Pressure and Temperature

Display

Digital Display

Performance

Automatic

Power Supply

220V

Certification

CE

Speed

500~2500rpm

Weight

1450kg

Max Section

190X360mm

Product Overview

Technical Parameters		Details
Model	Beta-500	High-Precision System
Blade Speed	500~2500rpm	Adjustable
Blade Diameter	Φ508mm	Center hole: Φ32mm
Electricity	15KW (S1)	3x380V/50Hz
Cutting Capacity	Φ190mm Max	190x360mm Square Section
Working Bench	832×728mm	T-slot: 12mm
Cooling Tank	200L Capacity	100L/min Flow Rate

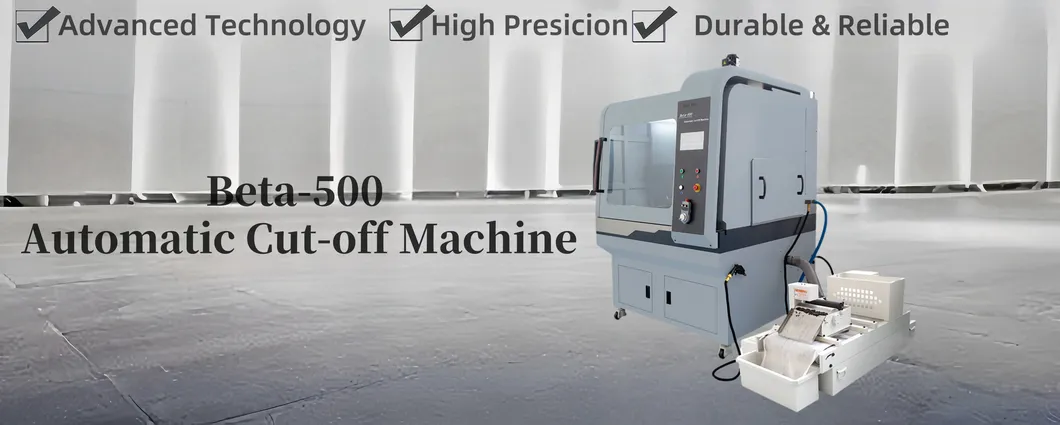

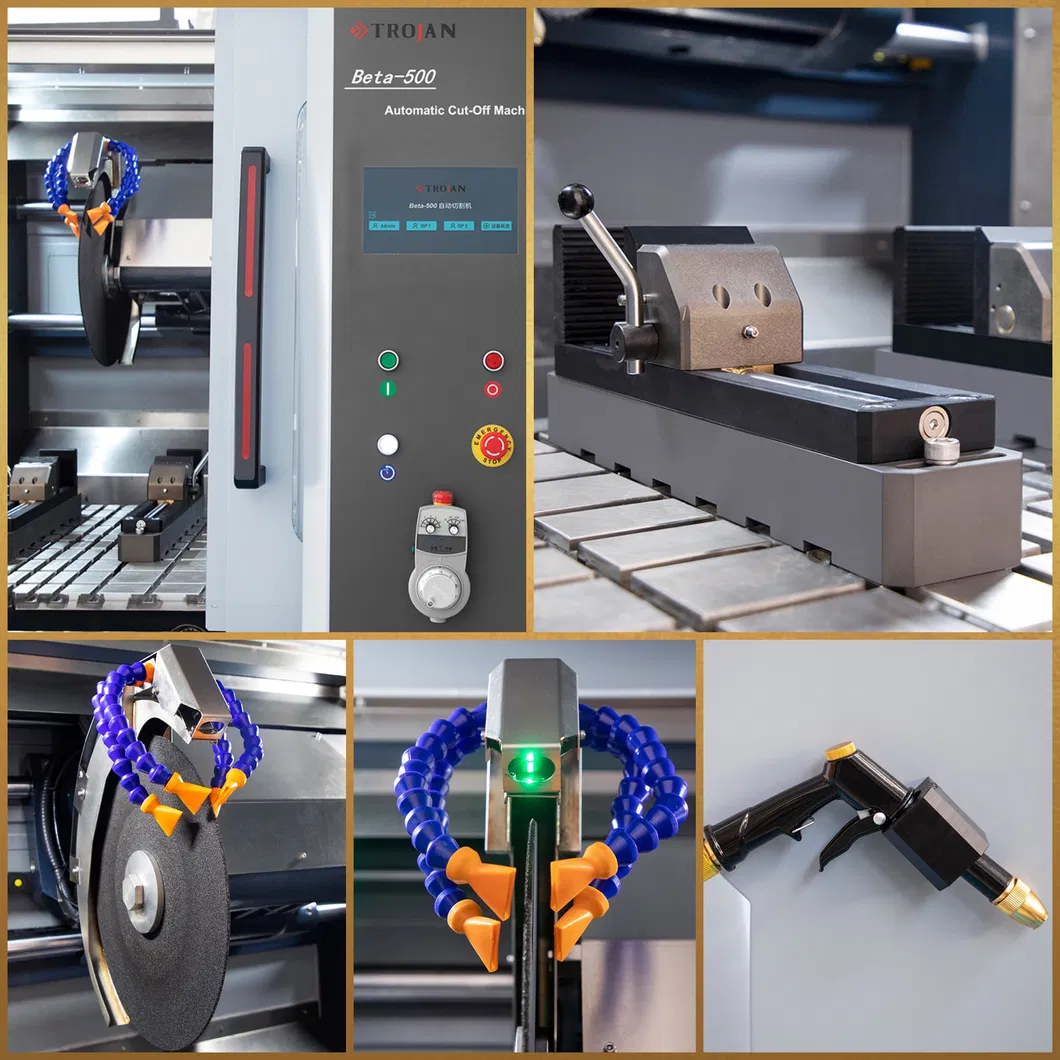

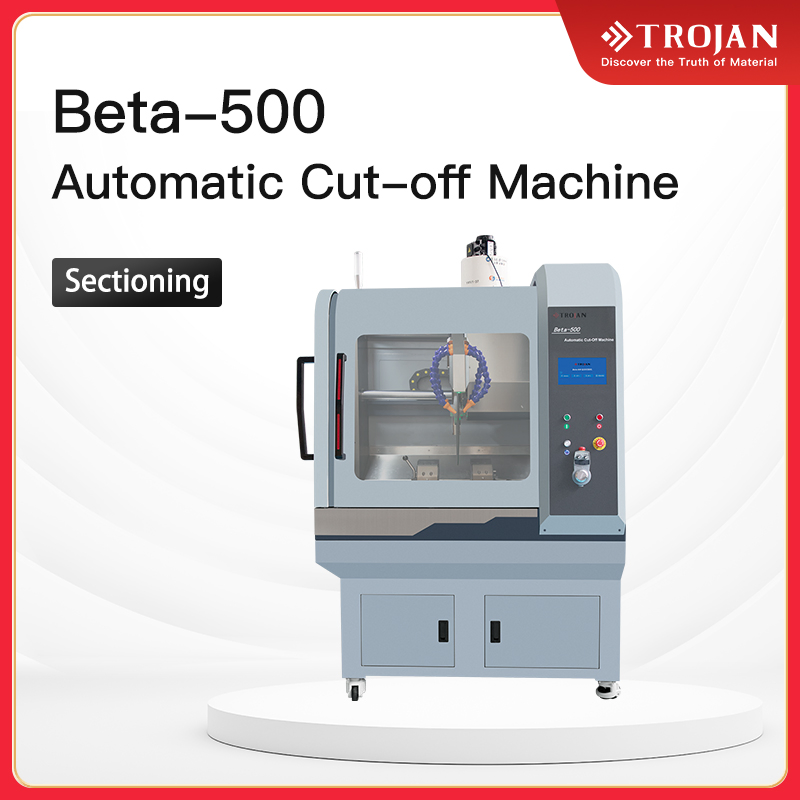

Beta-500 Automatic Cut-off Features

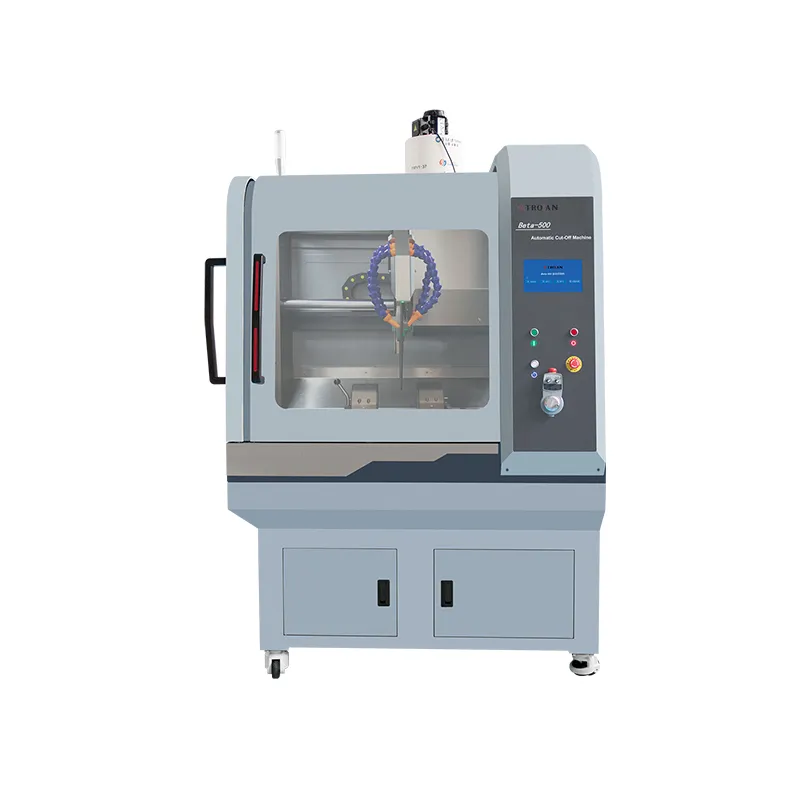

Beta-500 is a fully automatic large-scale vertical cutting machine suitable for metal materials, ceramics, quartz glass, and petrographic samples.

✔X,Y,Z,R four-axis fully automatic control (R-axis optional).

✔Multi-segment continuous cutting with specified thickness or angle.

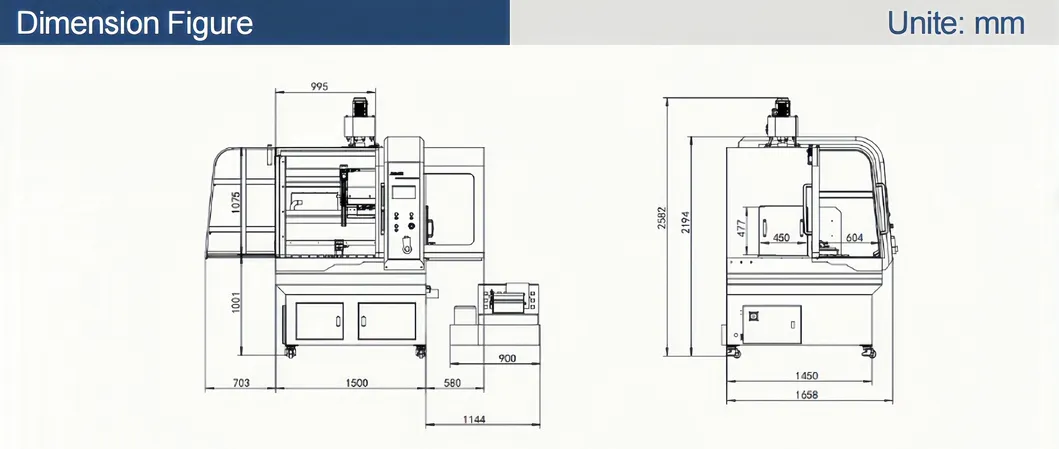

✔Extra large cutting chamber (1248x1220mm) and 728x832mm work surface.

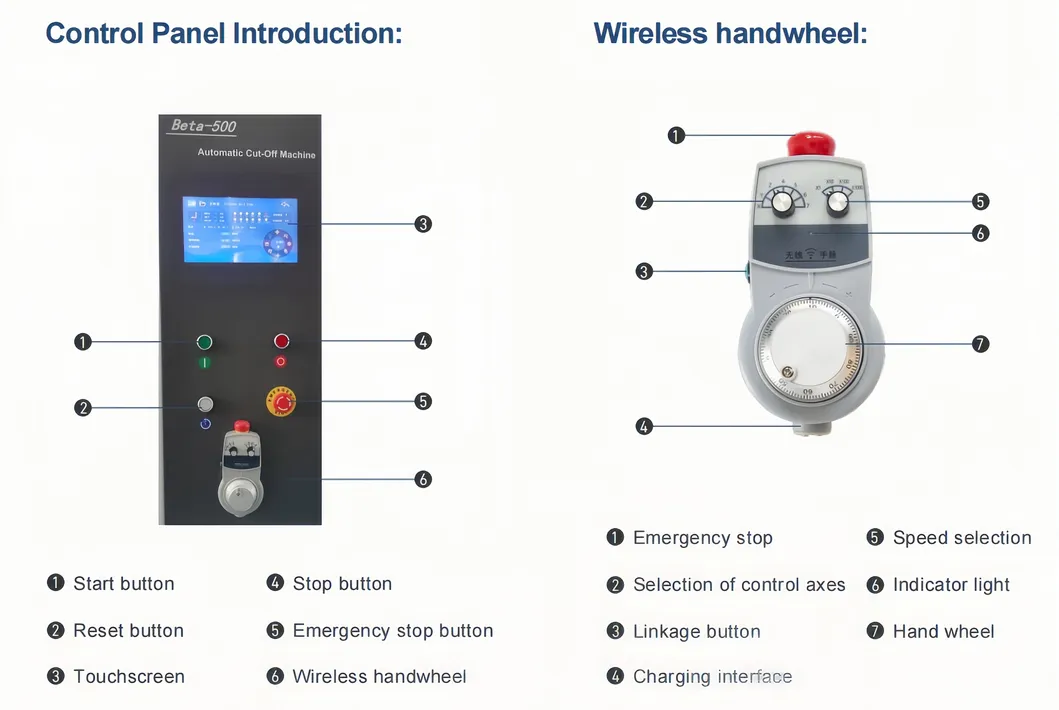

✔Equipped with a wireless handwheel for rapid tool setting.

✔10-inch large touch screen for intuitive operation.

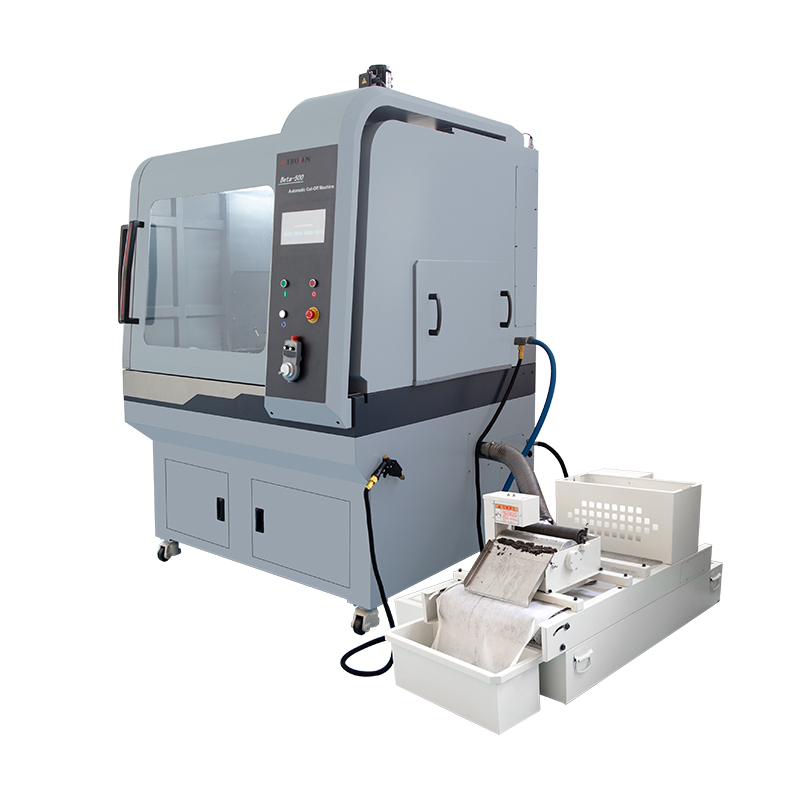

✔Magnetic separator and paper tape filtration system included.

Application & Details

Scope of Application

Certifications & Shipping

Frequently Asked Questions

Is the machine easy to operate for beginners?

Yes. We provide comprehensive tutorial videos and English manuals. Our team is available via online chat and email to guide you through the setup and operation.

What materials can this system cut?

The Beta-500 is designed for various metal materials, ceramics, quartz glass, and petrographic samples with high precision.

How is the after-sales service handled?

Within the warranty period, we provide free replacement parts for issues occurring under normal use. Technical support is always available online.

What are the available payment terms?

We accept various payment methods including TT, PayPal, LC, and Western Union. We work with EXW, CIF, and FOB terms.

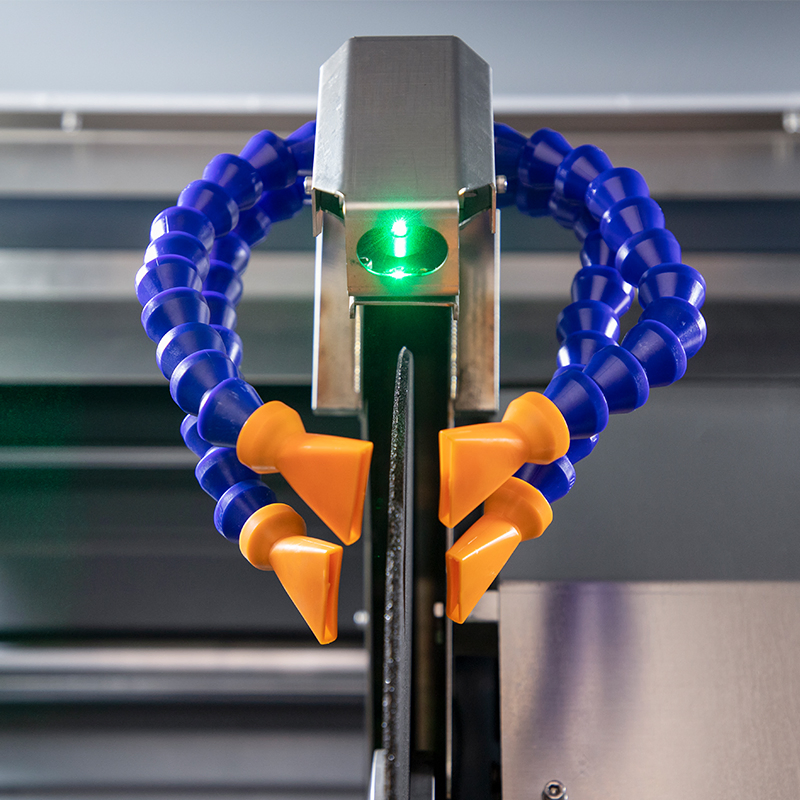

Does the system include a cooling mechanism?

Yes, it features a 200L floor-standing water tank with a magnetic separator and paper tape filtration system for efficient cooling and debris removal.

Can it handle ultra-long specimens?

Yes, the cutting chamber design allows for ultra-long specimens to run through the left and right sides of the workspace.
