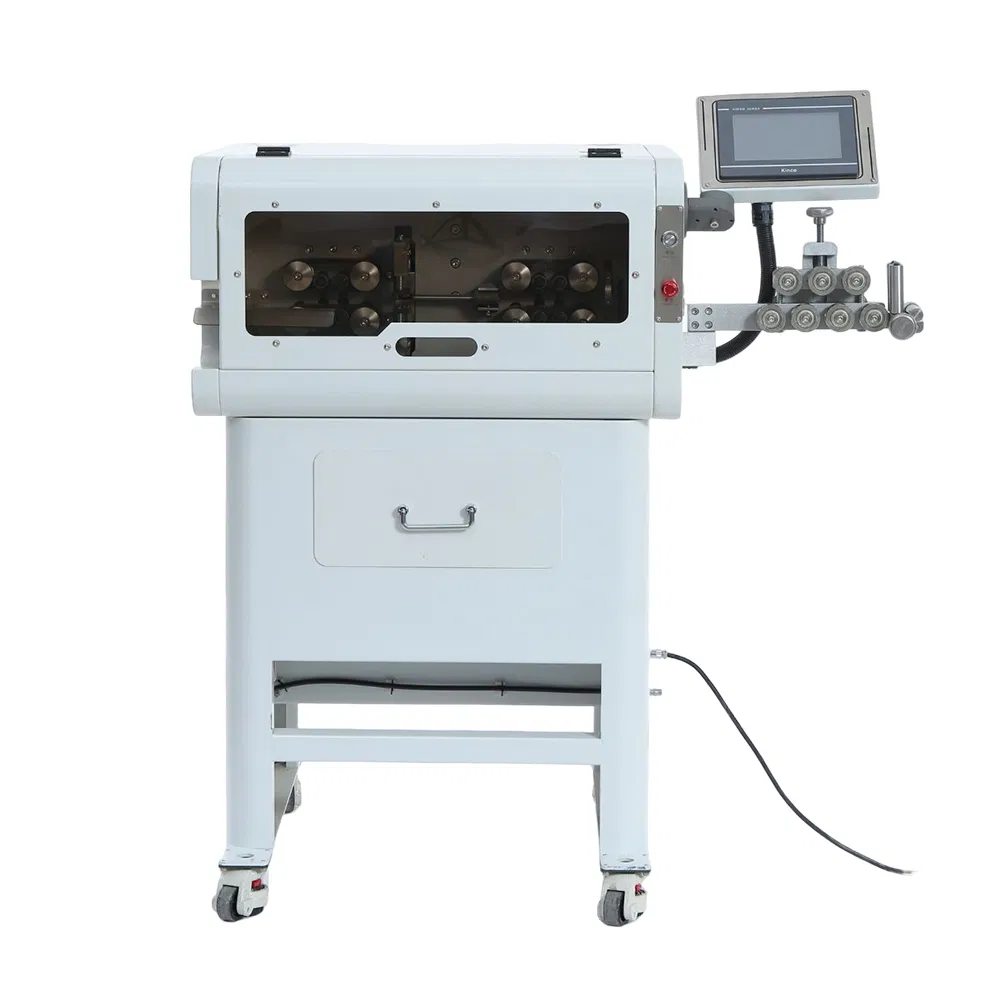

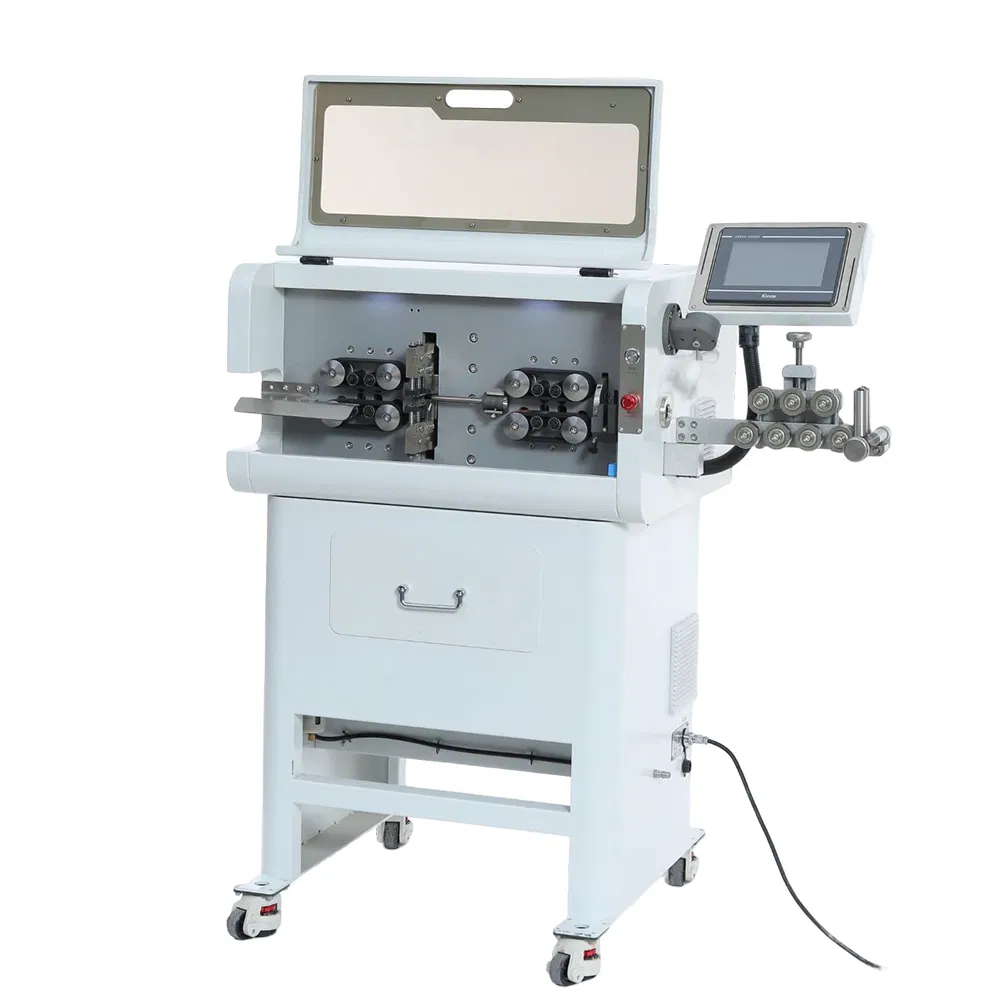

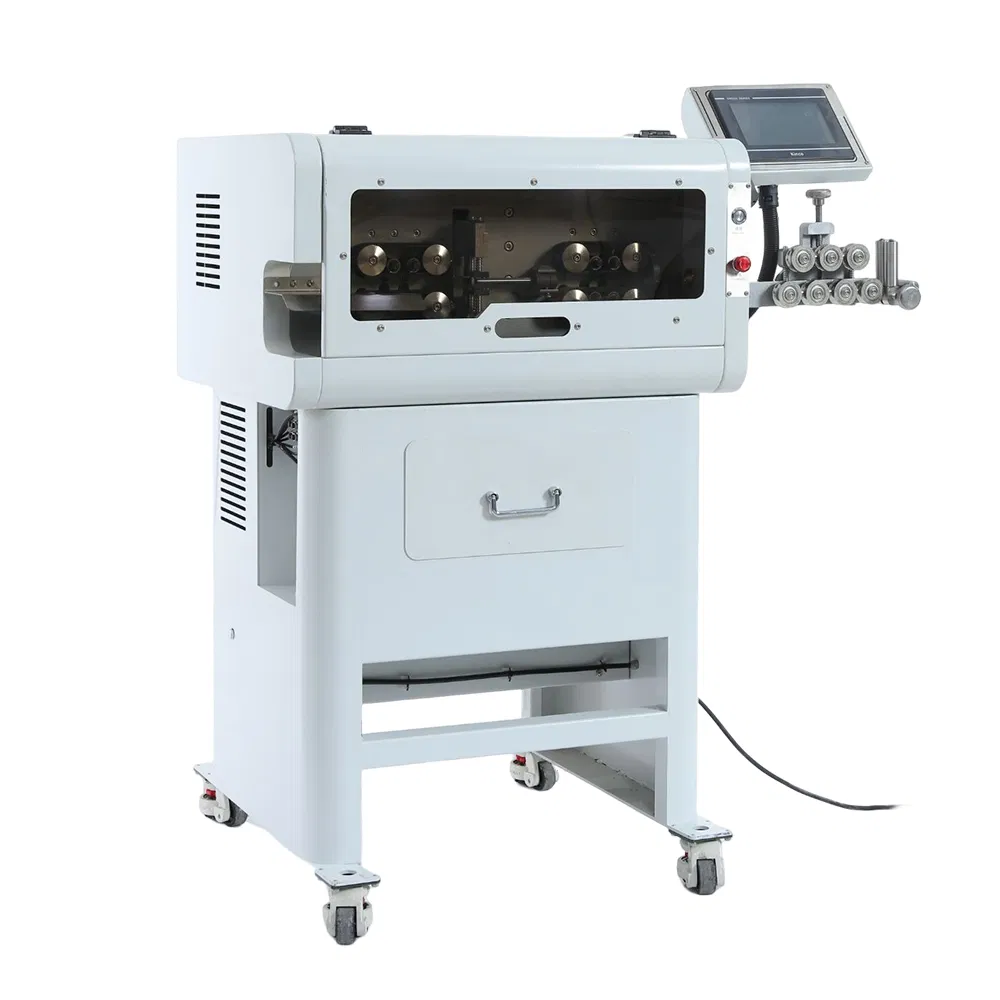

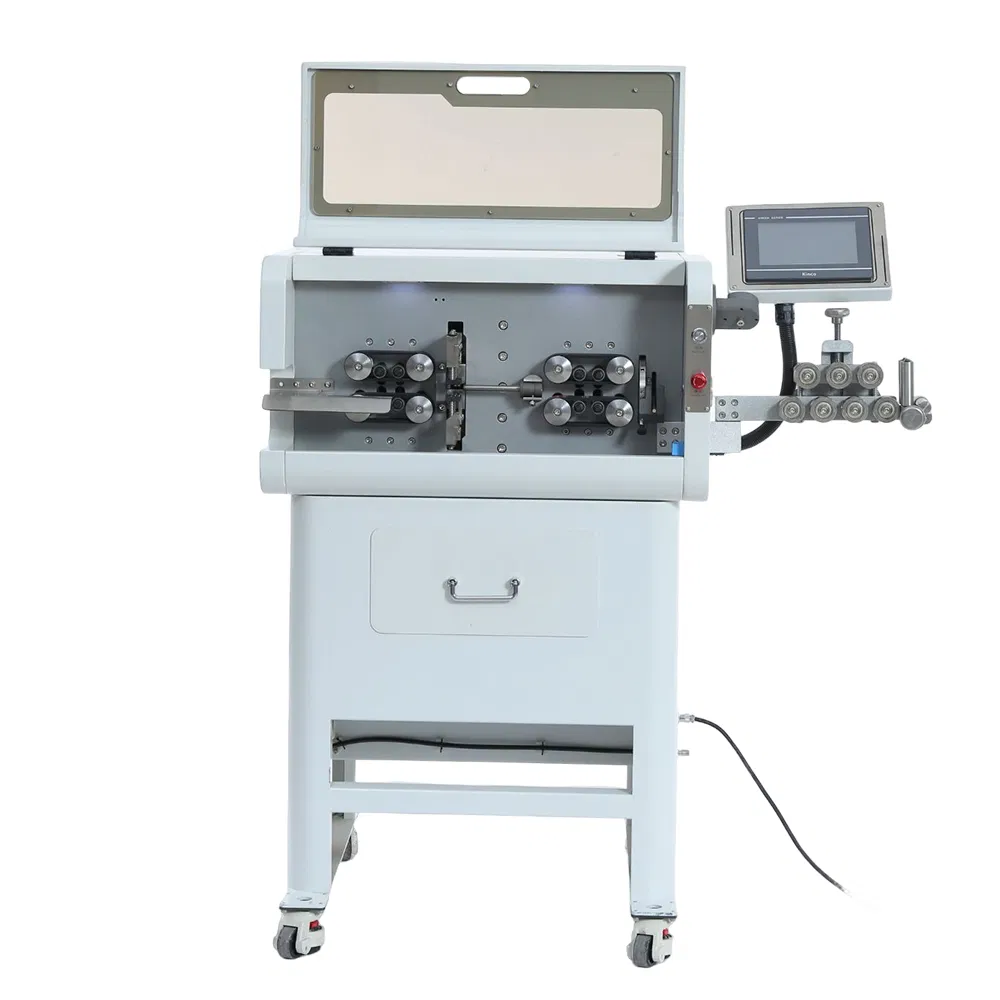

Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
1 / 5
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine
Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine

Floor Model Servo Cutter Automatic 30sqmm 16mm Diameter Cores Wire Cable Cut and Strip Machine

Customization: Available
After-sales Service: 1 Year
Driven Type: Electric
Send Inquiry

Product Description

Overview & Basic Information
Model NO.SR-8030H
ConditionNew
CertificationCE
Warranty12 Months
Automatic GradeAutomatic
Tube DiameterMax 16mm
Cable Range0-30sqmm
Display Mode7 Inch English /Chinese Interface LCD Display
Power500W
Stripping LengthHead Stripping: 1-200mm, End Stripping: 1-80mm
Cutting Length10mm-99999.9mm
Productivity500PCS-2000PCS (According to Cable Length)
Wire Feeding ModeConveyor Belt Conveyor, Cable No Imprint No Scratches
Drive Style16 Wheels Drive, Silent Servo Motor
Tool MaterialsImport Tungsten Steel or Quick-Cutting Steel
Transport PackageWooden Case
Product Description

Automatic 30sqmm Multi Core Cable Cutting Stripping Machine

This high-precision machine is specifically designed for cutting and stripping multi-core cables with a diameter of up to 16mm and a cross-section range of 0-30mm². Featuring a 16-wheel drive system and a silent servo motor, it ensures maximum stability and accuracy.

Detailed Photos

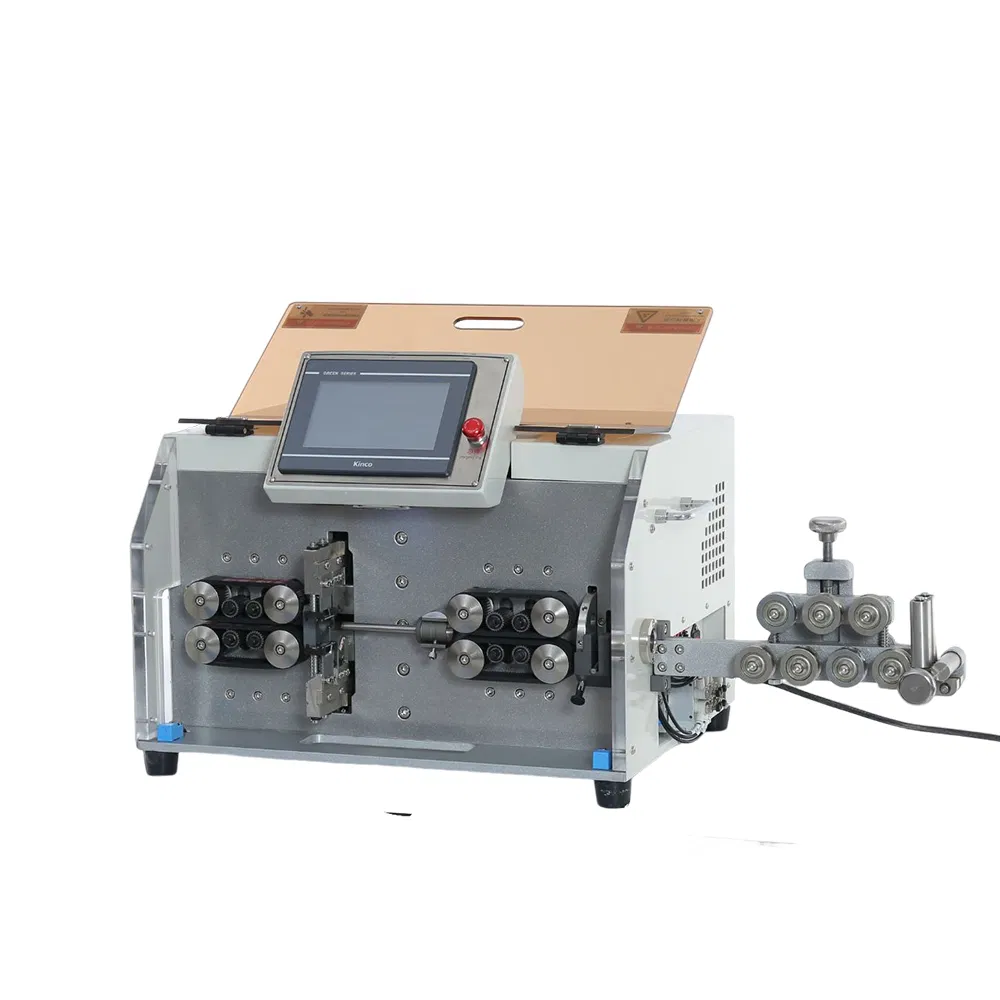

Automatic Cable Cutting Stripping Machine

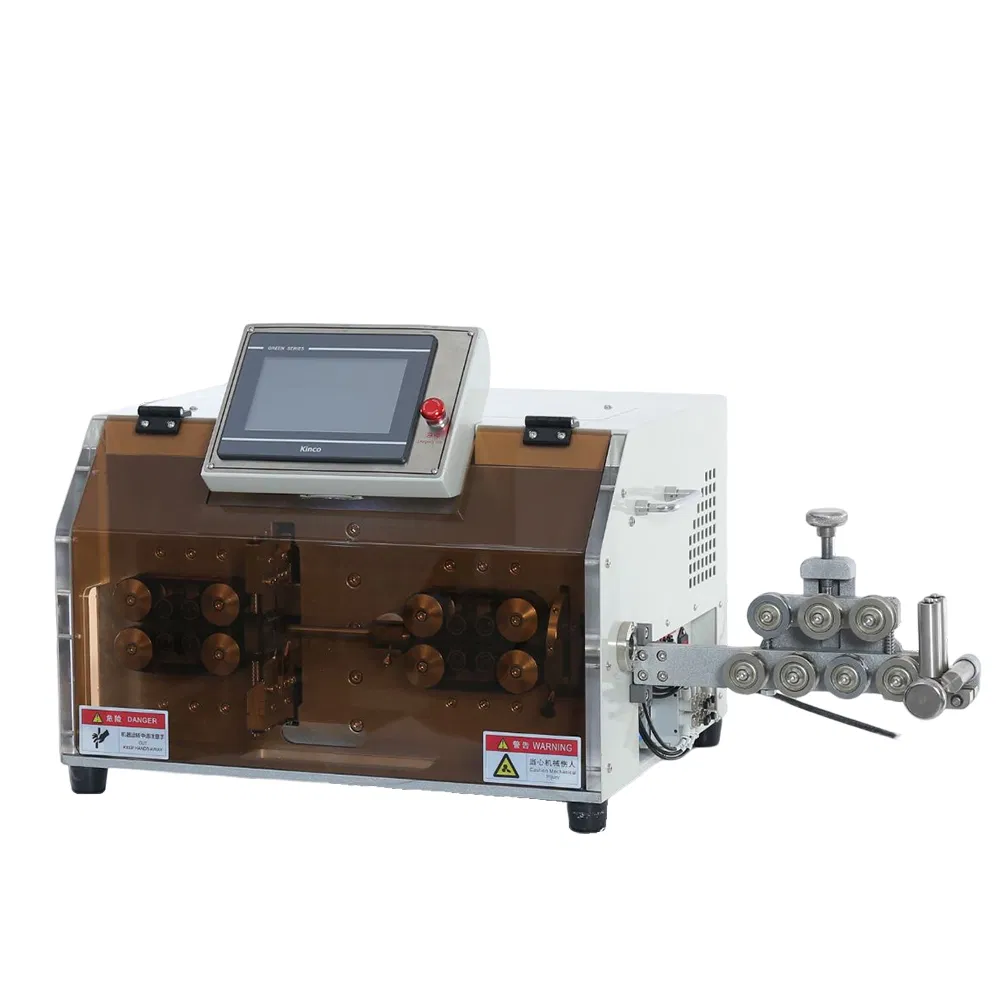

Servo Cutter Detail

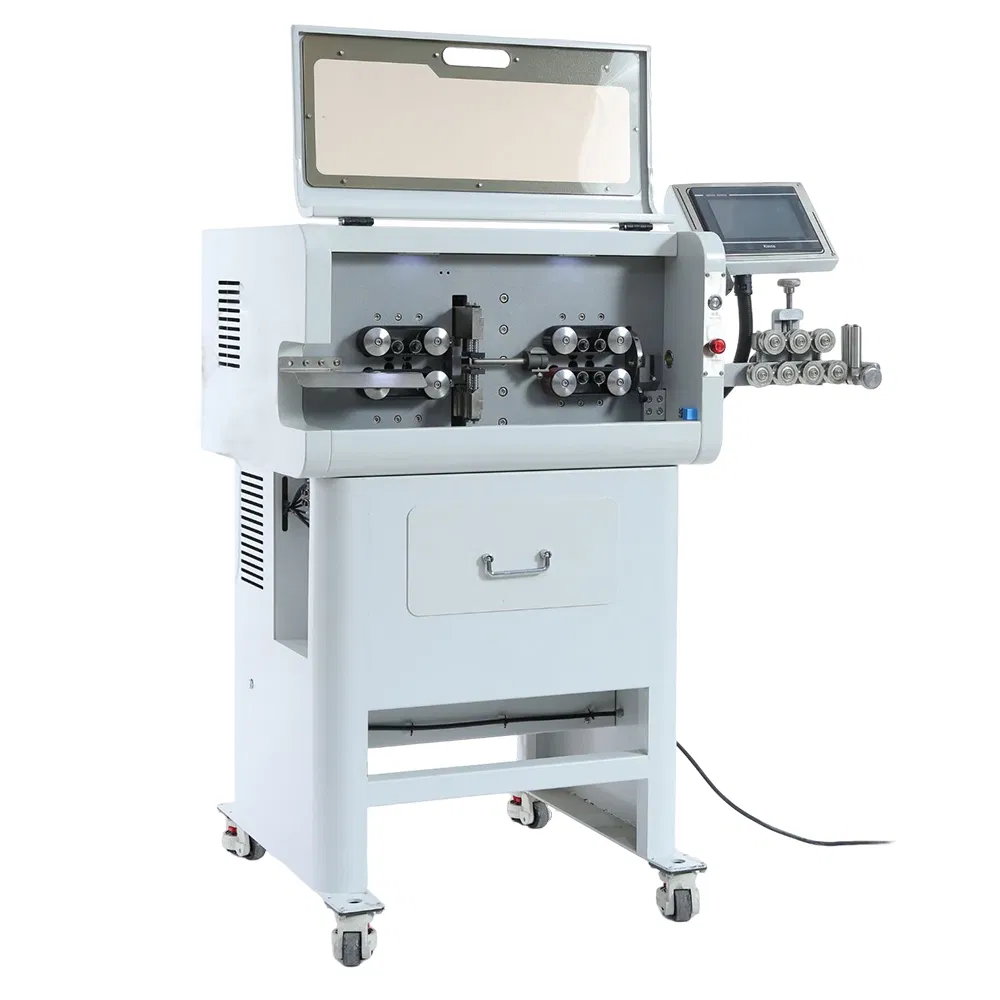

Multi Core Wire Stripper
Technical Specifications and Parameters
Dimensions1030 x 350 x 530mm
Weight90kg
Power SupplyAC110~220V/(50Hz/60Hz)
Stripping Inner coreHead: 1-50mm, End: 1-50mm
Conductor TypeCable, PVC, Sheathed wire, Multi-core sheathed wire... etc.
Cutting ToleranceWithin 0.002 x Lmm (L=cutting length)
Motor PrecisionSilent hybrid stepper motor, 0.1mm
Applicable Core1-30mm² (Max 7 cores cable)
Our Advantages
✔ Advanced Control: Supports computer control and keystroke operation for ease of use.
✔ Versatile Capacity: Supports larger wire cores and higher wattage; freely set wire length and peeling parameters.
✔ High Precision: 16-wheel belt feeding ensures no embossing or scratches on the cable surface.
✔ Stable Performance: Equipped with a silent hybrid stepping motor and servo tool holder.

Machine Support Customization:

  • ◈ Add twisting inner core function
  • ◈ Add middle stripping function
  • ◈ Add arm clamp wire system
  • ◈ Add conveyor belt system
Handling Cable Types

The machine can handle most multi-core cables (core sizes must be uniform) and single-core cables.

Cable Types Processing

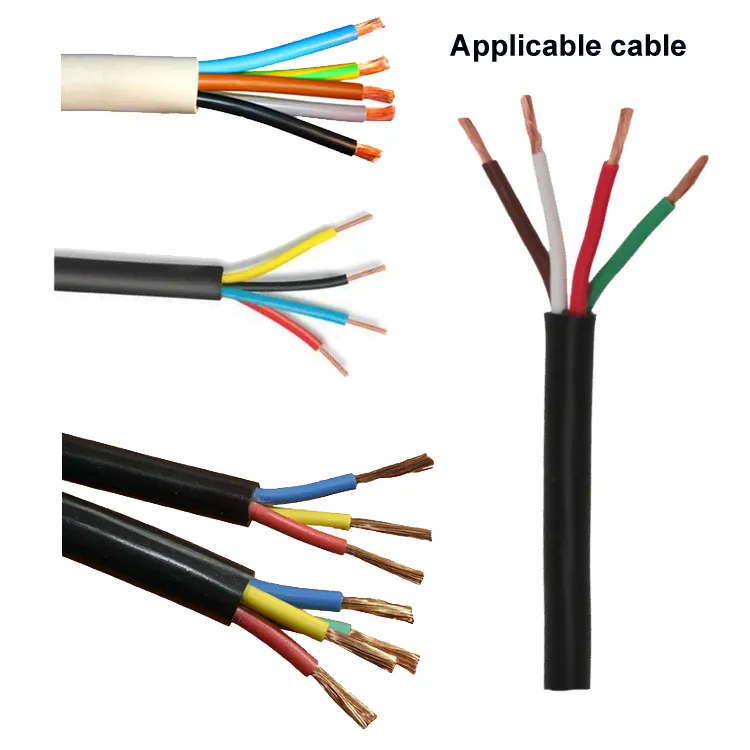

Wire Samples

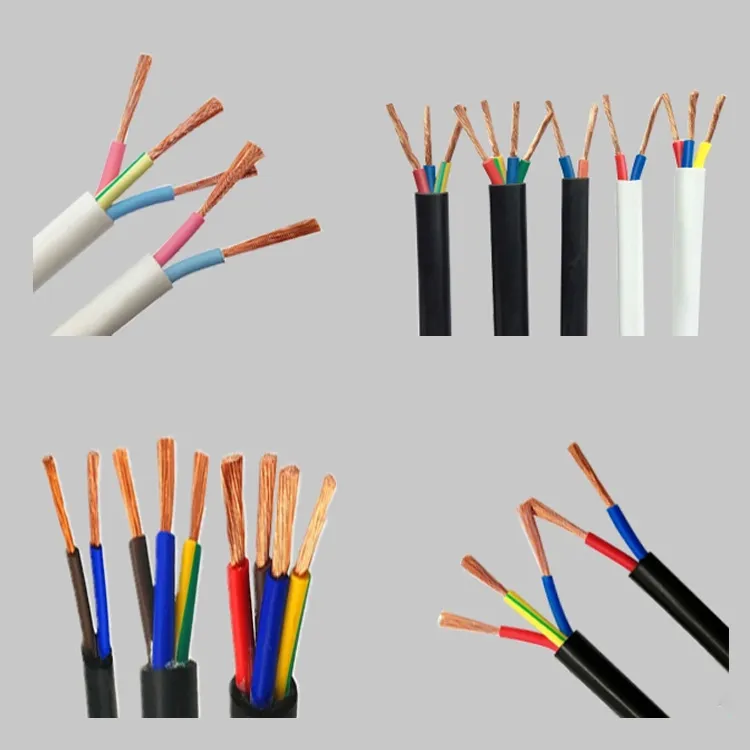

Finished Stripped Cable
Frequently Asked Questions
Q1: What is the maximum cable size this machine can handle?
The machine can handle cables up to 30sqmm with a maximum outer diameter of 16mm and up to 7 cores.
Q2: Does the machine damage the cable jacket during feeding?
No, it uses a 16-wheel belt feeding system which ensures there is no imprint or scratches on the cable surface.
Q3: Is the interface easy to operate for non-Chinese speakers?
Yes, the machine features a 7-inch LCD display with both English and Chinese interfaces for global usability.
Q4: Can this machine perform middle stripping?
The standard model focuses on head and end stripping, but middle stripping functionality can be added through our customization service.
Q5: What materials are used for the cutting blades?
The tools are made from imported tungsten steel or quick-cutting steel, depending on the specific application requirements.
Q6: What is the productivity of the SR-8030H?
The productivity ranges from 500 to 2000 pieces per hour, depending on the specific cutting and stripping length of the cable.
