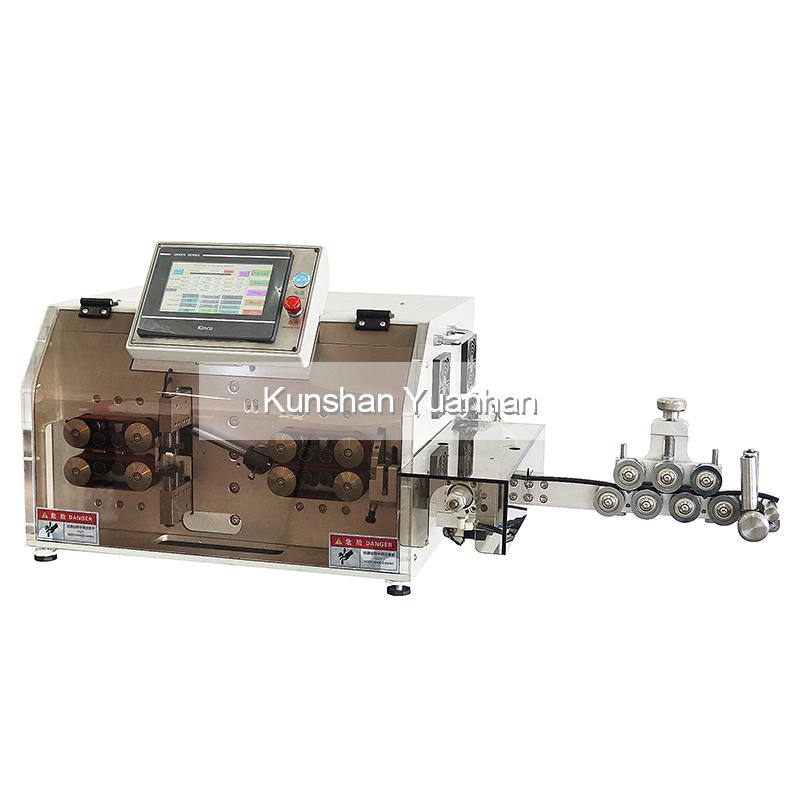

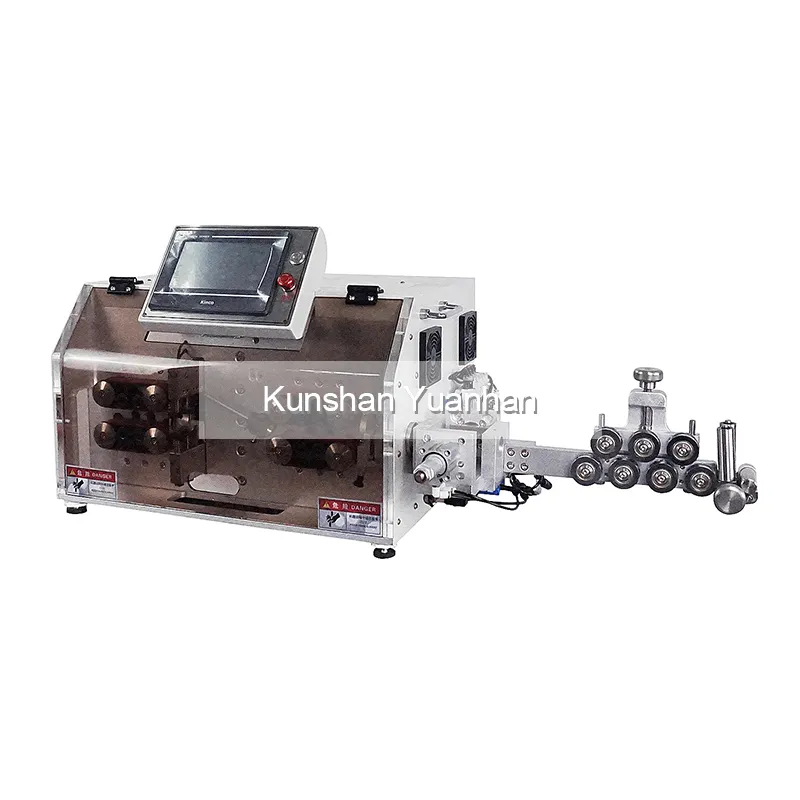

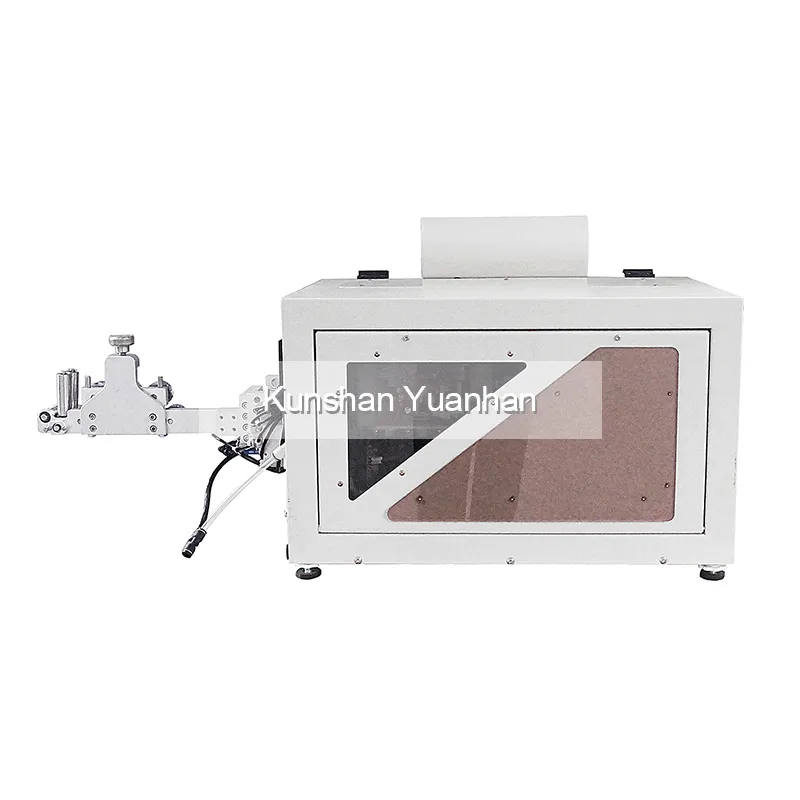

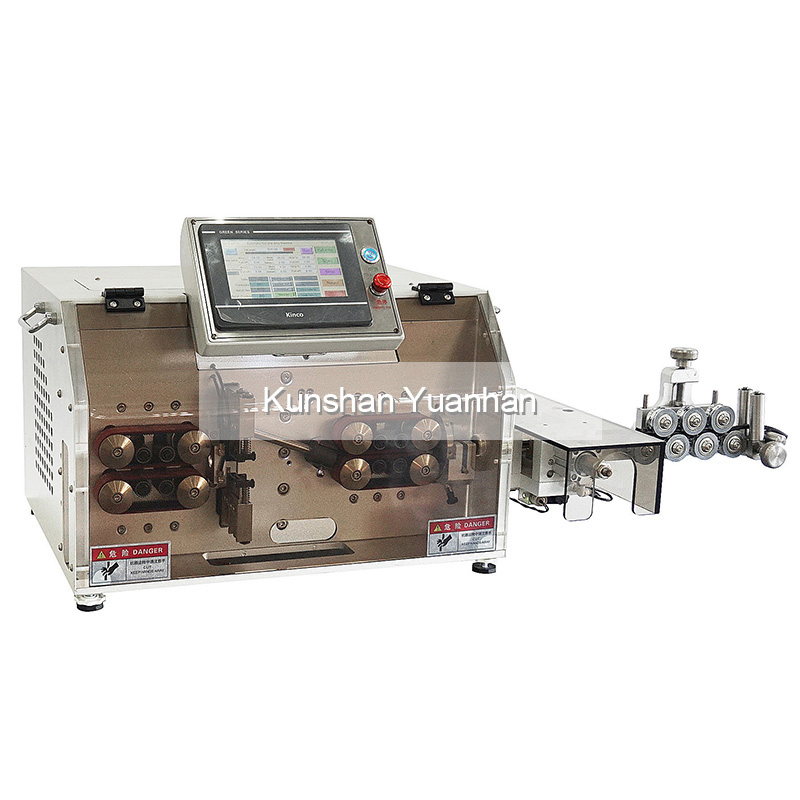

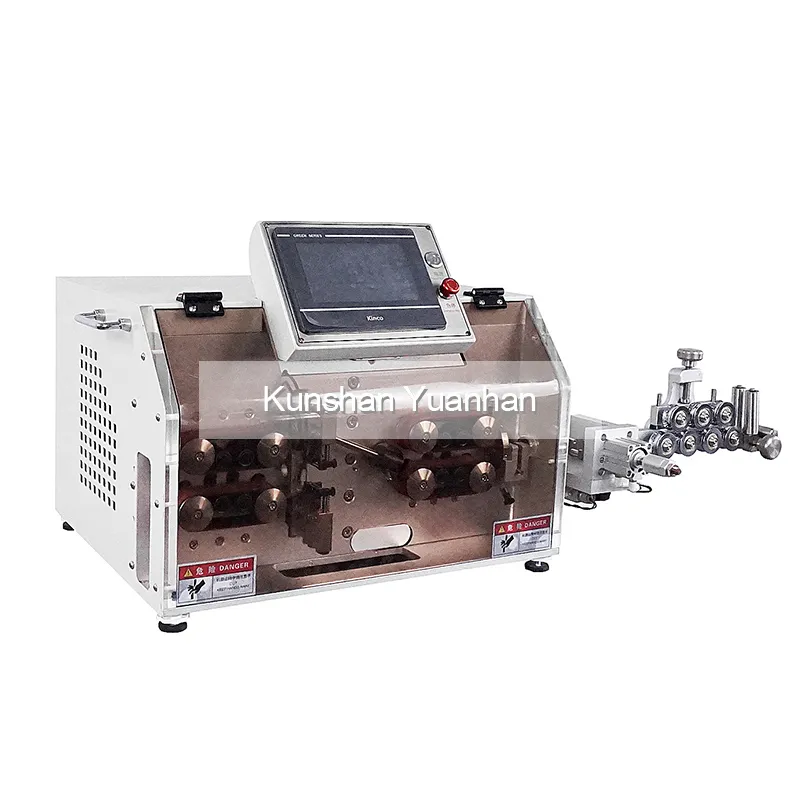

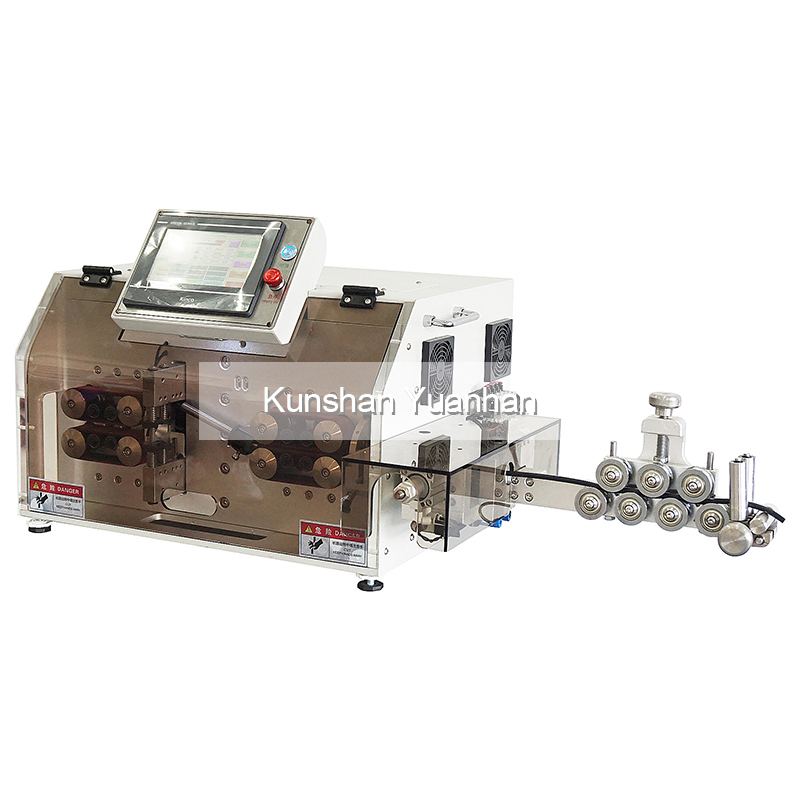

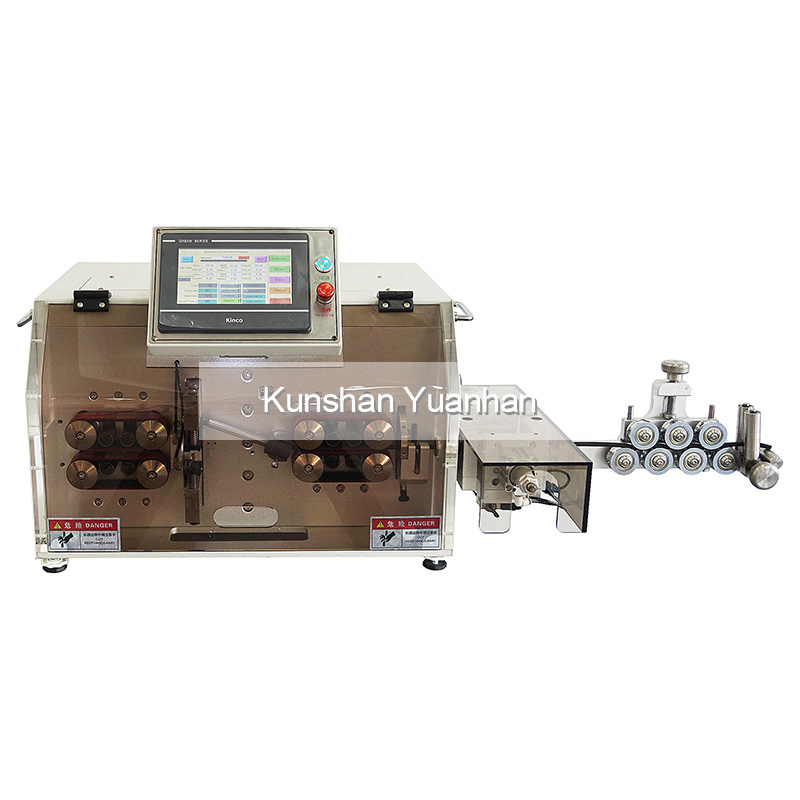

YH-8030Z Automatic Wire Middle Stripping Machine
This is a fully automatic cable cutting and middle stripping machine. It is able to peel off insulation from single core and multi-core sheathed cables. Processing wire size: 1-30mm2.
| Parameters | Details |
|---|---|
| Model | YH-8030Z |

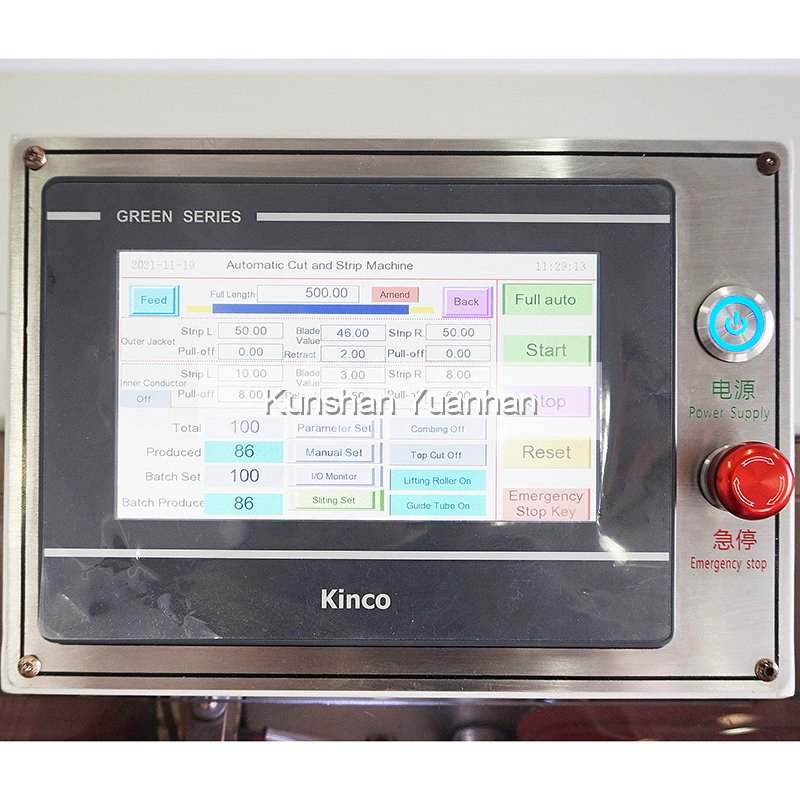

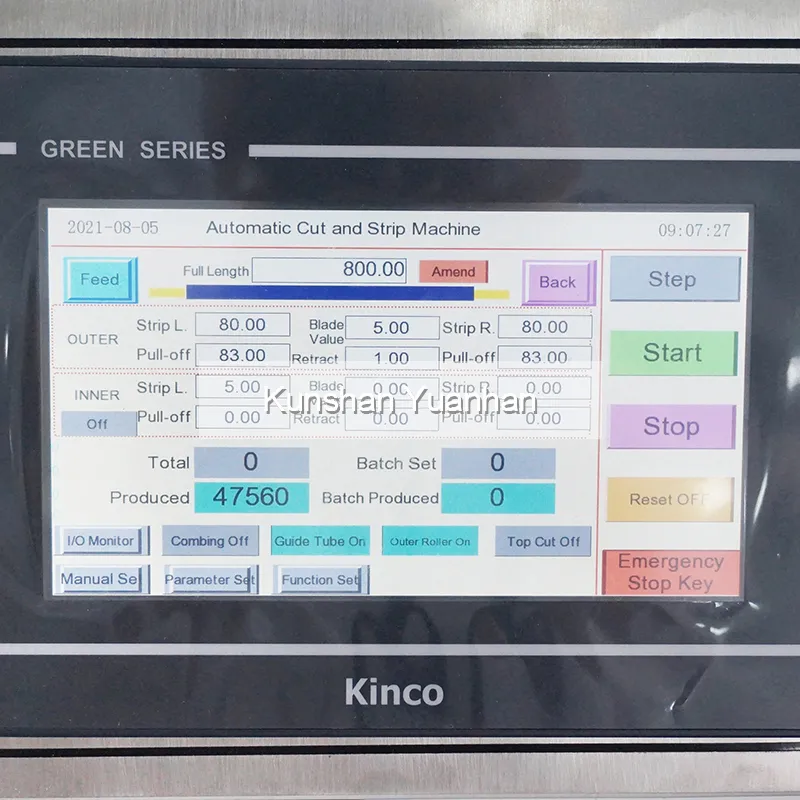

| Display | 7-inch true color touch screen |
| Applicable wire sizes | 1-30 square mm |
| Cutting length | 1mm-99,999.99mm |
| Cutting tolerance | within 0.002*L (L=cutting length) |
| Stripping length | Head full strip: 1-190mm, Half: 1-9999mm; Tail full strip: 1-80mm, Half: 1-9999mm |
| Middle stripping | Multi-section stripping, up to 32 segments, any interval/length |
| Max. diameter of guiding pipe | Φ16 |

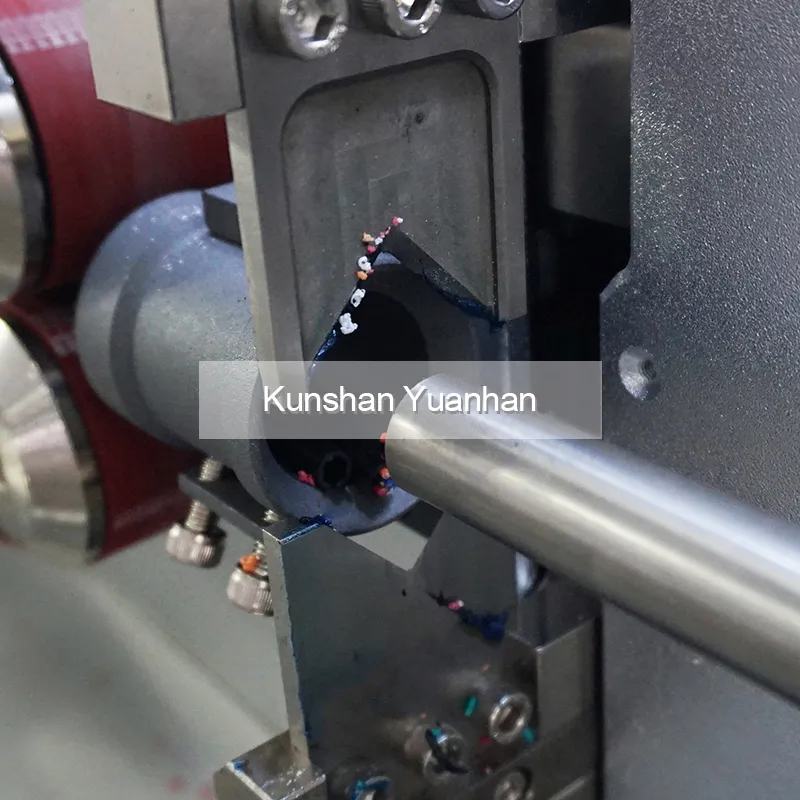

| Blade material | High-quality imported high-speed steel |
| Productivity | 2,000 - 2,300 pcs/hour |

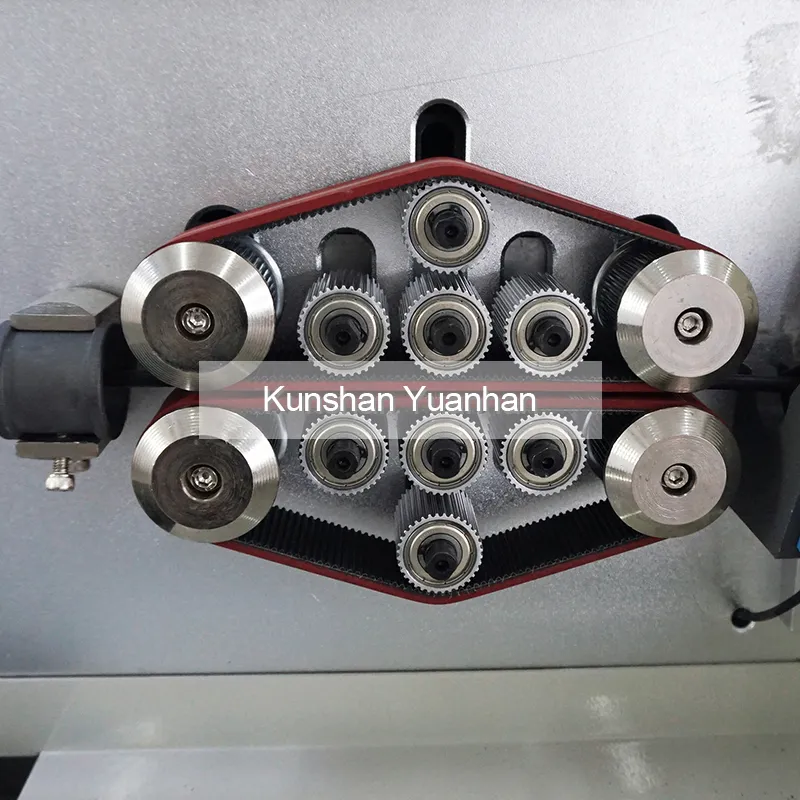

| Drive mode | 16-wheel drive (silent hybrid stepping motor, servo tool post) |

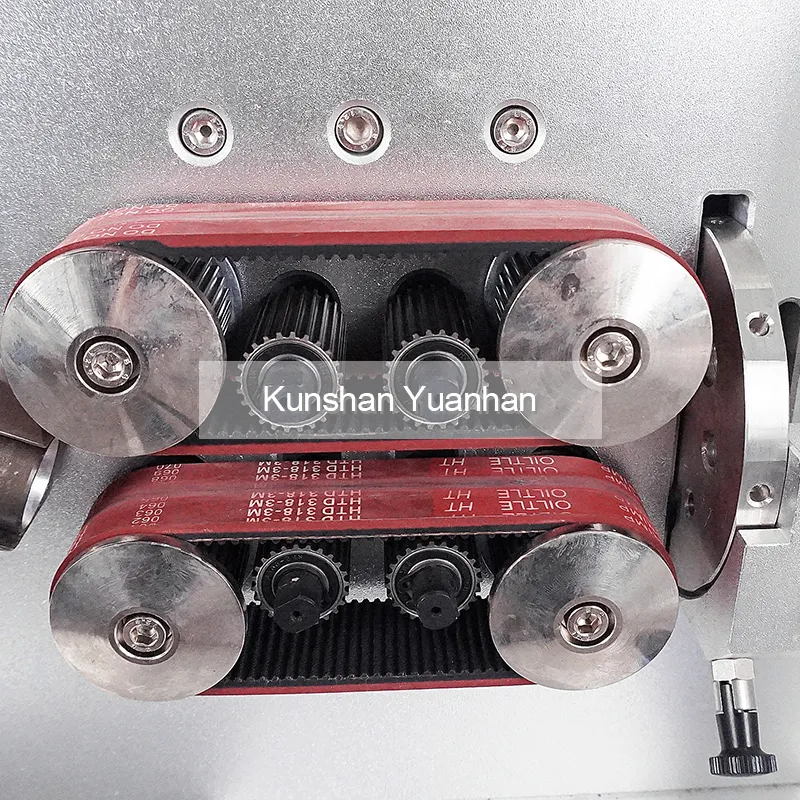

| Wire feeding method | Belt feeding, no embossing or scratches |
| Name/Model | YH-8030 | YH-8070 | YH-8120 | YH-8120X | YH-8300 |
|---|---|---|---|---|---|
| Stripping range | 4-30 sq | 10-70 sq | 10-120 sq | 10-120 sq | 30-300 sq |
| Display | 7" Touch | 7" Touch | 7" Touch | 10" Touch | 10" Touch |
| Knife Type | V-Knife | V-Knife | V-Knife | Rotary Knife | V/Round Knife |
| Drive Wheels | 16 wheels | 32 wheels | 32 wheels | 48 wheels | 32 wheels |
| Power | 1.5KW | 1.5KW | 1.5KW | 4KW | 11.7KW |

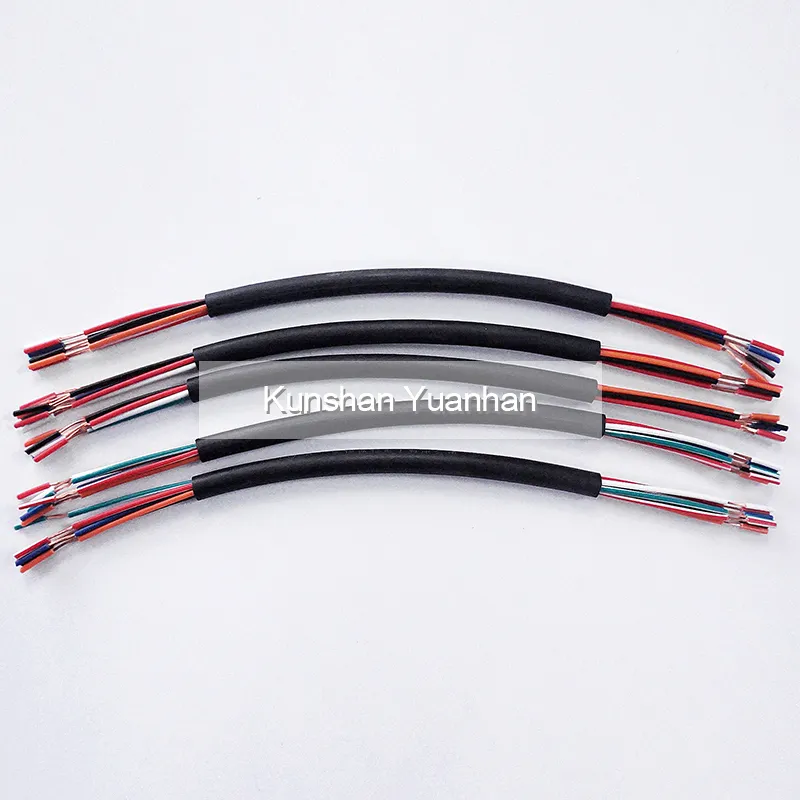

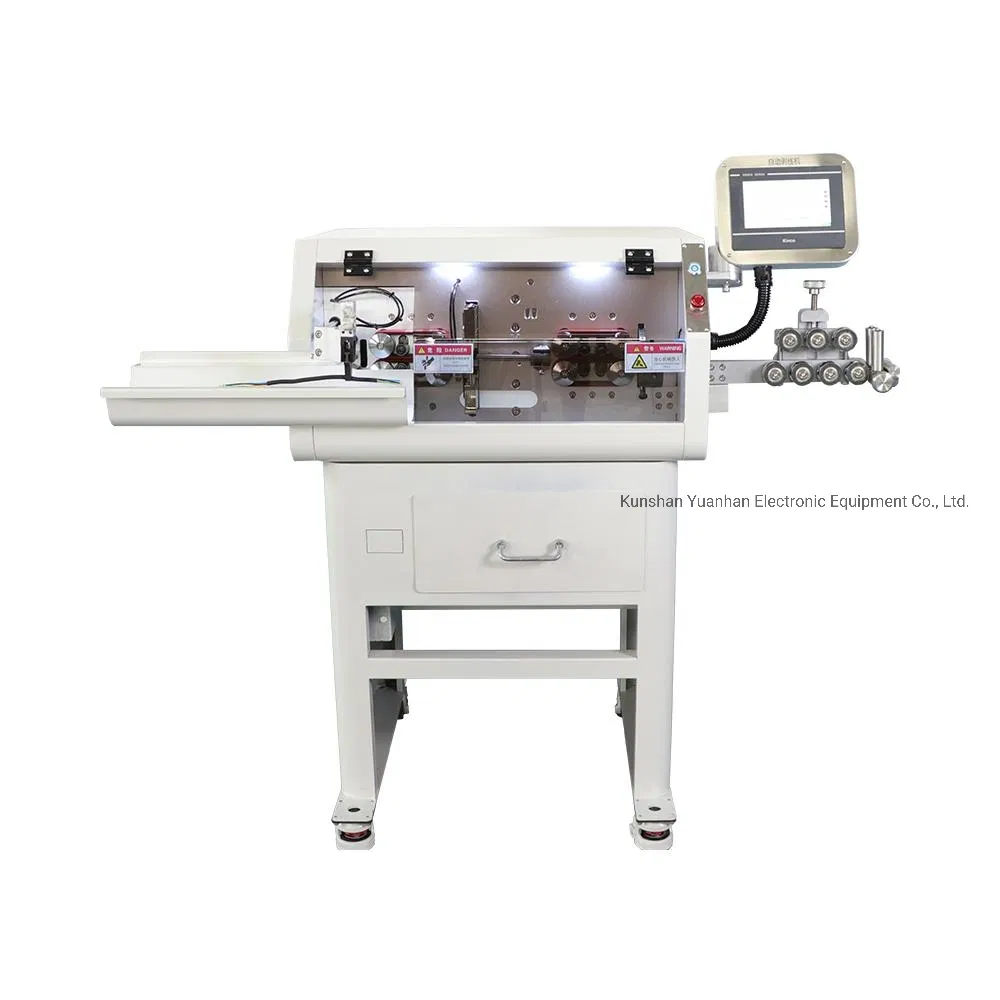

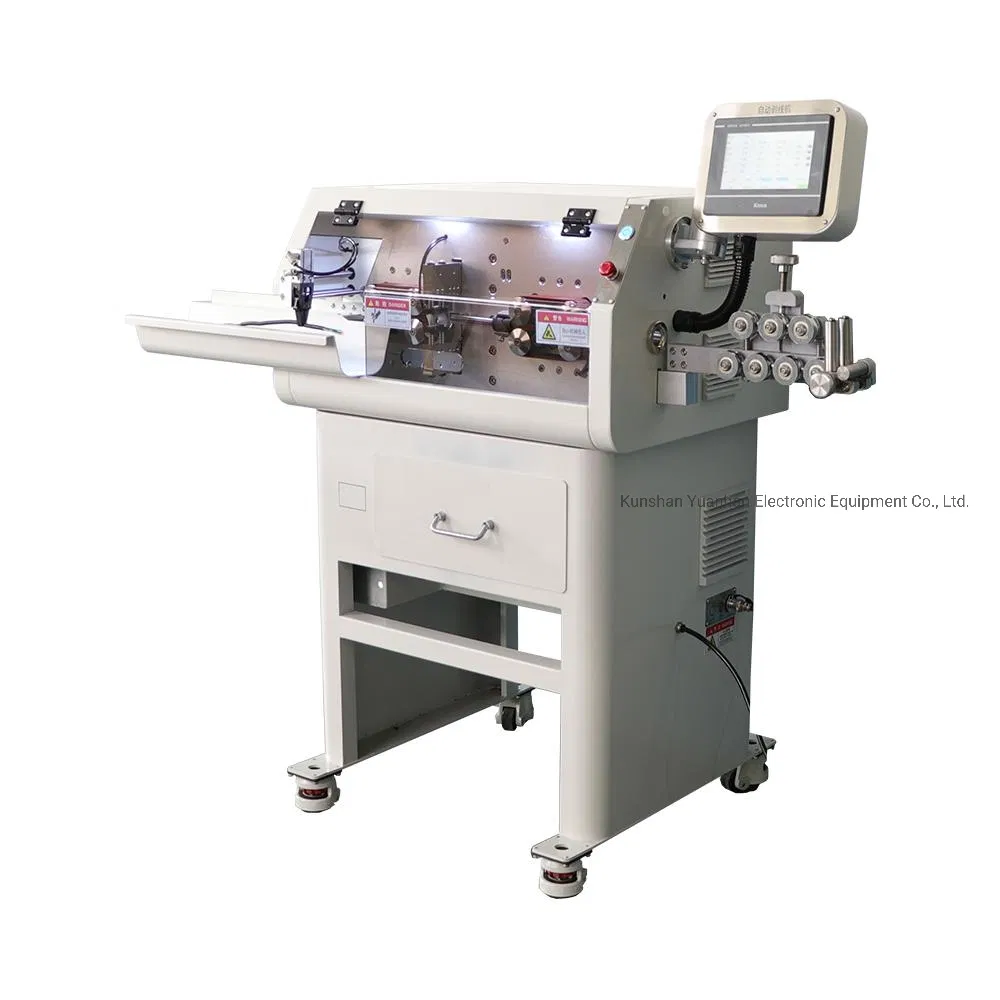

30 square sheathed wire cutting and stripping both inside and outside. All-in-one machine with manipulator.
