Product Description

i

Basic Specifications

Model NO.
SKS-3220 5 AXIS
Usage
Ceramics, Jadestone, Granite, Marble
Application
Machinery, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Control
CNC
Certification
ISO, CE
Spindle Motor
15kw
Guide Rail
Linear Guide
Head Rotation
0 to 360 Degree
Head Tilting
0 to 90 Degree
Production Capacity
200 sets/Month

Product Introduction

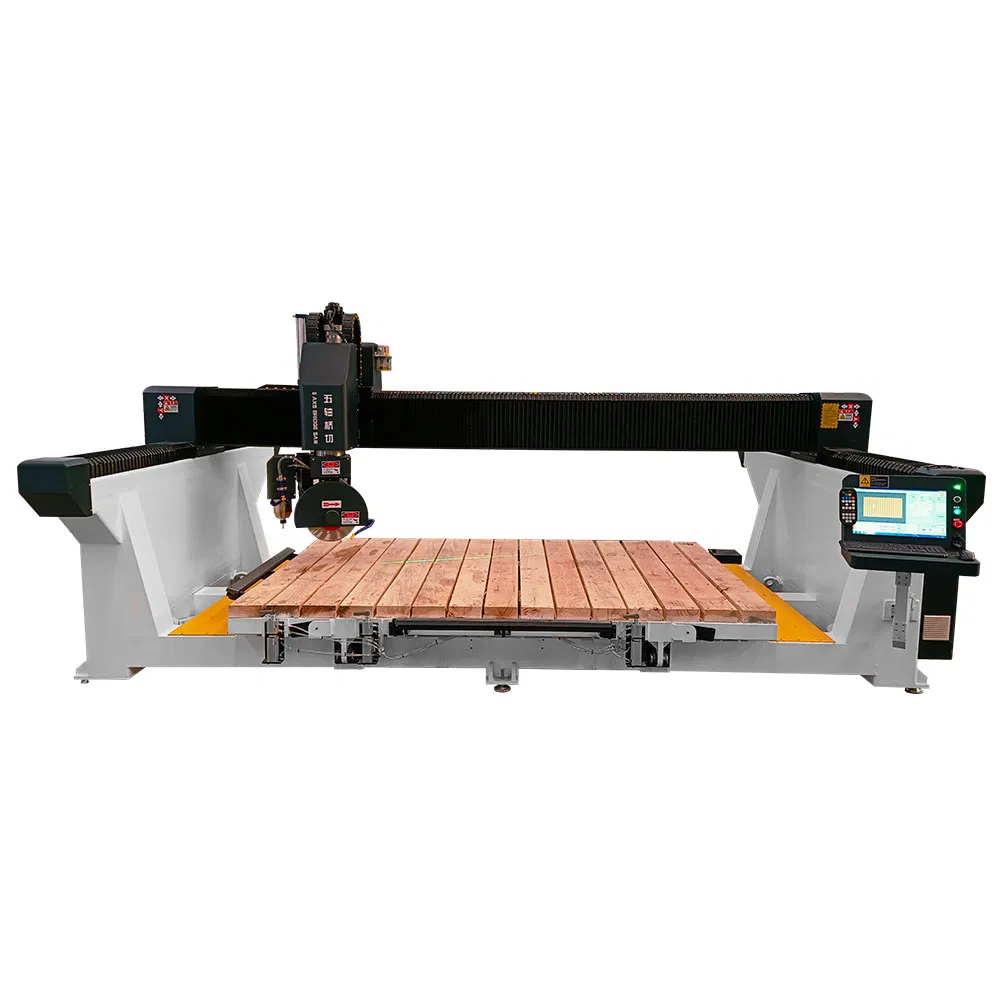

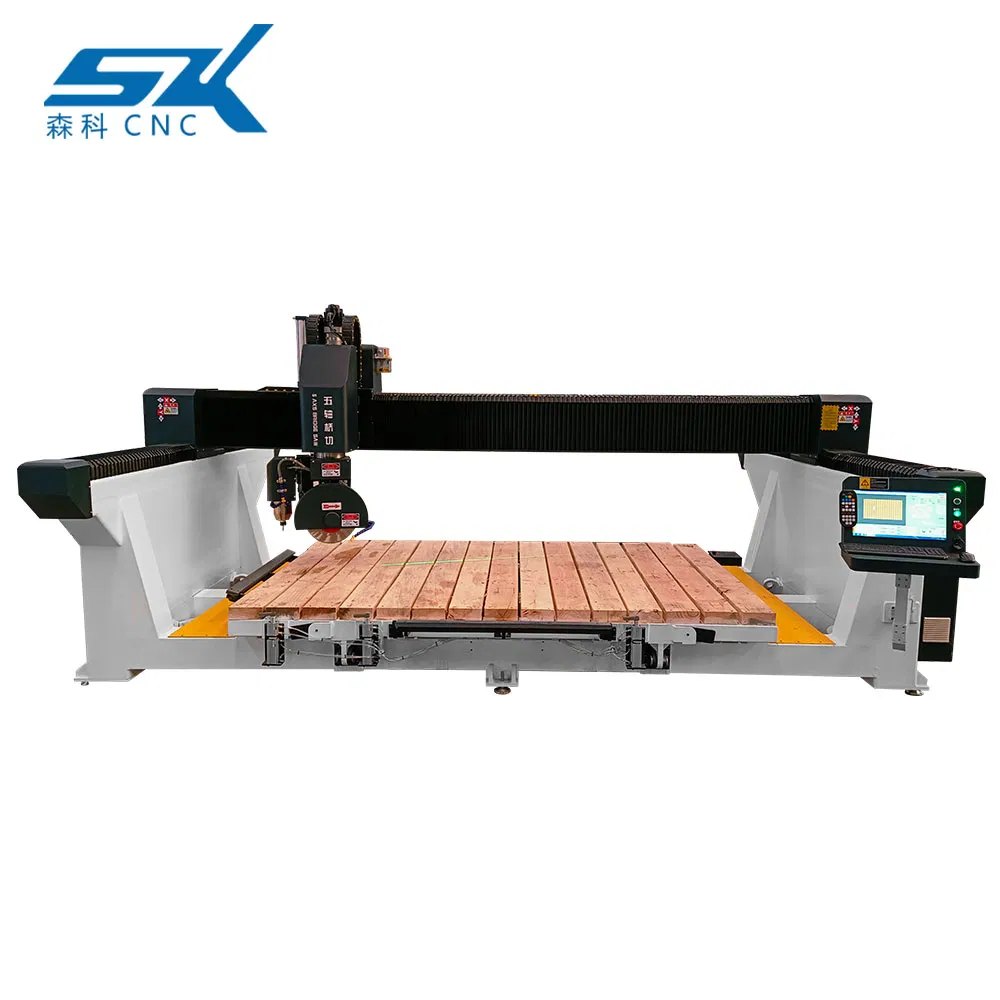

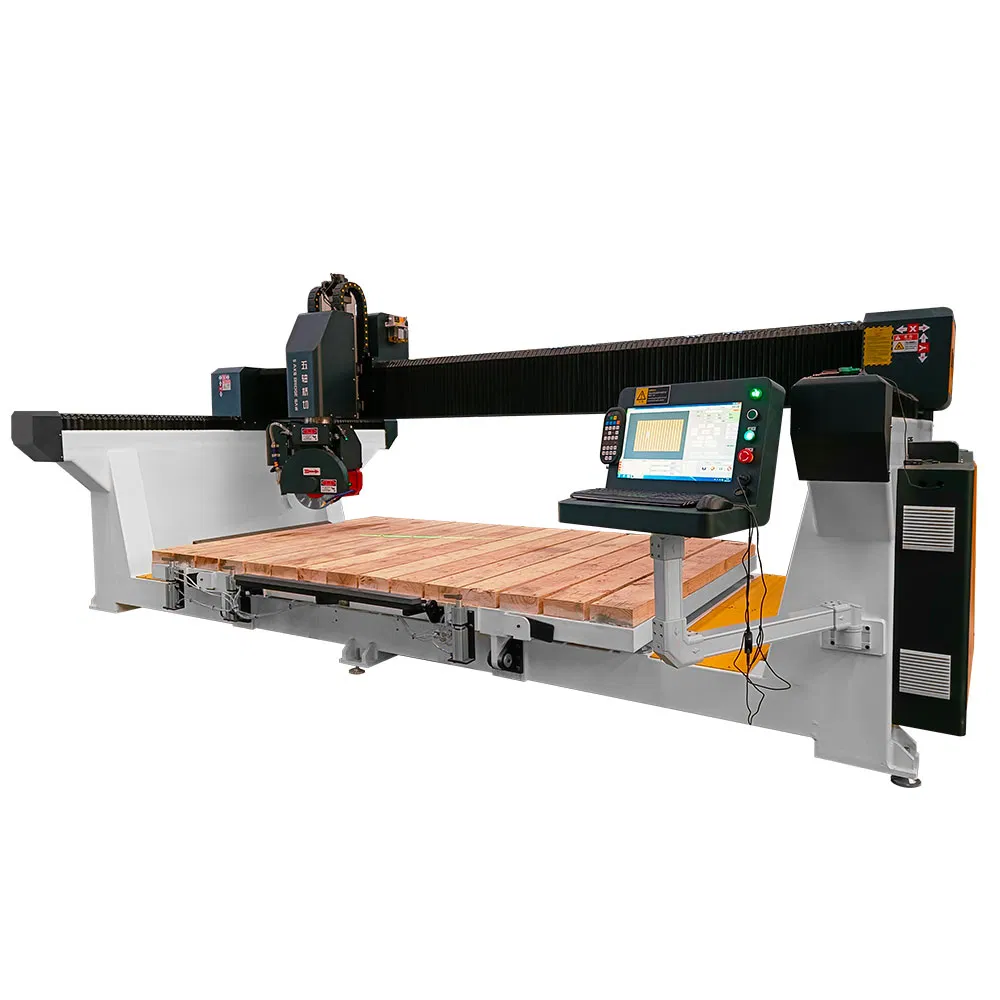

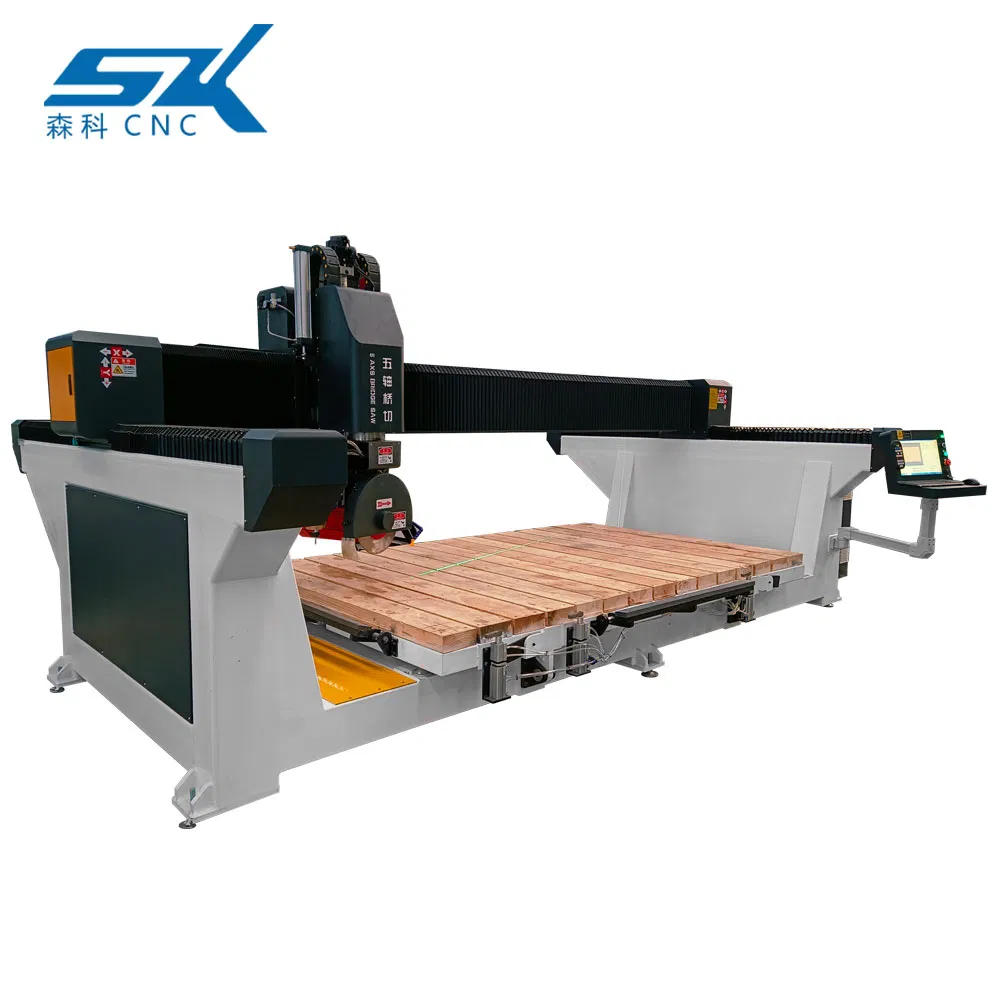

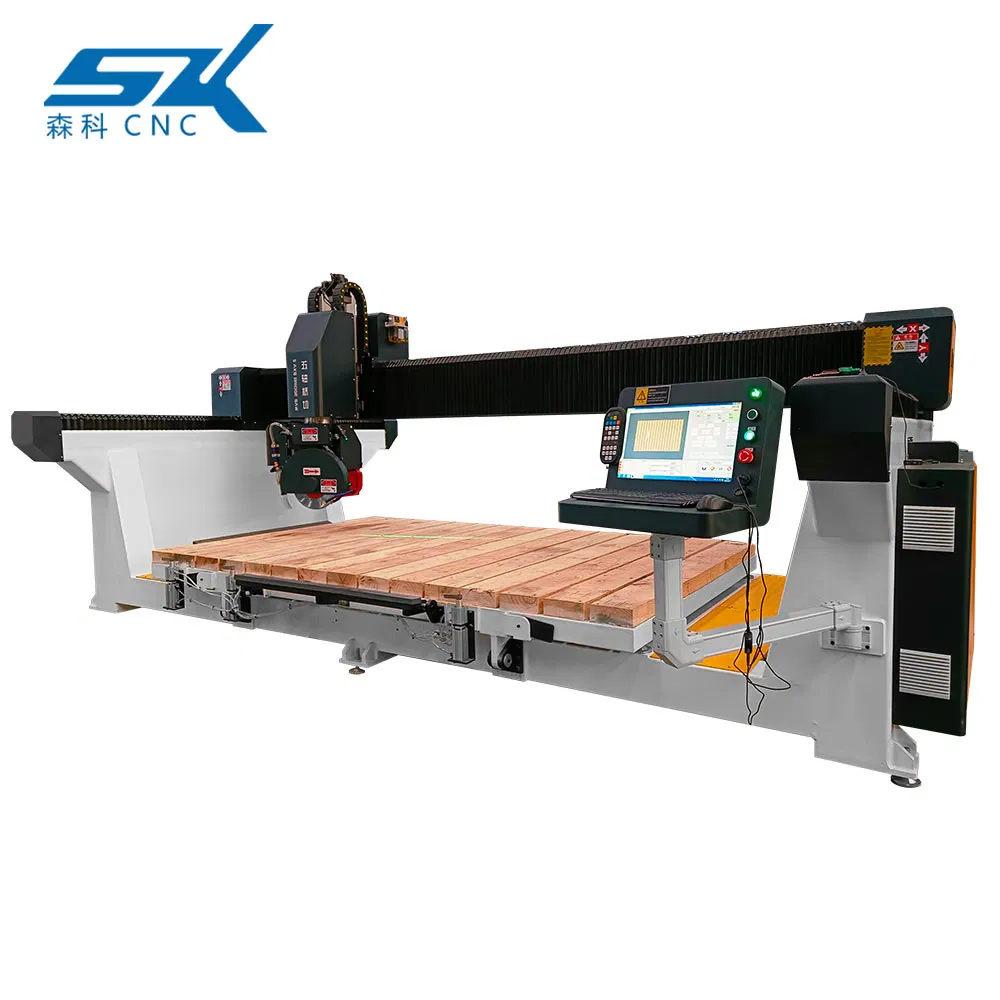

Bridge Saw Max Blade Cutting Stone Slab Countertop Processing Equipment

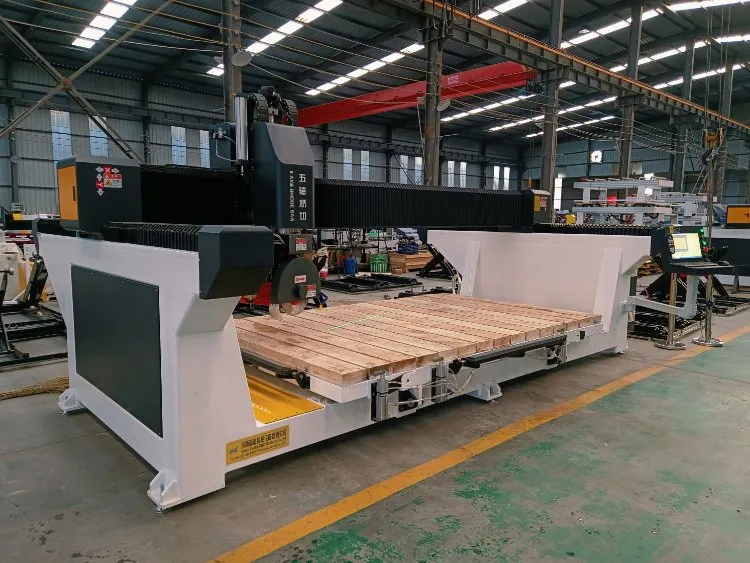

Bridge Saw Equipment 1

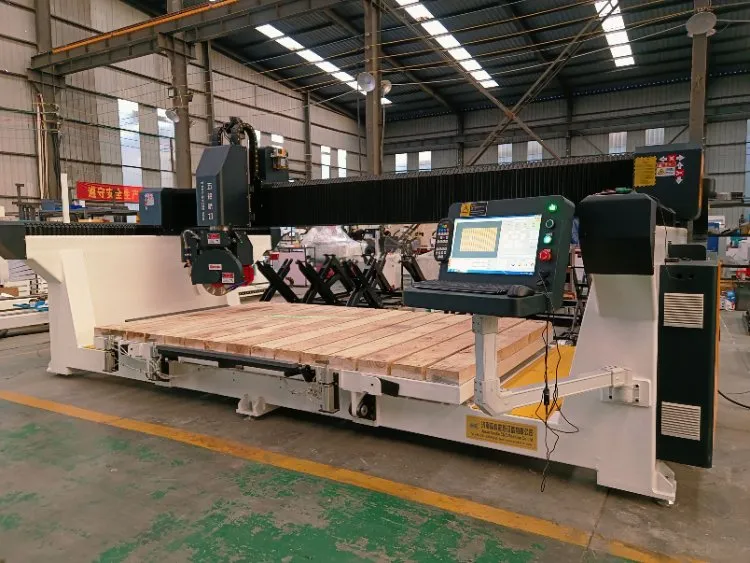

Bridge Saw Equipment 2

The 5-axis bridge saw stone cutting machine is a state-of-the-art equipment designed for precise and efficient cutting of stone materials. With its advanced 5-axis technology, this machine offers enhanced versatility and accuracy in stone cutting applications.

The machine features five axes of movement, including X, Y, Z, and two rotational axes, which allow for complex and intricate cuts on stone slabs of varying sizes and shapes. The cutting process is controlled by a user-friendly interface, enabling operators to set precise parameters such as speed, depth, and angle.

Equipped with a high-speed diamond blade, the machine ensures clean and accurate cuts with minimal chipping. Advanced safety features including emergency stop buttons and sensors are integrated to protect operators during operation.

📋

Technical Parameters

Parameter Item Details
Working area3200x2000mm
Voltage380V Three phase 50/60hz
Spindle7.5kw water cold spindle
Motor power11kw
Rotate of working platform0-80 degree
Motor1500w servo and drive
Guide railImported high precision 30mm guide rail
ReducerJapan Shimpo high precision reducer
Blade diameter350-450mm with 45 degree cutting support
Maximum cutting thickness80mm
Lubrication systemAuto Lubrication
Infrared rayEquipped with laser infrared probe
Machine size3450x5820x2300mm
Net Weight4500KG
🖼

Working Samples & Details

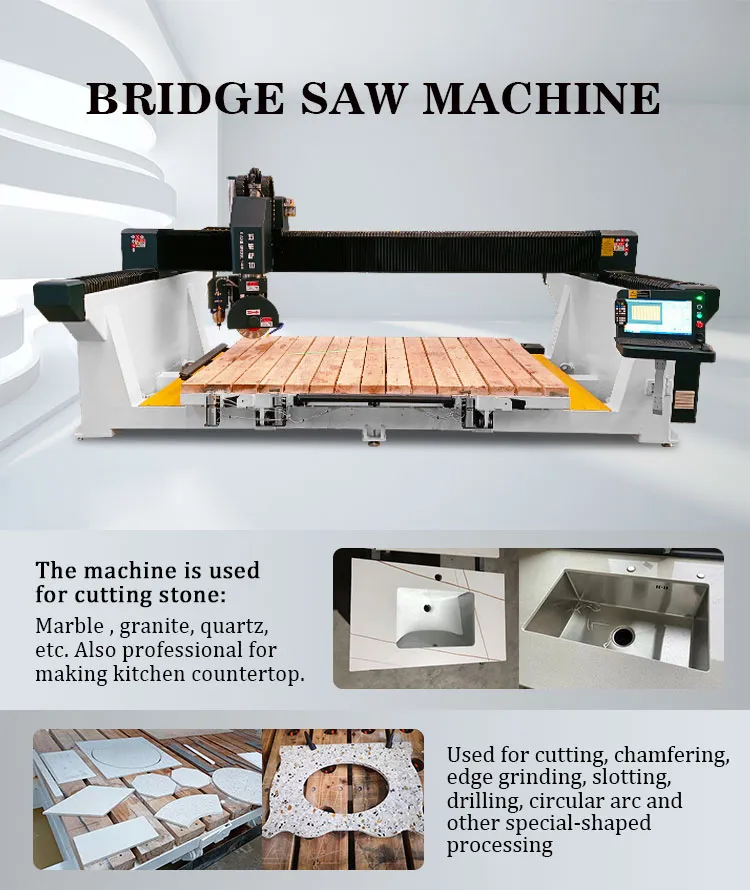

Machine Detail View

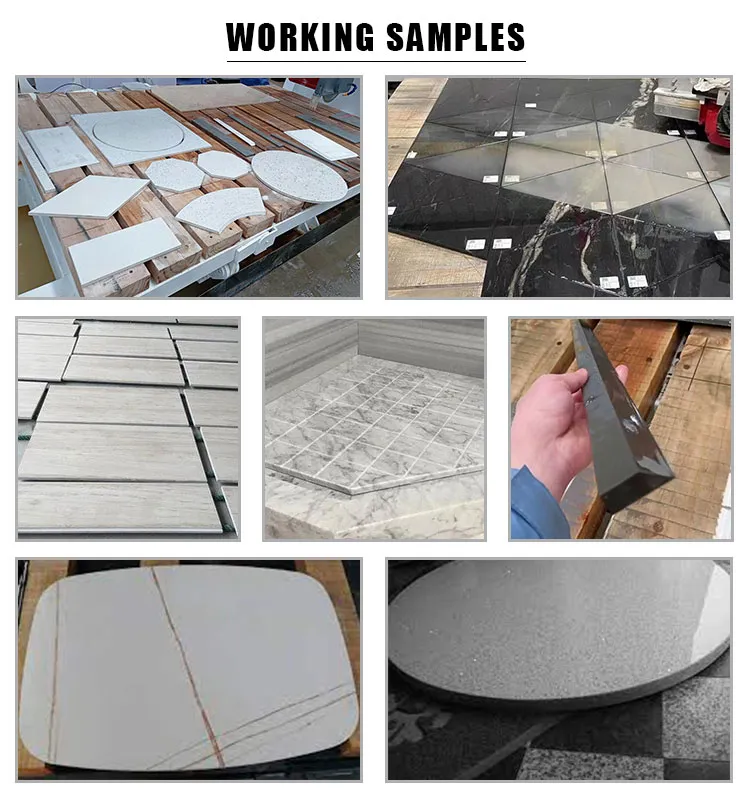

Stone Samples
Certification

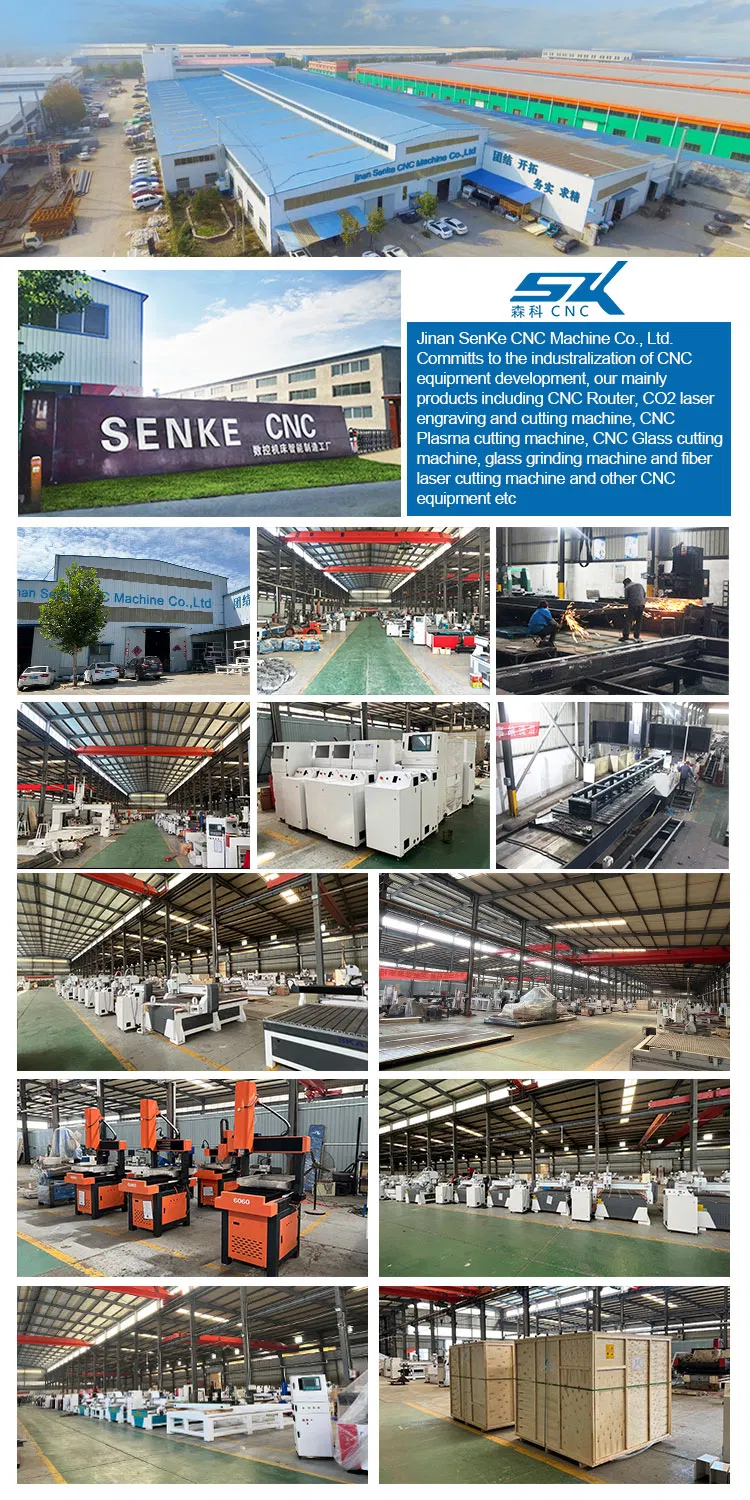

Manufacturing Insight
📦

Packing & Transport

  • 1. Outside Package: Standard export free fumigation wooden box.
  • 2. Inner package: Moisture-proof and rust-proof elastic plastic film packaging.
  • 3. Customization: Packaging can be adjusted based on specific transport requirements.
Packaging Detail
?

Frequently Asked Questions

What materials can this 5-axis bridge saw process?
The machine is suitable for a wide range of materials including granite, marble, ceramics, jadestone, and other natural or artificial stones.
Does the machine support 45-degree bevel cutting?
Yes, the machine is equipped with an A-axis that supports 45-degree bevel cutting for countertop edges and miter joints.
What kind of control system does it use?
It utilizes an advanced CNC control system with a user-friendly interface, allowing for precise control over X, Y, Z, and rotational axes.
How is the quality of the machine ensured?
Quality control is a priority at every stage, from selecting environmental-friendly raw materials to rigorous checking by the Quality Control Department during production and before packing.
Is the machine equipped for precise positioning?
Yes, it is equipped with a laser infrared probe that displays the cutting path, ensuring high precision during the setup and cutting process.
What are the main components used in the drive system?
The machine uses high-precision 1500W servo motors and drives, along with Japan Shimpo reducers and imported 30mm linear guide rails for maximum stability.
