Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
1 / 5
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine
Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine

Bzw-882dh Computerized Round Sheathed Wire Cutting and Stripping Machine

Customization: Available
After-sales Service: 24 Hours Service
Driven Type: Electric
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
BZW-882DH
Condition
New
Certification
CCC, ISO, CE
Warranty
24 Months
Automatic Grade
Semiautomatic
Wire Range
0.1-2.5mm2 *Multi Core
Wire Diameter
Less Than Φ12mm
Cutting Length
0.1-99999mm
Capacity
1000-5000 PCS/H
Tool Materials
Imported Tungsten Steel and High Speed Steel
Drive
4 Wheels Driven
Voltage
220V 50Hz

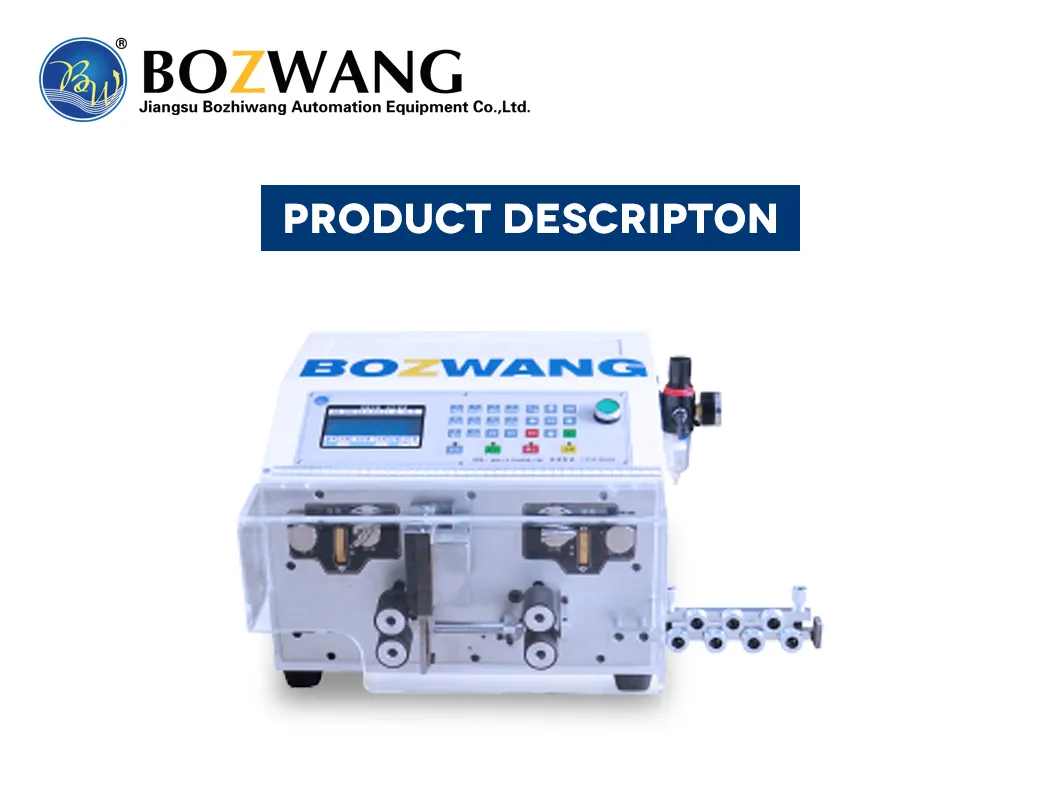

Round Sheathed Wire Cutting and Stripping Machine

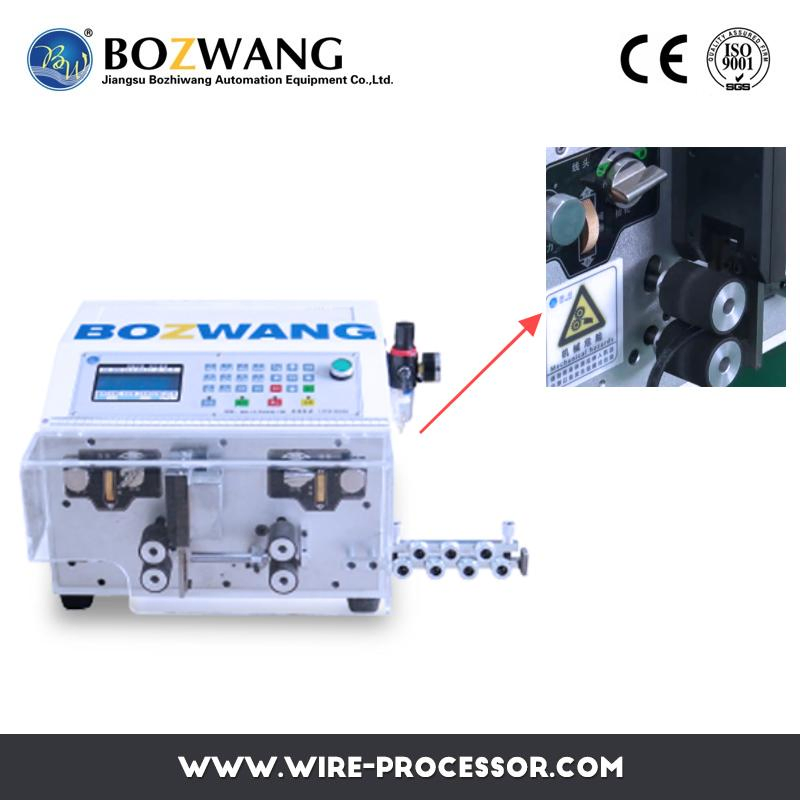

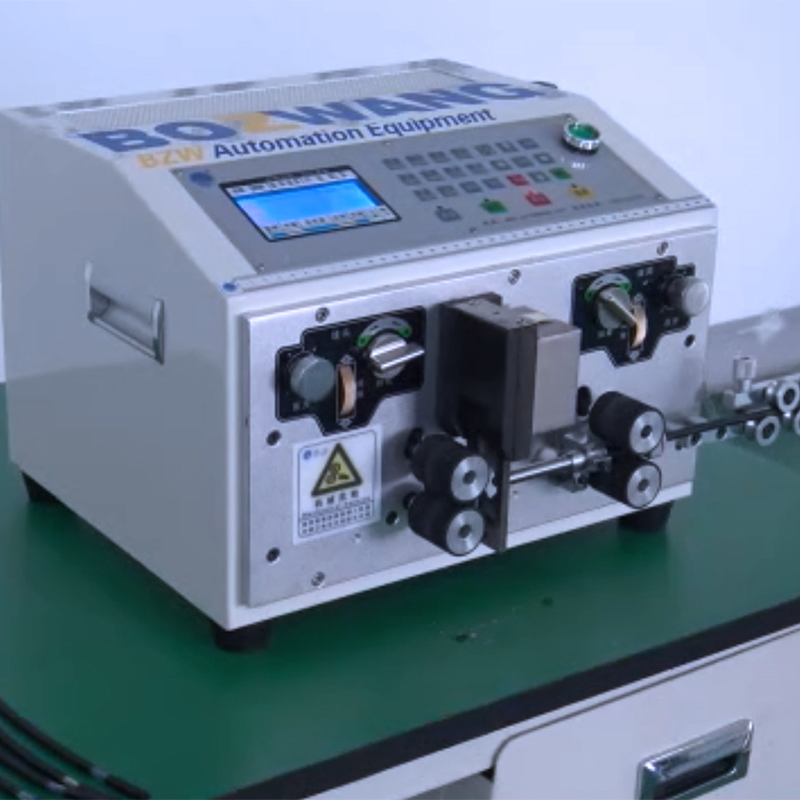

BZW-882DH Computerized cutting and stripping machine for round sheathed cable

The device is controlled by computer and operated by pressing the button. The stripping speed is fast. Within the cutting range, the parameters of the length of wire, wire head, wire end and stripping could be set. It has the functions of auto quantified, bundle quantity, time postponed, middle part stripping and etc. which are stable in performance and convenient in operation.

Machine Detail 1
Machine Detail 2
📊 Technical Parameters
Parameter Specification
ModelBW-882DH (round jacket Model)
Wire range0.1-2.5mm² (AWG13#-AWG28#)
Wire diameterLess than Φ12mm
Outer dimension420 x 297 x 345mm
Weight31kg
DisplayChinese or English interface on LCD screen
Power supplyAC180-240V<=50/60Hz
Power120-220W
Cutting length0.1mm-99999mm
Middle stripping13 stripping positions in the middle
Cutting tolerance0.002 x L mm (L= cutting length)
Stripping lengthHead: 0.1-250mm, End: 0.1-100mm
Applicable wire core0.1-2.5mm² x 3 cores (diameter < 15mm)
Applicable wirePlastic, PVC, Teflon, glass linear, Round power jacketed wire
Blade materialsImported high speed steel, tungsten steel
Stripping capacity2000-6000 pieces per hour
🛠️ Product Features & Visuals
Technical Drawing
Application 1
Application 2
Application 3
Component detail
Display detail
Processing display

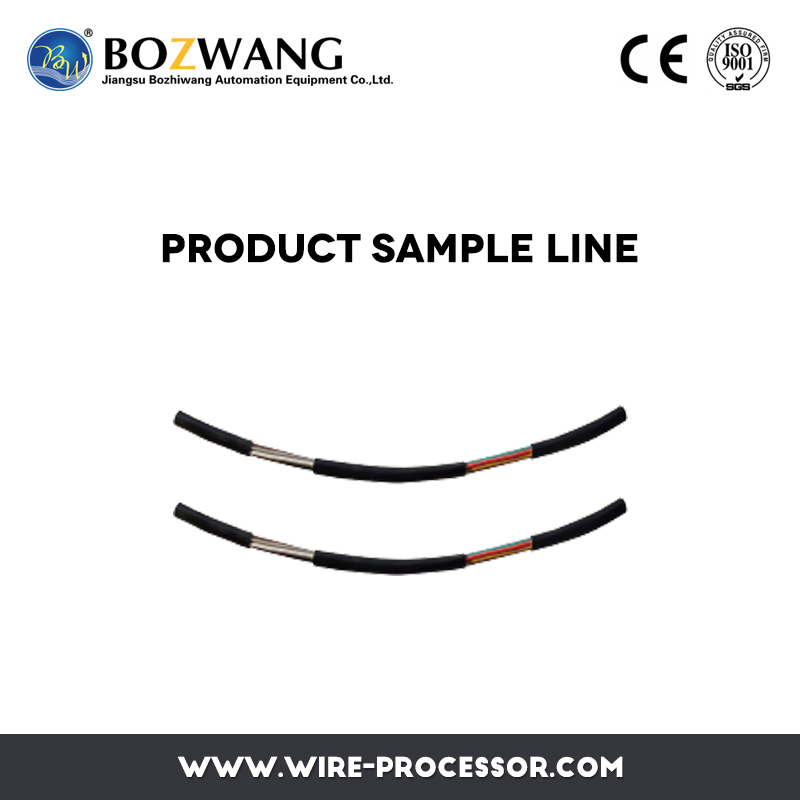

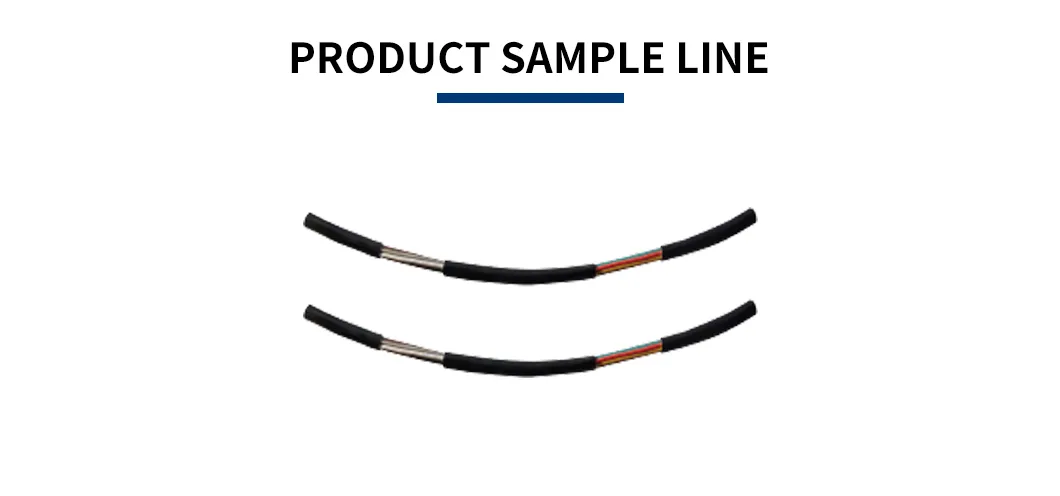

Sample finish
❓ Frequently Asked Questions
🔹 What is the processing wire range for the BZW-882DH?
The machine supports a wire range of 0.1-2.5mm² (AWG13#-AWG28#) and is designed for round sheathed cables with diameters less than 12mm.
🔹 How many middle stripping positions does it support?
The BZW-882DH is highly versatile, supporting up to 13 stripping positions in the middle of the wire.
🔹 What types of wire materials are compatible?
It is suitable for processing plastic, PVC, Teflon, and glass linear materials, specifically optimized for round power jacketed wires.
🔹 What is the production capacity per hour?
Depending on the wire length and settings, the machine can process between 2000 and 6000 pieces per hour.
🔹 Does the machine have automatic protection features?
Yes, it includes an automatic shutdown function that triggers if there is no wire detected or if the wire becomes tangled.
🔹 What kind of maintenance do the blades require?
The blades are made from imported high-speed steel and tungsten steel for extreme durability; however, periodic checks for sharpness are recommended to maintain cutting precision.
