Affordable RCDB Dry Magnetic Separator for Iron Ore Separation

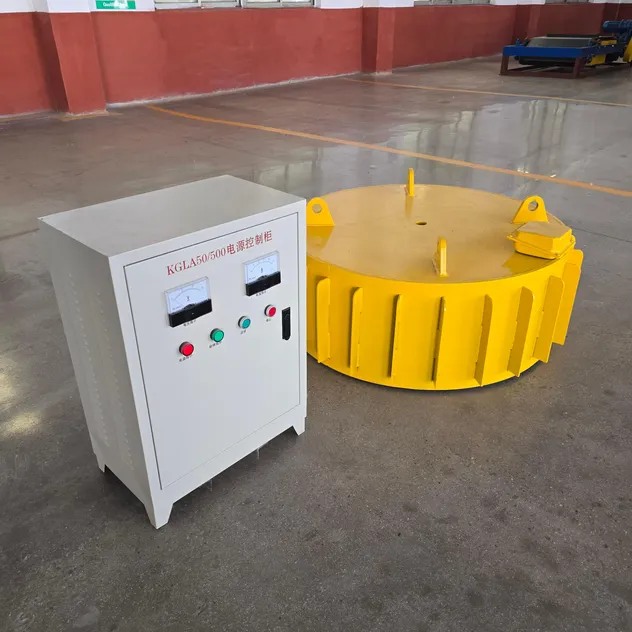

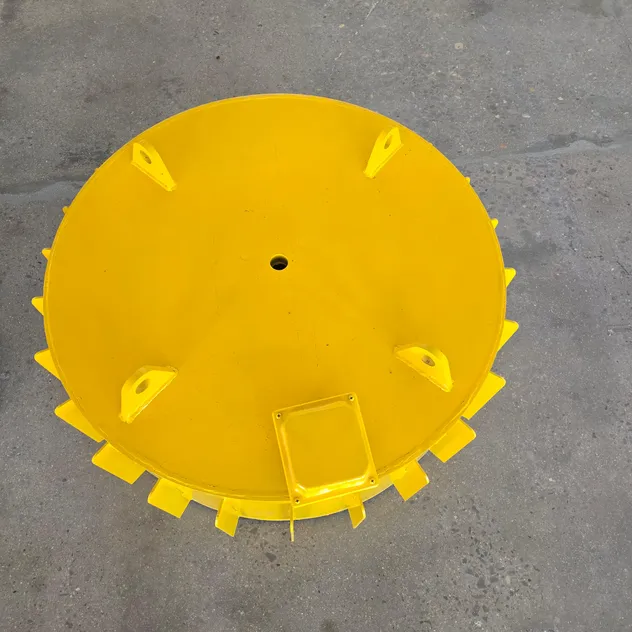

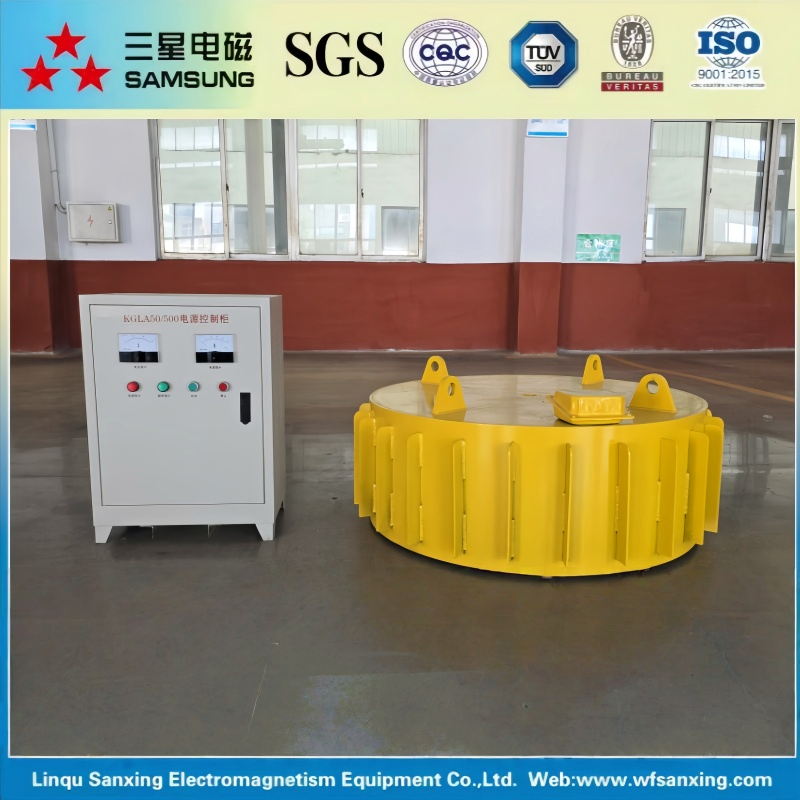

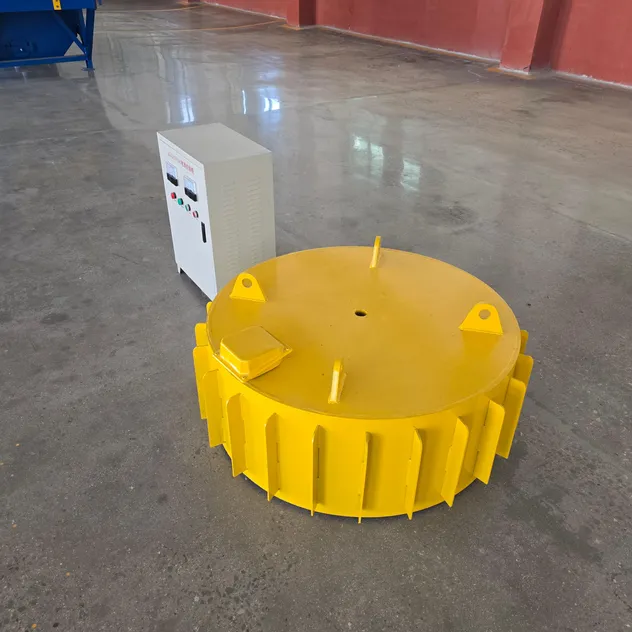

RCDB series electromagnetic dry magnetic separator is a device used to remove iron from powdered or blocky non-magnetic materials. Its interior is cast with special resin for electrical engineering, with a self-cooling fully sealed structure, dustproof, rainproof and corrosion-resistant. It is used to remove iron from any material on the conveyor belt and can be used in various harsh environments. This product is light and easy to install, offering favorable prices and guaranteed service.
| Model | Adaptive Bandwidth (≤mm) | Suspension Height (mm) | Magnetic Field (≥mT) | Material Thickness (≤mm) | Excitation Power (≤kw) | Band Velocity (≤m/s) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| RCDB-3 | 300 | 75 | 50 | 50 | 0.4 | 2.5 | 185 |
| RCDB-4 | 400 | 100 | 50 | 70 | 0.6 | 2.5 | 300 |
| RCDB-5 | 500 | 150 | 60 | 90 | 1 | 2.5 | 430 |
| RCDB-6 | 600 | 175 | 60 | 120 | 1.6 | 2.5 | 580 |
| RCDB-8 | 800 | 250 | 63 | 200 | 3.6 | 2.5 | 950 |
| RCDB-10 | 1000 | 300 | 65 | 250 | 5 | 2.5 | 1520 |
| RCDB-12 | 1200 | 350 | 65 | 300 | 6.8 | 2.5 | 2250 |
| RCDB-14 | 1400 | 400 | 68 | 350 | 9 | 2.5 | 2950 |
| RCDB-16 | 1600 | 450 | 68 | 400 | 13 | 2.5 | 4800 |
| RCDB-18 | 1800 | 500 | 71 | 450 | 18 | 2.5 | 6900 |
Applications:
Key Features:
1. Quality Handling: Adherence to industry standards with a one-year warranty. Free repair services provided for quality issues during the warranty period.
2. Technical Support: Timely and professional guidance for operational questions, troubleshooting, and performance optimization.
3. Response Time: Initial phone responses within 2 minutes. On-site technical support can be arranged within 48 hours for urgent issues depending on location.

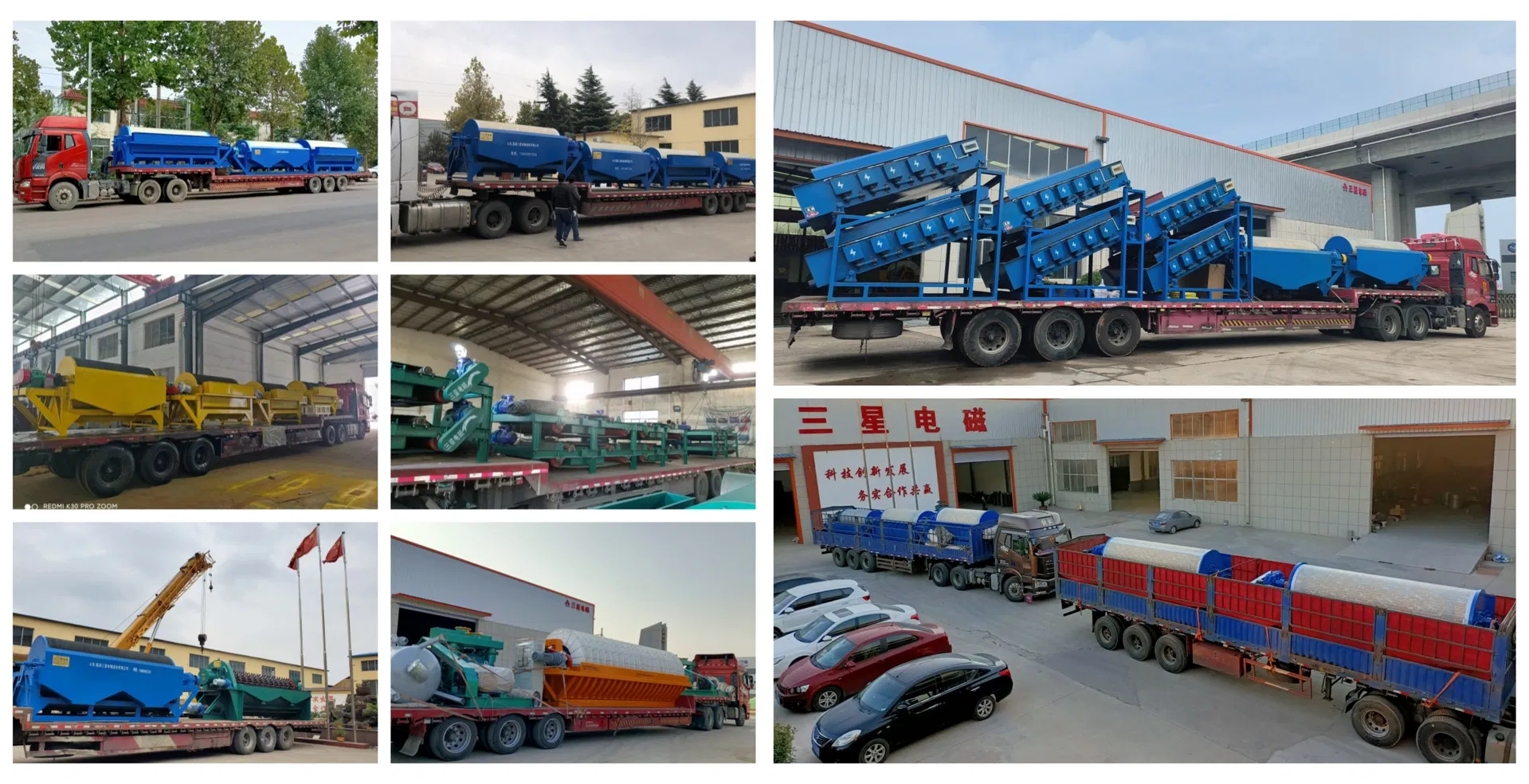

Shipment Inspection: Every unit undergoes strict appearance inspection, magnetic strength testing, and operational checks before delivery. Packaging is secured in wooden boxes or steel frames with shock-absorbing materials.
Equipped with ISO9001:2015 Quality Management System Certification and various Utility Model Patents for electromagnetic cleaners and magnetic separators.
