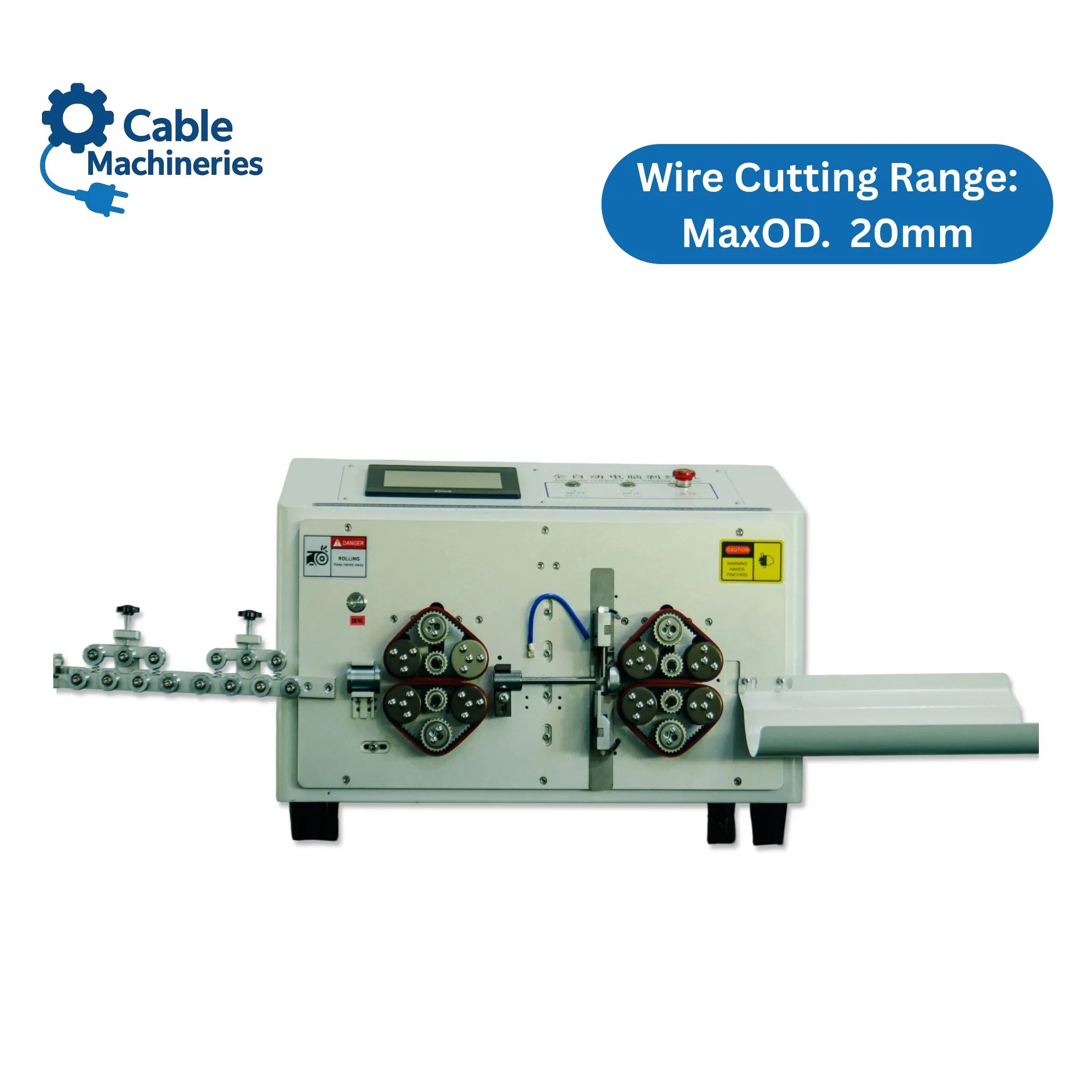

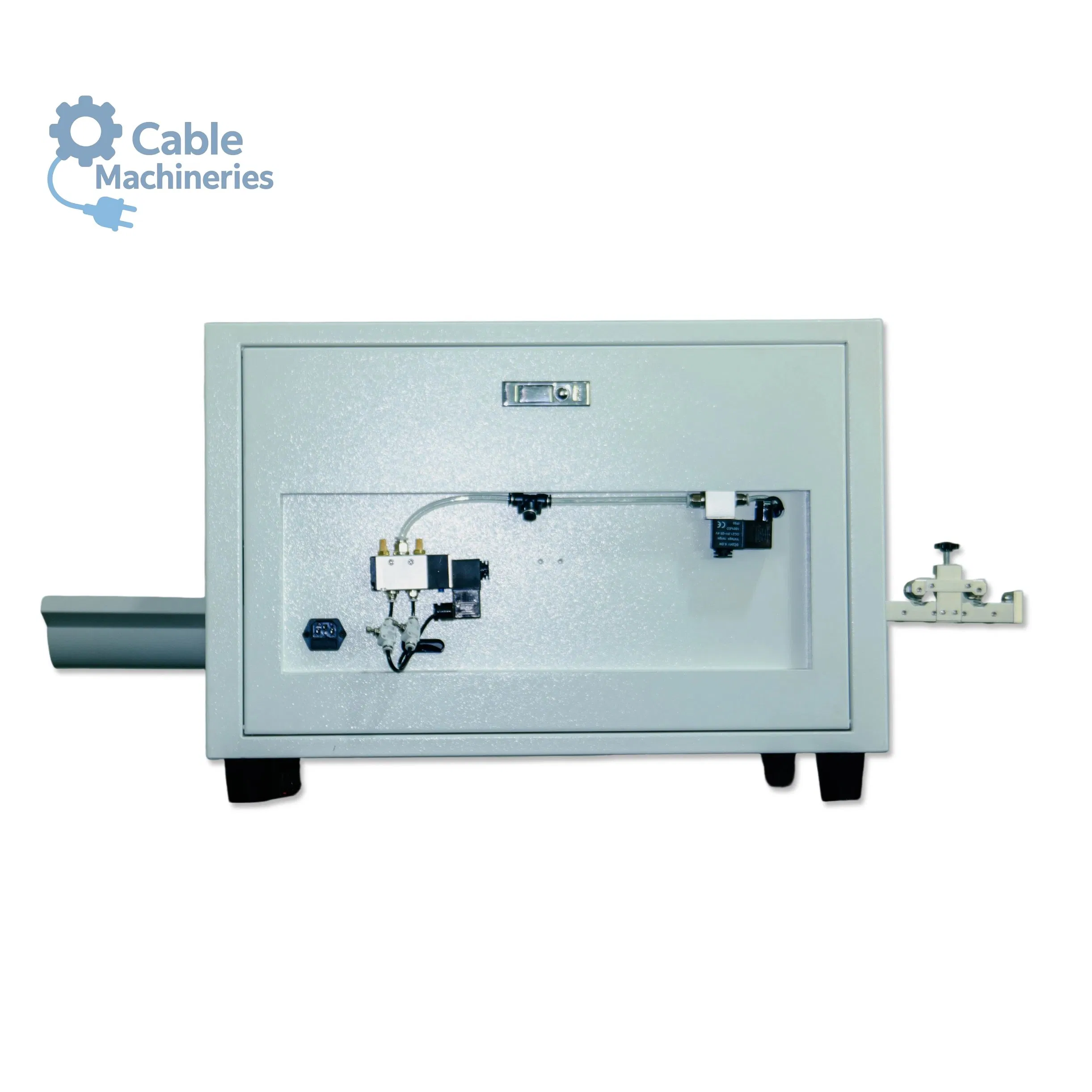

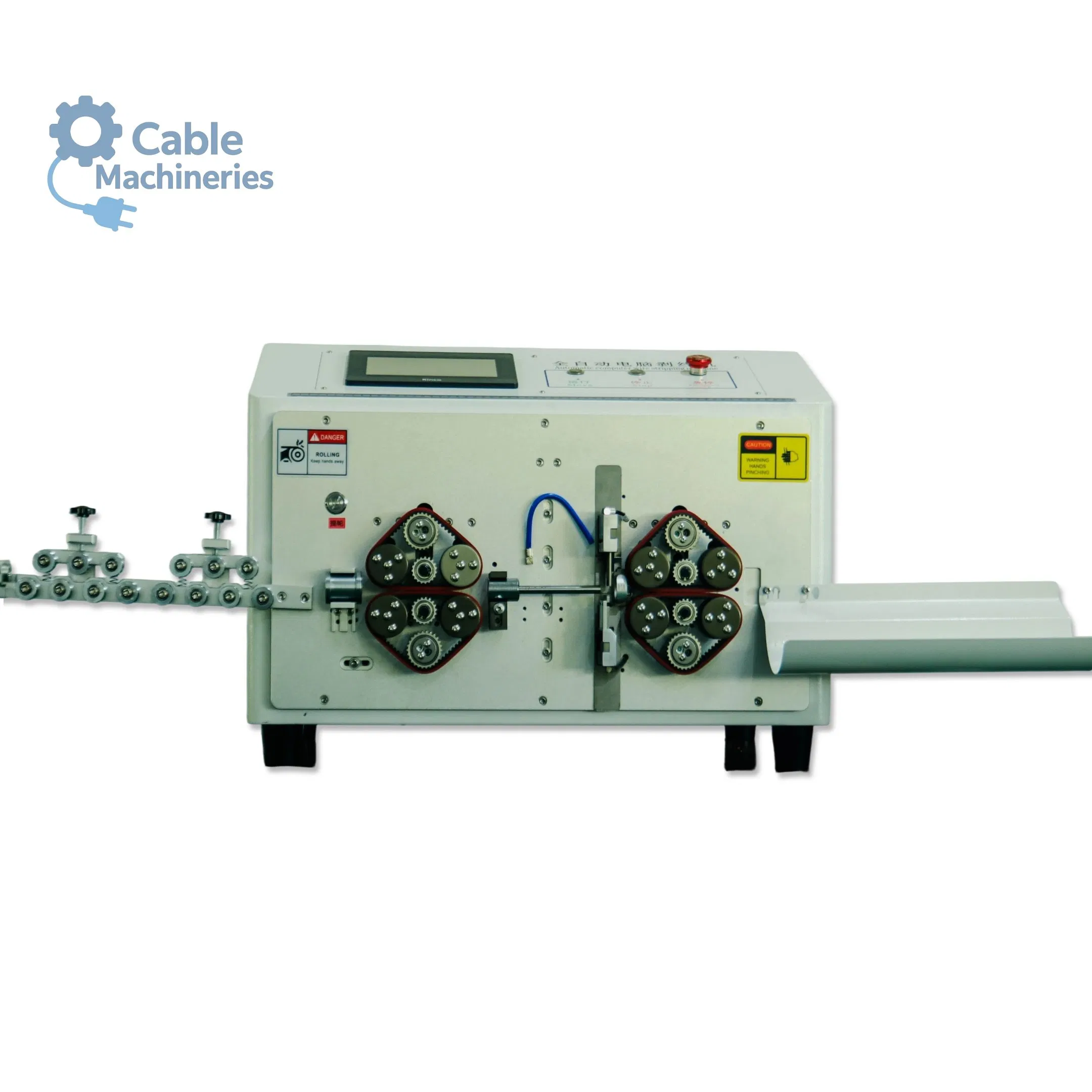

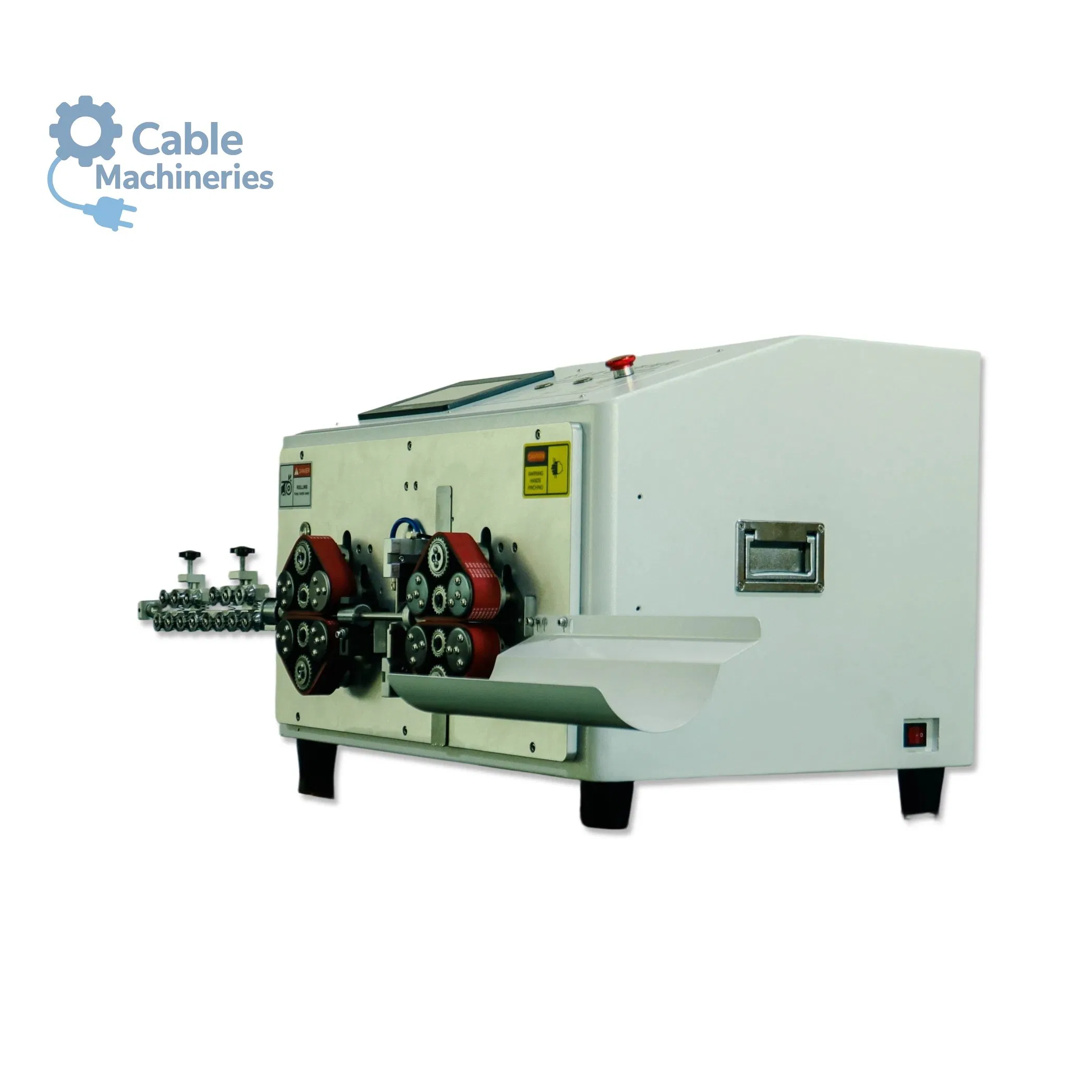

Fully Electric Servo Control Industrial Stripping Machine 70sqmm

1 / 5

Fully Electric Servo Control Industrial Stripping Machine 70sqmm

After-sales Service:	Remote Technical Support, Operation Training, Main
Driven Type:	Pneumatic
Condition:	New

Send Inquiry

Product Description

Basic Information

Model NO.

KK-510

Certification

CCC, ISO

Warranty

24 Months

Automatic Grade

Automatic

Weight

105 Kg

Cable OD

≤20mm (≤70sqmm)

Display

7-Inch Touchscreen

Blade Material

Tungsten Steel

Product Description

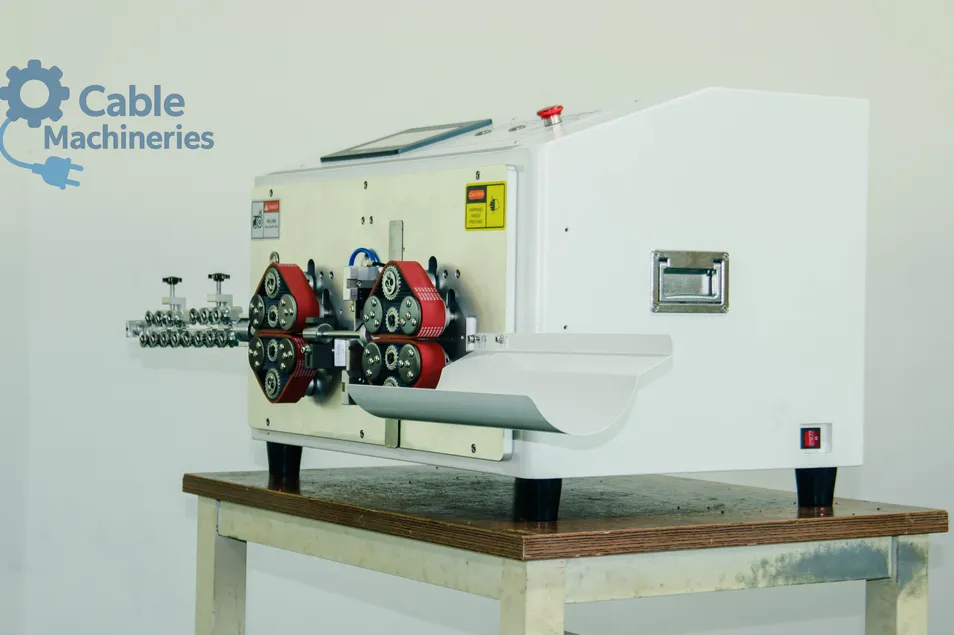

KK-510 Fully Automatic Wire Stripping Machine

The KK-510 is a belt-driven, fully automatic wire stripper with 32-bit intelligent control and a 7-inch touchscreen. It stores 100 programs for quick changeovers and handles wires up to 20mm OD/70mm² (including flat & USB cables). Features standard auto alarm, pressure regulation, and counting for reliable, high-volume stripping.

Technical Specification

Parameter	Specification
Model	KK-510
Power Supply	AC 175-250V, 50/60 Hz
Power Consumption	120-220W
Production Capacity	400–1,000 strips/hour
Machine Dimensions	930mm(L) × 420mm(W) × 370mm(H)
Weight	105kg
Maximum Wire Diameter	Outer diameter ≤20mm, area ≤70mm²
Stripping Length	Front: 0.1–250mm, Rear: 0.1–100mm

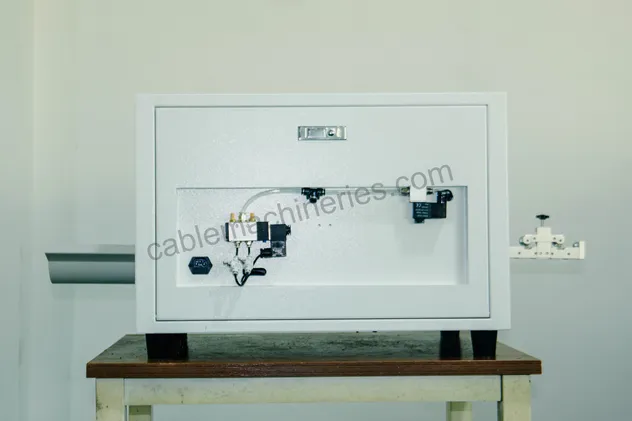

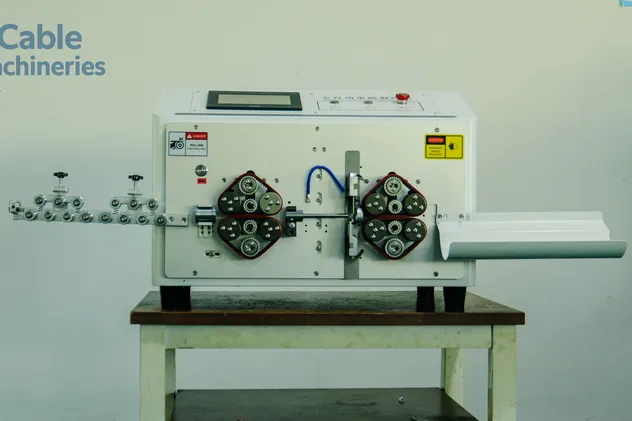

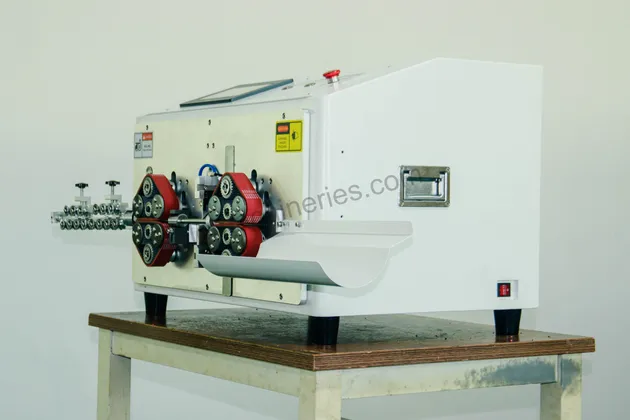

Product Details

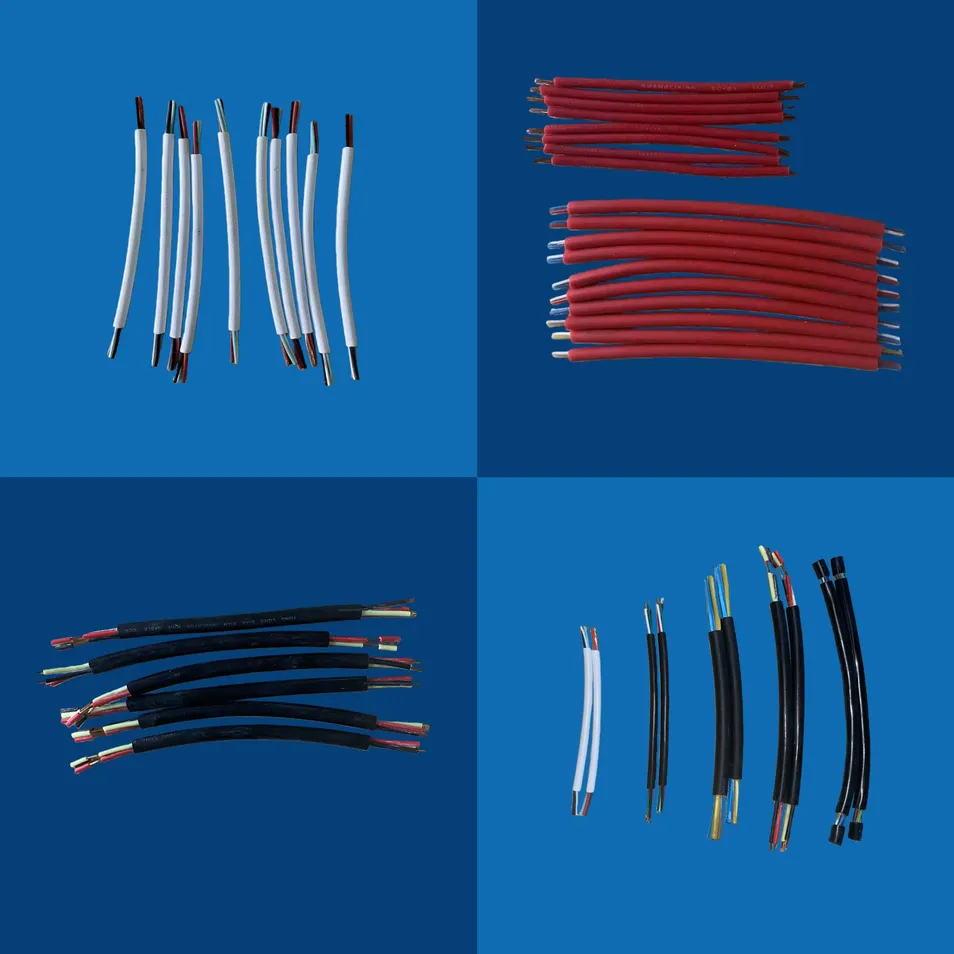

Processed Samples

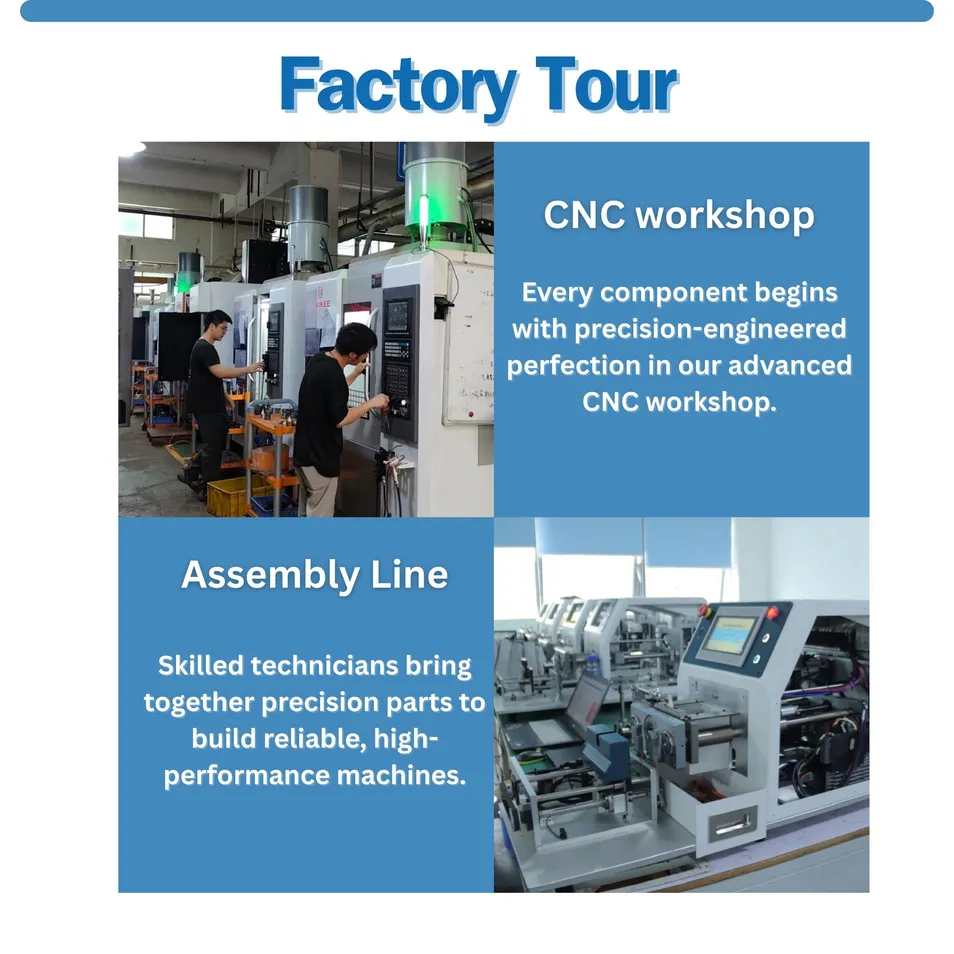

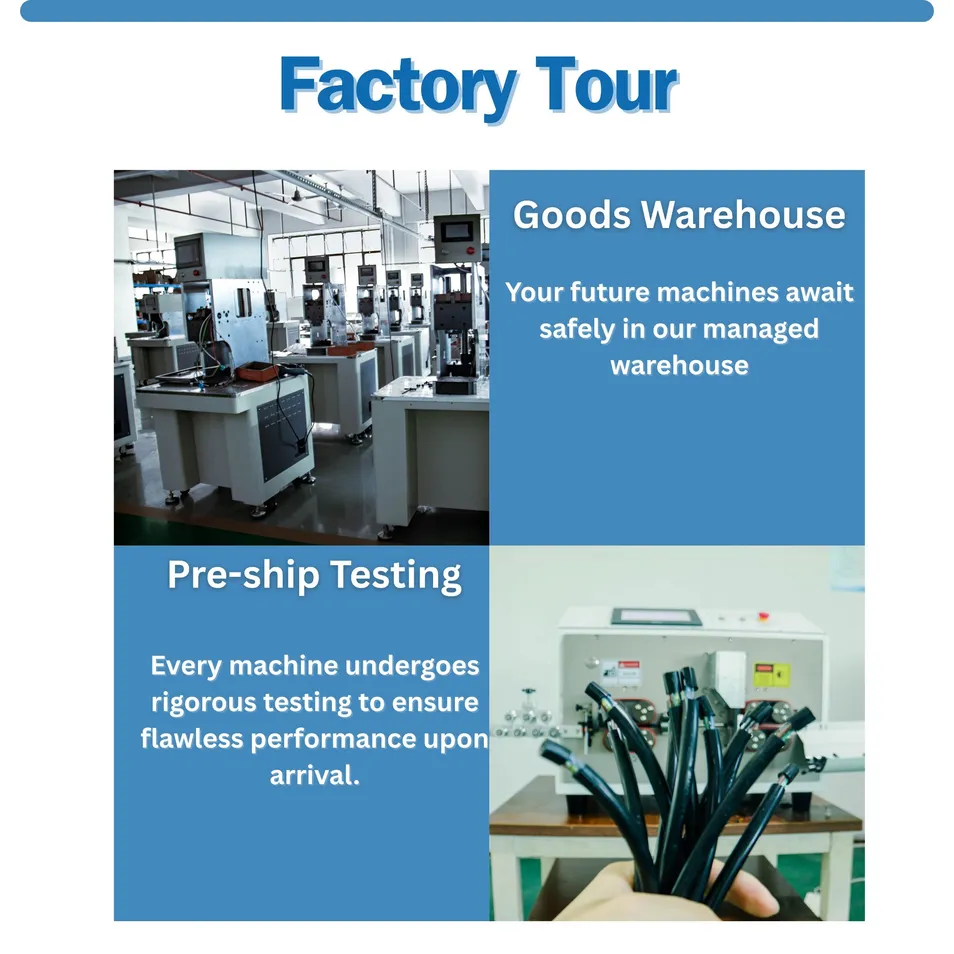

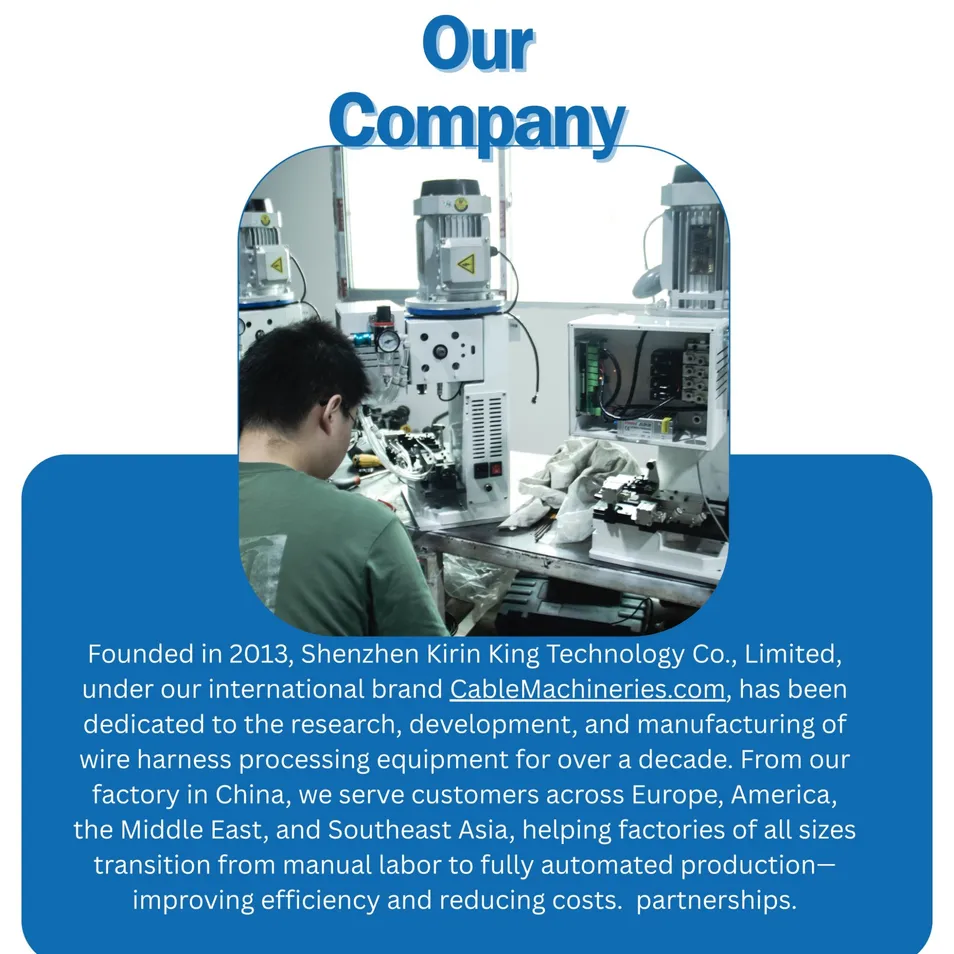

Production Facility

Packing & Delivery

Package

Wooden Box

Lead Time

15 days (1-1 Pieces) / To be negotiated

Frequently Asked Questions

What types of wires can your machines process?

Our machines handle a wide range of wires including electronic wires, PVC cables, braided wires, silicone wires, high-temperature wires, and shielded cables.

What is the typical stripping length range?

Depending on the model, stripping lengths range from 0.1mm to 300mm for front stripping and 0.1mm to 130mm for rear stripping.

Can you process both single-core and multi-core wires?

Yes, our machines are designed to handle both single-core and multi-core wires effectively, including specialized twisting functions.

What is your warranty policy?

We offer 12-24 month warranties depending on the model, covering manufacturing defects with comprehensive after-sales support.

How often do blades need replacement?

Blade life typically lasts 3-6 months in normal operation, depending on usage and wire type.

Can machines be customized?

Yes, we offer customization for specific wire types, production requirements, and special applications to meet your needs.
