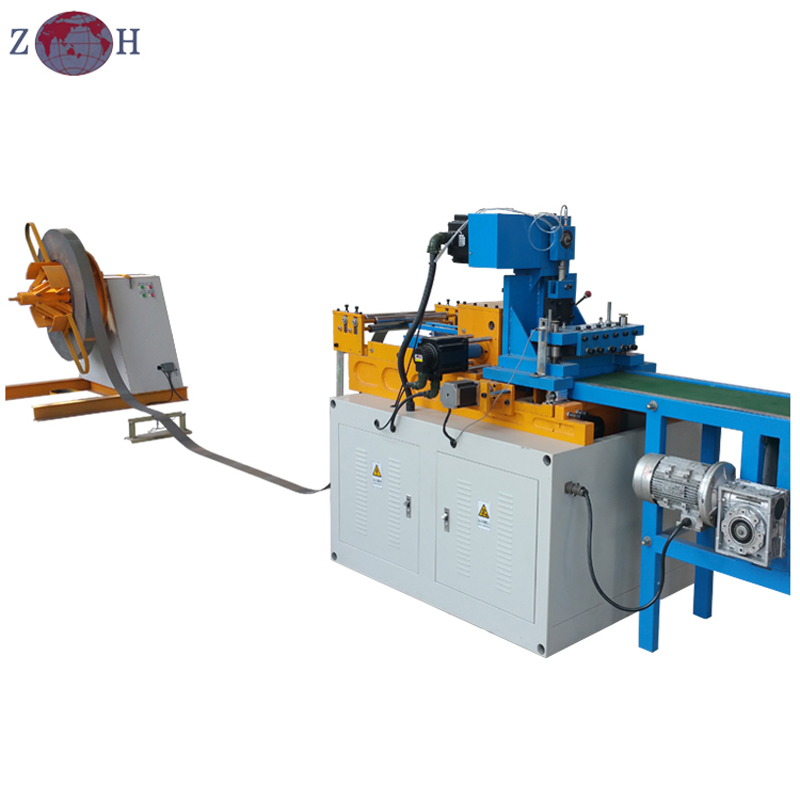

Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
1 / 5
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor
Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor

Electrical Silicon Steel Core Cutting Machine for Welding Transformer and Reactor

Customization: Available
After-sales Service: Available
Type: Silicon Steel Cut to Length Line
Send Inquiry

Product Description

Basic Info.

Model NO.
JN-3002S
Drive Mode
CNC
Warranty
1 Year
Strip Width
30-300mm
Strip Thickness
Max. 0.6mm
Feeding Method
Delta Servo Motor
Feeding Speed
Max. 200m/Min
Cutting Speed
100-150 CPM
Precision
+/-0.02mm
Burr Height
Less Than 0.02mm
Blade Material
Carbide Alloy
Control System
PLC + HMI

Product Description

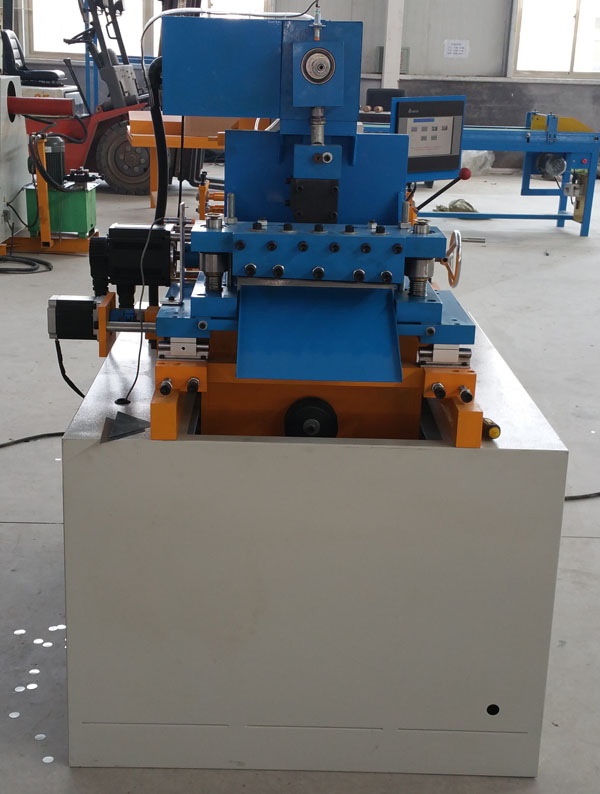

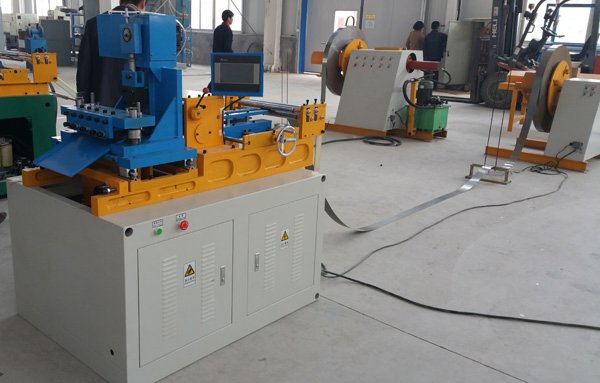

Electrical Silicon Steel Welding Transformer Core Cutting Machine

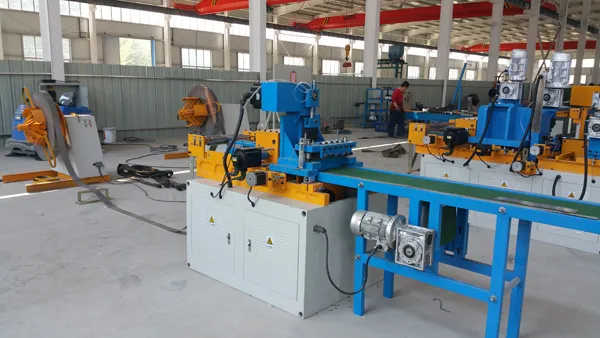

Electrical Silicon Steel Core Cutting Machine

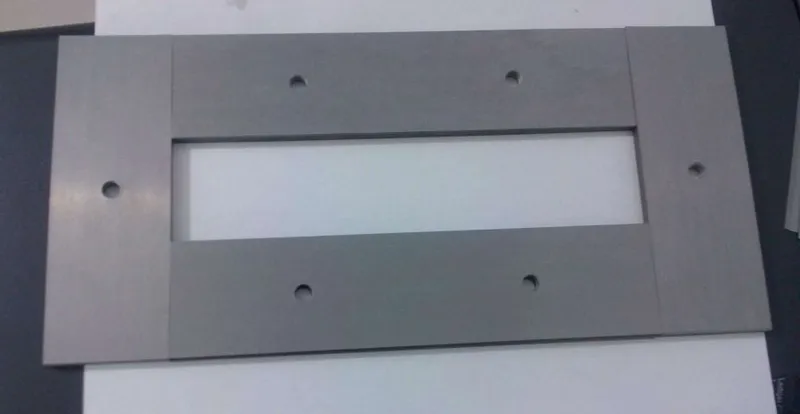

This machine is specially designed for cutting silicon steel coils into silicon strips for transformer cores, welding machine cores, and reactor cores. It is optimized for processing minimum 0.1mm thick CRGO electrical silicon steels.

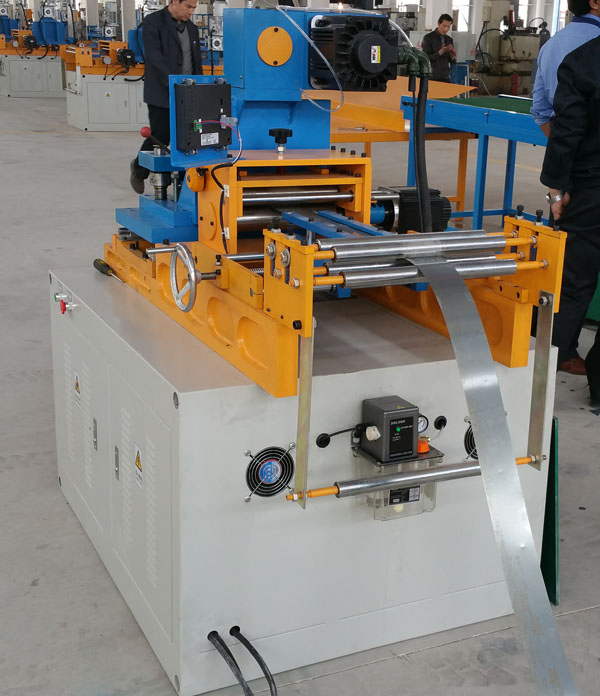

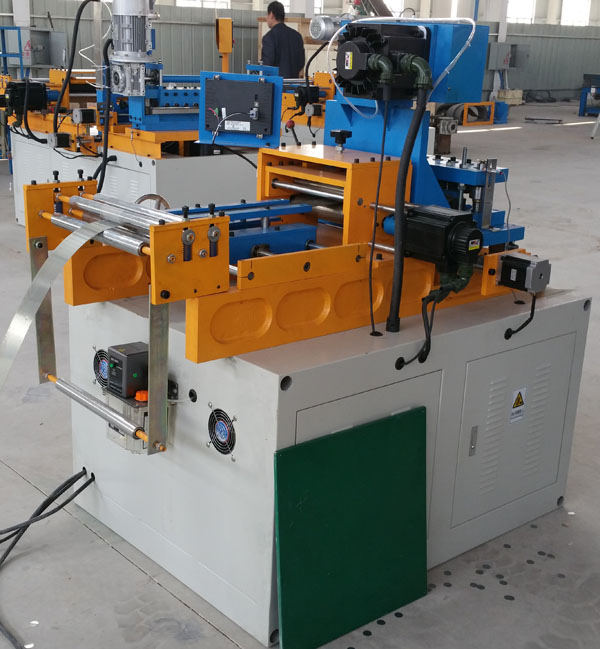

Main Components & Features

  • Inverter-controlled decoiler: 2.2kW motor, 1000kg max coil weight.
  • High speed feeding machine: Delta servo motor 3kW, precision +/-0.02mm, max speed 100m/min.
  • Cutting device: 100-150 times per minute, Carbide alloy blade (life >2,000,000 cuts).

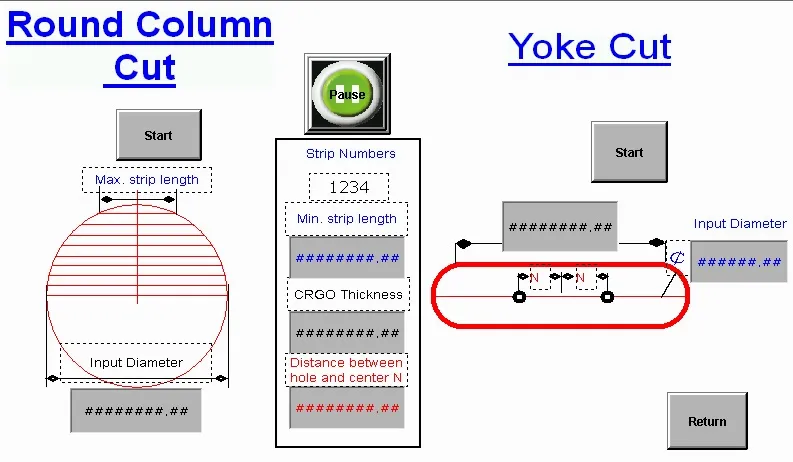

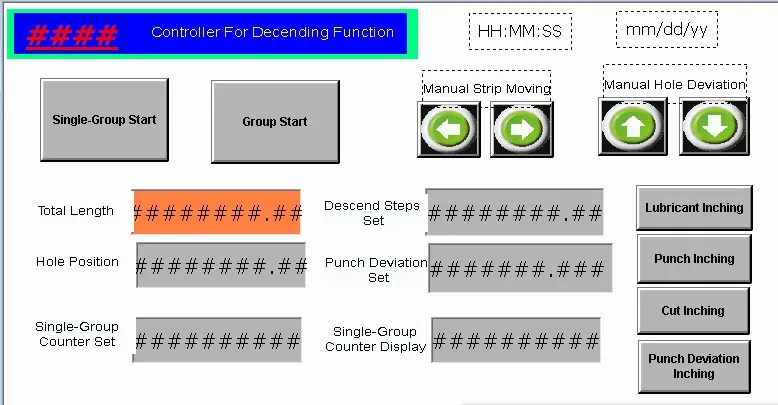

  • Control system: Delta PLC with 5.7" touch screen for pre-setting quantity, length, and positions.

Technical Data

Item Specification Data
Suitable strip width30-300mm
Silicon steel thickness0.1-0.6mm
Cut to length1-999999mm
Length tolerance+/-0.05mm
Burr heightLess than 0.02mm
Servo feeding speedMax. 200m/min
Cutting speed100-150 cuts per minute

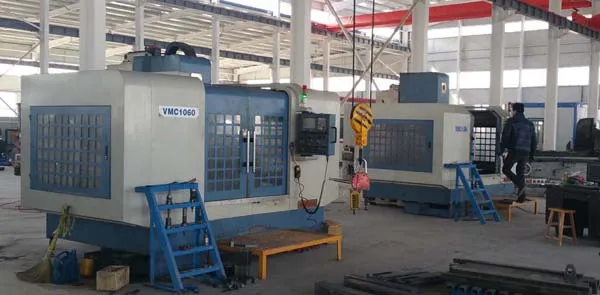

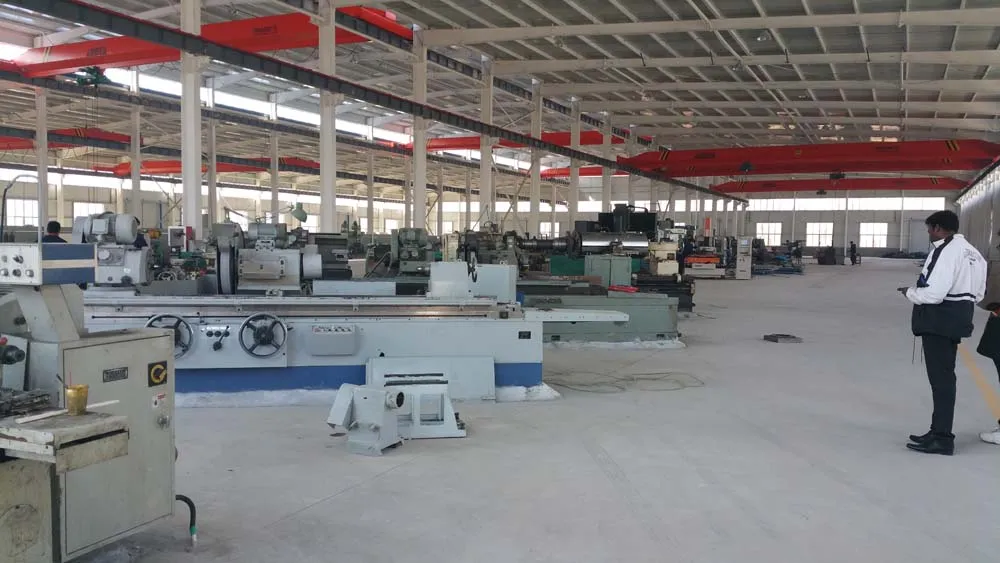

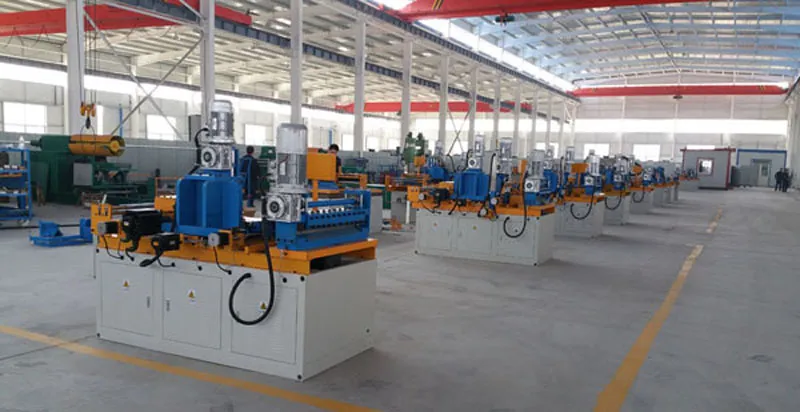

Workshop & Quality Control

Frequently Asked Questions

What materials can this machine cut?
It is specifically designed for cutting electrical silicon steel strips (CRGO) used in transformer, welding machine, and reactor cores.
What is the precision level of the cutting?
The machine offers high precision with a feeding precision of +/-0.02mm and a cut-to-length tolerance of +/-0.05mm.
What is the lifespan of the cutting blade?
The carbide alloy blade is extremely durable, offering over 1,200,000 to 2,000,000 cuts before requiring grinding.
Can I adjust the length and quantity of the cuts?
Yes, the length, quantity, and speed can be easily pre-set via the Delta touch screen HMI.
What is the maximum production speed?
The machine can achieve a feeding speed of up to 200m/min and a cutting frequency of 100-150 cuts per minute.
What kind of control system does the machine use?
It utilizes a high-reliability Delta PLC control system paired with a user-friendly touch screen interface.
