Basic Information
Core Wire Stripping
2-6 Cores
Ink-Jet Printing
Various Options
Cutting Length
1 - 99999.99 mm
Stripping (Side I)
Jacket: 10-150mm / Core: 1-50mm
Stripping (Side II)
Jacket: 10-80mm / Core: 1-50mm
Productivity
600 PCS./H (L=100mm)
Blade Material
Imported High Speed Steel
Display Mode
7-Inch Touch Screen
Driving Mode
16-Wheel Driving

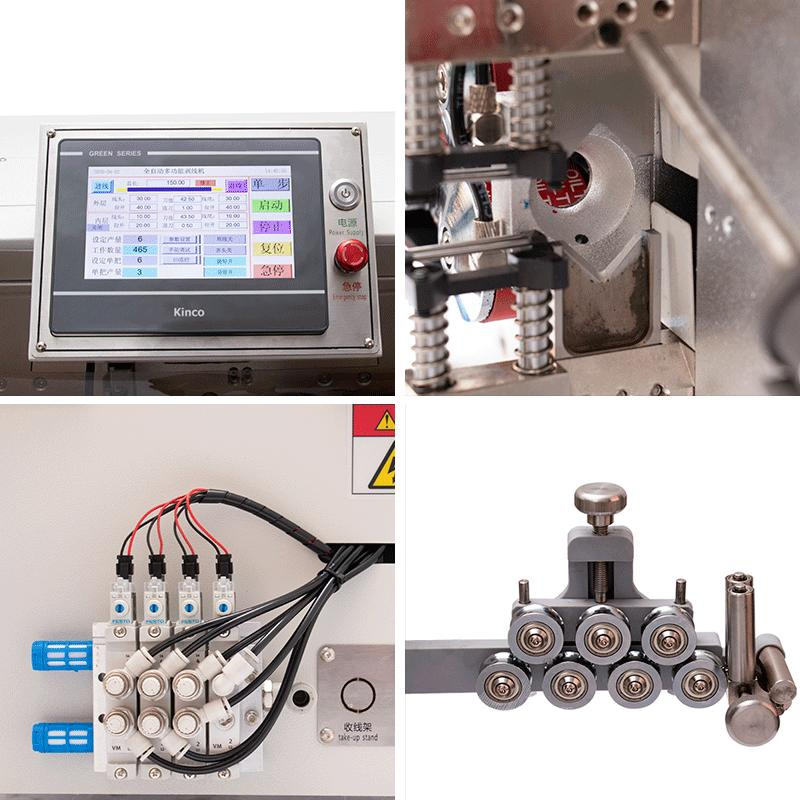

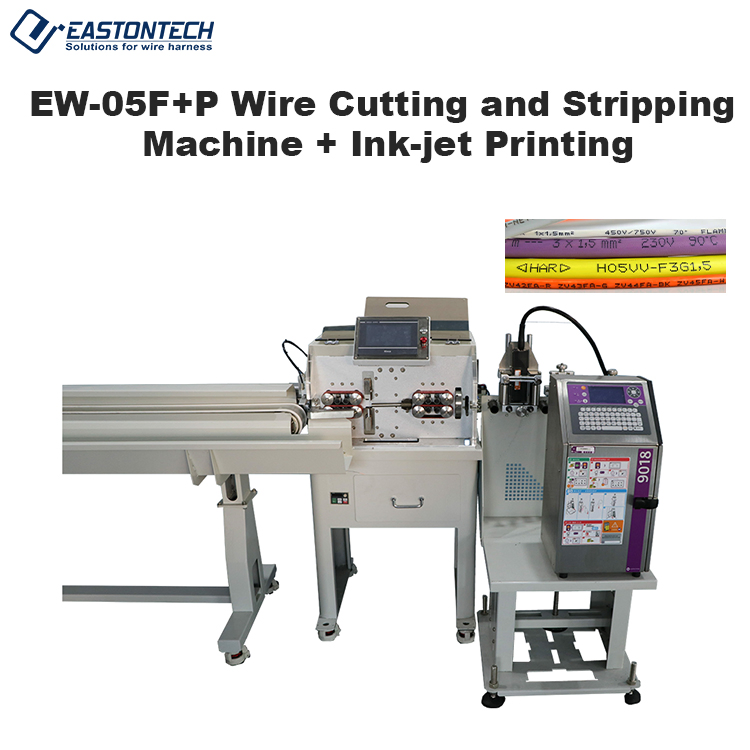

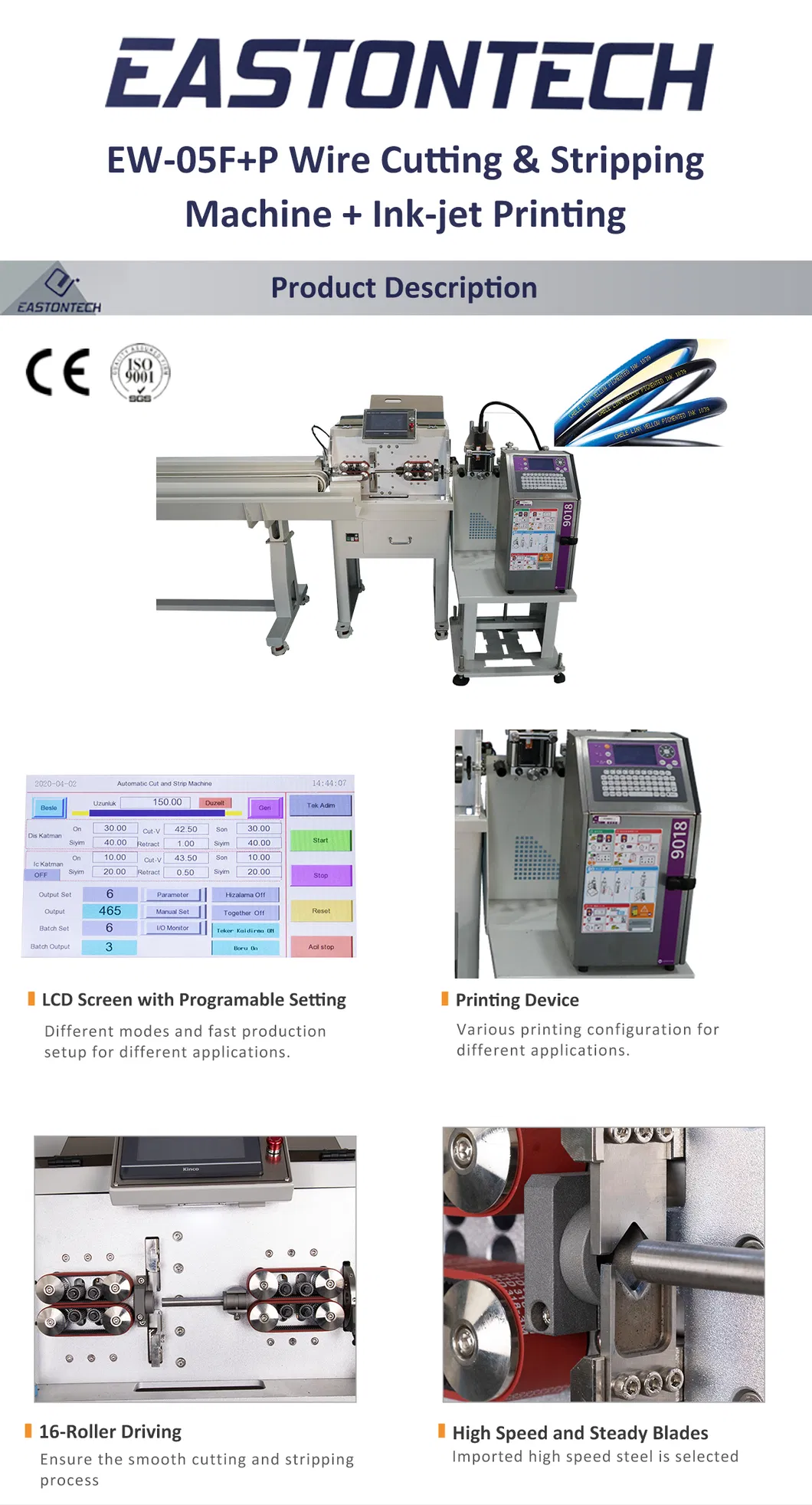

Product Description & Features
Highlights:

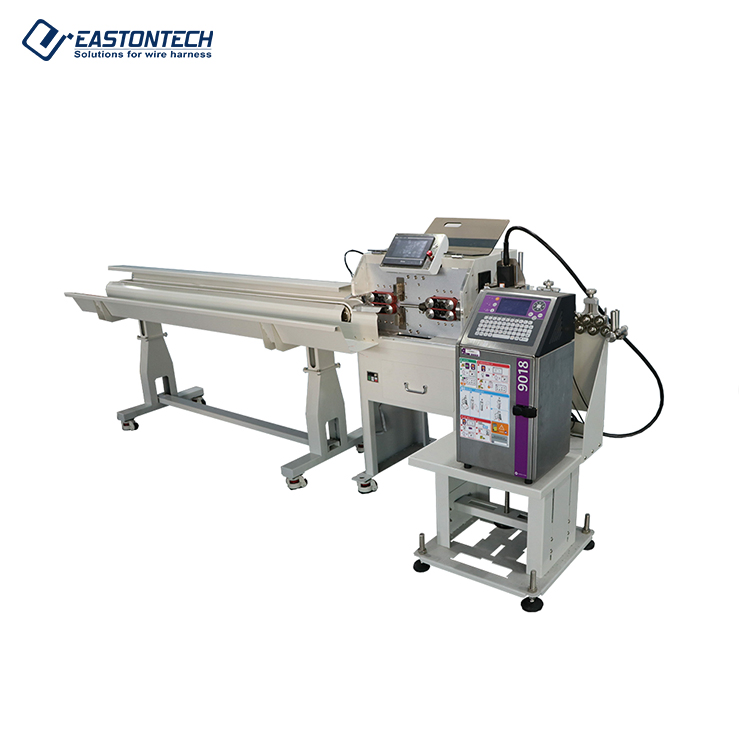

1. The system integrates high-precision cutting, stripping, and marking functions into a single workflow.
2. Marking positions are fully programmable and can be freely set within the operation program for maximum flexibility.
Technical Specifications
| Model |
EW-05F+P |
EW-05F-1+P |
| Conductor cross-section | 1 - 30 mm² | 1 - 30 mm² |
| Core wire stripping | 2-6 cores | Not available |
| Cutting length | 1 - 99999.99 mm | 1 - 99999.99 mm |
| Stripping length (side I) | Jacket: 10-150mm; Core: 1-50mm | Full: 10-190mm; Half: 1-9999mm |
| Stripping length (side II) | Jacket: 10-80mm; Core: 1-50mm | Full: 10-80mm; Half: 1-9999mm |

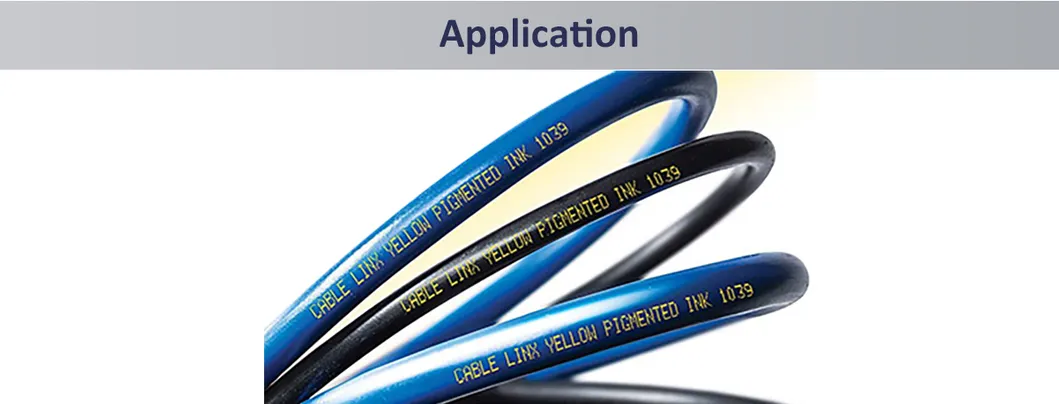

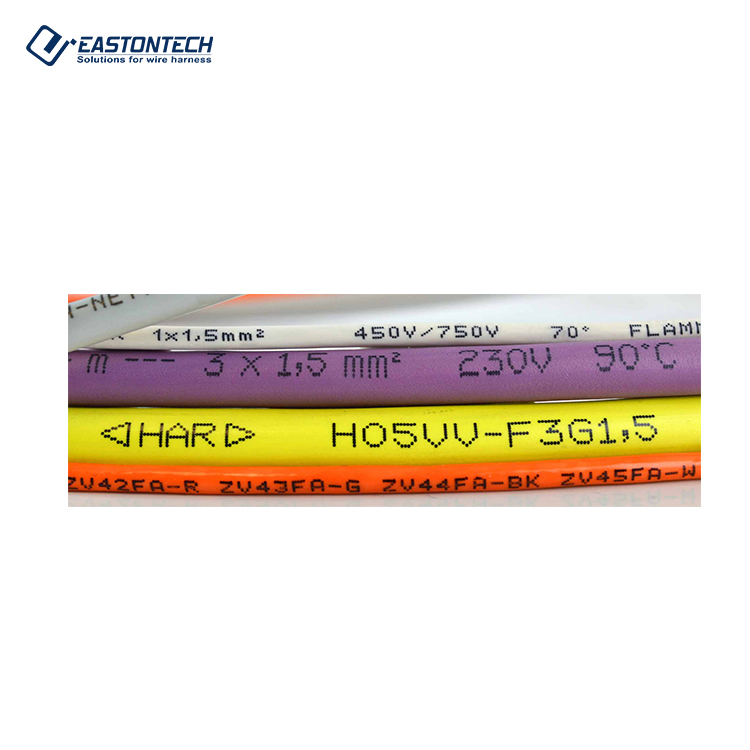

| Ink-jet printing | Various options for different applications |
| Productivity | 600 pcs./h (L=100mm) | 700 - 750 pcs./h (L=100mm) |
| Driving mode | 16-wheel driving, silent hybrid stepping motor, servo blades seat |

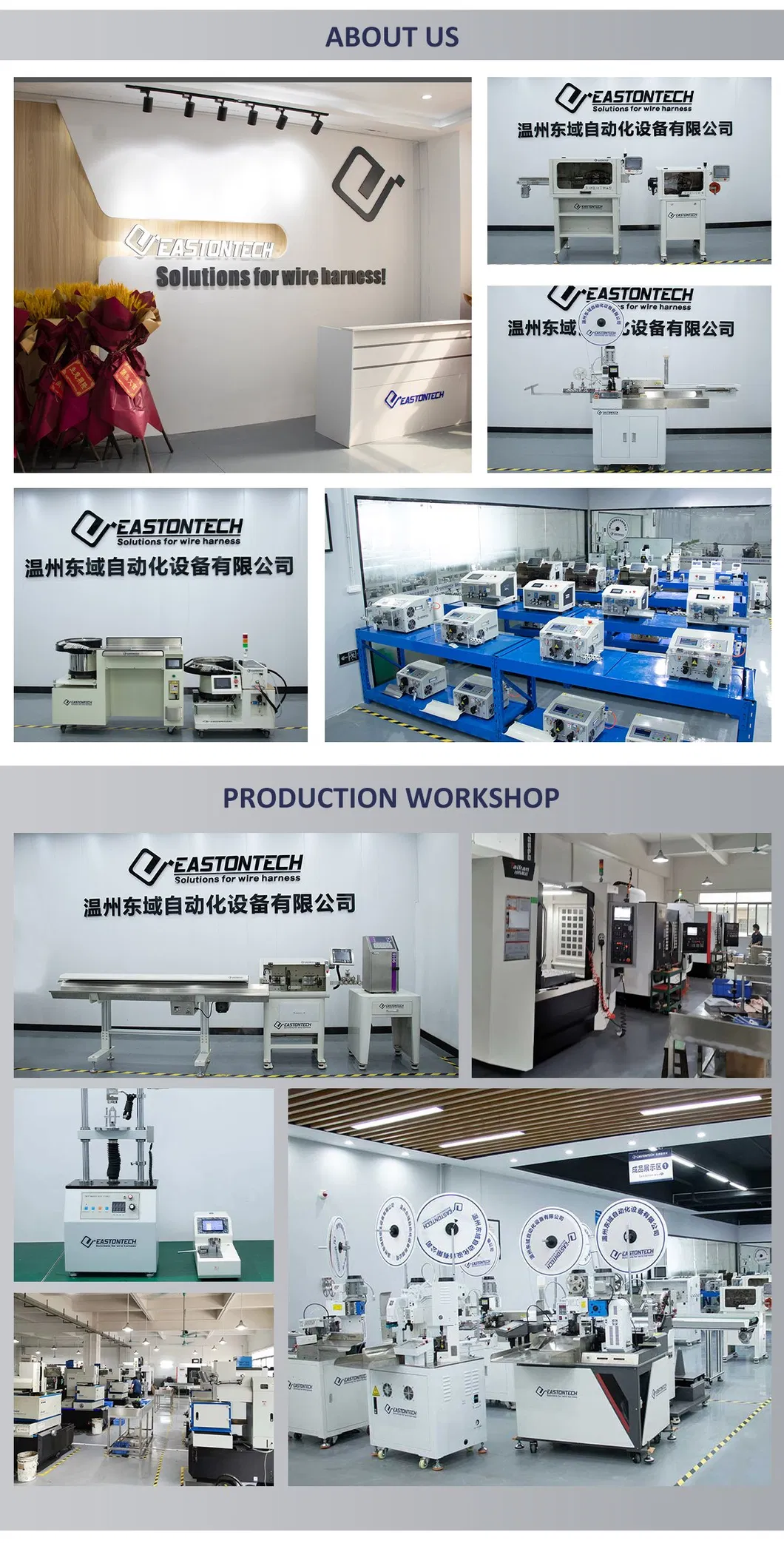

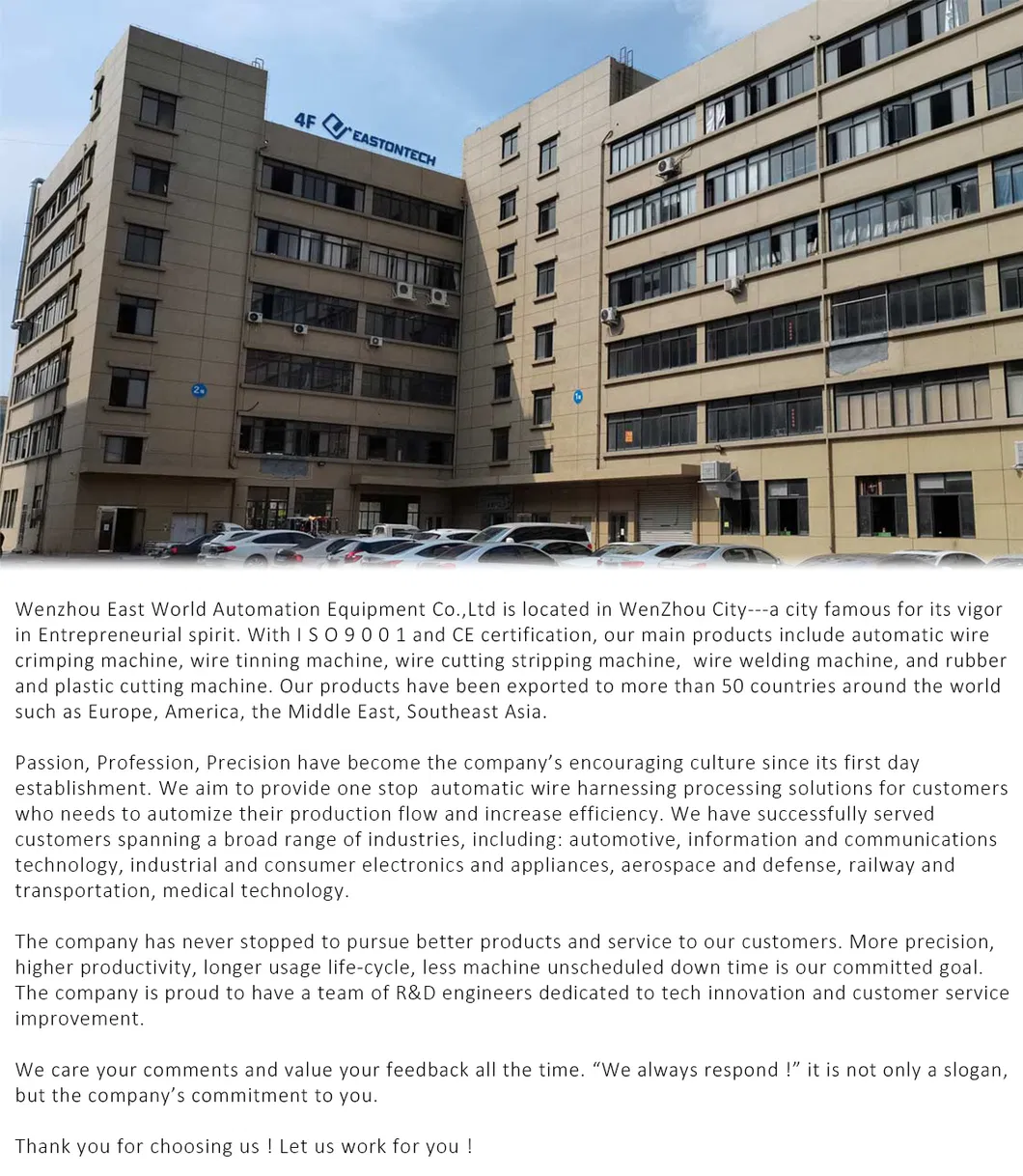

Factory & Production Display
Frequently Asked Questions
What types of equipment are specialized in?
We specialize in professional machinery for wire harness processing, including high-precision cutting and stripping solutions.
What core functions do the wire harness machines perform?
Our machines are capable of multi-functional operations such as cutting, stripping, crimping, tinning, soldering, and binding/tying.
What are the shipping and packaging standards?
Goods are packed in standard export cartons and wooden cases. Shipping options include Express (DHL/UPS/FedEx), Air freight for orders over 100kg, and Sea freight for large quantities via major ports like Shanghai, Ningbo, or Shenzhen.
What is the after-sales service policy?
We provide free replacement parts for one year (excluding delivery fees) and offer lifelong technical support and maintenance for all products sold.
What materials are used for the machine blades?
The machines utilize imported high-speed steel for the blades to ensure durability and precision during long-term operation.
Are customized solutions available for special applications?
Yes, special applications can be customized. We recommend sending wire samples for testing to ensure the configuration meets your specific requirements.
