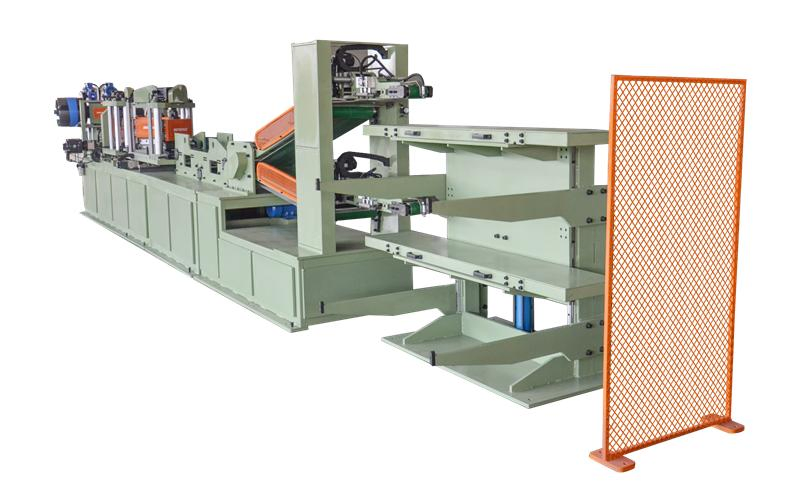

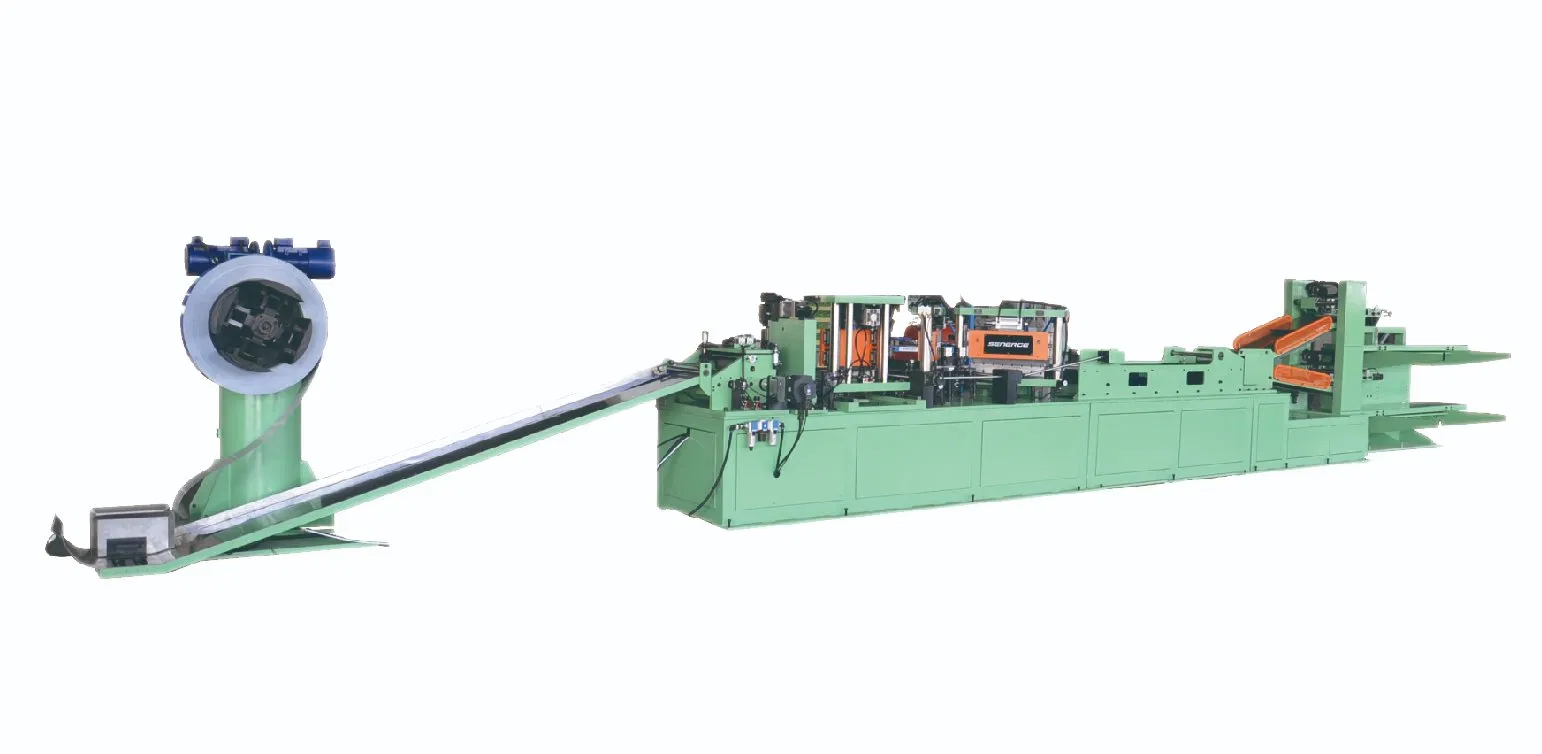

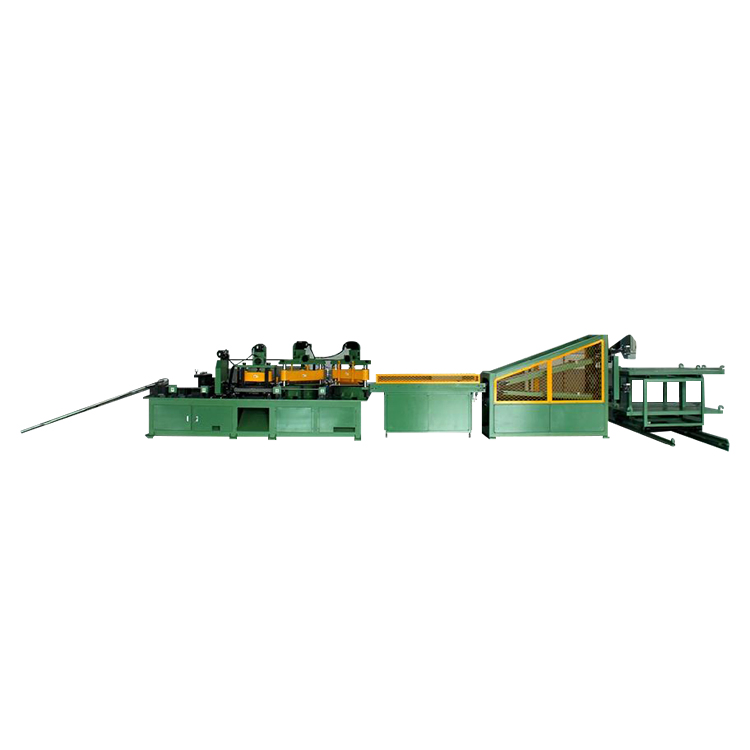

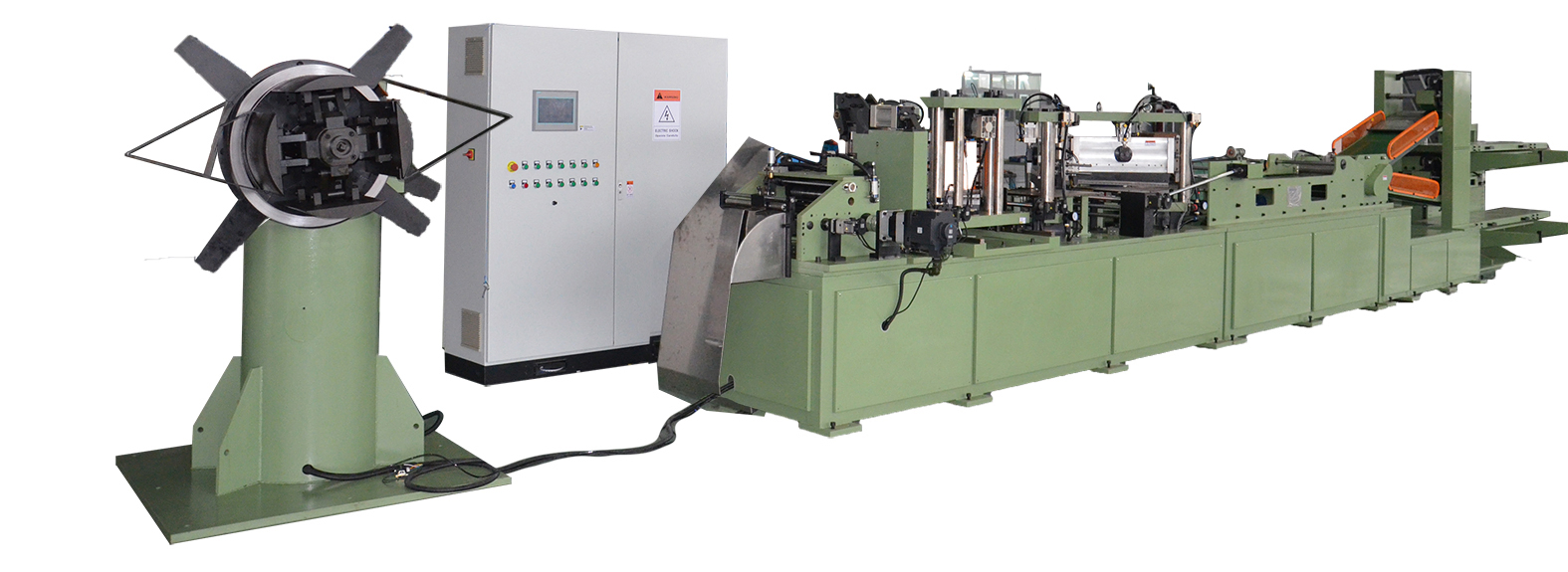

Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
1 / 5
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine
Automatic High Precision Transformer Core Lamination V Notching Machine

Automatic High Precision Transformer Core Lamination V Notching Machine

After-sales Service: on-Line Support
Warranty: One Year After Delivery
Thickness of Silicon Steel: 0.23-0.35mm
Send Inquiry

Product Description

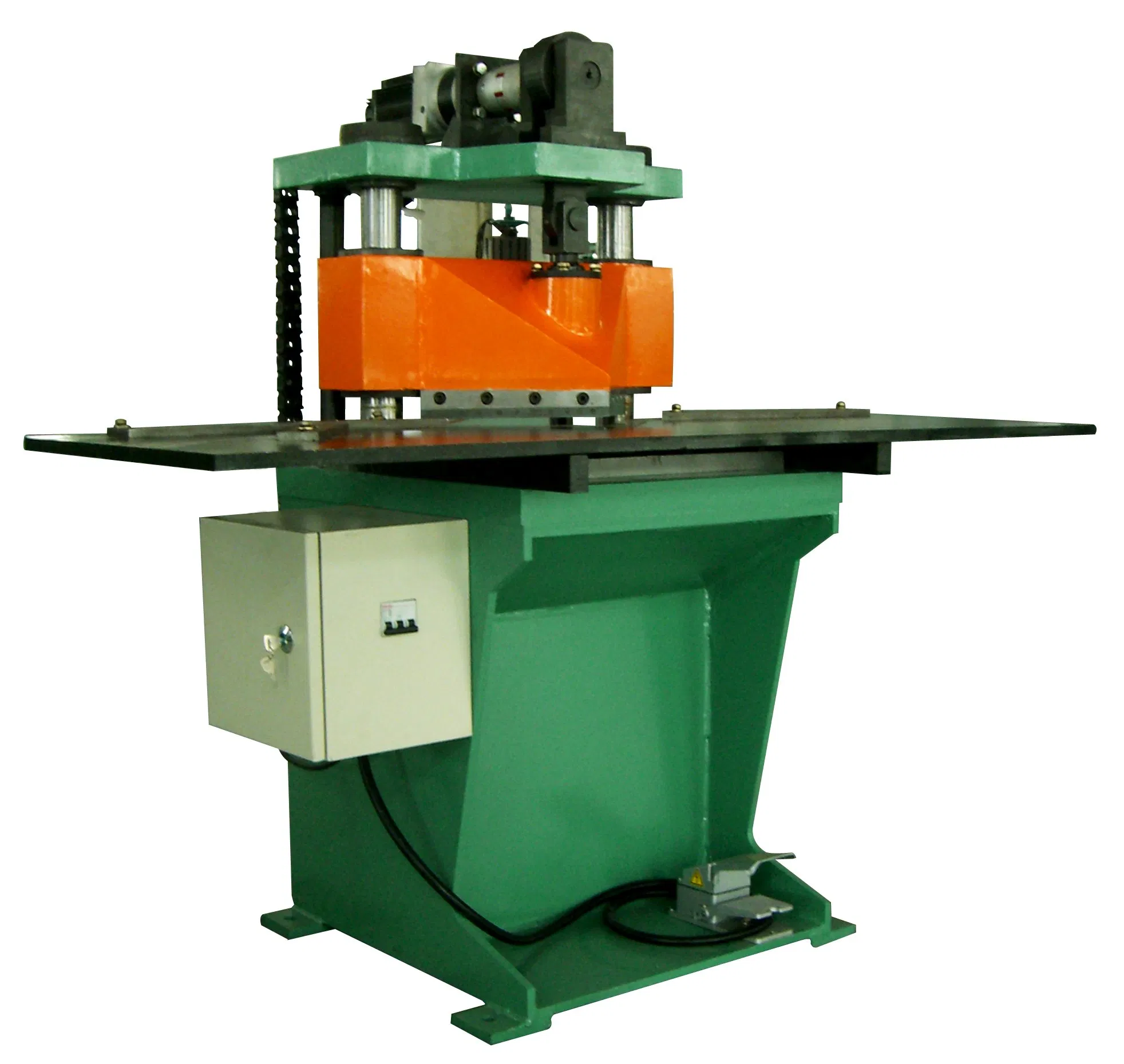

Transformer Lamination V Notching Machine

High precision transformer lamination V notching machine for 400mm wide lamination.

⚙️ Technical Specifications

1
Notching Depth of "V" 100mm, 200mm, 300mm
2
Cutting Burrs ≤ 0.03mm
3
Controlling System Servo Motor
4
Notching Blade Carbide Blade
5
Silicon Steel Thickness 0.23 ~ 0.35mm
6
Production Capacity 30 Sets / Month

📊 Model Selection Guide

Model Parameter VY-100 VY-200 VY-300
Thickness of Silicon Steel 0.23~0.35mm 0.23~0.35mm 0.23~0.35mm
Notching Depth of "V" ≤ 100mm ≤ 200mm ≤ 300mm
Cutting Burrs ≤ 0.03mm ≤ 0.03mm ≤ 0.03mm
Control Method Servo Motor Servo Motor Servo Motor
Blade Material Carbide Blade Carbide Blade Carbide Blade

📸 Equipment Display

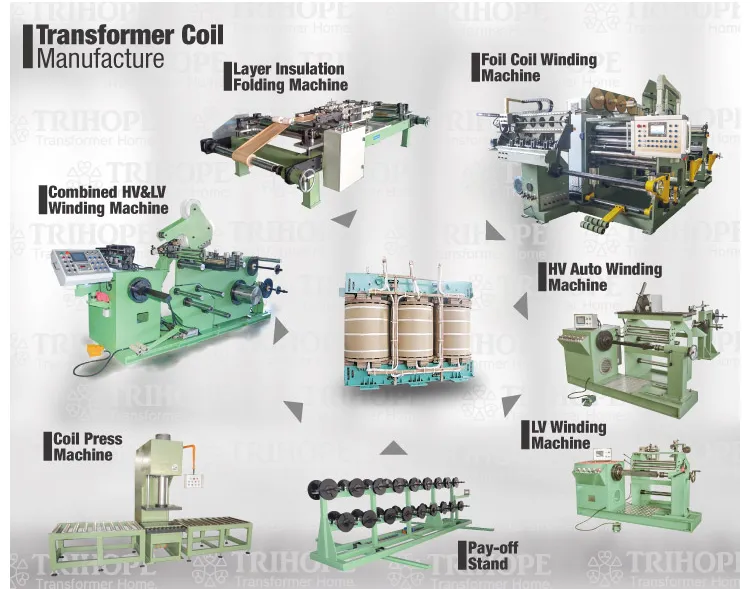

Notching Machine View 1
Notching Machine View 2
Notching Machine View 3
Notching Machine View 4
Notching Machine View 5

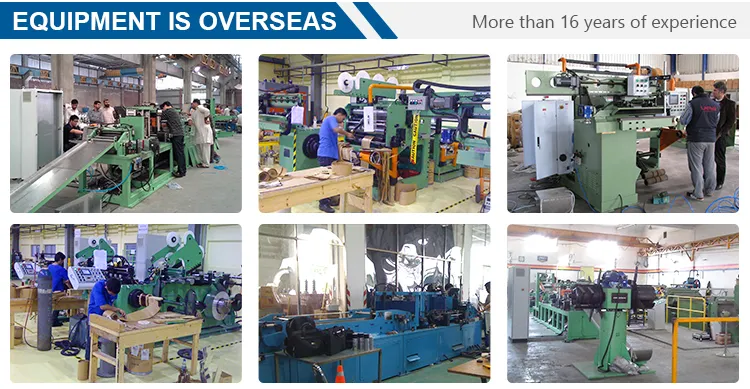

Notching Machine View 6
Notching Machine View 7

❓ Frequently Asked Questions

What materials can this V-notching machine process?
The machine is specifically designed for high-precision processing of silicon steel sheets with a thickness ranging from 0.23mm to 0.35mm.
How high is the cutting precision?
The equipment ensures extremely high precision, with cutting burrs maintained at 0.03mm or less, which is critical for transformer core performance.
What is the advantage of using a Servo Motor control?
Servo motor control provides superior accuracy in positioning and depth control compared to traditional methods, ensuring consistent "V" notches for every lamination.
What kind of blades are used in the VY Series?
We use high-grade Carbide blades, which offer exceptional hardness and durability, reducing the frequency of blade replacement and maintenance.
What is the maximum notching depth available?
Depending on the model selected (VY-100, VY-200, or VY-300), the machine can achieve a maximum notching depth of up to 300mm.
What is the monthly production capacity for this equipment?
Our facility has a production capacity of approximately 30 sets per month to ensure timely delivery for global industrial requirements.
