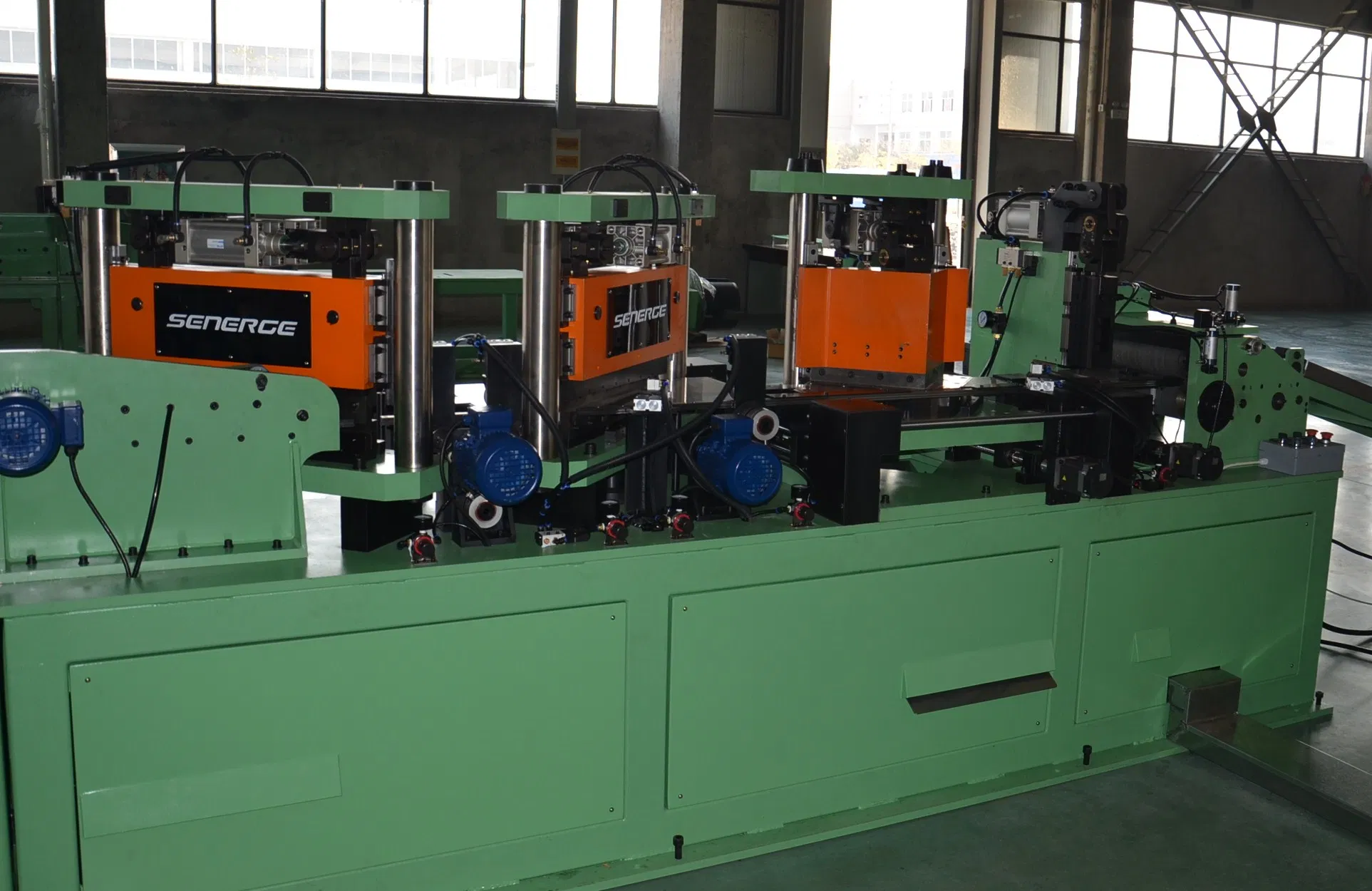

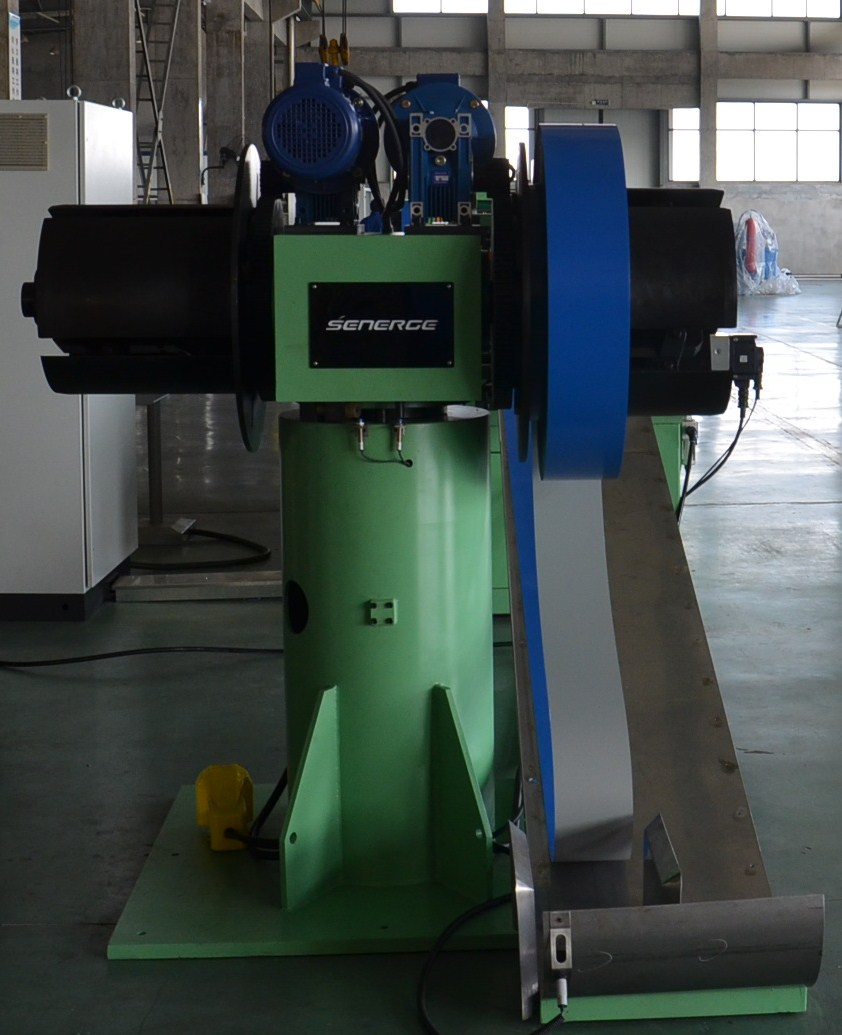

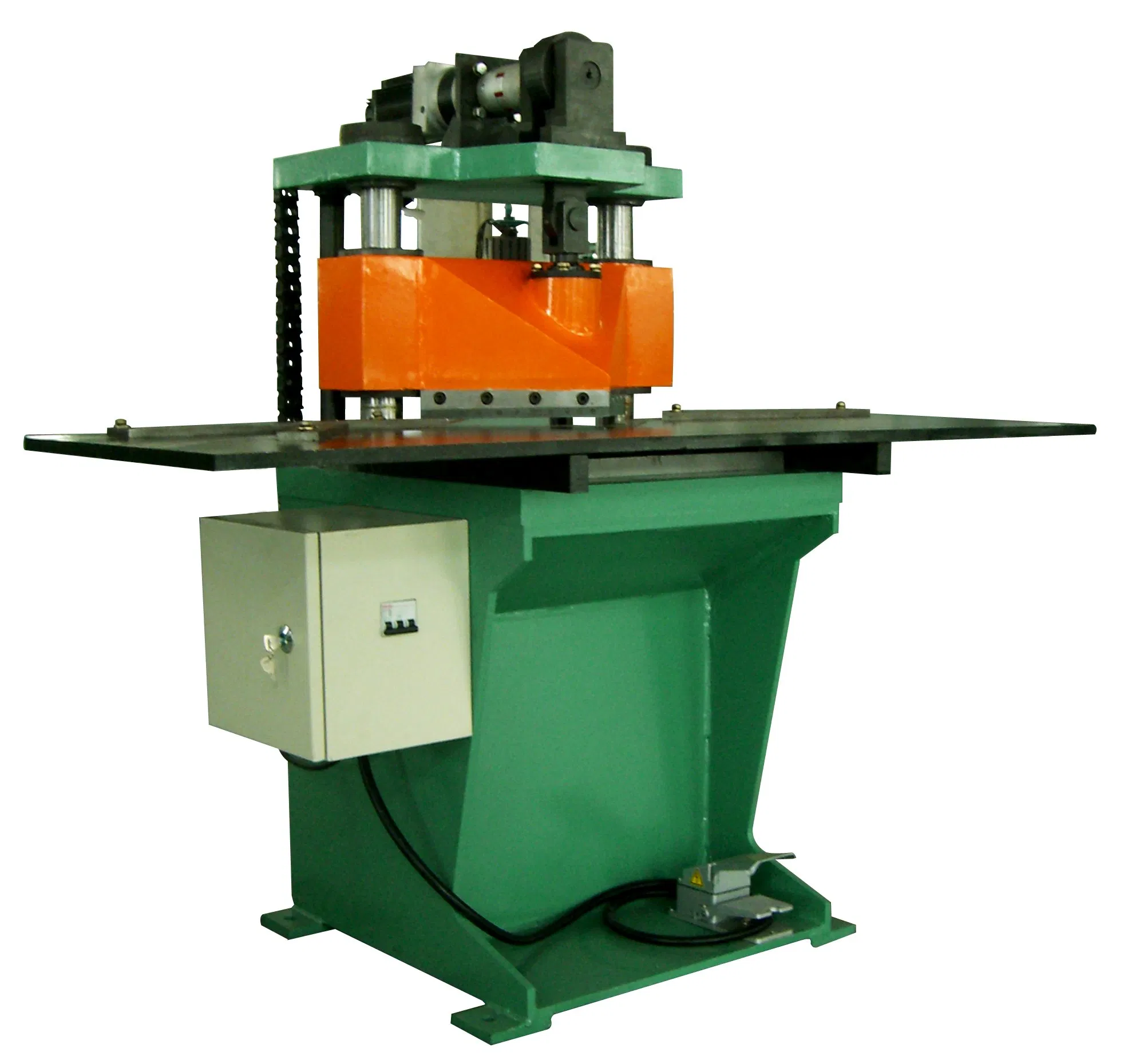

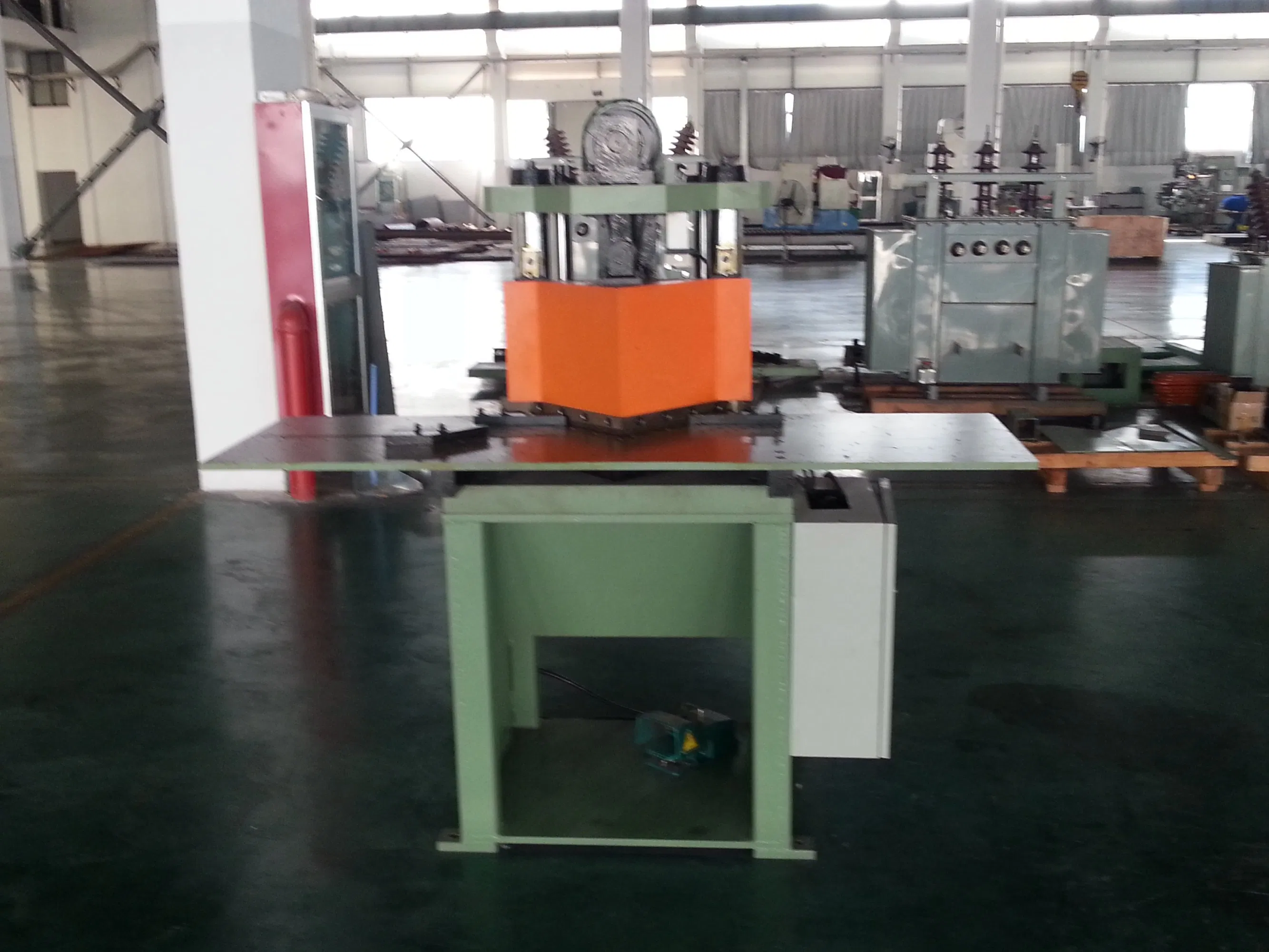

300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
1 / 5
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine

300mm Width Lamination High Precision Transformer Core Lamination V Notching Machine

Thickness of Silicon Steel: 0.23-0.35mm
Notching Depth of “V”: 100mm,200mm
Cutting Burrs: 0.03mm
Send Inquiry

Product Description

Transformer Core Lamination V Notching Machine
Basic Information
Notching Controlling:Servo Motor
Notching Blade:Carbide Blade
Transport Package:Standard
Specification:V Notching
HS Code:8462312000
Production Capacity:30 Sets/Month
Product Description

High precision transformer lamination V notching machine for 400mm wide lamination

VY Series Notching Machine Specifications (VY-100)
Model: VY-100 Servo Motor: Siemens
Thickness of Silicon Steel: 0.23~0.35mm Bearing: NSK, SKF
Notching Depth of "V": ≤100mm Cutting Burrs: ≤0.03mm
Notching Controlling: Servo Motor Notching Blade: Carbide Blade
Model VY-200 VY-300 Key Components
Thickness of Silicon Steel: 0.23~0.35mm 0.23~0.35mm Servo Motor: Siemens
Bearing: NSK or SKF
Notching Depth of "V": ≤200mm ≤300mm
Cutting Burrs: ≤0.03mm ≤0.03mm
Notching Blade: Carbide Blade Carbide Blade
Product Gallery
V Notching Machine Detail 1
V Notching Machine Detail 2
V Notching Machine Detail 3
V Notching Machine Detail 4
V Notching Machine Detail 5

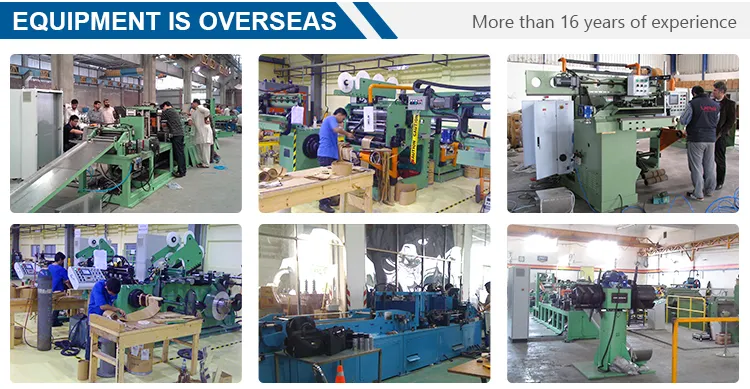

V Notching Machine Detail 6
V Notching Machine Detail 7
Frequently Asked Questions
What material thickness can this machine handle?
The VY series is specifically designed for silicon steel with a thickness ranging from 0.23mm to 0.35mm.
What is the cutting precision and burr level?
The machine offers high precision with cutting burrs controlled at ≤0.03mm, ensuring high-quality lamination processing.
What brands of key components are used in the machine?
For reliability and performance, we utilize Siemens Servo Motors and high-quality bearings from NSK or SKF.
How is the notching depth controlled?
The notching depth is precisely controlled via a servo motor system, allowing for depths up to 300mm depending on the model chosen.
What kind of blades are used for the "V" cutting?
We use high-durability Carbide Blades to ensure long-lasting sharpness and consistent cutting performance.
