Industrial Weighing Screw Conveyor
📑 Basic Information
Application
Flour, Starch, Cement, Chemical, Grain
Raw Material
Powdery and Bulk Materials
Function
Transport and Measurement
🔍 Product Description
The weighing screw conveyor is designed for the quantitative feeding of bulk materials. Utilizing spiral rotation for continuous feeding, it transports materials from a feed bin through a specialized weighing bridge. The system performs simultaneous weight and speed checks using high-precision sensors. Data is processed by a weighing controller to display instantaneous flow rates (tons/hour) and cumulative totals.
🏗️ Product Structure

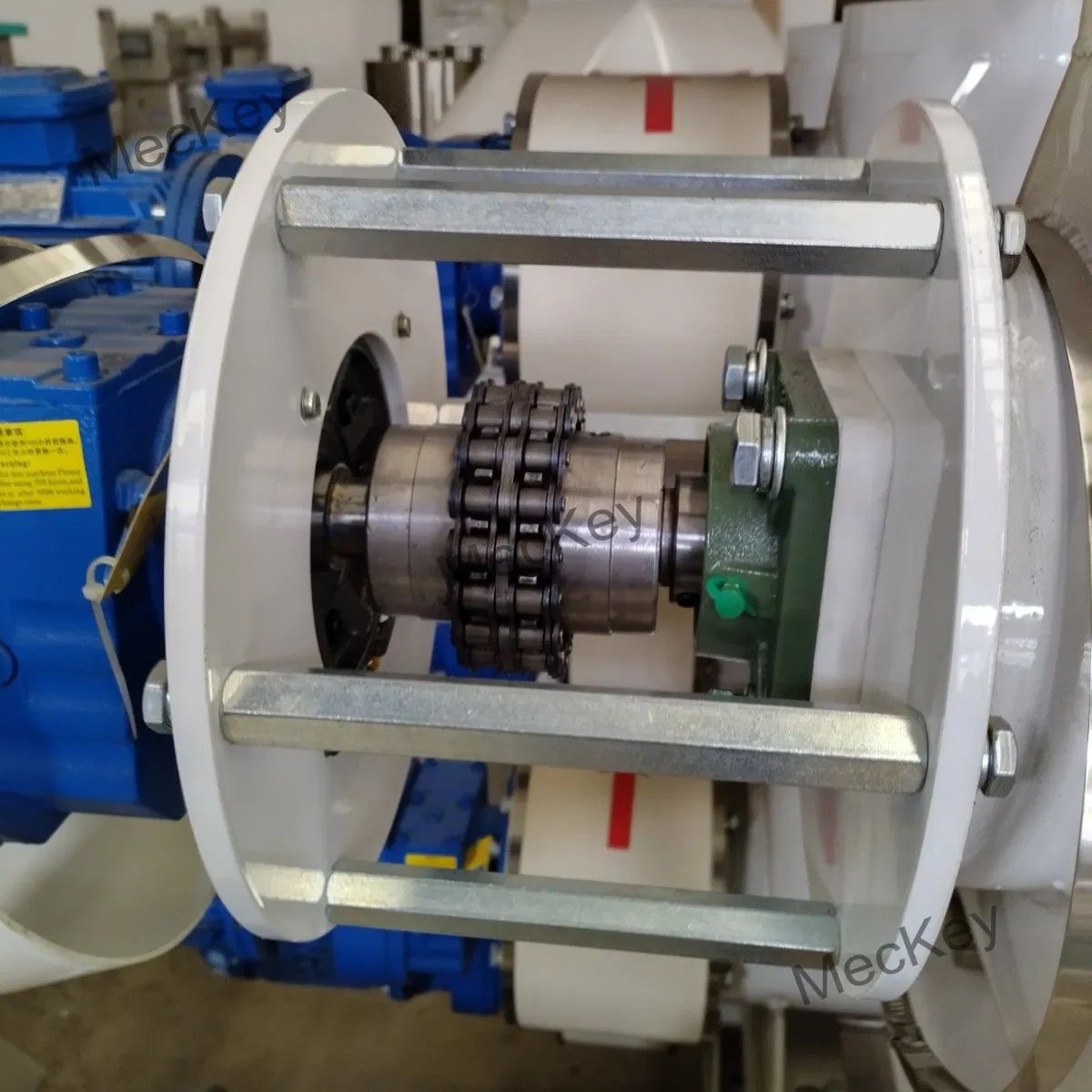

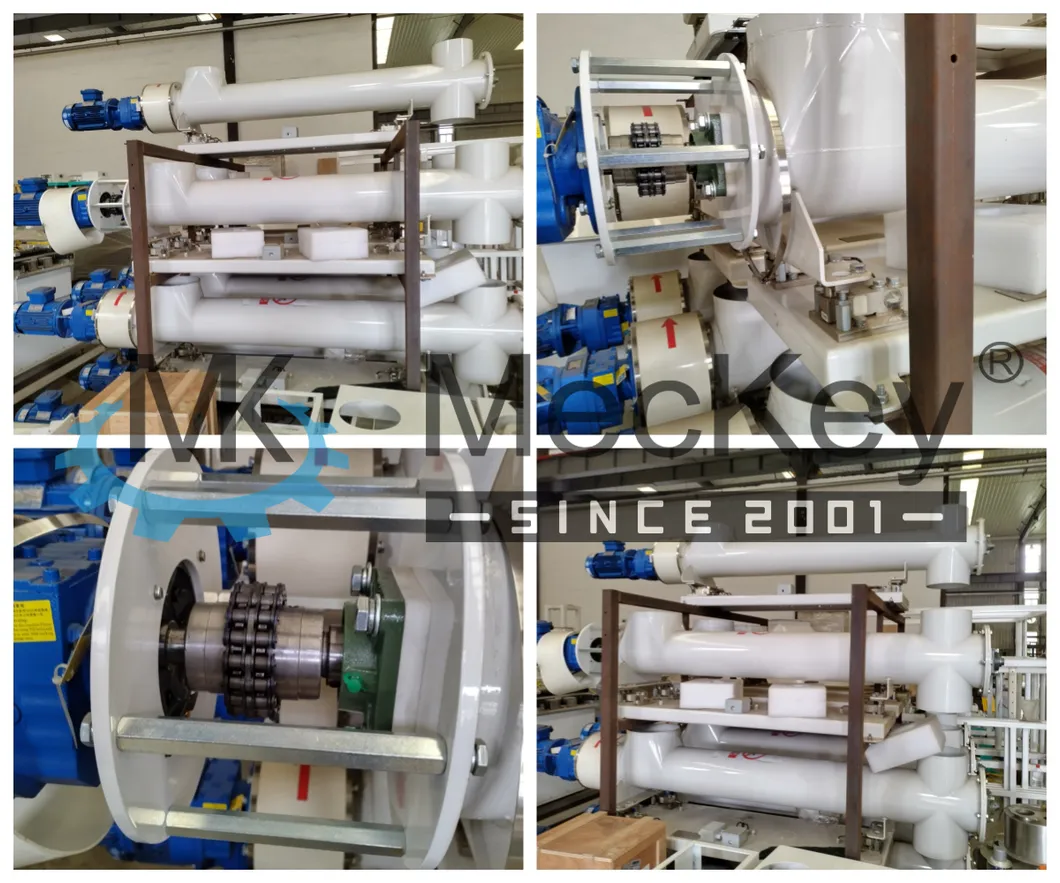

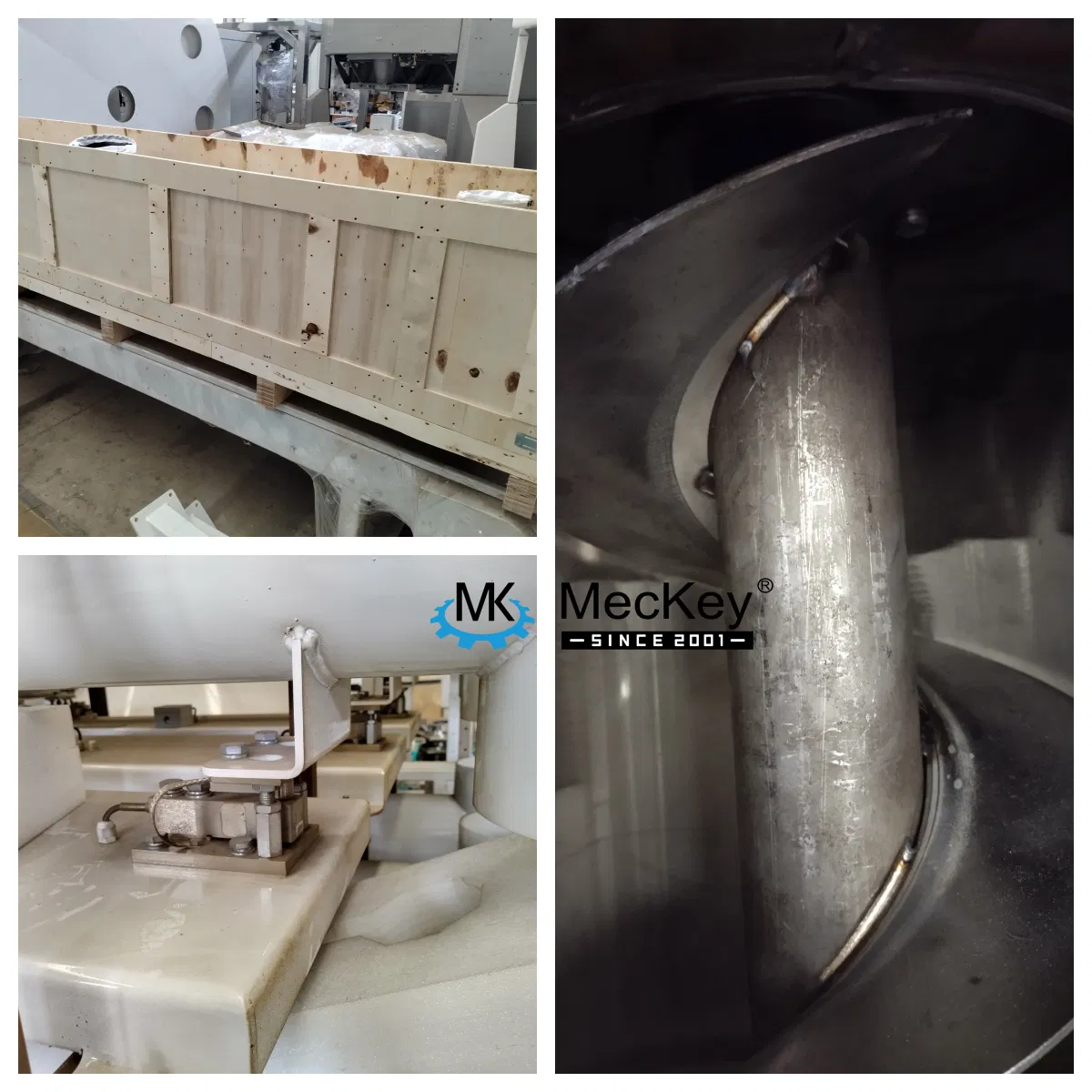

The equipment consists of a feeding screw, a lever-type weighing bridge (not affected by corrosion), a reduction motor, weighing and speed sensors, and a digital control system. The speed sensor is strategically placed at the non-driving end of the spiral for maximum accuracy.
🚀 Application Scope
This production and measurement equipment is ideal for continuously transporting, dynamically measuring, and controlling the feeding of various powdery and bulk materials. It is widely applied in industries such as:
- Cement and Metallurgy
- Chemical and Ceramics
- Grain Processing and Transportation
⭐ Key Product Features
- Dynamic Measurement: Combines gravity weighing with screw conveying for real-time accuracy.
- Stable Flow: Unique structure prevents material arching and ensures even sinking across the feed inlet.

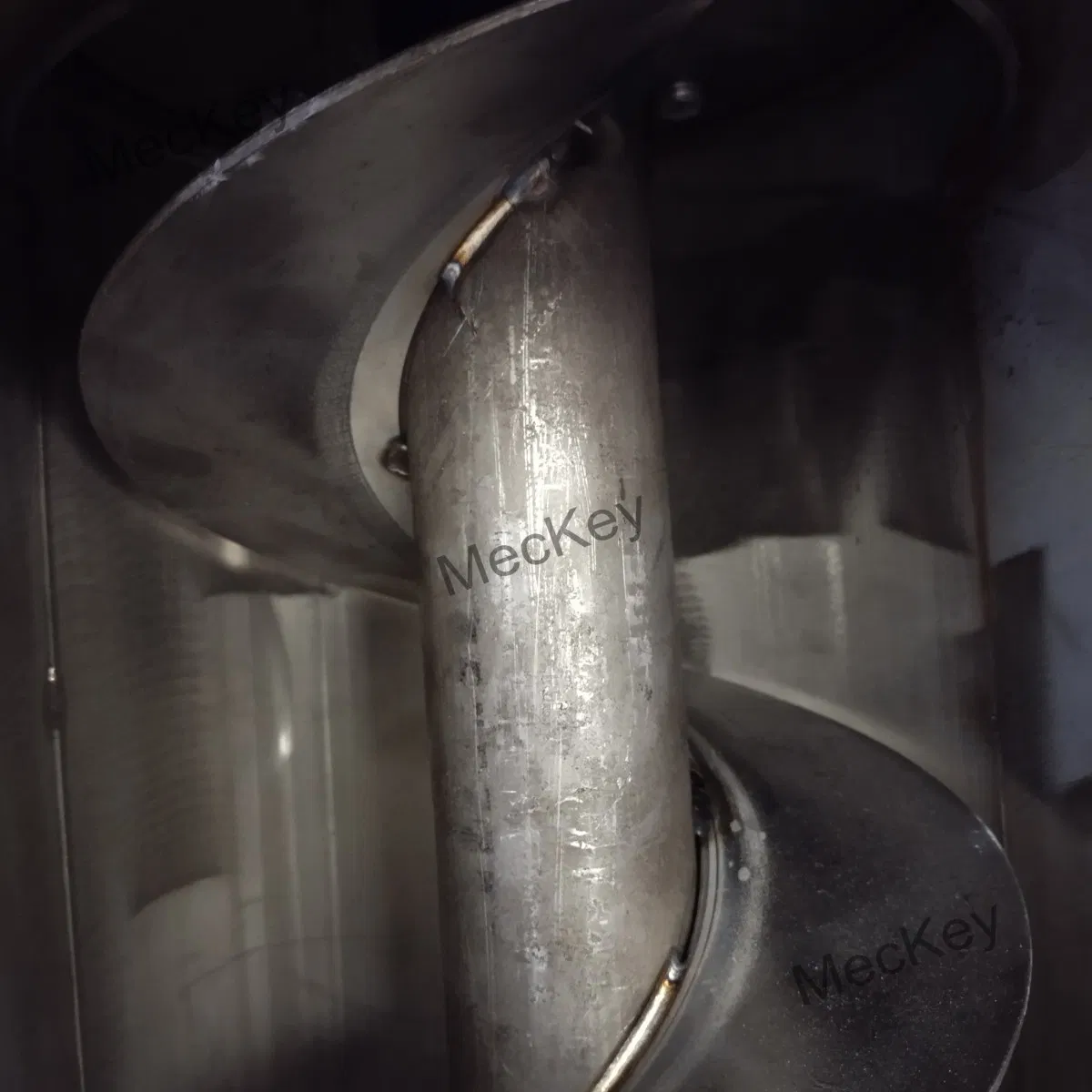

- Durable Components: Spiral blades made of wear-resistant manganese steel for extended service life.
- Precision Engineering: Small spiral gaps overcome backflow issues and prevent material buildup on pipe walls.
- Smart Control: Features automatic zero-point measurement, system self-diagnosis, and manual/automatic operation switching.
📊 Technical Parameters
| MODEL |
LCS-10LW |
LCS-25LW |
LCS-50LW |
| Range |
5-10kg |
10-25 kg |
25-50 kg |
| Accuracy |
0.2 |
0.2 |
0.2 |
| Tolerance |
±0.2%F.S |
±0.2%F.S |
±0.2%F.S |
| Capacity |
260~320 PCS/h |
240~300 PCS/h |
180~240 PCS/h |
| Power Supply |
AC220/380V |
AC220/380V |
AC220/380V |
| Power |
3KW |
3.5KW |
3.5KW |
💡 Professional Standards
Credit: We deliver on our promises to ensure customer satisfaction.
Efficient: Optimized workflows and qualified expertise guarantee high-speed operation.
Exact: Tailored solutions based on rigorous requirement analysis.
Standard: Adherence to international systems for quality and compliance.
Frequently Asked Questions (FAQ)
Q1: What materials can the weighing screw conveyor handle?
A: It is designed for various powdery and bulk materials including flour, starch, cement, chemical powders, metallurgy materials, and grains.
Q2: How does the system achieve high measurement accuracy?
A: It uses a lever-type weighing bridge and dual sensors (weight and speed) combined with a digital weighing controller for real-time calculus processing.
Q3: Are the spiral blades wear-resistant?
A: Yes, the blades are manufactured from high-grade manganese steel, which provides strong wear resistance and a long operational lifespan.
Q4: Can the installation angle be adjusted?

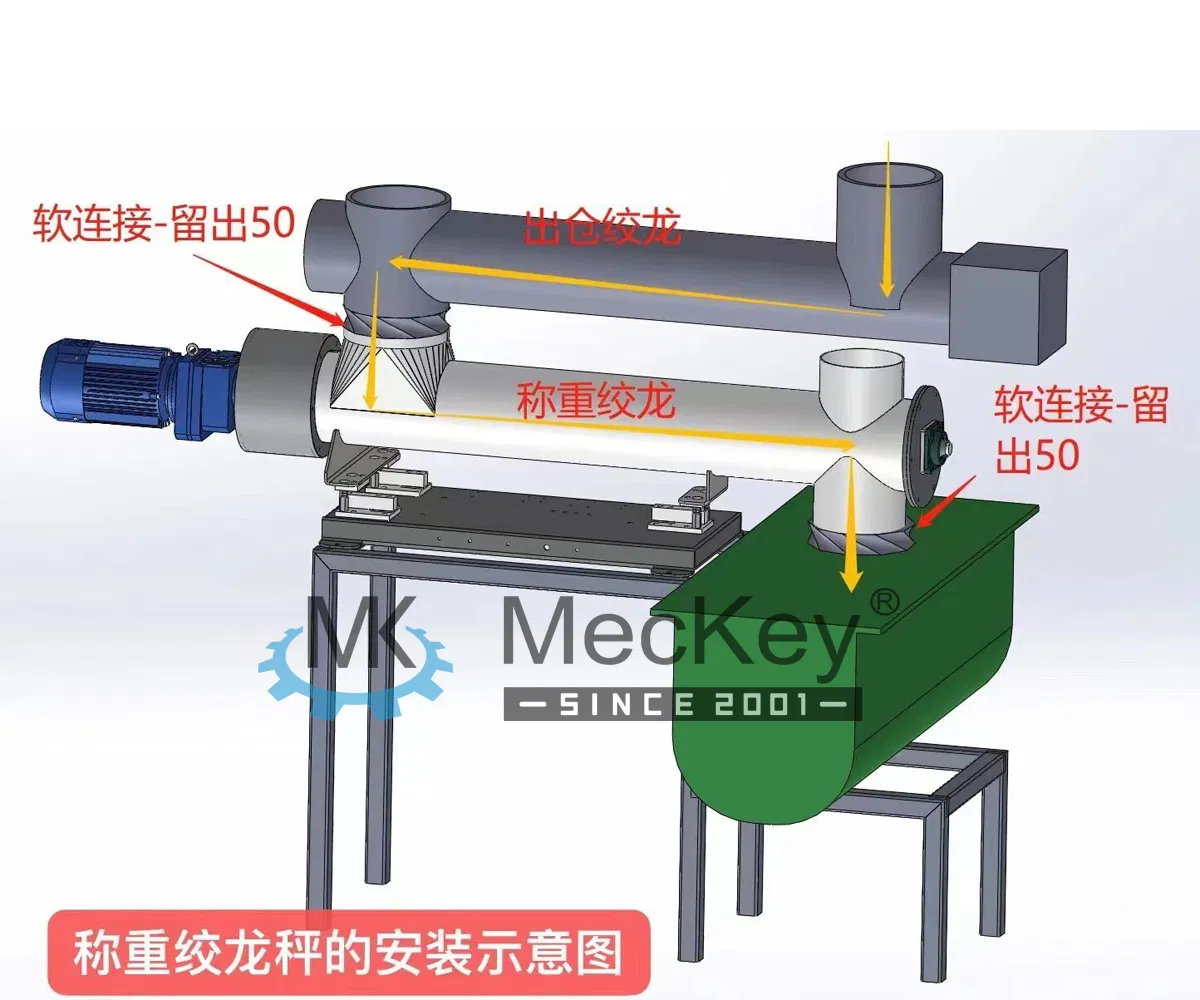

A: Yes, the inlet and outlet are soft-connected, allowing the horizontal installation angle to be adjusted according to on-site requirements.
Q5: Does it support automated operation?
A: Absolutely. The system supports both manual and automatic operation switching, including automatic calibration of zero points and coefficients.
