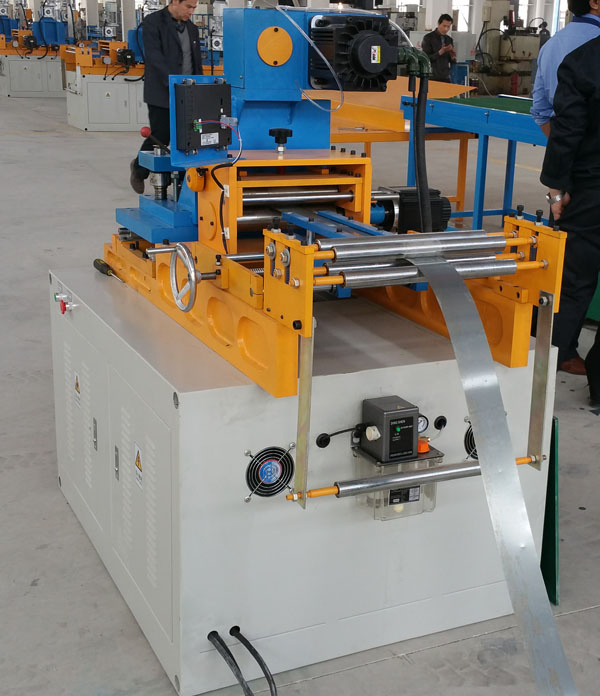

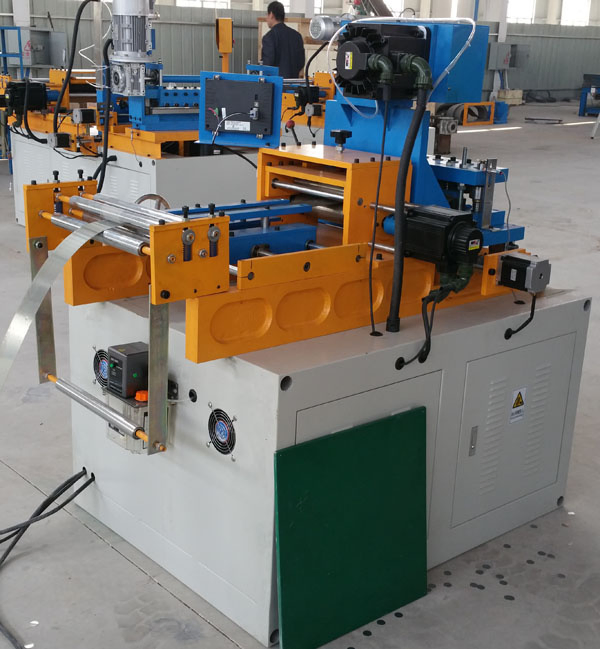

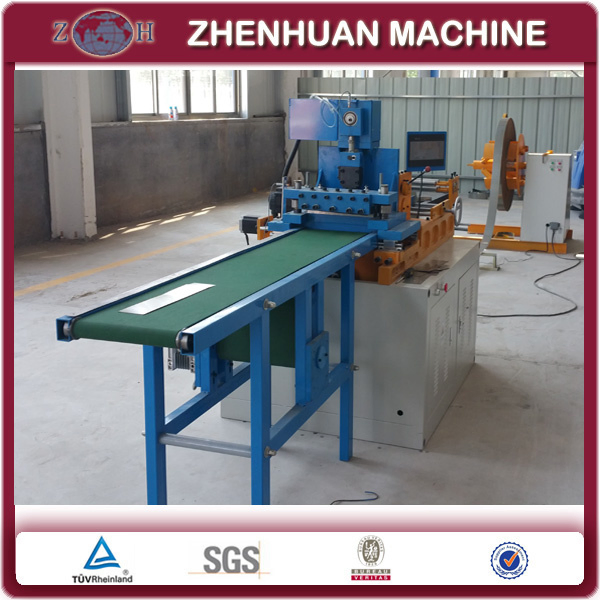

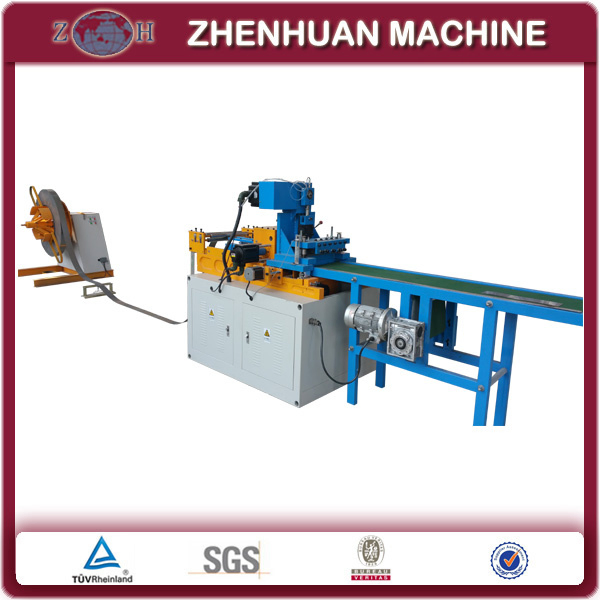

High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
1 / 5
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick
High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick

High Speed CRGO Electrical Silicon Steel Rectangular Cutting Machine for Min. 0.1mm Thick

Customization: Available
After-sales Service: Engineers Available to Service Outside
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
JN-3002S
Layout
Horizontal
Cutting Material
CRGO CRNGO Silicon Steel
Automatic Grade
Automatic
Power Source
Electric
Cutting Mode
Motorized Blade Cut
Strip Width
30-300mm
Strip Thickness
Max. 0.6mm
Feeding Method
Delta Servo Motor
Feeding Speed
Max. 100m/Min
Cutting Speed
100-150 Cuts/Min
Precision
+/-0.02mm
Burr Height
Less Than 0.02mm
Blade Material
Carbide Alloy
Blade Life
1,200,000 Times
Control System
PLC + HMI

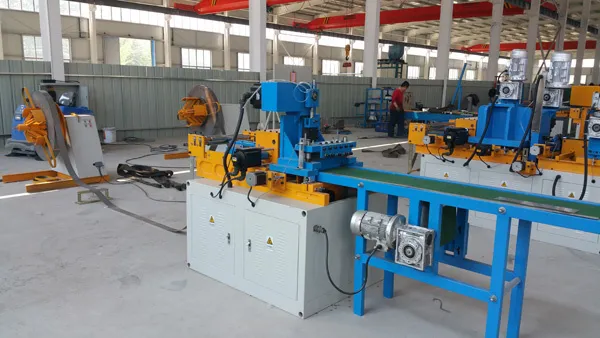

Electrical Silicon Steel Reactor Core Cutting Machine
Electrical Silicon Steel Reactor Core Cutting Machine

This machine is specially designed for cutting silicon steel coils into silicon strips for transformer cores, welding machine cores, and reactor cores. It is highly optimized for cutting 0.1mm thick CRGO electrical silicon steels.

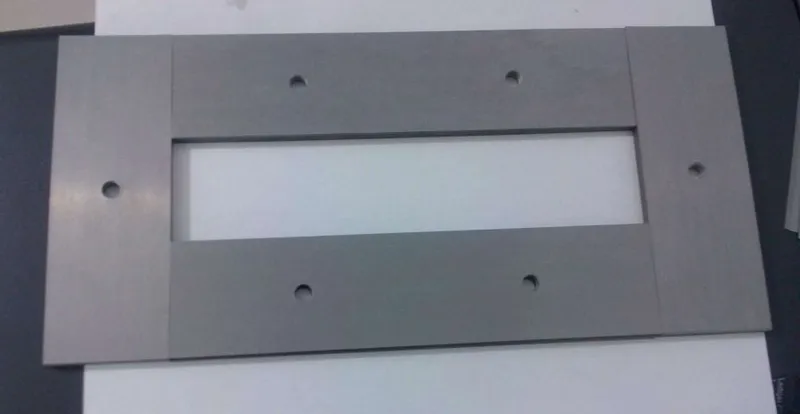

CRGO Silicon Steel Straight Cutting Machine
Technical Components & Configuration
  • Inverter-controlled decoiler: 1.5kW Motor, 1000kg Max. Coil weight, 500mm Max. Coil width.
  • High speed feeding machine: Delta servo motor 4.5kW, Precision +/-0.02mm, Speed up to 100m/min.
  • Cutting device: 100-150 times/min, Delta servo motor 2kW, Carbide alloy blade with 2 million cuts life.
  • Control system: Delta PLC with 5.7" Touch Screen. Supports round column cutting and descending cutting functions.

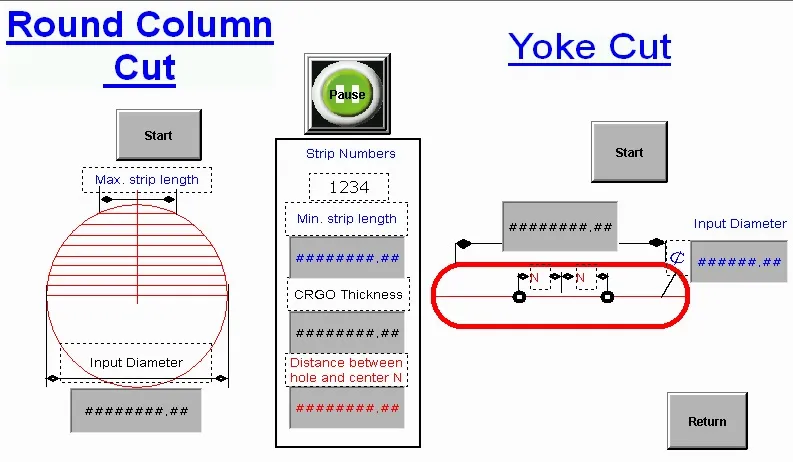

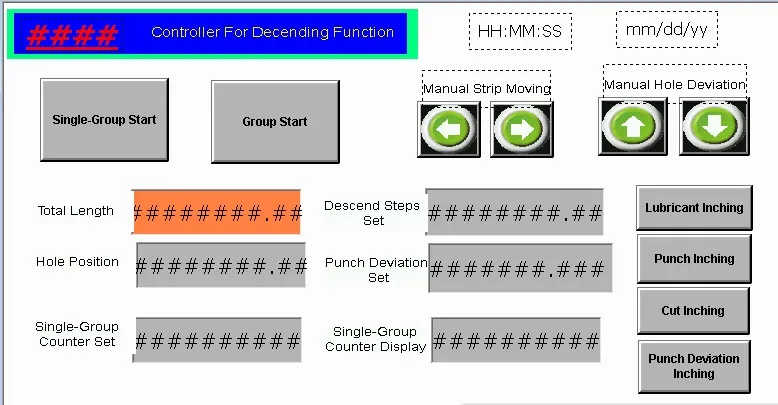

Cutting Function 1
Cutting Function 2

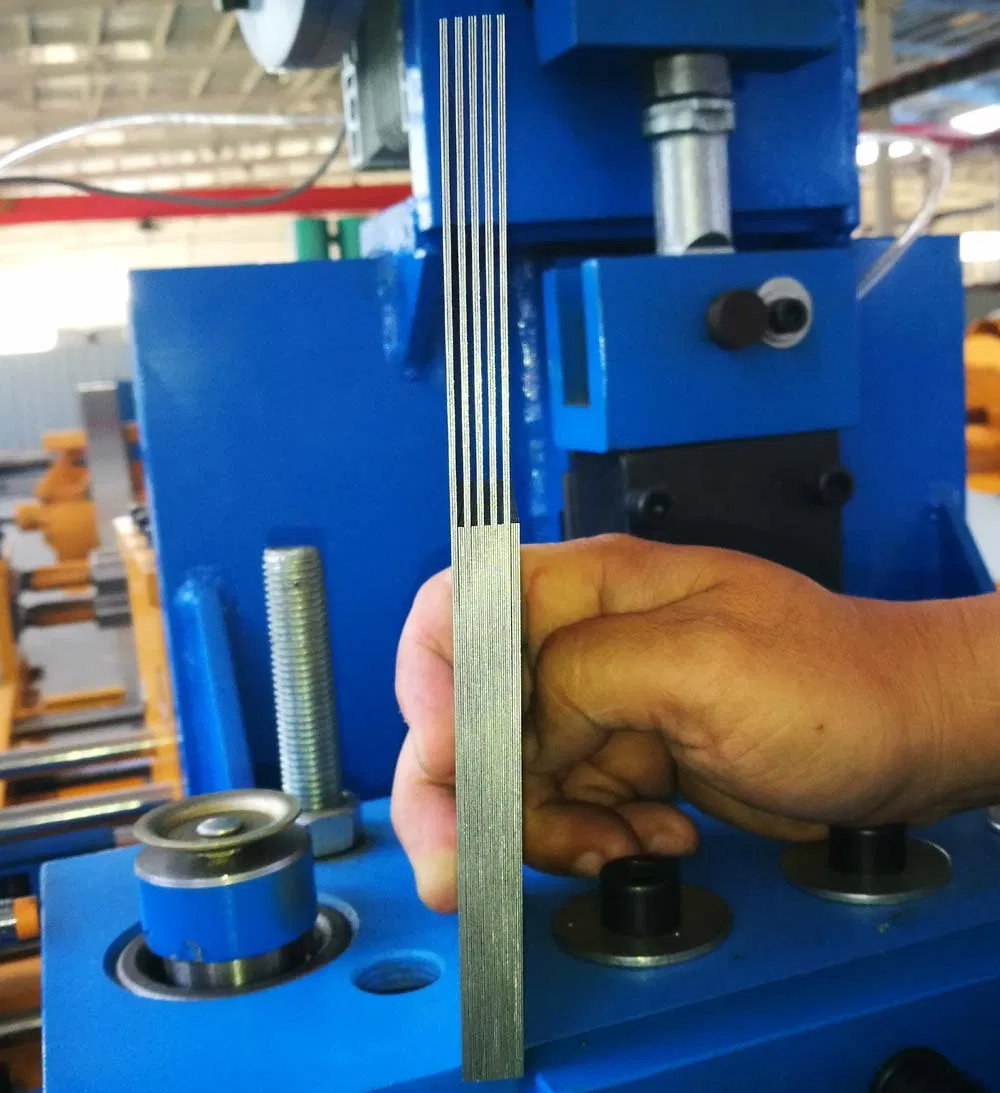

Cutting Function 3
Main Technical Data
Item Data
Suitable silicon steel strip width30-300mm
Max. silicon steel thickness0.1-0.6mm
Cut to length1-999999mm
Cut to length tolerance+/-0.05mm
Burr heightLess than 0.02mm
Servo feeding speedMax. 100m/min
Cutting speed100-150 cuts per minute
Dimension (Main Machine)800 x 1600 x 1200mm
WeightApprox. 900kg
Workshop & Quality Control

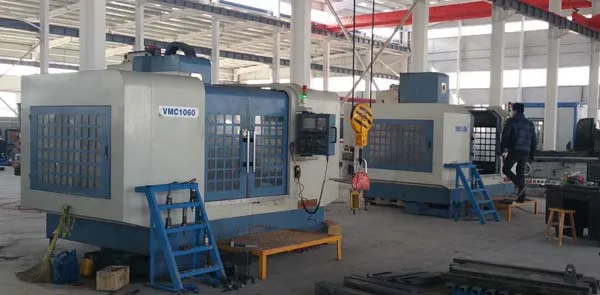

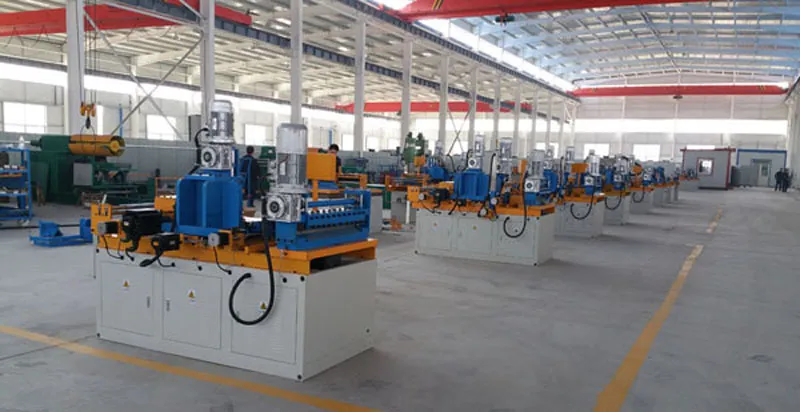

Workshop 1
Workshop 2
Workshop 3
Workshop 4
Workshop 5
Workshop 6
Quality Assurance
Frequently Asked Questions
Q1: What types of materials can this machine cut?
The machine is specifically designed for CRGO and CRNGO electrical silicon steel coils, commonly used for transformer and reactor cores.
Q2: What is the maximum cutting speed and precision?
The machine offers a high-speed cutting capability of 100-150 cuts per minute with a feeding precision of +/-0.02mm.
Q3: Can the machine handle very thin silicon steel?
Yes, it is specially engineered to handle materials as thin as 0.1mm, up to a maximum thickness of 0.6mm.
Q4: What is the expected lifespan of the cutting blade?
The blade is made of high-quality carbide alloy, offering a life of approximately 1,200,000 to 2,000,000 cuts before needing grinding.
Q5: How is the machine controlled for different cutting lengths?
It uses a Delta PLC control system combined with a HMI touch screen where quantity, length, speed, and hole positions can be easily pre-set.
Q6: Does it support special core production like gap wound cores?
Yes, the system includes special round column cutting and descending cutting functions suitable for gap wound core production.
