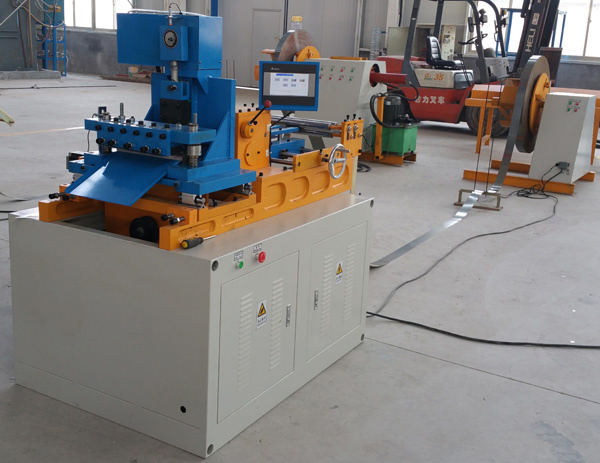

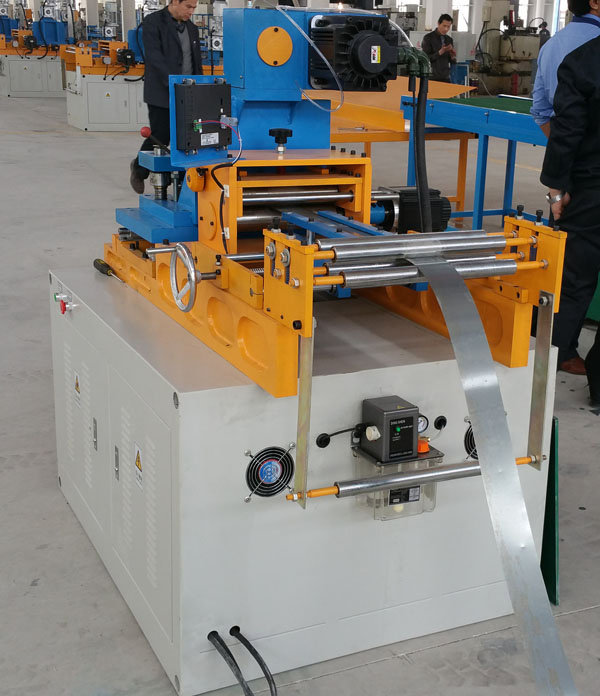

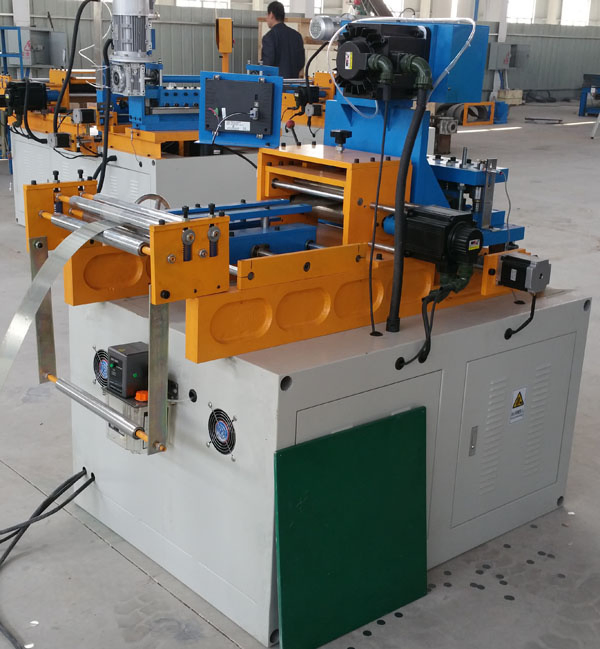

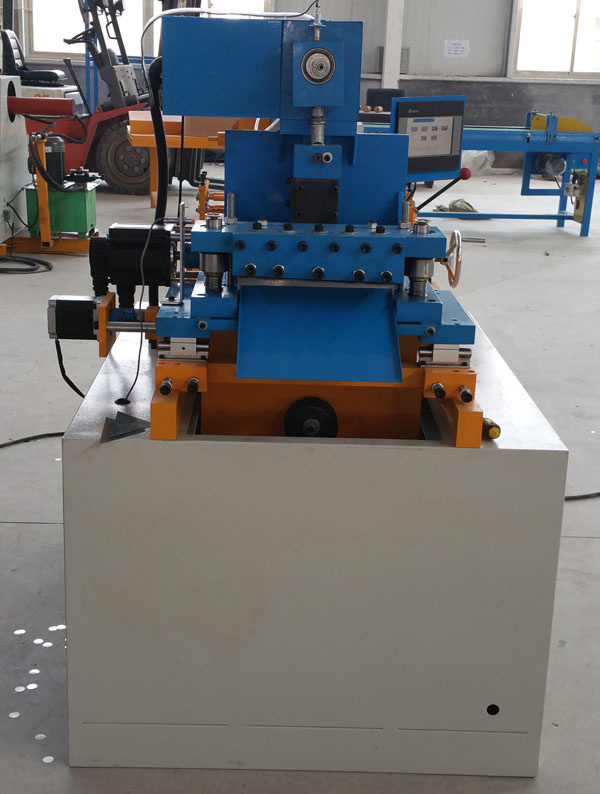

High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
1 / 5
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine
High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine

High Speed CRGO Electrical Silicon Steel Core Straight Cutting Machine

Customization: Available
After-sales Service: Engineers Available to Service Outside
Warranty: 1 Year
Send Inquiry

Product Description

📦 Basic Specifications
Model NO.JN-3002S
LayoutHorizontal
Cutting MaterialCRGO CRNGO Electrical Silicon Steel
Automatic GradeAutomatic
Power SourceElectric
Cutting ModeMotorized Blade Cut
Strip Width30-300mm
Strip ThicknessMax. 0.6mm
Feeding SpeedMax. 100m/Min
Cutting Speed100-150 Cuts/Min
Precision+/-0.02mm
Burr HeightLess Than 0.02mm
Blade MaterialCarbide Alloy
Blade Life1,200,000 Times
Control SystemPLC + HMI
Package Size160x80x120cm
🔍 Product Description
0.1mm CRGO Electrical Silicon Steel Straight Cutting Machine

This high-speed machine is specifically engineered for precision cutting of silicon steel coils into strips for transformer cores, welding machine cores, and reactor cores. It is optimized for handling 0.1mm thick CRGO electrical silicon steels.

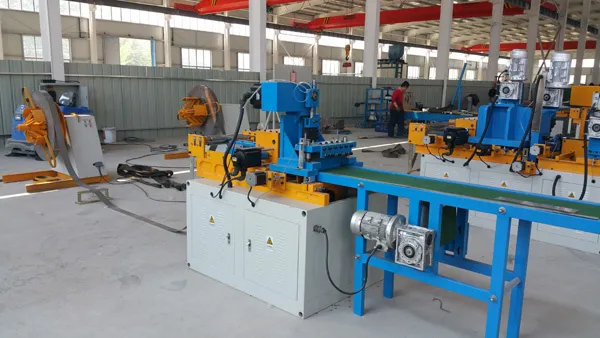

CRGO Electrical Silicon Steel Straight Cutting Machine

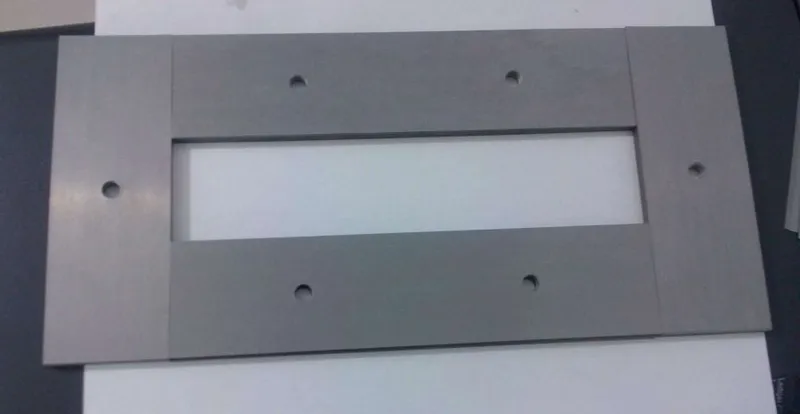

Silicon Steel Core Cutting
Key Features:
  • Inverter-controlled decoiler: 1.5kW motor, Max. Coil weight 1000kg, Max. Coil width 500mm.
  • High speed feeding machine: Delta servo motor 4.5kW, feeding precision +/-0.02mm.
  • Advanced Cutting Device: 100-150 times per minute, carbide alloy blade with life over 2,000,000 cuts.
  • Control System: Delta PLC and 5.7" Touch Screen for setting quantity, length, and speed.
🛠️ Technical Data
Item Specifications
Suitable silicon steel strip width30-300mm
Max. silicon steel thickness0.1-0.6mm
Cut to length1-999999mm
Cut to length tolerance+/-0.05mm
Burr heightLess than 0.02mm
Servo feeding speedMax. 100m/min
Cutting speed100-150 cuts per minute
Dimension (main machine)About 800 x 1600 x 1200mm
WeightAbout 900kg
🏭 Manufacturing Workshop

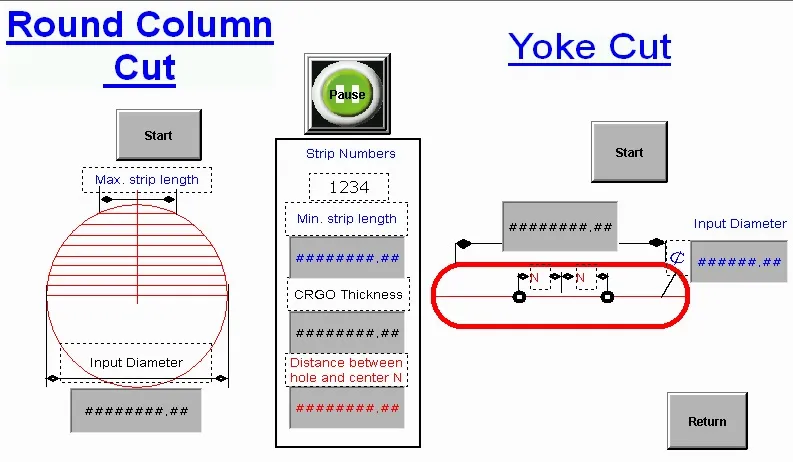

Production Detail 1

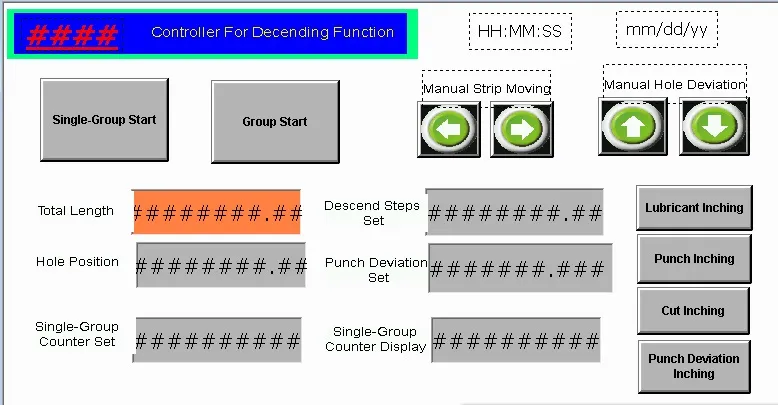

Production Detail 2

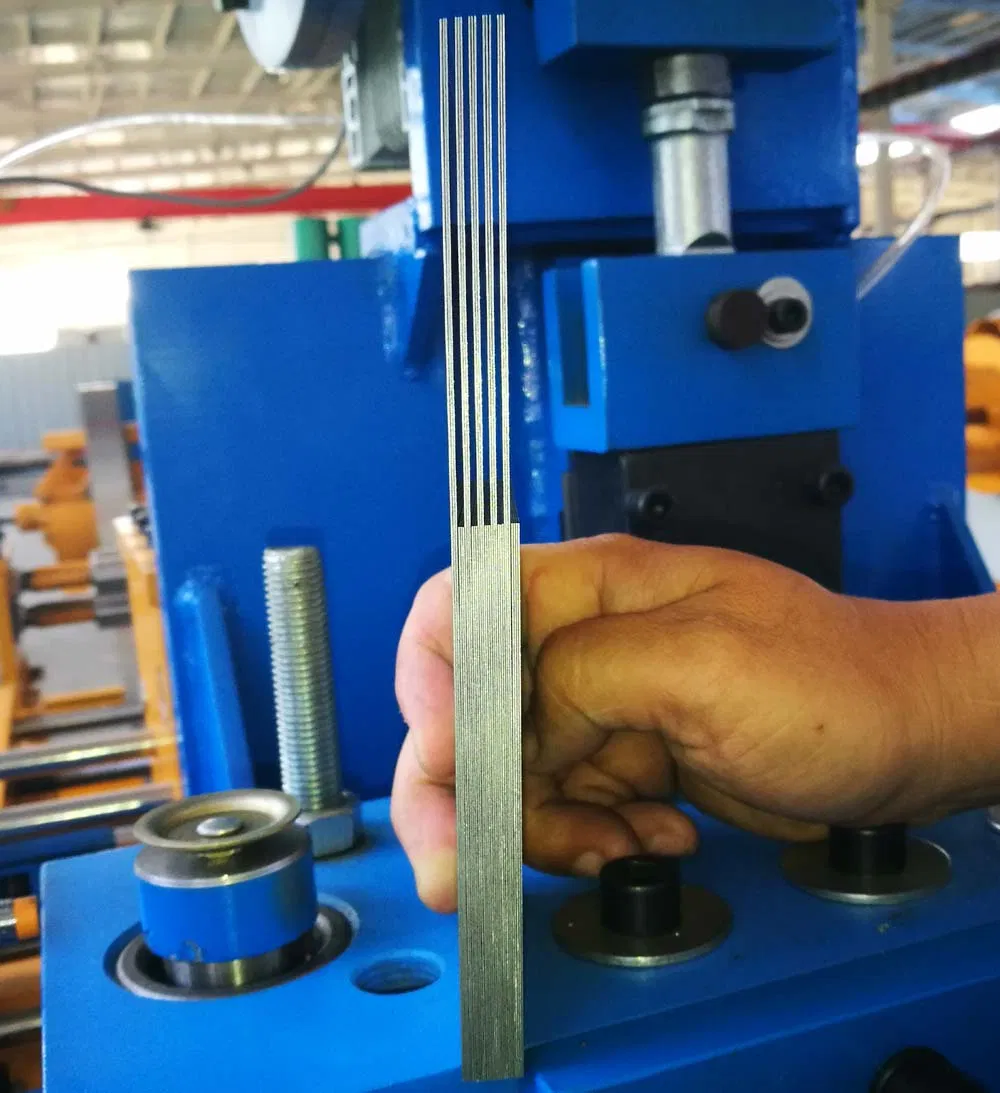

Production Detail 3

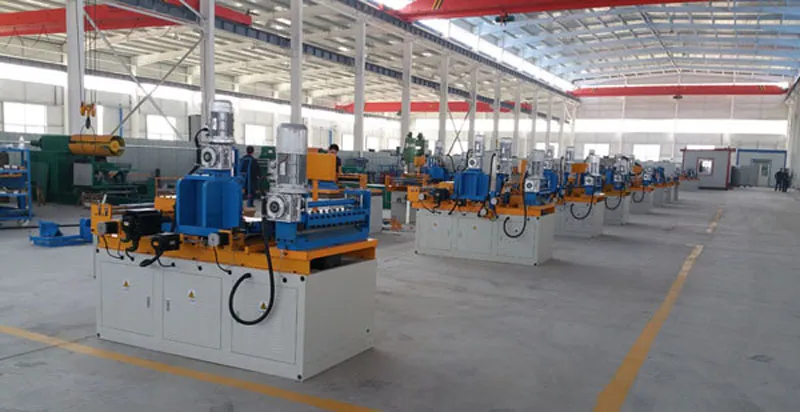

Workshop Facilities

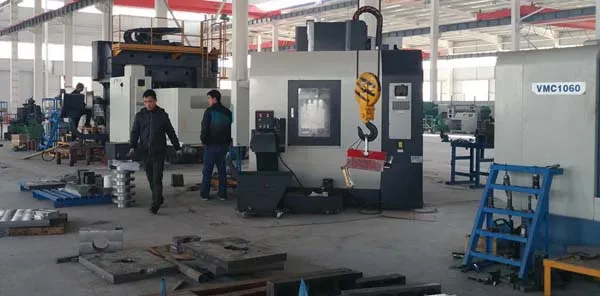

Quality Assurance

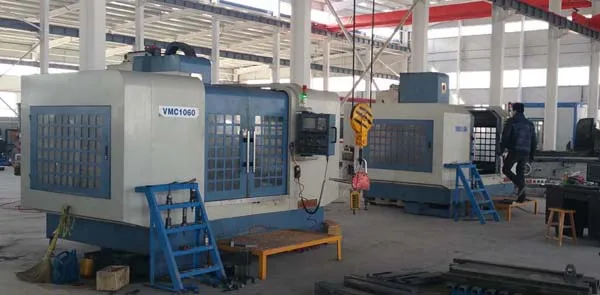

Technical Facility
Final Assembly
Machine Overview 1
Machine Overview 2
Machine Overview 3
❓ Frequently Asked Questions
Q1: What materials can this machine cut? A: The machine is designed for CRGO and CRNGO electrical silicon steel, specifically optimized for high-quality European 0.1mm thickness material.
Q2: What is the maximum cutting precision and tolerance? A: The feeding precision is +/-0.02mm, while the cut-to-length tolerance is within +/-0.05mm, ensuring extreme accuracy for core production.
Q3: How fast can the machine operate? A: The machine achieves a feeding speed of up to 100m/min and a cutting frequency of 100-150 cuts per minute depending on the strip length.
Q4: What is the lifespan of the cutting blades? A: The blades are made of high-quality carbide alloy, providing a service life of over 1,200,000 to 2,000,000 cuts before needing regrinding.
Q5: Is the machine compatible with different core shapes? A: Yes, it features special round column cutting functions and descending cutting functions suitable for gap wound core production.
Q6: What kind of control system is integrated? A: The machine utilizes a high-performance Delta PLC and a 5.7-inch touch-screen HMI for easy adjustment of quantity, length, and speed.
