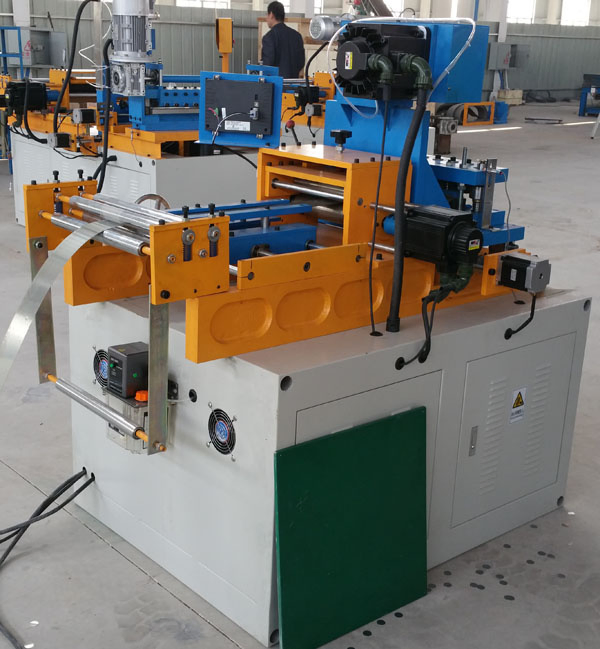

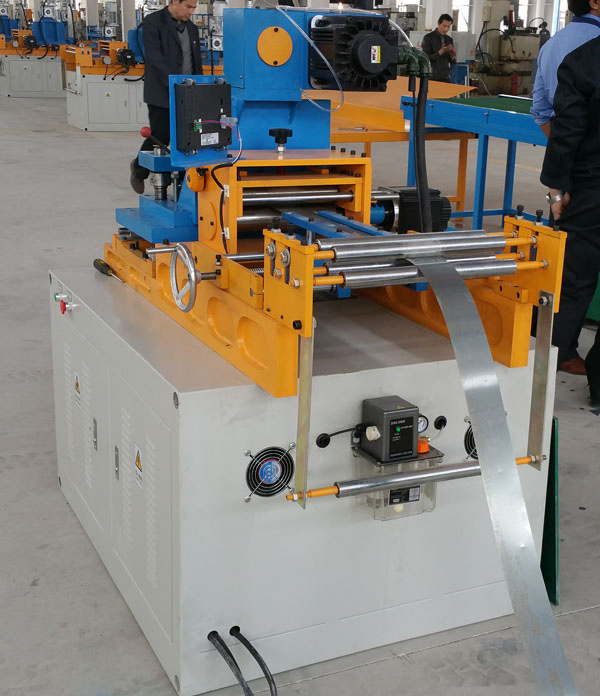

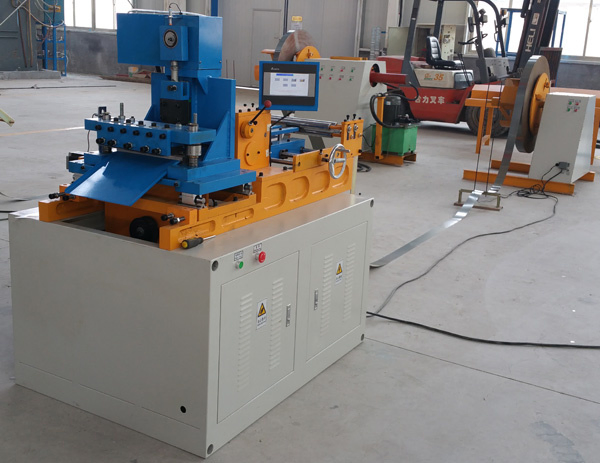

High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
1 / 5
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap
High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap

High Speed Electrical Silicon Steel Straight Cutting Machine for Motor Cores in Step Lap

Customization: Available
After-sales Service: Engineers Available to Service Outside
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Info & Specifications
Model NO.
JN-3002S
Layout
Horizontal
Cutting Material
CRGO CRNGO Electrical Silicon Steel
Automatic Grade
Automatic
Power Source
Electric
Cutting Mode
Motorized Blade Cut
Strip Width
30-300mm
Strip Thickness
Max. 0.6mm
Feeding Method
Delta Servo Motor
Feeding Speed
Max. 100m/Min
Cutting Speed
100-150 Cuts/Min
Precision
+/-0.02mm
Burr Height
< 0.02mm
Blade Material
Carbide Alloy
Control System
PLC + HMI
⚙️ Product Description

Electrical Silicon Steel Reactor Core Cutting Machine

Silicon Steel Cutting Machine

I Description of 0.1mm CRGO electrical silicon steel straight cutting machine:

This machine is specially designed for cutting silicon steel coils into silicon strips for transformer cores, welding machine cores, and reactor cores. It is optimized for 0.1mm thick CRGO electrical silicon steels.

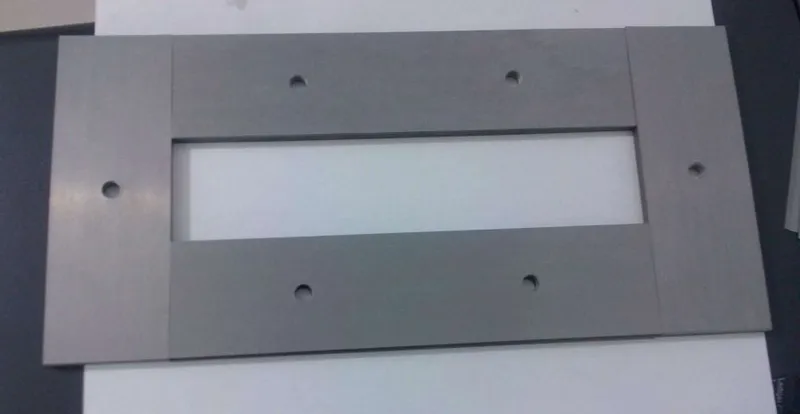

Machine Detail

II Detailed component information:

  • Inverter-controlled decoiler: 1.5kW motor, Max. Coil weight 1000kg.
  • High speed feeding machine: Delta servo motor 4.5kW, Precision +/-0.02mm.
  • Cutting device: High speed (100-150 times/min), Carbide alloy blade.
  • Control system: Delta PLC with 5.7" Touch screen for quantity, length, and speed settings.

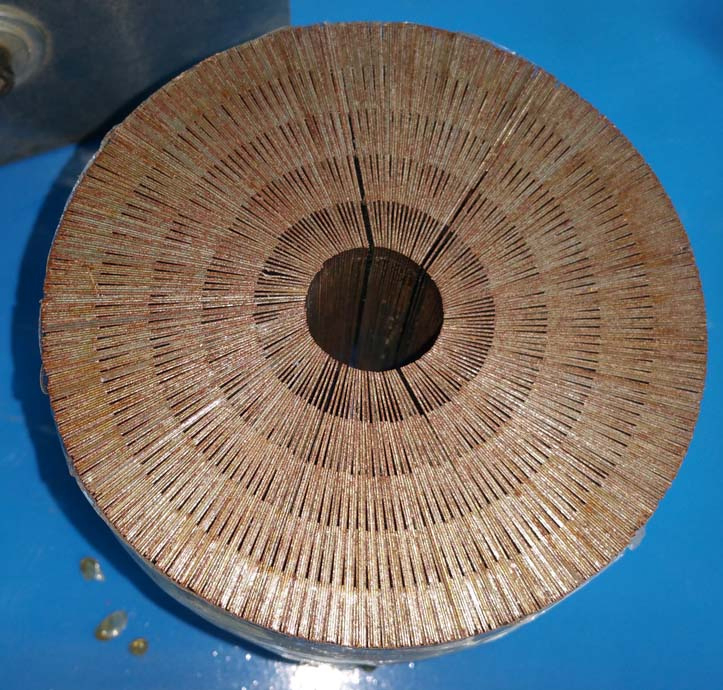

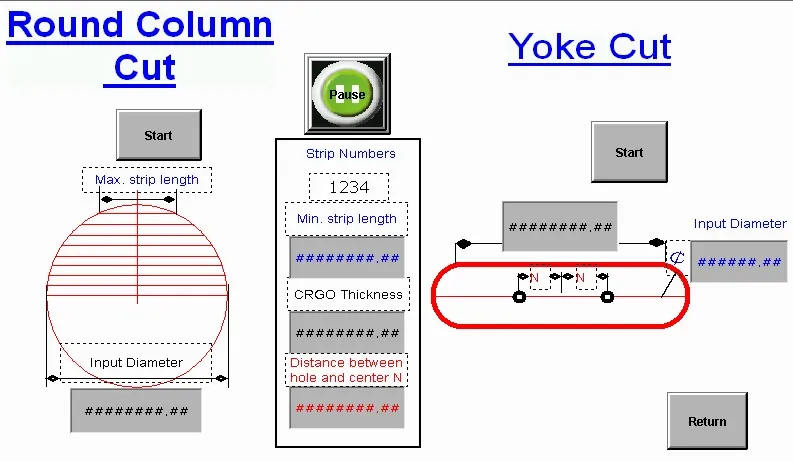

Round column cutting

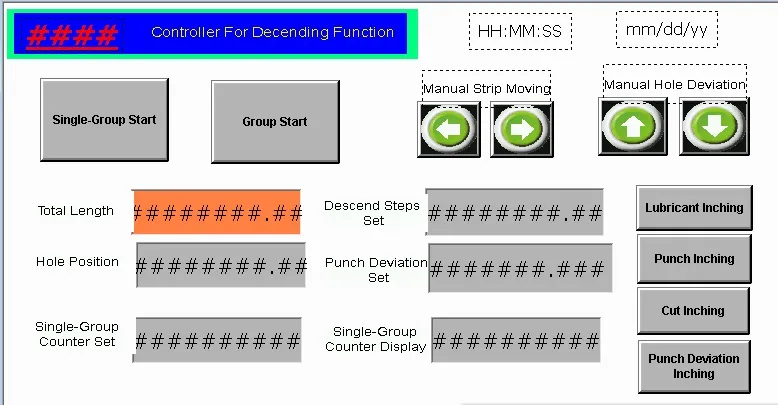

Gap wound core production

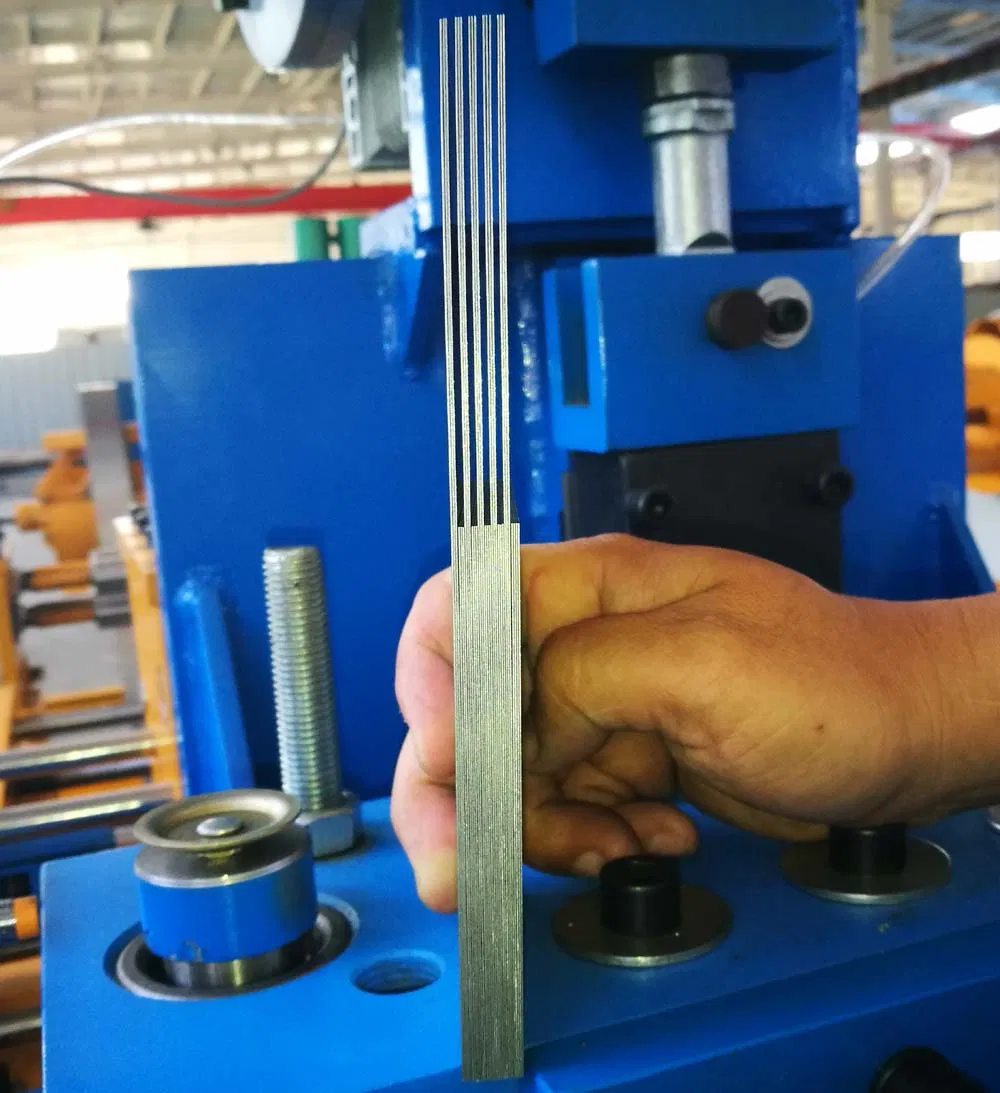

Cutting samples
📋 Technical Data Summary
Item Technical Data
Strip Width Range30-300mm
Material Thickness0.1-0.6mm
Cutting Length1-999999mm
Length Tolerance+/-0.05mm
Burr HeightLess than 0.02mm
Feeding SpeedMax. 100m/min
Cutting Speed100-150 cuts per minute
Main Machine Dimension800 x 1600 x 1200mm
🏭 Workshop & Facilities
Workshop

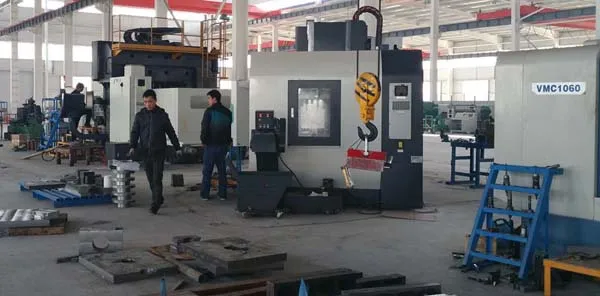

Production Facility 1

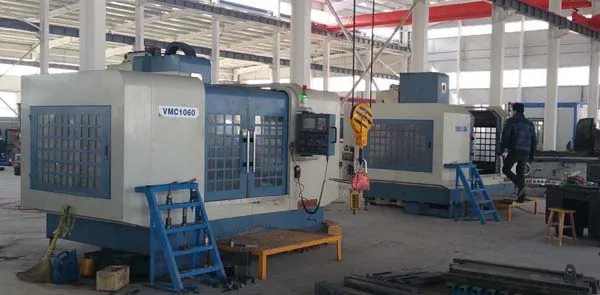

Production Facility 2

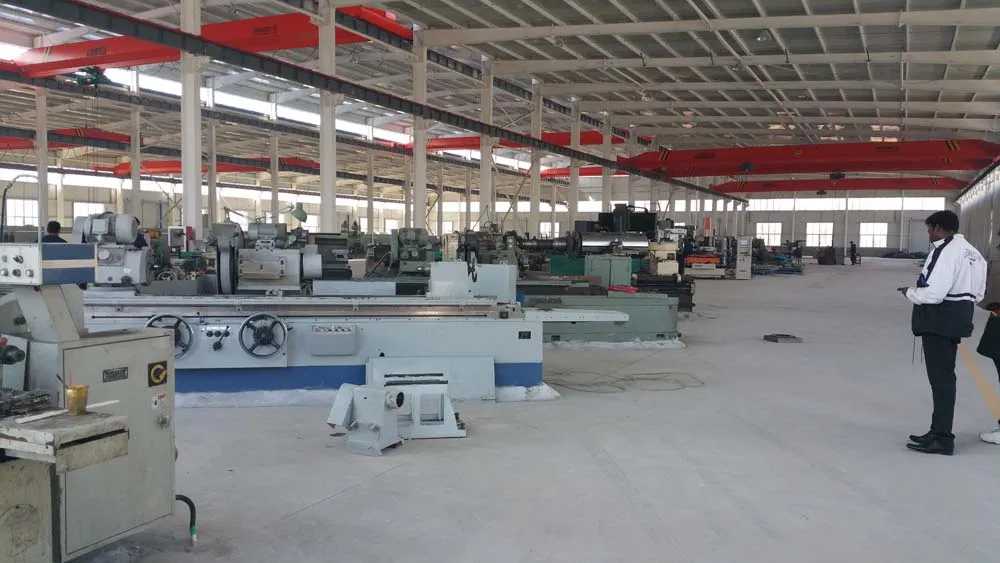

Production Facility 3

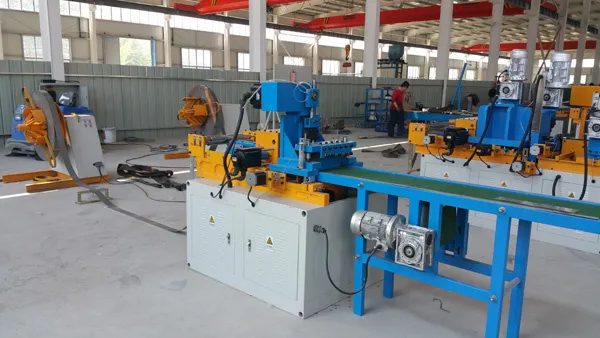

Machine Overview
Technical Layout
Core Processing
❓ FAQ
1. What materials is this machine suitable for?
It is designed for CRGO and CRNGO electrical silicon steel, specifically optimized for thicknesses as low as 0.1mm.
2. What is the cutting precision of the JN-3002S?
The machine offers high precision with a cut-to-length tolerance of +/-0.02mm and a burr height of less than 0.02mm.
3. How long does the cutting blade last?
The carbide alloy cutting blade can be used for up to 1,200,000 to 2,000,000 cuts before requiring grinding.
4. What is the maximum production speed?
The feeding speed reaches up to 100m/min, and the cutting speed is between 100-150 cuts per minute.
5. Does the machine support special cutting functions?
Yes, it includes specialized functions for round column cutting and descending cutting suitable for gap wound core production.
6. How is the machine controlled?
The system utilizes a Delta PLC and a 5.7" HMI touch screen where parameters like length, quantity, and speed can be pre-set.
