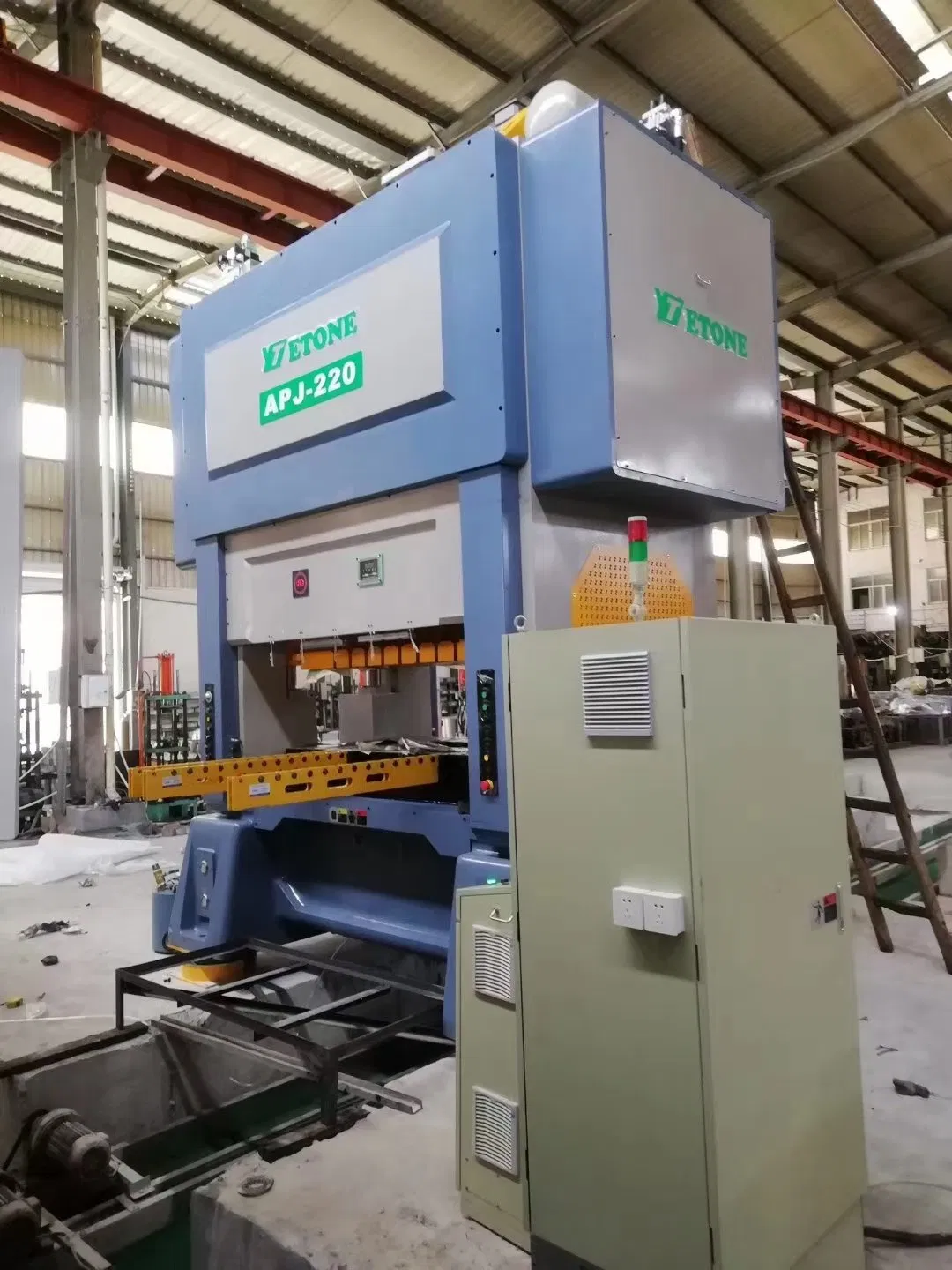

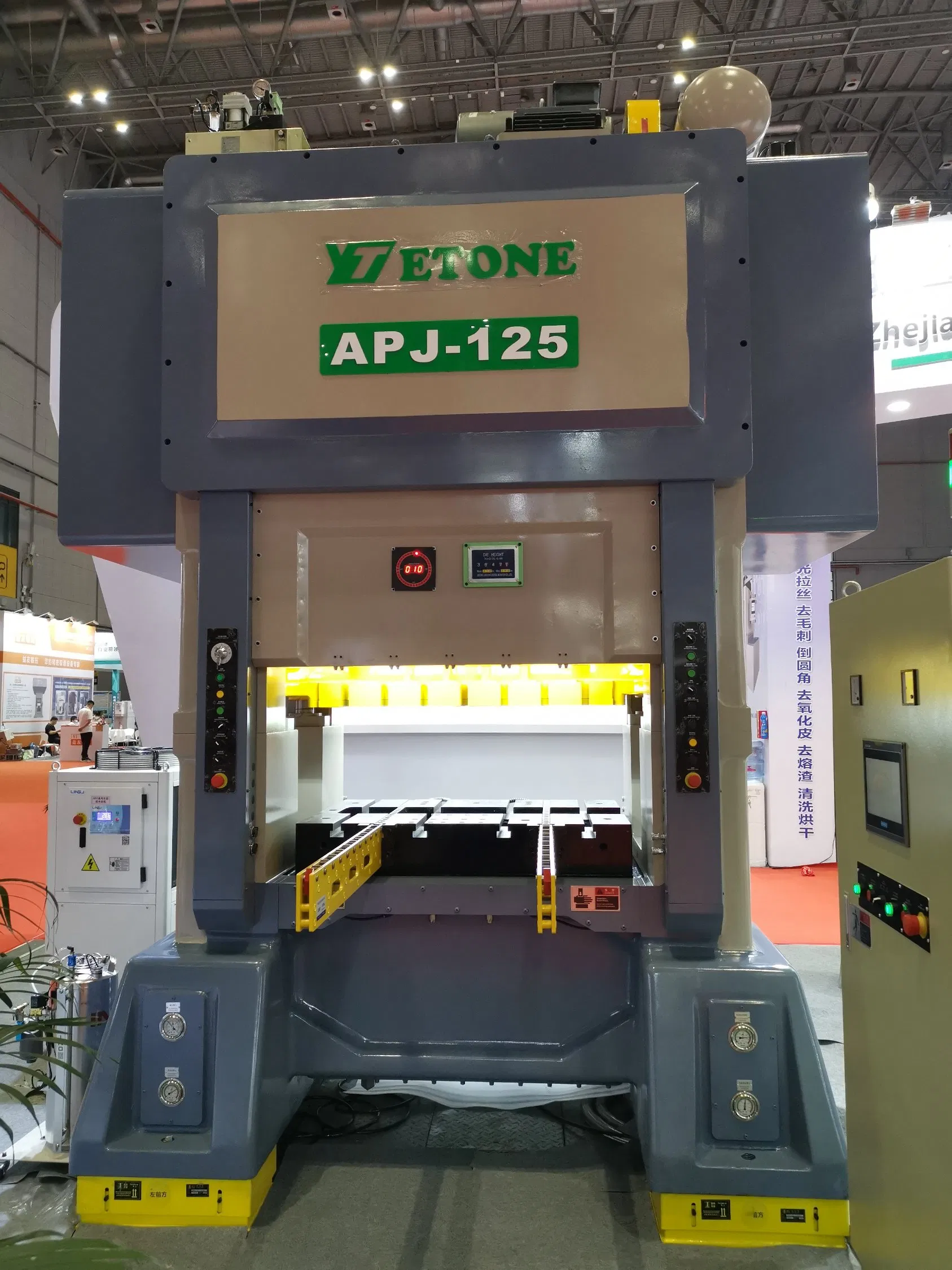

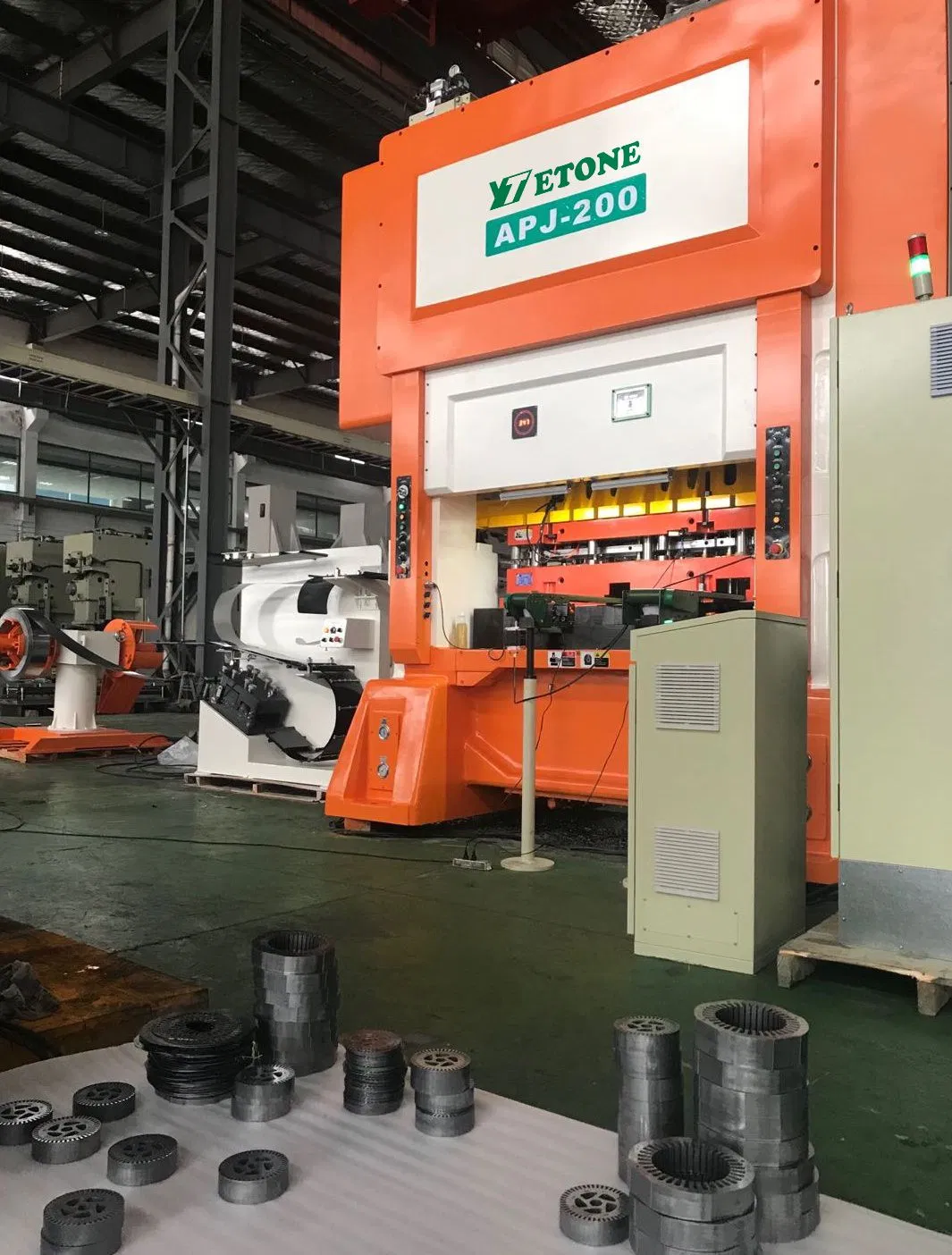

Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
1 / 5
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine
Lamination Stamping Complete Line Machine

Lamination Stamping Complete Line Machine

Customization: Available
After-sales Service: After Sales Service
Warranty: 12 Monthes
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
APJ 200
Type
High-Speed Punching Machine
Punch Shape
Closed Punch
Slider Movement
Double Action
Controlling Mode
PLC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Production Capacity
20 Sets/Month
Origin
China
★

Product Overview

This Lamination Stamping Complete Line Machine is designed for high-speed precision stamping, particularly for iron cores used in new energy vehicle motors, compressor motors, and high-efficiency industrial motors. As a professional high-speed press manufacturer, we provide the entire production line, including high-speed gear feeders, NC servo motor feeders, straighteners, and uncoilers.

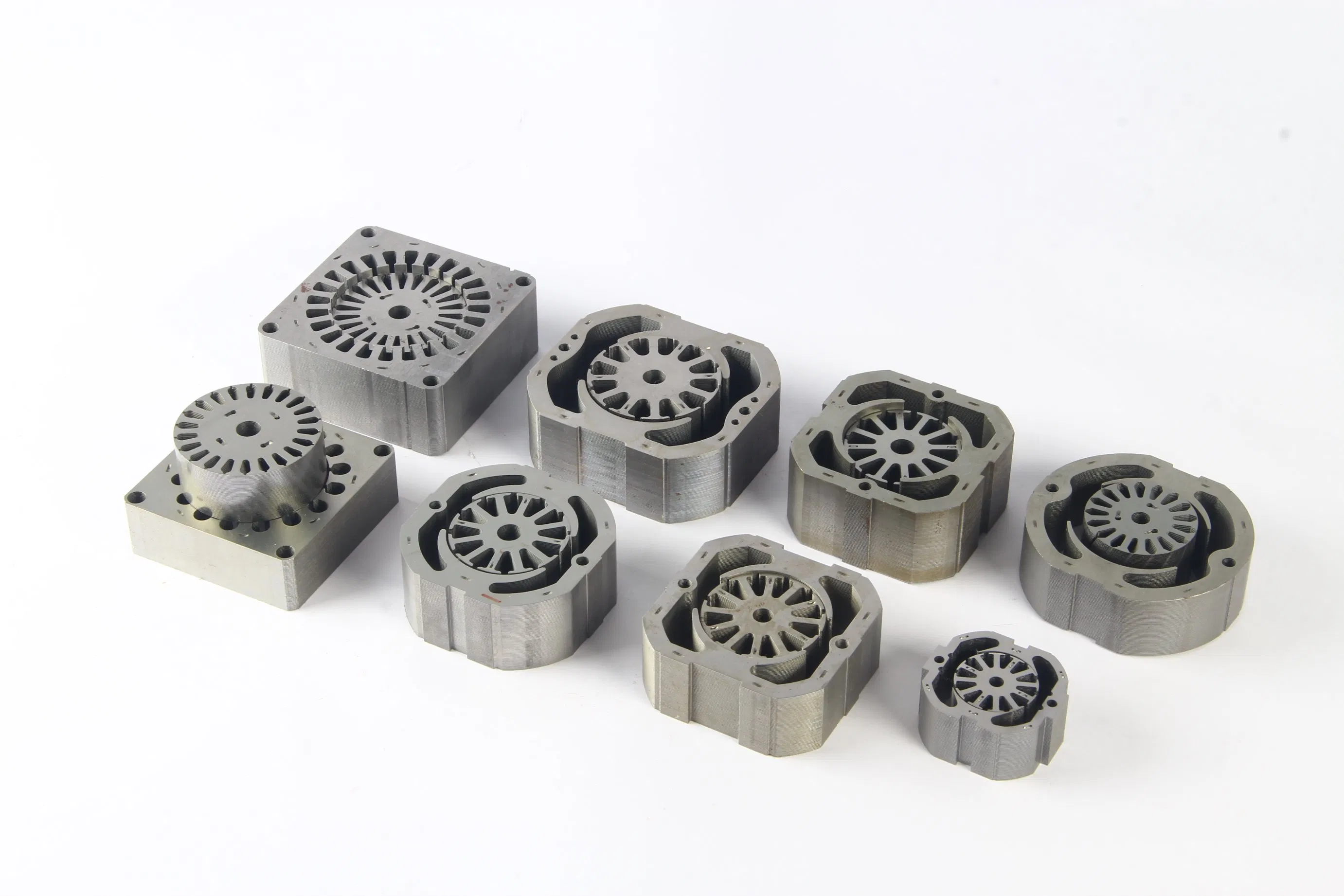

Lamination Stamping Machine 1

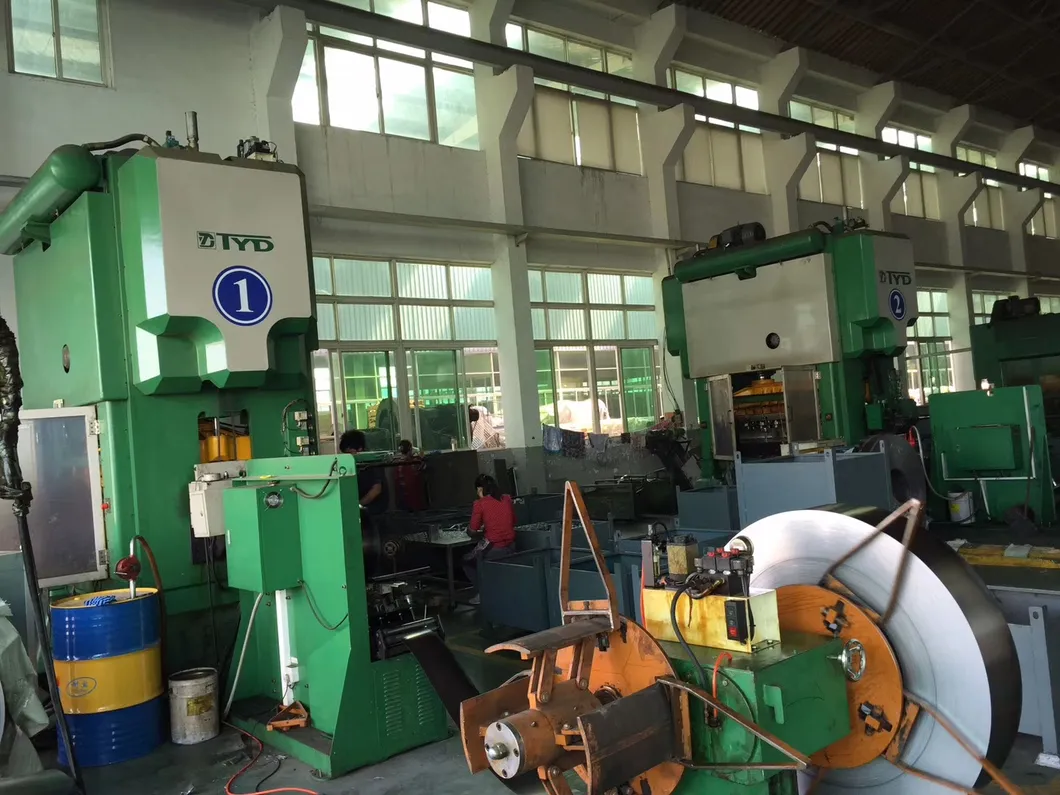

Lamination Stamping Machine 2
⚙

Key Applications

Our high-speed lamination presses (ranging from 60 to 500 tons) are suitable for stamping stators and rotors across a wide range of industries:

New Energy Vehicle Motors
Air Conditioner Compressors
Refrigerator Compressors
High-efficiency Industrial Motors
Servo Motors & Geared Motors
Washing Machine & Fan Motors
HVAC & Electric Turbo Motors
DC Inverter Motors
✔

Features & Advantages

  • ● Fast and sufficient slide lifting for convenient die testing and maintenance.
  • ● Top-oil cylinder structure for hydraulic overload protection and sticking release.
  • ● Square slide and bearing-based mechanism for lower comprehensive clearance and energy loss.
  • ● Reduced passive inertia, lowering unloaded energy consumption by 30%.
  • ● Low inertia allows for faster braking and precise low-speed mold adjustment.
  • ● High rigidity frame eliminates internal stress, reducing noise and vibration.
📊

Technical Parameters (APJ-200)

Parameter Item Unit Specification (APJ-200)
Tonnageton200
Strokemm30
Number of strokes per minutes.p.m150-600
Lower table sizemm1700 x 950
Blanking holemm1300 x 250
Sliding block areamm1700 x 700
Die height adjustment strokemm370-420
Die height adjustment motorkw1.5
Feeding line heightmm200 ± 50
Main motorkw45
🛠

Standard Configuration

Electric model height adjustment (0.01 mm precision)
Inching positioning device
Computer memory for 30 sets of mold data
Three groups of batch control
Two groups of feed error detection
Italian OMPI integrated clutch brake
Hydraulic slide lock device
Lubricating oil cooling cycle machine
Stand-alone electric control box

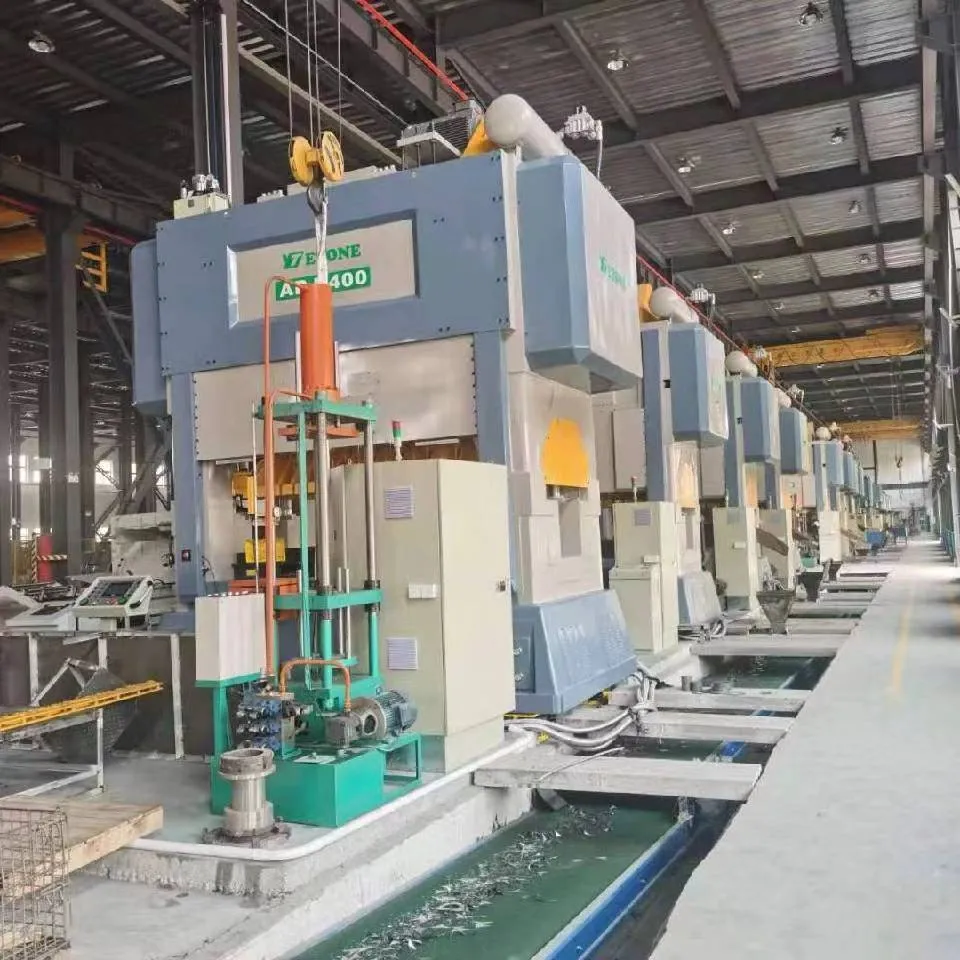

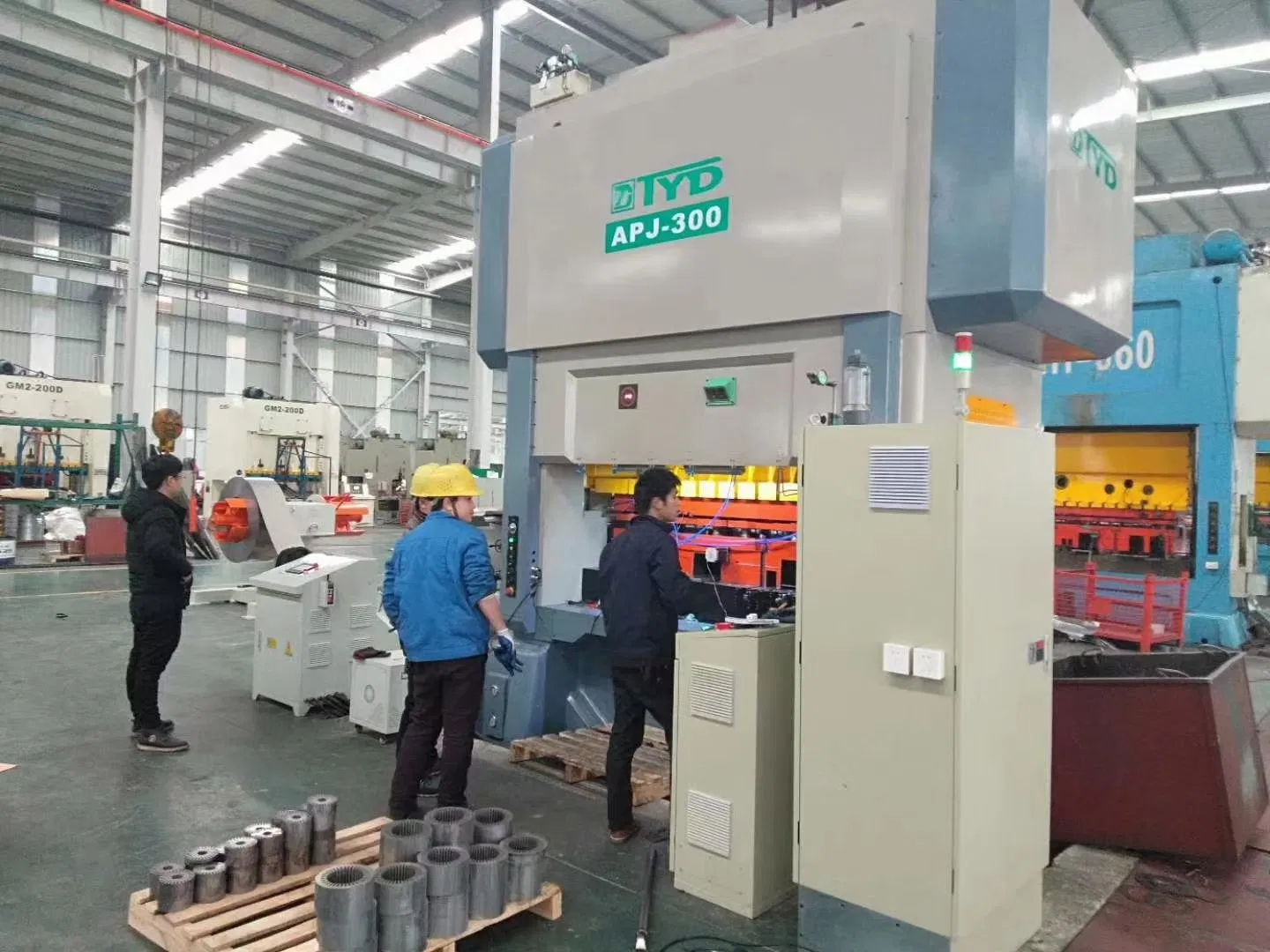

Lamination Stamping Details

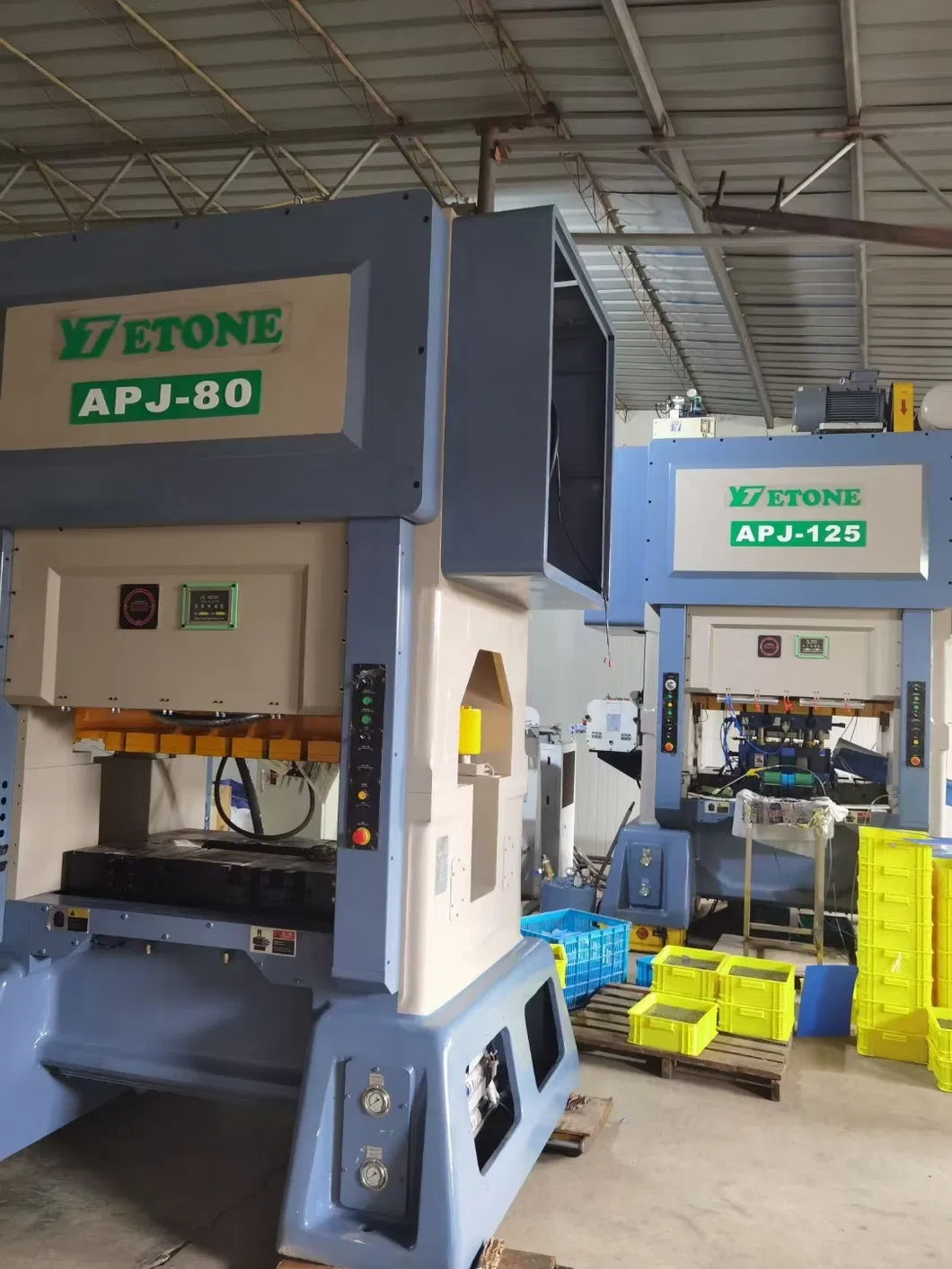

Machine Configuration

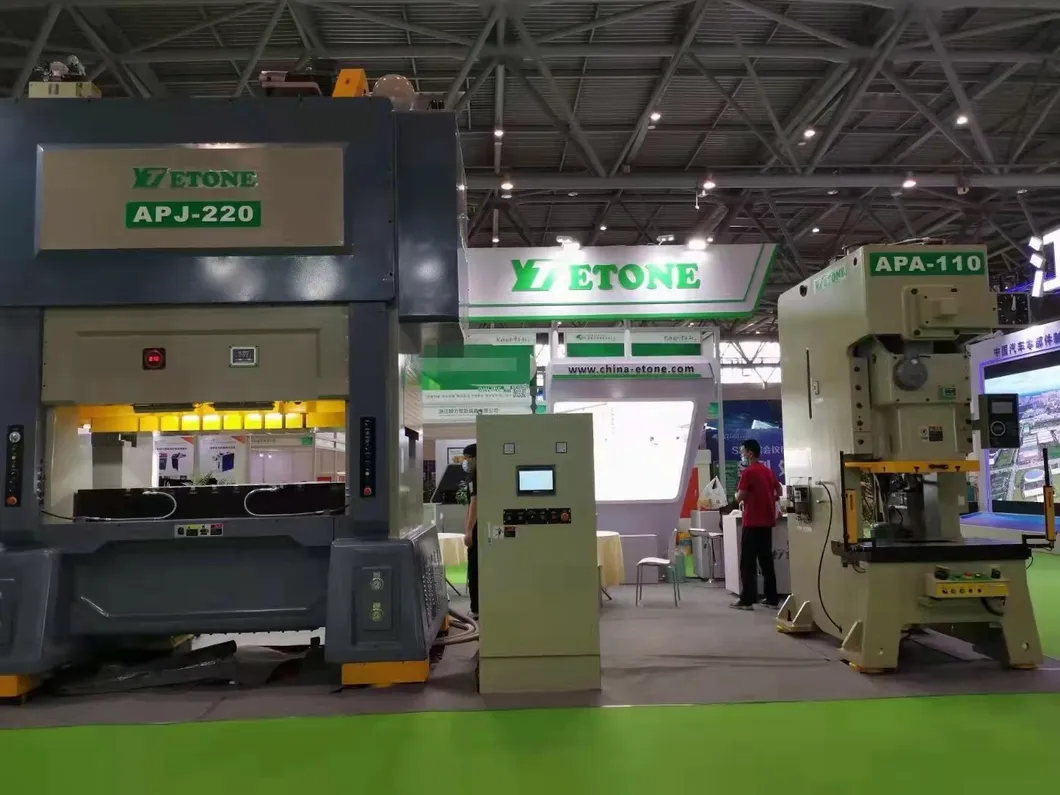

Production Line
?

Frequently Asked Questions

What is the primary application of the APJ 200 high-speed press?
The APJ 200 is specifically designed for high-speed precision stamping of self-riveting iron cores used in new energy vehicle motors, compressor motors, and industrial motors.
How does the machine achieve such high precision?
Precision is achieved through a high steel alloy casting frame that eliminates internal stress, a square slide mechanism for low clearance, and advanced PLC control with 0.01 mm adjustment precision.
What is the energy efficiency of this machine compared to older models?
The APJ series features a low-inertia design and optimized transmission structure, which reduces unloaded energy consumption by approximately 30%.
Can this machine handle different motor lamination sizes?
Yes, with a bed size of 1700x950mm and adjustable strokes, it is compatible with various stator and rotor laminations for everything from ceiling fans to large industrial motors.
What safety features are included in the standard configuration?
The machine includes hydraulic overload protection, an Italian OMPI integrated clutch brake, and a hydraulic slide lock device to ensure safe and stable operation.
Does the machine support automatic feeding?
Yes, the APJ 200 can be integrated into a complete line with NC servo motor feeders, gear feeders, and uncoilers for a fully automated production process.
