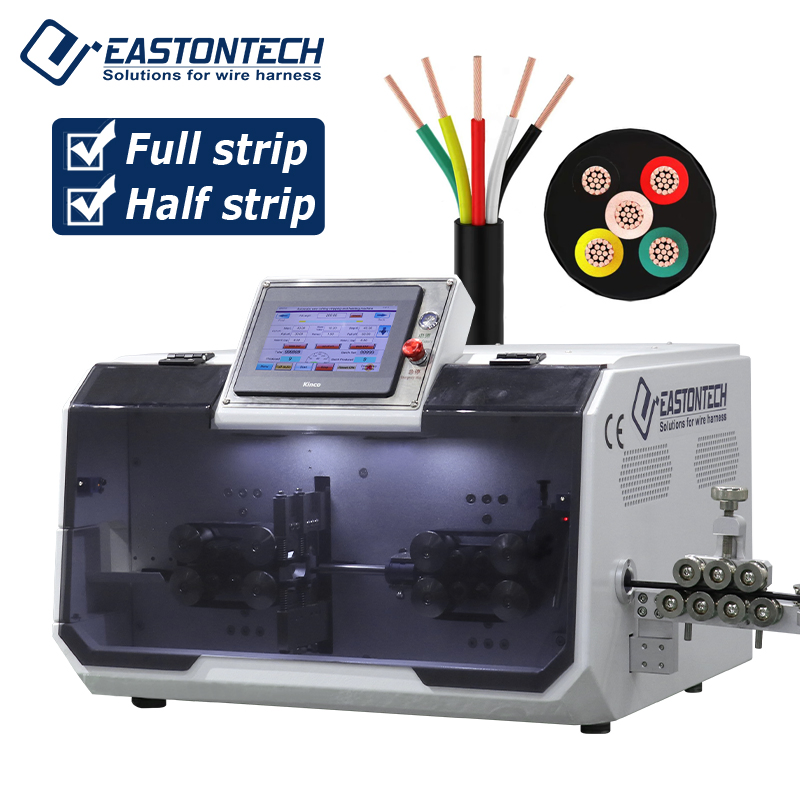

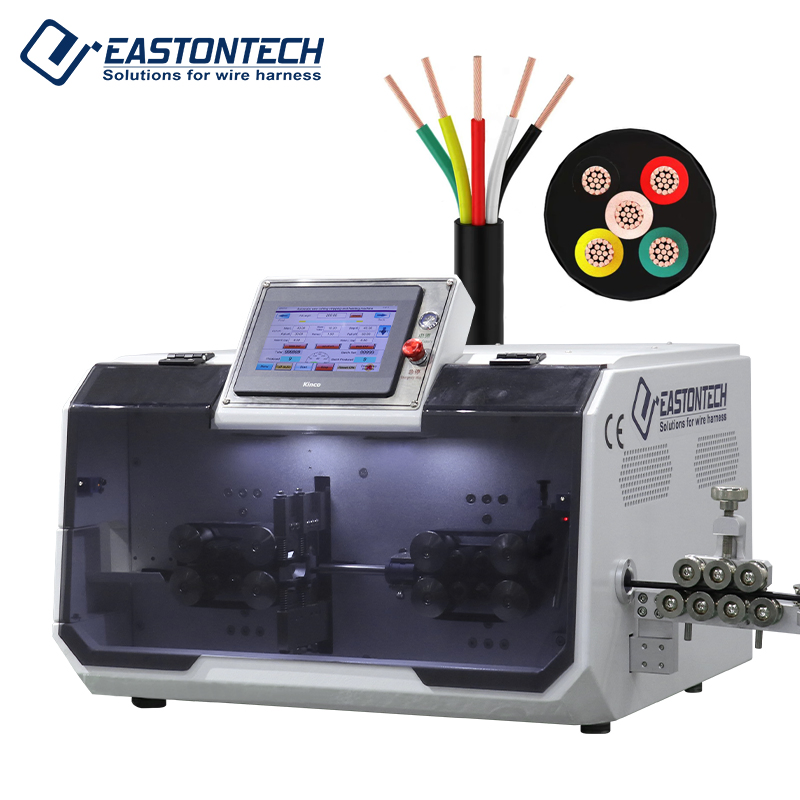

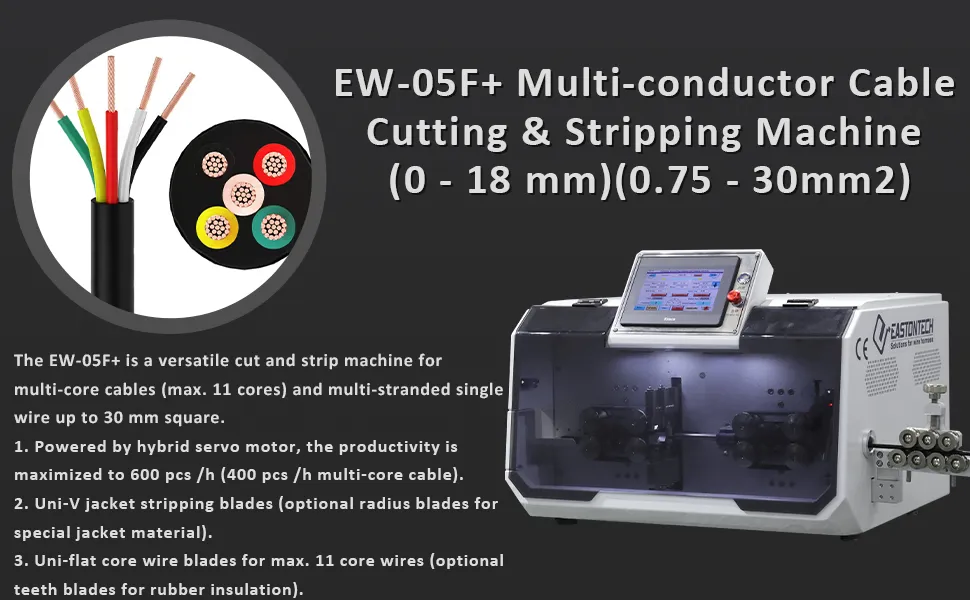

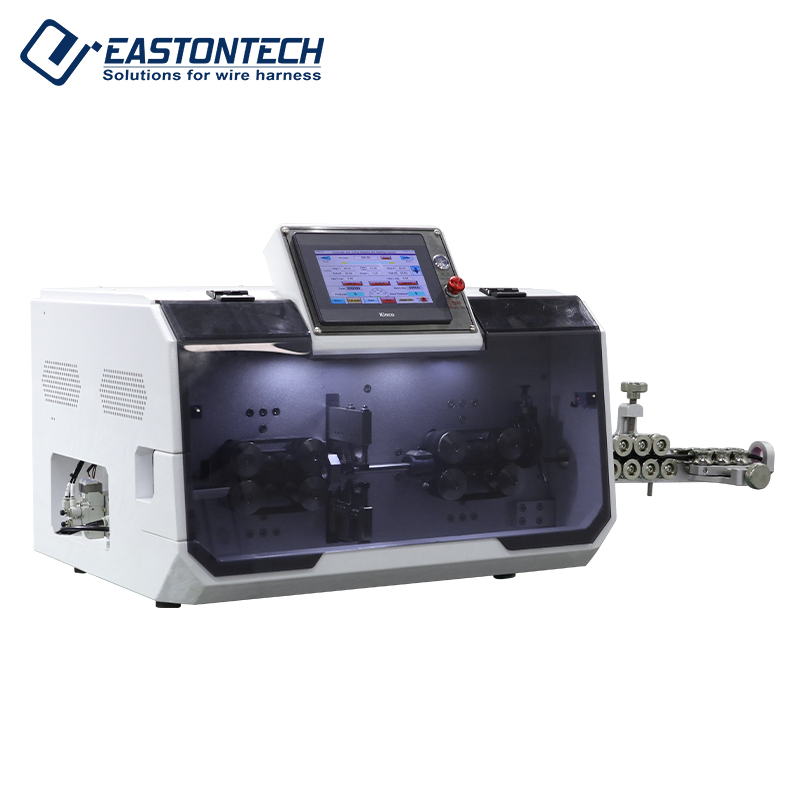

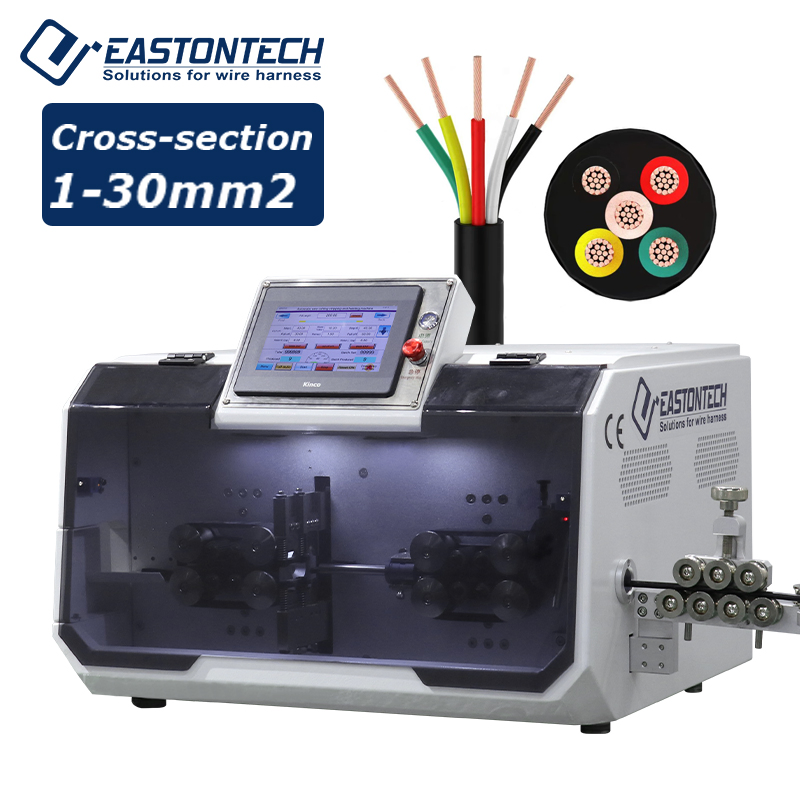

Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
1 / 5
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine
Multi-Conductor Cable Cutting & Stripping Machine

Multi-Conductor Cable Cutting & Stripping Machine

Customization: Available
Driven Type: Electric
Condition: New
Send Inquiry

Product Description

📊 Basic Information
Model NO.
EW-05F+
Certification
ISO, CE
Warranty
12 Months
Automatic Grade
Semiautomatic
Conductor Cross-Section
1-30mm2
Core Wire Stripping
2-11 Cores
Length Accuracy
0.002 * Lmm
Capacity
1000PCS./H
Noise Level
< 70 dB(a)
Blade Material
Tungsten Steel
⚙️ Product Description & Features
Multi-Conductor Cable Cutting & Stripping Machine

Latest control system and excellent mechanical parts for wide applications.

Multi-conductor cable cutting & stripping (jacket and inner core stripping).

Advanced multi-step stripping capacity.

Optional all-servo motor version for 20% increased productivity.

Compatible with feeding devices, deposit devices, and inkjet printers.

Technical Parameters Model: EW-05F+ Model: EW-05F-1+
Conductor cross-section 0.75 - 30 mm²
Core wire stripping Max. 10 cores N/A
Cutting length 1 - 99999.9 mm
Stripping length (Side I) Jacket: 10-200mm | Core: 1-50mm Full strip: 10 - 200 mm
Driving mode 16-roller driving, servo blade holder
Feeding mode By belts with no scratch mark guarantee
Productivity 900 pcs./h (Multi-conductor) 3500 pcs./h
🖼️ Equipment Showcase

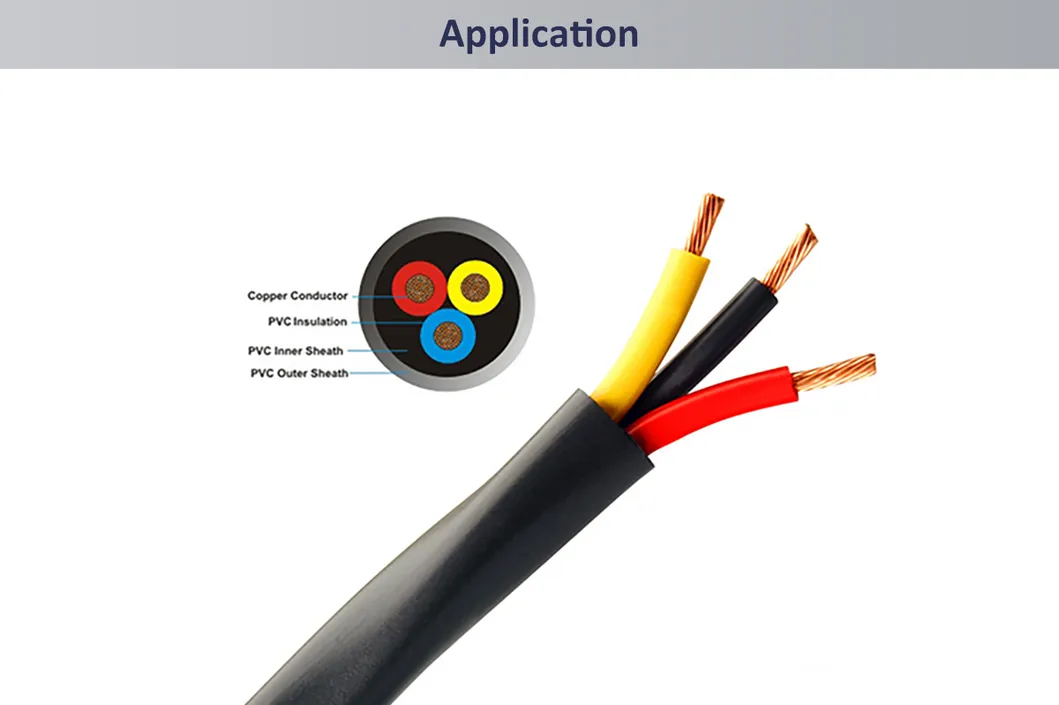

Machine Detail 1

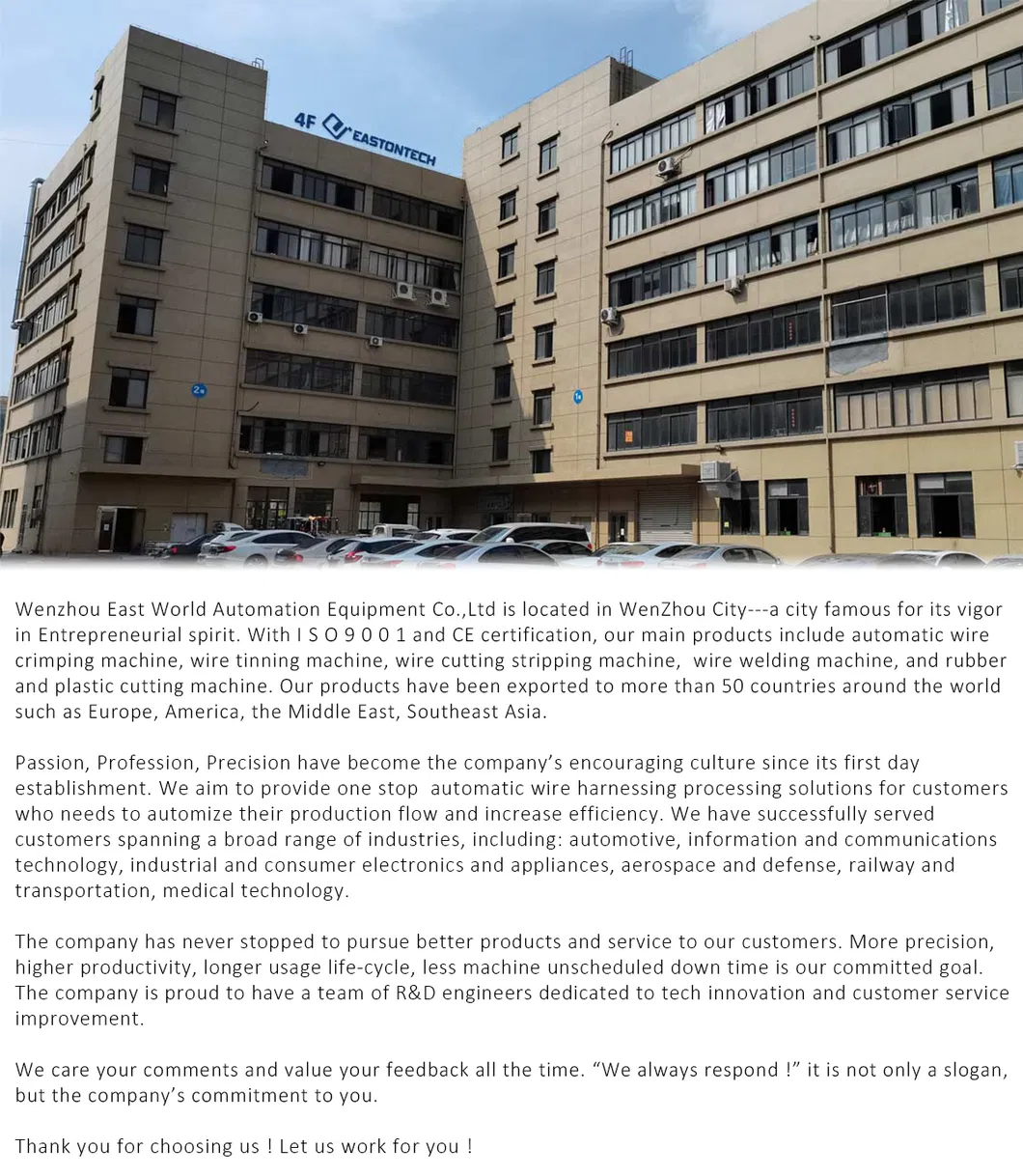

Machine Detail 2

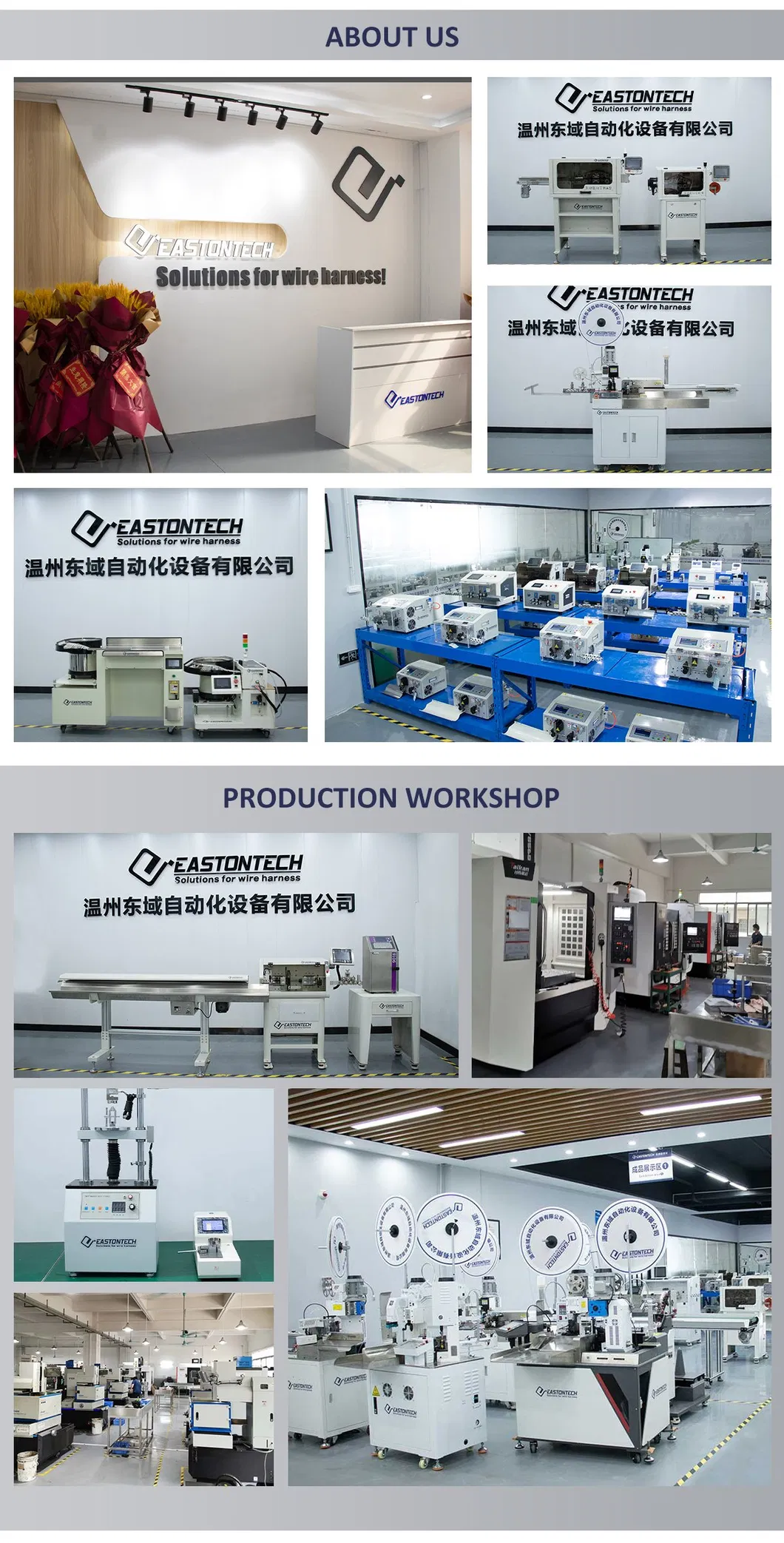

Machine Detail 3
Machine Detail 4
Machine Detail 5
❓ Frequently Asked Questions
What types of machines are produced?
We specialize in a comprehensive range of machines for wire harness processing, including cutting, stripping, and crimping solutions.
What are the main functions of your wire processing machines?
Our equipment can perform various tasks such as cutting, stripping, crimping, tinning, soldering, binding, and tying.
How is the equipment packaged for shipping?
All machines are packed using standard export cartons and sturdy wooden cases to ensure maximum protection during transit.
What shipping methods are available?
We offer shipping via express (DHL, UPS, FedEx), air freight for orders over 100kg, and sea freight for large quantities through major ports like Shanghai, Ningbo, or Shenzhen.
What is your after-sales service policy?
We provide a 1-year guarantee where parts are free to replace if worn out (delivery fee excluded). We also offer life-long technical support and maintenance for all sold products.
Do the machines support customization?
Yes, custom options are available based on specific requirements. You can send samples to ensure the machine configuration meets your wire material needs.
