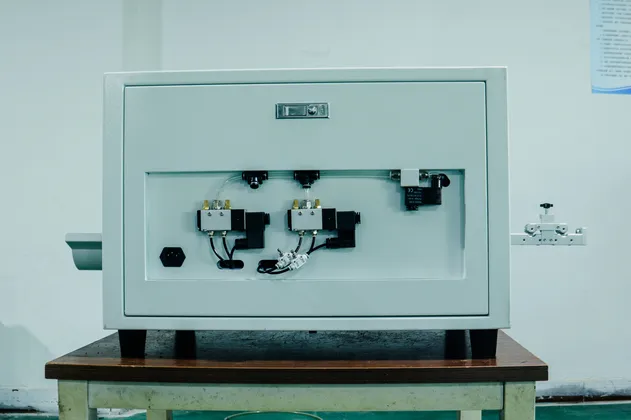

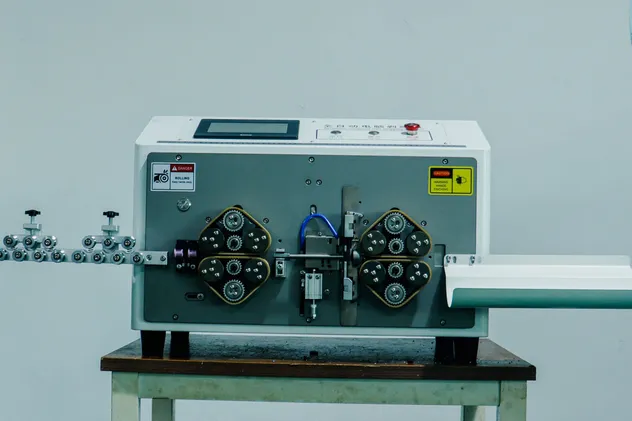

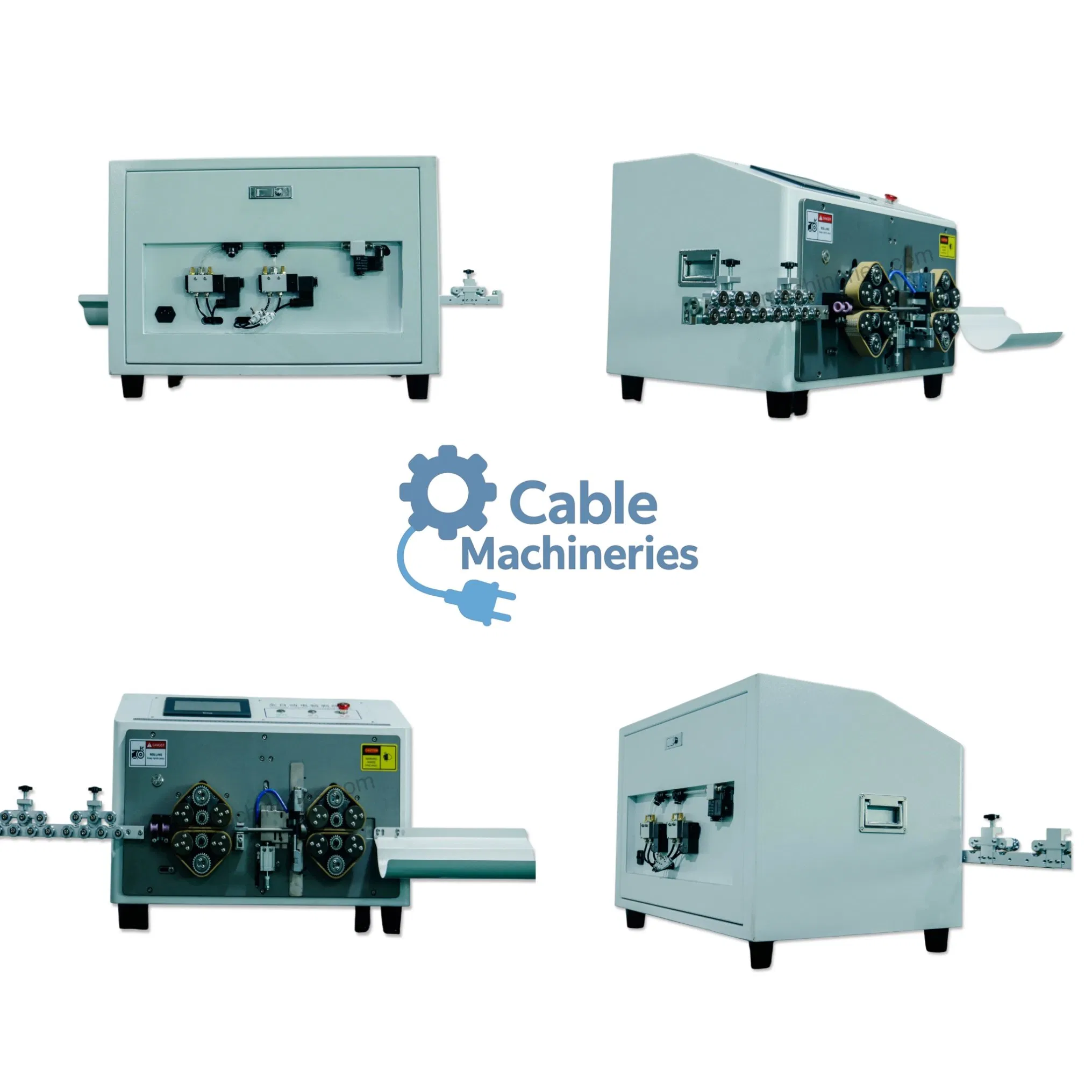

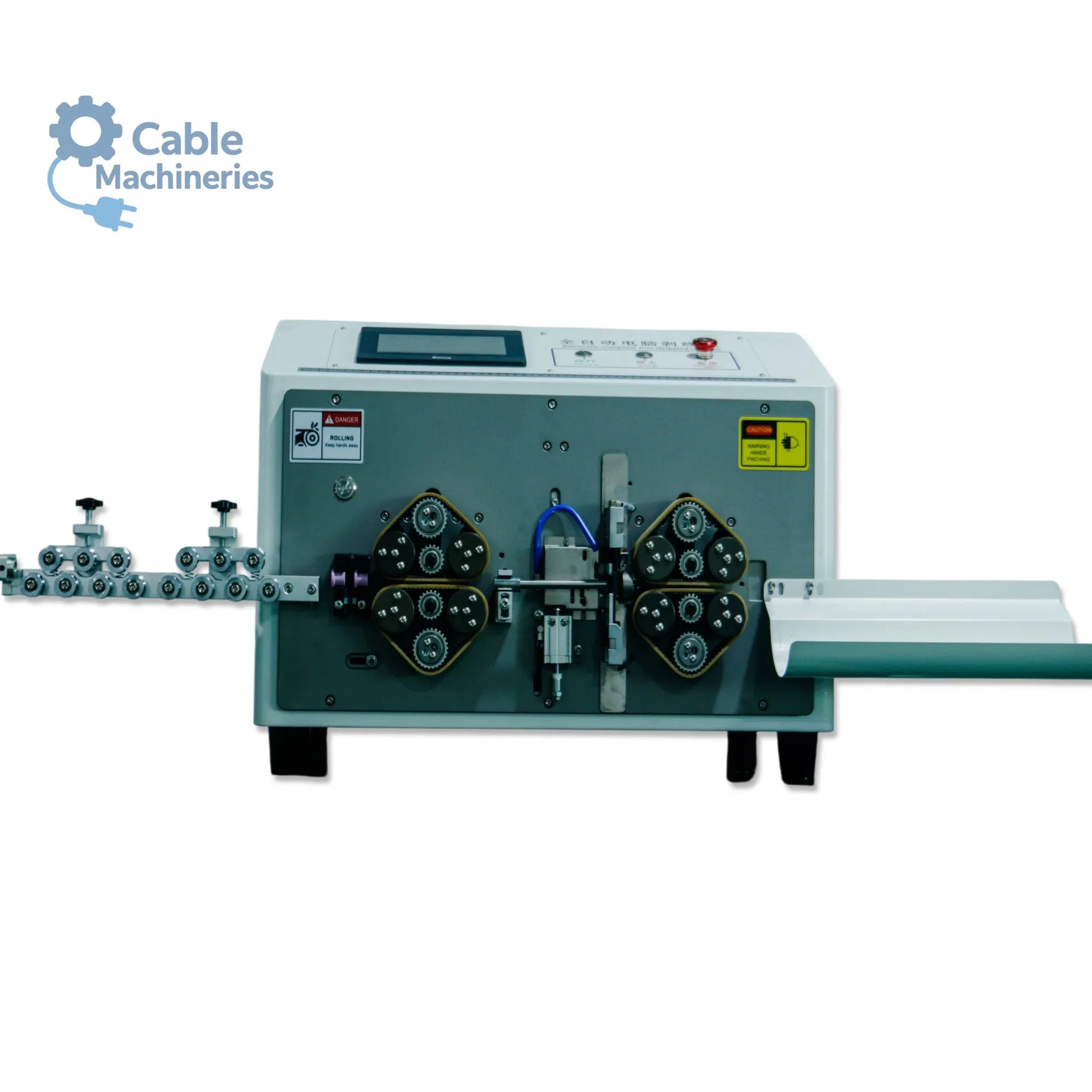

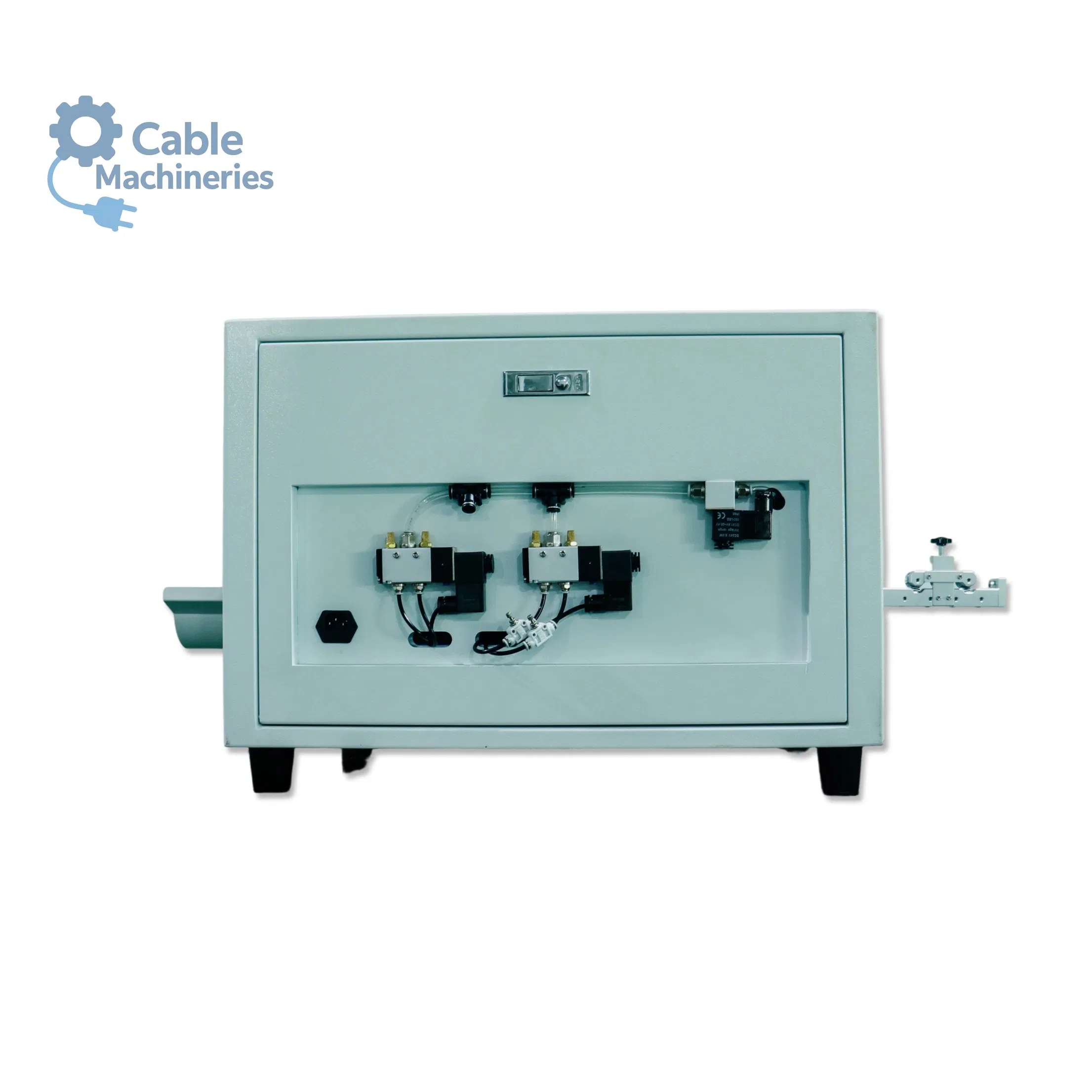

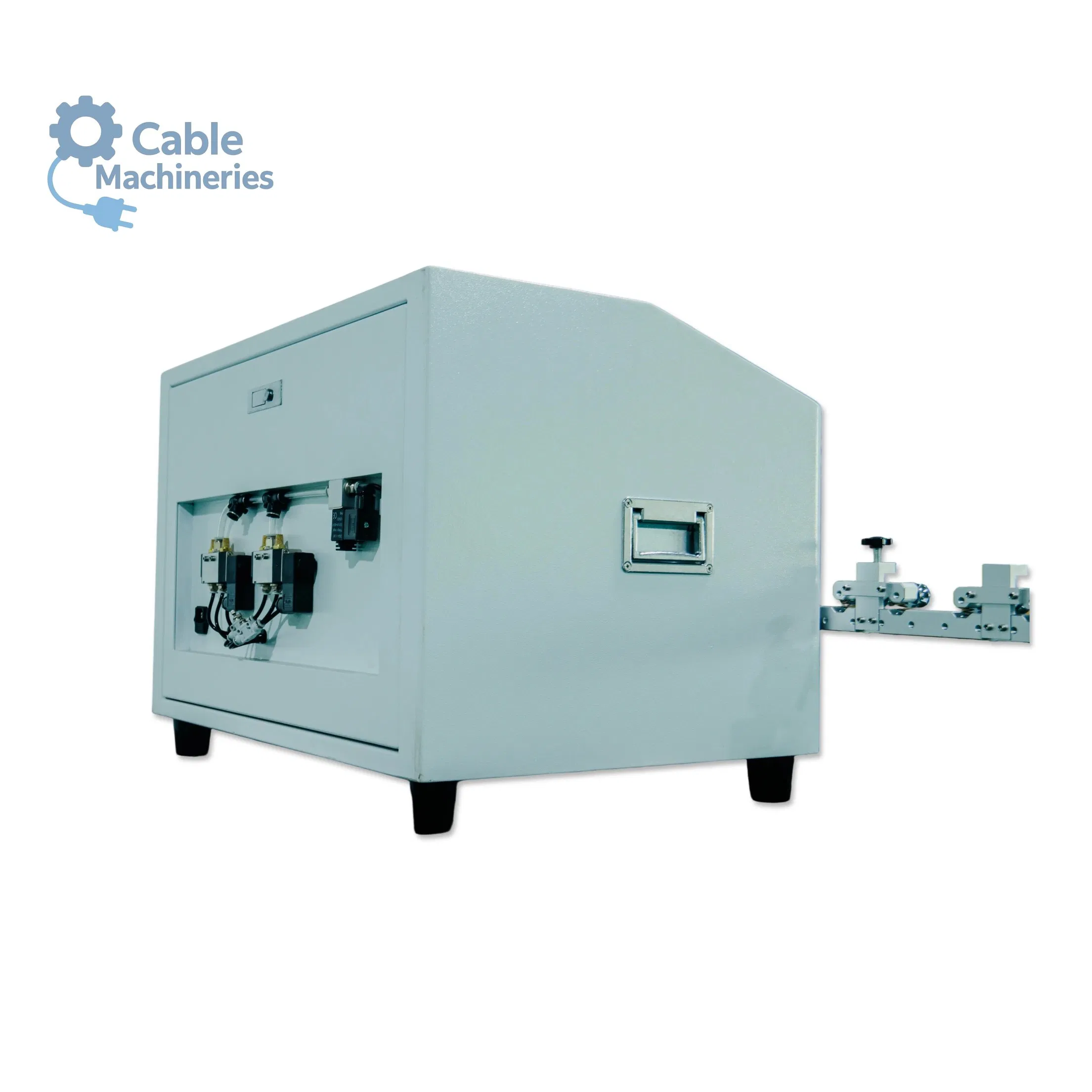

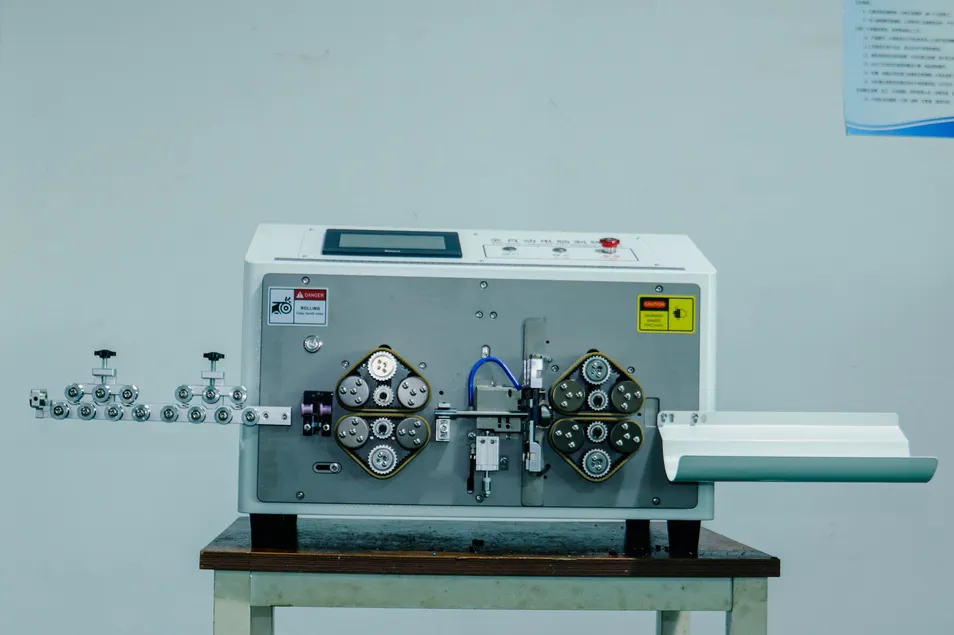

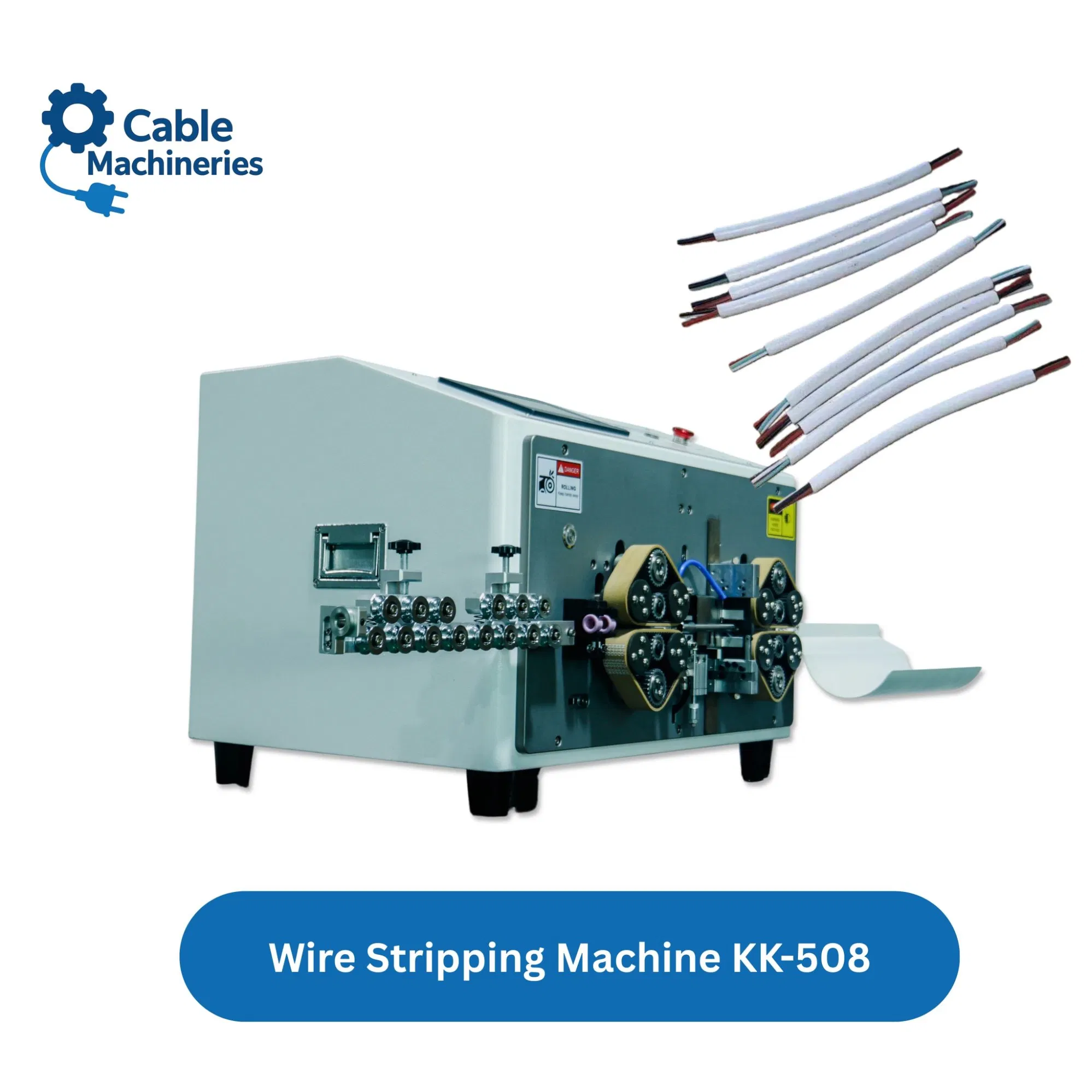

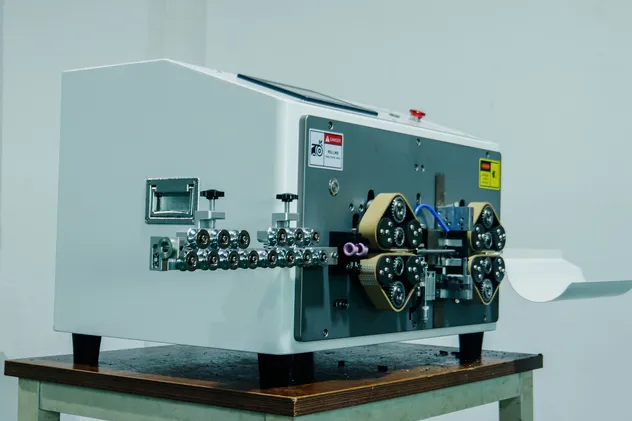

KK-508 Fully Automatic Wire Stripping Machine (Belt Drive)
The KK-508D is a fully automatic wire stripping machine, featuring a multilingual (Chinese/English) LCD touchscreen interface. It supports storage of up to 100 programs for instant recall, ensuring fast and efficient operation.

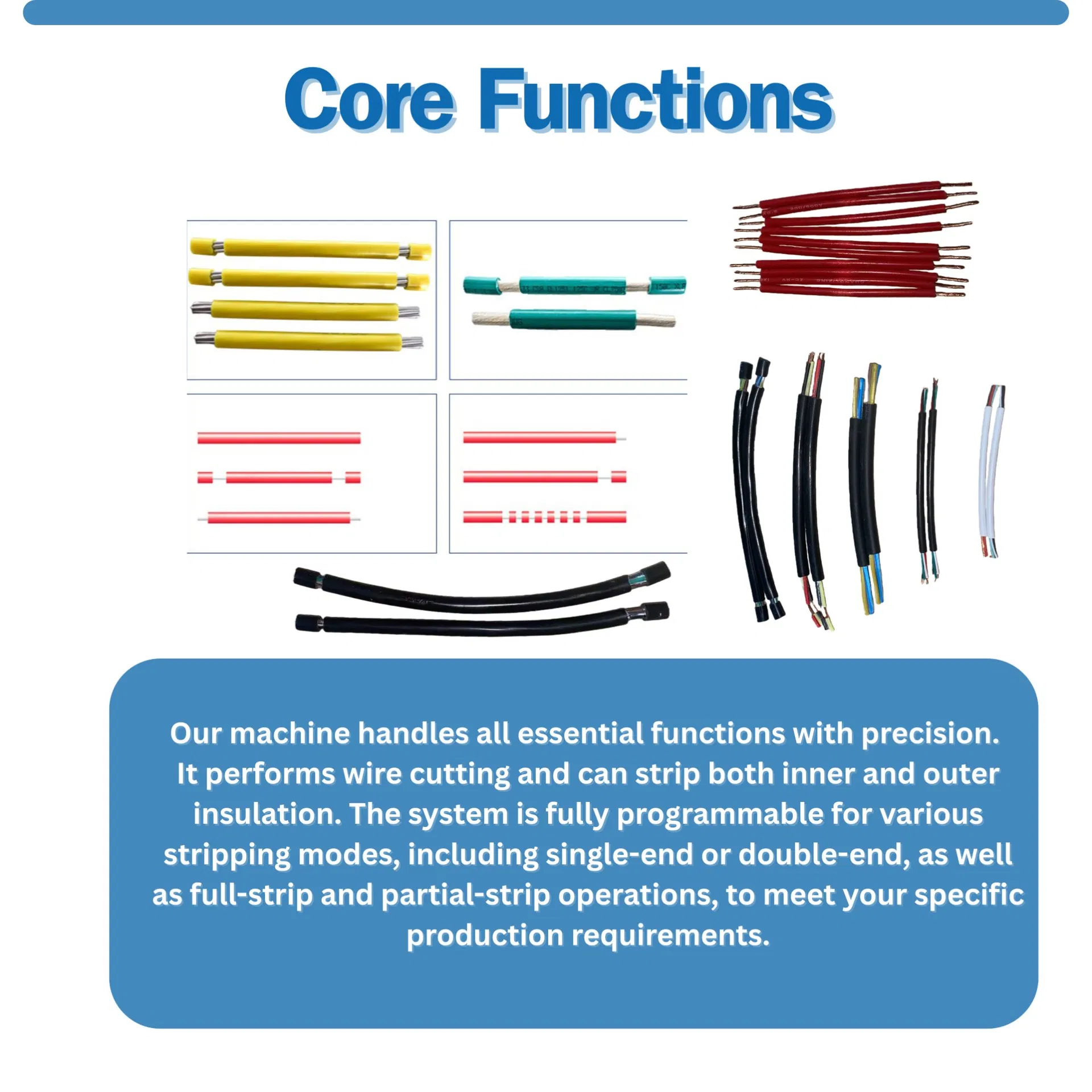

Equipped with high-end servo-driven lead screw slide rails and precision cutting blades, it delivers ultra-high accuracy with zero length deviation and superior production output. Ideal for stripping various wire types, including Lighting wires, Power cables, Flat power cords, and USB data cables. It is capable of simultaneous jacket and conductor stripping in one cycle.
| Parameter | Specification |
|---|---|
| Model | KK-508 |
| Power Supply | AC 175-250V, 50/60 Hz |
| Power Consumption | 120-220W |
| Production Capacity | 400–1,200 strips |
| Machine Dimensions | 680mm×560mm×480mm (L×W×H) |
| Weight | 90 kg |
| Display | 7-inch Touchscreen |
| Blade Material | Tungsten Steel / Imported High-Speed Steel |
| Maximum Wire Diameter | 1-12mm |
| Stripping Length | Front Stripping 1–300mm, Rear Stripping 1–100mm |
