Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
1 / 5
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine
Advanced Multicore Cable Sheath Cutting and Stripping Machine

Advanced Multicore Cable Sheath Cutting and Stripping Machine

Customization: Available
Driven Type: Electric
Condition: New
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
EW-05F+C
Certification
ISO, CE
Warranty
12 Months
Automatic Grade
Semiautomatic
Conductor Cross-Section
1-30mm2
Core Wire Stripping
2-11 Cores
Capacity
1000PCS./H
Blade Material
Imported Switzerland Tungsten Steel
After-Sales
1 Year Guarantee
Origin
China
📦

Packaging & Delivery

Package Size
120.00cm * 150.00cm * 130.00cm
Package Gross Weight
350.000kg
Package Type
Export Wooden Case
⚙️

Product Description

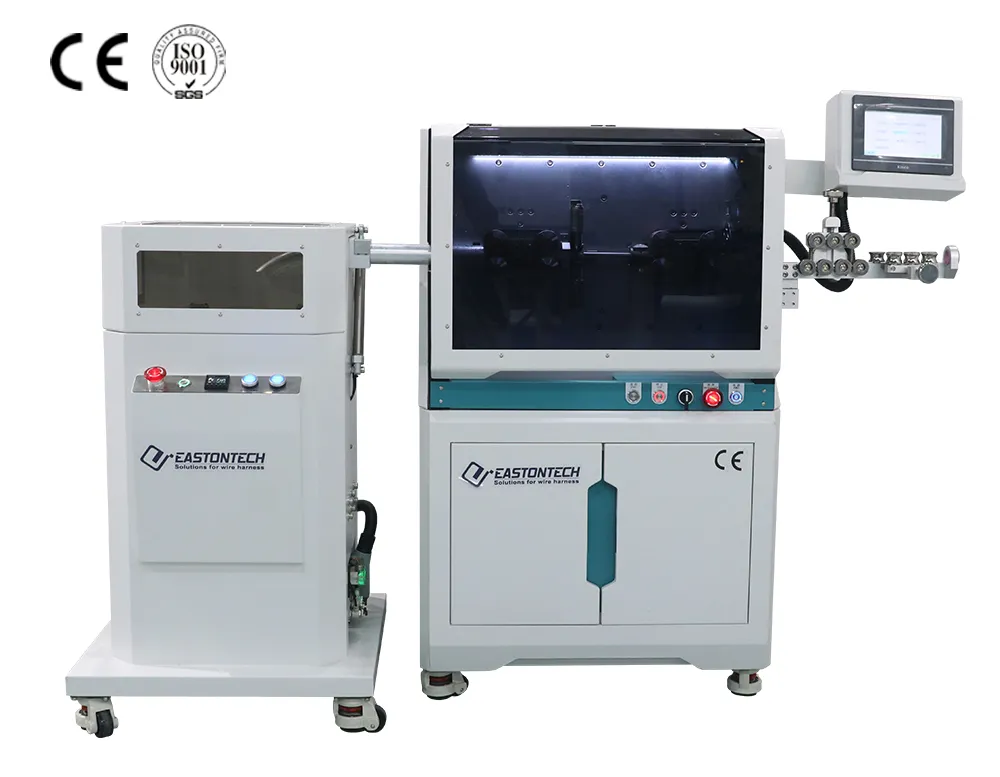

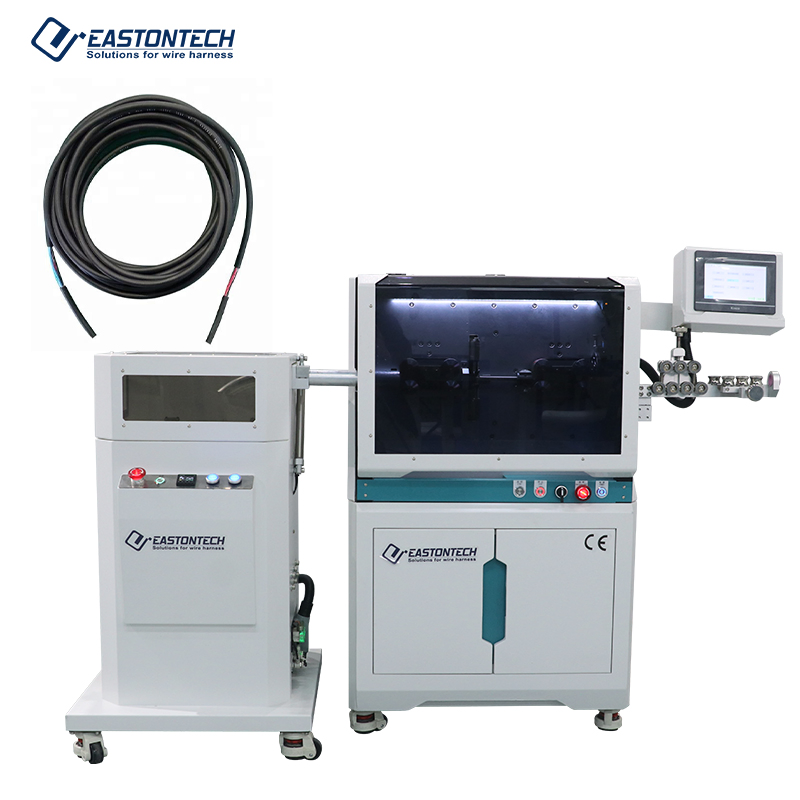

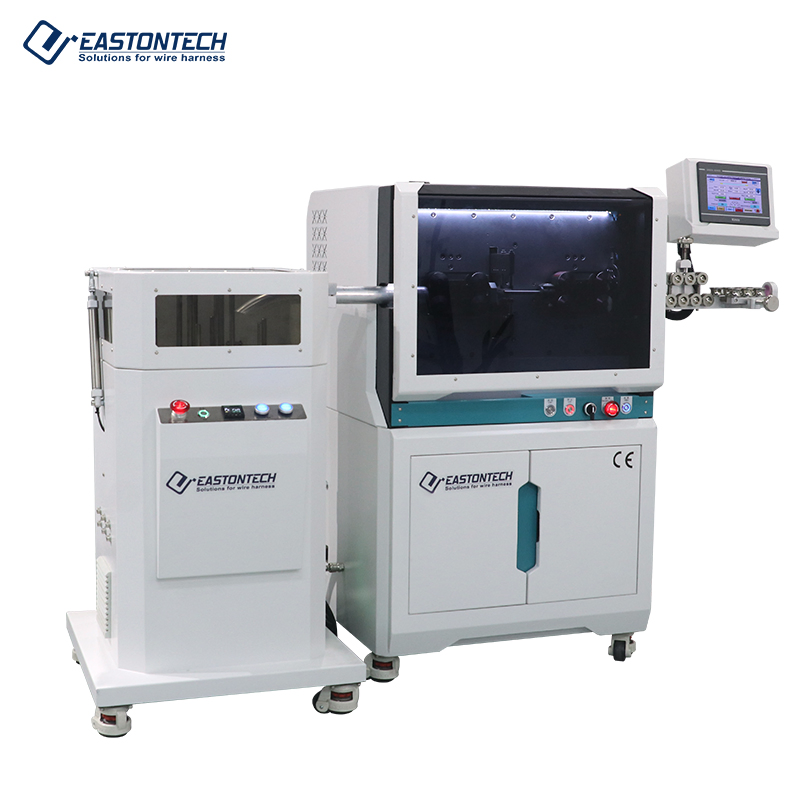

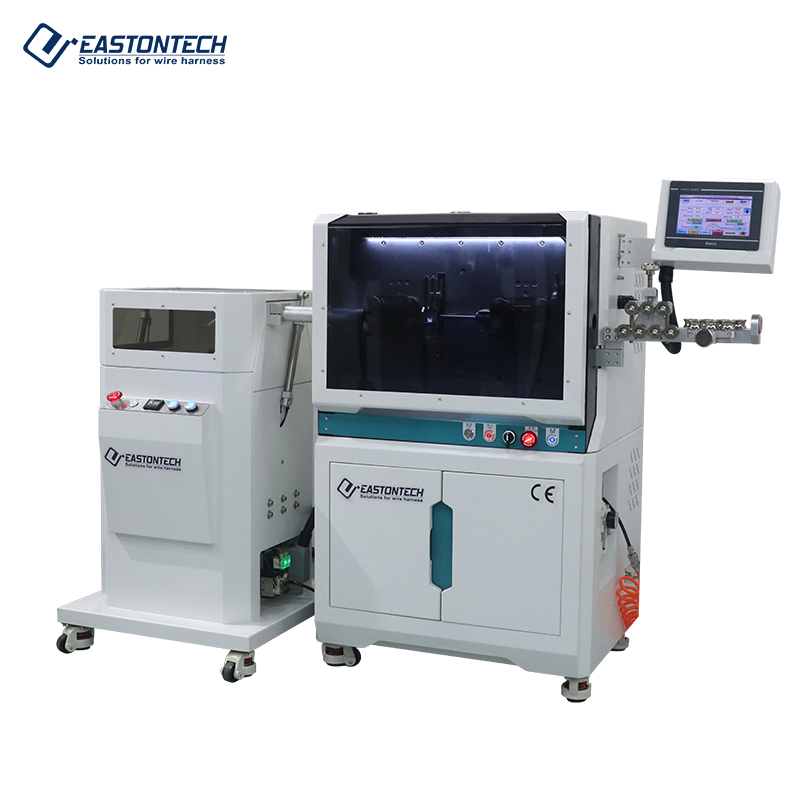

Advanced Multicore Cable Sheath Cutting and Stripping Machine

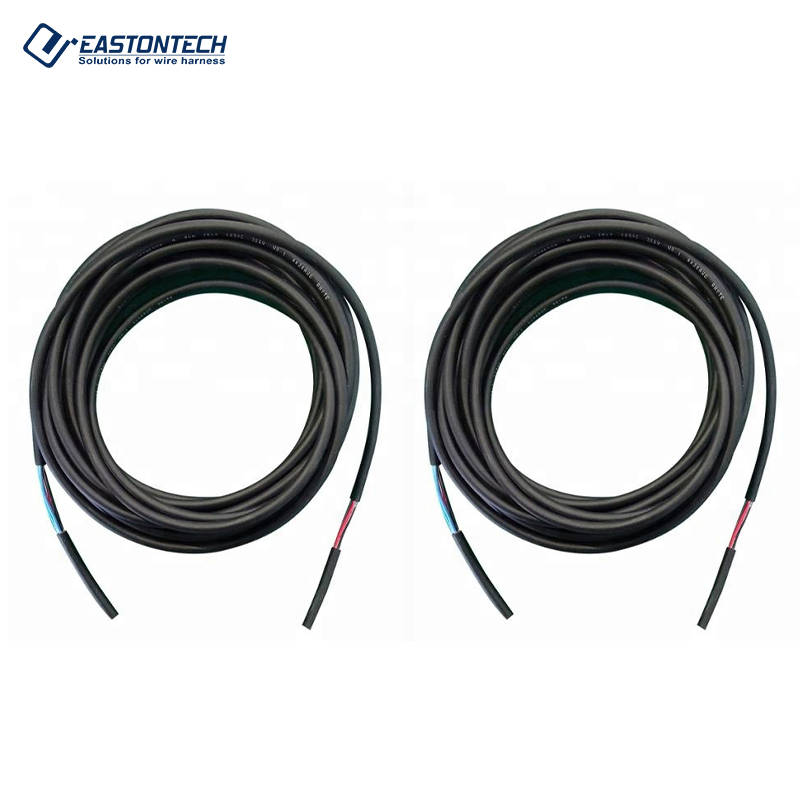

The EW-05F is a versatile cut and strip machine designed for multi-core cables (max. 11 cores) and multi-stranded single wire up to 30 mm².

  • 🔵 High Productivity: Powered by a hybrid servo motor, maximizing productivity up to 600 pcs./h (400 pcs./h for multi-core cables).
  • 🔵 Precision Stripping: Uni-V jacket stripping blades (optional radius blades for special materials).
  • 🔵 Core Versatility: Uni-flat core wire blades for up to 11 core wires (optional teeth blades for rubber insulation).
  • 🔵 Feeding Accuracy: Enhanced feeding force with high-precision feed length (0.1 mm increments) ensuring no scratch marks.
  • 🔵 Digital Control: Roller set gap is easily adjusted via PLC touch screen, removing the need for manual adjustment.
  • 🔵 Customizable: Optional pre-feeder, middle strip module, twist module, coiler, and ink-jet printer.
Machine Detail View
Model EW-05F+ EW-05F+-1
Conductor cross-section0.75 - 30 mm²
Cable TypeSingle/Multi-core, Sheathed, PVC etc.
Core wire stripping2-10 coresN/A
Cutting length1 - 99,999.9 mm
Tolerance< 0.002 * L
Productivity2000 pcs./h (900 for multi-core)2000 pcs./h
Power Supply110/220 V (50-60 Hz), 1.1 kW
Weight95 kg
Dimensions680 * 605 * 520 mm
📸

Product Gallery

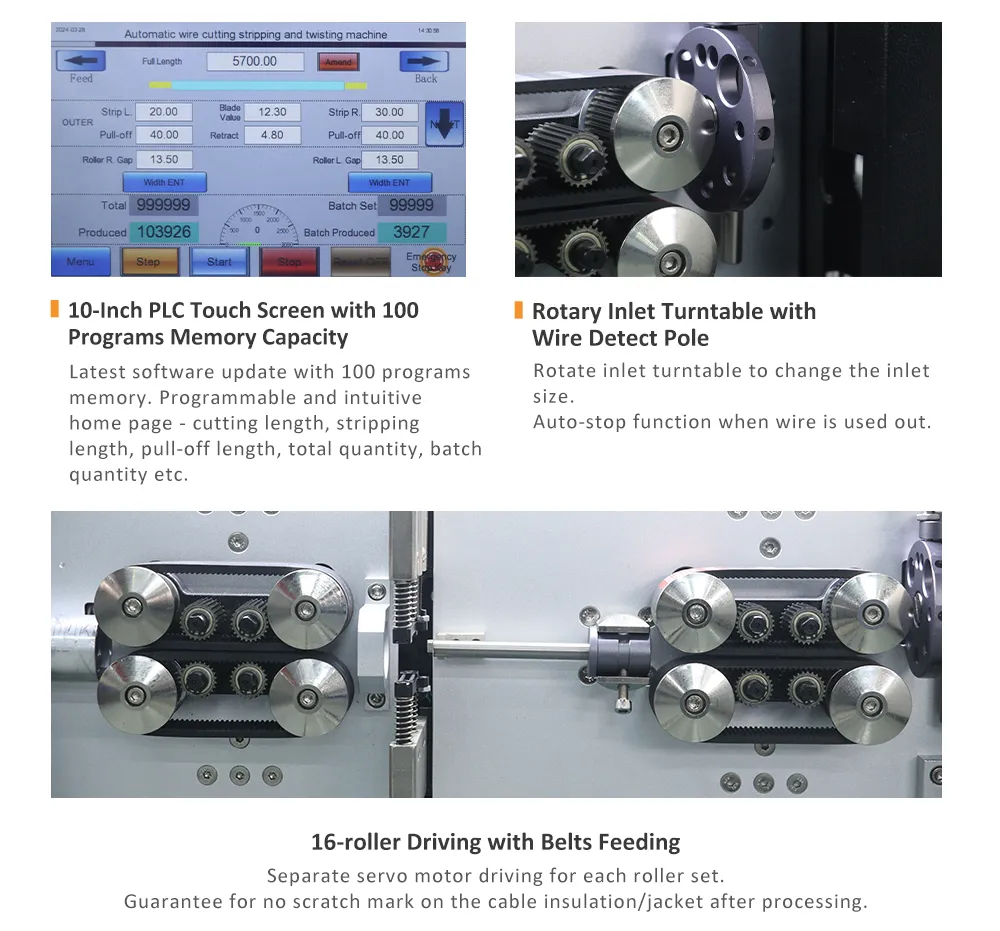

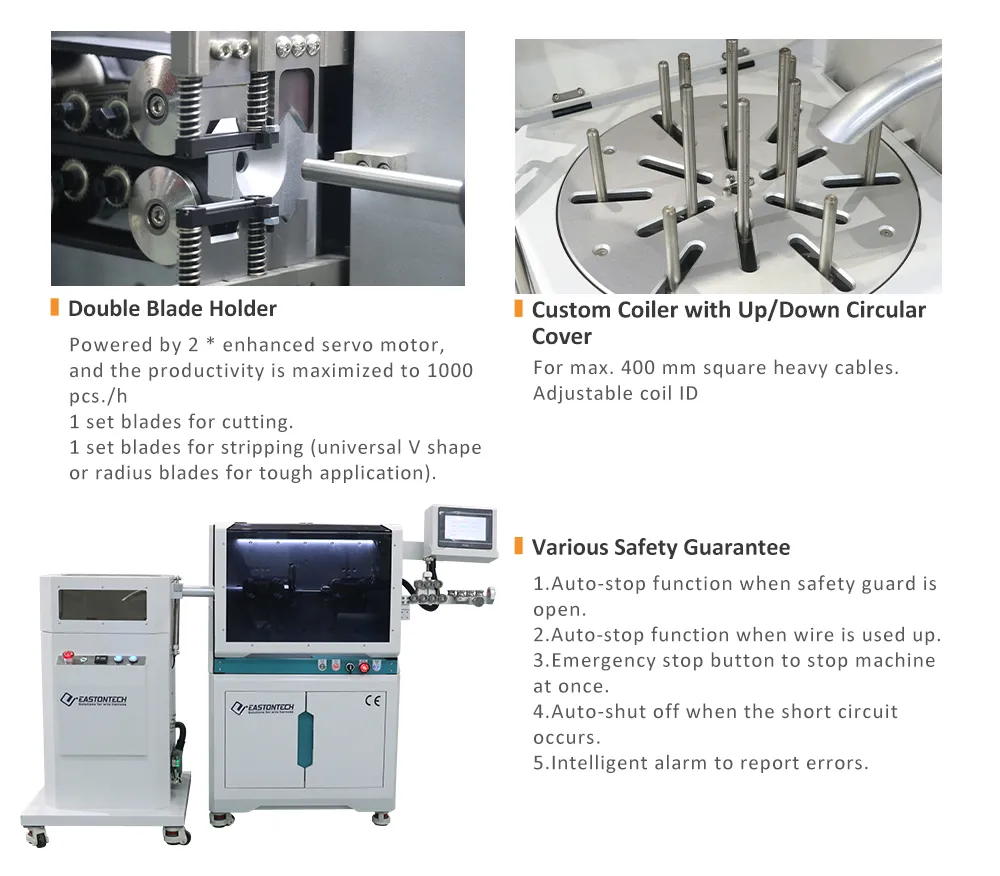

Cable stripping detail 1 Cable stripping detail 2 Cable stripping detail 3
🏢

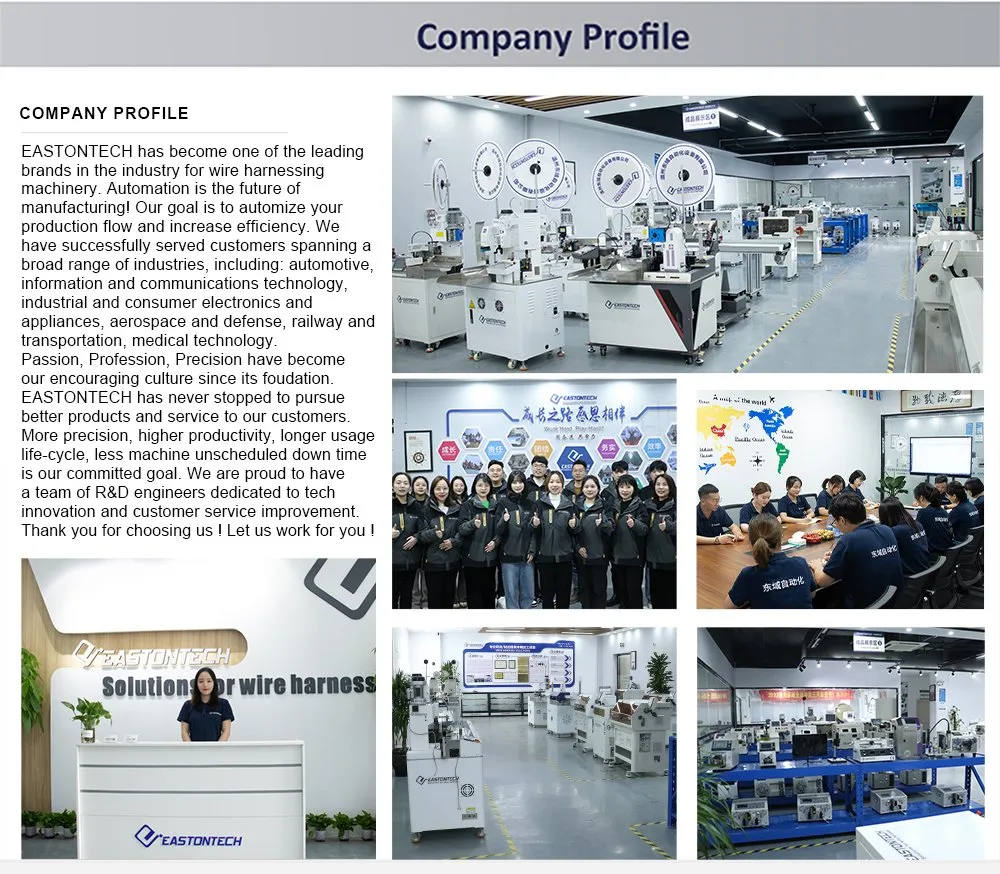

Production Environment

Workshop 1 Workshop 2

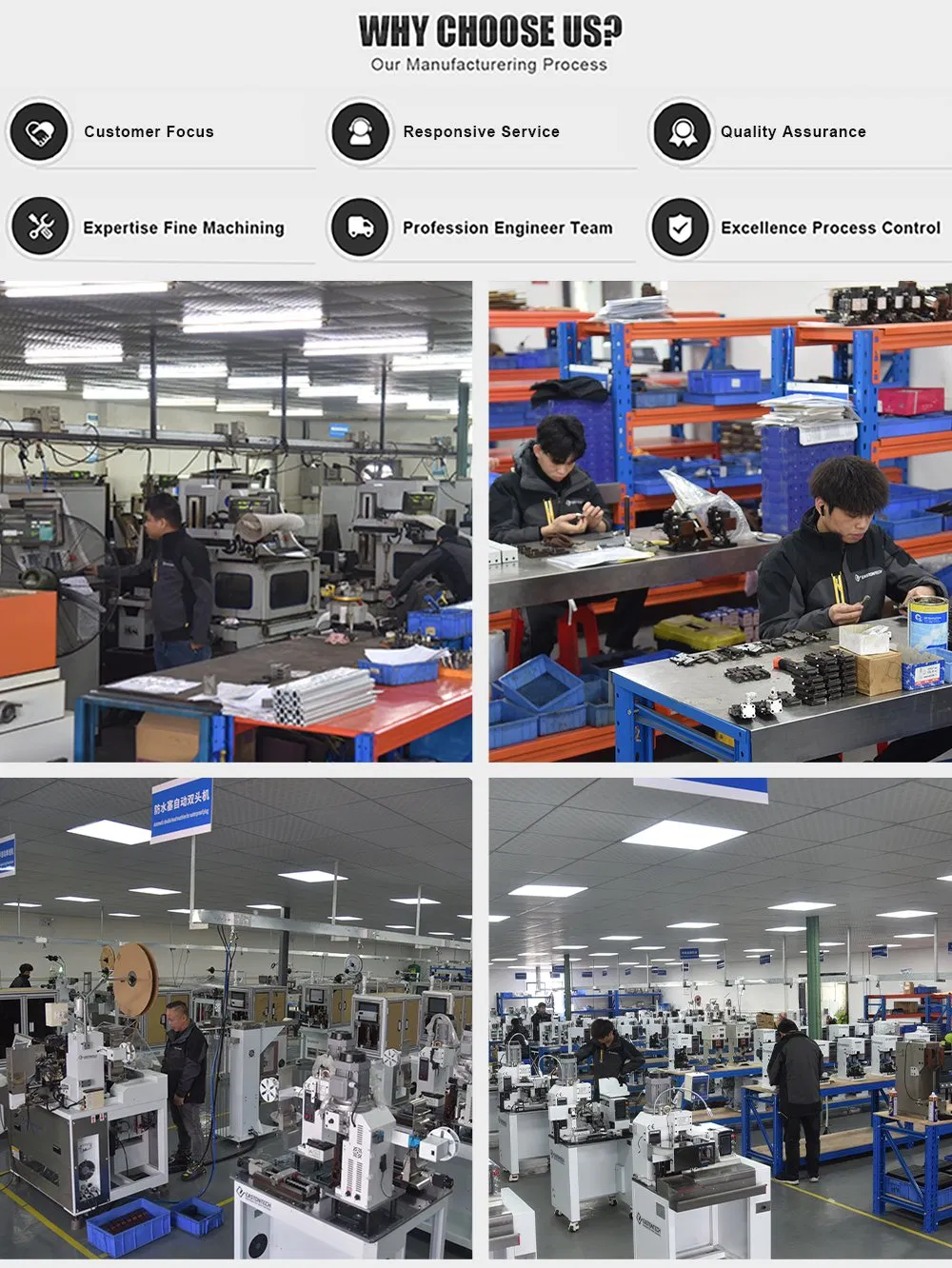

Quality Control Warehouse
❓

Frequently Asked Questions

What types of machines do you specialize in?
We specialize in high-precision machinery for wire harness processing, including cutting, stripping, and crimping solutions.
What are the primary functions of your processing machines?
Our machines handle a wide range of tasks: cutting, stripping, crimping, tinning, soldering, binding, and tying of various wire types.
What materials can the EW-05F series process?

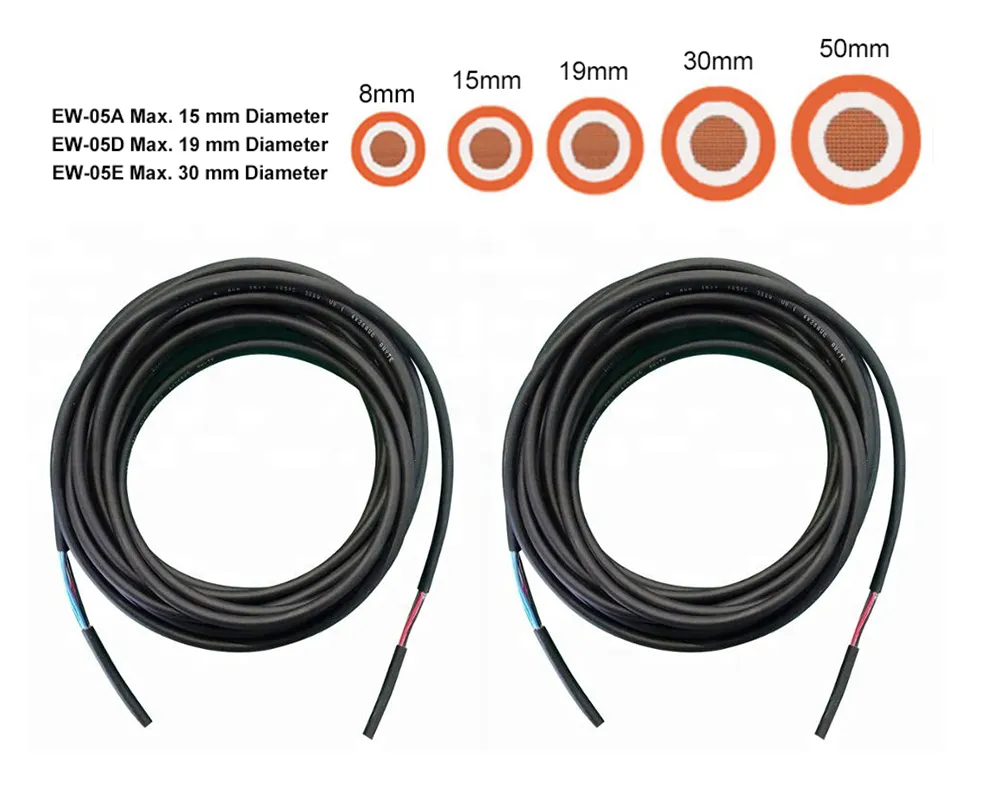

It is designed for multi-core cables (up to 11 cores) and single stranded wires with cross-sections up to 30mm².
How is the equipment packaged for international shipping?
All machines are packed in standard export-grade cartons and reinforced wooden cases to ensure safe delivery via express, air, or sea.
What is your after-sales support policy?
We offer a 1-year warranty on parts and provide life-long technical support and maintenance guidance for all sold products.
Is manual adjustment required for different wire sizes?
No, the roller gap and pressure are digitally controlled via the PLC touch screen, allowing for automatic adjustments based on your settings.
