Parallel Stainless Steel Fermenter System

Customization:	Available
After-sales Service:	Yes
Warranty:	1year

Technical Overview

Model

MKY-SS

Function

Reaction Pressure Vessel

Pressure

0.1MPa≤p<1.6MPa

Medium

Moncombustible/Nontoxic

Certification

CE, ISO9001

Automatic Grade

Automatic

Liquid Filling

40-75%

Tank Material

Tank 316L / Jacket 304

Sealing Type

Mechanical Sealing

Drive Type

Servo Drive/Frequency Converter

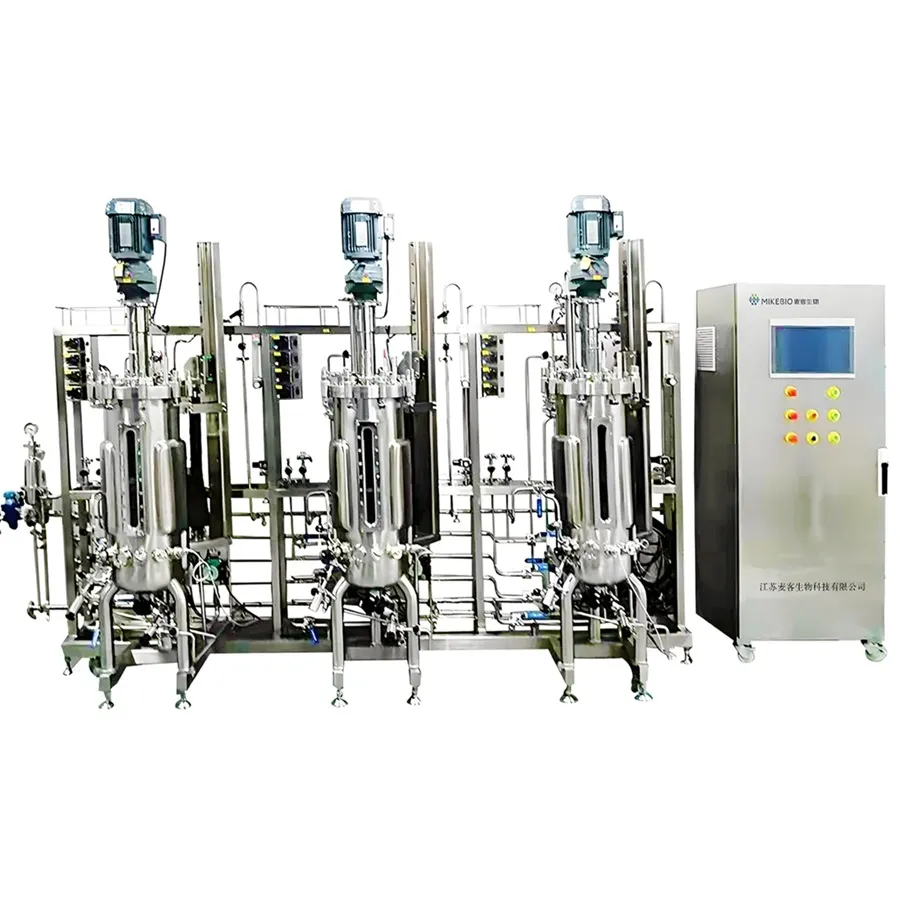

Parallel Stainless Steel Fermenter System

Designed specifically for high-throughput R&D and small-scale production, this system integrates multiple independently controlled components. It supports the simultaneous conduct of multiple sets of experiments, ideal for multi-variable fermentation parameter optimization and microbial culture process exploration.

Key Features:

Multi-tank parallel operation: Supports simultaneous parallel experiments of different strains.
Independent regulation: Individual control for temperature, pH, and dissolved oxygen per tank.
Sanitary grade structure: Corrosion-resistant 304/316L stainless steel, easy to clean.
Flexible expansion: Modular design allows increasing or decreasing tank numbers as needed.

System Specifications

Parameter	Details	Parameter	Details
Volume	(15L/28L)*3	Agitation	Mechanical/Magnetic Stirring
Filling Coefficient	40-75%	Sterilization	Sterilization In Place (SIP)
Control Type	PLC + Touch Screen, Full-process Automatic Control
Basic Config	Temp, pH, DO, Defoaming, Feeding, Speed, Air Flow, Pressure, Filtration
Optional Config	OD, ORP, Conductivity, Tank/Feed Weighing, Tail Gas Analysis, Multi-gas Channel

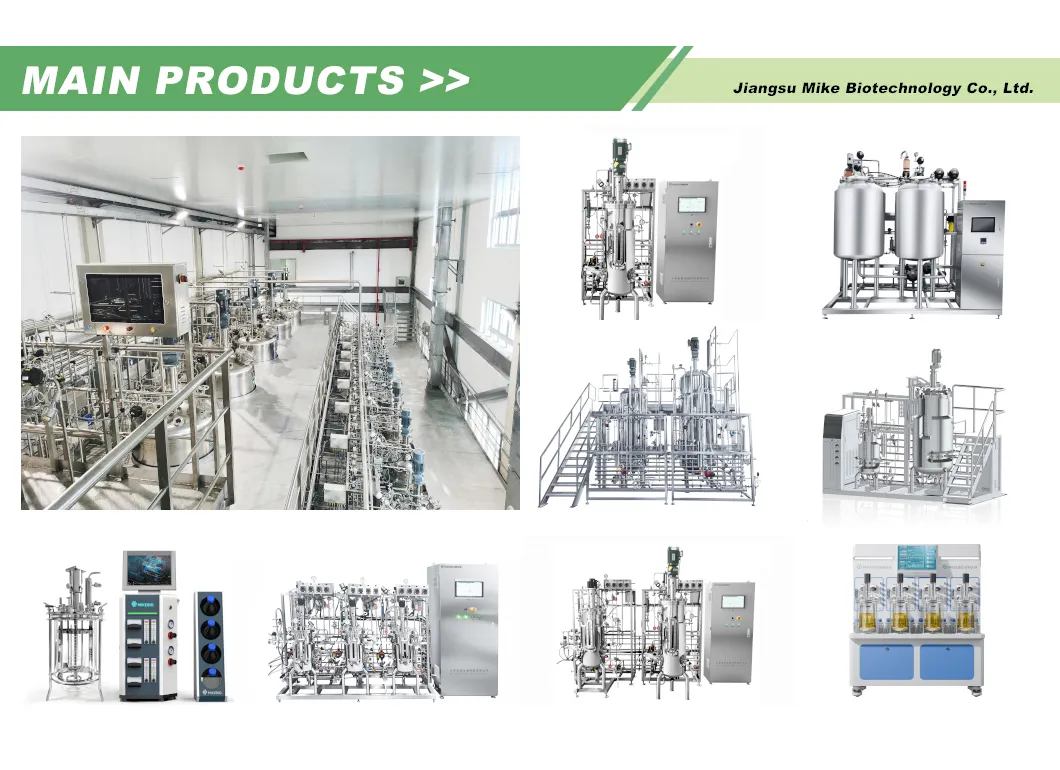

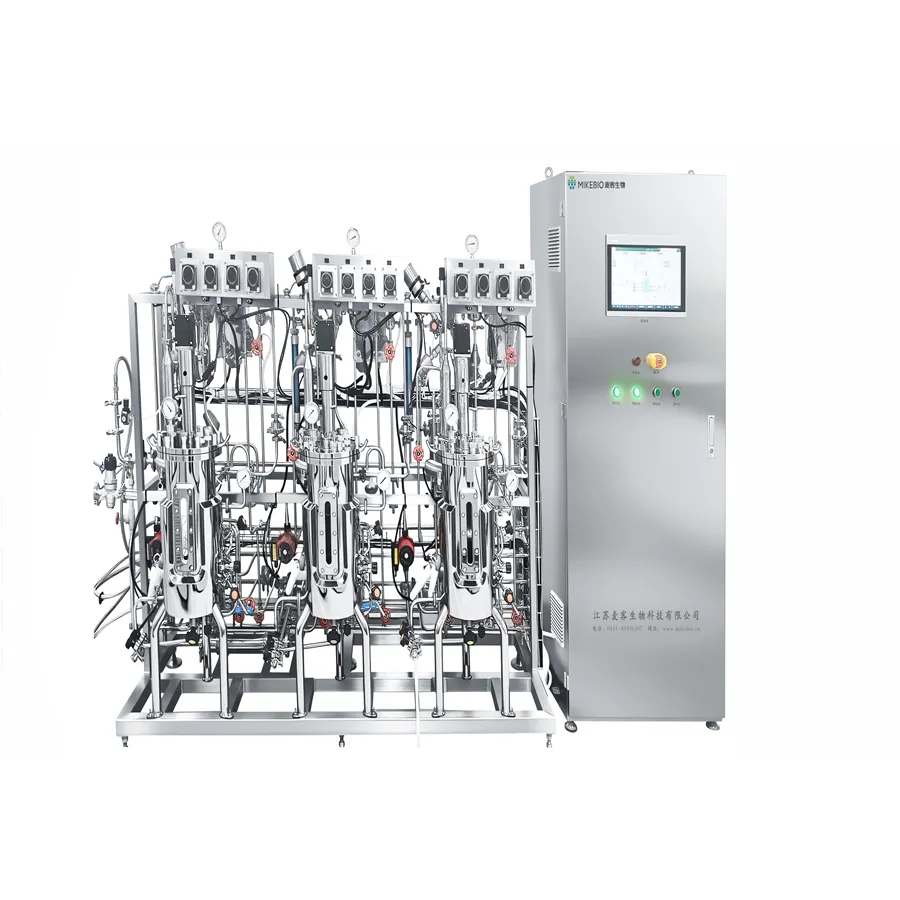

Product Showcase

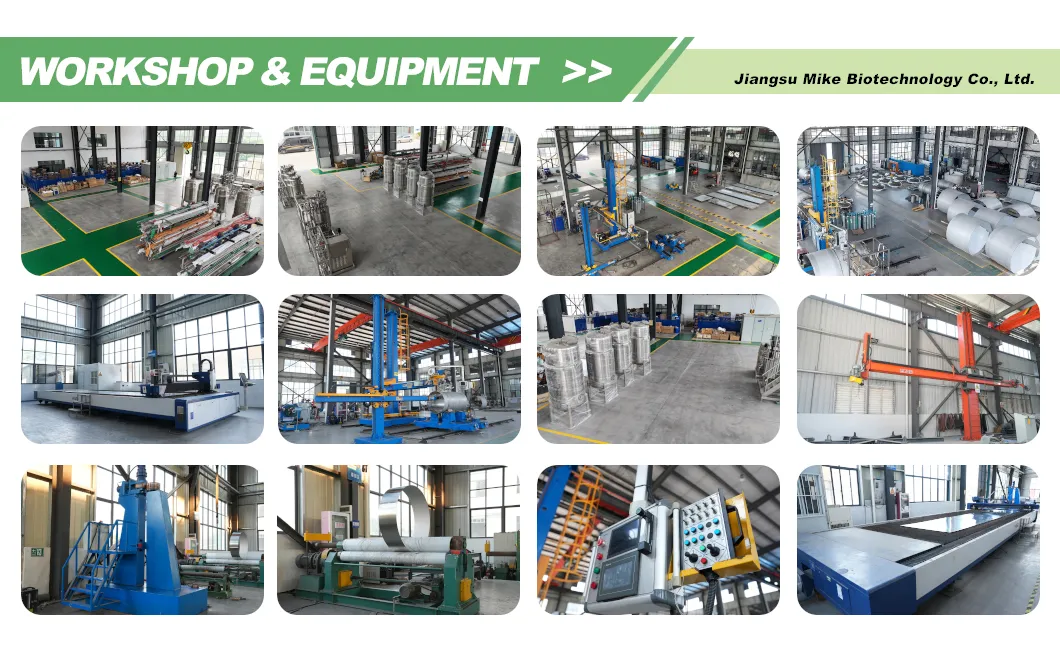

Manufacturing Excellence & Advantages

Our production utilizes automated standard operating procedures, including laser cutting, automatic tank polishing, and endoscopic weld inspection. We adhere to high-level manufacturing standards:

Customized Process Design: System parameters tailored to specific strain characteristics and GMP/ASME BPE specifications.
Micron-level Standards: Surface roughness (Ra) up to 0.1μm; full-process quality control including radiographic testing.
Intelligent Control: High-precision regulation (Temp ±0.2℃, pH ±0.03) with IoT functionality for remote diagnosis.
Modular Installation: Self-flowing slope design for efficient discharge and reduced contamination risk.

Packaging & Global Shipping

Premium Packaging: Multi-layer protective materials and customs-standard reinforced wooden cases.
Sea & Air Freight: Cost-efficient port-to-port or express lab-scale delivery options.
Tracking: Real-time shipment tracking with dedicated logistics support and insurance.

Frequently Asked Questions

Q: What types of fermentation tanks do you offer?

A: We provide customized lab-scale and industrial-scale fermentation tanks, specifically designed for liquid and bacterial fermentation processes.

Q: Can equipment be tailored to specific project requirements?

A: Yes. All systems are fully customizable, including tank volume, material configuration, and control systems to match your unique process needs.

Q: Do the products comply with international standards?

A: Yes, our equipment meets EAC, CE, and ASME standards, ensuring compliance for Europe, North America, and Eurasia.

Q: What is the typical production lead time?

A: Production ranges from 4 to 12 weeks, depending on the complexity of the equipment and order quantity.

Q: Do you provide international shipping and installation?

A: Yes, we offer worldwide shipping and professional technical teams for on-site installation, commissioning, and operator training globally.

Q: What is the warranty period for the equipment?
