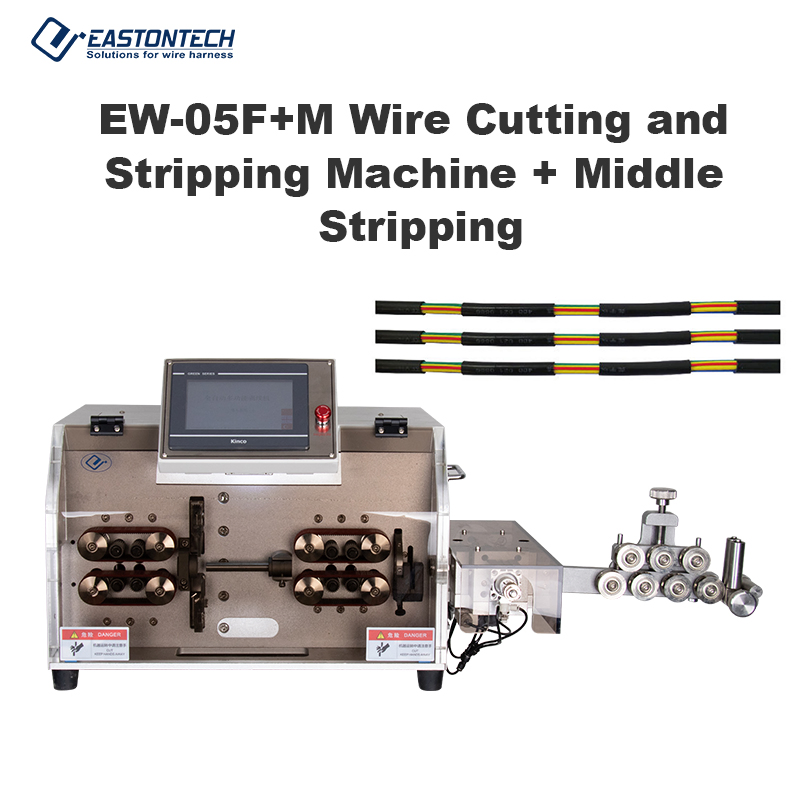

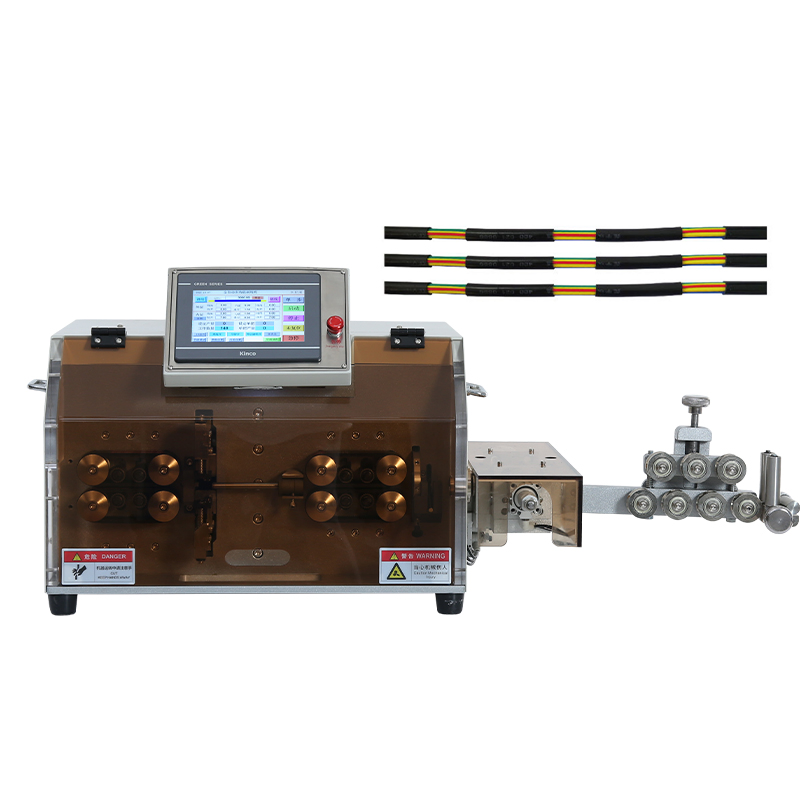

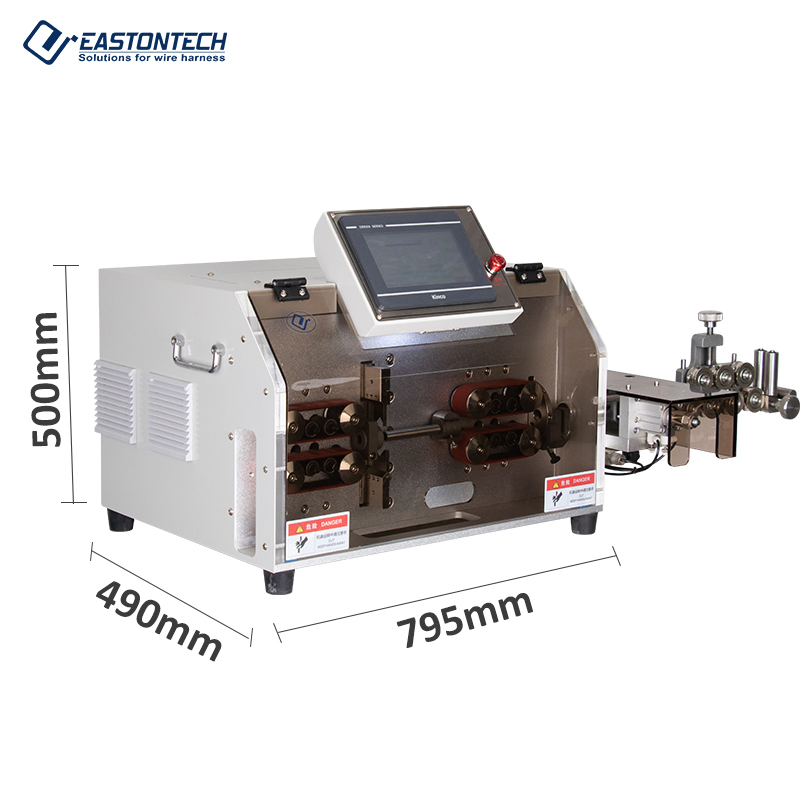

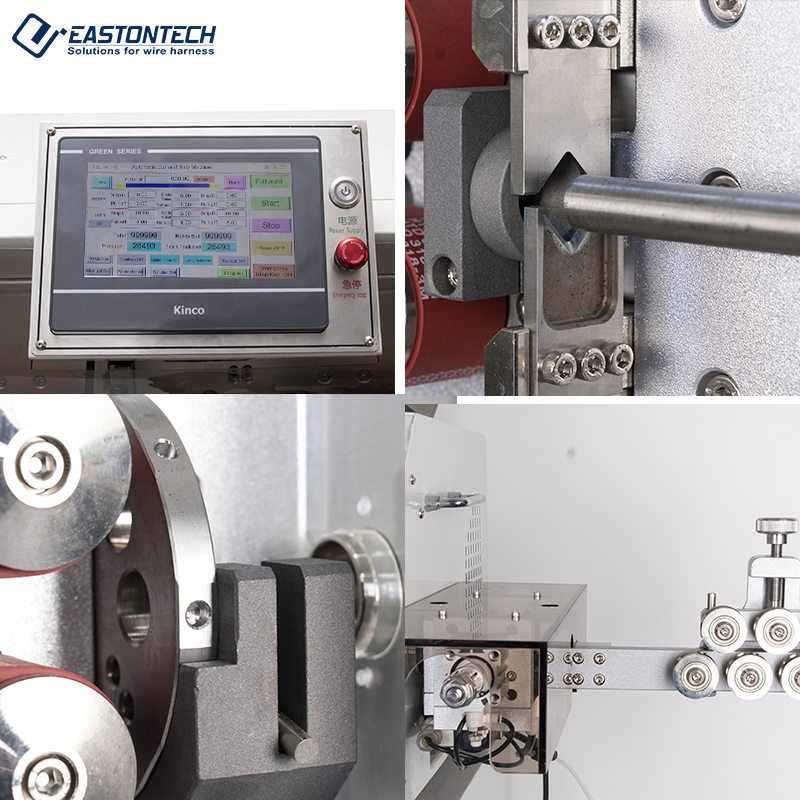

Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
1 / 5
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals
Precision Wire Cutting and Stripping Machine for Professionals

Precision Wire Cutting and Stripping Machine for Professionals

Customization: Available
After-sales Service: 1 Year Guarantee
Driven Type: Electric
Send Inquiry

Product Description

Basic Specifications
Model NO. EW-05F+M Condition New
Certification ISO, CE Warranty 12 Months
Automatic Grade Automatic Conductor Cross-Section 1 - 30 mm²
Core Wire Stripping 2-6 Cores Cutting Length 1 - 99999.99 mm
Productivity 2000 PCS./H Blade Material Imported High Speed Steel
Display Mode 7-Inch Touch Screen Driving Mode 16-Wheel Driving, Silent Hybrid Stepping Motor
Precision Wire Processing
Key Features & Applications

The EW-05F+M combines advanced control systems with high-precision mechanical engineering for versatile wire processing.

1
Multi-conductor Processing: Specialized in cable cutting & stripping including both jacket and inner core stripping.
2
Advanced Middle Stripping: Supports multi-segment stripping up to 32 segments at any interval and length.
3
Multi-step Capacity: Integrated capability for complex multi-step stripping requirements.
4
High Productivity: Optional all-servo motor version available for a 20% increase in production output.
5
Expandable Configuration: Compatible with optional feeding devices, deposit systems, and inkjet printers.

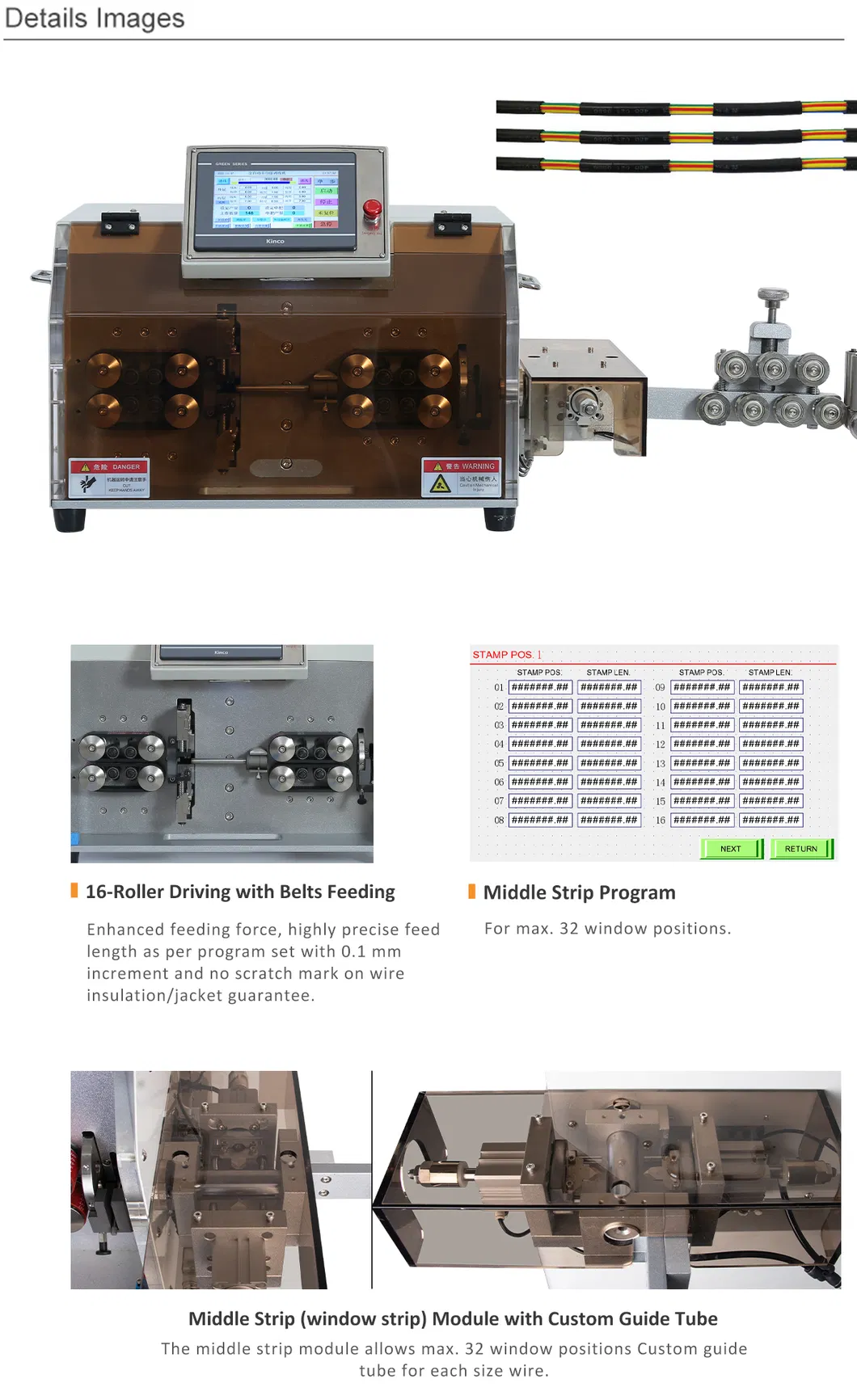

Machine Detail 1

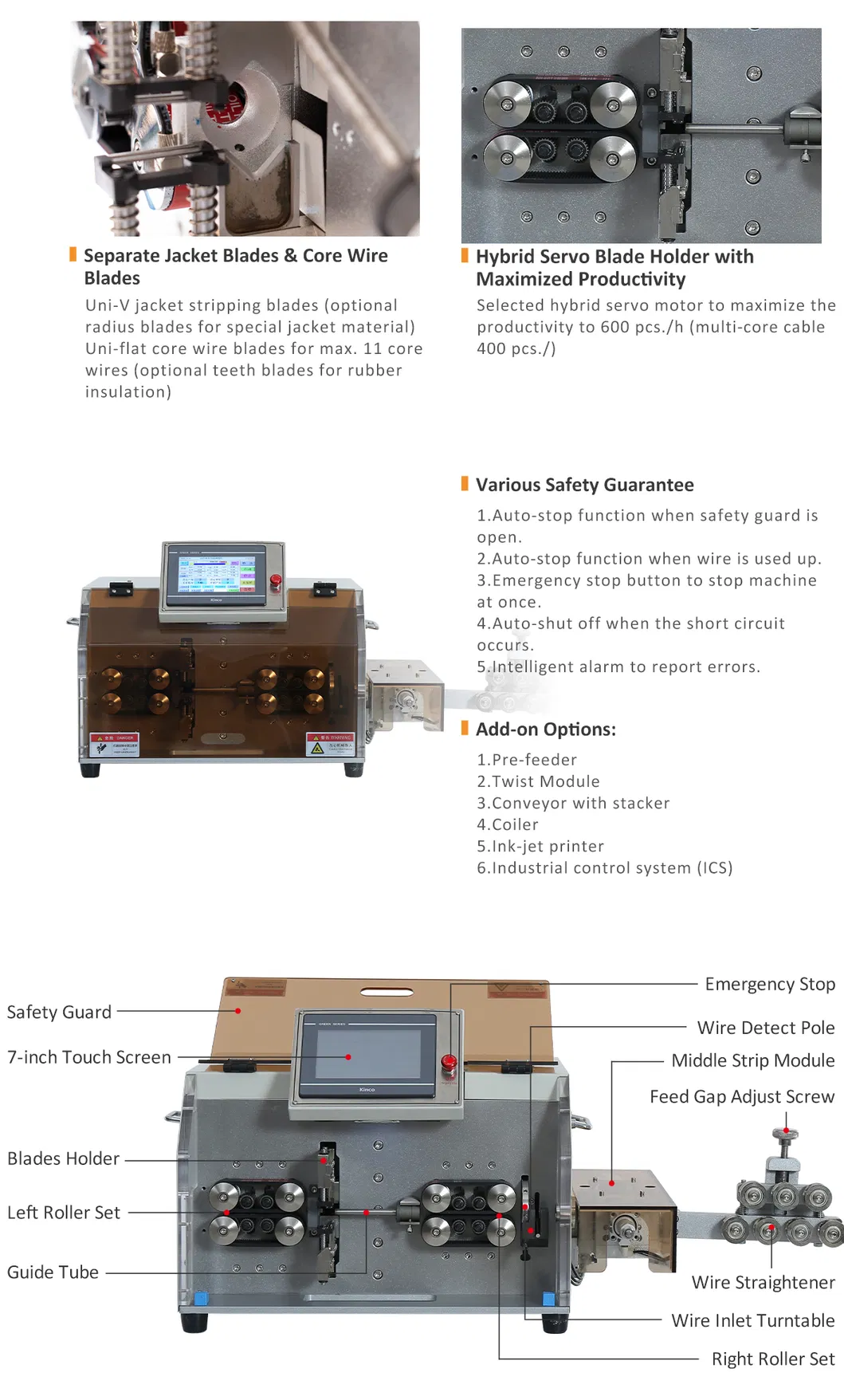

Machine Detail 2
Detailed Technical Parameters
Model Parameter EW-05F+M Specification EW-05F-1+M Specification
Conductor cross-section 1 - 30 mm² 1 - 30 mm²
Core wire stripping 2-6 cores Not available
Cutting length tolerance 0.002 * L (L = cutting length) 0.002 * L (L = cutting length)
Stripping length (Side I) Jacket: 10-99999.99 mm | Inner: 1-50mm Full: 10-99999.99 mm | Half: 1-99999.99
Maximum guide tube 16 mm 16 mm
Feeding mode By Belts By Belts
Product Gallery

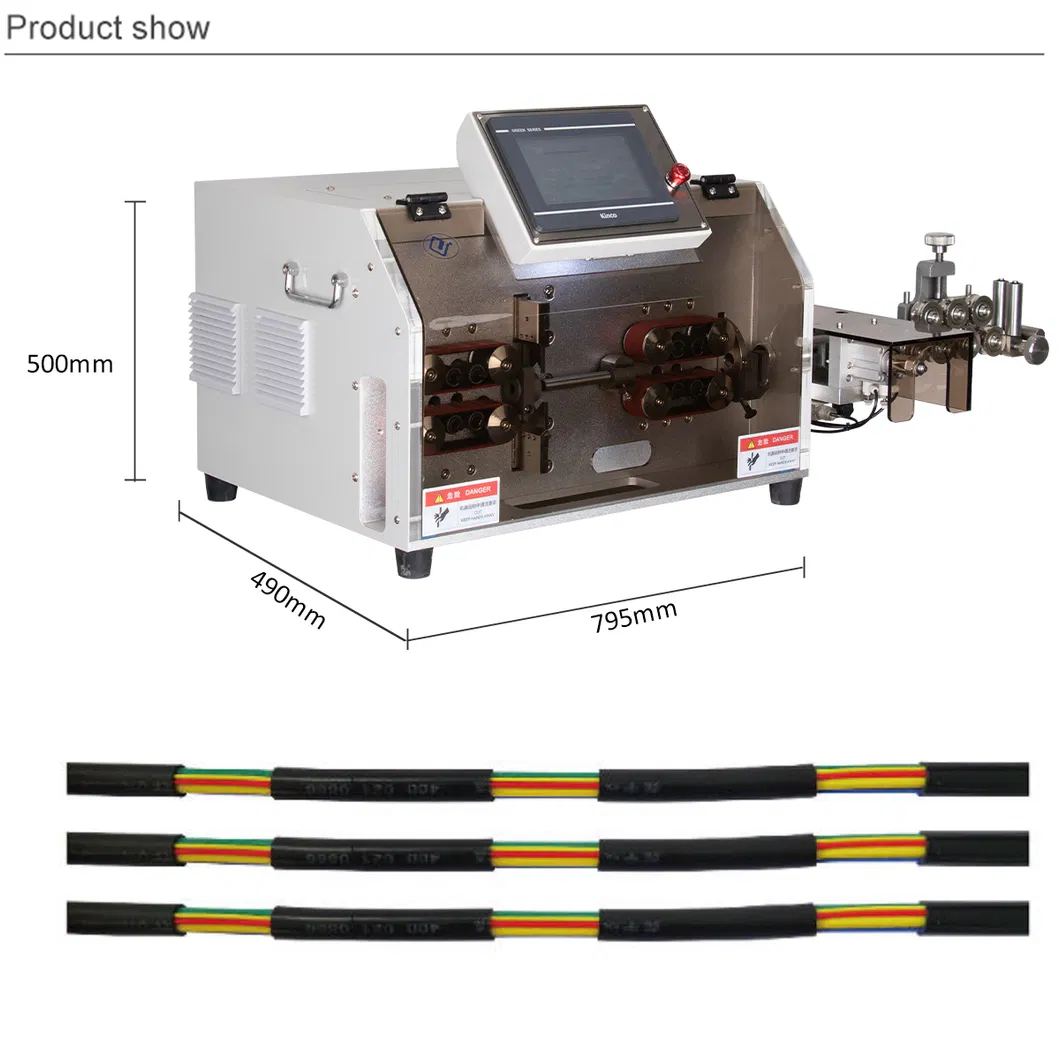

View 1

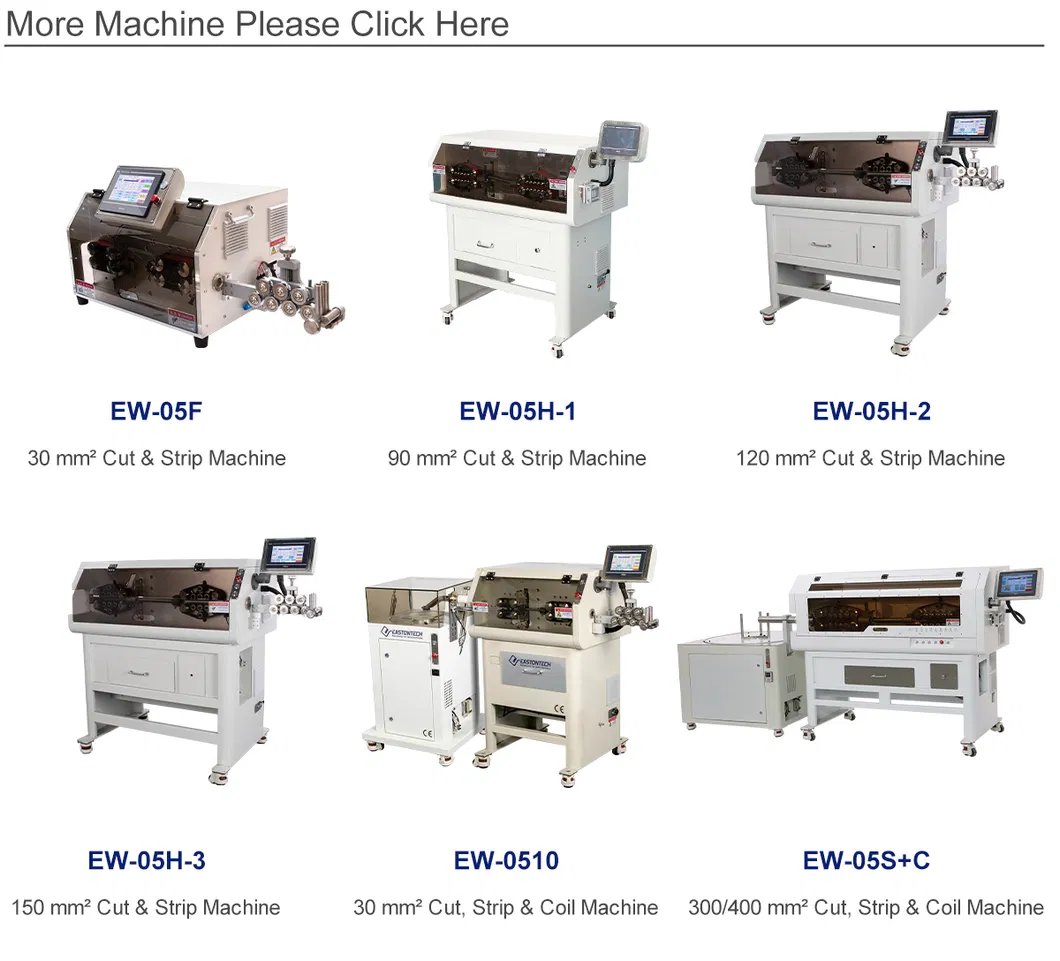

View 2
View 3
View 4
Manufacturing Excellence
Facility 1

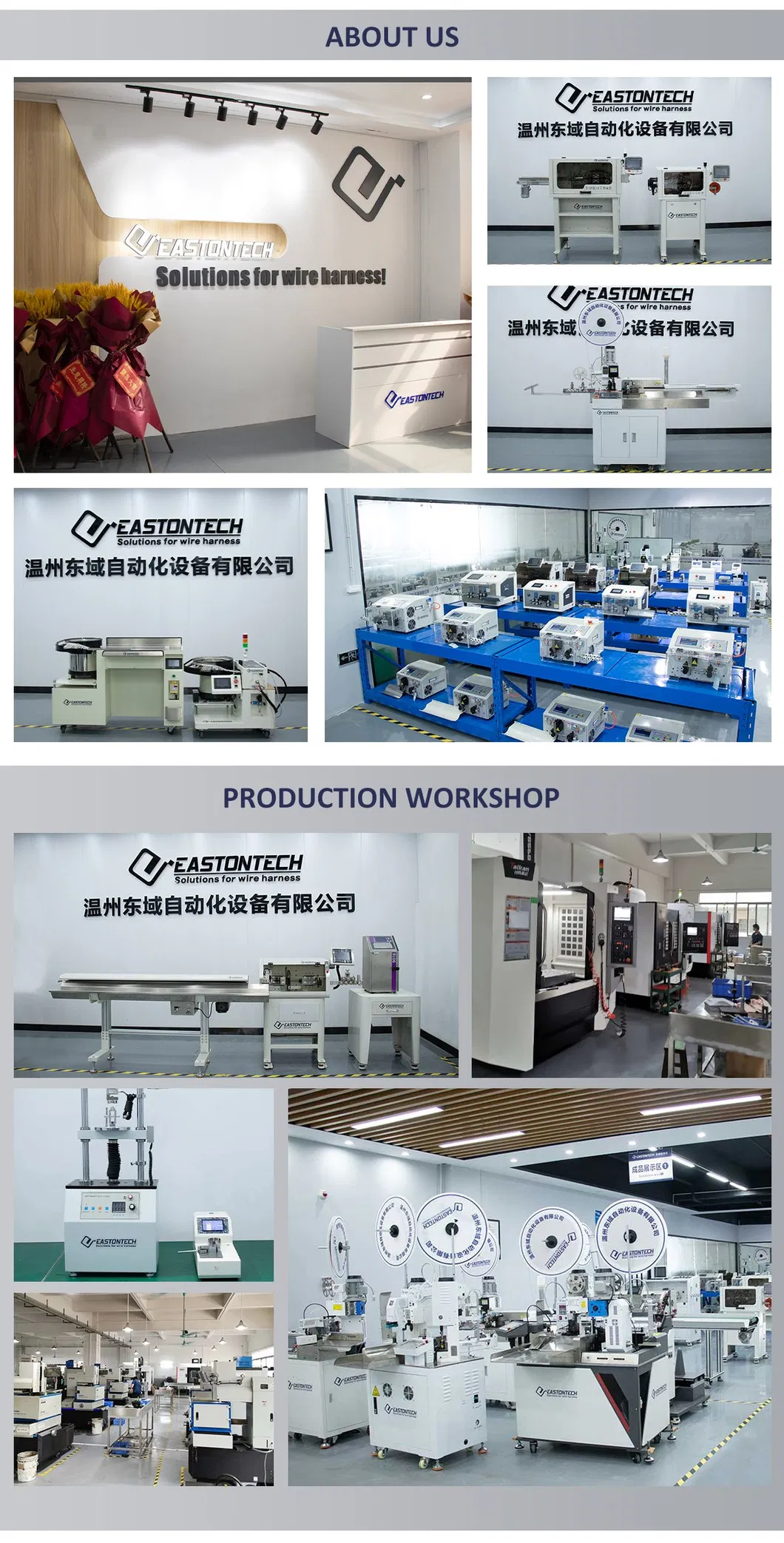

Facility 2
Facility 3
Facility 4
Frequently Asked Questions

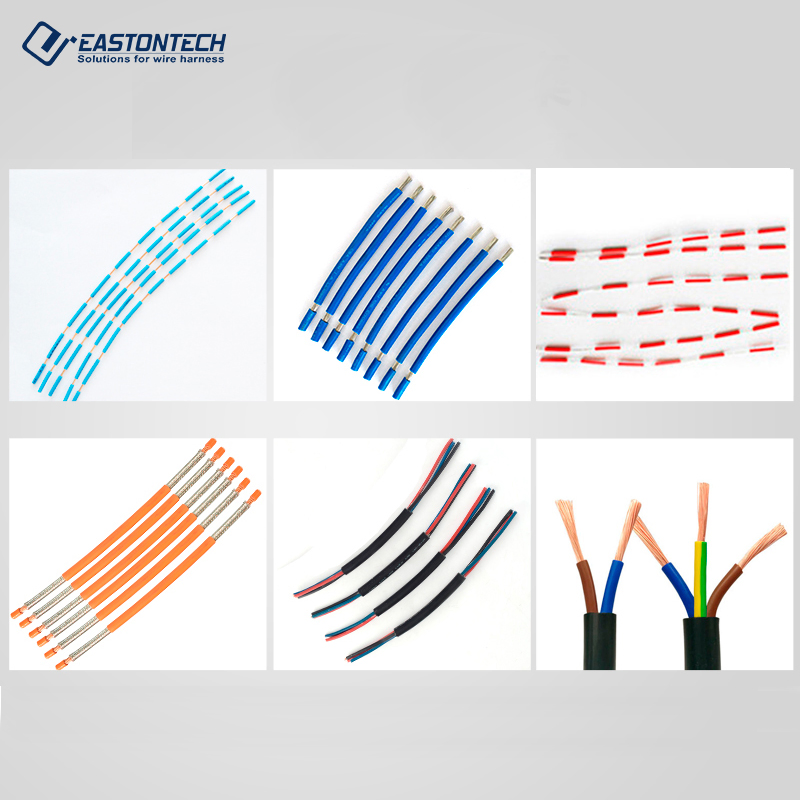

Q1: What types of wires can this machine process? This machine is designed for wire harness processing, specifically handling conductor cross-sections from 1 to 30 mm², including multi-conductor cables with 2-6 cores.
Q2: How many segments can be stripped in the middle stripping mode? The machine supports advanced multi-segment stripping with up to 32 segments at any interval and any length.
Q3: What is the cutting accuracy of the EW-05F+M? The machine maintains a high cutting length tolerance of 0.002 * L (where L = Cutting Length), ensuring precision for professional applications.
Q4: What are the packaging and shipping options? Products are secured in standard export cartons and wooden cases. Shipping can be arranged via express (DHL, UPS, FedEx), air freight for orders over 100kg, or sea freight for large quantities.
Q5: What kind of driving and control system does it use? It features a 16-wheel driving system powered by silent hybrid stepping motors and a servo blade seat, all controlled via a user-friendly 7-inch touch screen.
Q6: What is the policy for maintenance and spare parts? Standard parts are eligible for replacement if worn out within 1 year (delivery fee applies). We provide life-long technical support and maintenance for all products sold.
