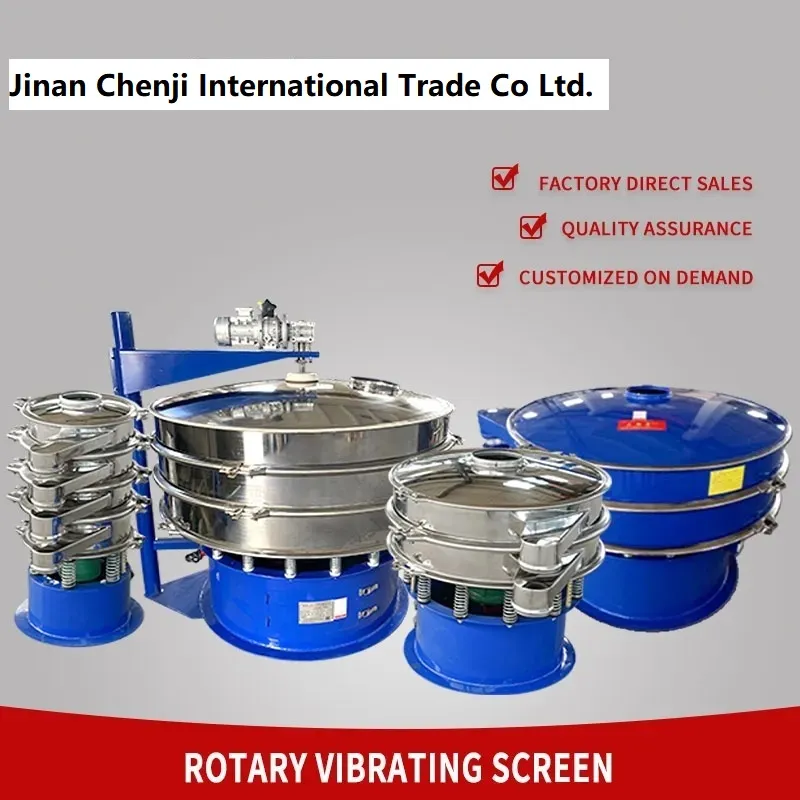

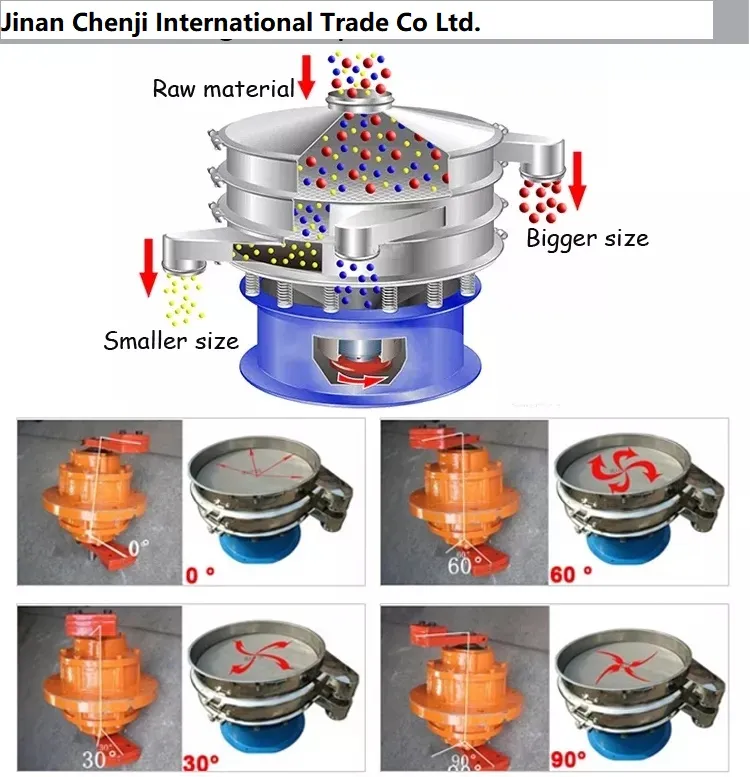

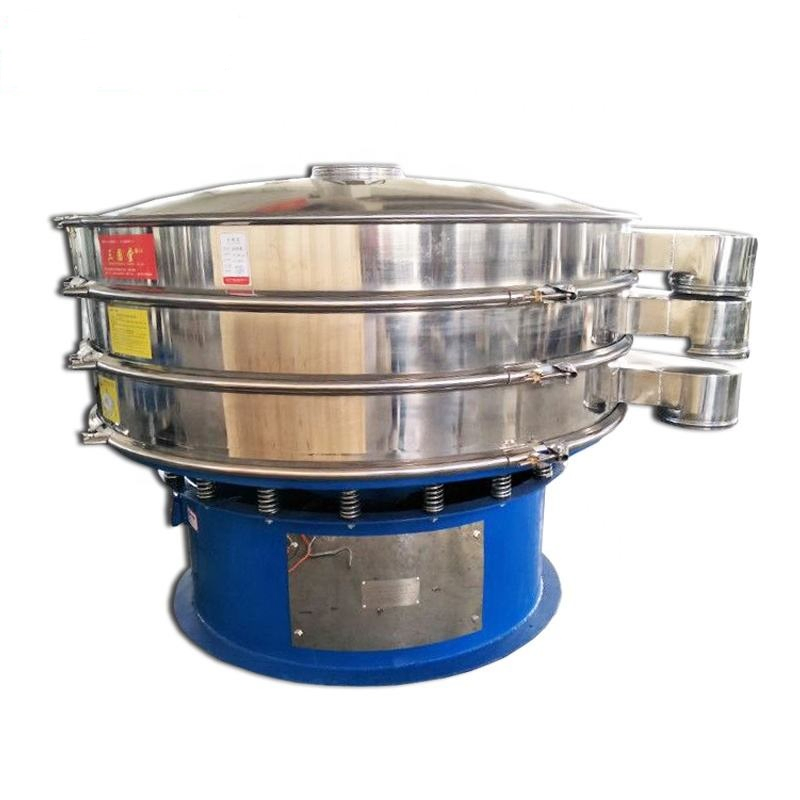

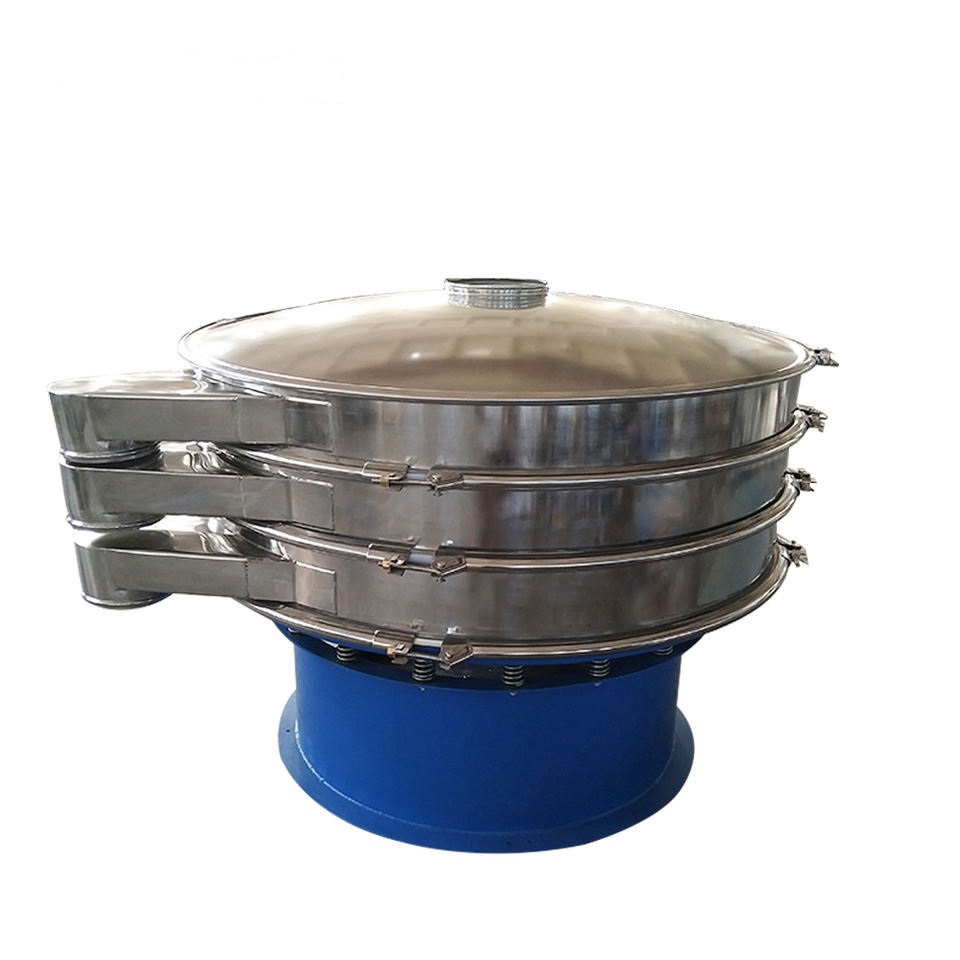

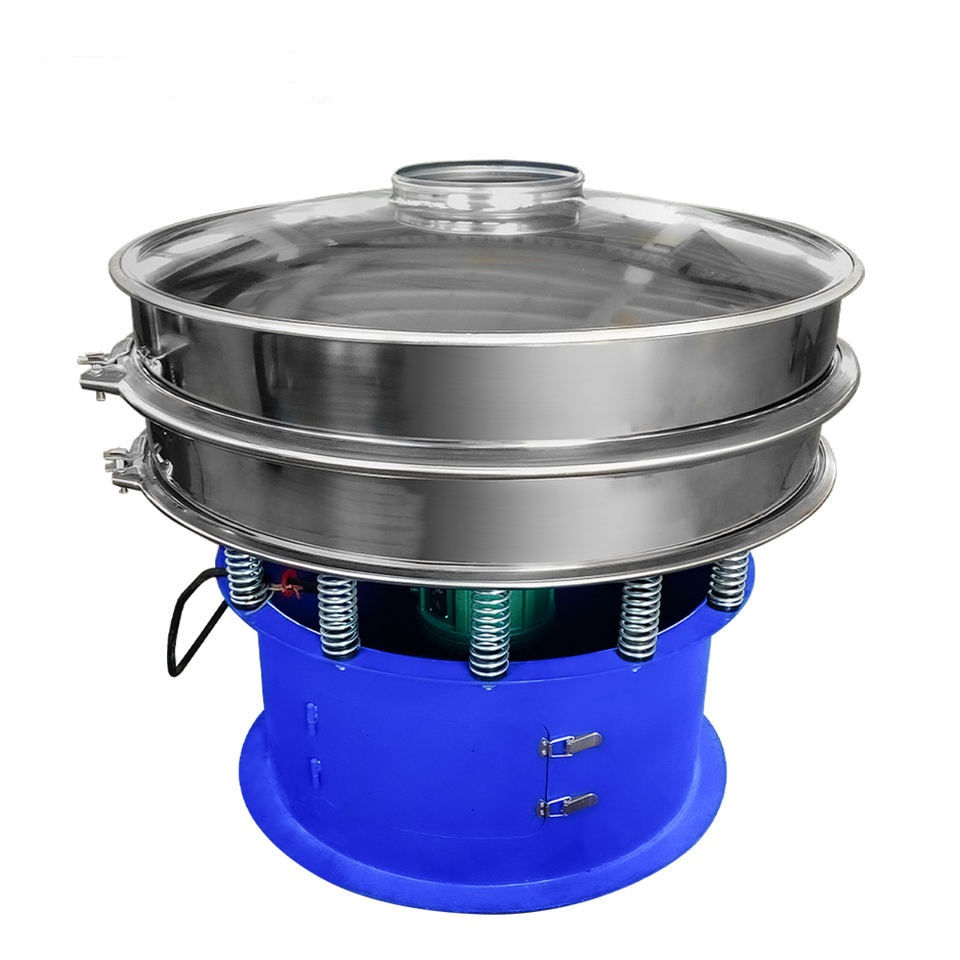

Rotary Vibrating Screen is a high-precision powder griddle featuring low noise and high efficiency. A quick changer takes only 3-5 minutes. It uses a totally enclosed structure, ideal for screening grain, flour, mucus, and other materials. The motor acts as a vertical excitation source, converting rotary motion into horizontal, vertical, and inclined three-dimensional motions, which are then passed to the screen surface. Adjusting the phase angle of the upper and lower ends changes the material trajectory.
Applicable to any powder, granule, or liquid screening in industries such as chemical, medicine, paint, pigments, cosmetics, oil, resin, ceramic slurry, clay, lime, refractory powder, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, milk powder, starch, flour, and environmental protection wastewater treatment.
| Model | Effective Diameter (mm) | Screen Size | Layer | Vibration Motor (KW) | Common Motor (KW) |
|---|---|---|---|---|---|
| CJM-400 | 380 | 2-500 mesh | 1-5 | 0.18 | 0.25 |
| CJM-600 | 580 | 2-500 mesh | 1-5 | 0.25 | 0.55 |
| CJM-800 | 780 | 2-500 mesh | 1-5 | 0.55 | 0.75 |
| CJM-1000 | 970 | 2-500 mesh | 1-5 | 1.1 | 1.1 |
| CJM-1200 | 1170 | 2-500 mesh | 1-5 | 1.1 | 1.5 |
| CJM-1500 | 1470 | 2-500 mesh | 1-5 | 1.5 | 2.2 |
| CJM-1800 | 1770 | 2-500 mesh | 1-5 | 4.0 | 3.0 |
