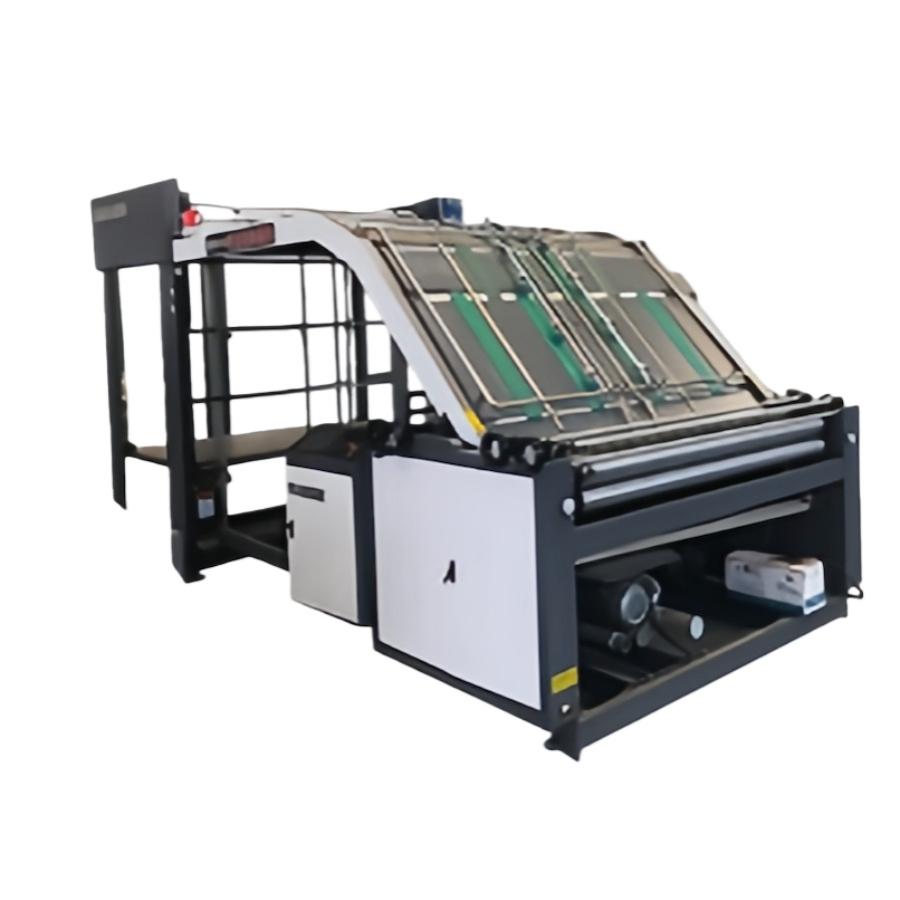

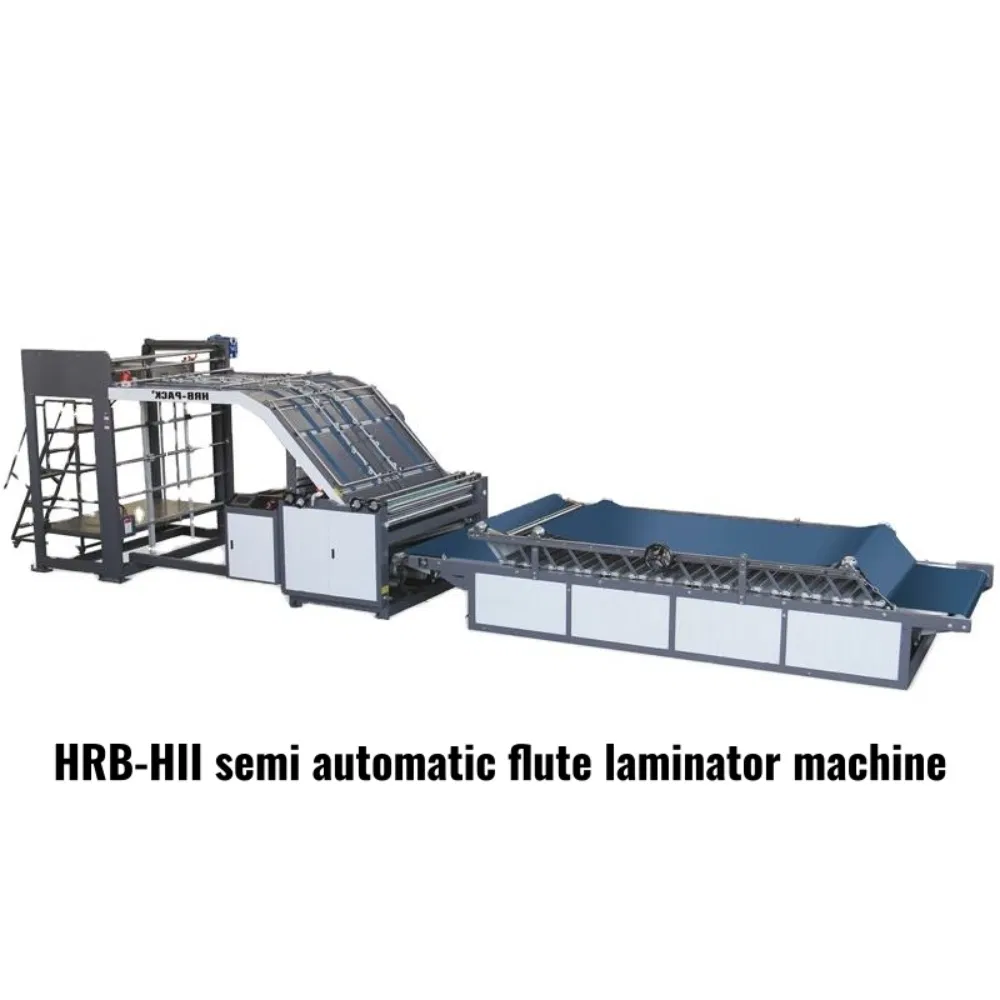

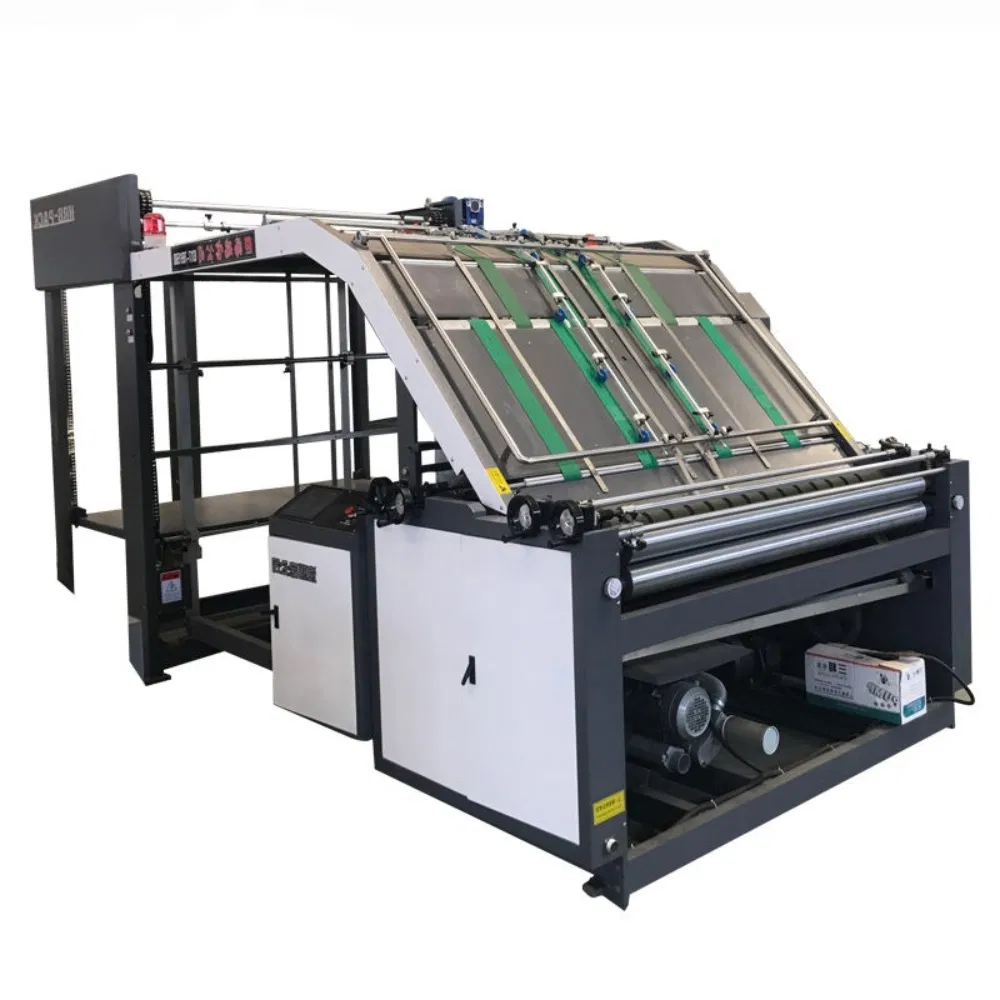

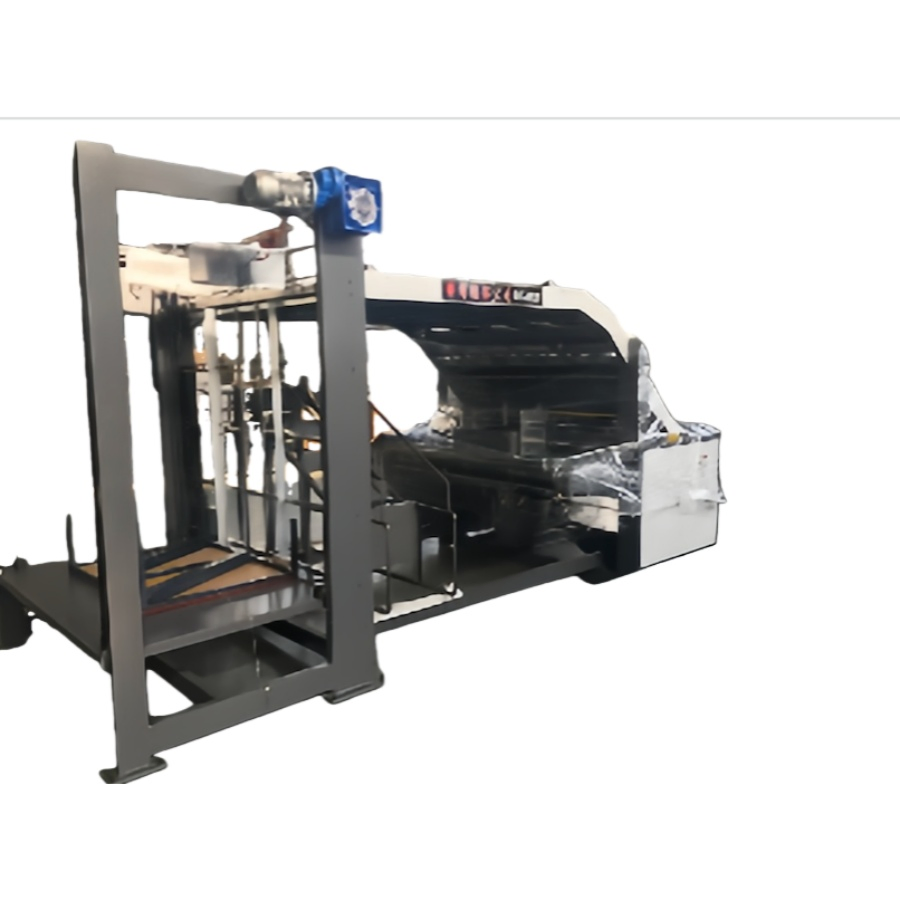

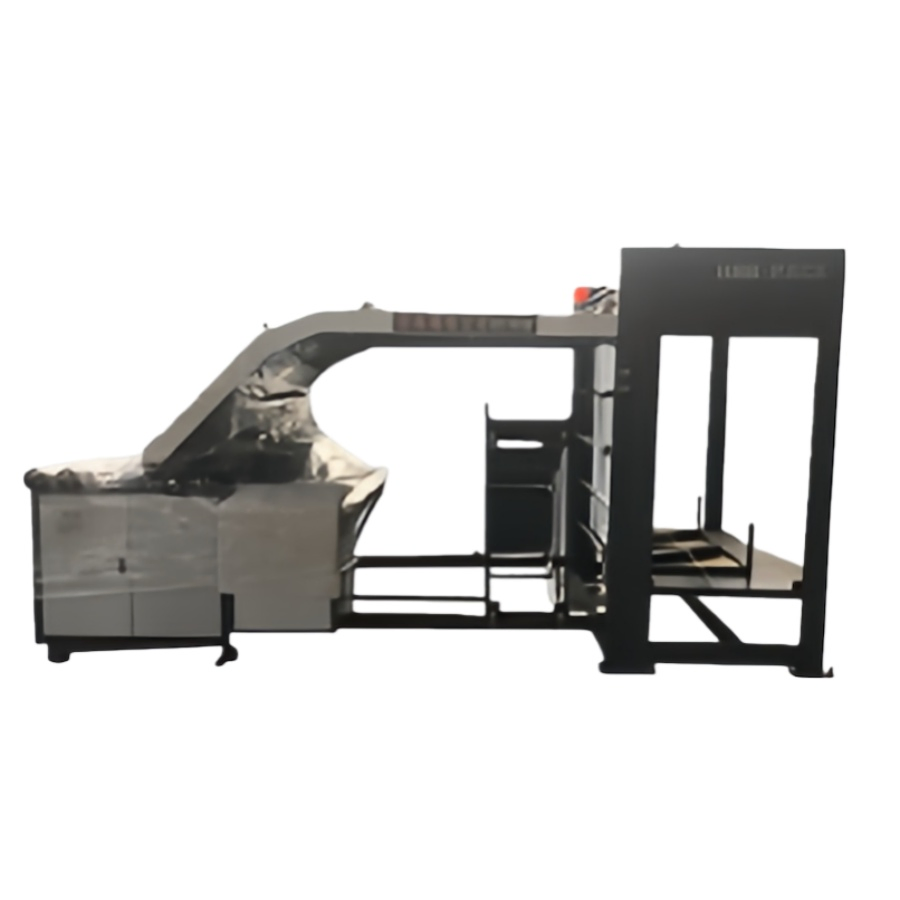

High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
1 / 5
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine
High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine

High Table Semi-Automatic Flute Laminating Machine Die Cutting Folder Gluing Machine

Customization: Available
After-sales Service: 24 Hours Online
Warranty: 1 Year
Send Inquiry

Product Description

Laminating Machine Banner
📋 Basic Information
Model NO.
HRB-HII
Classification
Post-Coating Laminating Machine
Application
Particle Board, Plywood, Packaging, Film Material
Driven Type
Electric
Automatic Grade
Semi-Automatic
Power
7kw / 9kw
Max Paper Size
1300mm x 1200mm
Economic Speed
0-100 Piece/Min
⚙️ Product Description

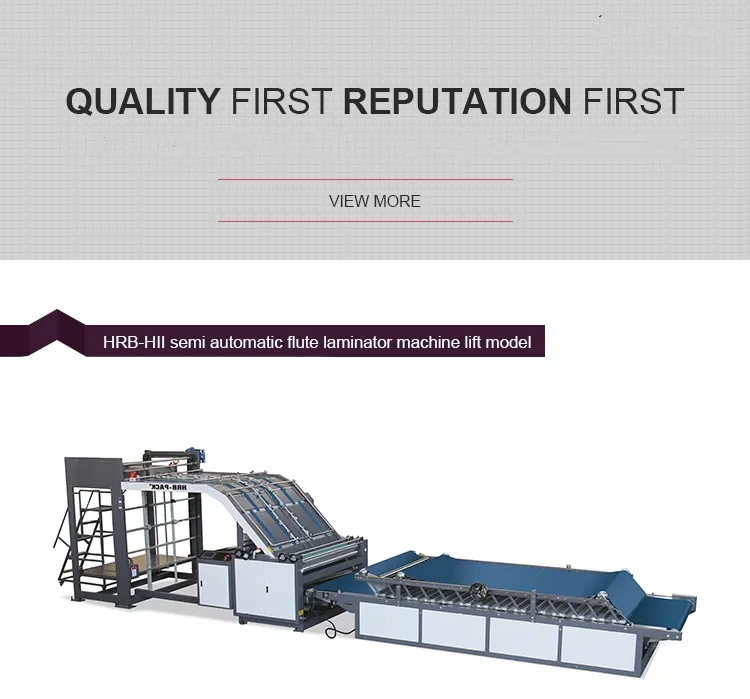

Product Detail
  • ✔ Paper Thickness: Min 175g - Max 350g (Top paper must be flat).
  • ✔ Ply Compatibility: Min 2ply E flute to Max 4ply (A+A flute less than 10mm).
  • ✔ Servo Motor: High-performance 1.5KW Servo Motor (Delta/Shilin).
  • ✔ Control System: Advanced PLC system with triple inverters for precise operation.
  • ✔ Gluing System: Fully automatic gluing and circulatory system.
Machine Structure
📊 Technical Specifications

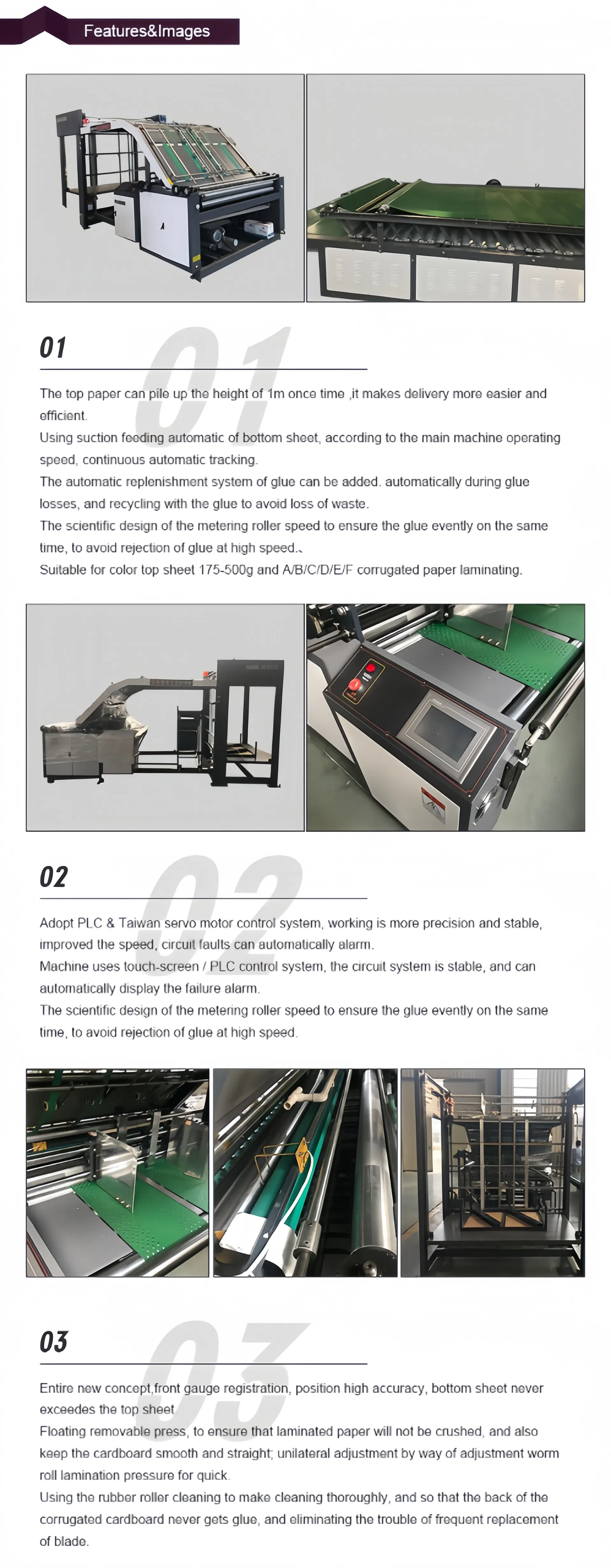

Specifications Diagram
Parameter Details (Model HRB-1300HII)
Max size of cover face1300mm x 1200mm
Min size of cover face360mm x 360mm
Economic speed0-100 piece/min
Precision±1mm
Power7kw
Dimensions10m x 2m x 2.2m
WeightApprox. 3.5T
🛠️ Main Product Showcase
Product 1

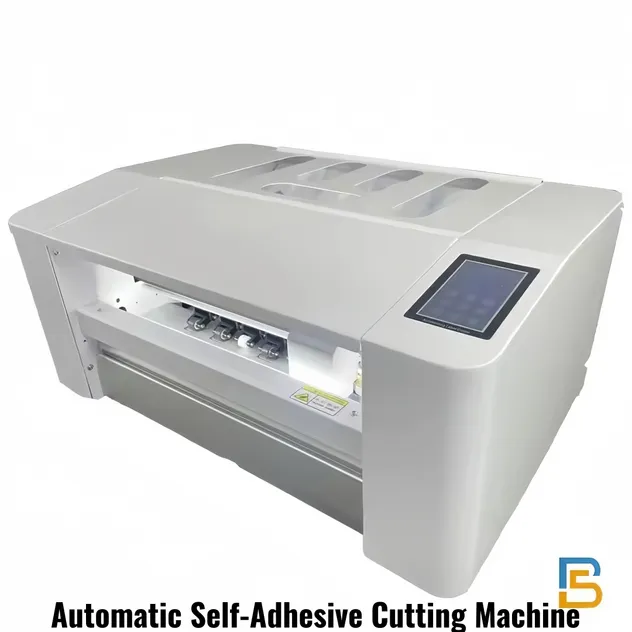

Detail 1

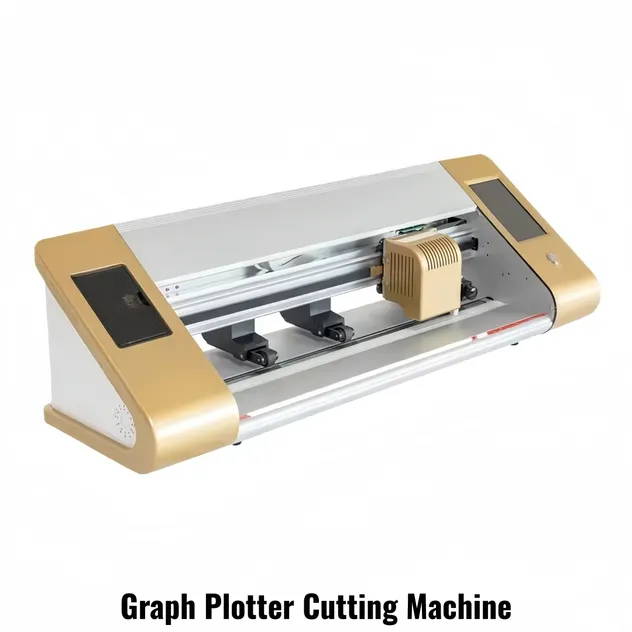

Detail 2

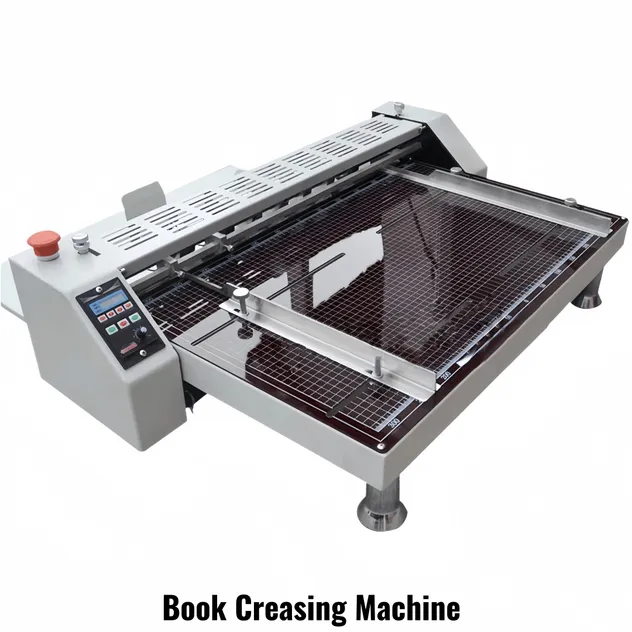

Detail 3

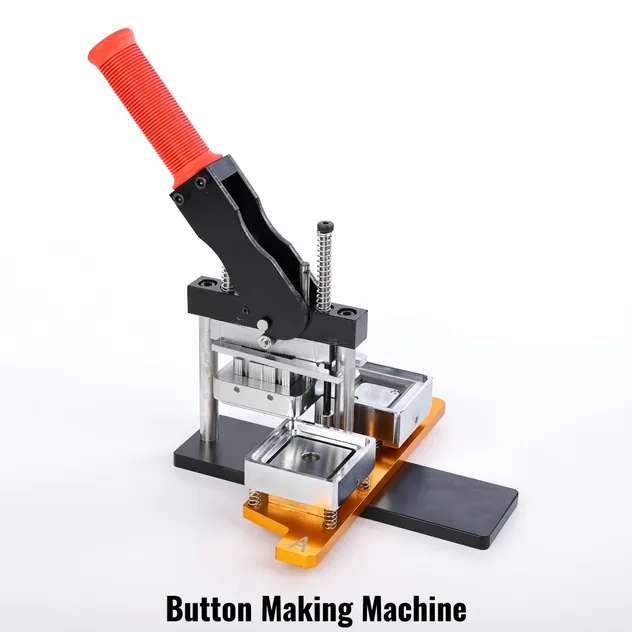

Detail 4

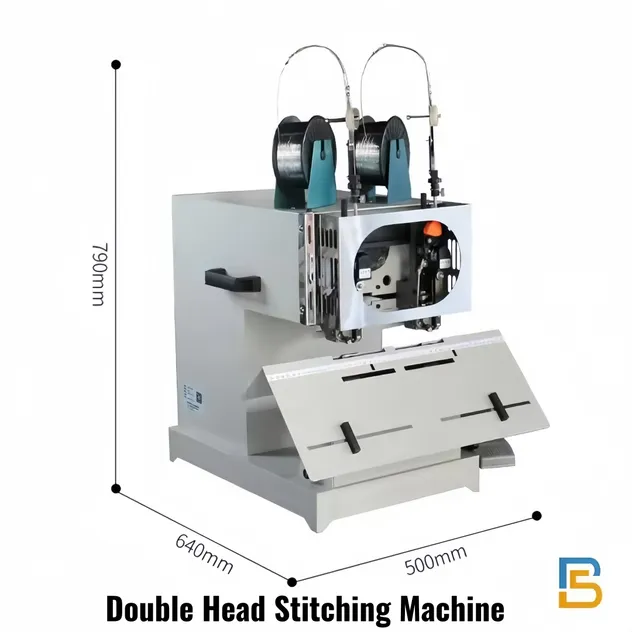

Detail 5

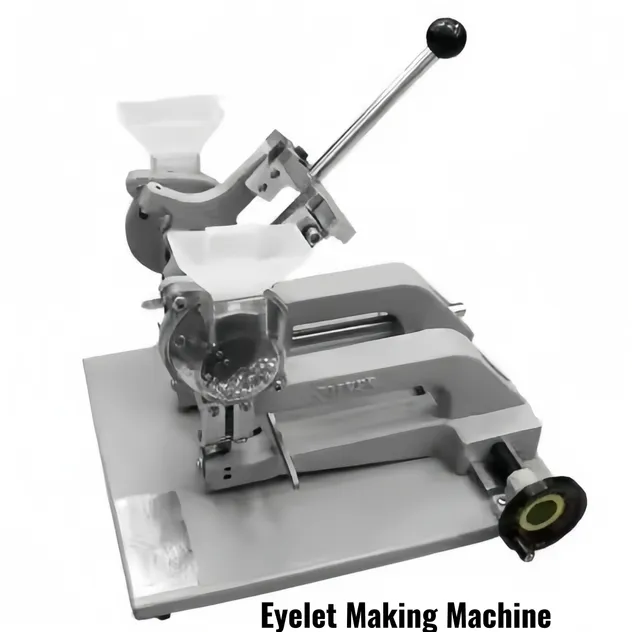

Detail 6
🏢 Manufacturing Excellence

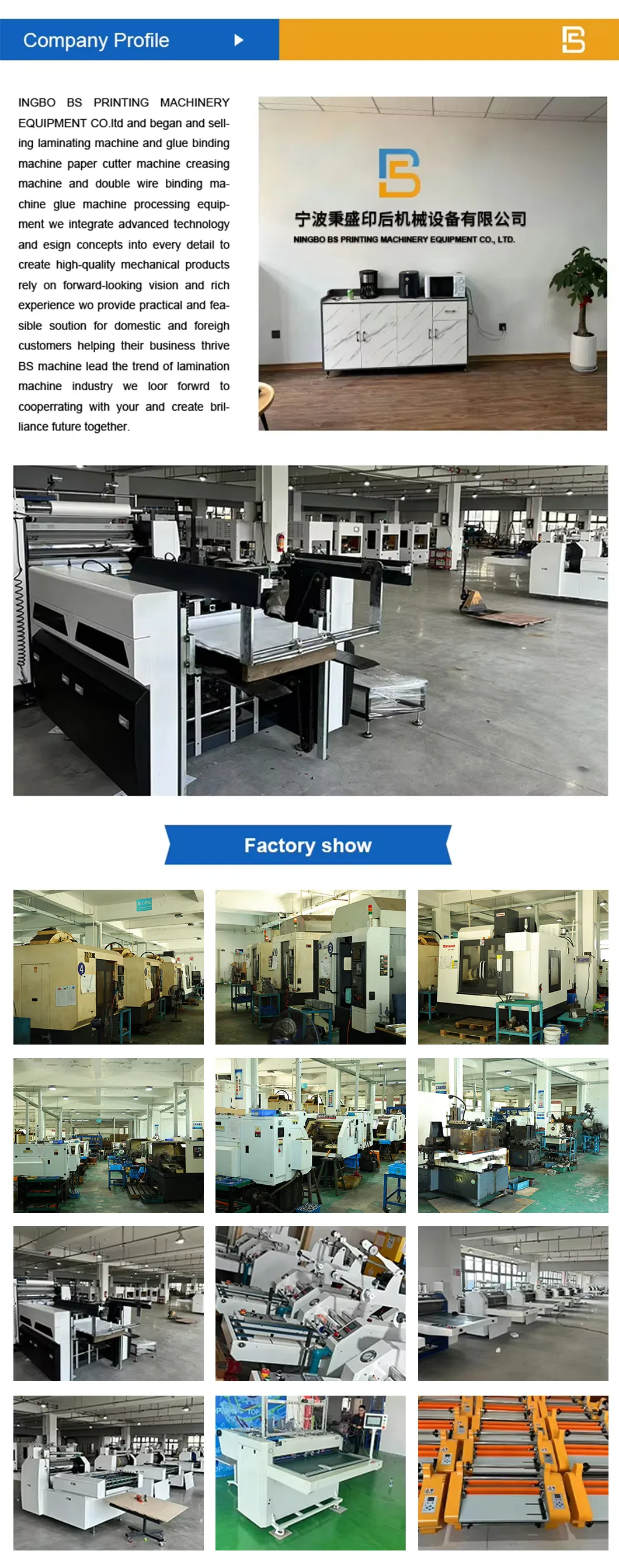

Factory Overview
📜 Certifications
Certificates
❓ Frequently Asked Questions
How does the factory handle quality control?
Quality is our priority. We maintain strict quality control protocols from the beginning to the end of the production process, holding various international industry certifications.
What materials are used for the laminator body?
Our hydraulic laminating machines are built with high-strength materials. The rollers are imported to guarantee superior quality and long-term durability.
Can I request product samples?
Yes, we are pleased to offer samples. Please note that freight and equipment costs may apply depending on the specific requirements.
What are the standard payment terms?
We accept multiple payment methods including T/T, Western Union, and Credit Cards. For large orders over USD 10,000, we typically require 30% advance payment and 70% before shipping.
What is included in the machine package?
The standard set includes the host machine, pressure part, air compressor, wind pump, glue pump, and workstation table. Customers are responsible for providing glue, paper materials, and wiring.
Do you provide a warranty for the equipment?
We offer a standard 1-year warranty for the machine body. Please note that electrical components may have different coverage terms.
