Cutting-Edge UV Laser Engraving System for Film Coating Projects

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

ℹ Basic Information

Model NO.:UV30P-DC2550F

Cooling System:Water Cooling

Technical Class:Pulse Laser

Structure Type:Gantry Type

Applicable Material:Nonmetal (Coating Film, EMI, Adhesive Paper)

Laser Tech:Laser Flame Cutting

Machine Weight:2000kg

Laser Power:30W

Production Cap:100 sets/Month

Origin:China

📝 Product Description

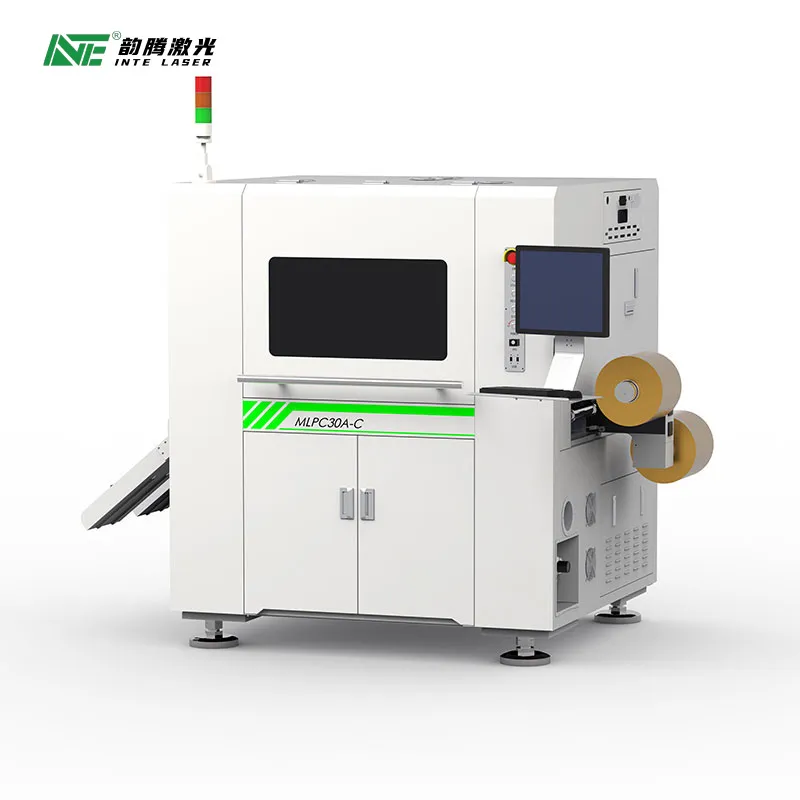

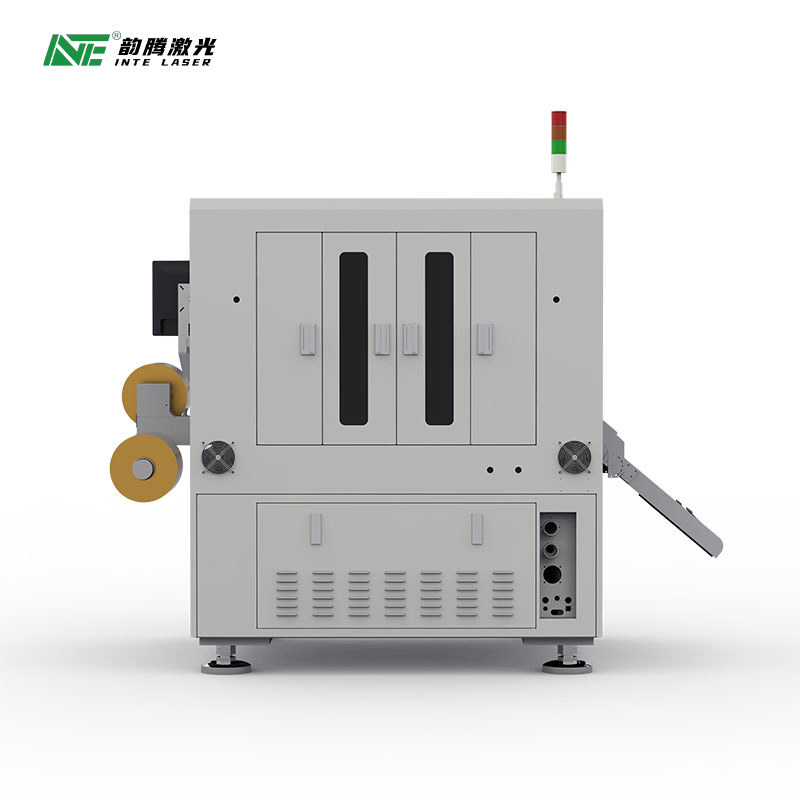

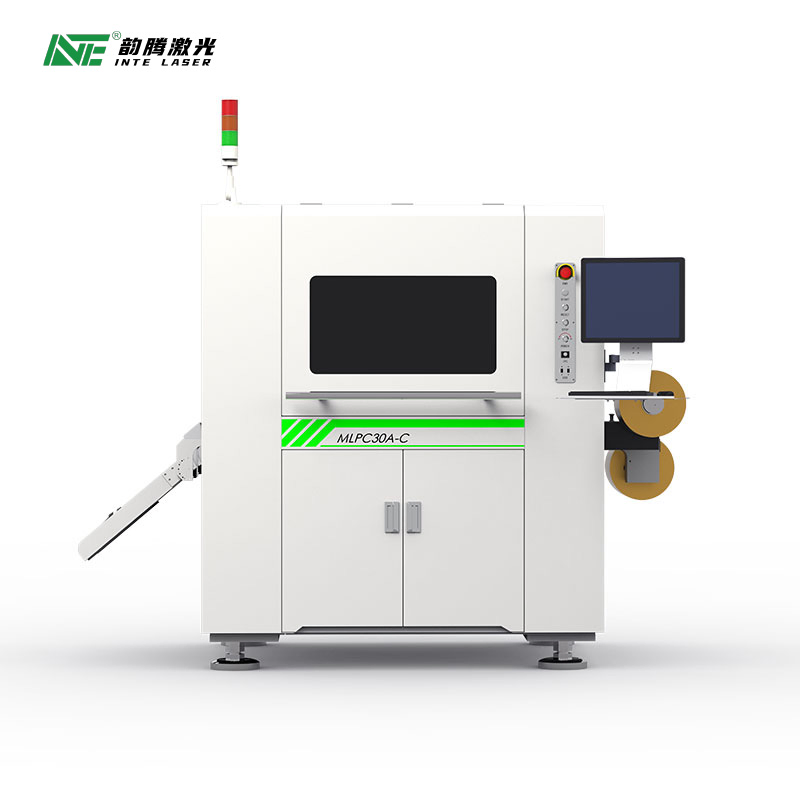

Fully Automatic UV Picosecond Dual-Head Film Coating Cutting Machine

This state-of-the-art system is designed for high-precision cutting of nonmetal materials, combining advanced picosecond UV laser technology with fully automated processing workflows.

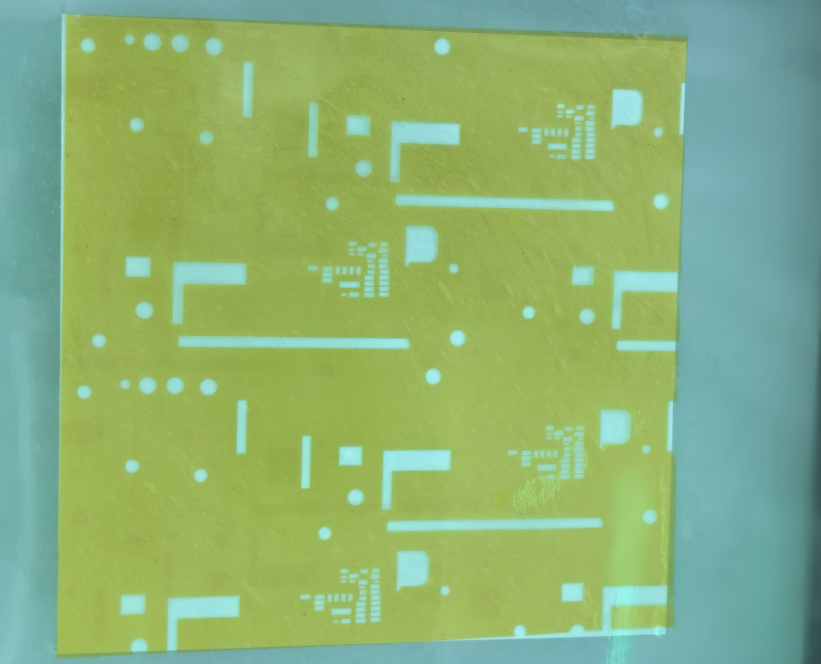

📷 Detailed Photos

📊 Product Parameters

Laser Type	Picosecond UV
Max Processing Area	250mm x 500mm x 2 (Customized)
Max Scanning Range	50mm x 50mm
Processing Efficiency	Approx. 8,000 square meters/month
Cutting Accuracy	±0.03mm
Machine Size	2350 × 1450 × 2500 mm (with Receiving Box)
Total Weight	2200 KG
Environment	Humidity: 30%-60%; Temp: 22ºC ± 2
Power Requirements	Machine ≤ 2.5 KW, Chiller ≤ 1.5 KW, Exhaust ≤ 4KW
Security Protection	Emergency stop switch & Safety door device

🚀 Equipment Advantages

Full Automation: Experience automatic feeding, cutting, counting, and receiving synchronized for maximum efficiency.
Dual Optical System: Self-developed system with energy control within 5% for low maintenance costs.
High Precision: Synchronized double-head operation achieving accuracy within ±0.03mm.
Linear Motor Technology: Magnetic suspension linear motor eliminates contact friction for extended operational life.
Proprietary Control: Real-time cutting data logging, multiple file format support, and energy monitoring for unattended operations.

🛠 After Sales Service

1 year guarantee for the entire machine.
Lifetime of free maintenance support.
Complimentary training at our facility for machine operation proficiency.
Seasoned engineers available for overseas training and technical services.

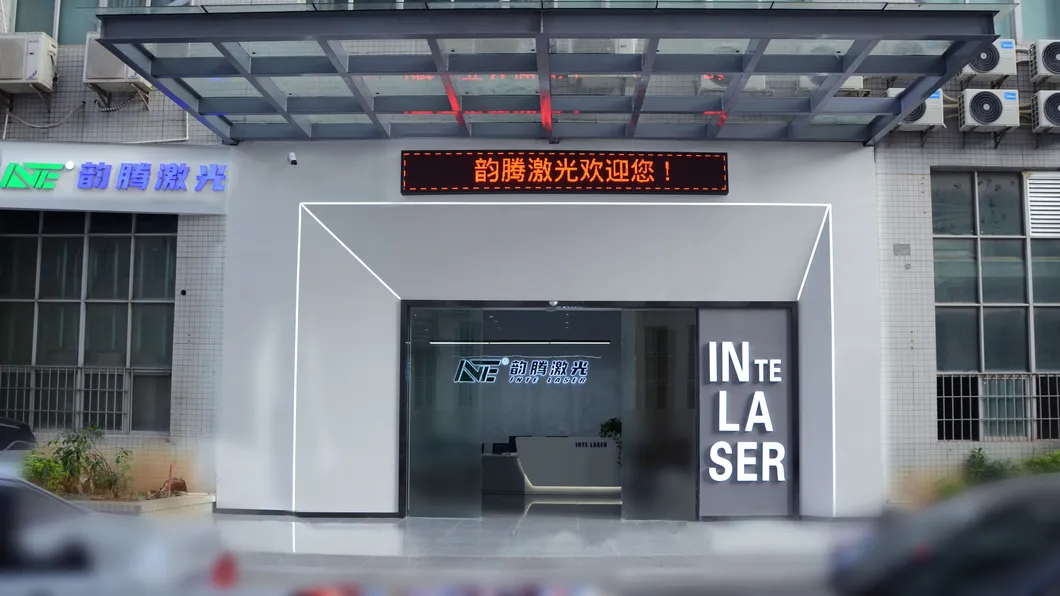

🏢 Professional Profile

A trailblazer in laser applications and automation since 2013, focusing on leading-edge processing technology and specialized laser machines. As a technology-driven enterprise, we specialize in independent R&D of laser generators, optical devices, and automation systems.

Our solutions provide groundbreaking laser micromachining across various industries including printed circuit boards, consumer electronics, semiconductors, and new energy sectors.

🌐 Exhibitions

❓ FAQ

What materials can this machine process?

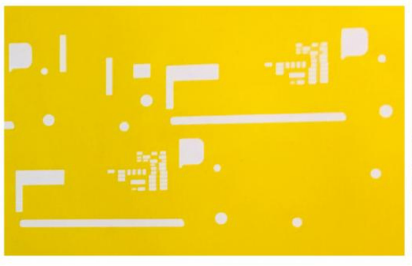

The machine is designed for nonmetal materials, specifically coating films, EMI, adhesive papers, and other non-metallic thin films.

What is the advantage of using a Picosecond UV laser?

Picosecond UV lasers provide "cold" processing, which minimizes thermal impact on the material, resulting in cleaner cuts and higher precision (±0.03mm).

Is the machine fully automated?

Yes, it supports automatic feeding, cutting, counting, and receiving, allowing for high-efficiency, unattended operations.

What are your typical delivery terms?

The standard delivery date is approximately 35 days after receipt of payment.

What kind of after-sales support do you provide?

We offer a 1-year guarantee, lifetime free maintenance, and our engineers are available for global technical support and training.

What are the payment terms?

Our standard terms are a 30% deposit in advance and the remaining 70% balance before shipment.
