Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
1 / 4
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine

Wl-603h 0.75-30 Sq mm Automatic Multi-Conductor Cores Cable Cutting Stripping Machine

Customization: Available
Driven Type: Electric
Condition: New
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
WL-603H
Certification
CE
Warranty
12 Months
Automatic Grade
Automatic
Display
7-Inch True Color Touch Screen
Stripping Range
0.75-30 mm2
Cutting Length
1mm-99999.99mm
Maximum Diameter
Φ10mm
Tool Material
High-Quality High-Speed Steel
Productivity
3600 PCS/Hour
Drive Mode
16-Wheel Drive
HS Code
8479819000
⚙️

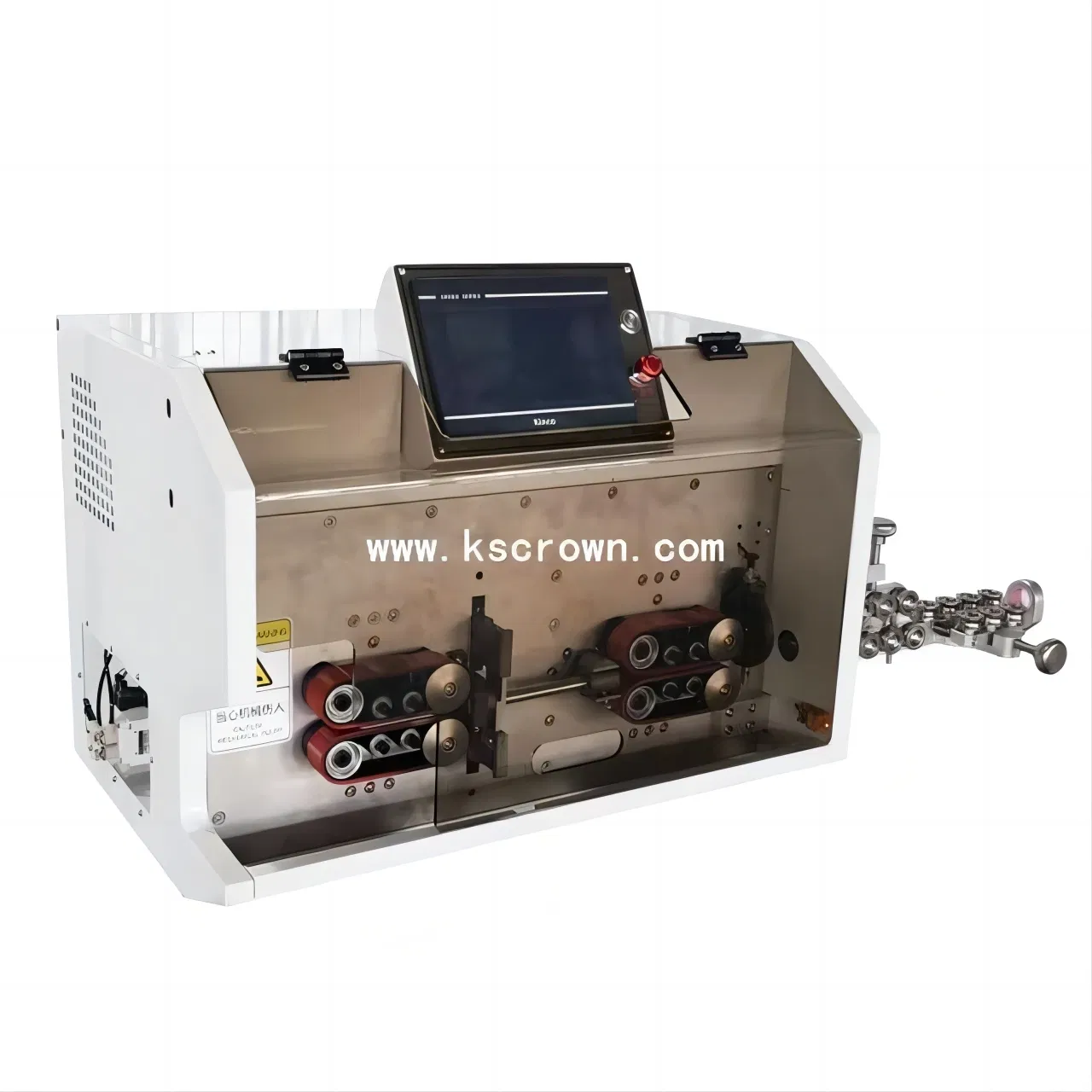

Multi-conductor Cable Cutting Stripping Machine

This is a fully automatic cable cutting and stripping machine. The outer sheath and inner conductor can be stripped at the same time. The applicable wire size range is 7.5-30 mm².
Processing range 0.75 - 30 mm2 (≤ 10 cores)
Function Cable cutting, outer jacket and inner conductor stripping
Wire type Single core wire, multi-core cable, sheathed cable, PVC cable, etc.
Stripping length Head: outer 10-200mm, core 1-50mm; Tail: outer 10-80mm, core 1-50mm
Max. diameter Φ18 (Wire guiding pipe)
Lifting operation Digital adjustment of the height of the pinch roller
Weight / Dimensions 95kg / 68*48*55cm (L*W*H)
💡

Key Features

Intelligent Control User-friendly system with intuitive operation via 7" color touchscreen.
Modular Design Easy to link accessories and peripheral equipment; upgradeable for future needs.
Advanced Feeding Belt feeding system ensures no embossing and no scratches on the cable.
High Efficiency 16-wheel drive with stepper and servo motors for precision and speed.
📦

Packing & Shipping

Standard packaging protocols are followed: Small and light products are packed in reinforced cartons, while large and heavy machinery is secured in professional wooden cases for safe transit.

Automatic Multi-Conductor Cores Cable Cutting Stripping Machine
🖼️

Product Showcase

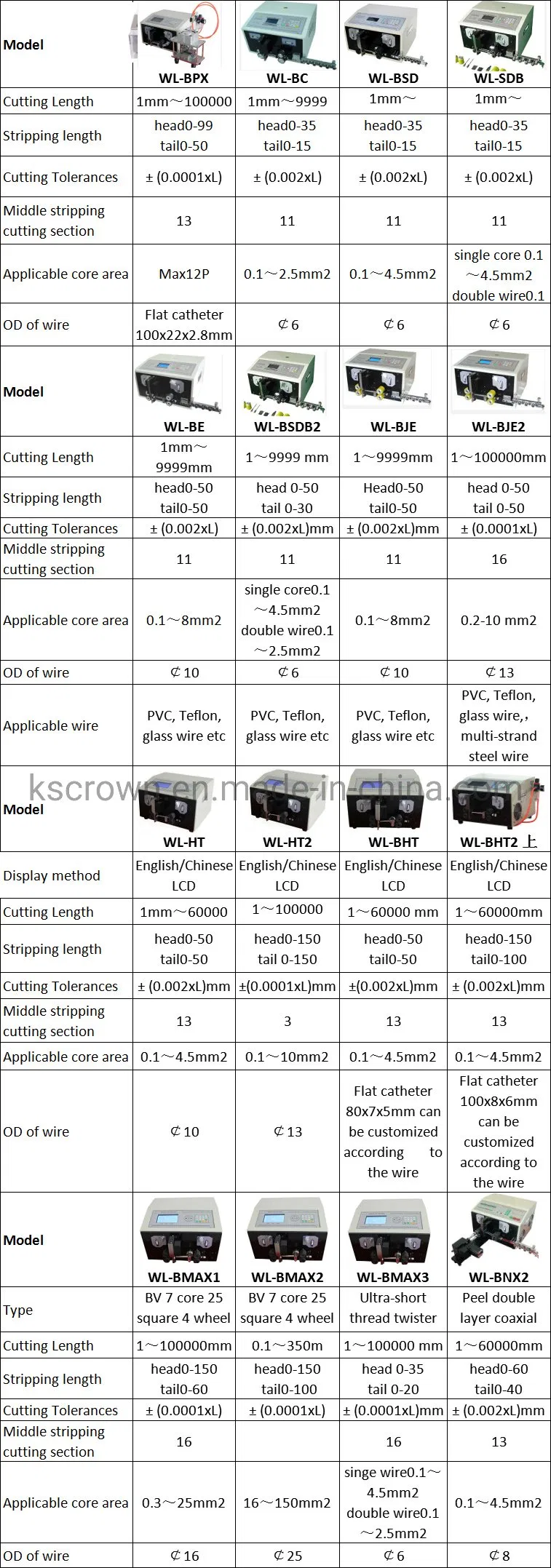

Cable Processing Details

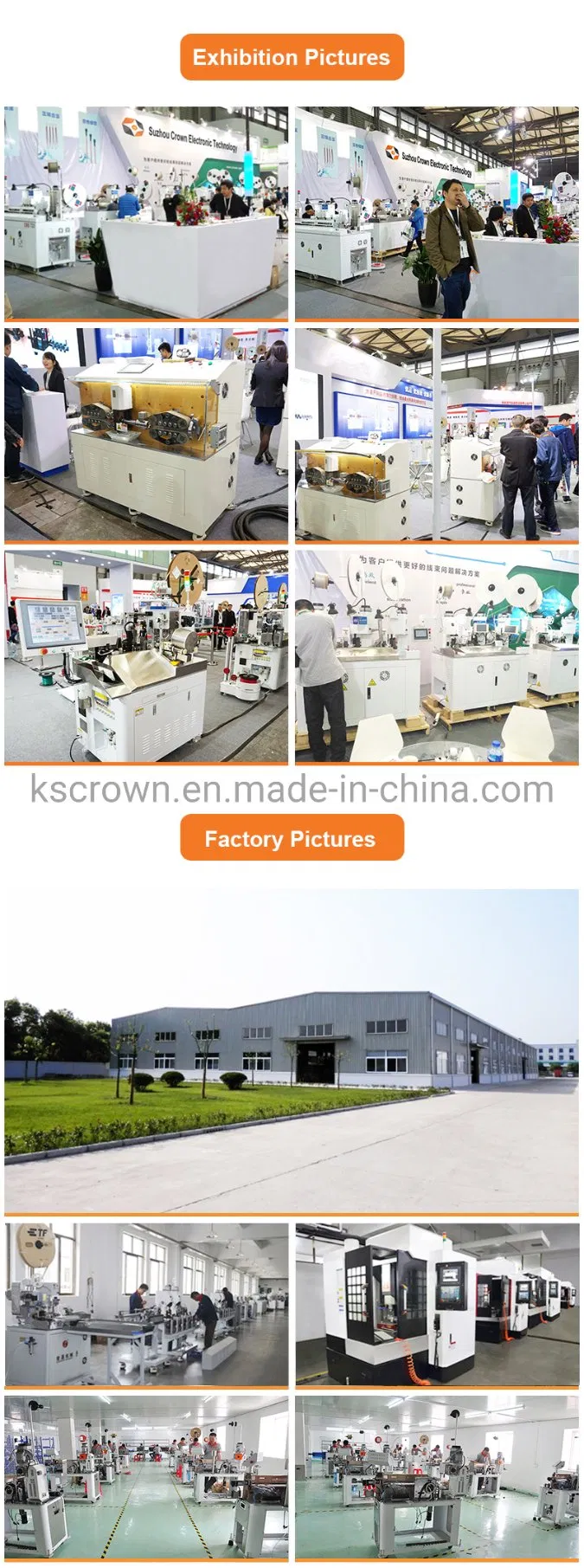

Machine Internal Structure
Certification and Quality Control
❓

Frequently Asked Questions

How to place an order?
You can place an order directly with us or through online transaction systems after confirming the technical specifications.
What are the available payment terms?
We accept multiple payment methods including Trade Assurance, T/T, L/C, Western Union, and PayPal.
What is the typical production lead time?
Generally, production takes 3 to 7 days. For customized models or special requests, the timeline will be adjusted accordingly.
How is the machine packaged for delivery?
Small machines are packed in standard neutral cartons. Larger machines are secured in standard export-grade wooden cases.
What kind of after-sales service is provided?
We provide a 1-year warranty, free spare parts for functional issues within 12 months, user manuals, and lifetime technical guidance. All products undergo QC checks before delivery.
Is customization available?
Yes, we provide OEM and customized services for special cable processing and non-standard requirements.
