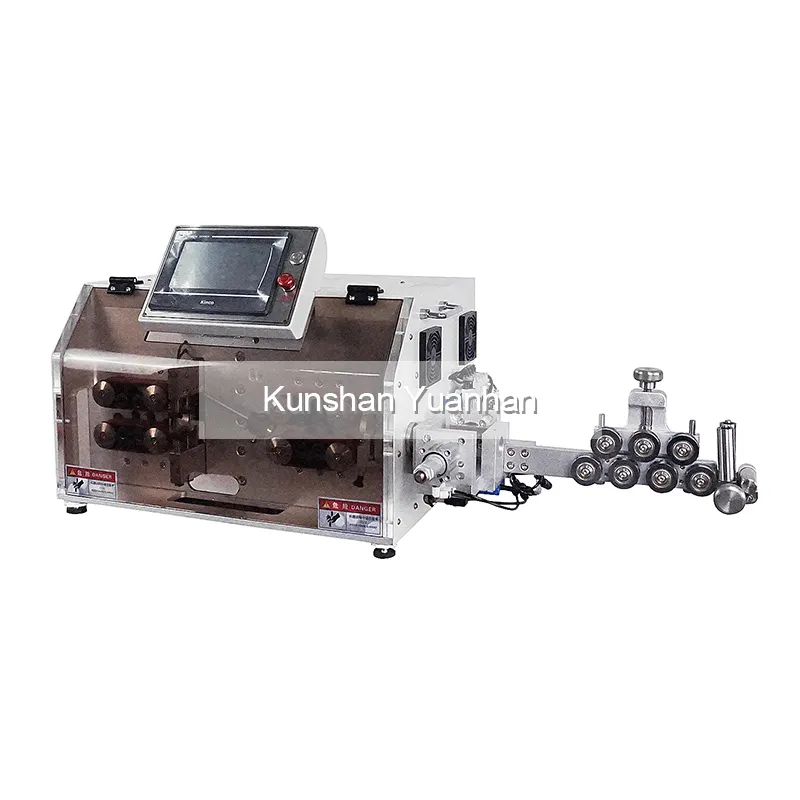

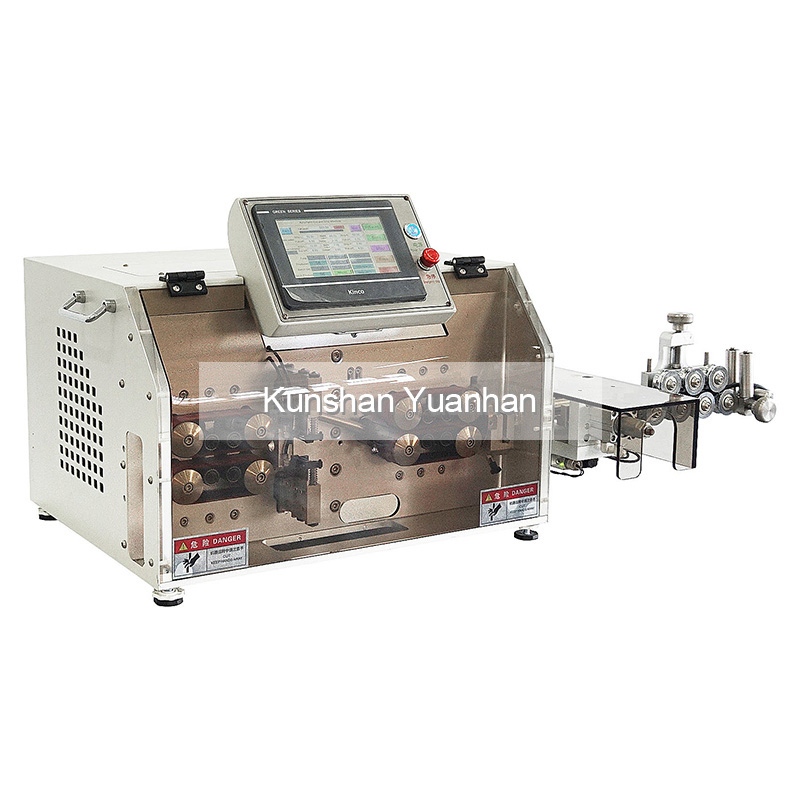

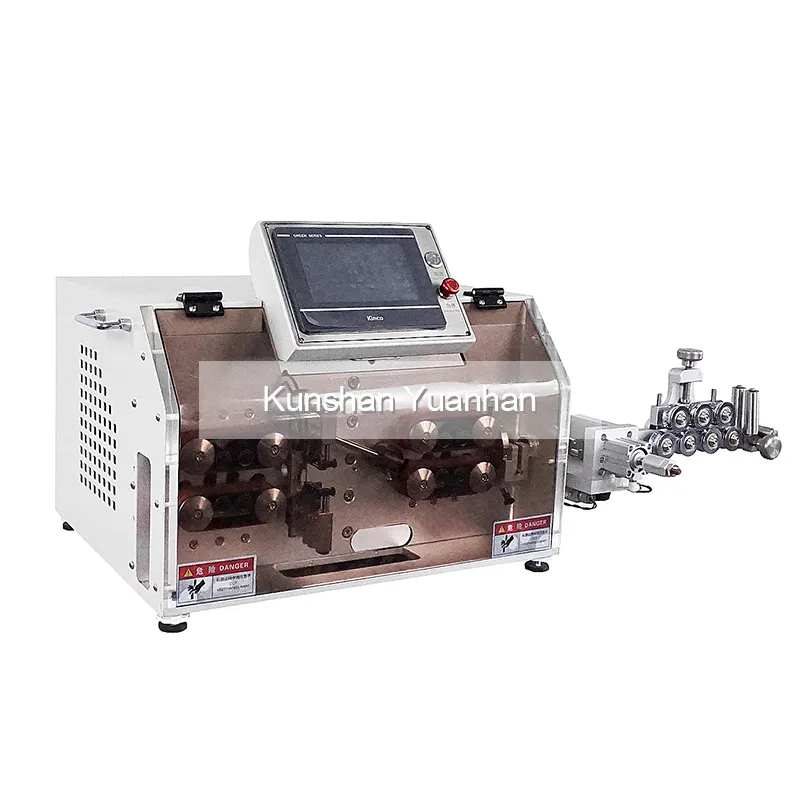

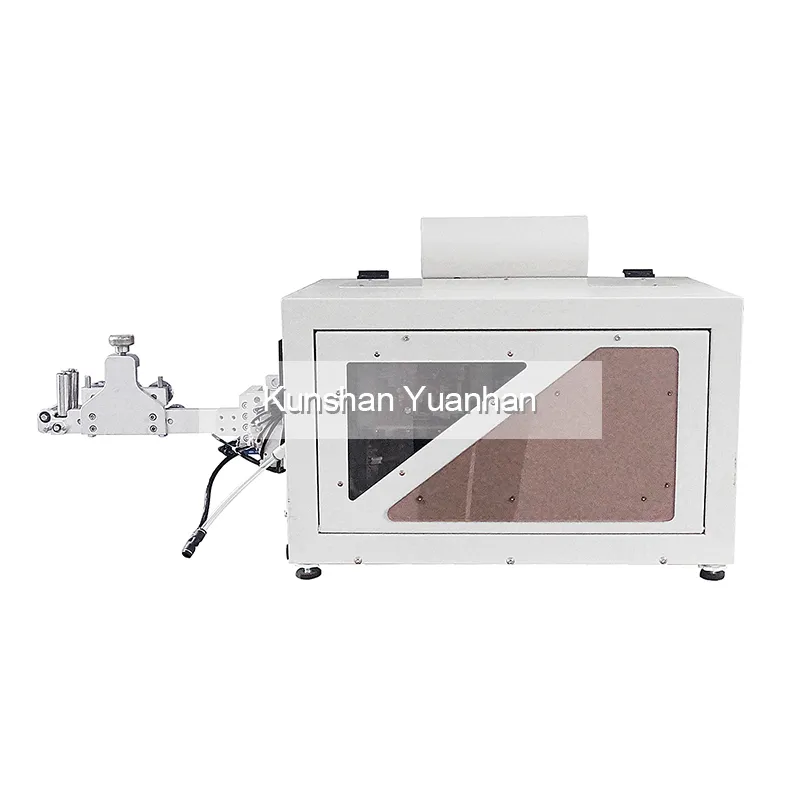

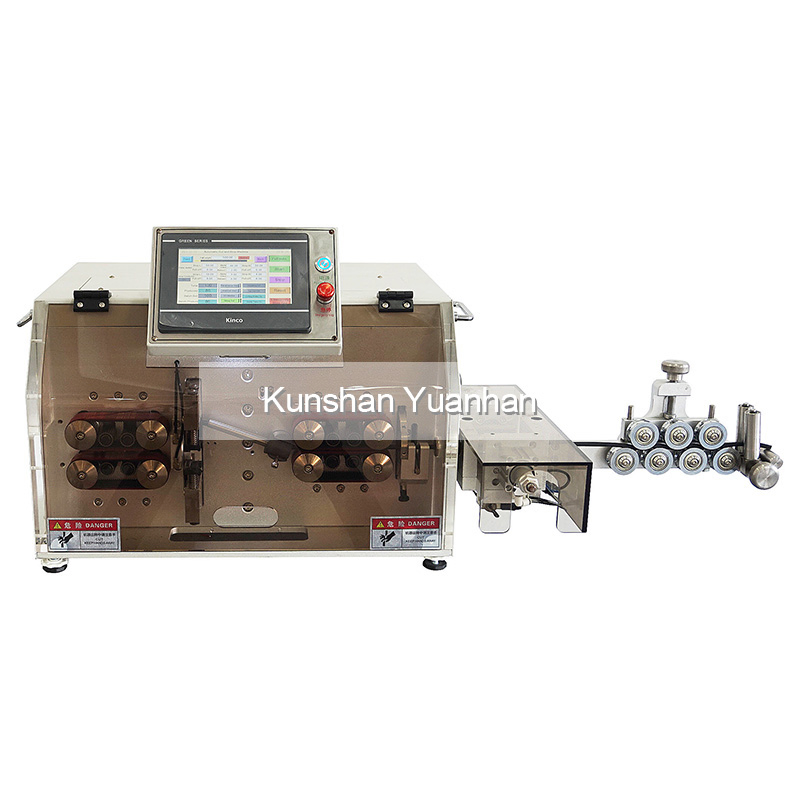

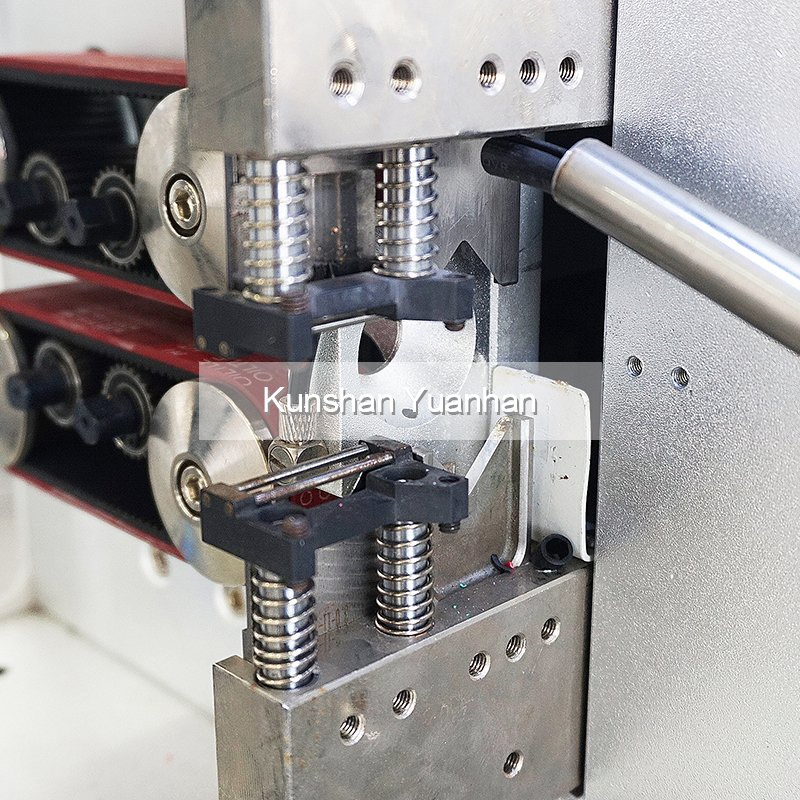

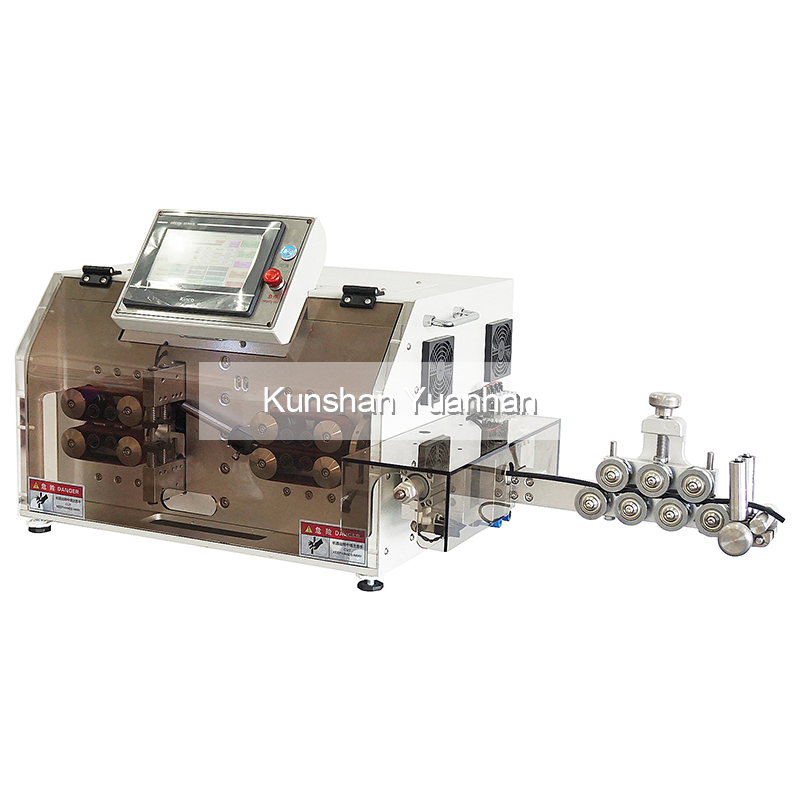

The YH-8030Z is a fully automatic cable cutting and middle stripping machine designed for high-precision processing. It efficiently peels insulation from both single-core and multi-core sheathed cables, supporting wire sizes from 1mm² to 30mm².
| Parameter | Detail |
|---|---|
| Model | YH-8030Z |
| Applicable Wire Sizes | 1-30 square mm |
| Cutting Length | 1mm - 99,999.99mm |
| Cutting Tolerance | Within 0.002*L (L=cutting length) |
| Stripping Length | Head: 1-190mm (Full), 1-9999mm (Half) | Tail: 1-80mm (Full), 1-9999mm (Half) |
| Middle Stripping | Up to 32 segments, custom intervals and lengths |
| Max. Catheter Diameter | Φ16mm |
| Productivity | Approx. 2,000 - 2,300 pcs/hour |
| Input Power | AC220V/50Hz |

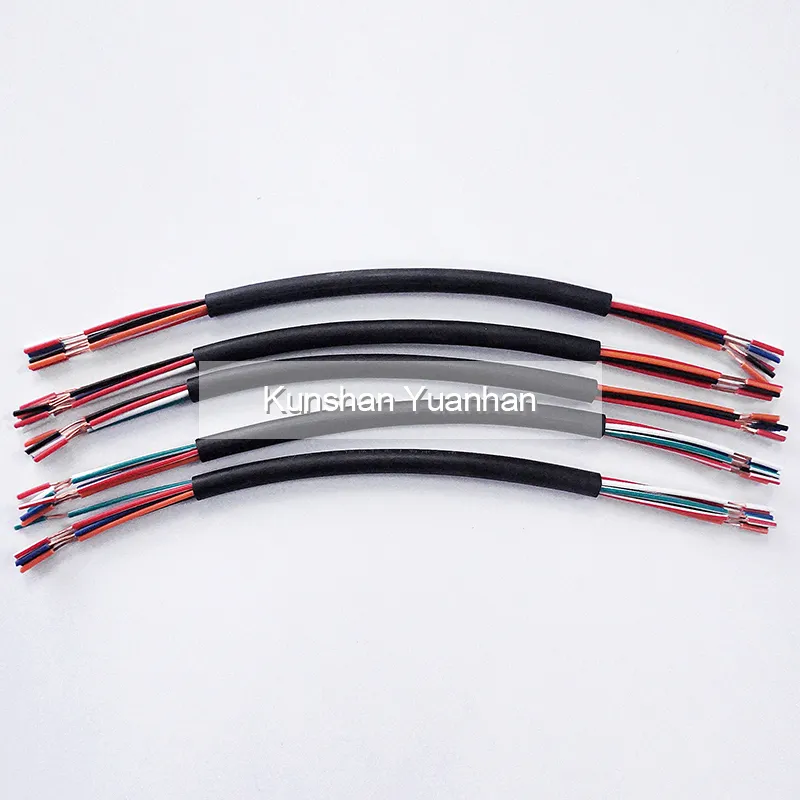

30mm² sheathed wire cutting and stripping - inside and outside capability.
| Model | Stripping Range | Drive Mode | Max Catheter |
|---|---|---|---|
| YH-8030 | 4-30mm² | 16-wheel drive | Φ16 |
| YH-8070 | 10-70mm² | 32-wheel drive | Φ25 |
| YH-8120 | 10-120mm² | 32-wheel drive | Φ30 |
| YH-8120X | 10-120mm² | 48-wheel drive (Rotary Knife) | Φ7-30mm |
| YH-8300 | 30-300mm² | 32-wheel independent servo | Φ15-50mm |
