2026 Multi-Function Glass Cutting System with Automation Loading and Transfer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TYJT-2420/TYJT-3628

Cutting Thickness

3-19mm

Power Supply

380V

Cutting Speed

0-180m/Min

Loading Speed

15-40 Seconds

Table Height

850mm

Control System

PLC

Capacity

10000 Pieces/Year

CNC Cutting Machine Series

Loading & Cutting - 2 in 1 | Loading, Cutting & Transfer - 3 in 1
Loading, Cutting, Transfer & Break off table - 4 in 1

The Automatic Glass Cutting is a highly intelligent system designed for efficient handling and precision cutting of large, thick glass sheets. It integrates loading, positioning, and cutting in one streamlined process, offering enhanced safety, speed, and accuracy.

✔

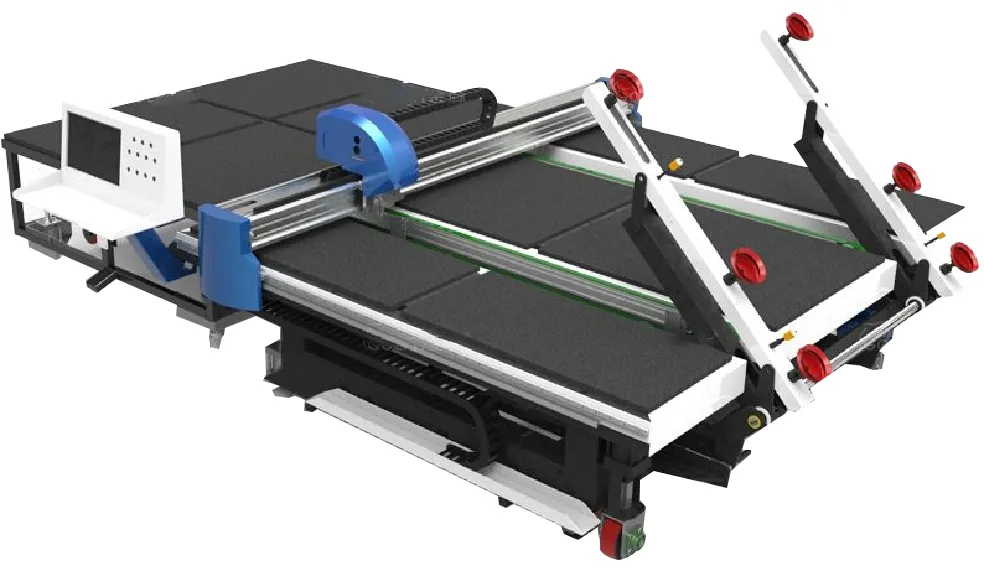

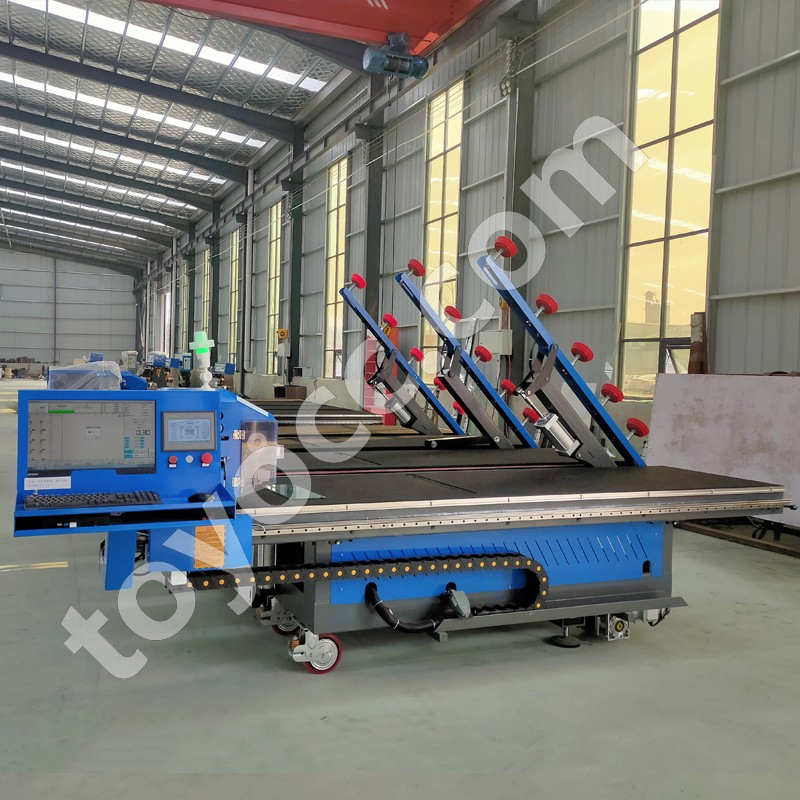

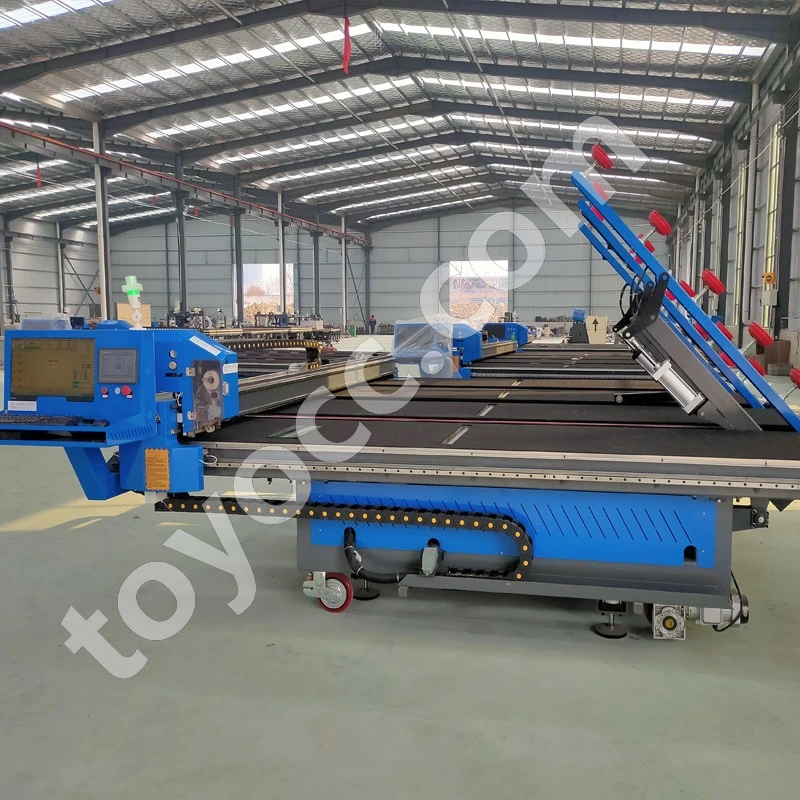

Integrated Loading + Cutting System: Automatically converts vertically placed glass to horizontal for precision processing.
✔
Fully Automated Workflow: Performs all steps autonomously from film loading to cutting, reducing manual labor.
✔
Advanced Laser Positioning: Built-in scanning systems automate layout and eliminate manual CAD measurements.

Technical Parameters

Parameters	TYJT-2420	TYJT-3628
Dimensions	363047001400mm	39307001400mm
Max Processing Size	2440*2000mm	3660*2800mm
Cutting Speed	0-180m/min	0-180m/min
Installed Power	11.8 KW	11.8 KW
Net Weight	3000KG	3100KG

Core Details

Smart Suction Monitoring

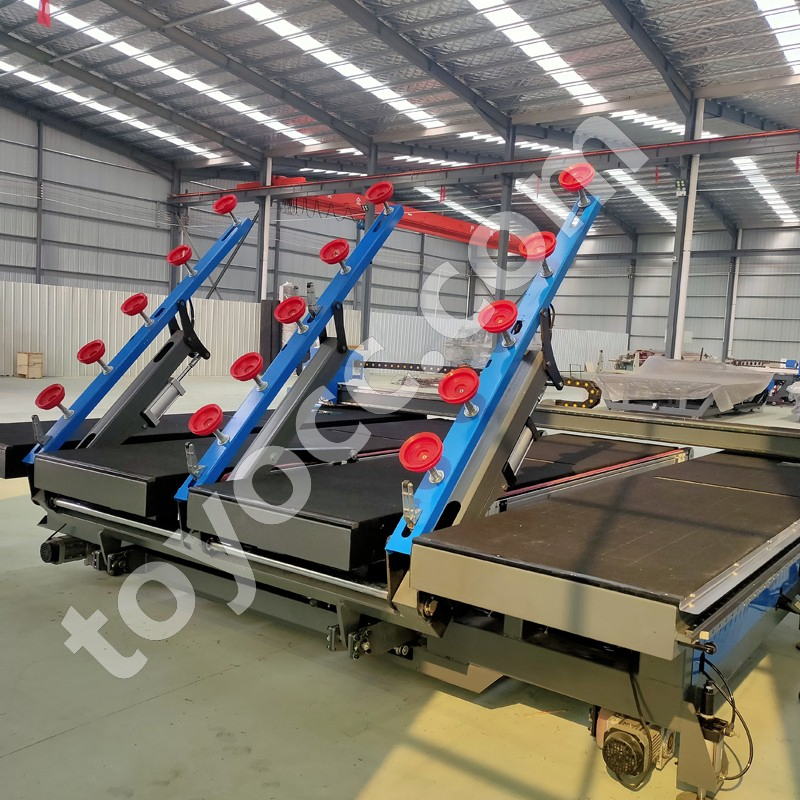

One-touch start allows the machine to automatically lift the boom, rotate to find the glass angle, and monitor suction stability throughout the process.

Intelligent Typography

Advanced nesting software optimizes glass layout to significantly improve material utilization and reduce waste.

360° Precision Cutting

Equipped with a German-engineered cutter head capable of 360-degree rotation for complex shaped cutting.

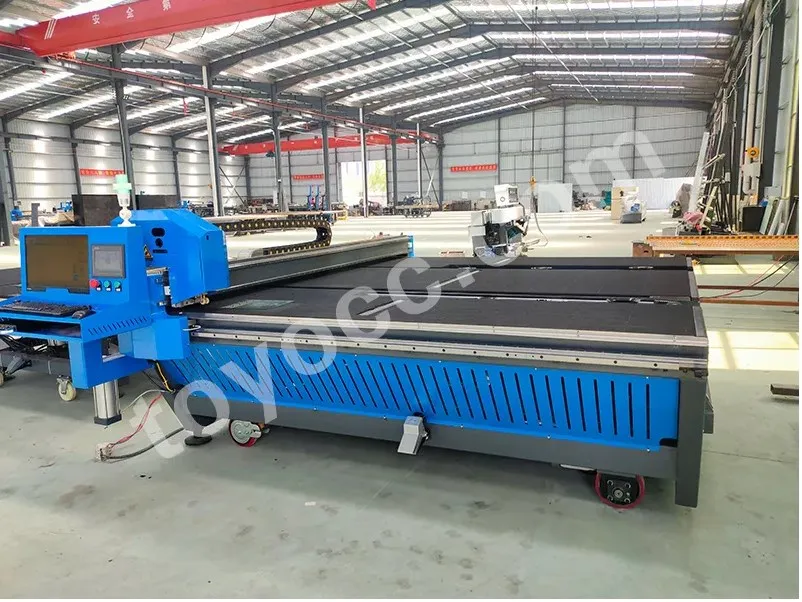

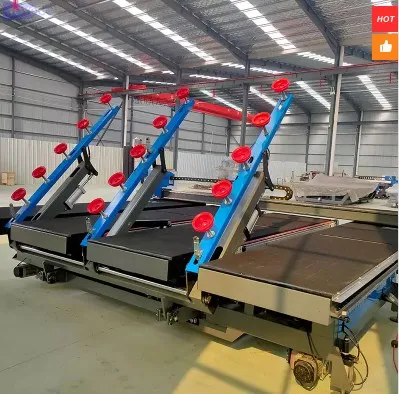

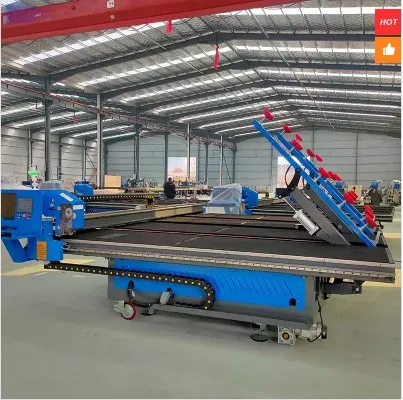

Product Gallery

Service & Advantages

● Served 864 Global Clients

● 28 Years Manufacturing Experience

● 15-Step Quality Control

● Same-day Shipping for Stock

● Lifetime Software Upgrades

● 5%-10% Lower than Market Price

Frequently Asked Questions

What is the range of glass thickness this machine can cut?

The machine is designed to cut glass thickness ranging from 3mm to 19mm with precision air pressure control.

Does the system support complex shapes or just straight lines?

It supports both linear and shaped (heterosexual) cutting. The German-imported cutter head can rotate 360 degrees to follow any complex profile.

How fast is the automated loading process?

The loading speed is highly efficient, typically taking between 15 to 40 seconds to complete a full loading cycle.

What control systems are used in this machine?

The machine utilizes a dual control system: a PLC microcomputer for the loading sequence and a dedicated CNC system for high-precision cutting.

Is it easy to move the glass on the cutting table?

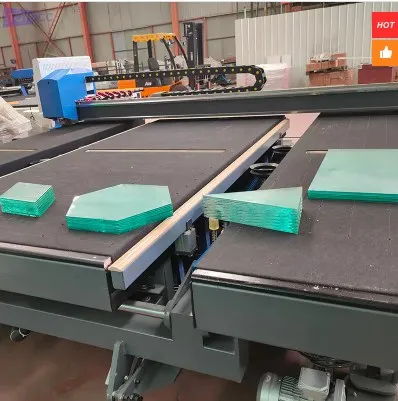

Yes, the machine features an air-floating platform with over a hundred evenly distributed air holes, creating a stable airflow that makes pushing and pulling glass effortless.

What are the key safety features?

Safety is prioritized with emergency stop buttons, overload protection, and specialized safety sensors from Panasonic Japan.
