Lab Css Rtp Furnace Close Spaced Sublimation Deposition System

1 / 5

Lab Css Rtp Furnace Close Spaced Sublimation Deposition System

Customization:	Available
After-sales Service:	on-Line Service
Warranty:	One Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

CY-EVH350JJL-5"-SS

Type

Thermal Evaporation Coater

Coating

Vacuum Coating

Substrate

Steel

Certification

CE, RoHS

Product Name

Close Spaced Sublimation Deposition System

Chamber Material

SS304

Vacuum Pump

Rotary Vane / Molecular Pump

Temperature

0-950℃

Sample Size

5*5 inch

Product Description

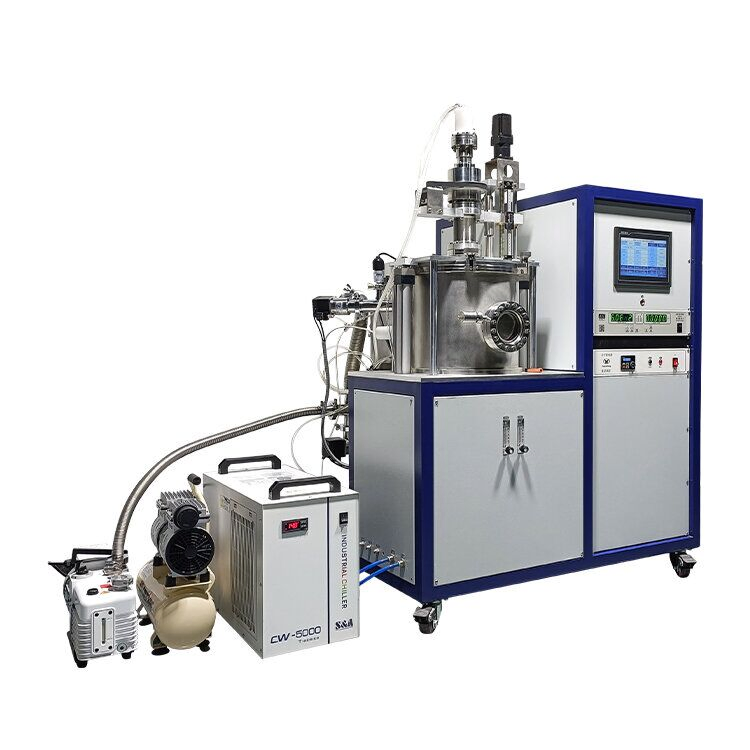

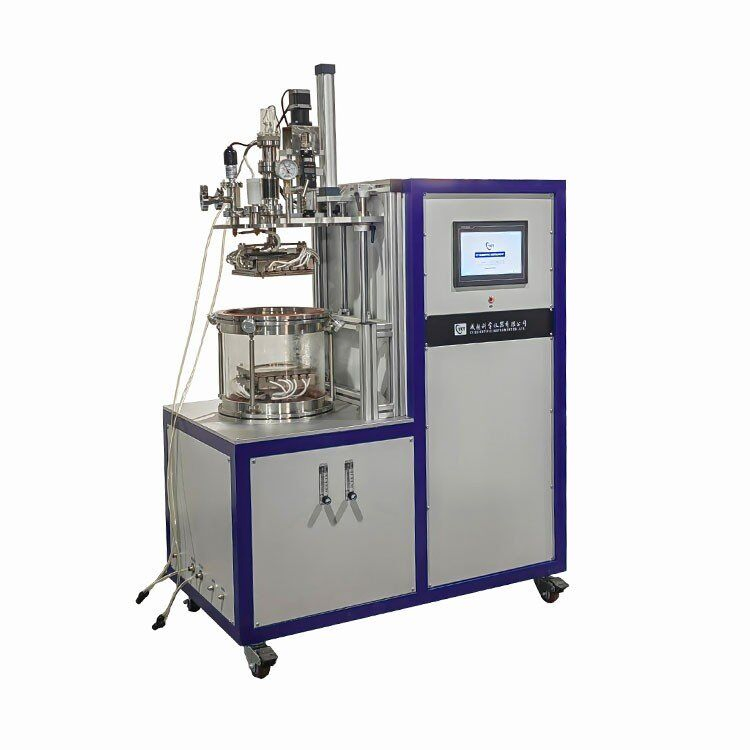

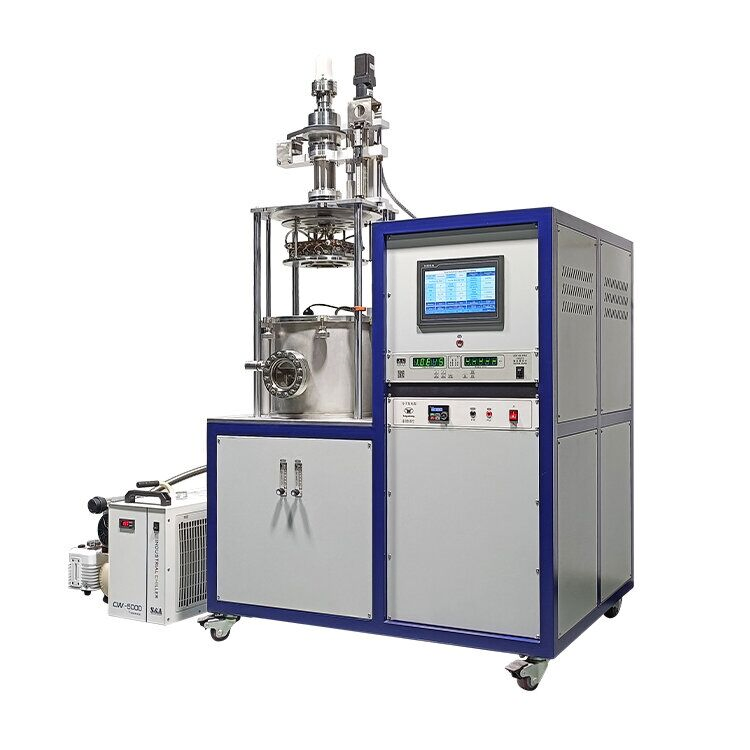

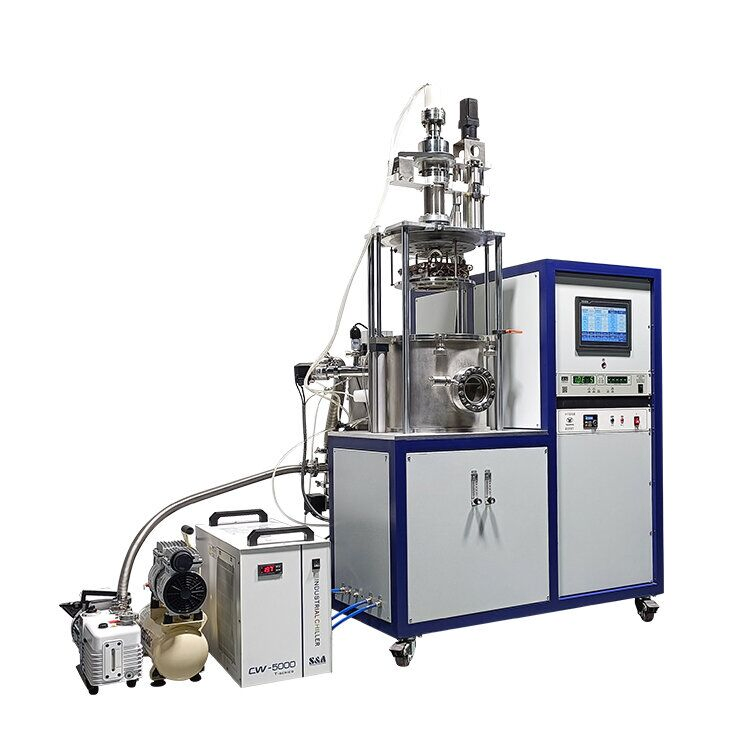

Lab CSS RTP Furnace Close Spaced Sublimation Deposition System
The CSS furnace is a double heating zone rapid heat treatment furnace with an 11" outer diameter quartz tube. It is designed for PVD or CSS (close space sublimation) film coating 3" diameter or 2" x 2". The short distance evaporation coating furnace uses two sets of halogen heaters (top and bottom) with a maximum heating rate of 20ºC/s.

Two 30-segment precision temperature controllers are built in with an accuracy of +/-1ºC. Includes RS485 port and control software to allow furnace operation and temperature curve recording via PC. It is the main tool for studying the new generation of thin films for solar cells, such as CdTe, sulfide and perovskite solar cells.

Technical Parameters

Structure	1. Two temperature controllers for top and bottom elements. Float flowmeter for gas flow. 2. Vacuum chamber: 350 mm Dia x 300 mm H, Stainless Steel. Front door opening. 3. Electric lifting vacuum flange.

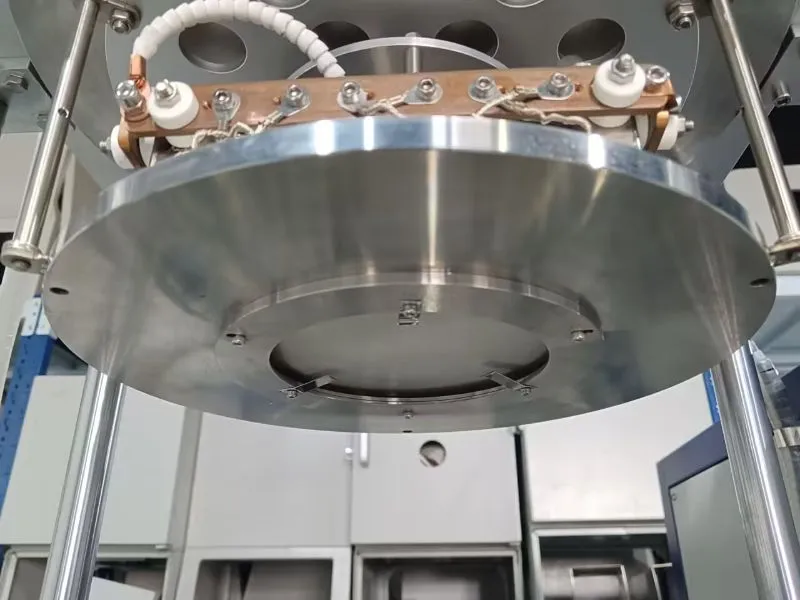

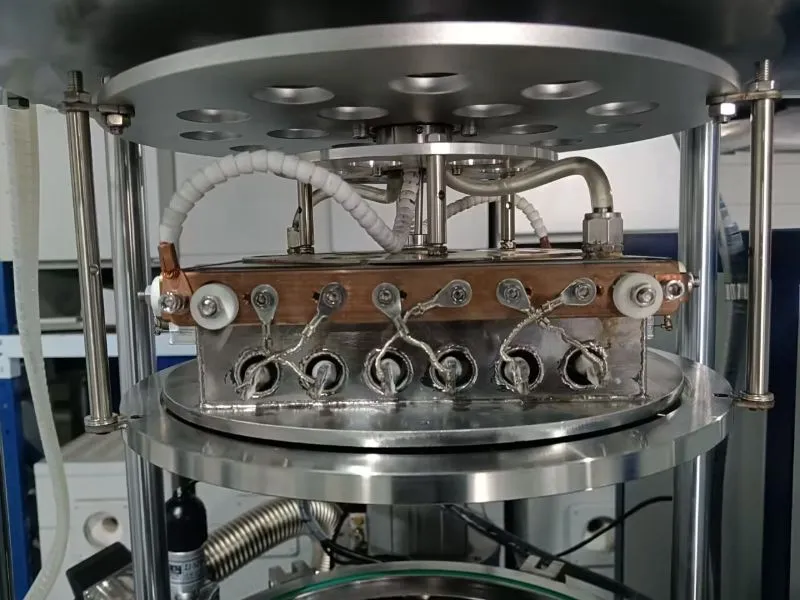

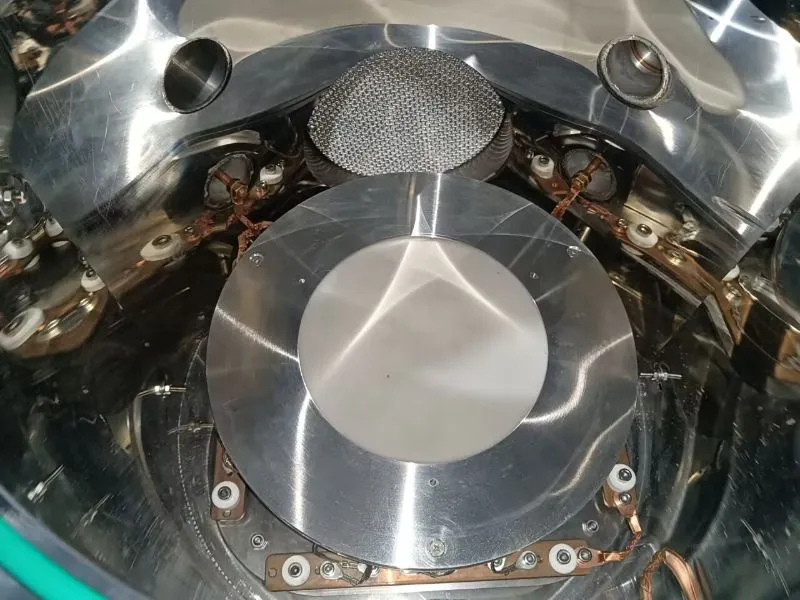

Heating Element	20 infrared lamps (top and bottom). Adjustable distance by DC motor. Aluminum nitride ceramic sheet (5"x5") for high thermal conductivity.
Temperature Control	Two independent systems with 30-stage cooling procedures and ultra-mild break protection.
Operating Temp	Max RT-950ºC. Max temp difference between heaters: 300ºC.
Vacuum System	Equipped with molecular pump system, 600L/S, 1x10-5 Torr.
Power Supply	208V 60HZ three-phase.

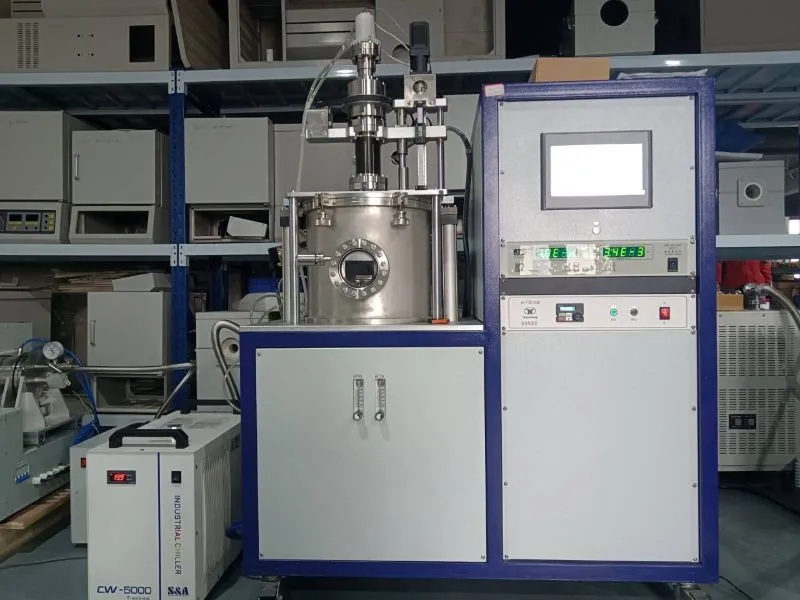

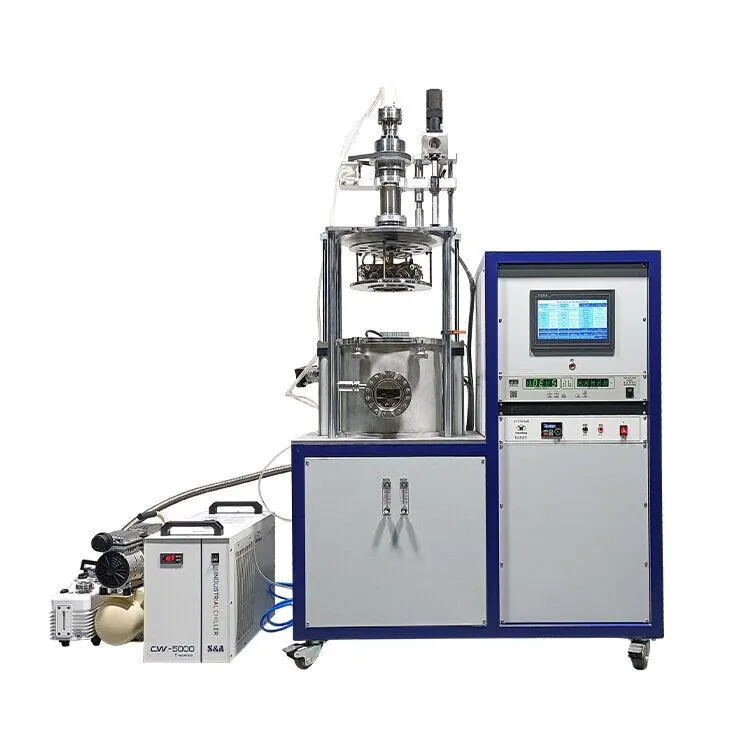

Detailed Photos

Packaging & Shipping

Shipment can be arranged by sea or by air according to your specific requirements. We utilize standard export fumigation wooden box packaging to ensure equipment safety during transit.

About Us

We are a comprehensive company integrating design, research and development, production and sales. Our main product range includes spin coaters, thermal evaporation coaters, magnetron sputter coaters, plasma cleaners, CVD systems, and diamond wire cutting machines.

Our products are widely used in materials science research, serving laboratories and new material companies globally. We have successfully exported to more than 20 countries including the United States, United Kingdom, Germany, Russia, and Switzerland.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer of laboratory instruments with a dedicated R&D team and workshop, ensuring high quality and reliable after-sales service.

What is the warranty period for the equipment?

Our standard warranty is 12 months, and we provide lifetime maintenance along with 24-hour online technical support.

How long is the delivery time?

Standard products in stock take 5-10 days. For customized instruments, the lead time is typically 30-60 days depending on your specific requirements.

Can you provide specific power supplies and plugs?

Yes, we can customize the products according to your local voltage and plug standards (e.g., 110V, 220V, 380V).

What are your accepted payment methods?

We accept various payment terms including T/T, L/C, D/P, and other standard international trade payment methods.

How is the equipment packaged for international shipping?

We use professional, standard export fumigation-free wooden boxes to protect the goods during sea or air transport.
