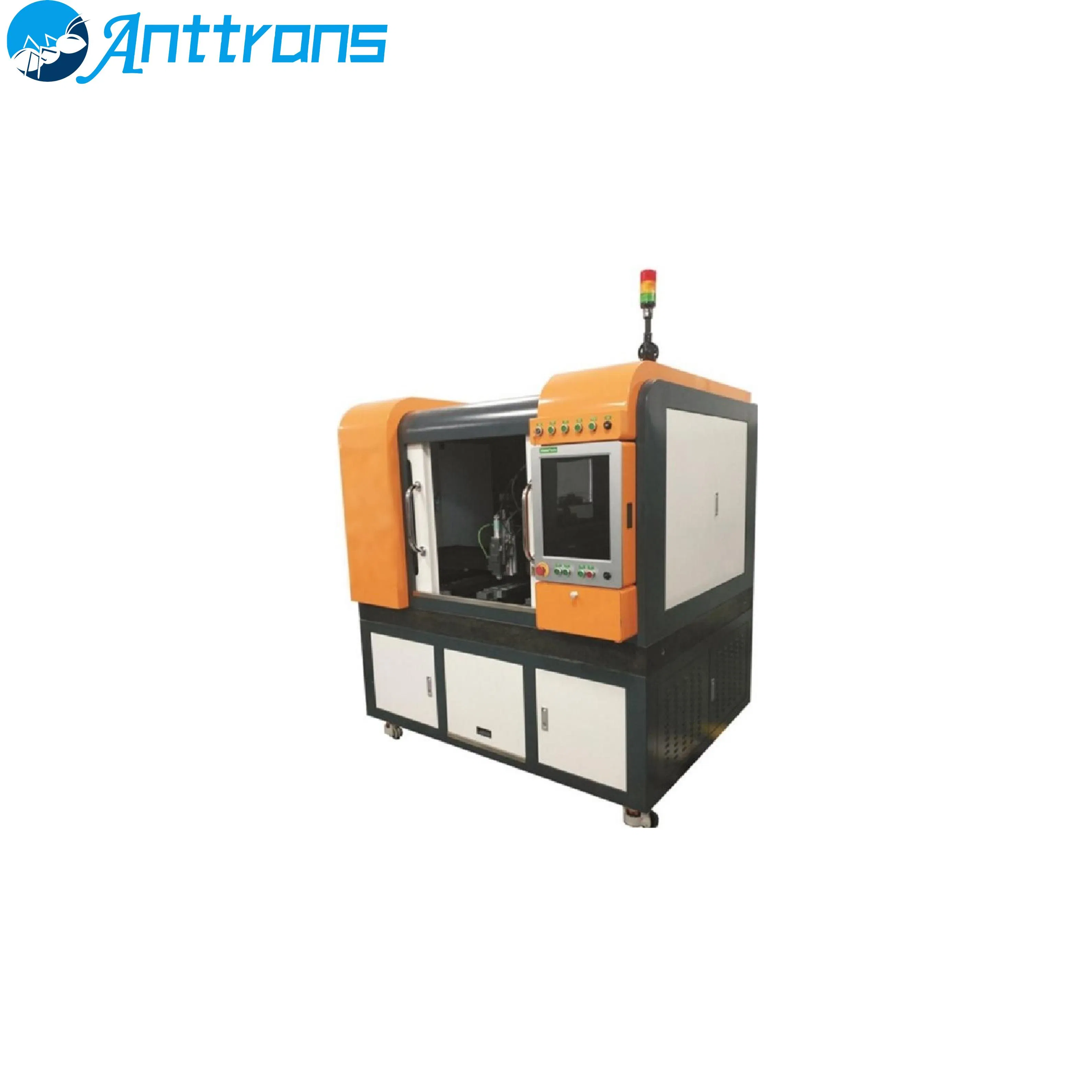

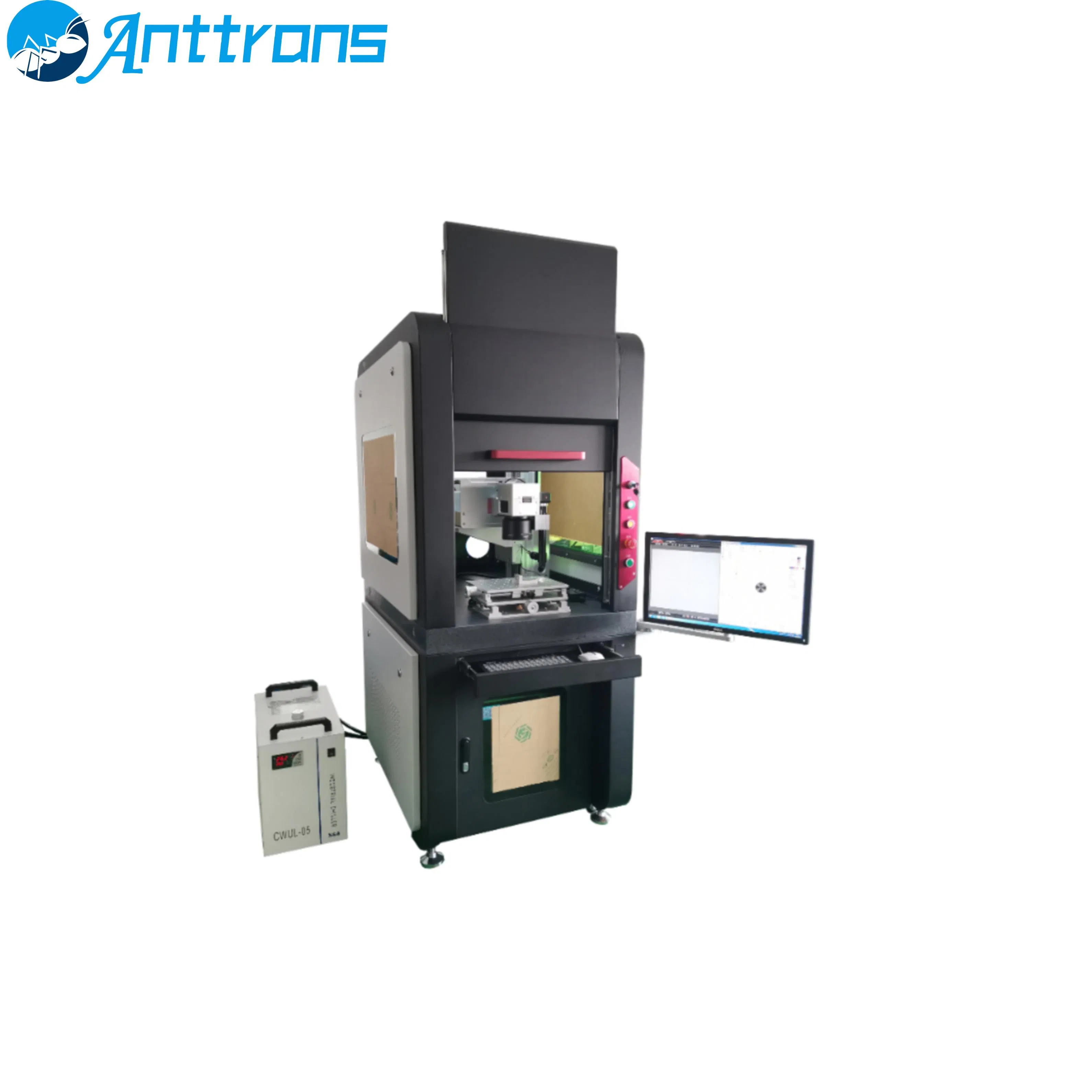

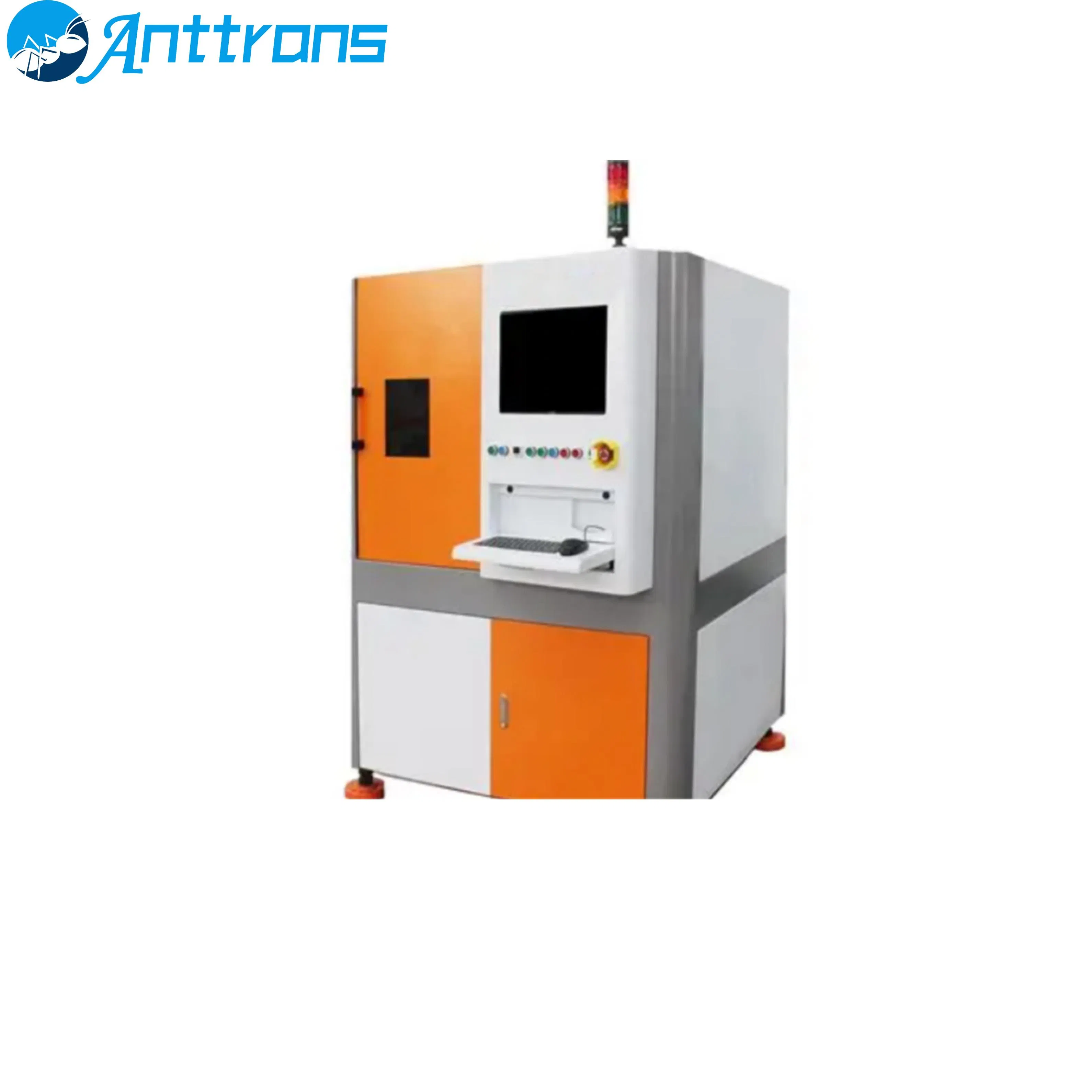

High-Performance Laser Drilling System for Rapid Material Processing

1 / 5

High-Performance Laser Drilling System for Rapid Material Processing

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

⚡ Overview

Model NO. AT-61166

Origin China

Package Size 150.00cm * 90.00cm * 150.00cm

Gross Weight 2000.000kg

📄 Product Description

The Laser High-Speed Drilling System is a galvanometer-based precision laser processing equipment that combines high-power fiber laser technology with high-speed precision galvanometer control. It enables ultra-fine, high-speed micro-hole processing on thin sheet materials, with a minimum hole diameter of 0.02mm and positioning accuracy up to 2μm. It is widely suitable for precision drilling needs in industries such as electronics, automotive, aerospace, and medical devices, offering a cost-effective solution for micron-level micro-hole processing.

⭐ Product Features

⚙️ Single-mode fiber laser with excellent reflection isolation and diffraction-limited beam quality.

🎯 High-precision servo cutting head with auto-focus capability and fast response.

📐 Precision optical path and beam control structure for superior spot control.

🚀 Linear gantry dual-drive platform with acceleration exceeding 1G.

🖐️ High-precision 5-axis control system with path optimization and nesting capabilities.

💨 Ultra-high-speed drilling mode exceeding 50 holes per second.

👁️ Off-axis visual positioning system supporting secondary positioning of parts.

💎 High-flatness marble platform with a fully enclosed structure for stability.

🛠️ Minimum hole diameter down to 0.05mm with smooth cuts and no slag.

📊 Product Parameters

Category	Parameter	FM -LPCD1500/3000
Laser	Wavelength	1060~1080nm
Laser	Peak Power	1500W (3000W)
Laser	Modulation Frequency	1~50kHz
Laser	Beam Quality M²	<1.05
XY Stage	Travel	600600mm / 800800mm
XY Stage	Repeatability	≤±0.005mm
XY Stage	Positioning Accuracy	≤±0.02 mm
XY Stage	Acceleration	≤1G
XY Stage	Speed	≤60m/min
Z Axis	Travel	150mm
Processing	Min Hole Diameter	0.05mm
Processing	Thickness	≤2mm (5mm)
Processing	Drilling Speed	>50 holes/s
Cooling	Method	Air cooling
Power	Supply	220V 50~60Hz
Dimensions	Size	150016001900mm
Weight	Weight	1500Kg

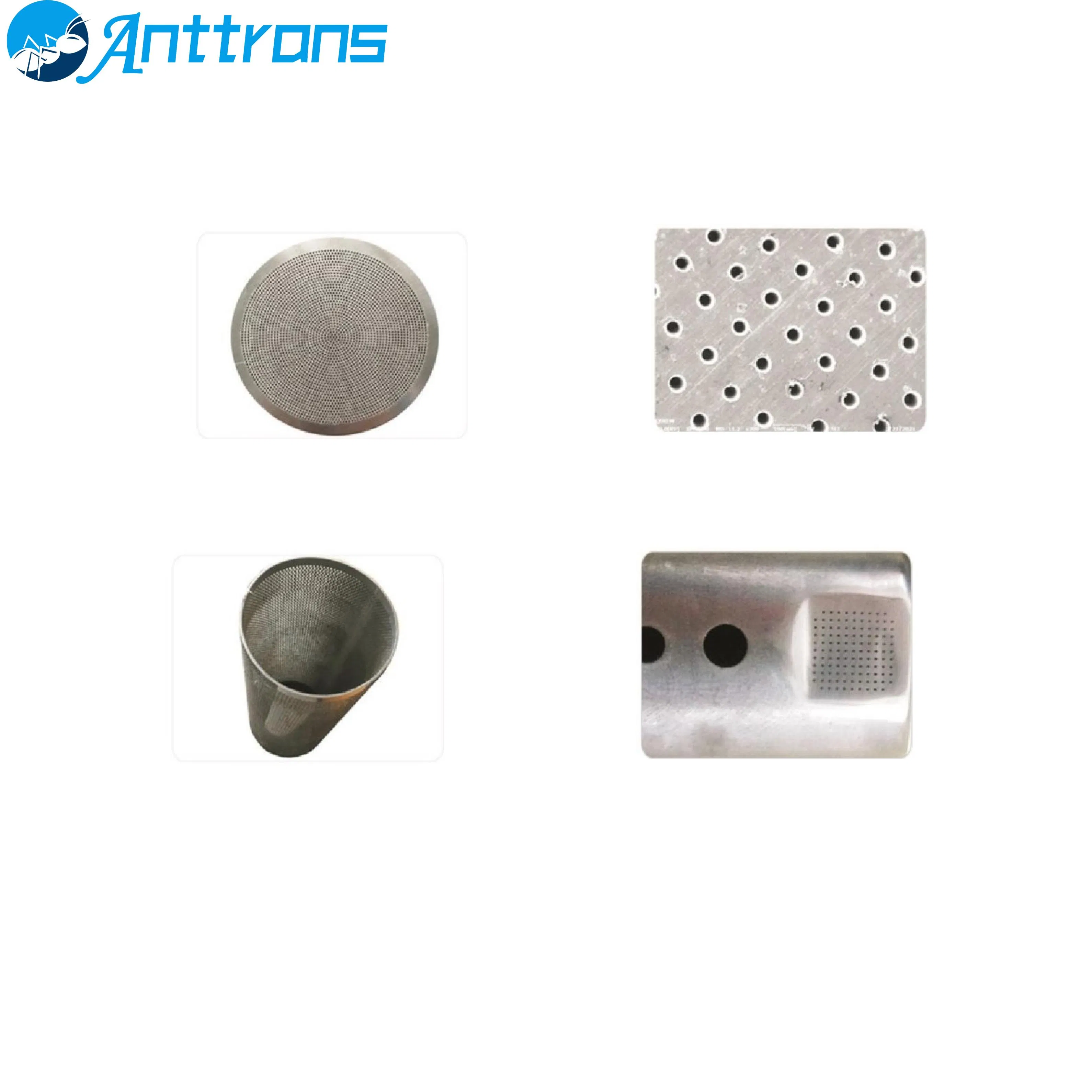

📸 Detailed Photos

❓ Frequently Asked Questions

🔹 What is the maximum drilling speed of this system?

The system features an ultra-high-speed drilling mode capable of exceeding 50 holes per second for hole diameters between 0.02mm and 0.2mm.

🔹 Which materials are suitable for processing?

This equipment is designed for precision processing of various metals, alloys, and ceramic materials.

🔹 What is the minimum hole diameter the system can achieve?

The system can achieve a minimum hole diameter (kerf) as small as 0.02mm to 0.05mm, depending on the material and specific settings.

🔹 Does the system require a water chiller for cooling?

No, the system utilizes efficient air cooling, which simplifies maintenance and reduces overall power consumption.

🔹 How does the visual positioning system help in production?

The high-precision off-axis visual positioning system supports secondary positioning of parts, ensuring high accuracy even when reloading or reprocessing components.

🔹 What industries benefit most from this laser drilling system?

It is widely used in electronics, automotive manufacturing, aerospace components, and the production of medical devices where micron-level precision is required.
