Market-Leading 4-Head Roll-to-Roll Laser Drilling System: Redefining High-Volume Production Standards with 4x Efficiency Gain For PCB & FPC

Basic Information

Structure:Laser Drilling Machine

Layout:Vertical

Controlling Mode:Artificial

Number of Shaft:Multi-Axis

Hole Diameter:<50mm

Automatic Grade:Automatic

Precision:High Precision

Laser Type:Nanosecond/Picosecond UV & Green

Efficiency Boost:300% Higher Than Single-Head

Laser Heads:4 Heads (Synchronous/Independent)

Product Description

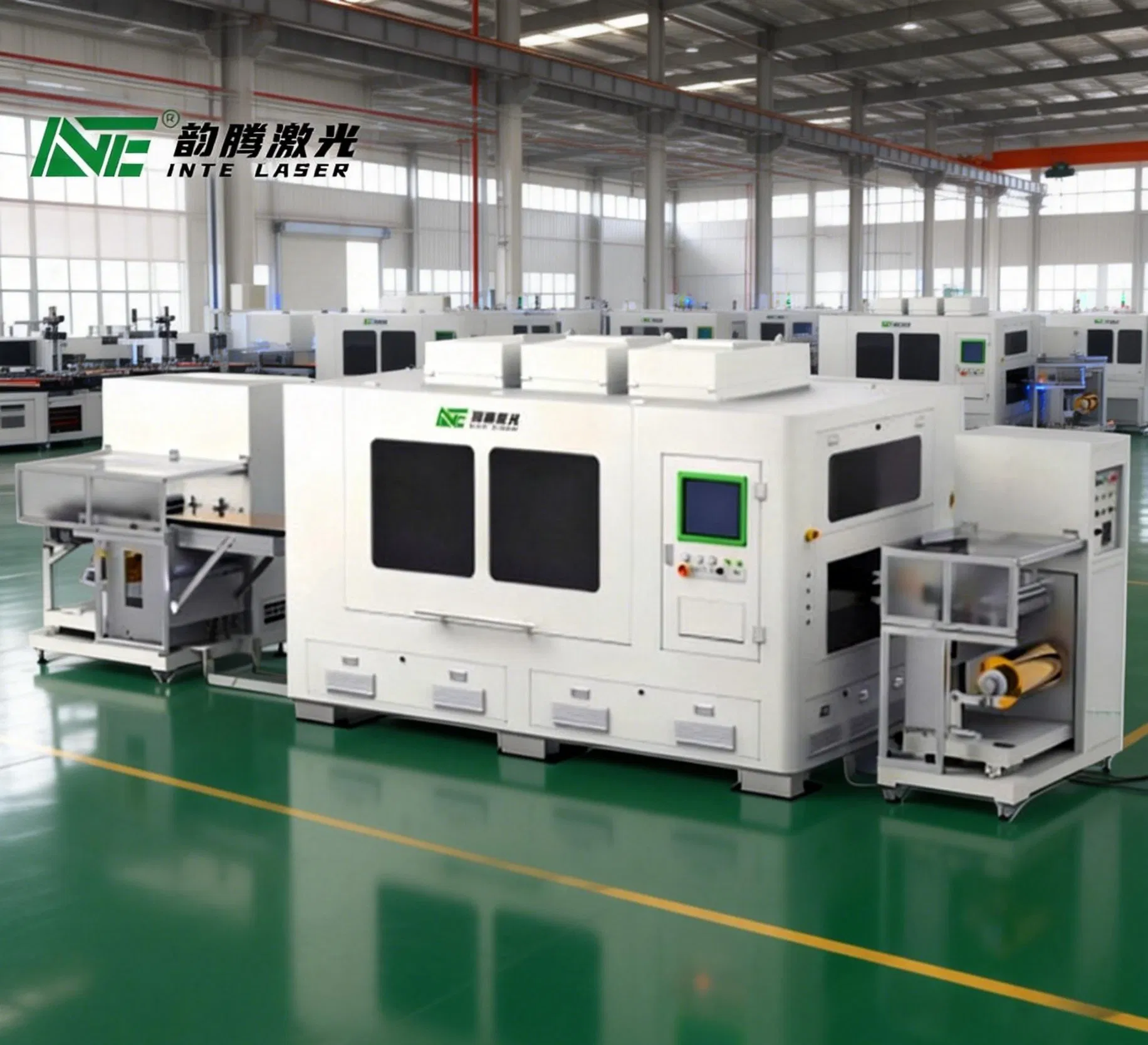

Introducing the groundbreaking Four-Head Roll-to-Roll Laser Drilling Equipment - the industry's first solution designed to revolutionize high-volume electronics manufacturing. As a pioneer in multi-head laser drilling technology, this equipment delivers unprecedented 4x efficiency improvements while maintaining superior precision standards. Engineered for the most demanding production environments, this machine represents the future of automated electronics manufacturing, combining cutting-edge technology with proven reliability.

Highlights & Features

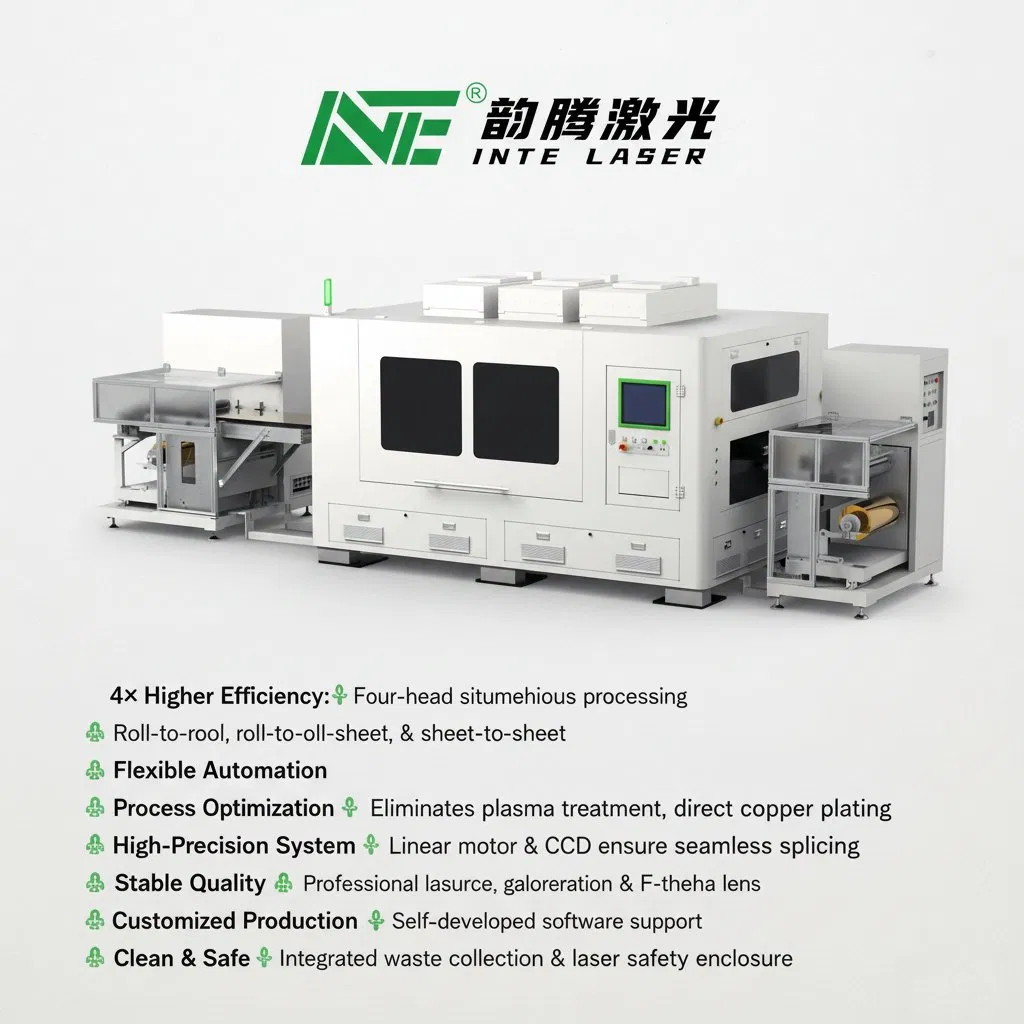

★ Unmatched Efficiency

1. Four heads operate simultaneously, delivering 4x higher production capacity
2. Supports roll-to-roll, roll-to-sheet, and sheet-to-sheet automation
3. Dramatically reduces production cycle times.

★ Precision Engineering

1. High-precision linear motor system with integrated CCD ensures seamless splicing
2. ±0.02mm accuracy guarantee for superior product quality
3. Professional galvanometer & F-theta lens technology.

★ Process Optimization

1. Enables direct copper plating by eliminating traditional plasma treatment
2. Reduces production steps and associated costs
3. Improves overall manufacturing yield rates.

★ Versatile Applications

1. High-density PCB & Flexible circuit board (FPC) manufacturing
2. Lithium battery separator drilling
3. Semiconductor wafer processing and Automotive electronics.

Technical Specification

Laser Type	Nanosecond UV, Picosecond UV, Picosecond Green Laser
Processing Area	550mm × 1500mm (customized)
Machine Size	7200mm × 2300mm × 2250mm
Accuracy	±0.02mm
Weight	8000KG
Power Loading	Main Unit + 30kW Chiller + Exhaust Fan
Environment	Temperature: 22℃±2; Humidity: 40% - 60%

Precision & Quality Showcase

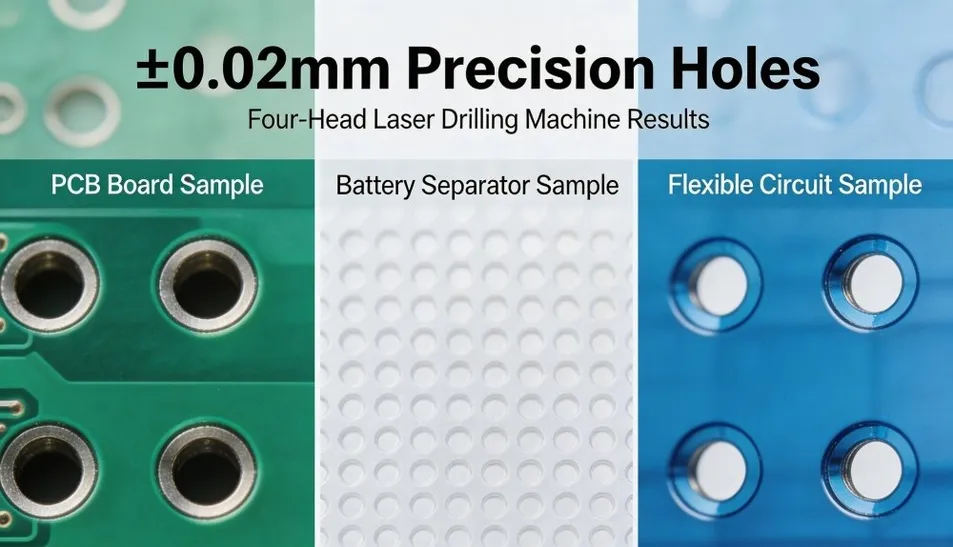

Microscopic Accuracy on PCB Samples

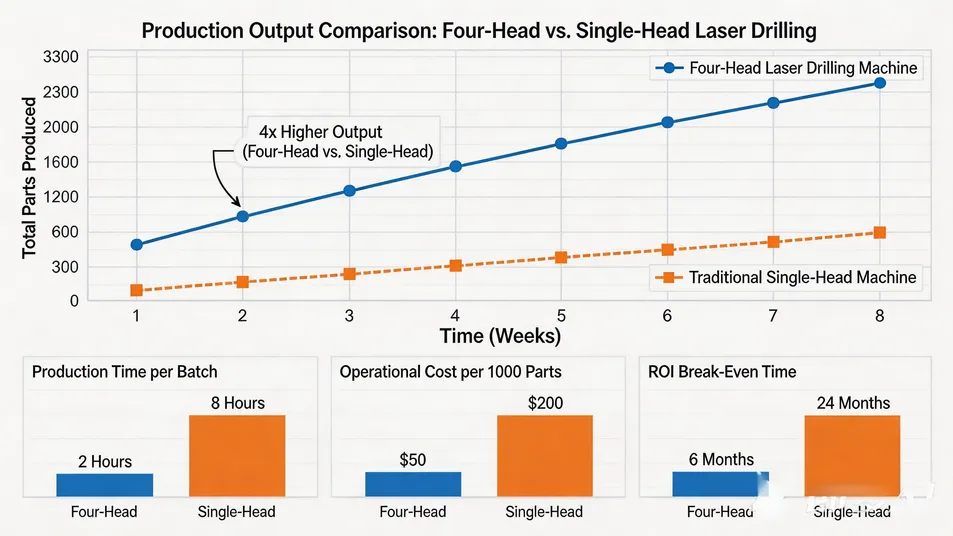

4x Production Capacity Comparison

Our Four-Head Laser Drilling Machine delivers exceptional precision with microscopic accuracy. Each hole is perfectly round and uniform, showcasing the machine's ability to maintain consistent quality across high-volume production runs.

Expertise & Innovation

Founded in 2013, we are a technology-oriented enterprise specializing in the independent research and development of laser generators, optical devices, and automation systems. We provide innovative solutions for laser micromachining applications, creating value in industries such as semiconductors, glass, new energy, and solar energy.

Packing & Delivery

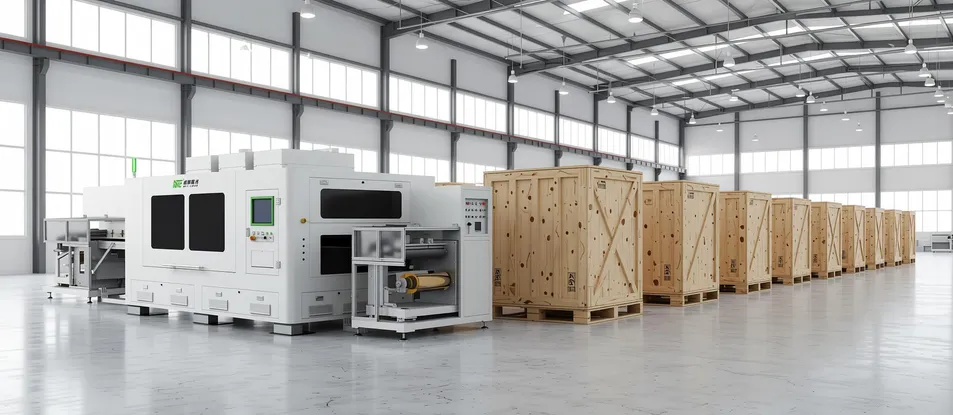

Packing:1PCS / Wooden Case

Delivery Time:30-45 Days (Standard); 45-90 Days (Customized)

Shipping:Sea Freight (Recommended) or International Express
