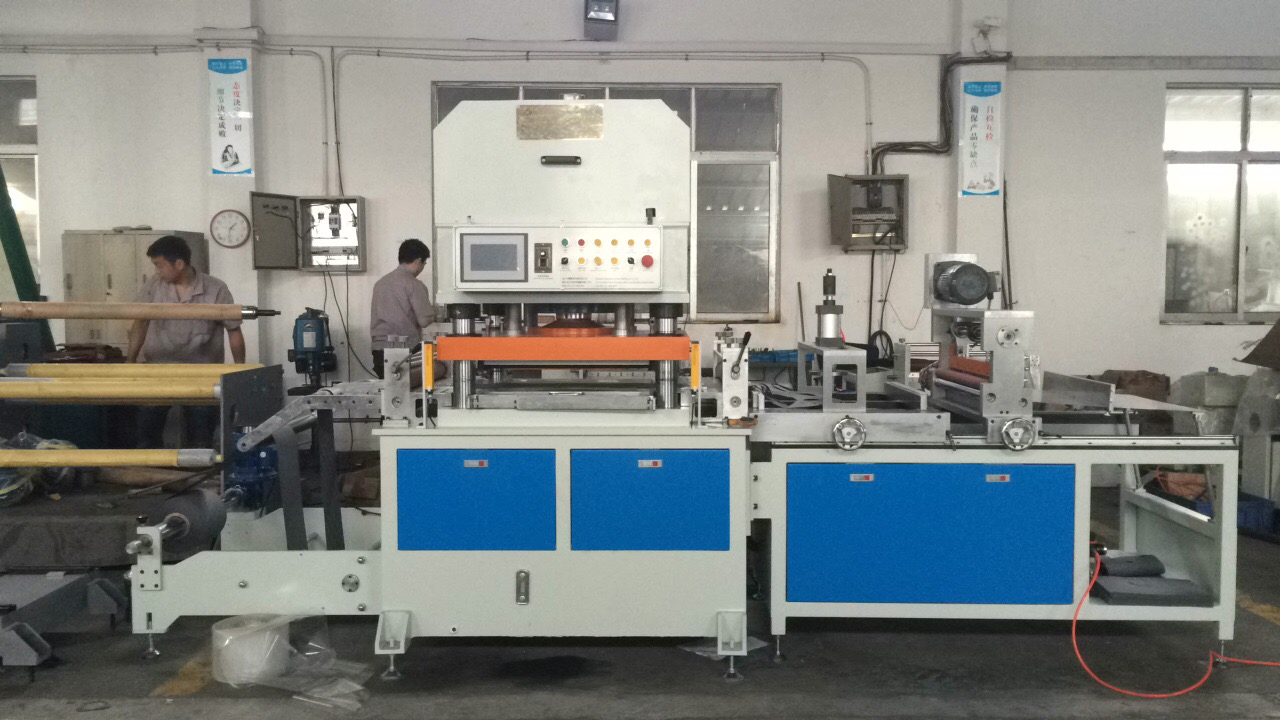

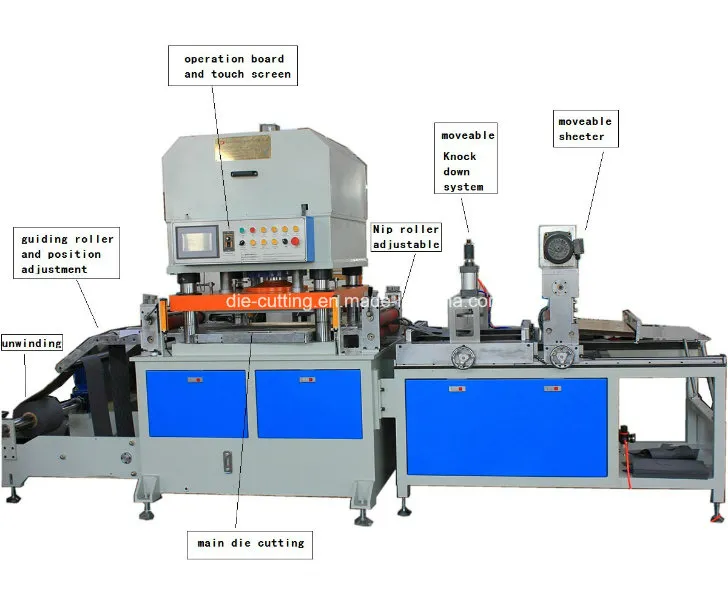

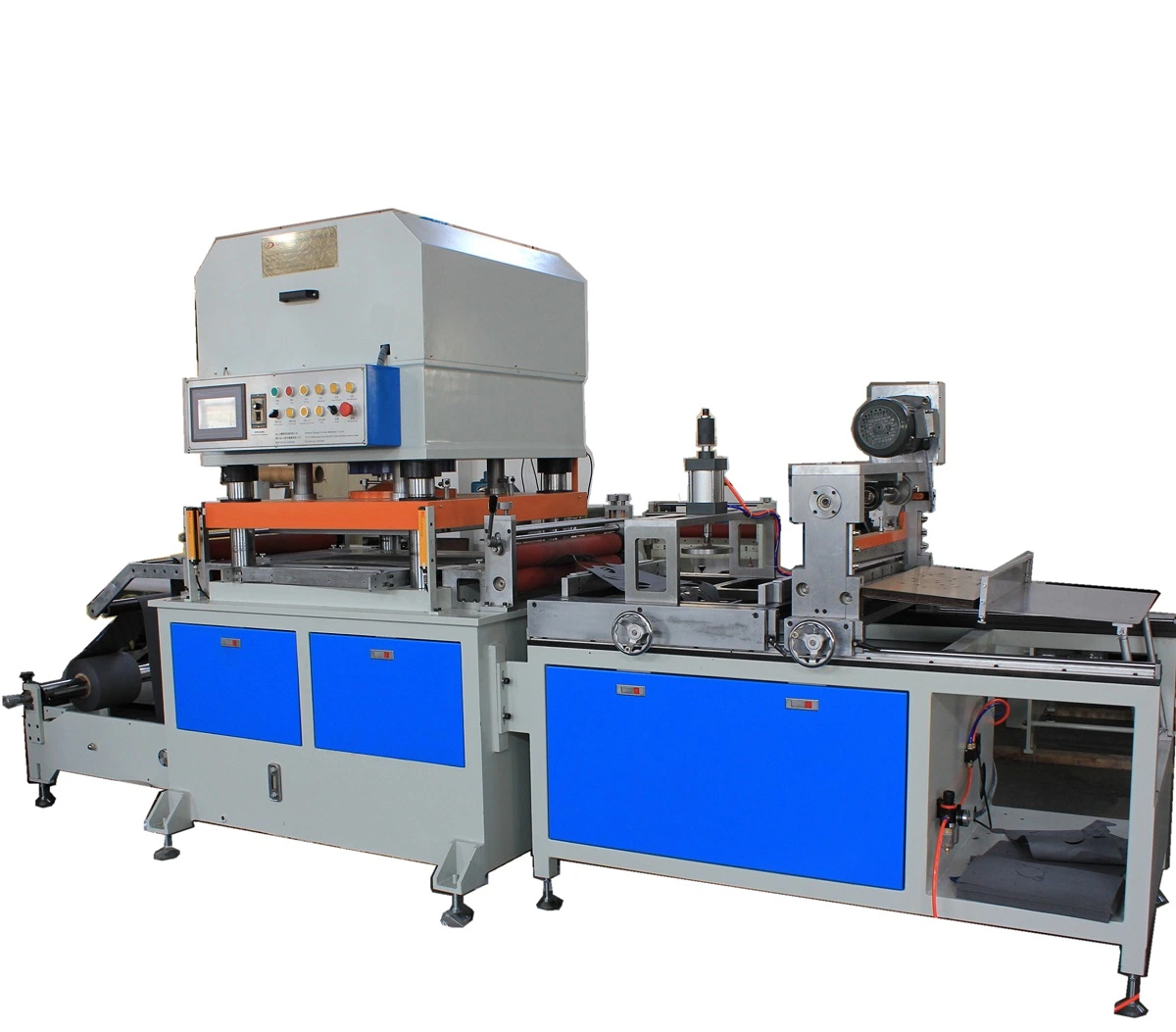

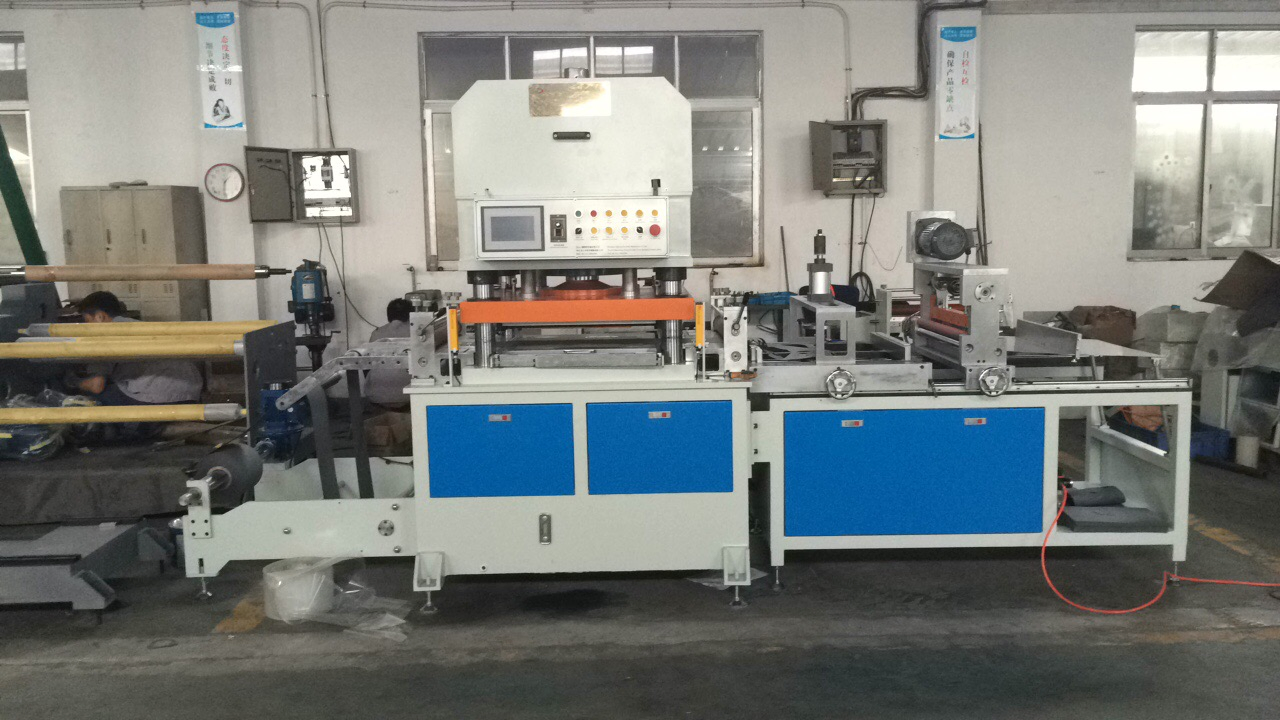

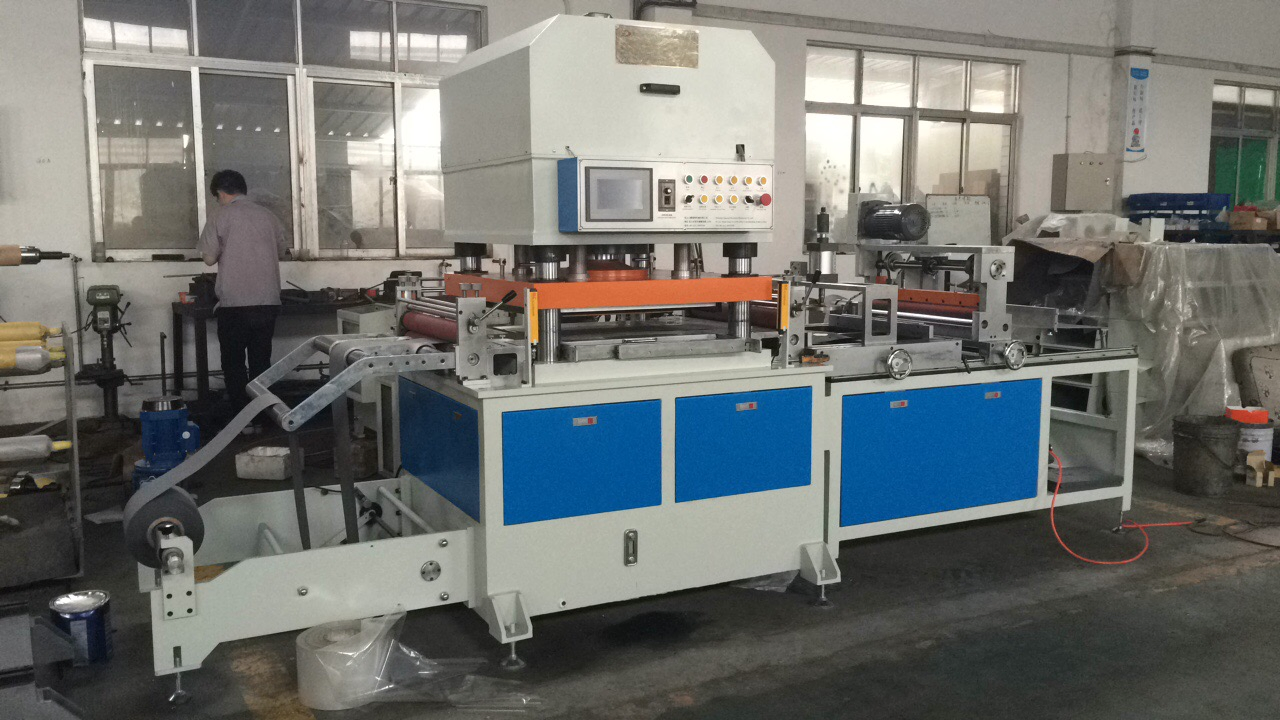

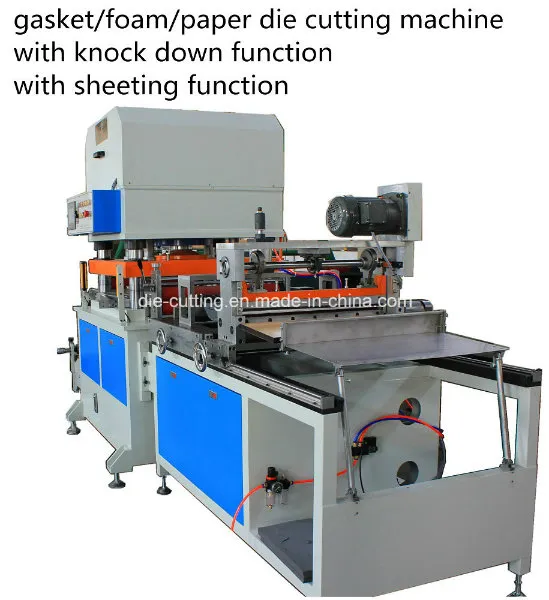

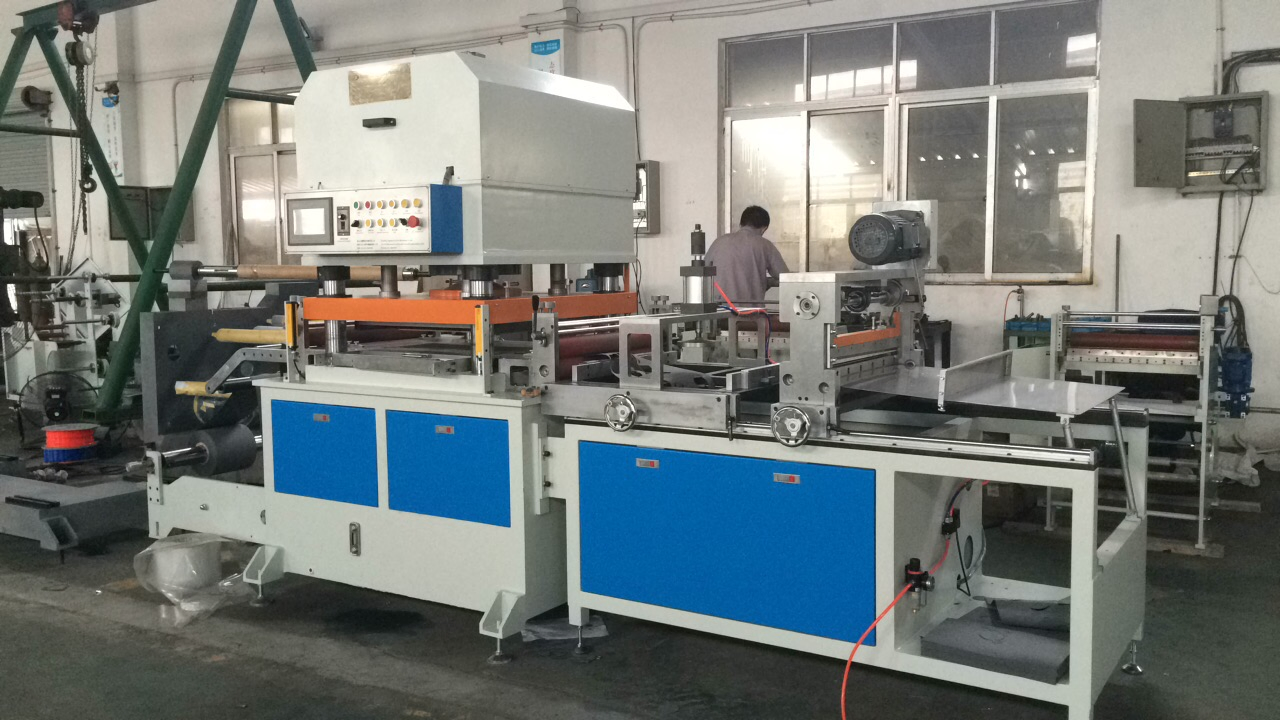

40 Ton EMI Gasket Die Cutting Machine

Customization:	Available
Species:	Round Applanation Die Cutting Machine
Imprinting Type:	Platen

Send Inquiry

Product Description

Basic Information

Model NO.:DP-40Tons

Placing Form:Horizontal

Cutting Tool:Laser Die Cut Mold/Wooden Knife Mold/Steel Mold

Computerized:Yes

Automatic Grade:Automatic

Cutting Size:650X600mm / 800X600mm

Color:Grey / Blue / White

Cutting Pressure:40 Ton

Feeding Width:650mm

Driven Motor:7.5kw

HS Code:844110000

Capacity:30 Set / Month

Product Features

✓ Advanced Mechanism: Special body design for high efficiency and stability.
✓ Smart Control: PLC and man-machine interface control from world-famous brands.
✓ Hydraulic Efficiency: Quick loop hydraulic control system with noise reduction and stable speed.
✓ Precision Feeding: Single-chip microcomputer control ensures accurate precision and simple operation for feed length settings.
✓ Enhanced Safety: Infrared safety electric eye system and multi-function security devices.
✓ High Productivity: Automatic feeding provides 3-4 times higher efficiency than general presses.

Applications

Used for cutting non-metallic materials including PVC, fabric, cardboard, rubber, sponge, non-woven bags, paper packaging, stickers, heat insulation materials, EMI shielding, and earthquake products. It is extremely suitable for cutting multiple layers of material at one time.

Technical Specifications

Model	Working Area	Max Tonnage	Max Feeding Width	Drive Motor	Weight	Outline Dimension	Accuracy
DP-650	650mm*600mm	40t	650mm	7.5HP/5.5KW	3 Ton	1940x1500x1790mm	±0.01 mm
DP-650 (L)	850mm*600mm	40t	850mm	10HP/7.5KW	3.4Ton	2140x1500x1790mm	±0.01 mm
DP-650 (XL)	1000mm*800mm	80t	1000mm	15HP/11.2KW	4.5Ton	2290x1500x1790mm	±0.01 mm

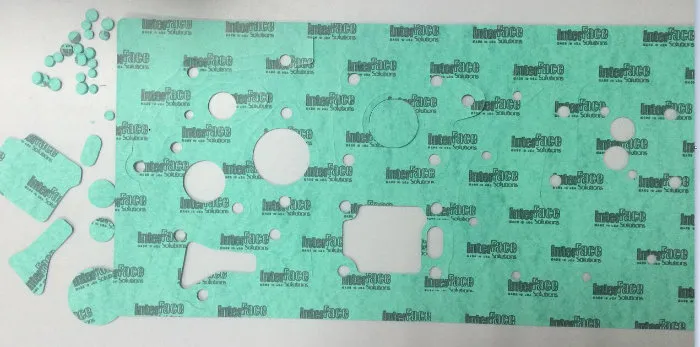

Product & Sample Display

Frequently Asked Questions

Q1: What materials can this hydraulic die cutting machine process? A: It is designed for various non-metallic materials such as PVC, fabric, cardboard, rubber, sponge, stickers, and EMI shielding materials.

Q2: How does the machine ensure operator safety? A: The machine is equipped with an infrared safety electric eye system and multiple safety devices to ensure a secure working environment.

Q3: What are the advantages of the automatic feeding system? A: The automatic feeding system can increase efficiency by 3-4 times compared to manual presses, significantly saving labor costs.

Q4: What kind of precision can I expect from the cutting process? A: The machine features high-precision positioning with an accuracy of ±0.01 mm, thanks to its microcomputer-controlled feeding system.

Q5: Can the machine handle multi-layer material cutting? A: Yes, it is extremely suitable for cutting multiple layers of material simultaneously, maximizing production output.

Q6: What types of die-cutting tools are compatible? A: The machine supports Laser Die Cut Molds, Wooden Knife Molds, and Steel Molds for various industrial needs.
