Basic Information
Species
Die Cutting and Creasing Machine
Die Cutting Tool
Wooden Die
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging, Stickers, Heat/Dust-proof Materials
Product Presentation
Introduction

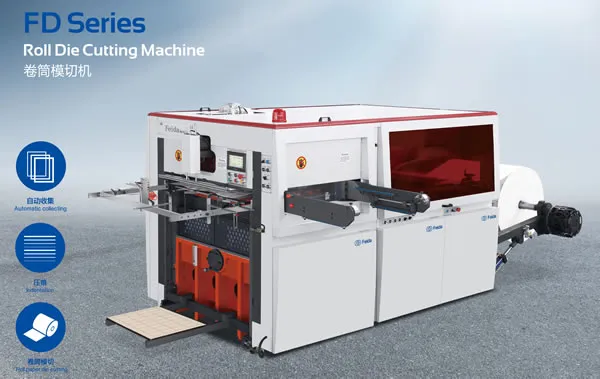

FD series automatic web die-cutting machine based on international advanced technology has high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts a micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection, and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning, and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety, and reliability.
Technical Specification
| Model | FD970x550 |
| Max cutting area | 940mmx510mm |
| Cutting precision | ±0.15mm |
| Paper gram weight | 120-600gsm |
| Production capacity | 90-180times/min |
| Air pressure requirement | 0.5Mpa |
| Air pressure consumption | 0.25m³/min |
| Max cutting pressure | 300T |
| Weight | 8T |
| Max roller diameter | 1600mm |
| Total power | 12KW |
| Dimension | 4500x2200x1800mm |
Frequently Asked Questions
What kinds of products can be made on this die-cutting machine?
The roll die cutting machine is suitable for creasing, die-cutting, and embossing paper cups, paper plates, paper boxes, square boxes, and various other paper packaging products.
What is the packing method for machine delivery?
As per standard procedures, the machine is shipped using flexible packaging with a sturdy iron underframe to ensure stability during transport.
What is the typical delivery time for the equipment?
Generally, the shipment is arranged within 20 to 40 days after the layout confirmation is finalized.
What kind of guarantee is provided for the machine?
We offer a one-year guarantee. During this period, any parts damaged due to machine-self issues will be repaired or replaced for free. Technical service is available throughout the entire lifespan of the machine.
Are installation and operator training services available?
Yes, upon request, technicians can be dispatched for installation and operation training. The buyer is responsible for travel tickets, accommodation, food, and a daily allowance.
What are the accepted payment terms?
Payment can be made via 100% T/T (30% deposit in advance and 70% balance before shipment) or through L/C at sight.
