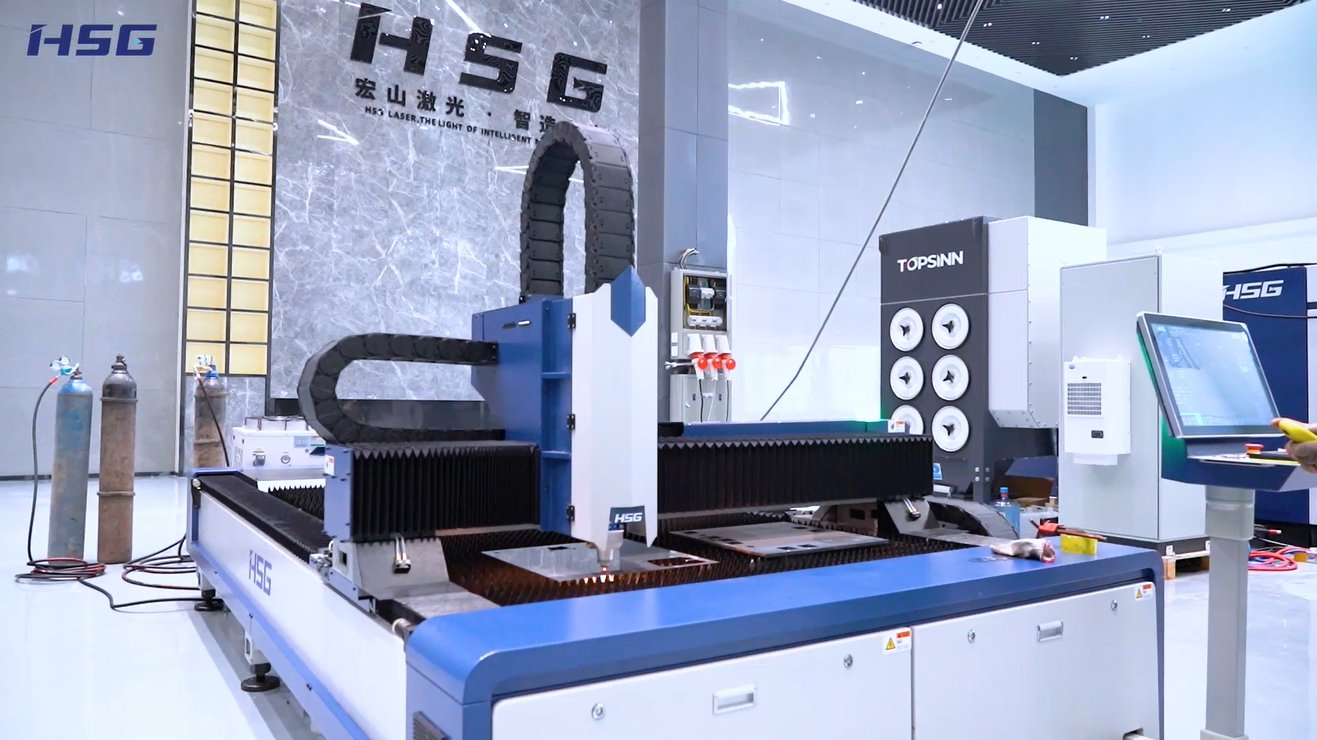

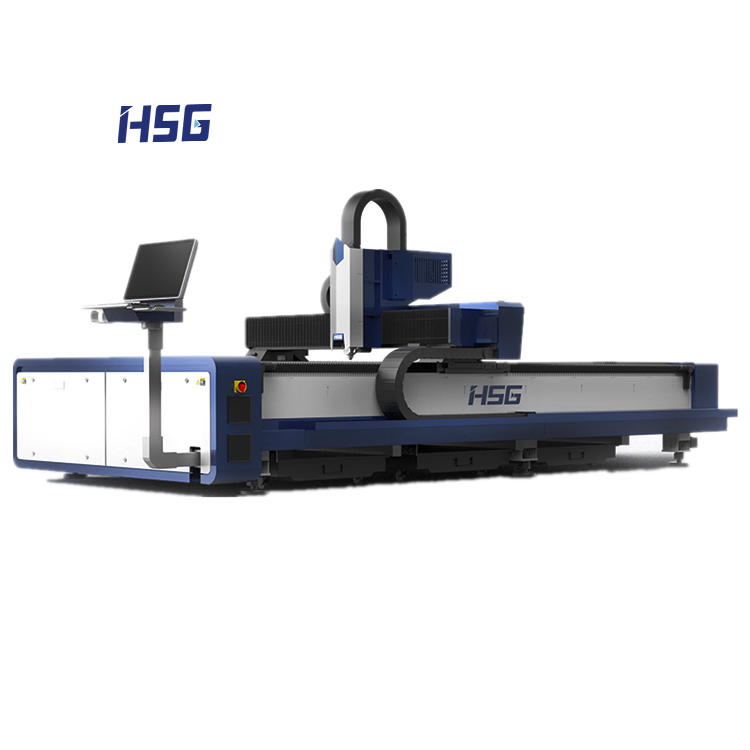

1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1 / 5
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials
1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials

1530 3015 Metal Cutter CNC Fiber Laser Cutting Machine for Different Insulation Materials

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model
GC Series
Application
Home Appliance, Aerospace, Automotive, Advertising, Metal Fabrication
Cooling System
Water Cooling
Laser Source
Continuous Wave Fiber Laser (Raycus)
Structure
Gantry Type
Applicable Material
Carbon Steel, Stainless Steel, Aluminum, Copper
Processing Capacity
500 PCS / Month
Product Overview

Metal CNC Fiber Laser Cutting Machine 1500W - 6000W with Exchange Table

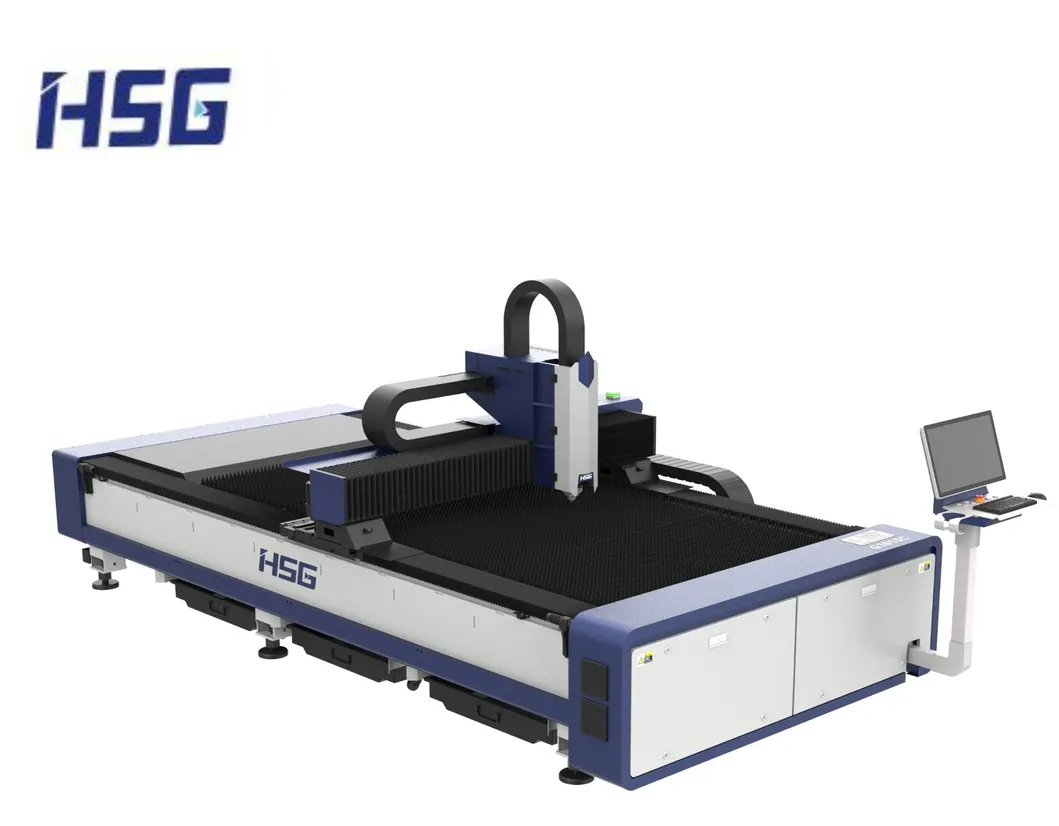

Fiber Laser Cutting Machine
  • Servo Dual-Drive Gantry: Bridge structure with rack rail drive and centralized lubrication for easy maintenance.
  • Stable Bed: Reinforced welding bed with high-temperature tempering to eliminate stress, ensuring deformation control within ±0.03mm.
  • Industrial Design: Aesthetic design following international export standards.
  • Professional CNC System: Flexible operation with laser power adjustment functions for superior cutting quality.
  • Efficient Material Usage: Optimized for standard metal sheet specifications to save time and materials.
Technical Parameters
Model Power Range Working Area (L*W) Positioning Accuracy No-load Speed Max Loading Dimensions
G3015C III1500W-6000W3000*1500mm±0.03mm/m140m/min700kg4900*2250*1700mm
G4015C III1500W-6000W4000*1500mm±0.03mm/m140m/min1050kg5560*2250*1700mm
G4020C III1500W-6000W4000*2000mm±0.03mm/m140m/min1400kg6015*3300*1700mm
G6015C III3000W-6000W6000*1500mm±0.03mm/m140m/min1500kg8300*2800*1700mm
G6025C III-H6000W-12000W6000*2500mm±0.03mm/m100m/min4700kg8600*3800*1700mm
G12025C III-H6000W-12000W12000*2500mm±0.03mm/m100m/min3200kg15300*3800*1700mm
Industrial Applications

Suitable for processing metal sheets including stainless steel, carbon steel, alloy steel, galvanized steel, titanium, and more. Widely used in elevators, aerospace, instrumentation, and home decoration.

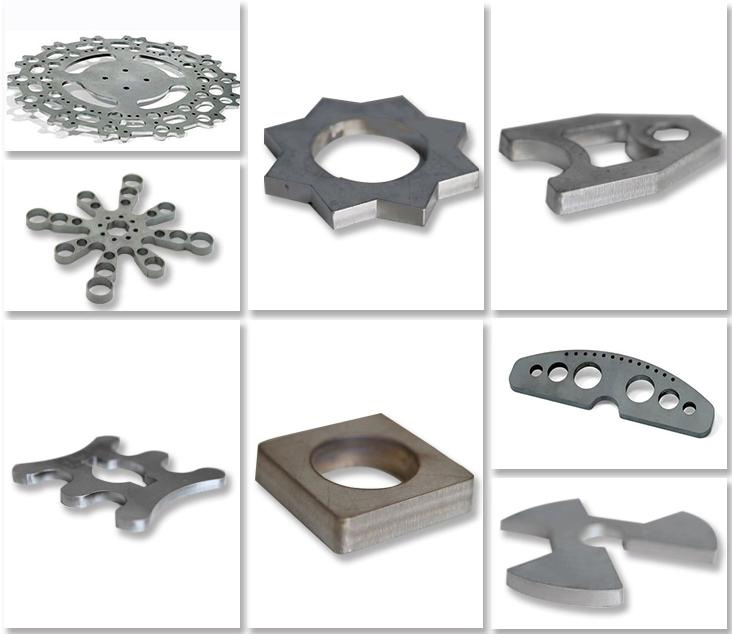

Application Samples

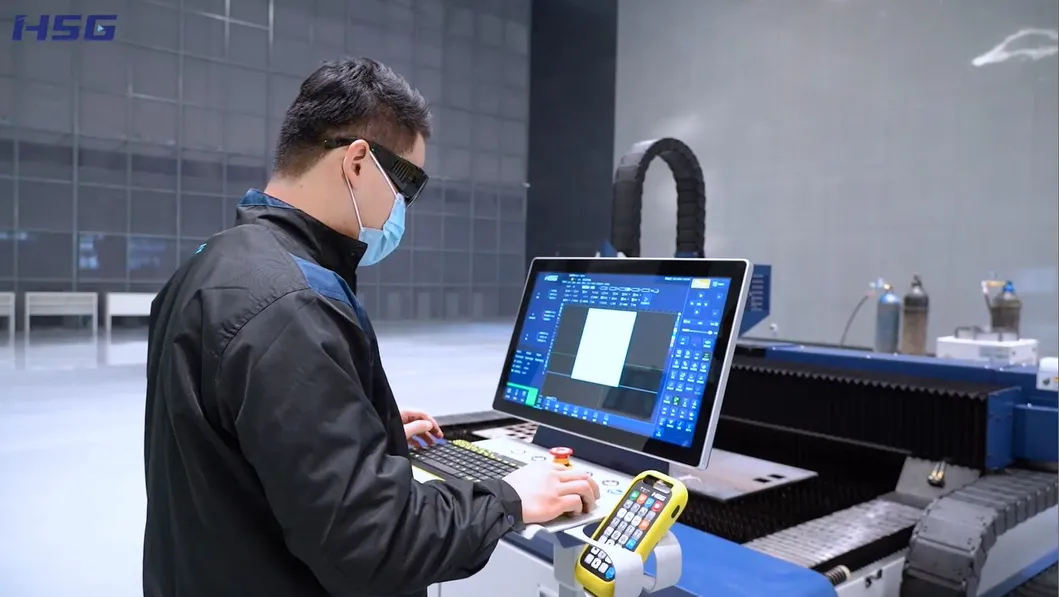

Detail 1

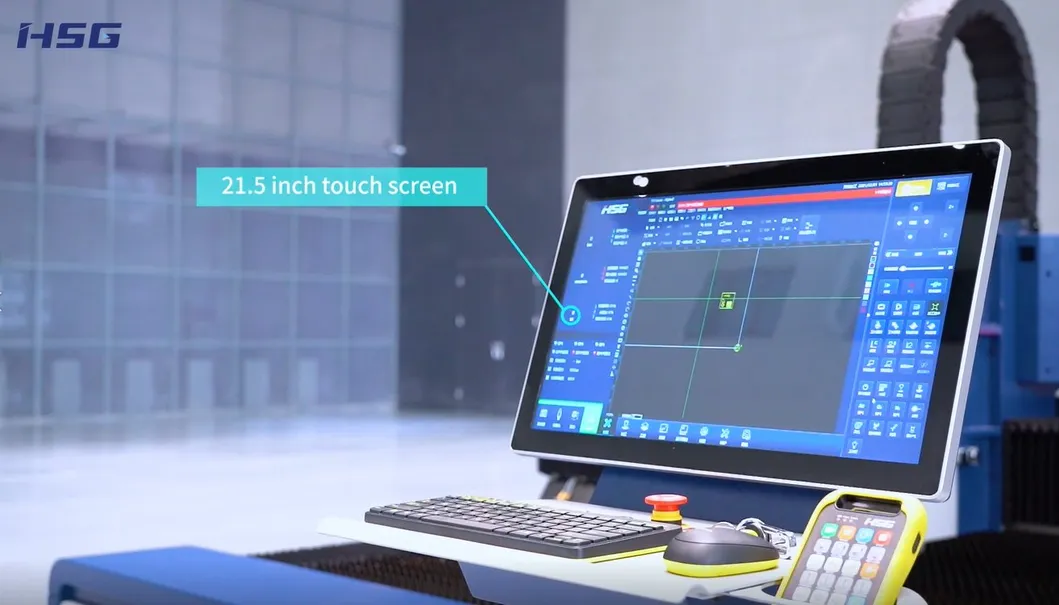

Detail 2
High-End Core Components

Bus CNC System: Network cable data transmission, easy for beginners to operate with 2000+ process data presets.

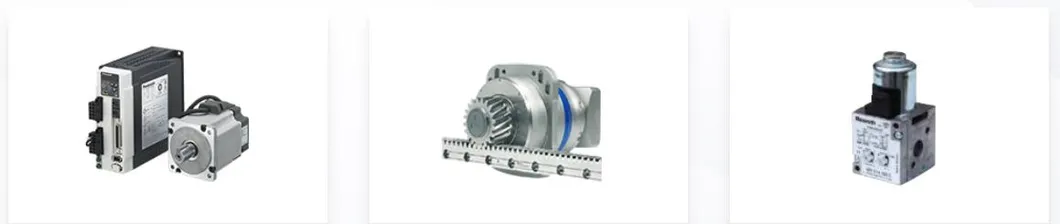

Drive System: Dual servo motors running up to 3750r/min with precision reducers and gear wheels from world-famous brands.

Extruded Aluminum Beam: Honeycomb anti-compression structure made via extrusion molding for maximum agility and strength.

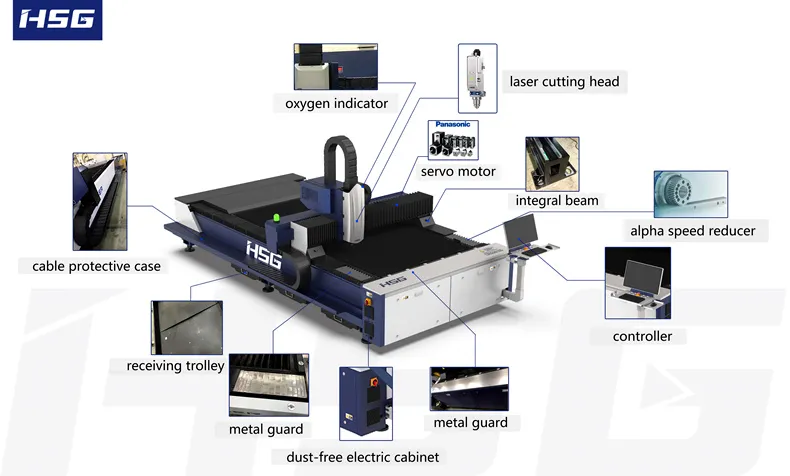

CNC System
Component 1

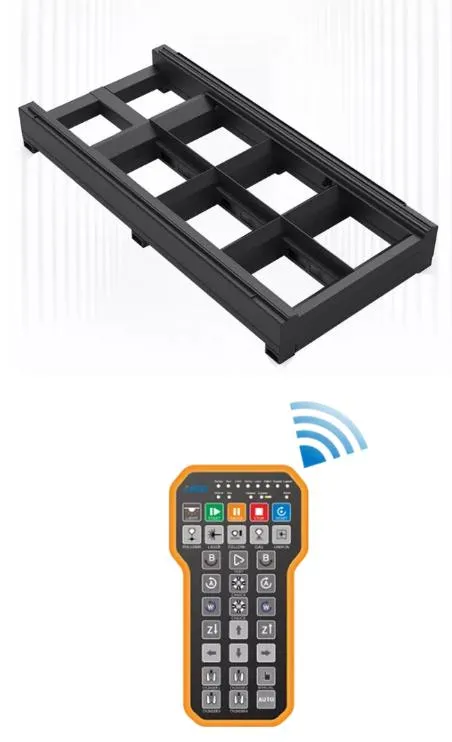

Component 2
Compatible Materials

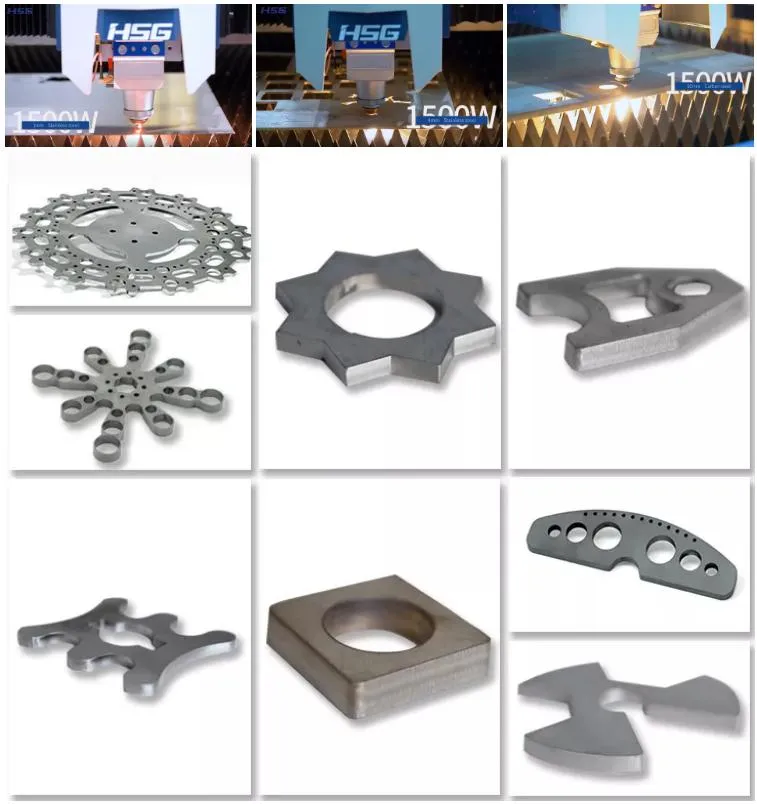

Materials List Materials Thickness
Certifications & Packaging
Certifications

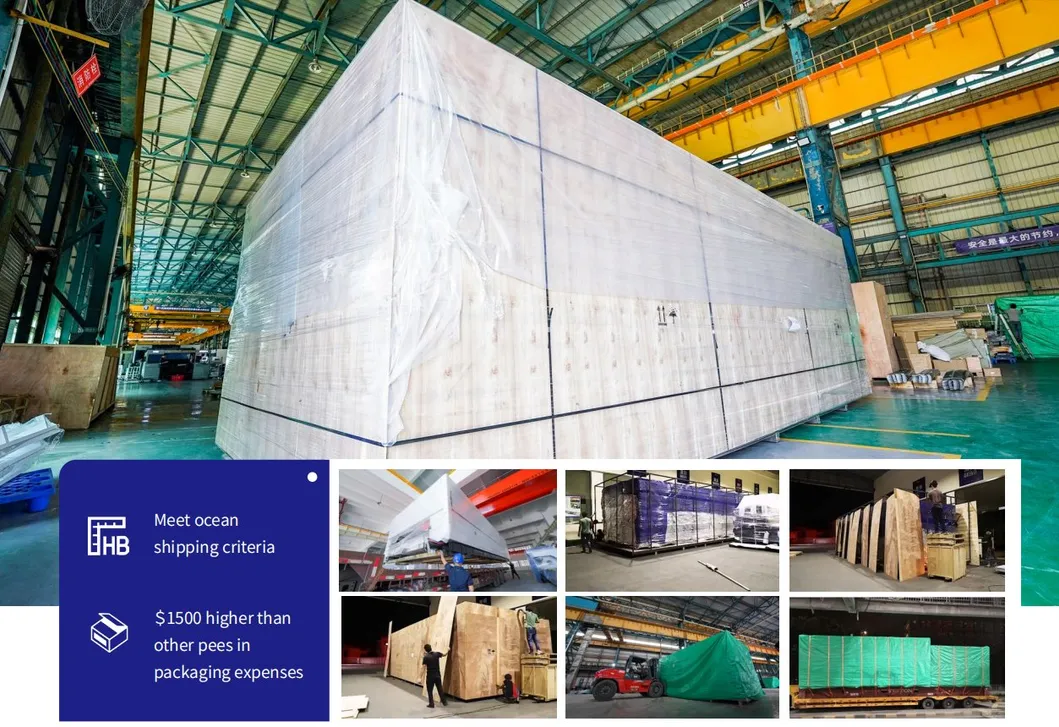

Packaging

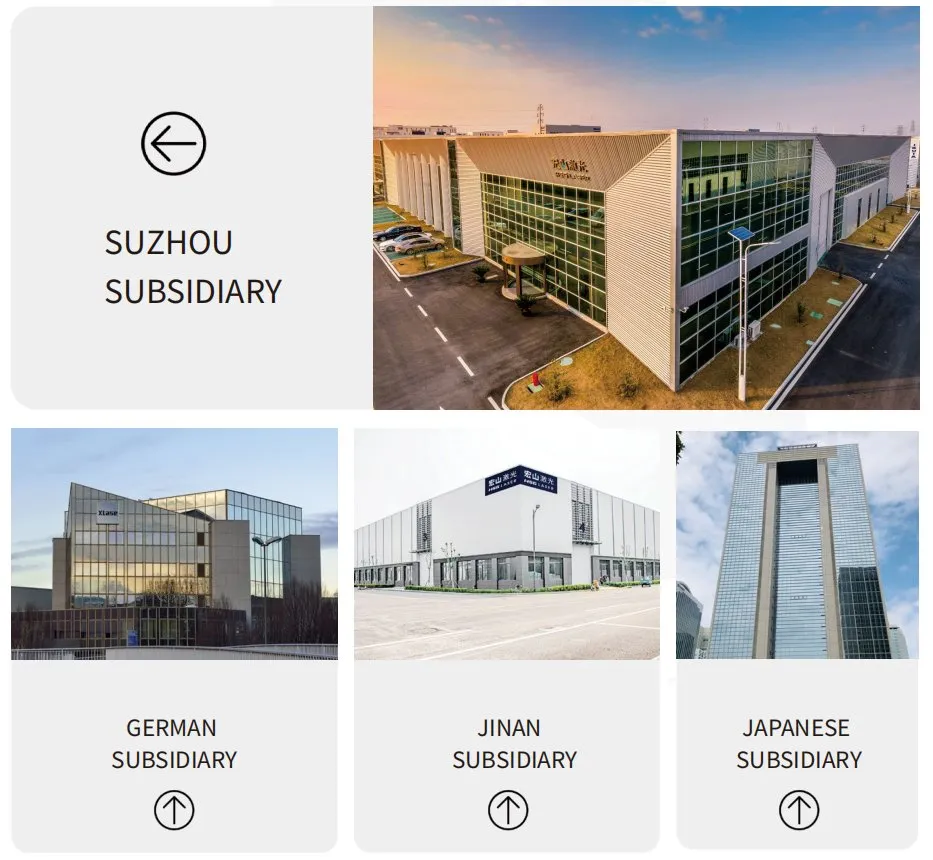

Factory
Frequently Asked Questions
I know nothing about this machine, what kind should I choose?
It's simple. Just let us know the materials you want to cut and your production requirements, and we will provide you with perfect solutions and suggestions.
What specific materials can this fiber laser cut?
Our fiber laser machines are designed to cut various metals including carbon steel, stainless steel, aluminum, brass, and different alloys.
What is the warranty period for the equipment?
We offer a comprehensive 1-year warranty on the machine to ensure your production remains stable.
Is training provided for operation?
Yes, we provide free training for every customer. We promise to support you until your operators are fully comfortable with the machine.
Can I visit the production facility?
Of course. Please contact us in advance, and we will arrange a visit to our factory for you to see the equipment in person.
How is the machine protected during international shipping?
We use high-standard packaging including aluminum foil, metal frameworks, fumigation wooden cases, and anti-rust protection to satisfy ocean shipping criteria.
