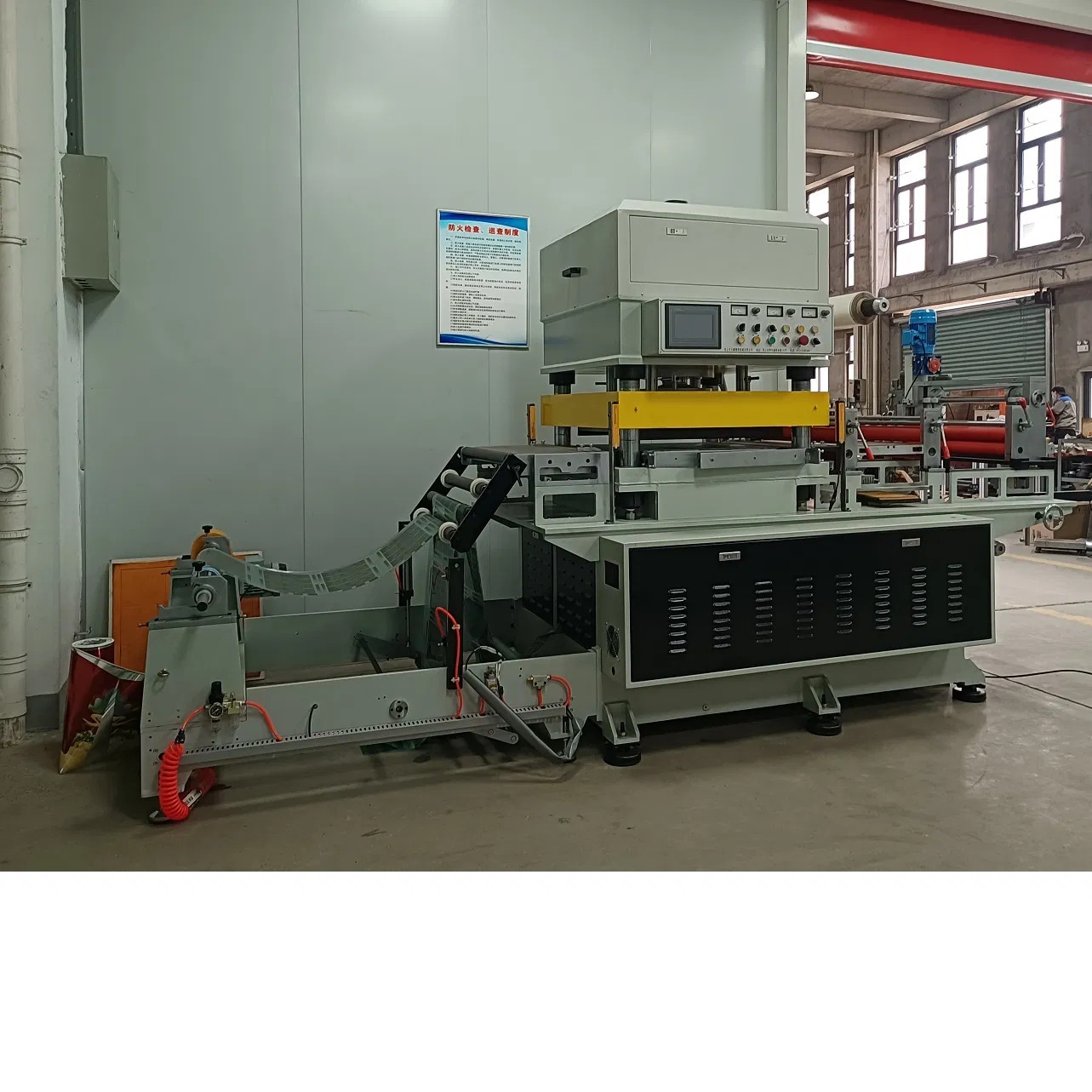

Plastic Roll Cutting Machine Rubber Die Cutting Machine

1 / 5

Plastic Roll Cutting Machine Rubber Die Cutting Machine

Customization:	Available
After-sales Service:	Video Technical Service , Spare Parts Offer Servic
Warranty:	36 Months

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

650J

Species

Die Cutting and Creasing Machine

Imprinting Type

Platen

Placing Form

Horizontal

Cutting Area

650*600mm

Unwinding Width

650mm

Cutting Force

40ton

Precision

0.01mm

Cutting Speed

30 Times Per Minute

Automatic Grade

Automatic

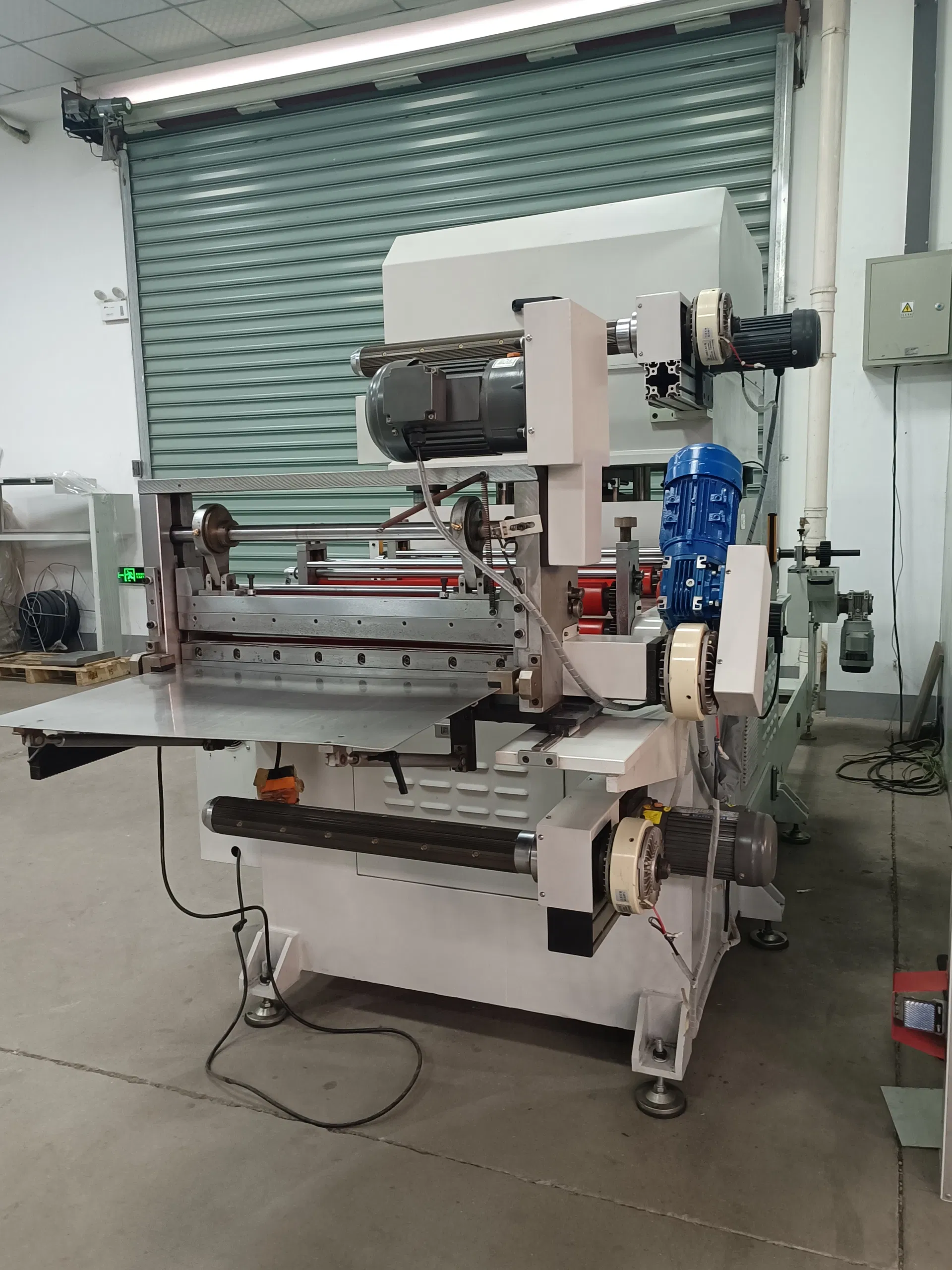

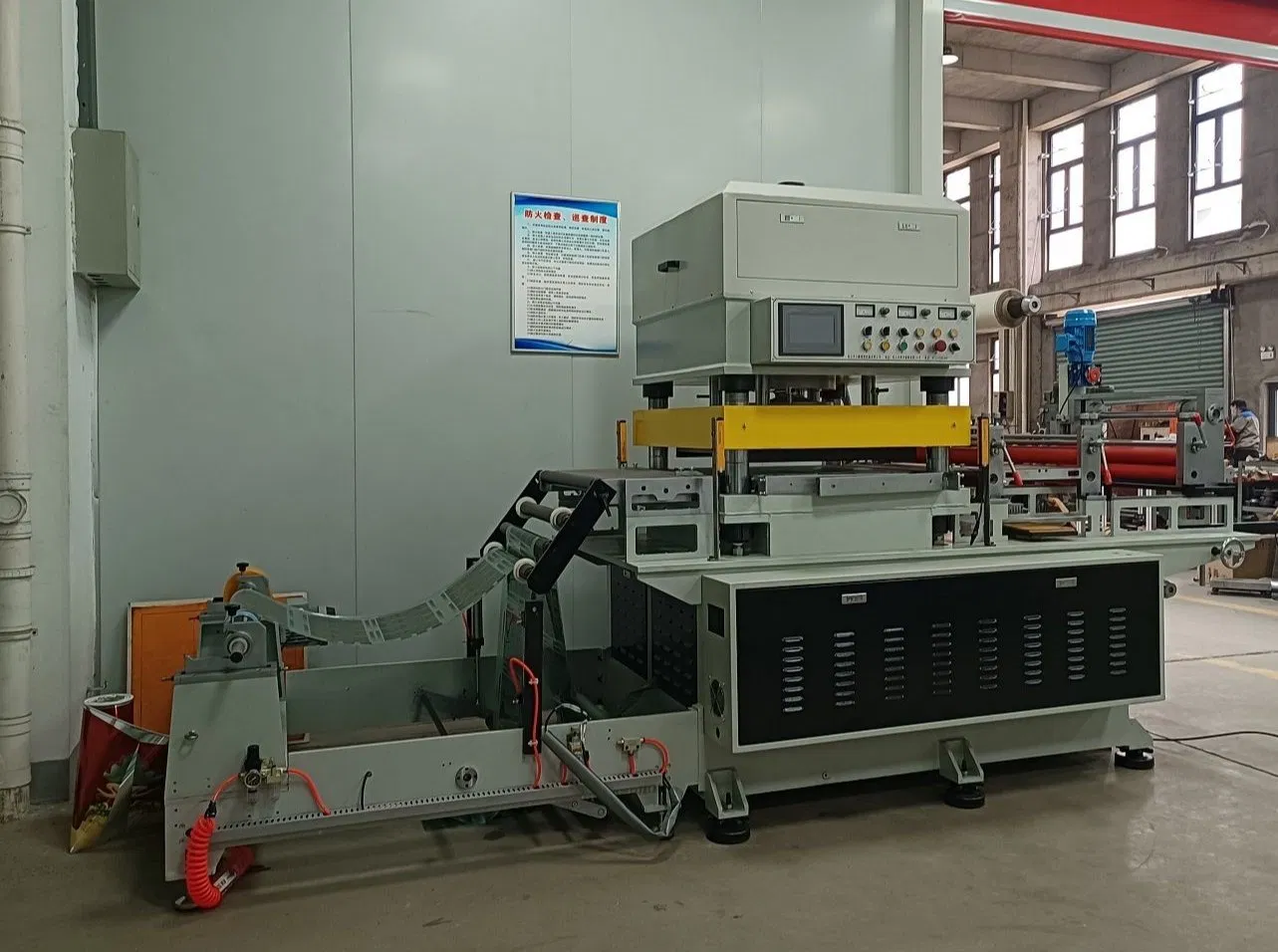

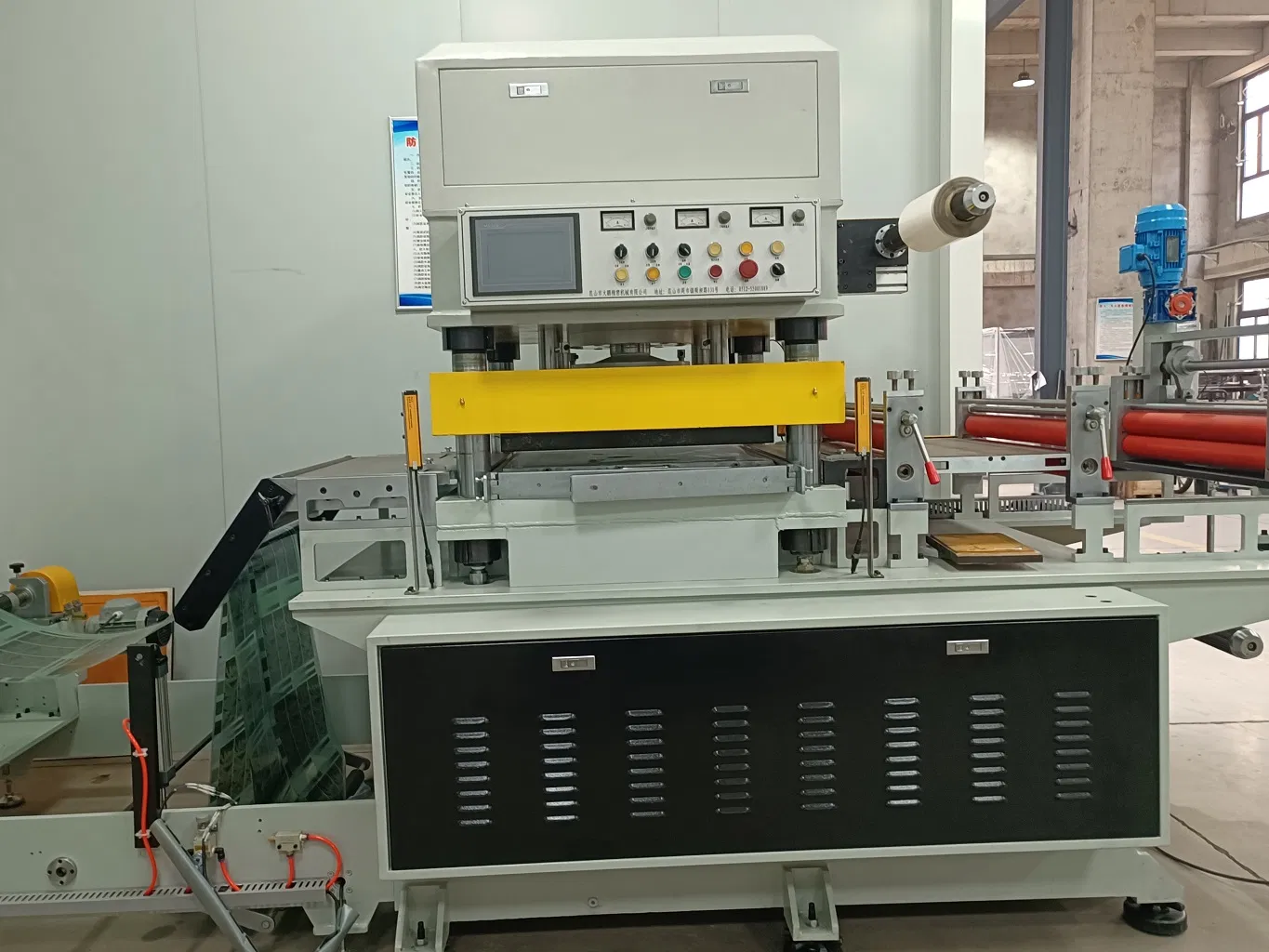

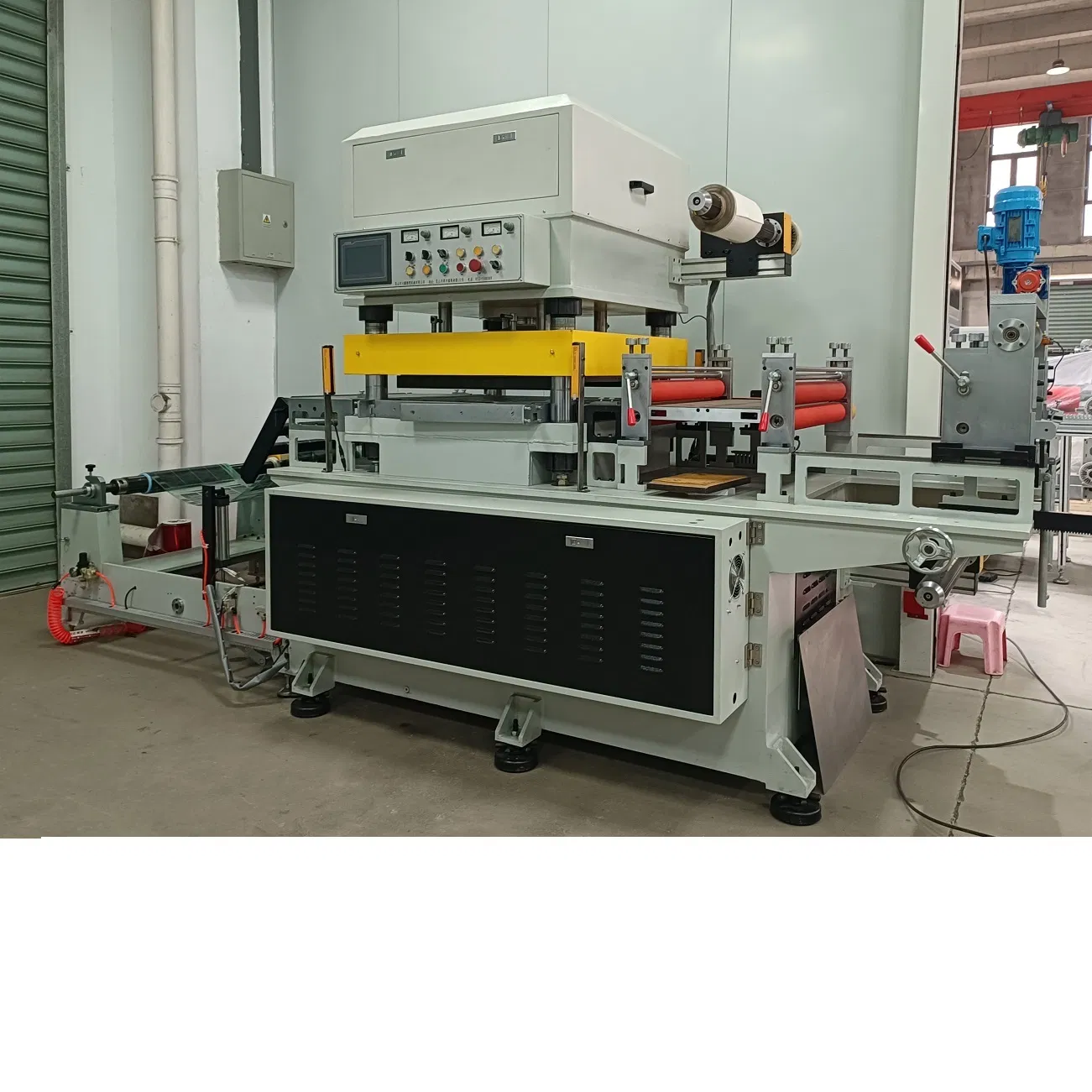

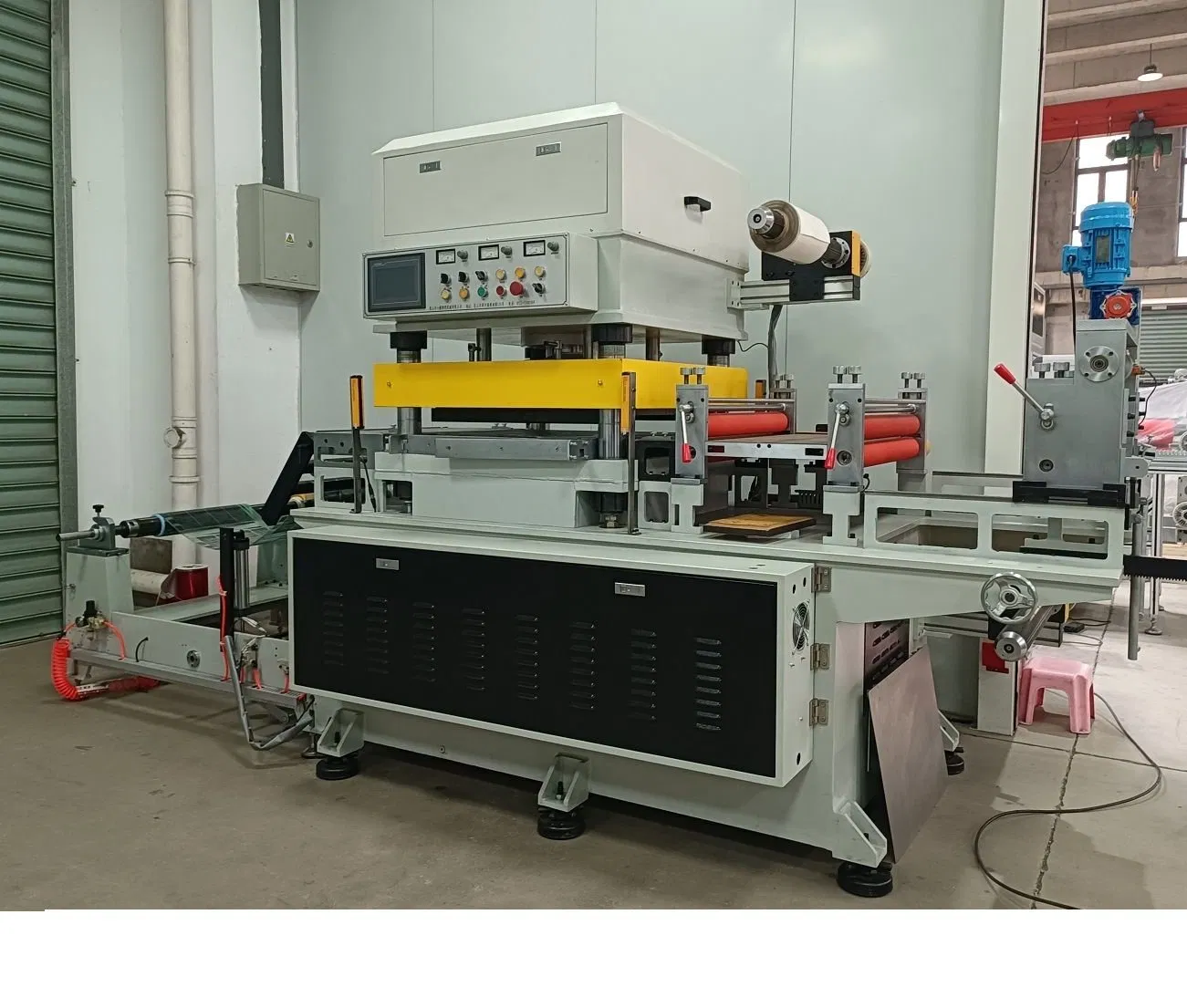

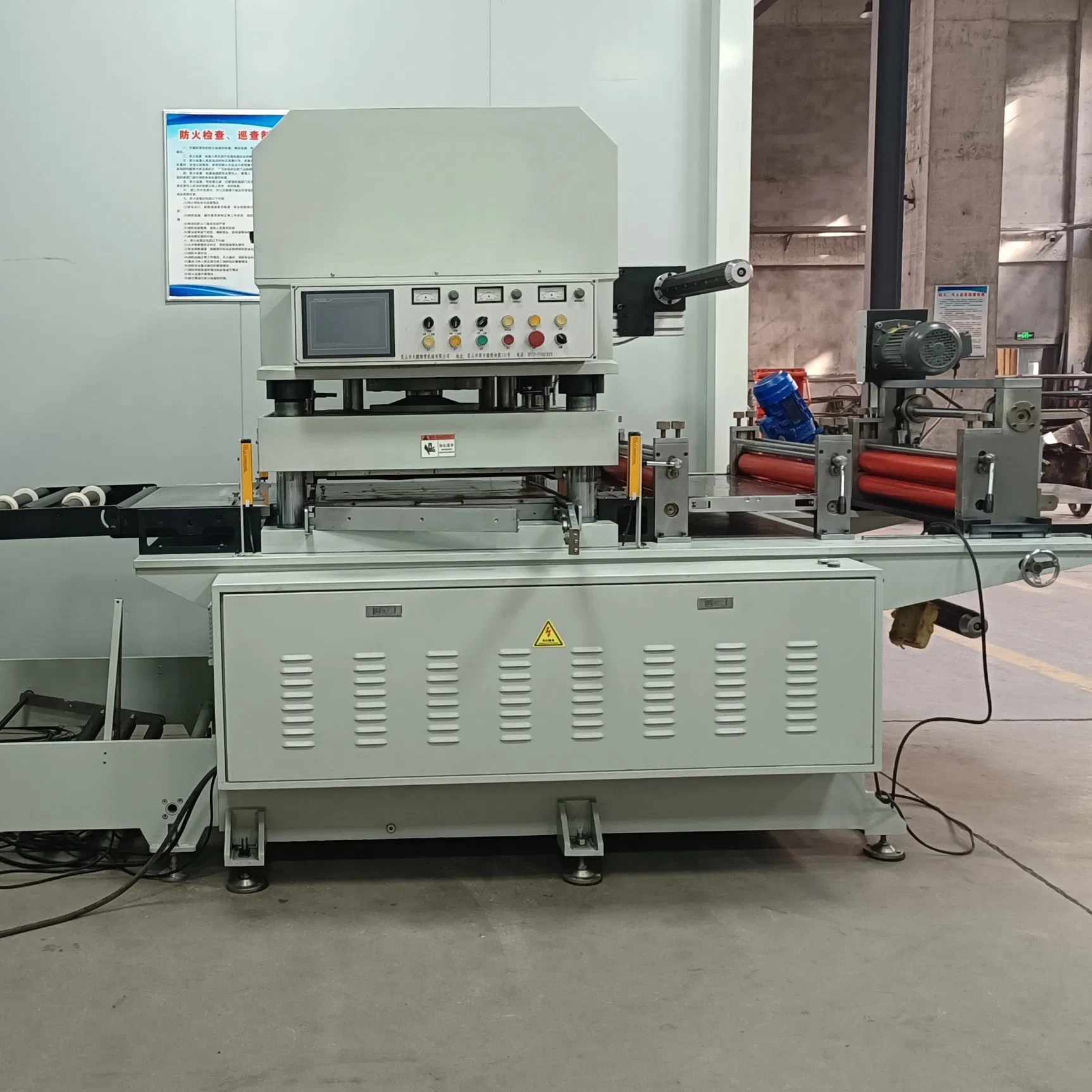

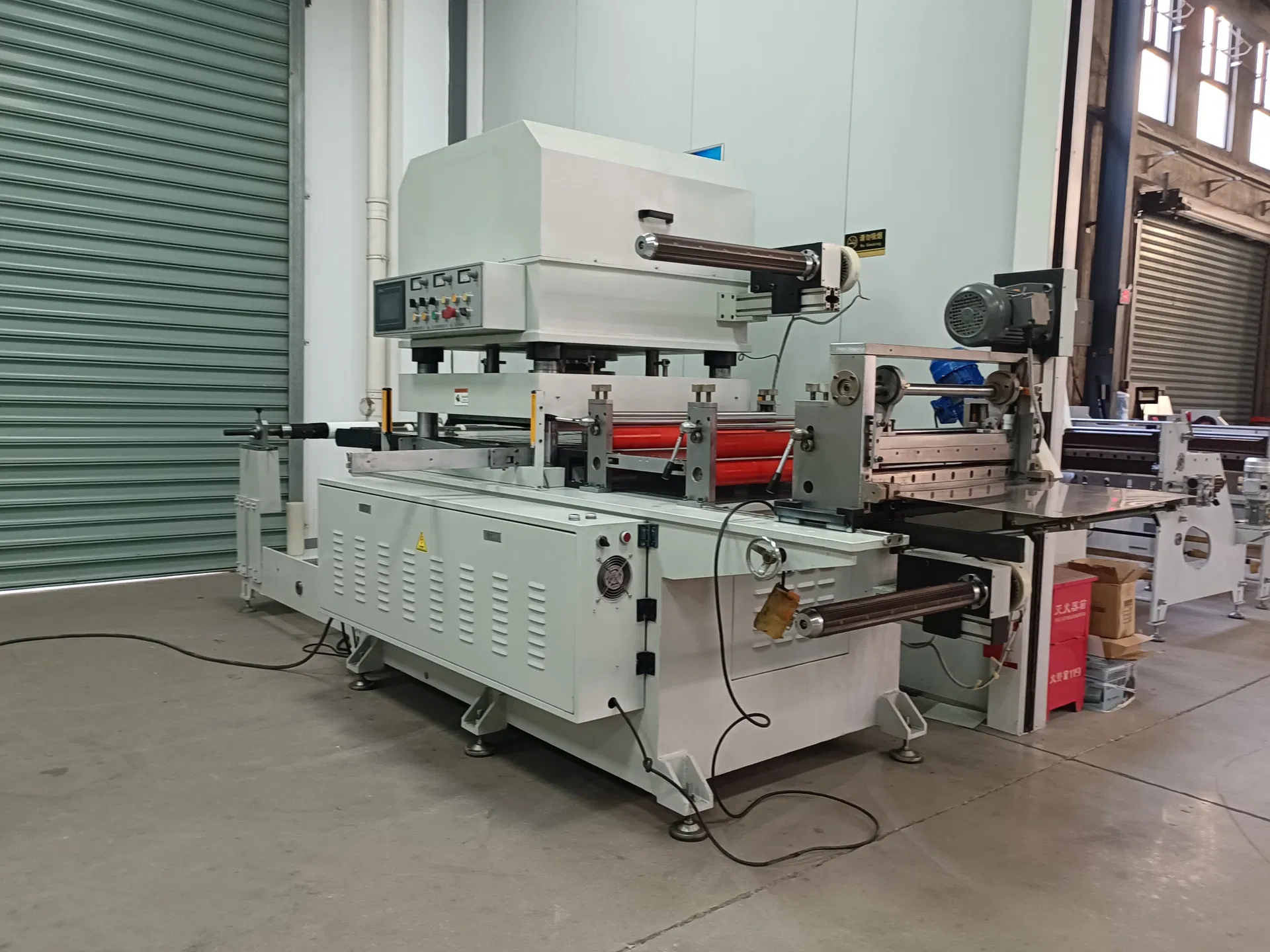

📸 Product Gallery

📊 Technical Specifications

ITEM NO.	Pressure (Ton)	Max Feeding Width (mm)	Cutting Area (mm)	Power (HP)	Voltage	Speed (times/min)
DP-30TA	30	700	700*700mm	11	3 phase AC380V 50HZ	35

🛠️ Premium Configuration

Mitsubishi Servo Motor (Japan)
Mitsubishi PLC Control System
MCGS High-Definition Touch Screen
Taiwan Photoelectric Safety Sensors
Panasonic Pressure Regulating Motor
Automatic Waste Collection Device
Conveyor Belt Take-out System
Remote Access Smart System

🚀 Smart Performance & Precision

Featuring a microcomputer-controlled interface combined with dual servo drives, this system ensures faster, smoother, and more precise operations. The circular slitting with imported cross-cutting knives provides clean edges every time, while the auto-lifting platform handles sheet stacking with zero mess.

🎥 Operation Overview

🎯 Industry Applications

📱

Electronics & Shielding
Ideal for shielding materials, insulating layers, conductive films, and LCD glass processing.

👟

Apparel & Footwear
Precision trimming and shaping for bags, hats, and specialized footwear materials.

📦

Packaging & Plastics
Efficient cutting for nonwoven fabrics, ropes, strips, and various roll-to-sheet requirements.

❓ Frequently Asked Questions

What is the maximum cutting thickness for this equipment?

The machine can handle materials up to 8mm thick, including plastic, silicone, or TPU roll materials.

Why does the hydraulic system operate at a steady pace rather than high speed?

This is a high-tonnage hydraulic machine designed for maximum precision. By minimizing the up and down travel space, you can optimize speed while maintaining the 0.01mm precision required for industrial materials.

What materials can be processed with this die-cutting machine?

It is suitable for paper packaging, stickers, heat insulation materials, insulating sheets, nonwovens, and various plastic or rubber rolls.

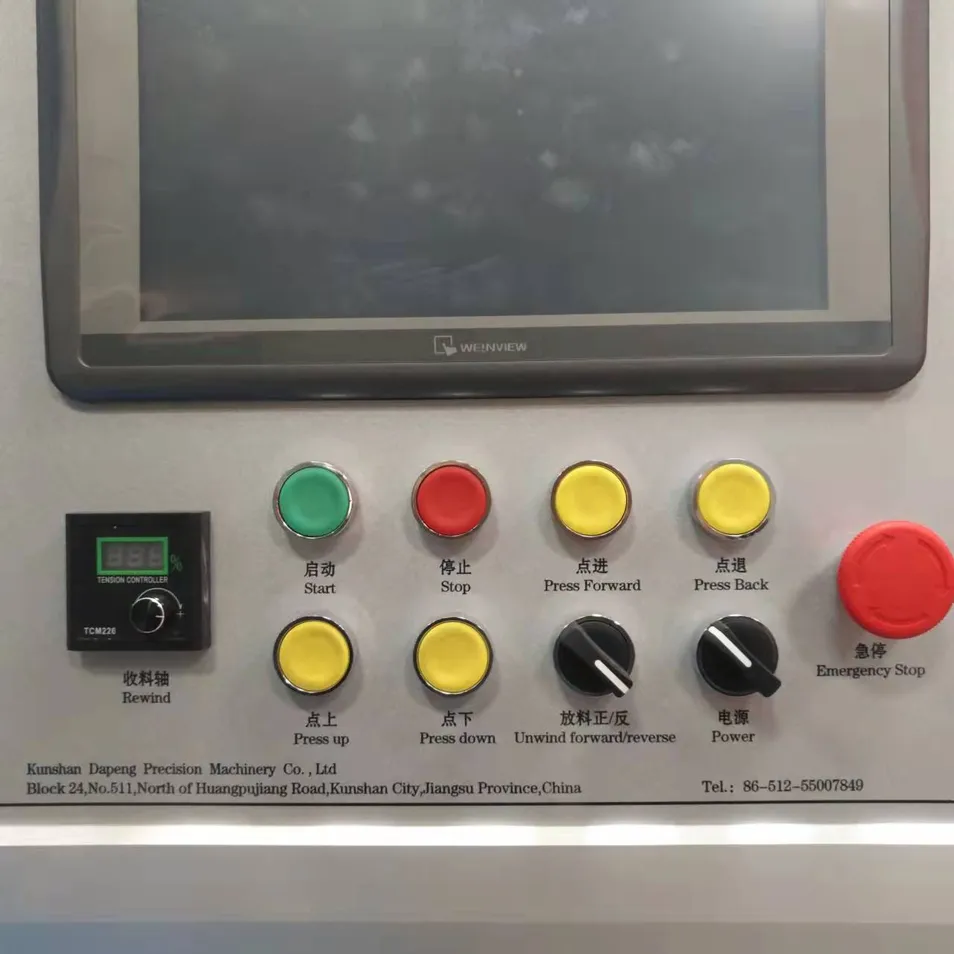

How is the equipment controlled?

The system utilizes a Mitsubishi PLC integrated with a user-friendly MCGS touch screen for smart, automated operation and parameter adjustment.

Does the machine support automatic waste removal?

Yes, it is equipped with an automatic waste collection device and a conveyor belt to facilitate seamless product removal and keep the workspace clean.

Can the machine be customized for specific sizes?

The standard die-cutting area is 650*600mm, but the system is designed to accommodate various non-standard equipment requirements based on specific client material widths.
