Basic Information
Species
Round Applanation Die Cutting Machine
Die Cutting Tool
Laser Die Cut Mold/Wooden Knife Mold/Steel Mold
Control System
Computerized
Packaging & Logistics
Package Size
280.00cm * 162.00cm * 162.00cm
Product Description

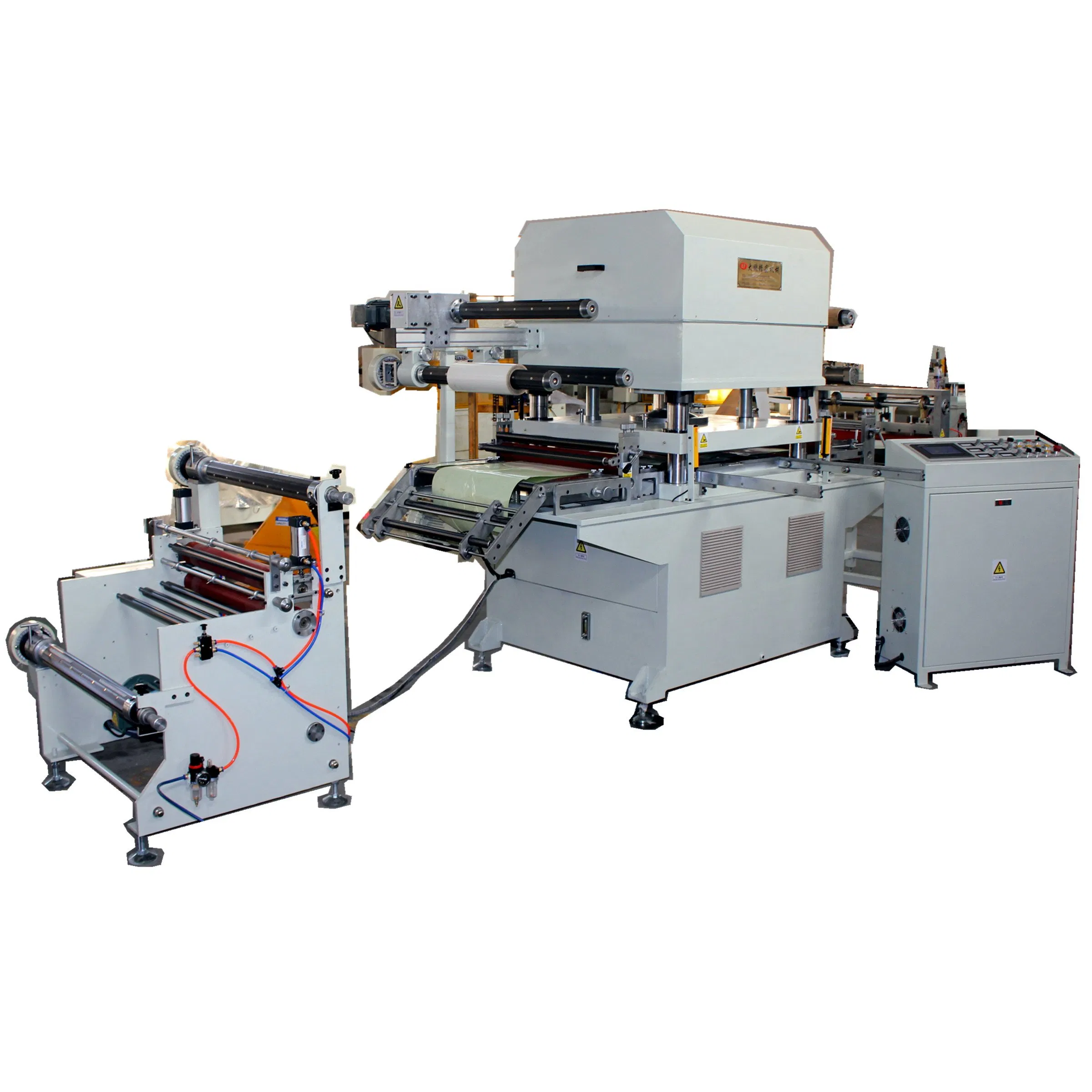

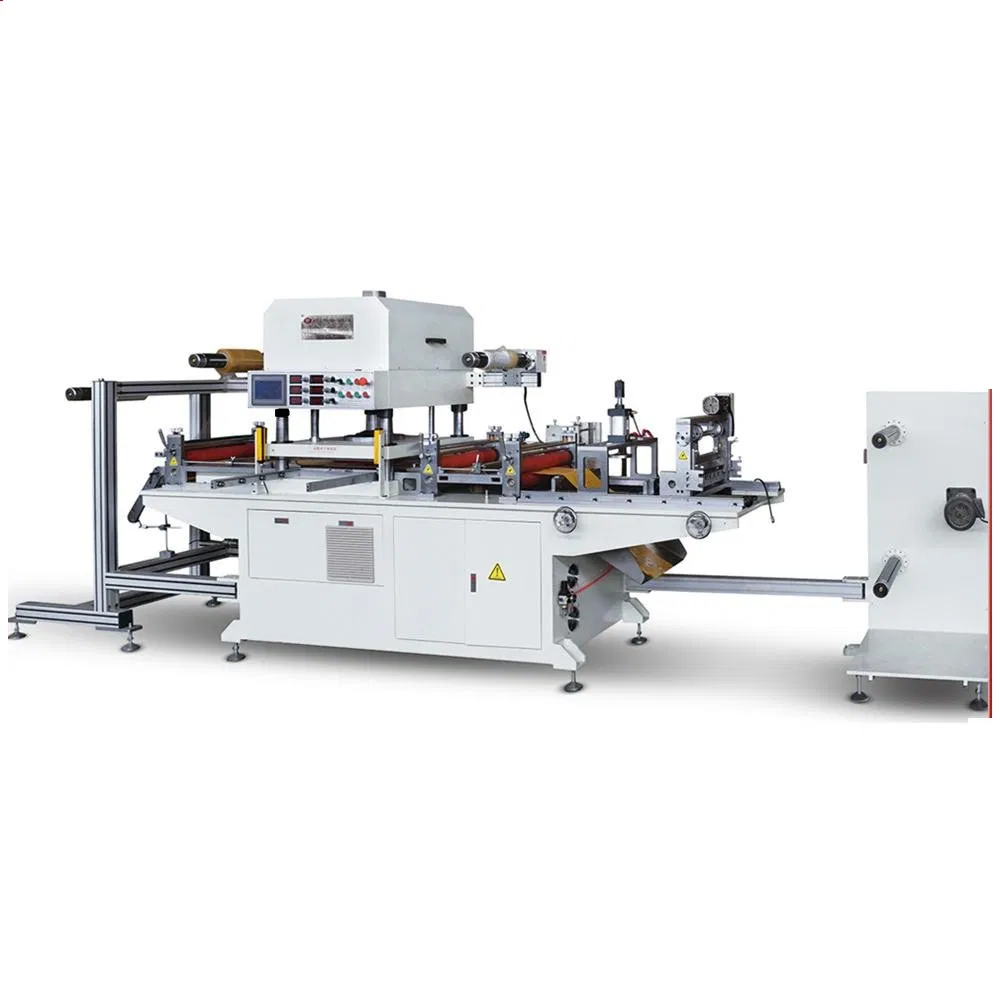

The DP-650MQ is a best-selling high-efficiency hydraulic die cutting machine designed for precision processing of leather, EVA foam, plywood, and various non-metallic materials. This machine integrates a multilayer laminating function, providing a versatile solution for industrial cutting needs.
1
Advanced Control
Adopts world-famous brand PLC and man-machine interface for intuitive operation.
2
Hydraulic System
Quick loop hydraulic system with motor drive for noise reduction and speed stability.
3
Precision Feeding
Imported single-chip microcomputer control ensures accurate precision and simple feed length settings.
4
Safety First
Equipped with infrared safety electric eye systems and multi-function security devices.
Application Scope
- Materials: PVC, fabric, cardboard, rubber, sponge, non-woven materials.
- Industries: Paper packaging, stickers, heat insulation, EMI shielding, and earthquake-proof products.
- Capability: Extremely suitable for cutting multiple layers of material simultaneously to maximize efficiency.
Technical Parameters
| Model |
Working Area |
Max Tonnage |
Max Feeding Width |
Drive Motor |
Weight |
Position Accuracy |
Power |
| DP-650 |
650mm*600mm |
40t |
650mm |
7.5HP/5.5KW |
3 Ton |
±0.01 mm |
380V 50HZ |
| DP-650 |
850mm*600mm |
40t |
850mm |
10HP/7.5KW |
3.4Ton |
±0.01 mm |
380V 50HZ |
| DP-650 |
1000mm*800mm |
80t |
1000mm |
15HP/11.2KW |
4.5Ton |
±0.01 mm |
380V 50HZ |

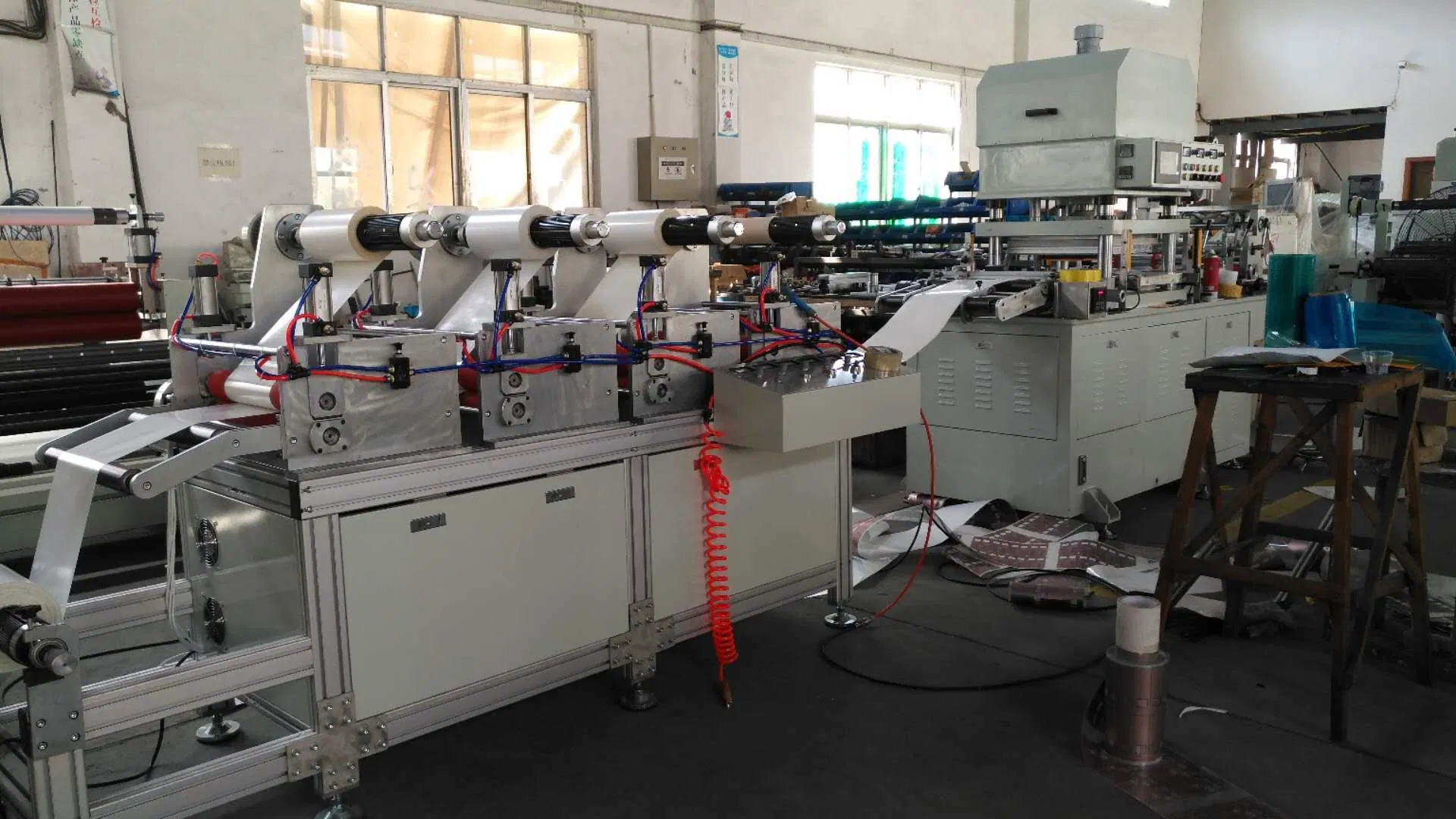

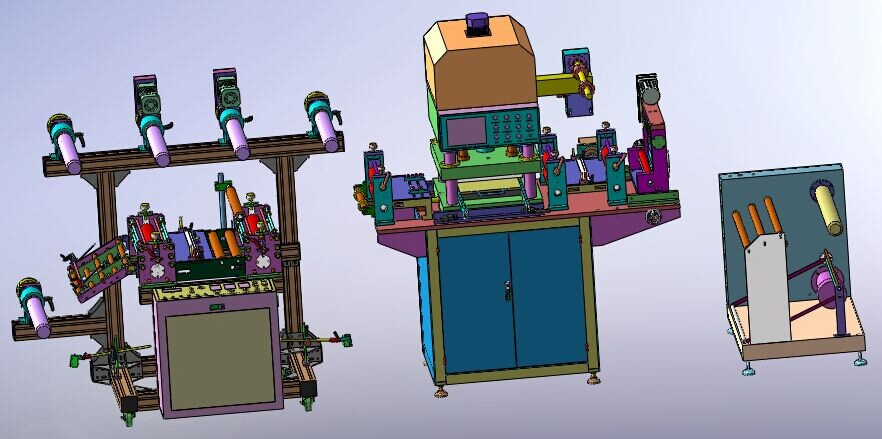

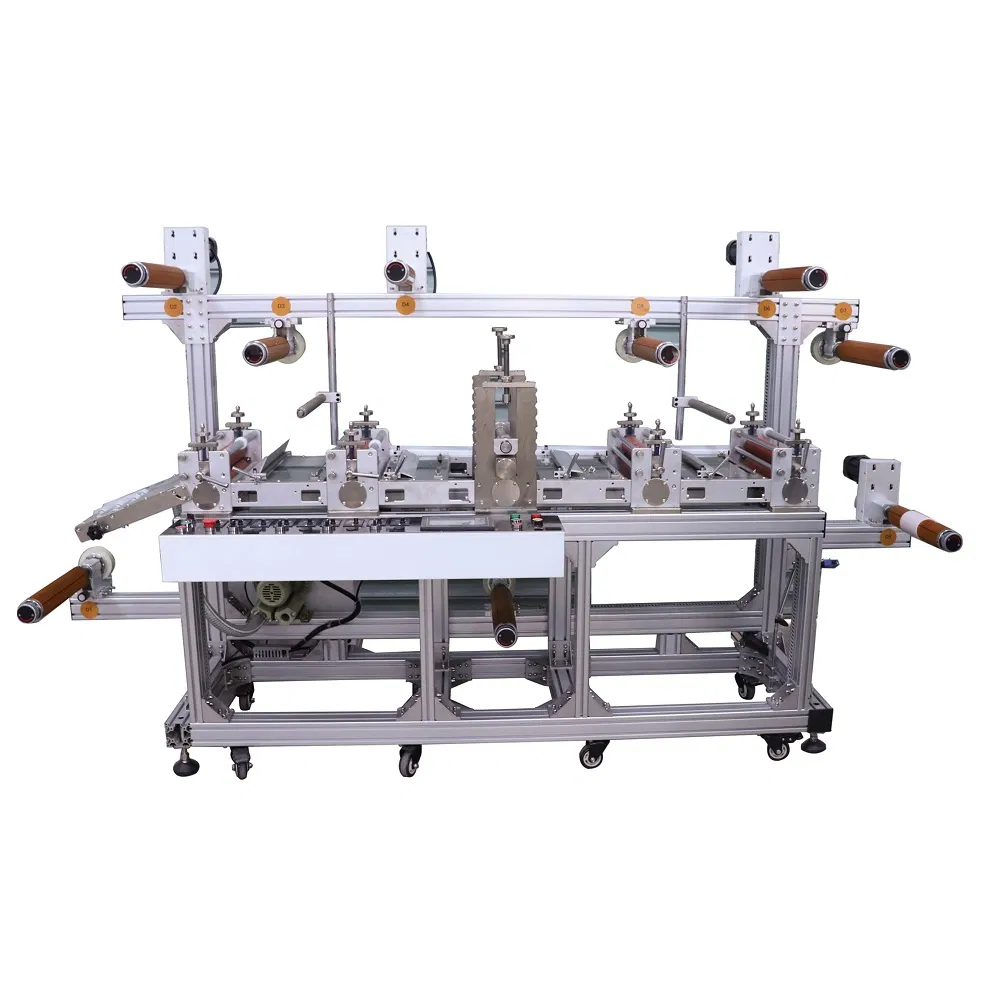

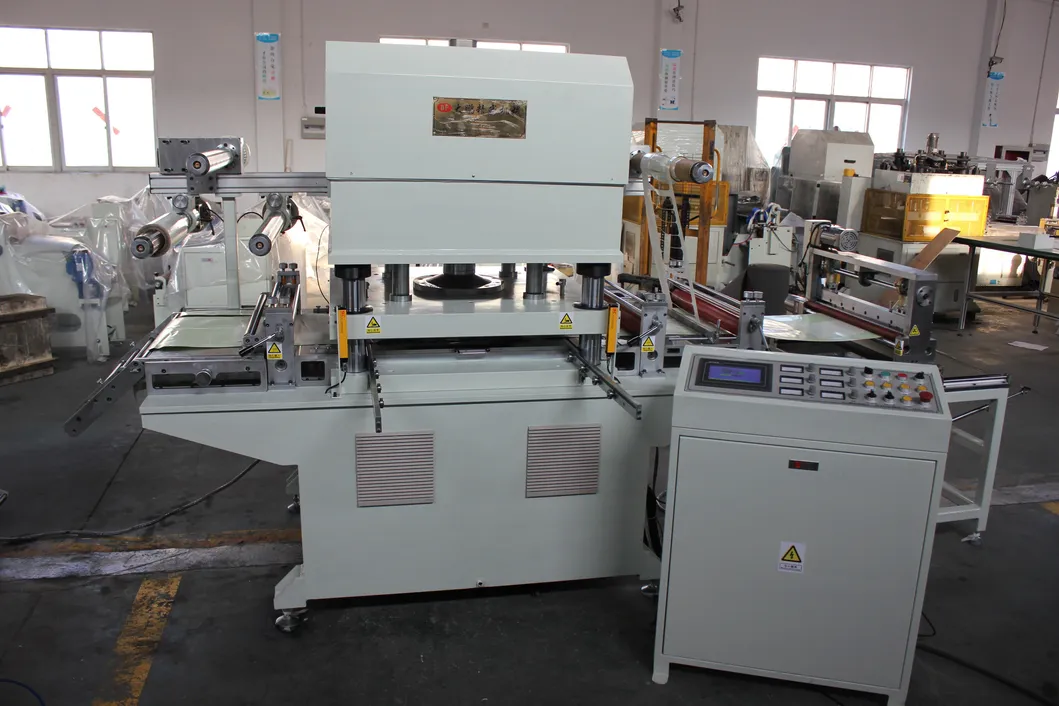

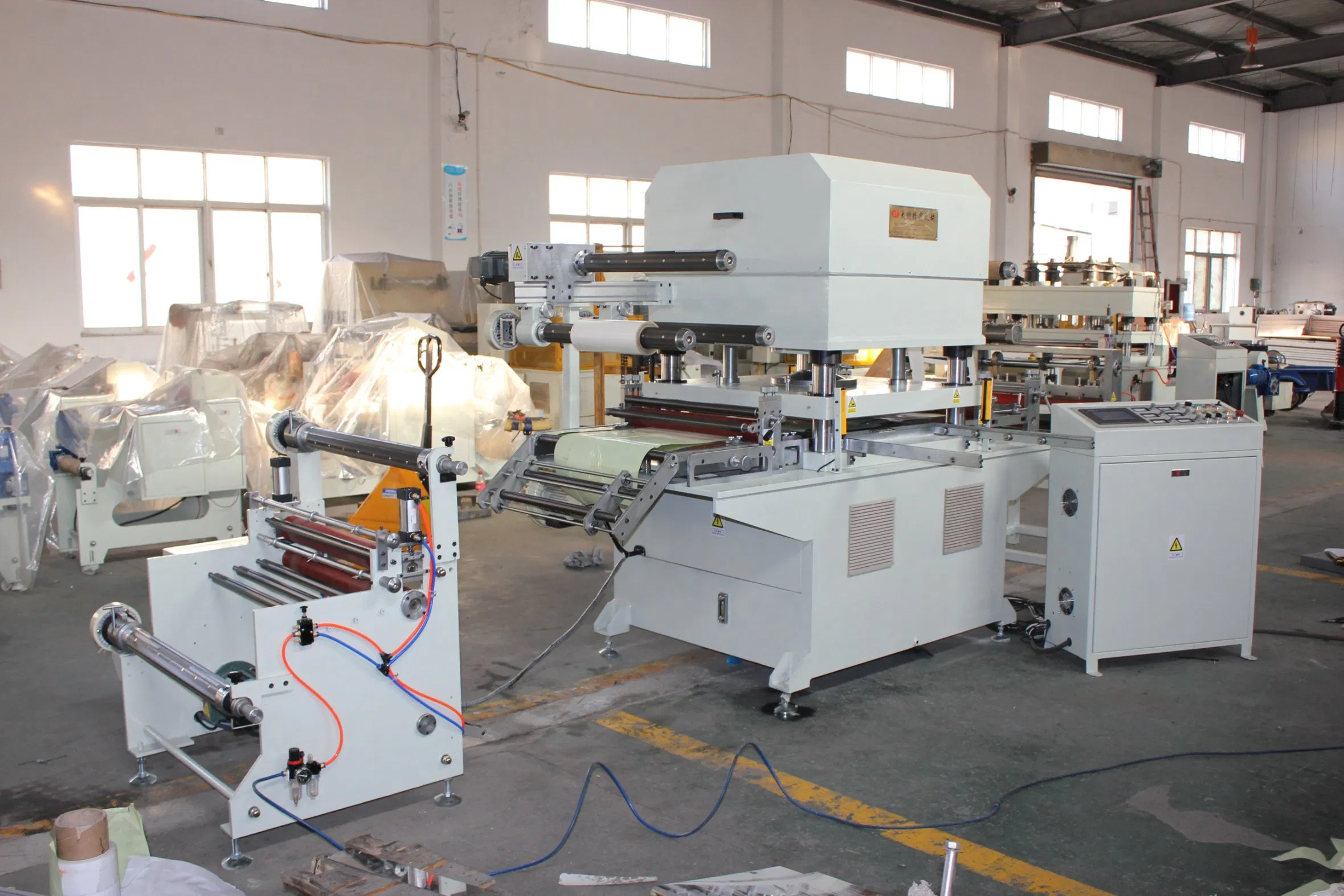

Product Display

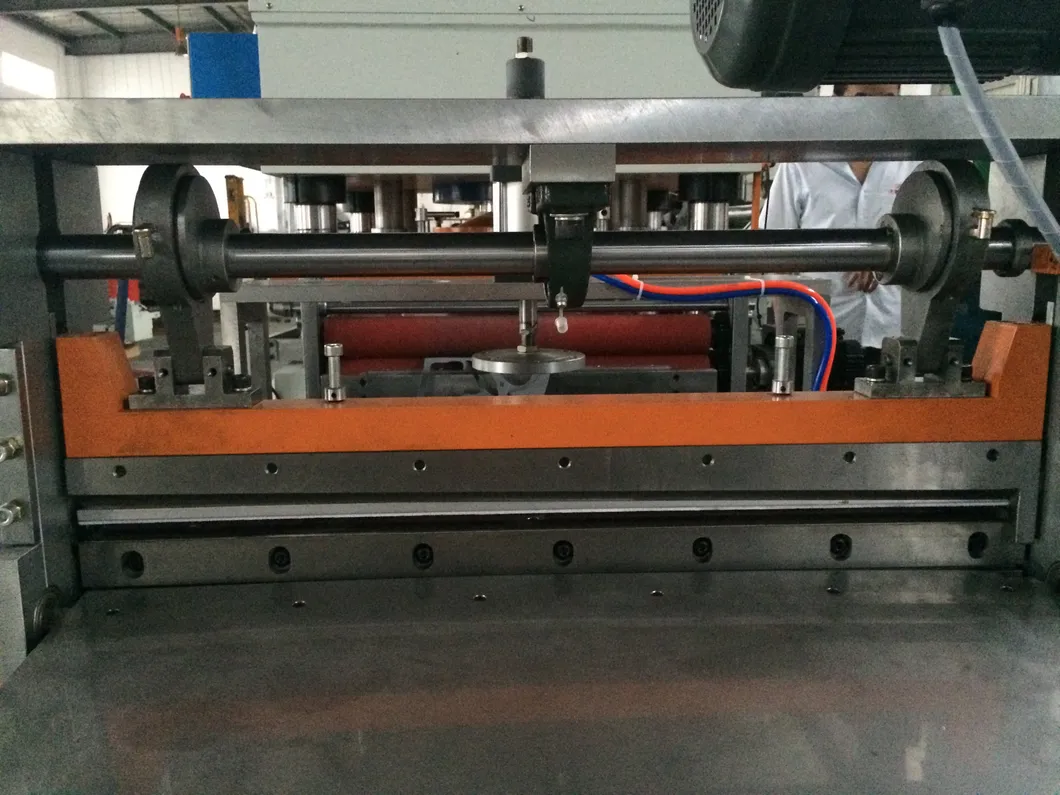

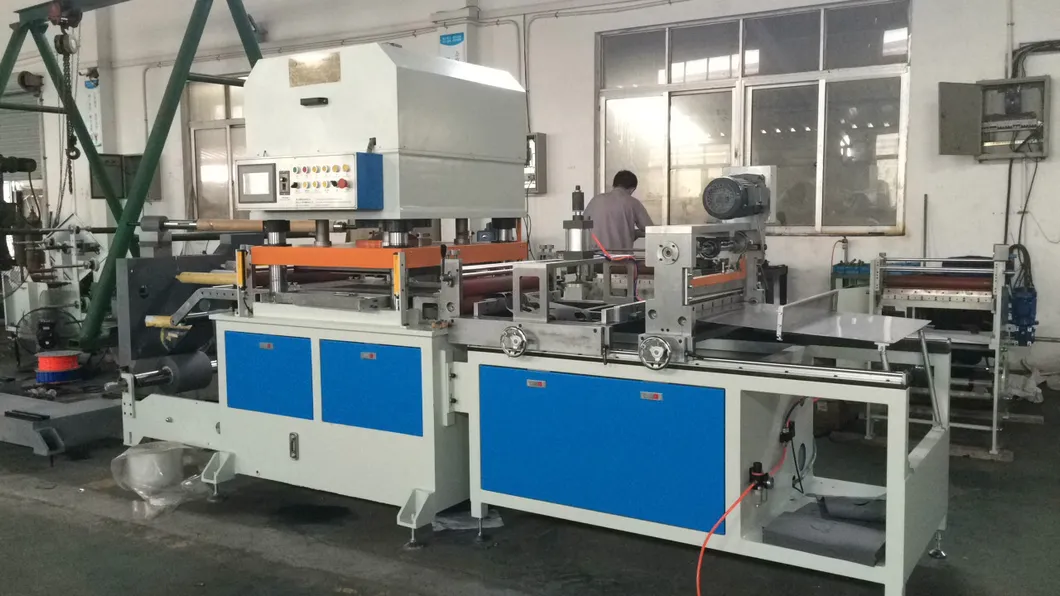

Processing Samples
Frequently Asked Questions
What materials can this machine cut?
It is designed for non-metallic materials including PVC, fabric, leather, EVA foam, cardboard, rubber, sponge, and various insulating or EMI shielding materials.
How accurate is the feeding and cutting process?
The machine features a high-precision feeding system controlled by a single-chip microcomputer, achieving a position accuracy of ±0.01 mm.
Is it suitable for high-volume production?
Yes, the automatic feeding system is 3-4 times more efficient than general presses, making it ideal for large-scale industrial applications while saving labor costs.
What safety measures are integrated into the machine?
The machine includes an infrared safety electric eye system and multiple multi-function security devices to ensure operator safety during high-pressure operations.
Does the machine support multi-layer cutting?
Absolutely. It is extremely suitable for cutting multiple layers of material at one time, significantly increasing throughput for non-metallic parts.
What are the power and installation requirements?
The machine typically requires a 380V 50HZ power supply. It is shipped in a robust wooden case and weighs between 3 to 4.5 tons depending on the specific model configuration.
