Automatic Flatbed Hydraulic Die Cutting Machine for Chromo Labels, Product Labels

1 / 5

Automatic Flatbed Hydraulic Die Cutting Machine for Chromo Labels, Product Labels

Customization:	Available
After-sales Service:	Video Technical Service , Spare Parts Offer Servic
Warranty:	12 Month

Send Inquiry

Product Description

ℹ️

Basic Specifications

Species

Die Cutting and Creasing Machine

Imprinting Type

Platen

Placing Form

Horizontal

Die Cutting Tool

Metal Mould or Wood Laser Mold

Computerized

Yes

Automatic Grade

Automatic

Application

Paper Packaging, Stickers, Insulation, EMI Shielding

Size

800X800mm

Driven Type

Hydraulic and Electric

Driven System

Servo Motor

Power

40 Ton - 100 Ton

HS Code

844110000

⚙️

Product Overview

Automatic Die Cutter: Specially designed for Induction Cap Seal Liners, Hung Tabs, and Foam Tape die cutting.

Functional Characteristics: Features an imported motor combined with a static eliminator for optimal sheet receiving. The system integrates feeding, filming, die cutting, waste draining, slitting, and rolling into a single computer-controlled operation.

Scope of Application

Applicable for various insulating materials such as electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, foam, and more.

Core Features

Four columns Fixing Settings System for maximum stability.
Air Cold Pressing Settings System.
Oil temperature cooling device and intuitive touch screen interface.
High-precision abrasive steel plates for both semi-die and full-die cutting.
Advanced options: Hot Air Leveling, EPC & LPC control, Light sensor, or CCD counterpoint cutter.

📊

Precision & Performance

Electronic Positioning: Precision control within 0.01 to 0.03 mm.
Stable Operation: Shockproof board installed at the under-chassis ensures reliability.
Intelligent Control: PLC + man-machine programming with integrated oil system and photoelectric protection.
Versatile Processing: Ideal for aluminum foil, PET, protective film, and precision components.
Speed: High-efficiency output reaching 20-90 punches per minute.

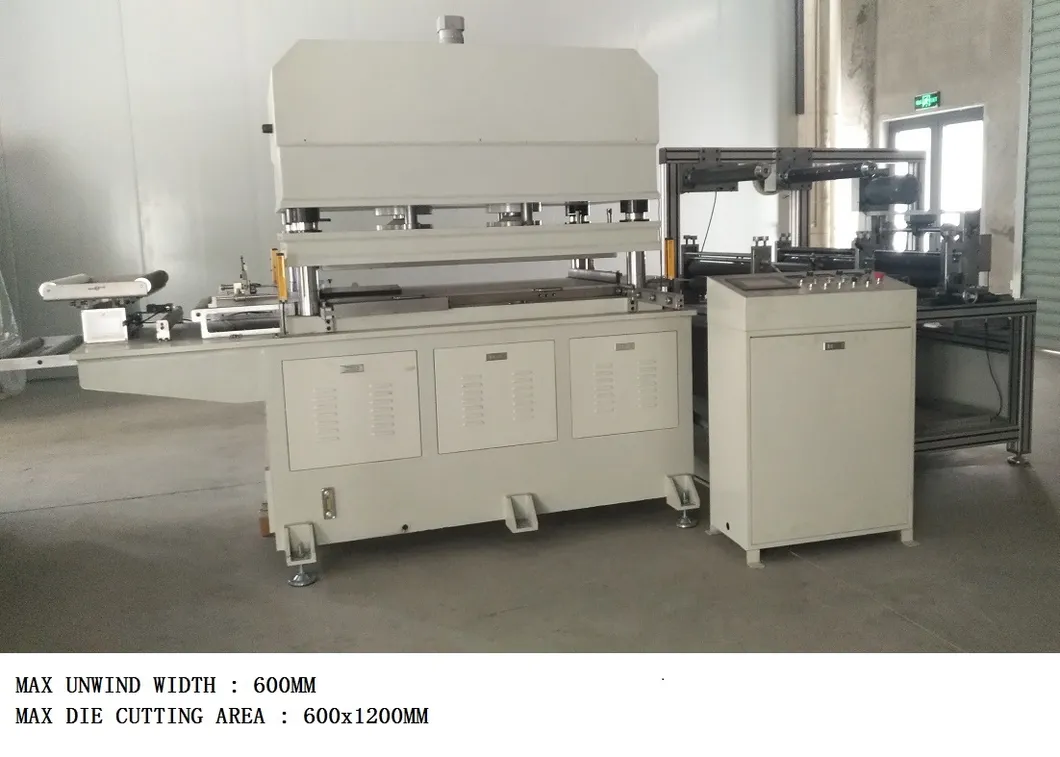

Automatic Flatbed Hydraulic Die Cutting Machine 1

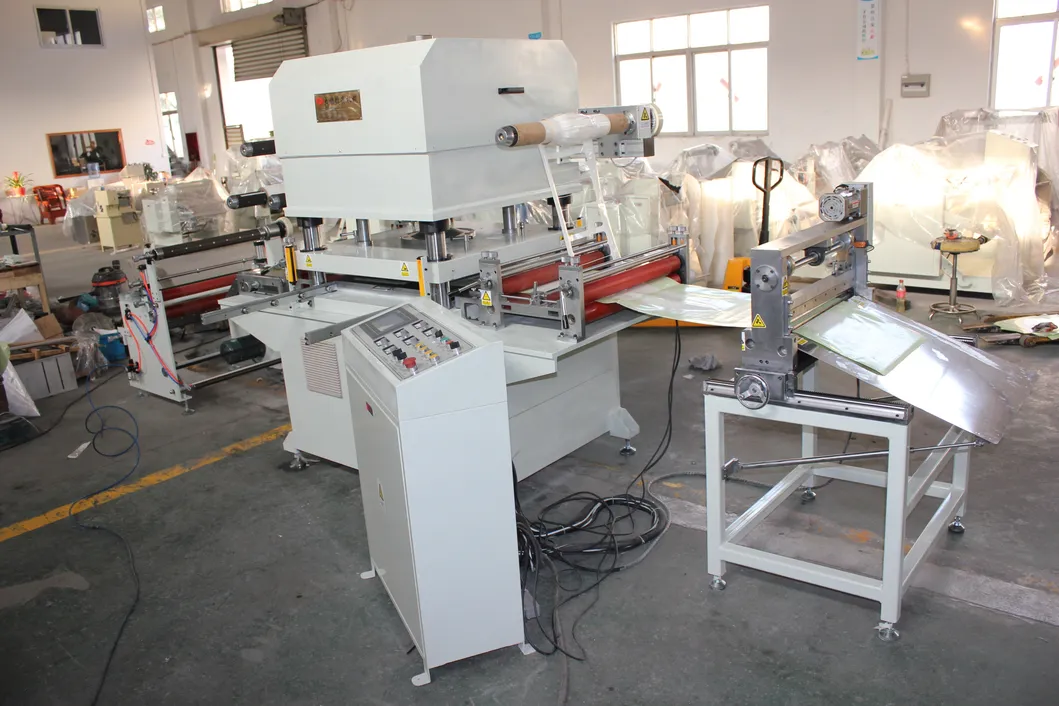

Automatic Flatbed Hydraulic Die Cutting Machine 2

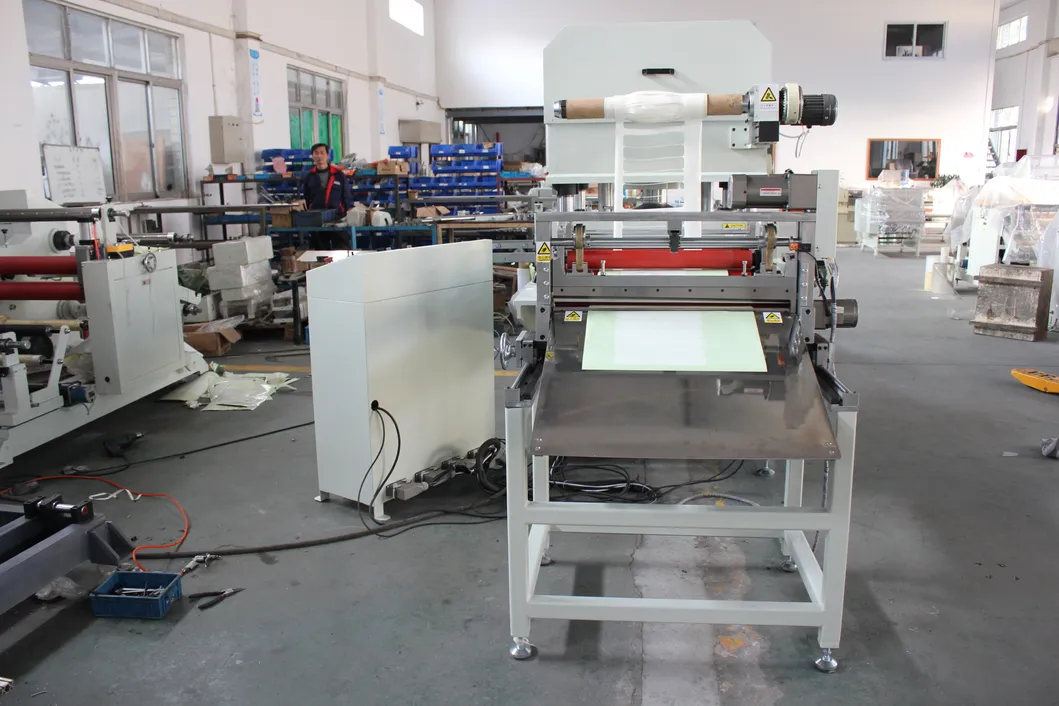

Automatic Flatbed Hydraulic Die Cutting Machine 3

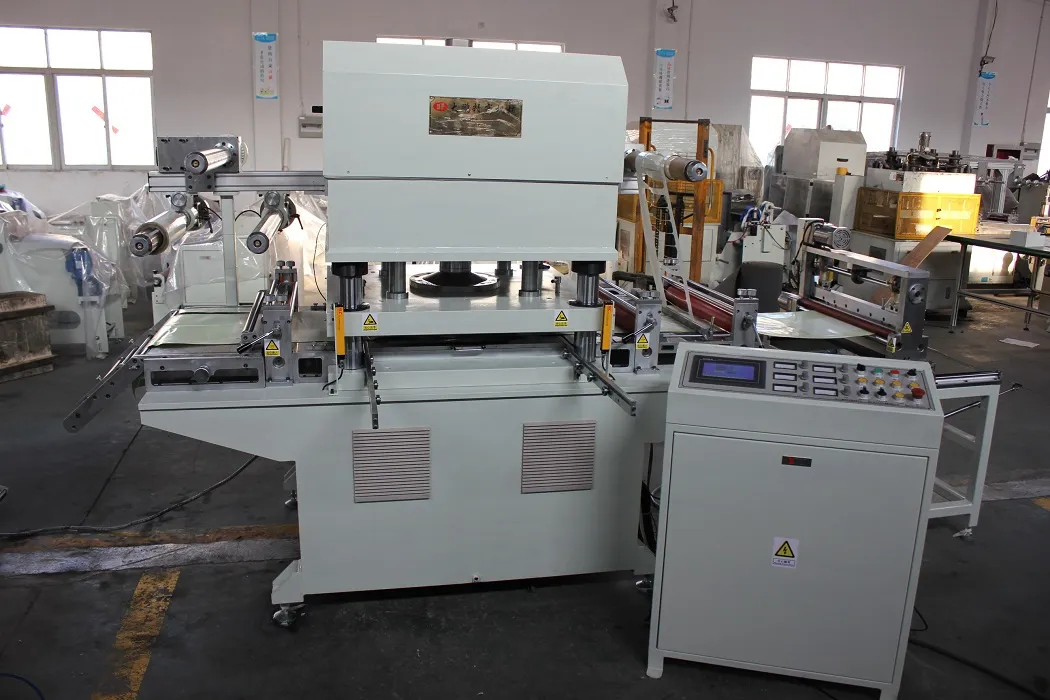

Automatic Flatbed Hydraulic Die Cutting Machine 4

📋

Technical Parameters

Model	Working Area	Max Tonnage	Max Feeding Width	Drive Motor	Weight	Position Accuracy
DP-650	650mm*600mm	40t	650mm	7.5HP/5.5KW	3 Ton	±0.01 mm
DP-650 (Extended)	850mm*600mm	40t	850mm	10HP/7.5KW	3.4Ton	±0.01 mm
DP-650 (Heavy)	1000mm*800mm	80t	1000mm	15HP/11.2KW	4.5Ton	±0.01 mm

❓

Frequently Asked Questions

1. What materials can this die cutting machine process?

The machine is versatile and can handle PVC, film, Mylar, copper foil, aluminum foil, foam, and various insulating or electronic shield materials.

2. What is the precision level of the positioning system?

The electronic positioning system offers high accuracy, with precision controlled between 0.01 to 0.03 mm.

3. Can it perform both kiss-cutting and through-cutting?

Yes, the machine is designed to perform both kiss-cutting (semi-die cut) and through-cutting (full-die cut) using high-precision steel plates.

4. What is the production speed of the automatic die cutter?

Depending on the material and complexity, the machine can reach a cutting speed of 20 to 90 punches per minute.

5. Does the machine include safety and protection features?

Yes, it features a PLC + man-machine automatic programming control system and integrated photoelectric protection for operator safety.

6. Is the machine stable during high-speed operation?

Absolutely. The machine is equipped with an anti-vibration shockproof board at the under-chassis, ensuring the body remains stable and reliable during use.
